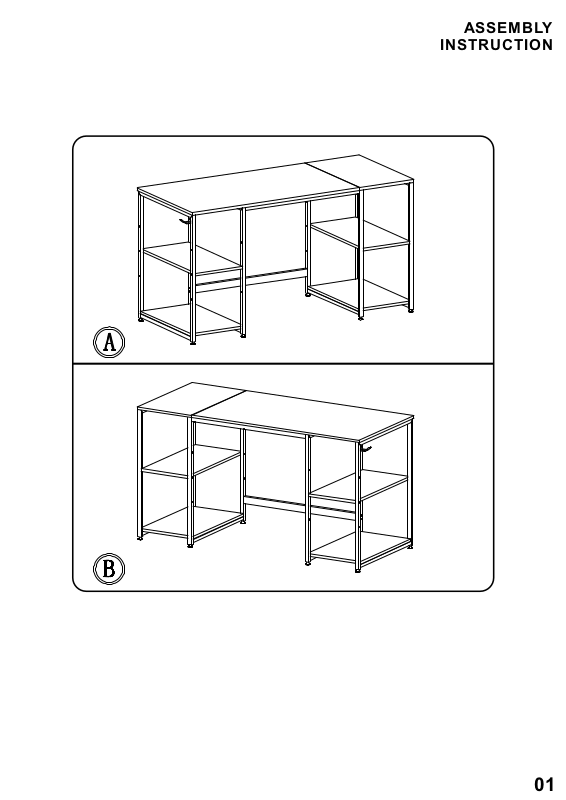

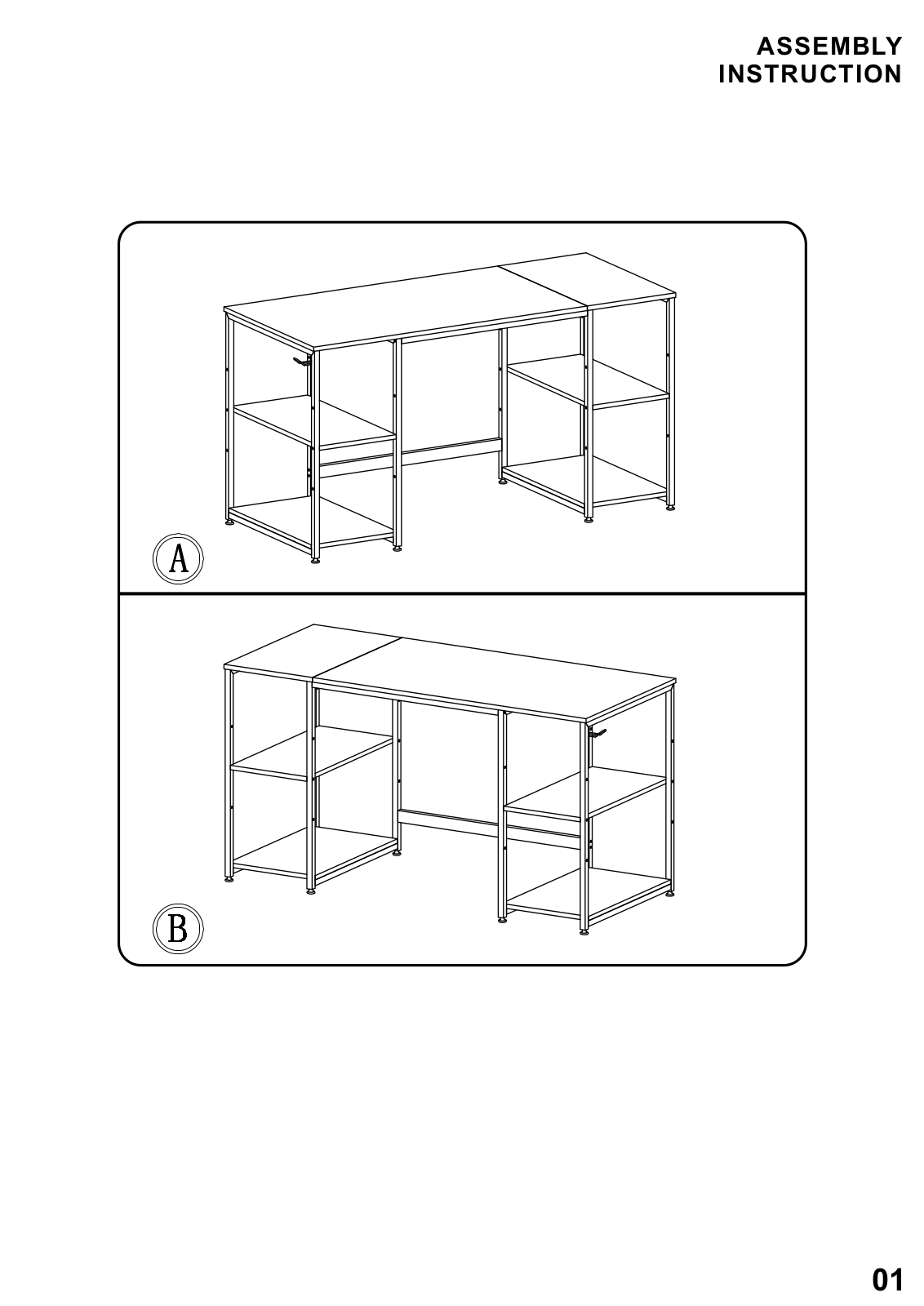

ASSEMBLY
INSTRUCTION
01

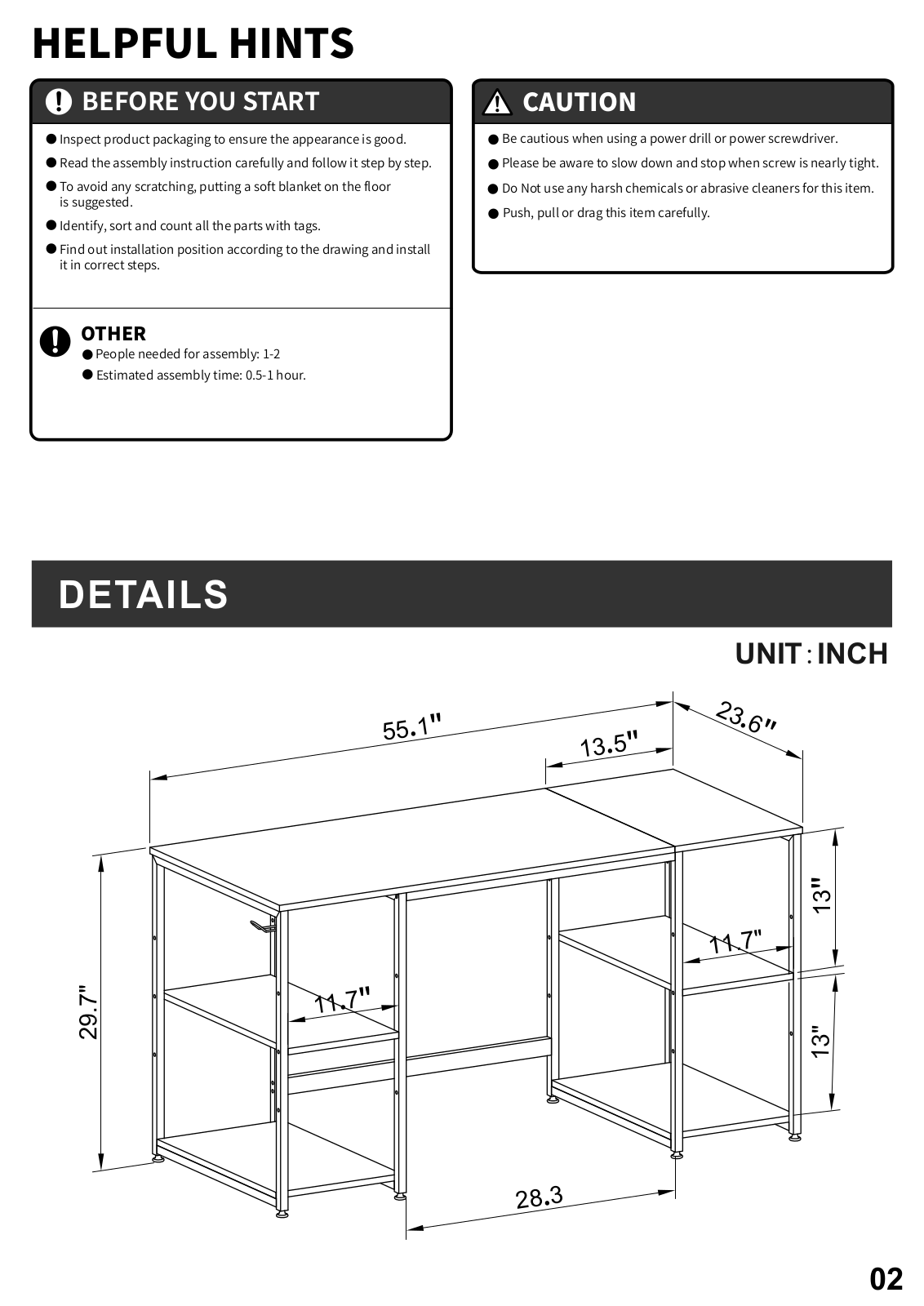

HELPFUL HINTS
BEFORE YOU START
Inspect product packaging to ensure the appearance is good.
Read the assembly instruction carefully and follow it step by step.
To avoid any scratching, putting a soft blanket on the floor
is suggested.
Identify, sort and count all the parts with tags.
Find out installation position according to the drawing and install
it in correct steps.
OTHER
People needed for assembly: 1-2
Estimated assembly time: 0.5-1 hour.
CAUTION
Be cautious when using a power drill or power screwdriver.
Please be aware to slow down and stop when screw is nearly tight.
Do Not use any harsh chemicals or abrasive cleaners for this item.
Push, pull or drag this item carefully.
DETAILS
11
UNIT:INCH
23.6"
55.1"
13.5"
13"
.7"
28.3
02
PARTS LIST
×1
×2 ×2
×
×1 ×1 ×1 ×1
×1
×2 ×1 ×8 ×3
×1
ACCESSORIES LIST
03

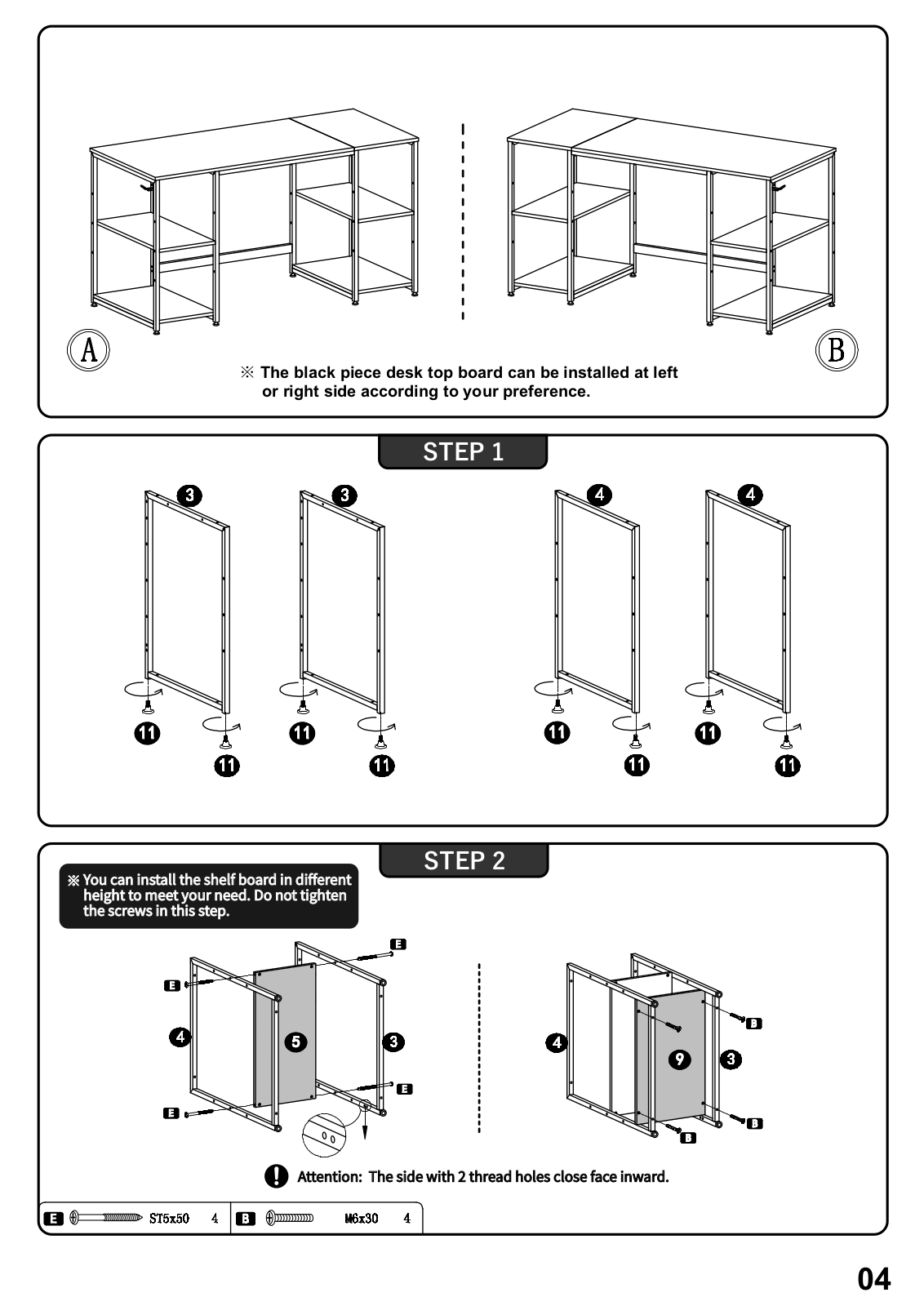

※ The black piece desk top board can be installed at left
or right side according to your preference.
STEP 1
You can install the shelf board in different
※
height to meet your need. Do not tighten
the screws in this step.
Attention: The side with 2 thread holes close face inward.
STEP 2
04
You can install the shelf board in different
※
height to meet your need. Do not tighten
the screws in this step.
Attention: The side with 2 thread holes close is outward.

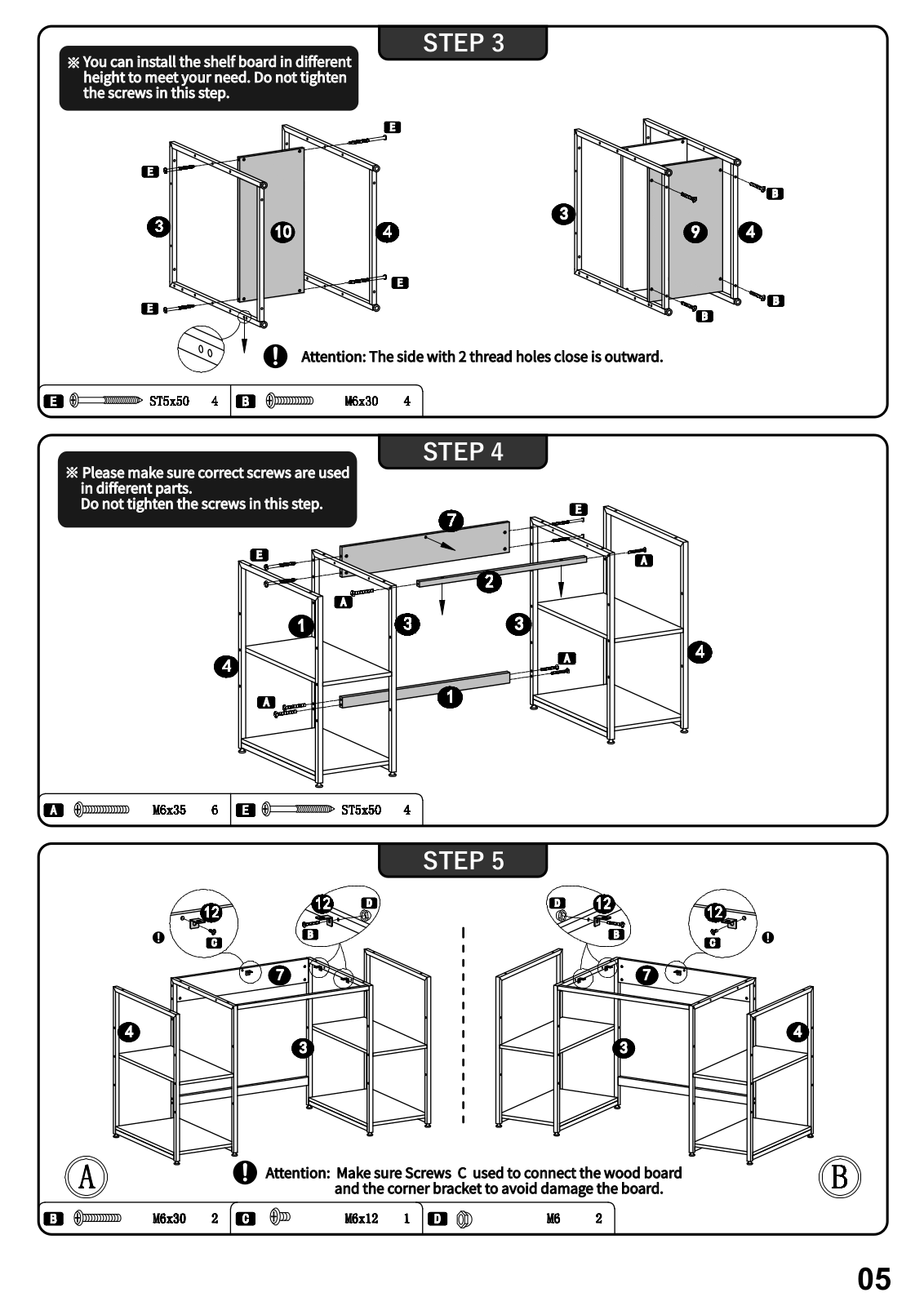

STEP 3
Attention: Please make sure correct screws
is used in different parts.
※ Please make sure correct screws are used
Do not tighten the screws in
in different parts.
this step
Do not tighten the screws in this step.
STEP 4
STEP 5
Attention: Make sure Screws C used to connect the wood board
and the corner bracket to avoid damage the board.
05
Do not tighten the screws in
※
this step
Tighten all screws in this
※
step when there is not gap.

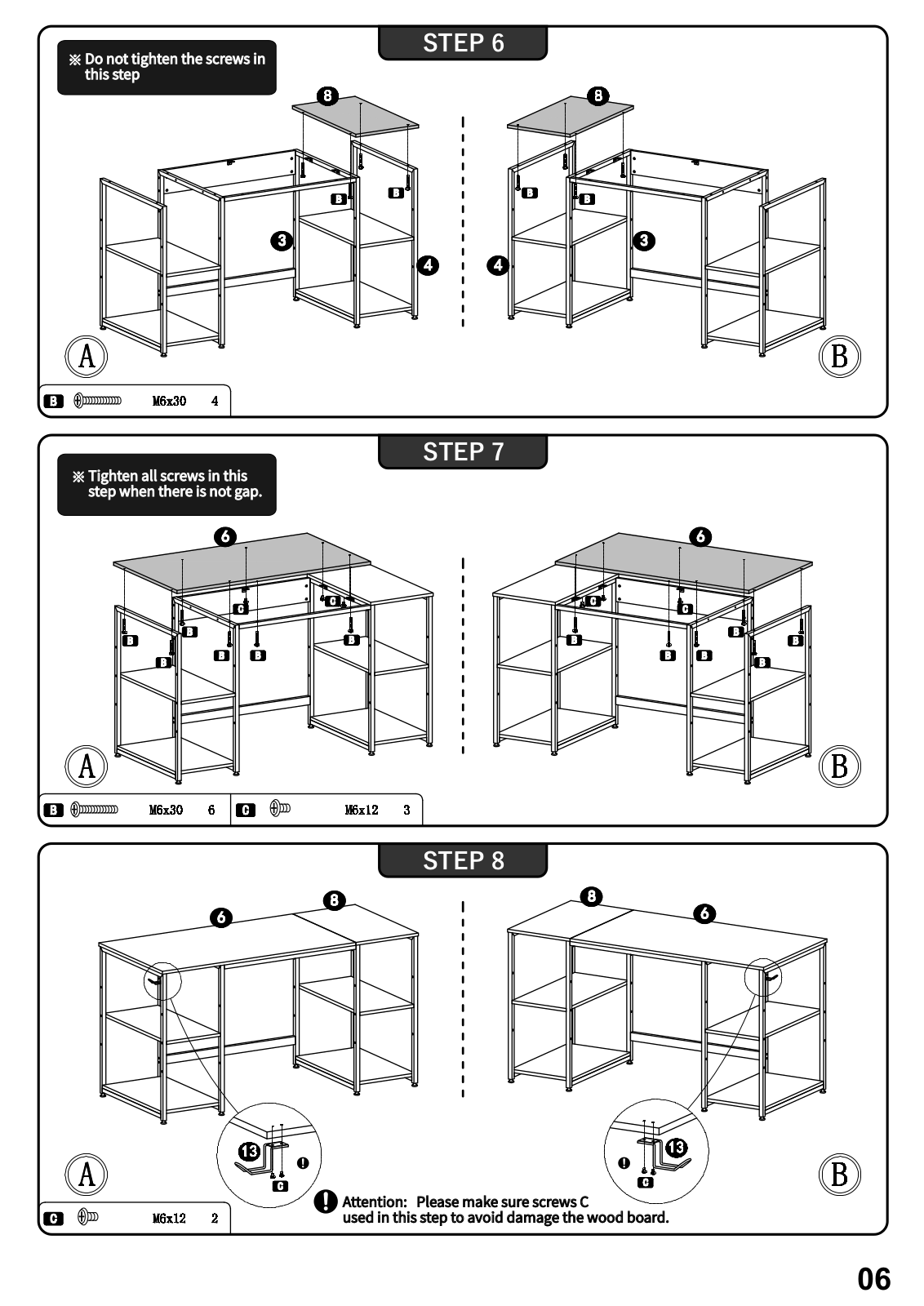

STEP 6
STEP 7
STEP 8
Attention: Please make sure screws C
used in this step to avoid damage the wood board.
06
