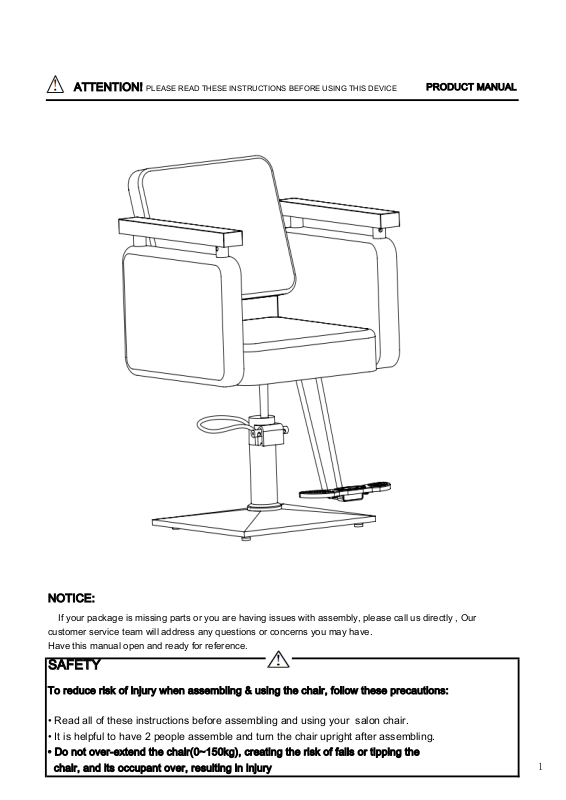

NOTICE:
SAFETY
To reduce risk of injury when assembling & using the chair, follow these precautions:
If your package is missing parts or you are having issues with assembly, please call us directly , Our
customer service team will address any questions or concerns you may have.
Have this manual open and ready for reference.
ATTENTION! PLEASE READ THESE INSTRUCTIONS BEFORE USING THIS DEVICE
PRODUCT MANUAL
• Read all of these instructions before assembling and using your salon chair.
• It is helpful to have 2 people assemble and turn the chair upright after assembling.
• Do not over-extend the chair(0~150kg), creating the risk of falls or tipping the
chair, and its occupant over, resulting in injury
1
Number
Part code
Number
PARTS & FEATURES
111
26BDFHPump
Foot bar
Seat
Base
Left handrest
Backrest
Backrest connector
Right handrest
Locking bolt
Screws
ACE
GKI
Leg support
1JFoot rest
Part Name
Part Name
111
1
Part code
1
L
6
×6
K
A
B
C D F
E
G
H
H I J
2
Second：Install handrests
to the seat
Parts needed: right handrest
+ left handrest + seat
Step 1 . Remove the 6
Screws which Pre-fixed on
the handrests
Step 2 . Install handrests to
the seat with the 6 screws.
Please follow up the diagram
beside
INSTALLATION INSTRUCTION
First:Installation hydraulic
pump to the base
Parts needed: Base + pump
+ foot bar
Step 1:Insert threaded bolts
on bottom of Pump into holes
on top of Base. Tighten 6
locking nuts onto threaded
bolts.
(Easiest when set on side,
supported by a sturdy
object.)
Step 2: Place assembled
Base & Pump on floor. Use
Allen Wrench to loosen the
screws
in the crossbar. See photo
besides.
Insert Foot Bar into the holes
of the crossbar.
(May require slightly
squeezing ends of Foot Bar
towards each other, and
some maneuvering for the
bar ends to go into place.)
Locking bolt
Base
Pump
Foot bar
×6
Screws
3
Second：Install backrest
to the seat
Parts needed : Installed seat
& backrest connectors +
backrest
Step 1. Remove the 4 bolts
which Pre-fixed on the
backrest.
Step 2 . Install backrest on
the backrest connectors by 4
removed bolts and tighten
them.
Please follow up the diagram
beside.
Second：Install backrest
connectors to the
handrests
Parts needed: 2 backrest
connectors + installed seat &
handrests
Step 1 : Remove 4 bolts
which pre-fixed on the
handrests.
Step 2 : Install 2 backrest
connectors to the handrests
with the 4 removed bolts.
Please follow up the diagram
beside
Seat
Backrest
Installed seat & handrests
Backrest connector
4
Fourth：Install footrest to
the leg support
Parts Needed:Leg support +
Footrest
Step 1:Remove 2 bolts which
pre-fixed in the footrest
Step 2:Install the leg support
to the footrest by 2 removed
bolts and tighten them.
Please follow up the diagram
beside.
Third：Install the installed
seat to the installed
base&pupm
Parts needed : Installed seat
+ installed base&pupm
Step 1: Place the installed
seat onto the hydraulic
pump(please note the pin on
the pump toward the gap of
the pump joint)
Please follow up the diagram
beside.
Footrest
leg support
bolt
5
• Step down on the Foot Bar
repeatedly to raise the chair to
the desired height.
• Step down and hold the Foot
Bar to
allow chair to lower.
• Hold the Foot Bar up to
keep the chair still .
• Do not over-extend the chair,
creating the risk of falls or tipping
the chair and its occupant over,
resulting in injury
OPERATING THE CHAIR
Fifth：install the installed
footrest on the seat
1.Step 1 : Remove 2 bolts
which pre-fixed in the seat
Step 2 : Install the installed
footrest to the seat by 2 given
bolts and tighten them .
Please follow up the diagram
beside.
Step down repeatedly
Step down and hold
Hold up
x
Installed footrest
bolt
x
6
