Page 1
3. How to use PUSH
1) Turn on the PUSH by
pressing the button.
Indoor temperature and
humidity level will be
checked automatically.
2) Press the button again to change to measuring mode.
Ultrasonic waves will measure the distance to the ground.
Since ultrasonic waves spread vertically & horizontally,
make sure there are no obstacles like walls and/or
toys nearby.
※
Make sure the person being
measured keeps his/her
arms by his/her sides.
This will help make sure
the ultrasonic waves are
not being obstructed.
※
To turn it off, press the button for 3 seconds or
let it idle for 20 seconds.
4) Press the button to measure. You can re-measure the
height by pressing the button when you see horizontal
bar on the screen.
“Please press the button ”
InBody [USA]
13850 Cerritos Corporate Dr., Unit C, Cerritos, CA 90703, USA
E-mail: contact@inbody.com Website: https://www.inbody.com
•
This product uses ultrasonic waves to measure height easily and quickly.
•
Please read the ‘User’s Manual’ before using the product.

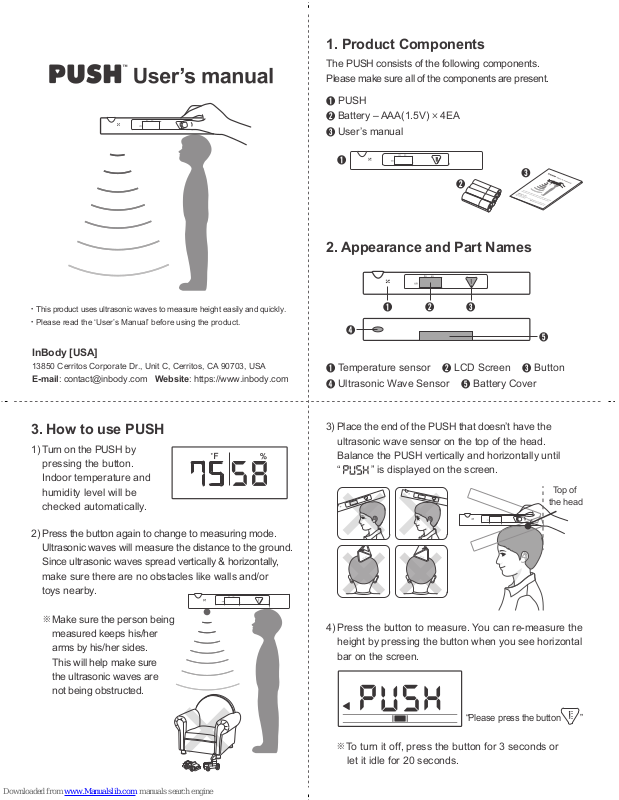

1. Product Components
The PUSH consists of the following components.
Please make sure all of the components are present.
➊
Temperature sensor ➋ LCD Screen ➌ Button
➍
Ultrasonic Wave Sensor ➎ Battery Cover
➍
➎
➊ ➋ ➌
➊
➋
2. Appearance and Part Names
➊
PUSH
➋
Battery – AAA(1.5V) × 4EA
➌
User’s manual
3) Place the end of the PUSH that doesn’t have the
ultrasonic wave sensor on the top of the head.
Balance the PUSH vertically and horizontally until
“ ” is displayed on the screen.
Top of
the head
Page 2
Manufacturer/Country of Origin: InBody Co., Ltd./South Korea
© 2018 InBody Co., Ltd. All rights reserved. BM-USA-H6-C-181012
5. How to Download the PUSH App
You can monitor and manage your child’s
growth conveniently with PUSH application.
Go to the Google Play Store or App Store
to download the PUSH App.
4. Error Messages
Following messages will appear on the LCD screen if:
E999
Ultrasonic waves were not detected. Please clear the
obstacles, including carpet and rug. For best results,
use the PUSH on a hard surface like wood or tile.
E000
The sensor is covered. Please make sure the ultrasonic
wave sensor is not covered by objects like head or hands.
E050
The person being measured is shorter than 1 ft. 7.7 in.
The PUSH cannot measure people shorter than 1 ft. 7.7 in.
E200
The person being measured is taller than 6ft. 6.7in.
The
PUSH cannot measure people taller than
6ft. 6.7in.
bAtt
Battery icon will appear on the screen when the battery
is low. ‘bAtt’ will appear on the screen when the battery
is too low to measure. The device will turn off automatically.
Replace batteries.
*
“ ”
will show up on the screen when the PUSH is balanced.
PUSH is not balanced horizontally.
*
PUSH App is subject to change (updated) without notice.
6. Cautions
1) Keep the device out of reach of children. They might get hurt
if they throw or drop the device.
2) Do not drop or put too much pressure to ultrasonic wave sensor.
3) Take measurements with the PUSH in similar environments for
consistent results.
4) Do not measure height on carpets or rug. Height will not be
measured accurately.
5) Take measurements away from obstacles like tables, toys, and
walls for accurate results.
6) Keep the device away from water.
7) If the PUSH is arbitrarily disassembled, or damaged by
natural disaster, InBody will void the warranty.
7. Battery Safety Instructions
1) Insert batteries so the positive (+) and negative (-) terminals align
correctly. Batteries may explode or leak if inserted incorrectly.
2) Do not mix old and new batteries. Only use AAA batteries
from the same brand. Replace all 4 AAA batteries from your
device at the same time.
3) Only use alkaline or manganese batteries.
4) Do not handle batteries with wet hands.
5) Remove batteries from devices that aren’t being used.
6) Dispose of batteries according to local regulations.
7)
Batteries may damage your device or cause a fire if used improperly.
8. Specifications
*
Specifications are subject to change without notice.
Measurement Item
Height Range
Error Range
Other Measuring Range
Measurement Duration
Sensor
Current Consumption
Power Consumption
Display Type
Colors
Dimension
Device Weight
Operation Environment
Storage Environment
Height, Temperature, Humidity
1 ft. 7.7 in. ~ 6ft. 6.7 in.
± 0.2 in.
Temperature 60.8 ~ 104°F (± 33.8°F)
Humidity 30 ~ 80% (± 7%)
1 sec. (Max. 7 sec.)
Ultrasound, Temperature, Humidity
Below 100mA
DC 3V (1.5V AAA Battery 4EA)
LCD
Grey
1.69 (W) × 1.73 (L) × 11.8 (H): inch
0.52 lbs
60.8 ~ 104°F, 30 ~ 80%RH
14 ~ 158°F
Insert 4 AAA batteries so the positive (+) and
negative (-) terminals align correctly.
AAA
– +
AAA
– +
–
+
AAA
–
+
AAA
Easily track your child’s growth
