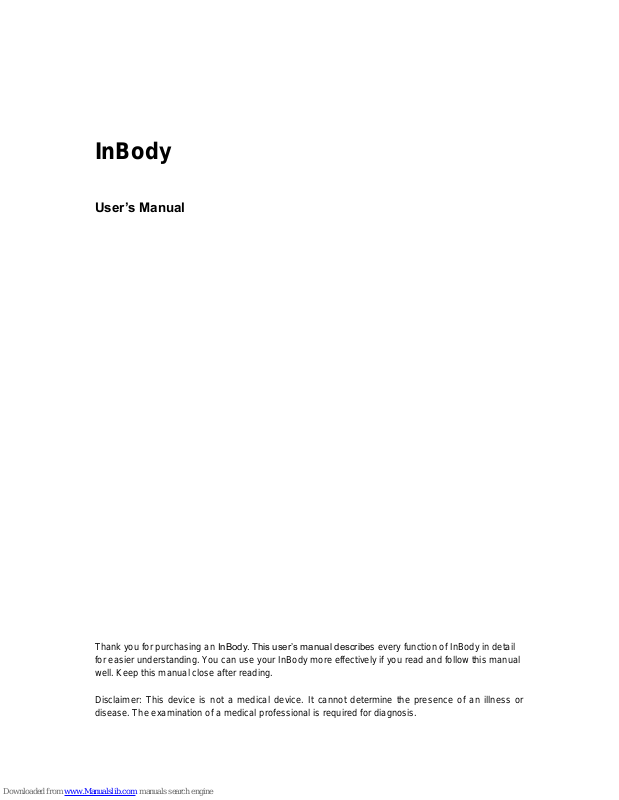

inbody Dial User Manual

InBody

User’s Manual

Thank you for purchasing an InBody. This user’s manual describes every function of InBody in detail
for easier understanding. You can use your InBody more effectively if you read and follow this manual
well. Keep this manual close after reading.

Disclaimer: This device is not a medical device. It cannot determine the presence of an illness or
disease. The examination of a medical professional is required for diagnosis.

InBody Test Posture

Stretch out your arms.
Avoid contact with your waist.

Put your thumb on the round electrodes.

Place your heel at the end of the heel electrodes and allow the rest of your foot to point forward

Contents

I. Precautions 2

II. Product Components and Set-Up Instructions

A. Product Components 3
B. Installation and User Registration 4

of InBody App

III. Weight Measurement 6

IV. InBody Test
A. Precautionary Steps 7
B. Test Posture 8
C. Test Instructions 9
D. Understanding Test Items 11
E. Standard Range Graph of Weight 12

and Muscle Mass

V. Troubleshooting
A. Error Message 13
B. Solving Simple Problems 14

VI. Frequently Asked Questions (FAQ) 15

VII. Specifications 17

VIII. Product Warranty 18

I. Precautions

Do not use as follows:

1. People with medical devices including an implantable medical device or a patient
monitoring device, such as a Pacemaker, should not use the InBodyInBody Co., Ltd. is
not liable for any incidental or consequential damages that occur

2. Keep your InBody device away from other electronics while testing. It may cause errors.

3. Sterilize the InBody with a soft cloth or with ethyl alcohol wipes before each use. Do not pour

liquids onto the InBody. It may cause the product to short circuit or cause electric shock. People
with contagious diseases should not use an InBody device.

4. Excessively high or low temperatures, humidity, and pressure can effect the accuracy of the

InBody. Do not use in a humid place such as a bathroom.

5. Keep food, beverages and other liquids away from your InBody device.

6. Do not disassemble the InBody. It can causeelectric shock or damage, product malfunction, and
other errors. InBody Co., Ltd. will not be liable for any incidental or consequential injuries or
damages from the product that occurred.

7. Do not use this product for purposes other than body composition analysis or weight measurement.

Use as follows:

1. If you cannot maintain the correct testing posture to take the test alone, request assistance from a

helper. Help children maintain proper posture during the measurement.

2. Place the InBody on a flat and vibrationless floor. Placing it on an uneven floor, like a carpet or a

mattress can result in incorrect measurements. For long-term storage, remove the battery pack,
and place it on a flat surface.

3.

4. Use the packing material provided with the product when moving your InBody. Dispose waste in

compliance with the law.

5. Only trained InBody service team members can repair InBody devices. If your device is in need of

repair, please contact us at 323-932-6503 or [e-mail].

II. Product Components

A. Product Components

Product components: InBody, User’s Manual, AA Battery (4)

(3)Hand electrodes

(1) Display screen
(6) Battery insert
(2) Dial

(4) Foot electrodes

(5) Footplate (7) Back cover

(1) Display screen: Displays outcomes on the screen.
(2) Dial: Use to power ON/OFF, input height and check results.
(3) Hand electrodes: User holds the device with hands and fingers.
(4) Foot electrodes: User stands on the device, placing the back of heels on the rear electrodes,
(5) Footplate: Measures the weight of the user.
(6) Battery insert: The InBody takes 4 AA batteries. Open the cover to insert the batteries.
(7) Back cover: Only InBody service team members can open.

B. Installation and User Registration of InBody App

(1) You need an InBody App to run an InBody Test.
(min. iOS 8, min. Android 5.0)

(2) Download the InBody App from iPhone App Store and Google Play Store.
Scan the QR Code below to move to the App Download page.
For an Android phone, turn on NFC(Read/Write) and touch the NFC mark on the rest to move to

the app download page automatically.

(3) Download and run the InBody App for user registration.

Keep the Bluetooth ON to use InBody.

Enter Mobile phone number

Welcome to InBody App.Enter your phone

number to use the app.

1(###)###-####

Mobile Phone:

“InBody” wants to send you a notice.

Badges of warning, sound, and icon can be

included. You can manage at the setting.

Do not accept Accept

Enter Mobile phone number

Welcome to InBody App, the name for health

management.

Enter your phone number to use the app.

1(###)###-####

Mobile Phone 1(###)###-####

(Enter)

Membership

First time using InBody?

Become a member first..

Mobile Phone
Gender Female Male

Height(feet and inches) 168

Age 25

Enter password •••••••
Enter password again •••••••

(v) I agree to the terms and conditions.
(v) I agree to the personal information

processing policy.

(v) I agree to the provide sensitive

information.

(v) I agree to provide location information for

pairing Bluetooth communication.

(Finish)

Membership

First time for InBody?

Become a member first..

Mobile Phone [phone]****

Gender Female Male

Height(cm) 168

Age 25

Enter password •••••••
Enter password again •••••••

(v) I agree to the terms and conditions.
(v) I agree to the personal information

processing policy.

(v) I agree to the provide sensitive

information.
(v) I agree to provide location
information for

pairing Bluetooth communication.

(Finish)

Your application is complete.
(Auto login is set.
You can cancel in
configuration.)

Enter

Importing data to sync.

Synchronization of data including

InBody test outcome is

processing.

Wait a minute. It may take max. 7

III. Weight Measurement

To measure weight only,

(1) Tap the footplate to turn the power ON, and step on the plate when 0.0 is displayed on the

screen.

Height

Weight

Body fat

Muscle

Visceral fat

(2) With a “beep-“ sound, check the weight on the screen.
Power is OFF automatically if you step down from the footplate.

Height

Weight

Body fat

Muscle

Visceral fat

*Zero-Point Adjustment
Tap the footplate or press the dial to turn the power ON.Once the power is on, 0.0 will be
displayed on the screen as shown in the image below.

Height

Weight

Body fat

Muscle

Visceral fat

If you want to test on the InBody immediately after measuring the weight,
turn the dial and input height after completing the weight measurement.
Then, hold the hand electrodes and take posture to take the InBody test.

IV. InBody Test

A. Precautionary Steps

(1) Do not eat immediately before testing on an InBody
The food inside the stomach can influence the weight and be seen as body mass, causing

errors in the measurement.

(2) Test in the morning, if possible.

(3) Test after going to the bathroom.

(4) Test prior to working out.

(5) Test prior to taking a shower, bath or using a sauna.

(6) Stand for about 5 minutes prior to testing.

B. Test Posture

Arms and legs aren’t Arms are too high Arms are too low Arms are extended
touching each other

Arms are bent

Do not let your arms touch your stomach and make sure your arms are extended from your body and wear
light clothes with sleeves.
Hold the hand electrodes
and extend your aa

Make sure your left hand and right hand don’t Make sure all fingers are holding the
electrodes.
touch each other from the electrodes.

Put your thumbs on the round electrodes and hold them. Do not let your left hand and right hand touch each
other.

Make sure your thighs aren’t touching Make sure you are barefoot
Stepping on
each other and your legs are straight.

Do not let your thighs touch each other. If your thighs touch Place your heels on the
electrodes
each other, wear shorts or pants.. and step on the device barefoot. Do not let
your feet touch each other. If you
are wearing long pants, make sure
the edges of the pants are not

stuck between foot electrodes and
your feet.

C. Test Instructions

(1) Power ON: Press the dial to turn Power ON.

Height

Weight

Body fat

Muscle

Visceral fat

(2) Enter height: Press the dial to enter height.

When power is ON, the height of the previous user is displayed.

Height

Weight

Body fat

Muscle

Visceral fat

Be sure not to press the footplate while adjusting the dial.

(3) Weight Measurement and InBody Test: Step on the footplate barefoot and stand as shown in the

figure below.

Hold the hand electrodesas previously described.. After finishing the weight measuring, there is a

“toot-toot“ sound and the InBody Test begins. The Test runs for about 10 seconds, It completes
with a with a “Tu-lu-lu“ sound. Once “End” appears on the screen, step down from the footplate.

Enter height for

InBody Test

Height

Weight

Body fat

Muscle

Visceral fat

(4) Check Test Result: Turn the dial to enlarge results

Outcomes will be displayed for 100 seconds after an InBody Test has completed. If the device is not

used within that timeframe, it will turn off. To turn off thedevice immediately after use, press and hold the
dial.

If a user’s palms and/or soles are dry or callused, you may have difficulty

testing.

Clean your hands and feet with a wet tissue for more accurate results.

D. Understanding Test Items

Body fat mass and muscle mass change with diet and exercise. • Weight : Total body mass
Weight is the total mass of the human body.

• Percent Body Fat: The total mass of fat divided by total body mass A person’s body fat

percentage is the total weight of the person’s fat divided by the person’s weight and consists of

essential body fat and storage body fat. Although the weight is same, the percentages of fat or
muscle mass can be different. Therefore, the body fat percentage is an essential item for
diagnosing obesity.

The standard range is 10-20% for men and 18-28% for women. The standard body fat
percentage differs for children under 18 depending on their gender and height.

• Muscle Mass: Skeletal Muscle Mass

Skeletal muscle represents the majority of muscle tissue; it is the type of muscle that powers
movement of the skeleton. It is categorized as striated muscle because when viewed under a
light microscope, alternating stripes of light and dark bands can be seen. There are three muscle
types, cardiac, smooth, and skeletal muscle. Skeletal muscle is innervated by the somatic
nervous system and subject to voluntary control. Skeletal muscle is attached to the bone and its
main function if for movement of the body. This is the muscle that is influenced the most by
physical activity.

• Visceral fat : Fat surrounding the major organs

Fat around organs is shown in levels between 1 and 20. People with visceral fat levels above 10
are considered unhealthy and are at higher risk for diseases like heart disease, cancer and sleep
apnea.

E. Standard Range Graph of Weight and Muscle Mass

▶ Standard Weight of Adult Men by Height ▶ Standard Weight of Adult Women by Height

▶ Standard Muscle Mass of Adult Men by Height ▶ Standard Muscle Mass of Adult Women by Height

Standard weight range Standard weight

Standard weight range Standard weight

Standard range of muscle mass Standard muscle mass

Standard range of muscle mass Standard muscle mass

Standard weight(kg)

Standard weight(kg)

Standard muscle mass(kg)

Standard muscle mass(kg)

Height(cm)

Height(cm)

Height(cm)

Height(cm)

IV. Troubleshooting

A. Error Message

The InBody displays an error message on the LCD screen if a disruption occurs.

(1) Error messages appearing when your hands and feet are away from the electrodes during the

measurement

If the following error messages appear, do not put your socks or stockings on. Check that the correct

testing posture is being tested and try again.

Height

Weight

Body fat

Muscle

Visceral fat

Height

Weight

Body fat

Muscle

Visceral fat

Height

Weight

Body fat

Muscle

Visceral fat

Height

Weight

Body fat

Muscle

Visceral fat

(2) Error messages caused by internal malfunction of InBody

If the following error messages appear, please contact us at 323-932-6503 or [e-mail].

Height

Weight

Body fat

Muscle

Visceral fat

Height

Weight

Body fat

Muscle

Visceral fat

B. Solving Simple Problems

If the problem still persists, please contact us at 323-932-6503 or [e-mail] if you are in

need of assistance.

Q 1. Power is not ON after pressing the dial.

A 1. This can happen when the batteries are dead. Replace the batteries
A 2. This can happen when the batteries are not inserted correctly. Remove the batteries and make sure the
electrodes are in the correct spots.

Q 2. Weight is not measured and the square keeps rotating.

A 1. Press the footplate to turn InBody power ON. If 0.0 appears on the LCD screen after a display of the

rotating square for 2~3 seconds, step on the footplate and measure the weight.

A 2. Check if there is a person or an object on InBody, or the 4 supporters behind(floor) InBody are pressed

by foreign objects.

Q 3. Weight is strange.

A 1. Press the footplate to turn the InBody power ON. Then check if 0.0 appears on the LCD screen after

2-3 seconds.

A2. The weight can be inaccurate if you use the device on carpet or a mattress. Be sure to put InBody on

solid floor.

VI. Frequently Asked Questions (FAQ)

If your question is not listed here, please contact us at 323-932-6503 or [e-mail] if you

are in need of assistance.

Q 1. How accurate is the outcome value?

A. This InBody product has a 93% correlation with DEXA.

Q 2. The InBody Test results vary. Why is there a difference in outcomes?

A. If you are standing with incorrect posture, outcomes will vary. Make sure client’s hands and, feet are

touching and holding electrodes properly. Maintain this posture until the Test is complete.

If you have dry hands and/or feet, clean them with an InBody Tissue or antibiotic wet tissue before

testing.

InBody recommends testing at the same time, under the same conditions for best accuracy.

Q 3. What is the normal range of visceral fat level?

A. Visceral fat level is InBody’s method of level display which leveled cross section of visceral fat from 1

to 20. For adults, it is normal if visceral fat level is below 10. The lower the visceral fat level the better.

Q 4. What is the standard range of body fat percentage?

A.

Gender

Below Normal

Normal

Overweight

Man

below 10%

10-20%

over 20%

Woman

below 18%

18-28%

over 28%

(Adults over 18)

Q 5. What is the standard for InBody ranking?

A. InBody ranking is the scoring of the difference of body fat and muscle mass of my body. You have to

obtain ideal body fat and ideal muscle mass for ideal BMI for InBody ranking. If you have a lot of body
fat basically, the ranking drops, and if you have lots of muscle mass, the ranking rises. InBody ranking
is not an absolute rank of body but a standard of InBody for diet motivation for your reference.

Q 6. What if the user doesn’t know his or her height?

A. Height is important for obtaining accurate InBody Test results. Measure the user on a stadiometer like

the InBody BSM-170 for best results.

Q 7. What if the user’s thighs or armpits touch. Would that effect the test results?

A. Yes. If a user’s thighs or armpits touch, have them wear a light short sleeve shirt and shorts to obtain

more accurate outcomes.

Q 8. How do you make the results stay on the screen longer?

A. InBody Test results are shown on the LCD screen for 100 seconds. If you want to see it for a longer

period of time, turn the dial.

VII. Specifications

Bioelectrical Impedance (BIA)
Measurement Items

Bioelectrical Impedance(Z) : 10 Impedance measurements are
taken by using two(2) different frequencies (20kHz, 100kHz) in
each of the five (5) segments (right arm, left arm, body, right
leg, left leg)

Electrode Method

Tetrapolar 8-Point Tactile Electrode Methods

Testing Method

Direct Segmental Multi-frequency Bioelectrical Impedance
Analysis Method, DSM-BIA type

Body Composition Calculation
Method

No Empirical Estimation
Outputs(LCD Screen)

Weight, Body Fat Percentage, Muscle Mass, Visceral Fat Level

Applied Rating Current

100㎂

Power Consumption

DC 6V(1.5V AA battery 4 EA)

Display Type

Customized LCD

Color

Oatmeal Beige

Dimension

310.3 (W) X 356.4 (L) X 58.3 (H) : mm

Weight

2.7kg

Testing Time

Within 10 seconds after measuring impedance

Operation Environment

10-40℃, 30-75%RH, 70-106kPa

Storage Environment

-20-70℃, 10-95%RH, 50-106kPa (No
condensation)

Testing Weight Range

10-150 kg

Height Range

50-300 ㎝

* Specifications may change without prior notice.

Mark by Conformity Assessment of Broadcasting and Communication Equipment
Identification Code : MSIP-CRM-BIB-InBodyH20N
Equipment Name : Terrestrial Wireless Equipment (Wireless Equipment for Wireless Data

Communications System)
Model : InBody Dial (W)
Company : InBody Co., Ltd.
Manufacturer/Country : InBody Co., Ltd./Korea
Date of Manufacture : Marked separately

FCC Information to User

This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is con-

nected.

• Consult the dealer or an experienced radio/TV technician for help.

WARNING

Changes or modifications not expressly approved by the manufacturer could void the user’s authority
to operate the equipment.

“CAUTION : Exposure to Radio Frequency Radiation.
Antenna shall be mounted in such a manner to minimize the potential for human contact during
normal operation. The antenna should not be contacted during operation to avoid the possibility of
exceeding the FCC radio frequency exposure limit.

French Example Canadian Compliance Statements

"Operation is subject to the following two conditions: (1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired
operation of the device."

Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil nedoit
pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique
subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.

"This Class B digital apparatus complies with Canadian ICES-003."
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
“This device and its antenna(s) must not be co-located or operating in conjunction with any other

antenna or transmitter.”
Cet appareil et son antenne (s) ne doit pas être co-localisés ou fonctionnant en conjonction avec une

autre antenne ou transmetteur.
“This equipment should be installed and operated with a minimum distance of 20cm between the

radiator and your body”
Cet équipement doit être installé et utilisé à une distance minimale de 20cm entre le radiateur et votre

corps.
“It is the responsibility of the installer to ensure that when using the outdoor antenna kits, only those

antennas certified with the product are used. The use of any antenna other than those certified with
the product is expressly forbidden by FCC rules 47 CFR part 15.204 and IC RSS standards.”

Il est de la responsabilité de l'installateur de s'assurer que lorsque vous utilisez les kits d'antennes
extérieures, seules les antennes certifiés avec le produit sont utilisés. L'utilisation d'une antenne autre
que ceux qui sont certifiés avec le produit est expressément interdite par la réglementation FCC
partie 47 CFR 15.204 et IC normes RSS.

Product Warranty

Name of Product : InBody Dial (W)

Product No :

Date of Purchase :

Place of Purchase :

▷ This product warranty gives an assurance for the InBody product as below:

1. This product undergoes a strict review process to ensure quality control

2. The warranty period of this product follows the warranty period policy of the manufacturer.

3. If the product malfunctions under normal use, InBody will repair it, free of charge during the warranty
period.

4. The warranty will be voided and repair services will be offered at cost under the following circumstances:

• Failure and/or damage caused by mishandling.

• Failure and/or damage caused by not following the directions and precautions stated in the User’s

Manual.

• Failure and/or damage caused by a natural disaster.

• Failure and/or damage caused by a power malfunction.

5. The warranty will be voided if:

• The InBody was disassembled by unauthorized personnel.

•

• The InBodyh was repaired by unauthorized personnel.

6. Services are available at a cost after the warranty period. Contact us at 323-932-6503 or

[e-mail] you are in need of assistance.

InBody

InBody

© 2017 InBody Co., Ltd. All rights Reserved.

Any unauthorized copy, reproduction, translation, or alteration to any or all of this User’s Manual without a
prior written consent from InBody Co., Ltd. is prohibited. This User’s Manual may have a misprint or change
without prior notice. InBody Co., Ltd. is not responsible for any damages that may occur by not following the
contents specified in the User’s Manual.

The specifications and appearance of this product may change without prior notice. InBody Co., Ltd. has all
the rights to the foregoing.

InBody HQ

(06313) 54, InBody Building, 2-gil, Nonhyeon-ro, Gangnam-gu, Seoul
TEL: [phone] FAX: [phone] Customer Center: 1899-5841
Website: http://www.inbody.com E-mail: [e-mail]

© 2017 InBody Co., Ltd. All rights reserved. BM-KOR-M4-A-170518
