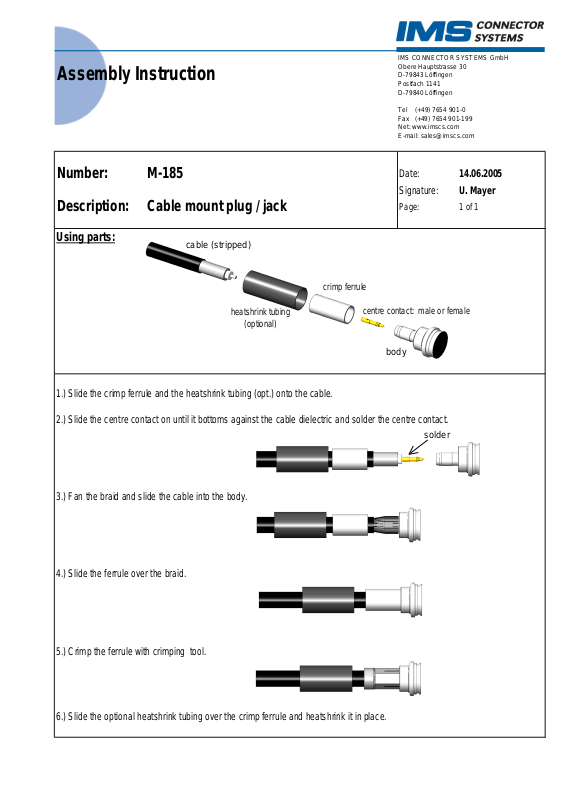

IMS M-185 Assembly Instruction

1.) Slide the crimp ferrule and the heatshrink tubing (opt.) onto the cable.

2.) Slide the centre contact on until it bottoms against the cable dielectric and solder the centre contact.

3.) Fan the braid and slide the cable into the body.

4.) Slide the ferrule over the braid.

5.) Crimp the ferrule with crimping tool.

M-185

Description:

Number:

Cable mount plug / jack

Assembly Instruction

IMS CONNECTOR SYSTEMS GmbH
Obere Hauptstrasse 30
D-79843 Löffingen
Postfach 1141
D-79840 Löffingen

Tel [phone]
Fax [phone]
Net: www.imscs.com
E-mail: [e-mail]

Date: 14.06.2005
Signature: U. Mayer

Page: 1 of1

Using parts:

cable (stripped)

heatshrink tubing

crimp ferrule

centre contact: male or female

(optional)

body

solder

6.) Slide the optional heatshrink tubing over the crimp ferrule and heatshrink it in place.
