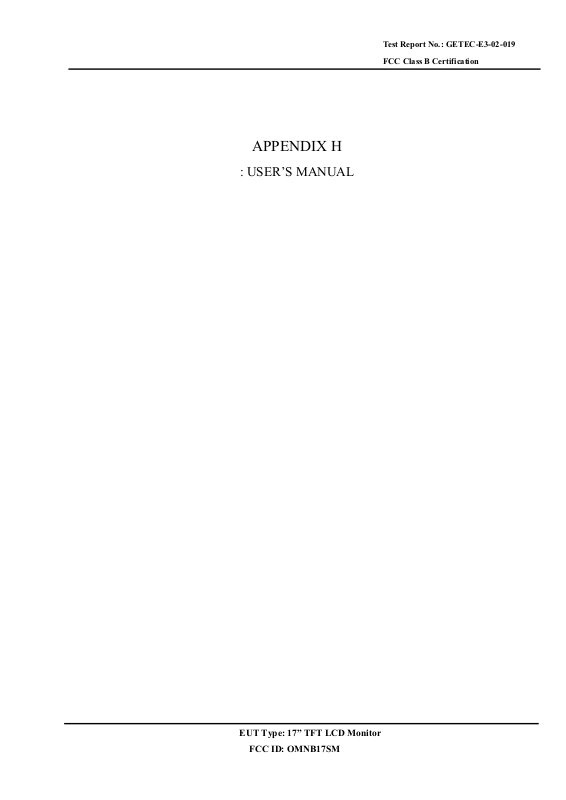

Test Report No.: GETEC-E3-02-019
FCC Class B Certification
APPENDIX H
: USER’S MANUAL
EUT Type: 17” TFT LCD Monitor
FCC ID: OMNB17SM
USERS MANUAL
TFT LCD MONITOR
B17SM
ACCUVISION 720TF
IMRI
FCC Compliance Statement
NOTE:
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment
generates, uses, and ca radiate radio frequency energy and, of not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/television technician for help.
Notice 1:
The changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
Notice 2:
Shielded interface cables, if any, must be used in order to comply with the emission limits.
DOC CLASS B NOTICE
This digital apparatus does not exceed Class limits for radio noise emission for a digital
apparatus as set out in the Radio interference Regulations of the Canadian Department of
Communications.
●
WARNING
WARNING:
To reduce the risk of electric shock do not remove cover (or rear).
No user serviceable parts inside. Refer servicing to qualified service personnel.
WARNING:
To prevent fire or shock hazard, do not expose the set to rain or moisture. Do not rub or
strike the Active Matrix LCD with anything hard as this may scratch, mar, or damage the
Active Matrix LCD permanently.
CAUTION:
Do not attempt to modify this product in any way without written authorization from
a source of supply. Unauthorized modification could void the user’s authority to operate
this product.
Power
This set operates on a DC supply provided by the AC-DC adaptor, the voltage is as
indicated on the label on the rear cover. Use only the AC-DC adaptor supplied with the
set and never applies an AC mains to the set directly. The AC-DC adaptor operates on an
AC mains supply, the voltage is as indicated on the label of the AC-DC adaptor.
In the event of thunderstorms or power cuts, please pull out the mains plug of the AC-DC
adaptor and the aerial plug. Do not allow anything to rest upon or roll over the power cord,
and do not place the set where the power cord is subject to damage.
Service
Never remove the rear cover of the set, this can expose you to high voltage and other
hazards. If the set does not operate properly, unplug it and call your dealer. Antenna
Connect the antenna cable to the connection marked ANTENNA.(on the rear). For the best
reception, use an outdoor antenna.
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended
to alert the user to the presence of uninsulated “dangerous voltage” within the
product enclosure that may be of sufficient magnitude to constitute a risk of electric
shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions in the
literature accompanying the appliance.
a. Connect the DC plug of the AC-DC adaptor to the power socket of the set.
b. Connect the AC-DC adaptor and it’s power cord.
c. Connect the power cord to an AC mains.
- 1-
Location
Position your set so that no bright light or sunlight will shine directly on the screen. Do not
expose the set to vibration, moisture, dust or heat. Also ensure that the set is placed in a
position that allows a free flow of air. Do not cover the ventilation openings on the rear
cover.
You can install the set on a wall or place it on a table-top or similar flat surface.
Mounted the set securely to eliminate the risk of injury from the set falling. Contact your
Zenith dealer to purchase the optional ceiling mount.
Cleaning
Unplug the set before cleaning the face of the LCD Screen. Dust the set by wiping the
screen and the cabinet with a soft, clean cloth.
If the screen requires additional cleaning, use a clean, damp cloth. Do not use liquid
cleaners or aerosol cleaners.
- 2 -
Table of Contents
1) Safety instructions -------------------------- 1-2
2) Table of contents -------------------------- 3
3) Specifications
(1) Features -------------------------- 4
(2) Setting up your monitor front / rear -------------------------- 5
4) Installing your monitor
(1) Basic contents -------------------------- 6
(2) Installing your monitor -------------------------- 6
(3) Assembling your monitor
① Assembling the Stand & Base ----------------------- 7
② Connecting the Power & Signal cable ----------------------- 8
5) Adjusting your monitor
(1) PC
① Adjusting Brightness -------------------------- 9
② Adjusting Contrast -------------------------- 9
③ Adjusting Phase -------------------------- 10
④ Adjusting Frequency -------------------------- 10
⑤ Adjusting Screen Position(H/V) -------------------------- 10
⑥ Adjusting Sharpness -------------------------- 10
(2) OSD
① Menu Position Adjustments -------------------------- 11
② OSD Timeout Adjustments -------------------------- 11
③ Language Adjustments -------------------------- 12
(3) UTILITY
① Monitor Information -------------------------- 12
② Resting the Monitor -------------------------- 13
③ Adjusting the Tone(Transparency) -------------------------- 13
④ Color Temperature Adjustments -------------------------- 13
(4) AUTO
① Automatically adjusting your monitor screen --------------------- 14
6) Power Saver -------------------------- 15
7) Miscellaneous
(1) Display Modes -------------------------- 16
(2) Trouble Shooting -------------------------- 17
(3) Specifications -------------------------- 18
- 3 -
◈ Features
Thank you for purchasing our TFT LCD monitor.
Please read our Users Manual first to fully enjoy all the functions of our
product. Please do not discard our Users Manual for it will come in handy in
future use of this product.
The specific features of our product are as follows;
◐ High definition SMART PANEL
◐ Space saving Slim Type Monitor
◐ Low generation of harmful electro-magnetic pulses, heat and noise
◐ Flexible VESA ARM
◐ Flexible Viewing Angle
◐ Low energy consumption,
◐ Plug & Play
- 4 -

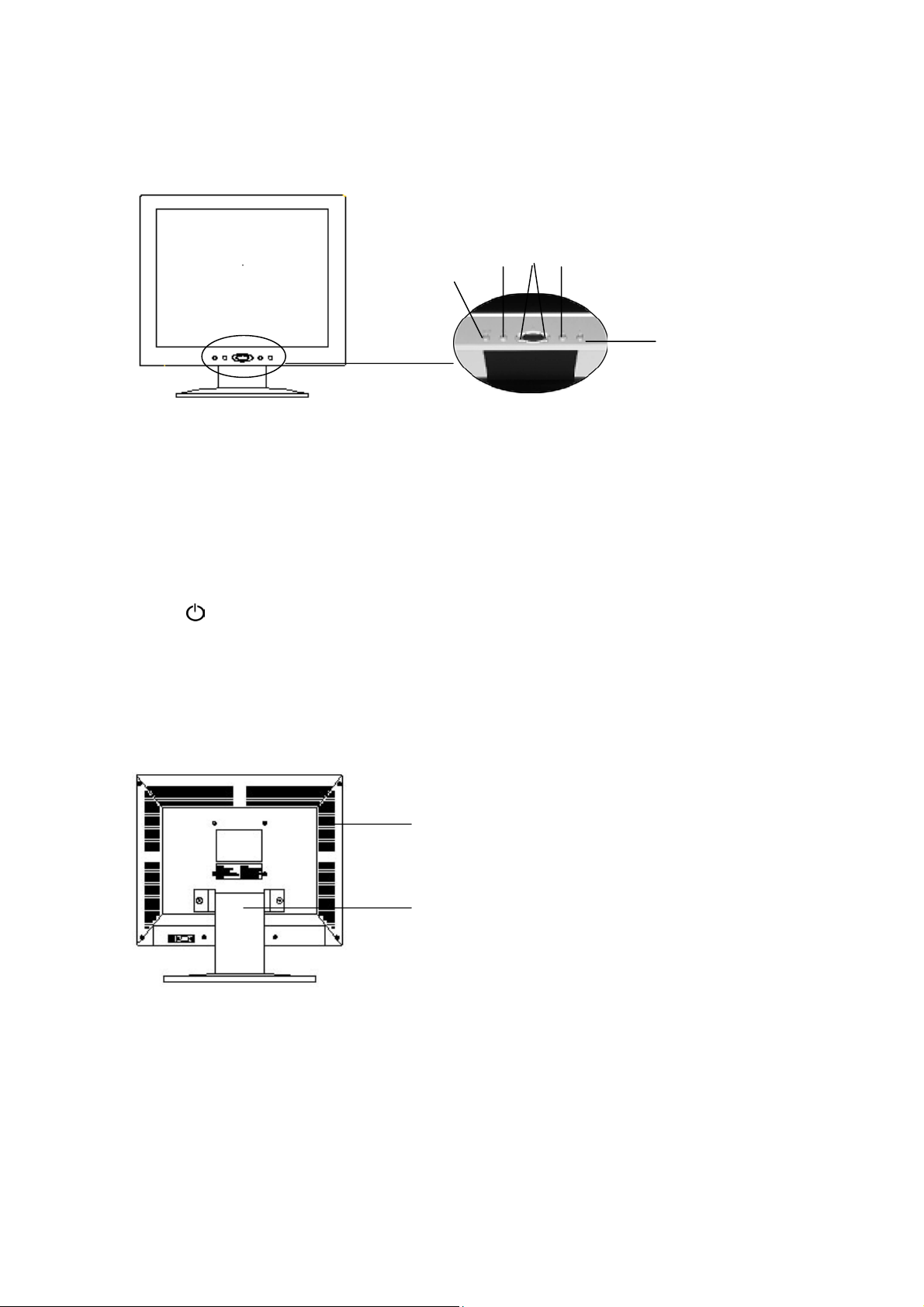

◈ Adjusting your monitor(front)
① AUTO: Automatically adjusts your monitor to optimal settings for use in your home.
② EXIT: Exits from the Menus & Sub Menus.
③ ◀ ▶ : Moves from Menu to next Menu / Moves Main menu
④ MENU: Activates Main Menu / Selects and move to next menu
⑤
: Turns the monitor ON/OFF.
② ③ ④
①
⑤
◈ Adjusting your monitor(rear)
REAR VENT
(WARNING!)
NEVER BLOCK THE REAR VENT.
DETACHABLE PROP
Detach when using the VESA ARM.
- 5 -
◈ Basic Contents
Please make sure the following items are included with your monitor. If any items are
missing please contact your nearest dealer or retailer.
• 17” LCD Monitor모니터
• Power adapter
• Users Manual (Warranty)
• Power Cord
• Signal Cable
◈
Installing your monitor
- Please take caution when installing the monitor in high places. Damage to the monitor or injury
can be caused if the monitor falls.
- Always install the monitor in a well-vented area. Installing the monitor in a closed-up area or
covering the vent can cause fires.
- Never place cups, solvents or heavy items on top of the monitor. And always take care to prevent
small metallic objects from falling into the monitor. Such objects in the circuits can cause fire.
- Always install the monitor in dry, dust-free surroundings. Water and dust inside the monitor can
cause fires.
- Never place heat-generating objects such as candles or lit cigarettes near the monitor. Heat
can cause fires or deform the exterior of the monitor.
• Maintenance & Cleaning
Please unplug the monitor first when cleaning its surface. Clean the surface with soft cloth and
never use keton-type materials (e.g., acetone), ethyl alcohol, toluene, ethyl acid, methyl, or
chloride or any other kind of solvent. Do not over-damp the cloth as to cause dripping on the
surface of the monitor. Rub the surface in one direction to prevent scratches.
- 6 -
◈
Assembling your Monitor

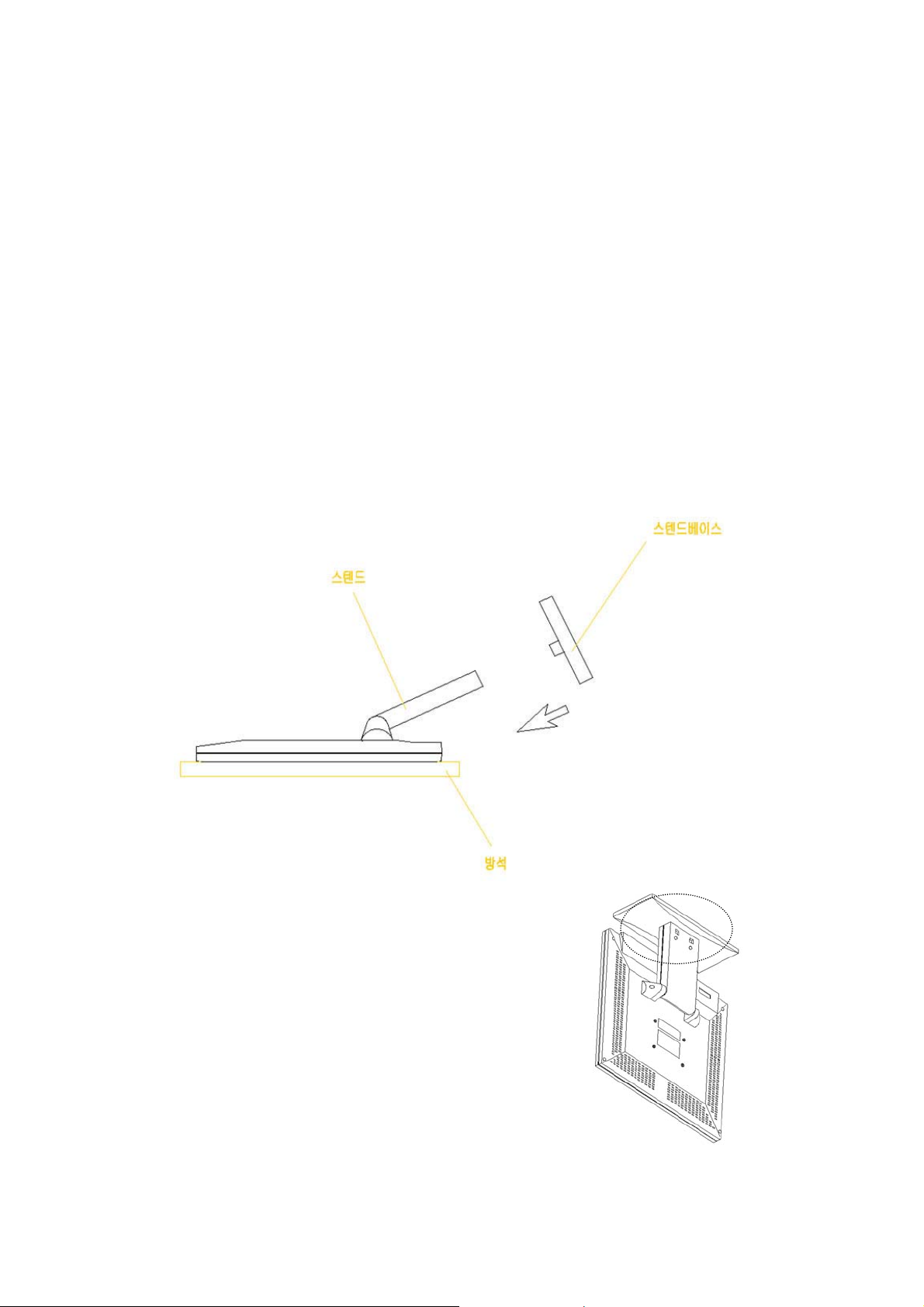

① Assembling the Stand & Base
Please first check that the surrounding appliances have all been turned off, and follow
the procedure below.
- First place the monitor so that the LCD screen faces bottom.
Place a blanket or clean cloth under the screen for protection.
- Insert the Hook on the stand base into the Slot on the monitor. The Latch located in
the stand base will ‘click’ indicating that the Monitor is secure.
* CAUTION
Assembling the monitor holding the stand base as show in
the picture can cause the Head to fall off and cause
damage or injury. Please refrain from detaching the stand
and the base once assembled if possible.
- 7 -

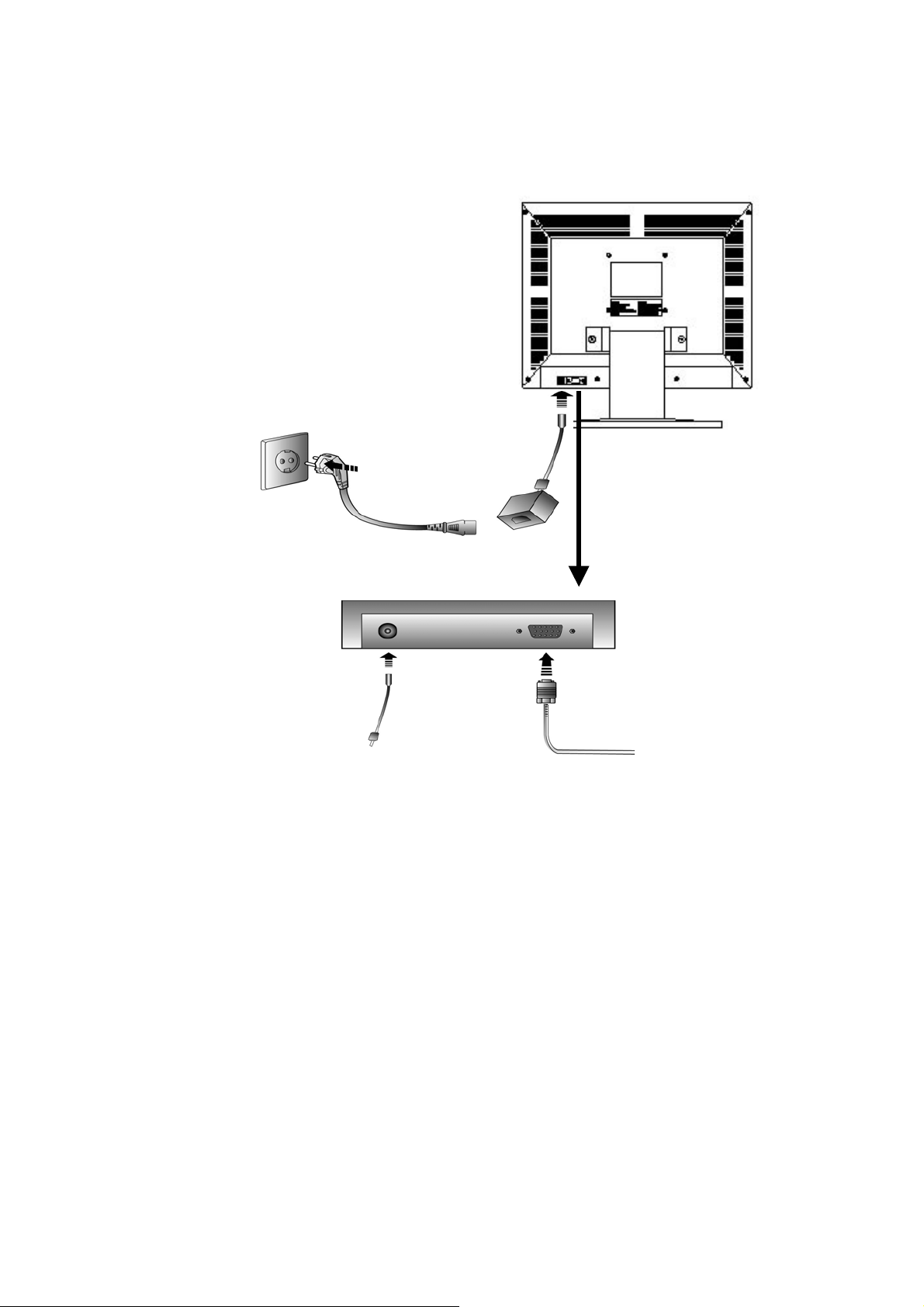

② Connecting the Power & Signal cable
• Connect the power to 110V ~ 220V capacity outlets.
(Free Voltage)
Power
A DC Power source electric adapter operates our product. Never let AC electricity flow into the
monitor directly or use a power source other than as indicated on the back of the monitor.
① Connect the DC Power cable to the monitor.
- Connect the DC JACK in the DC adapter to the monitor.
- Connect the AC Power cord to the DC adapter AC terminal.
- Insert the AC cord in the DC adapter into the power outlet.
② Connect the Signal Cable to the Computer.
No input signal, check connection “ shall show up on the screen if the signal cable is
“
not connected properly.
- 8 -

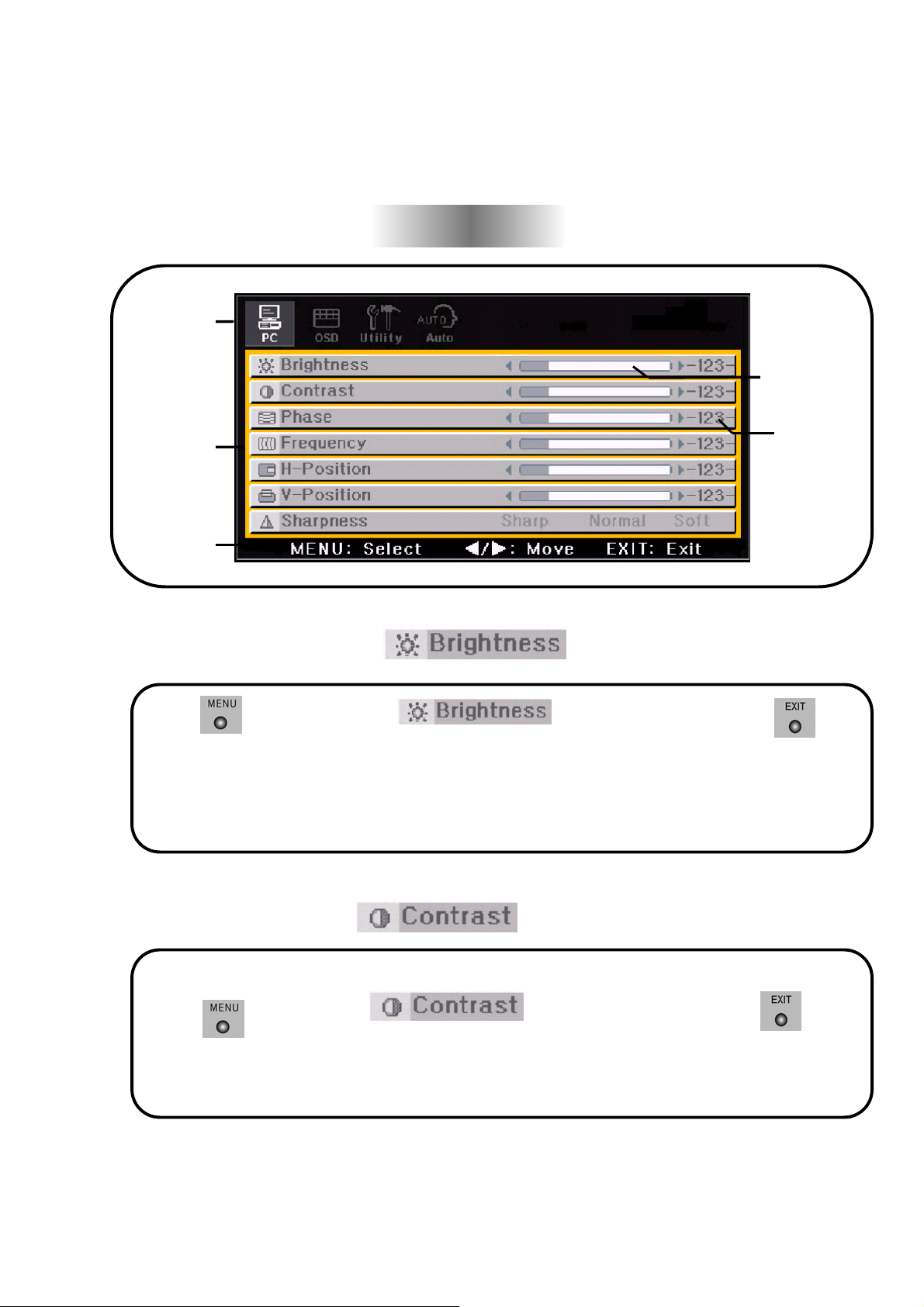

◎ Screen Adjustments
①
PC
ICON
MAIN OSD
ADJUSTMENT
BAR
MENU
FIGURE
KEYS
• BRIGHTNESS ADJUSTMENT
MENU → BRIGHTENESS → ◀ ▶ADJUST → EXIT
• The Brightness of the LCD Screen is adjustable by using the ◀, ▶ Keys when the Main
Menu is not displayed on the screen.
• CONTRAST ADJUSTMENT
MENU → CONTRAST → ◀ ▶ ADJUST → EXIT
• The Contrast is thus adjustable.
- 9 -

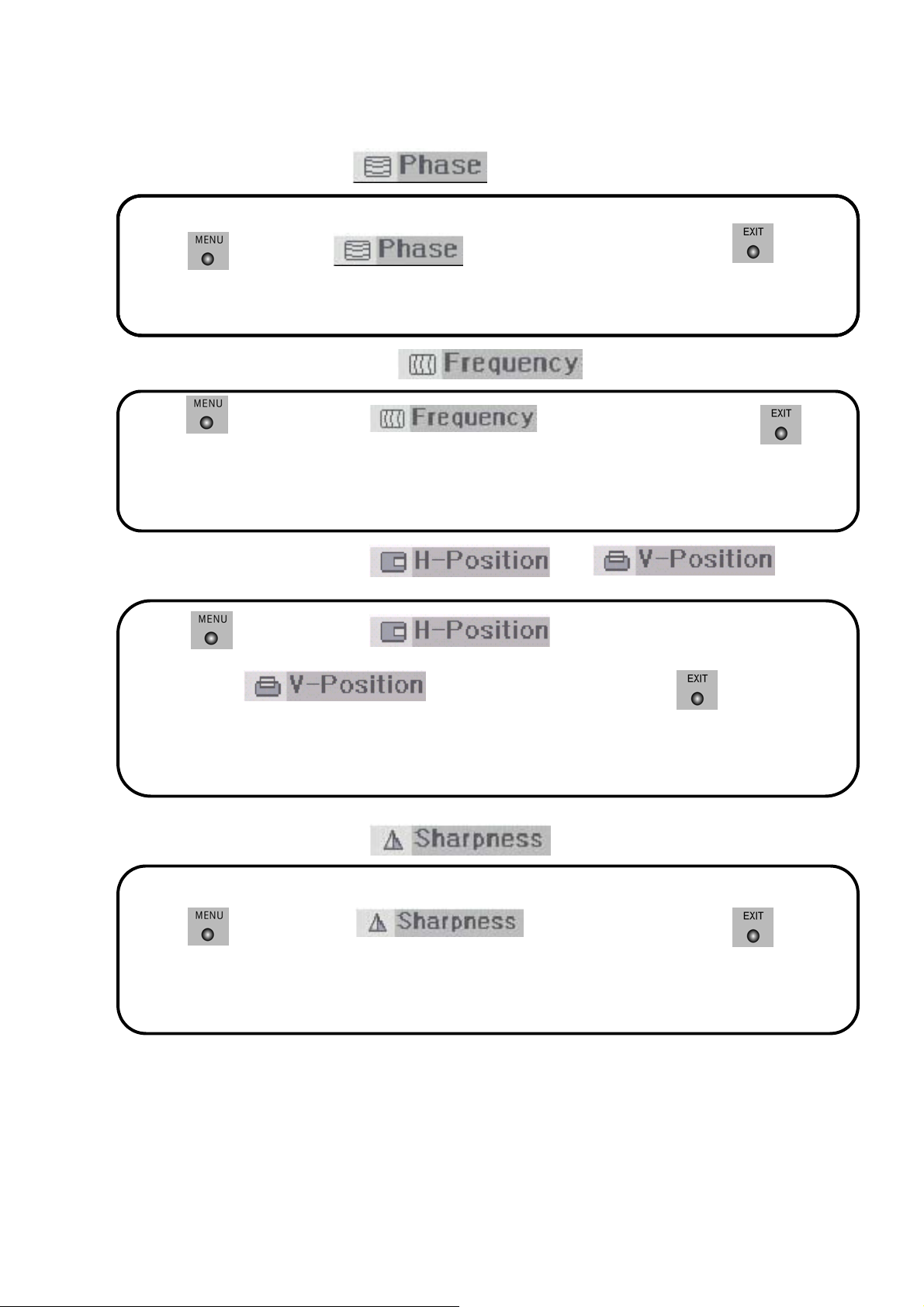

• PHASE ADJUSTMENTS
M → ◀ ▶ ADJUST → EXIT
ENU → PHASE
• he Phase is thus adjustable.
T
• FREQUENCY ADJUSTMENTS
MENU → FREQUENCY → ◀ ▶ADJUST → EXIT
• he Frequency is thus adjustable.
T
POSITION ADJUSTMENTS /
•
MENU → H-POSITION /
V-POSITION → ◀ ▶ ADJUST → EXIT
The H/V Position is thus adjustable.
•
SHARPNESS ADJUSTMENTS
•
M NU → SHARPNESS → ◀ ▶ADJUST → EXIT
E
The sharpness is thus adjustable.
•
- 10 -

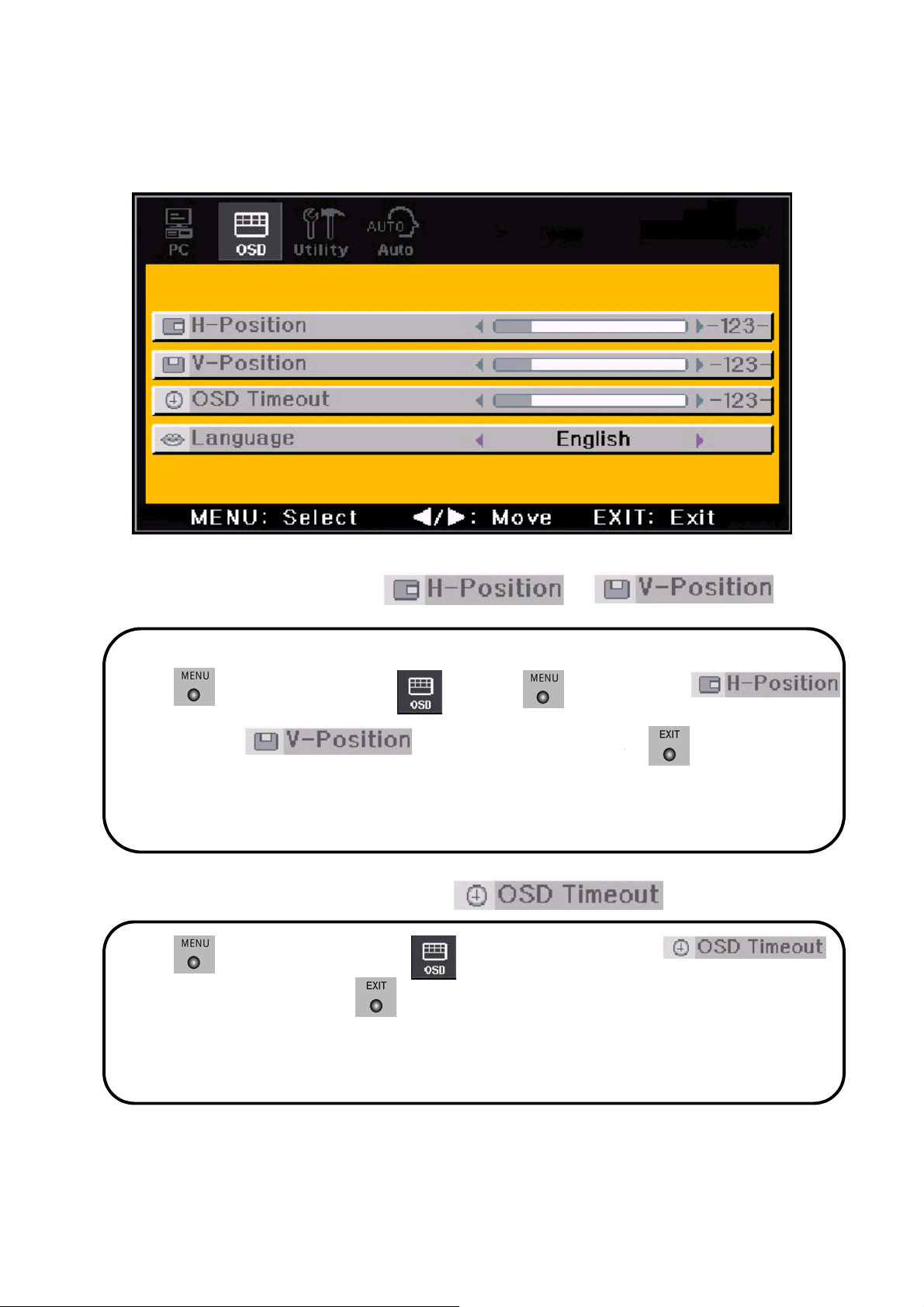

② OSD
• MENU POSTION ADJUSTMENTS /
MENU → ◀ ▶ADJUST→ OSD -> MENU -> H-POSITION
/ V-POSITION → ◀ ▶ ADJUST → EXIT
• The menu position is thus adjustable.
• OSD TIMEOUT ADJUSTMENTS
MENU → ◀ ▶ADJUST → OSD → MENU -> OSD TIMEOUT
→ ◀ ▶ ADJUST → EXIT
• The OSD Display Time is thus adjustable.
-11-

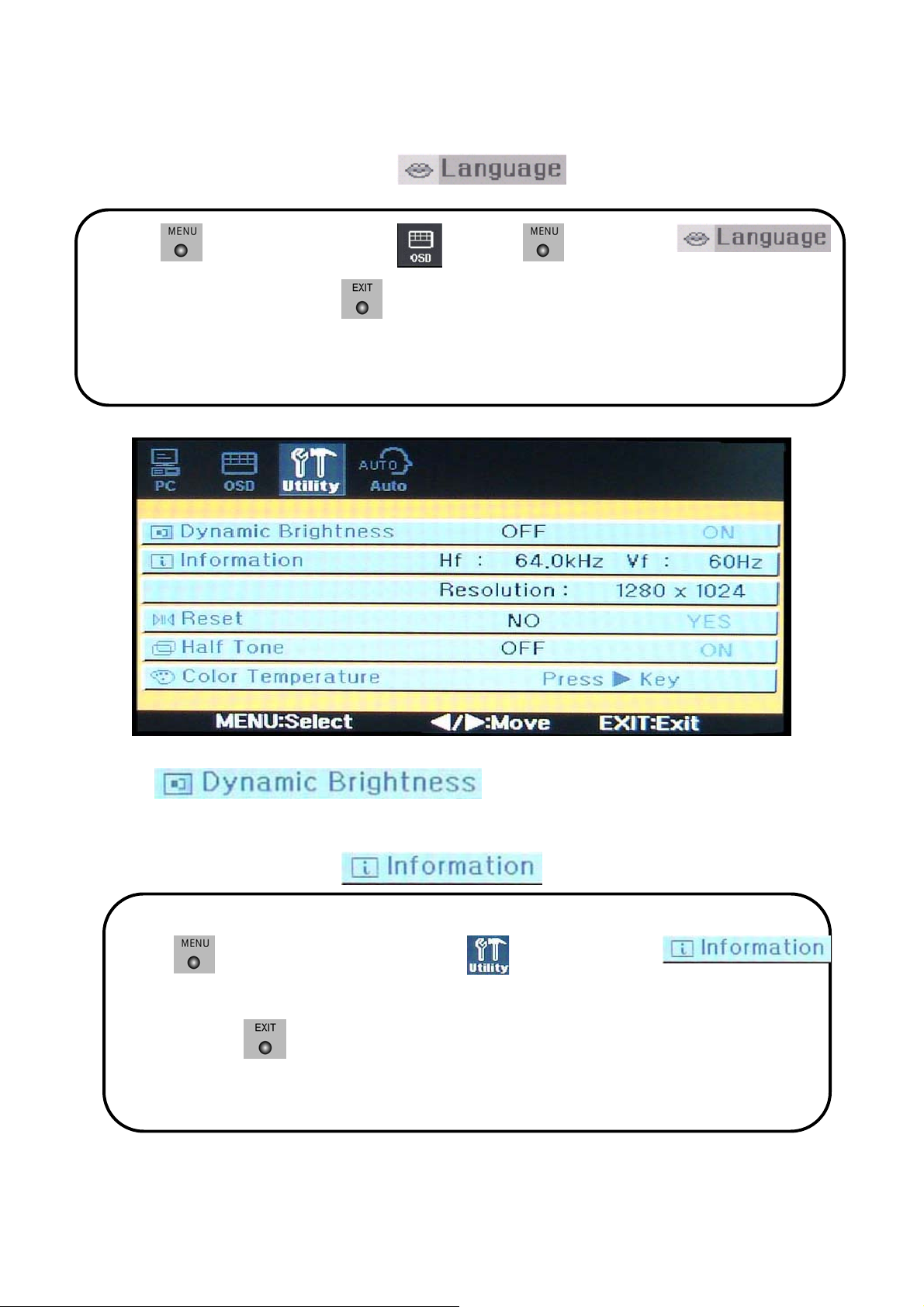

• LANGUAGE ADJUSTMENTS
MENU → ◀ ▶ADJUST →OSD -> MENU → LANGUAGE
→ ◀ ▶ ADJUST → EXIT
• The Main Menu can be set in 8 basic languages.
(English, Spanish, French, Italian, German, Chinese, Korean, Japanese)
③ UTILITY
※ This is not an option at the moment.
MONITOR INFORMATION
•
MENU → ◀ ▶ ADJUST → UTILITY -> INFORMATION
Basic information of the Vertical & Horizontal Screen Position, Frequency and Phase..
•
Pressing the key while the Menu is not on the screen will inform the user of the
•
current settings and information of the monitor.
- 12 -

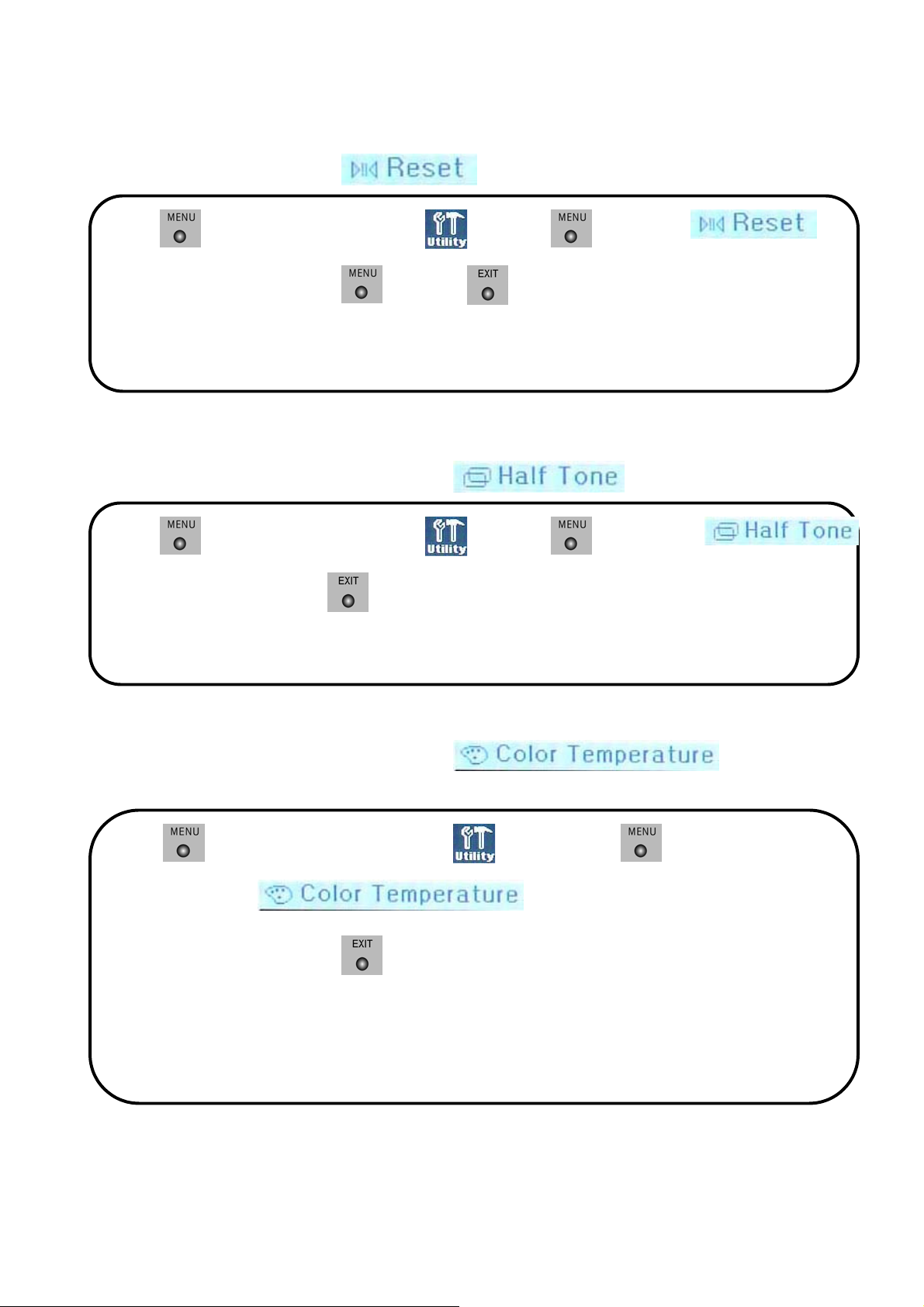

• RESETING THE MONITOR
MENU → ◀ ▶ ADJUST → UTILITY -> MENU -> RESET
→ ◀ ▶ ADJUST -> MENU → EXIT
• The monitor can thus be reset.
• ADJUSTING THE TONE (TRANSPARANCY)
MENU → ◀ ▶ ADJUST → UTILITY -> MENU -> HALF TONE
→ ◀ ▶ ASJUST → EXIT
• The Tone (Transparency) of the Menu can thus be adjusted.
• COLOR TEMPERATURE ADJUSTMENTS
MENU → ◀ ▶ ASJUST → UTILITY -> MENU ->
Color Temperature → ▶ SELECT → ◀ ▶ ADJUST
(C1, C2, C3, USER) → EXIT
• The Color Temperature can be adjusted according to the user.
• The user can adjust the Temperature of RED, GREEN and BLUE.
• The user can reset the settings by the USER COLOR RESET function.
- 13 -

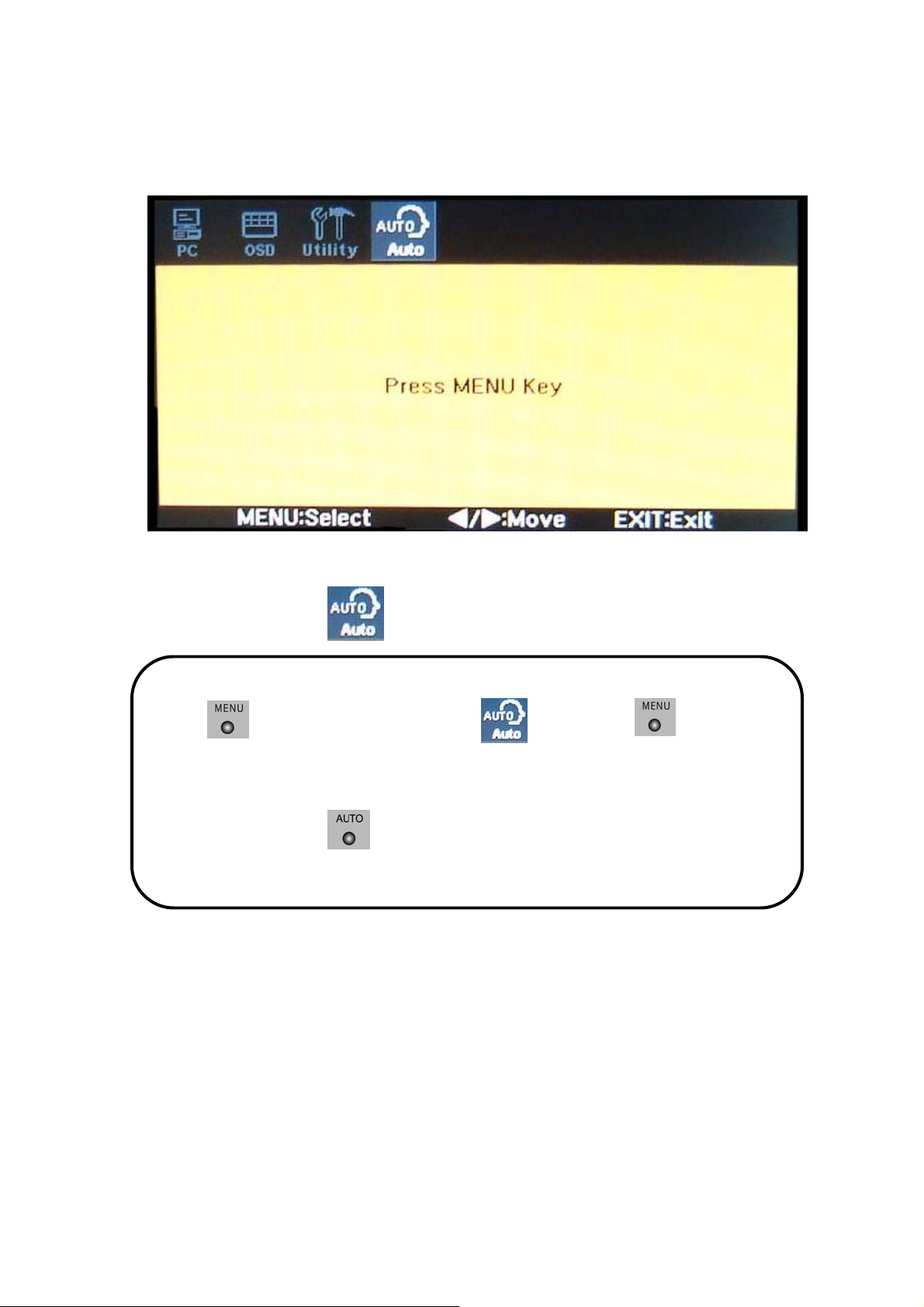

④ AUTO
● AUTO ADJUSTMENTS
MENU → ◀ ▶ ADJUST → AUTO -> MENU
• The monitor automatically adjusts itself to its surroundings.
※ note: Pressing the Auto Key on the front of the monitor will perform the
same function.
- 14 -
◈ Power Saver
This monitor has a built-in power management system called Power Saver. This system
saves energy by switching your monitor into a low-power mod when it has not been used
for a certain period of time. Pressing any button on the mouse or keyboard will reactivate
the monitor. This function is only operates with a computer that has the same function.
State
동기
Horizontal Sync Active Inactive Inactive Active Inactive
Vertical Sync Active Inactive Active Inactive Inactive
Video Sig. Active Inactive Inactive Inactive Inactive
Normal
Operation
Cable not
Connected
Power-Saving Function Mode
Standby Suspend Power off
Power
Indicator
Power
Consumption
Green Red Green / Orange Blinking (0.5sec)
Less than 37W Less than 3W
`
- 15 -
◈ Display Modes
If the signal from the system equals to the standard signal mode, the screen is adjusted
automatically. If the signal from the system doesn’t equal to the standard signal mode,
adjust the mode with referring to the Video card user guide because the screen might not
display.
Frequency Sync Polarity(H/V)
NO Resolution
1 720 X 400 31.5 70.1 28.322 - +
2 640 X 480 31.5 59.9 25.175 - -
3 640 X 480 35.0 66.7 30.240 - -
4 640 X 480 37.9 72.8 31.500 - -
5 640 X 480 37.5 75.0 31.500 - -
6 800 X 600 35.2 56.3 36.000 + +
7 800 X 600 37.9 60.3 40.000 + +
8 800 X 600 46.9 75.0 49.500 + +
9 800 X 600 48.1 72.2 50.000 + +
Horizontal
Frequency (Hz)
Vertical
Frequency (Hz)
Pixel Clock
Horizontal Vertical
Frequency(MHz)
10 1024 X 768 48.4 60.0 65.000 - -
11 1024 X 768 56.5 70.1 75.000 - -
12 1024 X 768 60.0 75.0 78.750 + +
13
14
1280 X
64.0 60.0 108.000 + +
1024
1280 X
79.9 75.0 135.000 + +
1024
◈
TROUBLE SHOOTING
If you have a problem setting up or using your LCD Monitor, you may be able to solve
it yourself. Before contacting customer service, try the suggested actions that are
appropriate to your problem.
If these problems continue please contact your local retailer.
The Power does not come on. ☞ Please check the Power cord.
(Refer page. 8)
☞ Press the Power Button.
The Screen is black but the
Power indicator is on
“No input signal,
check connection” message
Sync “OUT OF RANGE ~ ”
message.
Screen flickering.
Shadows on the screen.
Screen is too bright ☞ Adjust the Brightness or Contrast (Refer page. 9)
Irregular colors on the
screen
White does not come out as
☞ Try adjusting the Brightness of the screen. If the Brightness is
set too dark you may not be able to see your screen.
(Refer page. 9)
☞ Check the connection cables. If the connecter cable is unplugged
the screen may not turn on. (Refer page. 8)
☞ Check that the Signal Cable is correctly attached to the monitor
and video card. (Refer Page. 8)
☞ Check the frequency of the video adapter. (Refer page.15)
☞ Compare the maximum resolution and frequency with the values in
the Display modes chart. (Refer page. 16)
☞ Activate the Auto-adjustment. (Refer page. 14)
☞ Make Color Temperature adjustments. (Refer page. 13)
white.
The Screen Position is not
right.
The Power Indicator keeps
on blinking from green to
orange.
LCD Screen is blurry. ☞ Adjust the Resolution and Contrast (Refer page. 8)
☞ Activate Auto-adjustment. (Refer page. 14)
☞ Check if the computer is in Power Saving mode.
Try pressing the keys on the keyboard or moving the mouse.
☞ Activate Auto-adjustment. (Refer page. 14)
- 17 -
◈
SPECIFICATIONS
Screen size 17 inch
LCD
(PANEL)
PC
Power/
Voltage
Consumption
Operating
Environment
Visible Screen Size (mm) 337.92(H) X 270.336(V)
Pixel Range (mm) 0.264(H) X 0.264(V)
Type A-si TFT LCD active matrix
Viewing Angle 65°/65°/55°/55°(L/R/U/D)
Maximum Resolution/
1280 X 1024 @75 Hz / 1280 X 1024 @60 Hz
Recommended resolution
Horizontal Frequency 30 ~ 80 kHz
Vertical Frequency 55 ~ 75 Hz
Display color 16,2 M Colors
Input Signal Analog 0.714Vp-p POSITIVE (75Ω)
Recommended voltage DC 12V / 3.5A
Maximum Maximum 37W Power
Power Saving Mode Less than 3W
Storage temp. -20℃ ~ 40℃
Operating moist. 10% ~ 85%
Operating temp. 0℃ ~ 40℃
Without stand 29.5X 407 X 337 Dimensions/
Size
Weight
With Stand 150 X 407 X 398.8
Set 4.11kg Dimensions/
Gross 6 kg
The stated Specifications are subject to change without prior notice.
- 18 -
Loading...
