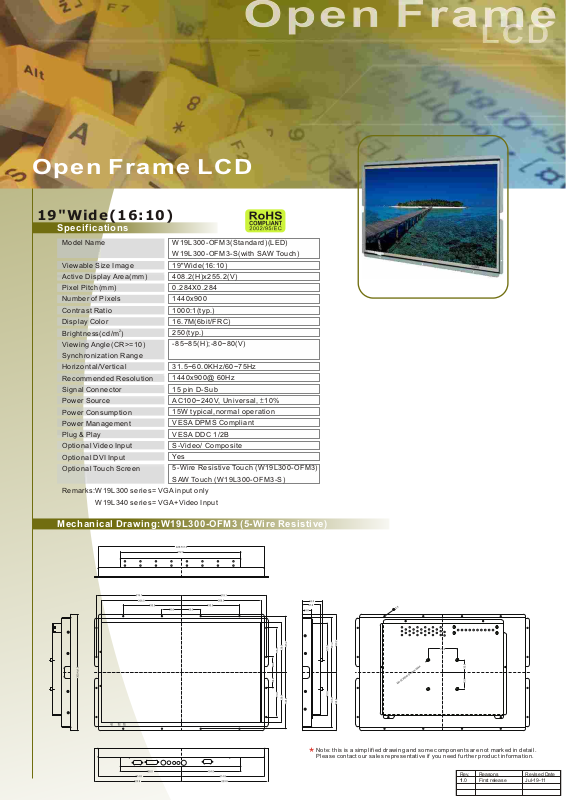

Impulse W19L300-OFM3 User Manual
Open Frame LCD
19"Wide(16:10)
Specifications
Model Name
Viewable Size Image
Active Dis pla y Area(mm)
Pixel Pitc h(m m)
Number of Pi xel s
Contrast R ati o
Display Co lor
Brightne ss( cd/ m )
Viewing Angle(CR>=10)
Synchron iza tio n Ran ge
Horizont al/ Vert ica l
Recommen ded R eso lut ion
Signal Con nec tor
Power Sour ce
Power Cons ump tio n
Power Mana gem ent
Plug & Play
Optional Video Input
Optional D VI In put
Optional Touch Screen
Remarks: W19 L30 0 ser ies = VGA in put only
W19L340 serie s= VG A+Video Inp ut
2
W19L300- OFM 3(S tan dar d)( LED)
W19L300- OFM 3-S (wi th S AW Touc h)
19"Wide( 16: 10)
408.2(H) x25 5.2 (V)
0.284X0. 284
1440x900
1000:1(t yp. )
16.7M(6b it/ FRC )
250(typ. )
-85~85(H );- 80~ 80( V)
31.5~60. 0KH z/6 0~7 5Hz
1440x900 @ 60 Hz
15 pin D-S ub
AC100~24 0V, Un iversal, 10%
15W typic al, nor mal ope rat ion
VESA DPMS C omp lia nt
VESA DDC 1/ 2B
S-Video/ Composite
Yes
5-Wire Re sis tiv e Touch (W 19L 300 -OF M3)
SAW Touch (W19L300-OFM3 -S)
±
Mechanical Drawing:W19L300-OFM3 (5-Wi re Resistive)
Note: th is is a si mplifie d draw ing and som e comp one nts ar e not ma rke d in det ail.
Please c onta ct our sale s repr esentat ive if y ou ne ed fur ther p rod uct in form ati on.
Rev.
Reasons Revised Date
11.0
First release
Jul-19-11
Open Frame LCD
Mechanical Drawing:W19L300-OFM3-S (Wi th SAW)
Note: th is is a si mplifie d draw ing and som e comp one nts ar e not ma rke d in det ail.
Please c onta ct our sale s repr esentat ive if y ou ne ed fur ther p rod uct in form ati on.
