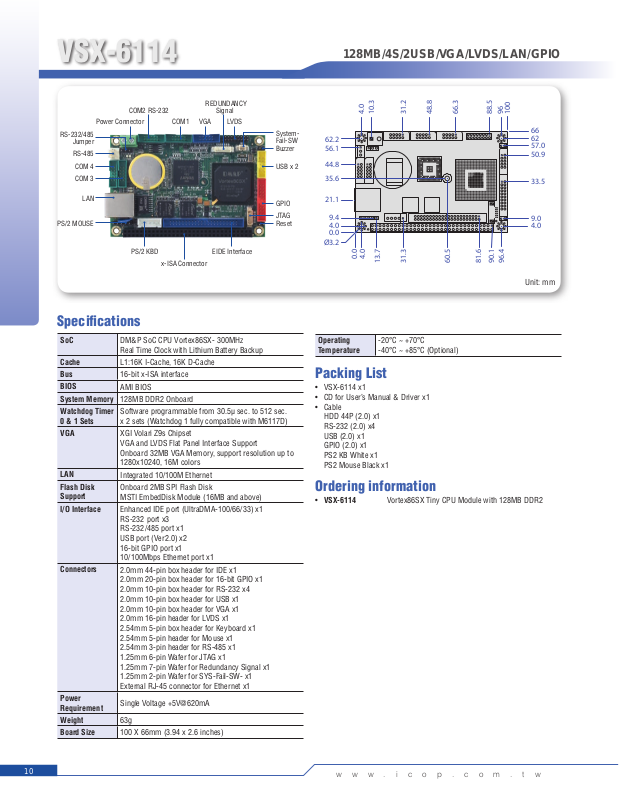

Impulse VSX-6114-V2 User Manual

VSX-6114

0.0

0.0

100

66

4.0

21.1

4.0

9.4

13.7

31.3

81.6

90.1

96.4

44.8

56.1

62.2

4.0

10.3

31.2

48.8

66.3

88.5

96

62

50.9

57.0

33.5

4.0

9.0

35.6

60.5

Ø3.2

128MB/4S/2USB/VGA/LVDS/LAN/GPIO

Power Connector

RS-232/485

Jumper

RS-485

COM 4

COM 3

LAN

PS/2 MOUSE

Specifications

SoC

Cache
Bus
BIOS
System Memory
Watchdog Timer

0 & 1 Sets
VGA

LAN
Flash Disk

Support
I/O Interface

Connectors

Power
Requirement

Weight
Board Size

REDUNDANCY
Signal

LVDS

VGA

EIDE Interface

µ sec. to 512 sec.

COM2 RS-232

COM1

PS/2 KBD

x-ISA Connector

DM&P SoC CPU Vortex86SX- 300MHz
Real Time Clock with Lithium Battery Backup

L1:16K I-Cache, 16K D-Cache
16-bit x-ISA interface
AMI BIOS
128MB DDR2 Onboard
Software programmable from 30.5

x 2 sets (Watchdog 1 fully compatible with M6117D)
XGI Volari Z9s Chipset

VGA and LVDS Flat Panel Interface Support
Onboard 32MB VGA Memory, support resolution up to
1280x10240, 16M colors

Integrated 10/100M Ethernet
Onboard 2MB SPI Flash Disk

MSTI EmbedDisk Module (16MB and above)
Enhanced IDE port (UltraDMA-100/66/33) x1

RS-232 port x3
RS-232/485 port x1
USB port (Ver2.0) x2
16-bit GPIO port x1
10/100Mbps Ethernet port x1

2.0mm 44-pin box header for IDE x1

2.0mm 20-pin box header for 16-bit GPIO x1

2.0mm 10-pin box header for RS-232 x4

2.0mm 10-pin box header for USB x1

2.0mm 10-pin box header for VGA x1

2.0mm 16-pin header for LVDS x1

2.54mm 5-pin box header for Keyboard x1

2.54mm 5-pin header for Mouse x1

2.54mm 3-pin header for RS-485 x1

1.25mm 6-pin Wafer for JTAG x1

1.25mm 7-pin Wafer for Redundancy Signal x1

1.25mm 2-pin Wafer for SYS-Fail-SW- x1
External RJ-45 connector for Ethernet x1

Single Voltage +5V@620mA

63g
100 X 66mm (3.94 x 2.6 inches)

System­Fail-SW

Buzzer

USB x 2

GPIO

JTAG
Reset

Unit: mm

Operating
Temperature

-20°C ~ +70°C

-40°C ~ +85°C (Optional)

Packing List

• VSX-6114 x1

• CD for User’s Manual & Driver x1

• Cable
HDD 44P (2.0) x1
RS-232 (2.0) x4
USB (2.0) x1
GPIO (2.0) x1
PS2 KB White x1
PS2 Mouse Black x1

Ordering information

• VSX-6114 Vortex86SX Tiny CPU Module with 128MB DDR2
