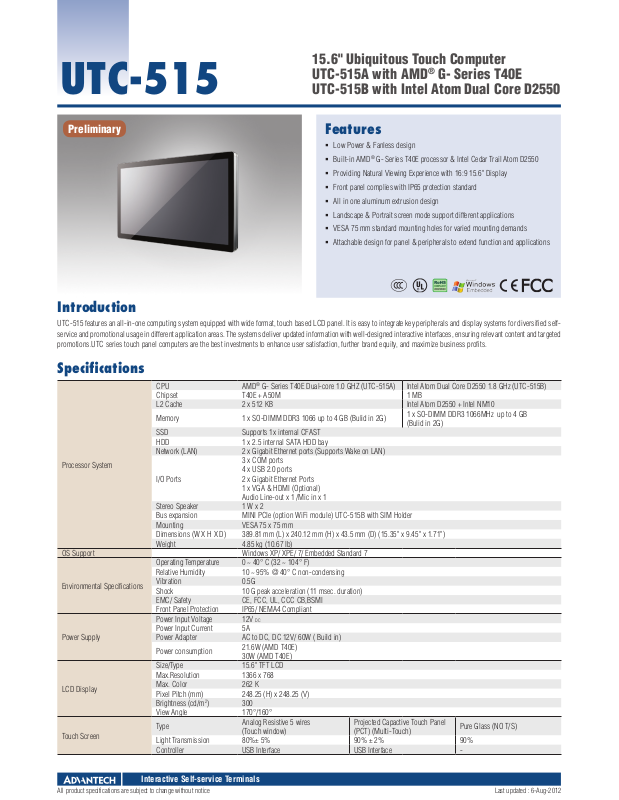

UTC-515
15.6" Ubiquitous Touch Computer
UTC-515A with AMD® G- Series T40E
UTC-515B with Intel Atom Dual Core D2550
Preliminary
Features
Low Power & Fanless design
Built-in AMD® G- Series T40E processor & Intel Cedar Trail Atom D2550
Providing Natural Viewing Experience with 16:9 15.6" Display
Front panel complies with IP65 protection standard
All in one aluminum extrusion design
Landscape & Portrait screen mode support different applications
VESA 75 mm standard mounting holes for varied mounting demands
Attachable design for panel & peripherals to extend function and applications
Introduction
UTC-515 features an all-in-one computing system equipped with wide format, touch based LCD panel. It is easy to integrate key peripherals and display systems for diversified selfservice and promotional usage in different application areas. The systems deliver updated information with well-designed interactive interfaces, ensuring relevant content and targeted
promotions.UTC series touch panel computers are the best investments to enhance user satisfaction, further brand equity, and maximize business profits.
Specifications
CPU AMD® G- Series T40E Dual-core 1.0 GHZ (UTC-515A) Intel Atom Dual Core D2550 1.8 GHz (UTC-515B)
Chipset T40E + A50M 1 MB
L2 Cache 2 x 512 KB Intel Atom D2550 + Intel NM10
Memory 1 x SO-DIMM DDR3 1066 up to 4 GB (Bulid in 2G)
SSD Supports 1x internal CFAST
HDD 1 x 2.5 internal SATA HDD bay
Network (LAN) 2 x Gigabit Ethernet ports (Supports Wake on LAN)
Processor System
I/O Ports
Stereo Speaker 1 W x 2
Bus expansion MINI PCIe (option WiFi module) UTC-515B with SIM Holder
Mounting VESA 75 x 75 mm
Dimensions (W X H X D) 389.81 mm (L) x 240.12 mm (H) x 43.5 mm (D) (15.35" x 9.45" x 1.71")
OS Support Windows XP/ XPE/ 7/ Embedded Standard 7
Environmental Specifications
Power Supply
LCD Display
Touch Screen
Weight 4.85 kg (10.67 Ib)
Operating Temperature 0 ~ 40° C (32 ~ 104° F)
Relative Humidity 10 ~ 95% @ 40° C non-condensing
Vibration 0.5G
Shock 10 G peak acceleration (11 msec. duration)
EMC/ Safety CE, FCC, UL, CCC CB,BSMI
Front Panel Protection IP65/ NEMA4 Compliant
Power Input Voltage 12V
Power Input Current 5A
Power Adapter AC to DC, DC 12V/ 60W ( Build in)
Power consumption
Size/Type 15.6" TFT LCD
Max.Resolution 1366 x 768
Max. Color 262 K
Pixel Pitch (mm) 248.25 (H) x 248.25 (V)
Brightness (cd/m2) 300
View Angle 170°/160°
Type
Light Transmission 80%± 5% 90% ± 2% 90%
Controller USB Interface USB Interface -
3 x COM ports
4 x USB 2.0 ports
2 x Gigabit Ethernet Ports
1 x VGA & HDMI (Optional)
Audio Line-out x 1 /Mic in x 1
DC
21.6W (AMD T40E)
30W (AMD T40E)
Analog Resistive 5 wires
(Touch window)
Projected Capactive Touch Panel
(PCT) (Multi-Touch)
1 x SO-DIMM DDR3 1066MHz up to 4 GB
(Bulid in 2G)
Pure Glass (NO T/S)
Interactive Self-service Terminals
All product specifications are subject to change without notice Last updated : 6-Aug-2012
UTC-515A
UTC-515B
Dimensions Unit: mm (inch)
VESA Hole
M4 depth=5mm
389.81
139.91100
49.06
100
240.12
40
45.20
Ordering Information
Part No. Description
UTC-515A-RE
UTC-515A-PE
UTC-515A-GE 15.6" AMD T40E Based fanless UTC with Glass. 2 GB RAM
UTC-515A-RXPE0E 15.6"Res.T/S with AMD T40E /2G Me /250G HDD/XPE
UTC-515B-RE
UTC-515B-PE
UTC-515B-GE
UTC-515B-RXPE0E 15.6 "Res.T/S with Atom D2550/2G Me/250G HDD/XPE
1702002605 Power cord 2P FRANCE 10A/16A 220V 1.83M 90D
1702002600 Power Cord 3P UL/CSA(USA) 125V 10A 1.83M 180D
1700000596 Power Cord (China) CCC,10A 250V, 3P 1830mm
Peripherals for UTC-500 series
Part No. Description
UTC-P01-A0E 2M Camera Module For UTC-5XX (USB connection)
UTC-P02-A0E Magnet Strip Reader For UTC-5XX (USB connection)
UTC-P03-A0E RFID Reader For UTC-5XX (USB connection)
UTC-P06-A0E Smart Card Reader For UTC-5XX (USB connection)
UTC-P07-A0E 2D Barcode Reader For UTC-5XX (USB Connection)
UTC-P21-A0E 4 in 1 Modules Barcode reader + RFID + Card reader + MSR
Side groove design for Flexible peripheral device
15.6 " AMD T40E Based fanless UTC with Resi.T/S. 2 GB
RAM
15.6" AMD T40E Based fanless UTC with PCT.T/S. 2 GB
RAM
15.6 " ATOM D2550 Based fanless UTC with Resi.T/S. 2 GB
RAM
15.6" ATOM D2550 Based fanless UTC with PCT.T/S. 2 GB
RAM
15.6 " ATOM D2550 Based fanless UTC with Glass. 2 GB
RAM
Fully- Integrated I/O
A B D F H K M
A. Power switch
B. Antenna Port
C. Line-out
D. Min-in
E. COM3
F. COM2
G. COM1
Wireless LAN Module
Part No. Description
UTC-515AB-WIFIE UTC-515AB Wireless LAN module
Installation Accessory
Part No. Description
UTC-520-STAND1E Desktop Stand for UTC-520
PPC-ARM-A03 Swingarm
UTC-WALL-MOUNT1E Wall Mount kit for UTC-520/515
G JIC E
H. USB 2.0 x 4
I. HDMI
J. VGA
K. LAN Ports x 2
L. CFast
M. DC Input
L
