Isolated Process Control Signal Conditioning Products
▲
Accessories for SCM7B Analog Modules
SCM7BXEV
SCM7B
Description
The SCM7BXEV (Figure 1 and 2) is a single channel backpanel that can accept
any of the SCM7B analog modules. It is meant to be used primarily for module
evaluation. Unlike multiple channel backpanels, the single high-level system
output (or input) signal is routed to all channel pins on the system interface
DB25 connector. The backpanel contains four standoffs to allow mounting, using
a #6 or smaller screw.
System Side - Power
Using the V+ supply input, the power supply voltage can be as little as +14VDC.
If +15VDC is available, it is recommended that the supply be connected between
the V+A or V+B connections and COM; this will protect the module against
accidental supply reversal. Using both these connections with two power
supplies enables redundant operation. It is also recommended that a diode
transient absorber be installed to reduce power supply transient events from
degrading system performance. An accessory location, between the supply
and common lines, is provided for this purpose. The backpanel is fused at
1/4 Amp for module protection.
System Side - Signal
The SCM7BXEV uses either the SCM7BXCA01 (DB25 to 26-pin adapter
cable) and SCMXCA004-XX (26-pin to 26-pin interface cable), or the
SCM7BXCA02 (DB25 to DB25 interface cable), depending on system
requirements.
Field Side - Signal
On the field side, a temperature sensor is mounted underneath the field side
terminal block to provide cold junction compensation for thermocouple modules,
and a current-to-voltage conversion resistor (P/N SCM7BXR1) socketing
location is provided (supplied with SCM7B33 modules). Field connections are
terminated with three screw terminals
Specifications
Operating Temperature 40°C to +85°C
ATEX Group II, Category 3 20°C to +40°C
Relative Humidity 90%
Interface Connector:
Field high density screw clamp, 10-24 AWG
System DB25 (male) with 4-40 screwlocks and
high density screw clamp, 10-24 AWG
SCM7B
Figure 1: SCM7BXEV Dimensions
Visit our website www.dataforth.com
87
Isolated Process Control Signal Conditioning Products
SCM7B
Figure 2: SCM7BXEV Schematic Diagram
88
For information call 800-444-7644
SCM7BP01/SCM7BP02
Backpanel
Isolated Process Control Signal Conditioning Products
SCM7B
Description
The SCM7BP01 (Figure 3) and SCM7BP02 (Figure 4) are 1 and 2 channel
backpanels. Unlike other backpanels available, both the system and field side
sides have screw terminal connectors able to accept discrete wire (10-24 AWG).
The backpanels can be ordered with standoffs to allow mounting, using a #6
or smaller screw, or with DIN rail mounting hardware.
System Side - Power
Both backpanels accept 14-35VDC between V+ and COM using a screw
terminal (10-24 AWG) block. No reverse supply diodes are provided with this
model, but both are fused at 1/4 Amp (01) or 1/2 Amp (02) for module protection.
Field Side - Signal
On the field side, a temperature sensor is mounted underneath the field side
terminal block to provide cold junction compensation for thermocouple modules,
and a current-to-voltage conversion resistor (P/N SCM7BXR1) socket location
is provided (supplied with SCM7B33 modules).
Specifications
Operating Temperature 40°C to +85°C
ATEX Group II, Category 3 20°C to +40°C
Relative Humidity 90%
Interface Connector:
Field high density screw clamp, 10-24 AWG
System high density screw clamp, 10-24 AWG
SCM7B
Figure 3: SCM7BP01 Dimensions
Figure 4: SCM7BP02 Dimensions
Visit our website www.dataforth.com
89
Isolated Process Control Signal Conditioning Products
SCM7BP01-DIN/SCM7BP02-DIN
Panels & DIN Rail Mounting Accessories
SCM7B
Description
The following Dataforth parts (Figure 5) are required for DIN mounting one
SCM7BP01 or SCM7BP02 panel:
Qty Model Description
1 SCMXBEFE Base element with snap foot
2 SCMXSE Side element
The following Dataforth parts are required for DIN mounting two SCM7BP01-DIN
and/or SCM7BP02-DIN panels:
Qty Model Description
2 SCMXBEFE Base element with snap foot
2 SCMXSE Side element
4 SCMXVS Connection pins
The following Dataforth parts are required for DIN mounting three or more
SCM7BP01-DIN and/or SCM7BP02-DIN panels:
Qty Model Description
2 SCMXBEFE Base element with snap foot
2 SCMXSE Side element
(# panels) - 2 SCMXBE Base element without snap foot
(4 x (# panels)) - 4 SCMXVS Connection pins
The following DIN rail styles are available. Specify the required length in meters
(-XX):
SCMXRAIL1-XX DIN EN 50022-35 x 7.5 (slotted steel)
SCMXRAIL2-XX DIN EN 50035-G32 (slotted steel)
SCMXRAIL3-XX DIN EN 50022-35 x 15 (slotted steel)
Ordering Information
Part Number Description
SCM7BP01 Standard single channel backpanel with standoffs for
mounting.
SCM7BP01-DIN One SCM7BP01 with DIN rail mounting hardware.
Shipped fully assembled. Accepts one SCM7Bxx-xx module.
SCM7BP02 Standard dual channel backpanel with standoffs for mounting.
SCM7BP02-DIN One SCM7BP02 with DIN rail mounting hardware.
Shipped fully assembled. Accepts 2 SCM7Bxx-xx modules.
90
Figure 5: DIN Rail Mounting Elements
For information call 800-444-7644

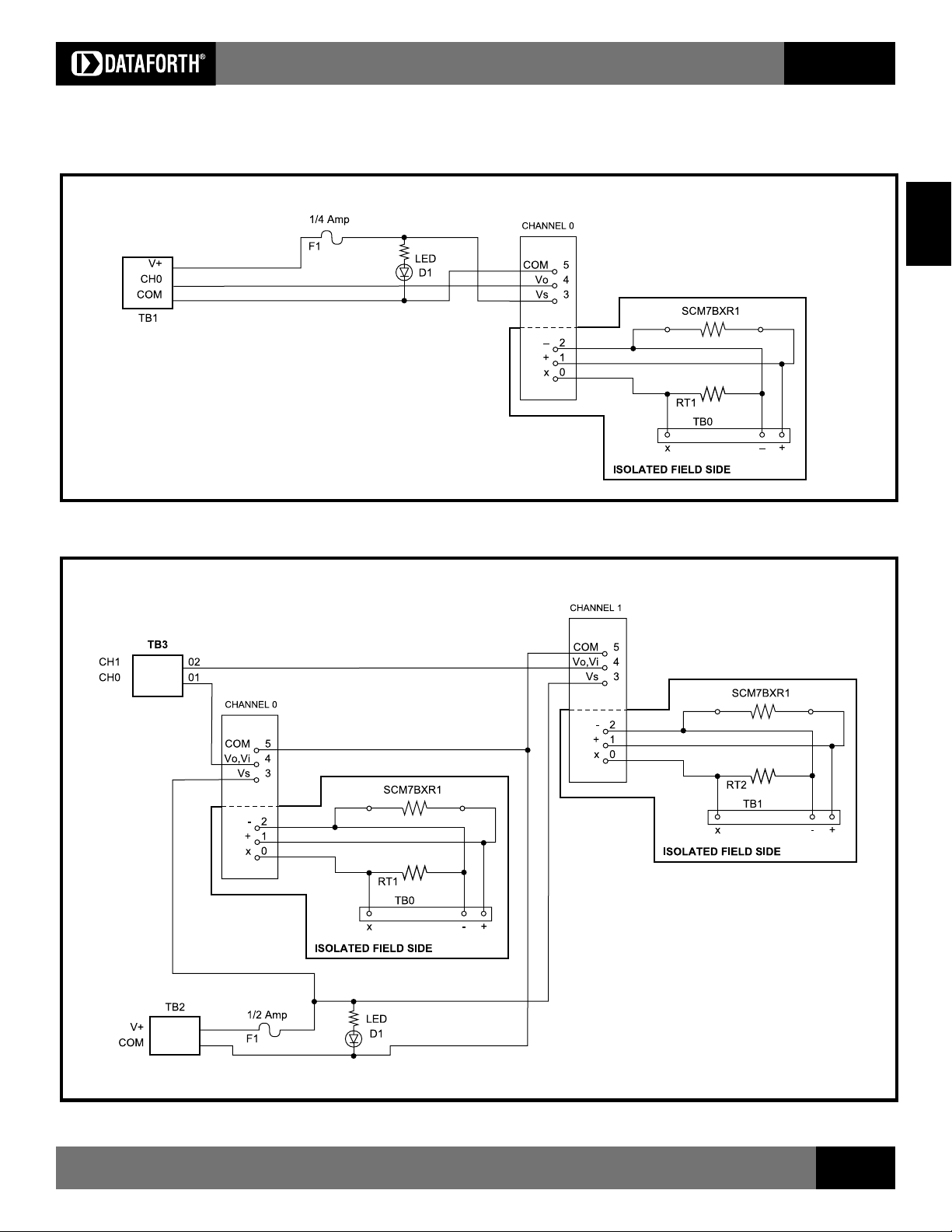

Figure 6: SCM7BP01 (-DIN) Schematic Diagram
Isolated Process Control Signal Conditioning Products
SCM7B
SCM7B
Figure 7: SCM7BP02 (-DIN) Schematic Diagram
Visit our website www.dataforth.com
91
Isolated Process Control Signal Conditioning Products
SCM7BP04(-DIN)/SCM7BP08(-DIN)/SCM7BP16(-DIN)
Backpanels
SCM7B
Description
The SCM7BP04, SCM7BP08, and SCM7BP16 (see Figures 10-13) are 4, 8,
& 16 channel backpanels that can accept any of the SCM7B analog modules.
All three of these backpanels can either be rack mounted using Dataforths 19-
inch rack P/N SCMXRK-002 (using the provided 3mm screws), or directly
mounted to a surface using #6 or smaller screws. The SCM7BP04-DIN,
SCM7BP08-DIN, and SCM7BP16-DIN are identical to their standoff counter-
parts but with DIN rail mounting brackets attached instead of standoffs. These
brackets allow the backpanels to be mounted on either EN 50022-35 x 7.5 (35
x 15) or EN 50035-G32 type DIN rails.
System Side - Power
Using the V+ power supply input, the power supply voltage can be as little as
+14VDC. If +15VDC is available, it is recommended that the supply be
connected between the V+A or V+B connections and COM; this will protect
the modules against accidental supply reversal. Using both these connections
with two power supplies enables redundant power supply operation. It is also
recommended that a diode transient absorber be installed to reduce power
supply transient events from degrading system performance. An accessory
location, between the supply and common lines, is provided for this purpose.
A system side grounding #10-32 stud is also provided for use if desired.
All backpanels are fused according to channel count, allowing 1/4 Amp
per channel.
System Side - Signal
Two system interface DB25 connectors are used, to enable using both input and
output modules simultaneously, or to route the signal from an input module
backplane to an output module backplane. These backpanels use either the
SCM7BXCA01 (DB25 to 26-pin adapter cable) and SCMXCA004-XX (26-pin
to 26-pin interface cable), or the SCM7BXCA02 (DB25 to DB25 interface cable),
depending on system requirements.
Field Side - Signal
On the field side a temperature sensor is mounted underneath the field side
terminal block to provide cold junction compensation for thermocouple modules,
and a current-to-voltage conversion resistor (P/N SCM7BXR1) socket location
is provided (supplied with SCM7B33 modules) for each channel. Field
connections are terminated with three screw terminals.
Specifications
Operating Temperature 40°C to +85°C
ATEX Group II, Category 3 20°C to +40°C
Relative Humidity 90%
Interface Connector:
Field high density screw clamp, 10-24 AWG
System 2 DB25 (male) connectors with 4-40 screwlocks
Figure 10: SCM7BP04(-DIN) Dimensions
92
For information call 800-444-7644
Isolated Process Control Signal Conditioning Products
SCM7B
SCM7B
Figure 11: SCM7BP08(-DIN) Dimensions
Visit our website www.dataforth.com
Figure 12: SCM7BP16(-DIN) Dimensions
93
Isolated Process Control Signal Conditioning Products
SCM7B
Figure 13: SCM7BP04/08/16(-DIN) Schematic Diagram
SCMXRK-002
Description
The SCMXRK-002 is a 19-inch metal rack for mounting the SCM7BP04/08/
16 backpanels. It also provides capability to mount a system power supply and
19 Inch Metal Mounting Rack
the universal interface board, P/N SCMXIF. (See Figure 14 for dimensions.)
Figure 14: SCMXRK-002 Analog Rack Dimensions
94
For information call 800-444-7644
Isolated Process Control Signal Conditioning Products
SCM7B
Backpanel-to-Host System Interface
Description
SCM7BXCA01
The SCM7BXCA01 adapter cable converts the SCM7BXEV/04/08/16 channel
backpanel male DB25 connection to a male 26-pin ribbon connection.
SCM7B
SCM7BXCA02
The SCM7BXCA02 interface cable is used between the SCM7BXEV/04/08/
16 channel backpanels and host system capable of accepting a DB25 (female)
interface connector.
SCM7B

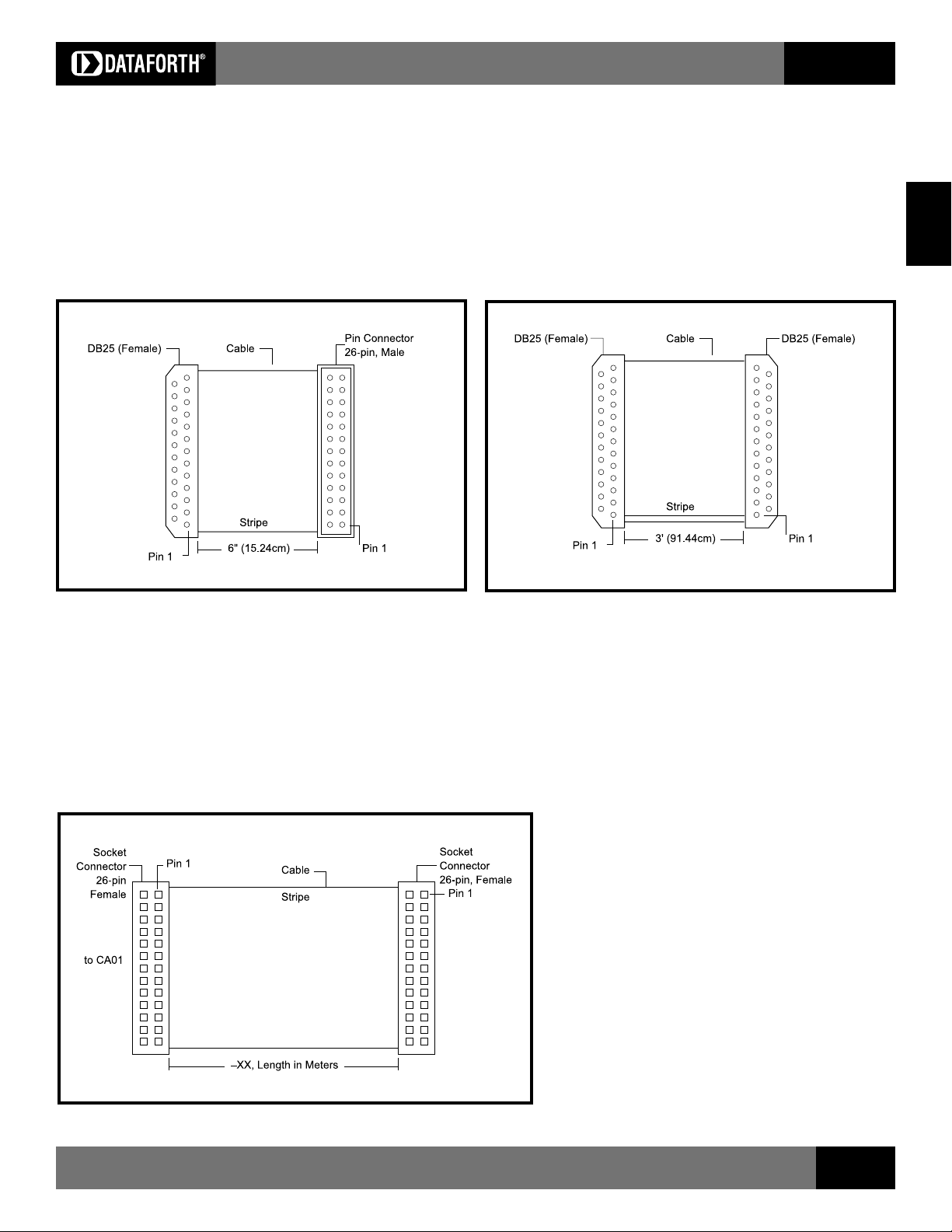

Figure 15: SCM7BXCA01 Figure 17: SCM7BXCA02
SCMXCA004-XX
The SCMXCA004-XX interface cable is used with the SCM7BXCA01 adapter
cable to provide interface either between host systems requiring a 26-pin ribbon
interface or between the universal interface board (ribbon-to-discrete wire),
P/N SCMXIF. Specify cable length (-XX) in meters.
Figure 16: SCMXCA004-XX
Visit our website www.dataforth.com
95
SCMXIF
Universal Interface Board
Isolated Process Control Signal Conditioning Products
SCM7B
Description
The SCMXIF is a universal interface board which converts a 26-pin ribbon
cable input to 26 screw terminals for discrete wire. It can be mounted on
the back of the SCMXRK-002 mounting rack (SCMXIF) or on a DIN rail
(SCMXIF-DIN). Required mounting hardware is included. Use
SCMXCA004-XX cable (See Figure 18 for dimensions).

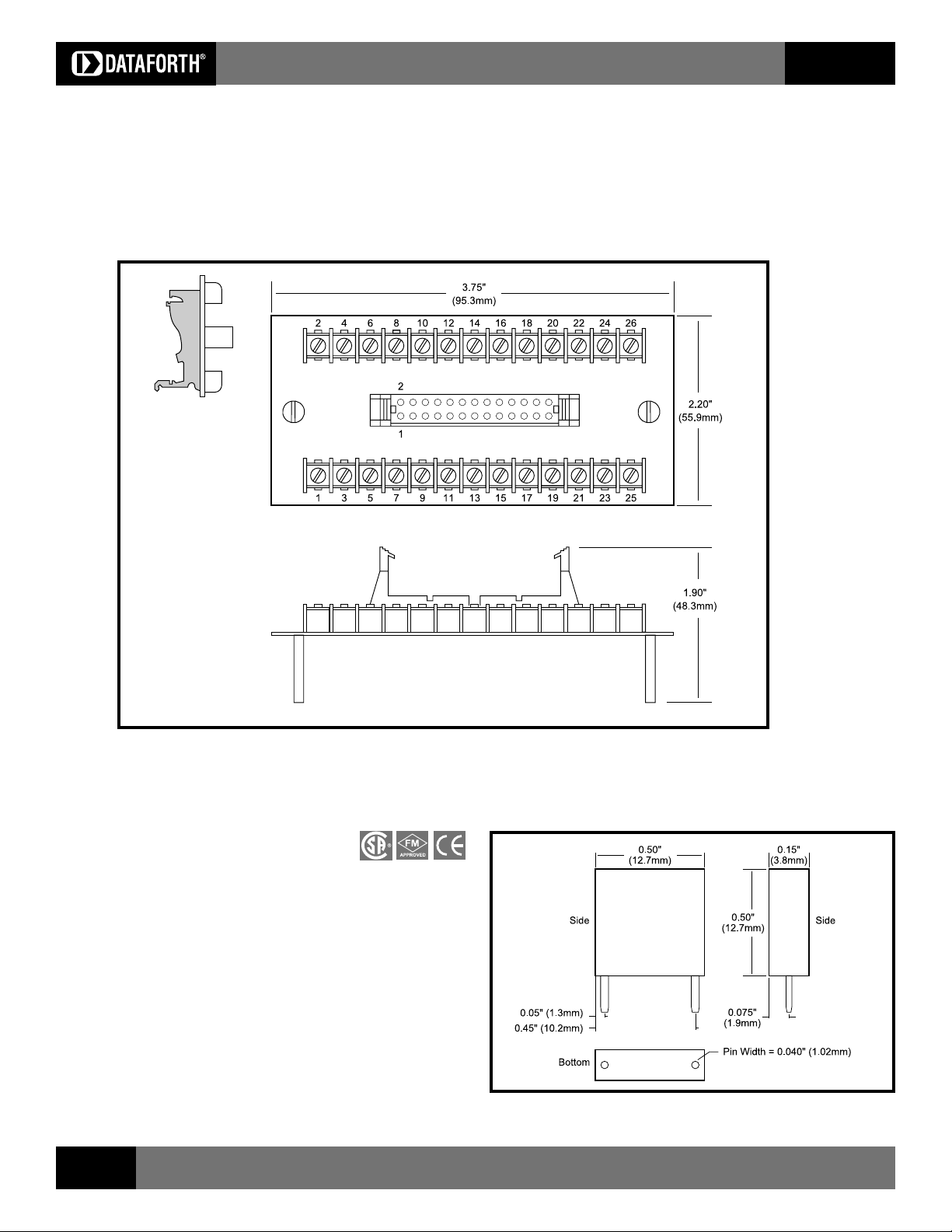

Figure 18: SCMXIF Universal Interface Board Dimensions
SCM7BXR1
Current Conversion Resistor
Description
The SCM7BXR1 current-to-voltage conversion resistor (250Ω, 0.1%, 10ppm)
is used with the SCM7B33 voltage input modules. Sockets are provided on all
backpanels to allow installation of this resistor. Other values are available;
consult the factory for ordering details and specifications.
96
For information call 800-444-7644
Figure 19: SCM7BXR1 Dimensions
Isolated Process Control Signal Conditioning Products
SCM7BPT
Non-Isolated Pass Thru Module
Description
The SCM7BPT is a non-isolated signal pass-thru module which shorts together
the signal inputs-to-outputs.
SCM7B
Additional Part Numbers of Interest
The following is a list of parts that are available for use with your SCM7B system,
or for fabrication of your own backpanel, along with manufacturers part number.
Dataforth makes no claim as to availability and/or quality of parts purchased from
vendors other than Dataforth.
Part Description Part Number Manufacturer
CJC Thermistor 100K6A1 Betatherm Corp.
DC95G104W Thermometrics
Diode Transient Absorber SA series General Semiconductor
Sockets for SCM7B pins 50865-5 Amp Incorporated
Module retaining screw KSF2-440 ET PEM Engineering
captive nut, 4-40 thread
Grounding Stud, 0.625", KFH 10-32-10 PEM Engineering
10-32 thread
Part Description Part Number Manufacturer
SCM7B
Figure 20: SCM7BPT
SCM7B-PROTO
Breadboard Kit
Description
The SCM7B-PROTO breadboard kit was designed to allow users to incorpo-
rate their own module functions using an SCM7B format. The kit includes a pc
board designed for breadboard circuits, a module case, header and mounting
screw. Contact the factory for additional information.
Axial Fuse PICO II series Littlefuse
2 position termination block MKDS5/2-6,35 Phoenix Contact, Inc.
3 position termination block MKDS5/3-6,35 Phoenix Contact, Inc.
DB25 (male) PCB connector 745078-3 AMP Incorporated
DB25 (female) ribbon 745078-5 AMP Incorporated
connector (for custom cables)
0.062" PCB Standoff 647A-5015-19 Concord
0.094" PCB Standoff 647A-5023-19 Concord
Visit our website www.dataforth.com
97
Loading...
