Impulse S370T User Manual

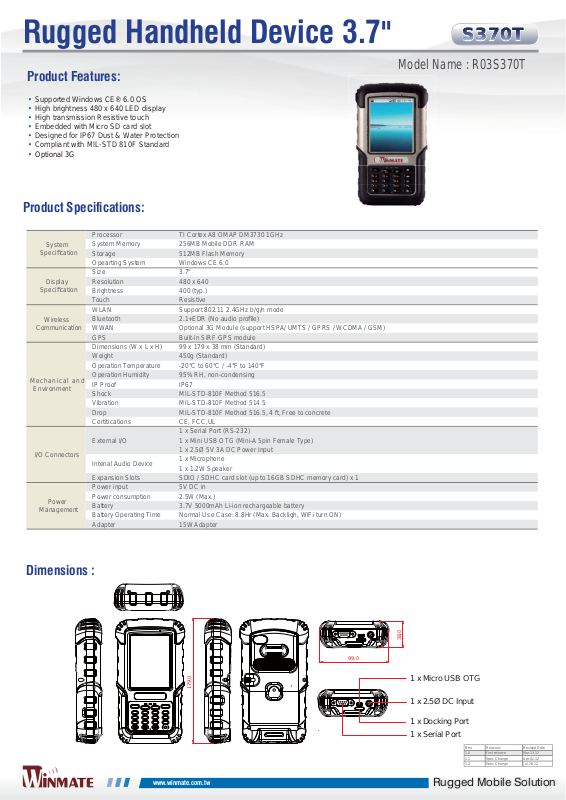

Rugged Handheld Device 3.7"
S370T
0
0
T
T
T
Product Features:
• Supported Windows CE® 6.0 OS
• High brightness 480 x 640 LED display
• High transmission Resistive touch
• Embedded with Micro SD card slot
• Designed for IP67 Dust & Water Protection
• Compliant with MIL-STD 810F Standard
• Optional 3G
Product Specifications:
Processor TI Cortex A8 OMAP DM3730 1GHz
System
Specifi cation
Display
Specifi cation
Wireless
Communication
Mechanical and
Environment
I/O Connectors
Power
Management
System Memory 256MB Mobile DDR RAM
Storage 512MB Flash Memory
Opearting System Windows CE 6.0
Size 3.7"
Resolution 480 x 640
Brightness 400 (typ.)
Touch Resistive
WLAN Support 802.11 2.4GHz b/g/n mode
Bluetooth 2.1+EDR (No audio profi le)
WWAN Optional 3G Module (support HSPA/ UMTS / GPRS / WCDMA / GSM)
GPS Built-in SiRF GPS module
Dimensions (W x L x H) 99 x 179 x 38 mm (Standard)
Weight 450g (Standard)
Operation Temperature -20°C to 60°C / -4°F to 140°F
Operation Humidity 95% RH, non-condensing
IP Proof IP67
Shock MIL-STD-810F Method 516.5
Vibration MIL-STD-810F Method 514.5
Drop MIL-STD-810F Method 516.5, 4 ft, Free to concrete
Certitications CE, FCC,UL
External I/O
Intenal Audio Device
Expansion Slots SDIO / SDHC card slot (up to 16GB SDHC memory card) x 1
Power input 5V DC in
Power consumption 2.5W (Max.)
Battery 3.7V 5000mAh Li-ion rechargeable battery
Battery Operating Time Normal Use Case: 8.8Hr (Max. Backligh, WiFi turn ON)
Adapter 15W Adapter
1 x Serial Port (RS-232)
1 x Mini USB OTG (Mini-A 5pin Female Type)
1 x 2.5Ø 5V 3A DC Power Input
1 x Microphone
1 x 1.2W Speaker
Model Name : R03S370T
Dimensions :
179,0
www.winmate.com.tw
99,0
38,0
1 x Micro USB OTG
1 x 2.5Ø DC Input
1 x Docking Port
1 x Serial Port
Rugged Mobile Solution
Rev. Reasons Revised Date
1.0 First release Mar.13.12
1.1 Spec Change Apr.02.12
1.2 Spec Change Jul.26.12
