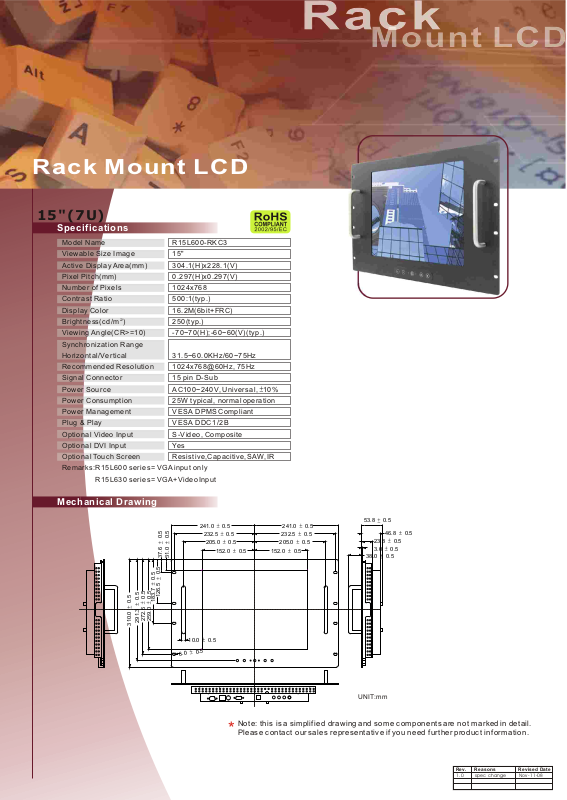

Impulse R15L600-RKC3 User Manual

Rack Mount LCD

15"(7U)

Specifications

Model Name

Viewable Size Image

Active Display Area(mm)

Pixel Pitch(mm)

Number of Pixels

Contrast Ratio

Display Color

Brightness(cd/m )

2

Viewing Angle(CR>=10)

Synchronization Range

Horizontal/Vertical

Recommended Resolution

Signal Connector

Power Source

Power Consumption

Power Management

Plug & Play

Optional Video Input

Optional DVI Input

Optional Touch Screen

Remarks:R15L600 series= VGA input only

R15L630 series= VGA+Video Input

R15L600-RKC3

15"

304.1(H)x228.1(V)

0.297(H)x0.297(V)

1024x768

500:1(typ.)

16.2M(6bit+FRC)

250(typ.)

-70~70(H);-60~60(V)(typ.)

31.5~60.0KHz/60~75Hz

1024x768@60Hz, 75Hz

15 pin D-Sub

AC100~240V, Universal, 10%

25W typical, normal operation

VESA DPMS Compliant

VESA DDC 1/2B

S-Video, Composite

Yes

Resistive,Capacitive,SAW,IR

Mechanical Drawing

272.6 0.5

291.3 0.5

310.0 0.5

241.0 0.5 241.0 0.5

205.0 0.5

31.0 0.5

37.6 0.5

126.5 0.5

183.7 0.5

259.0 0.5

0 0.5

6.

152.0 0.5

10.0 0.5

232.5 0.5232.5 0.5

205.0 0.5

152.0 0.5

53.8 0.5

23.8 0.5

3.0 0.5

38.0 0.5

UNIT:mm

46.8 0.5

Note: this is a simplified drawing and some components are not marked in detail.

*

Please contact our sales representative if you need further product information.

Reasons

Rev.

1.0

spec change

Revised Date

Nov-11-08
