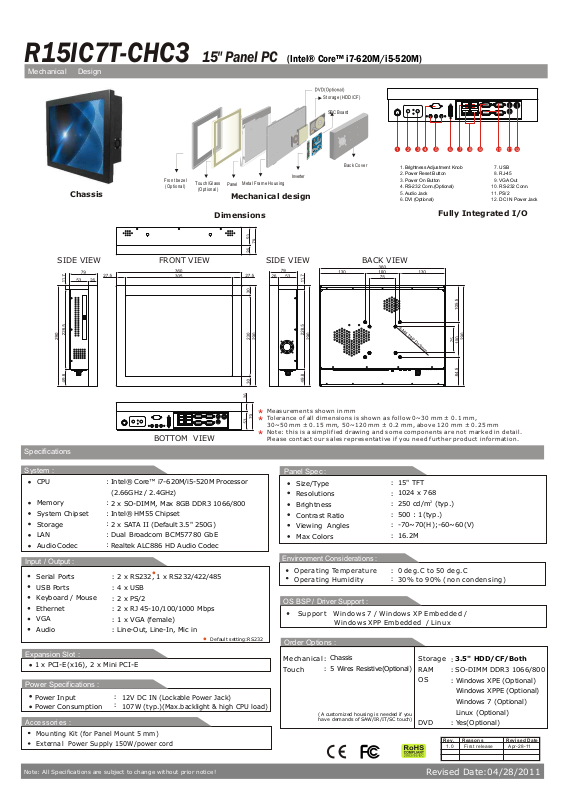

Impulse R15IC7T-CHC3 User Manual
R15IC7T-CHC3 15" Panel PC ( )Intel® Core™ i7-620M/i5-520M
Mechanical
Design
Sto rage (H DD/CF )
SBC Board
SIDE VIEW BACK VIEW
Specifications
Chassis
Fro nt beze l
(Op tiona l)
Touch /Glas s
(Op tiona l)
FRONT VIEW
BOTTOM VIEW
Met al Fram e Housi ng
Panel
Mechanical design
Dimensions
SIDE VIEW
Me asure me nts s ho wn i n mm
*
Tole ra nce o f al l di men si ons is sh ow n as fo ll ow 0 ~30 m m ± 0. 1 mm,
*
30 ~50 mm ± 0. 15 m m, 50 ~1 20 mm ± 0.2 m m, a bov e 12 0 mm ± 0. 25 m m
No te: thi s is a s imp li fi ed dr aw ing a nd s ome com po nen ts a re n ot ma rk ed in d et ai l.
*
Pl ease co nt act o ur s al es re pr esent at ive i f yo u need fu rt her p ro du ct in fo rmati on .
Inverter
Bac k Cover
2 3 4 5 6 7 8 9 10 11
1
1.
Brightness Adjustment Knob
2.
Power Reset Button
3.
Power On Button
4.
RS-232 Conn.(Optional)
5.
Audio Jack
6.
DVI (Optional)
Fully Integrated I/O
USB
7.
RJ-45
8.
VGA Out
9.
RS-232 Conn.
10.
PS/2
11.
DC IN Power Jack
12.
12
System :
CPU
Memory
System Chipset
Storage
LAN
Audio Codec
:
Intel® Core™ i7-620M/i5-520M Processor
(2.66GHz / 2.4GHz)
:
2 x SO-DIMM, Max 8GB DDR3 1066/800
:
Intel® HM55 Chipset
:
2 x SATA II (Default 3.5" 250G)
:
Dual Broadcom BCM57780 GbE
:
Realtek ALC886 HD Audio Codec
Input / Output :
Serial Ports
USB Ports
Keyboard / Mouse
Ethernet
VGA
Audio
2 x RS232, 1 x RS232/422/485
:
4 x USB
:
:
2 x PS/2
:
2 x RJ 45-10/100/1000 Mbps
:
1 x VGA (female)
:
Line-Out, Line-In, Mic in
Expansion Slot :
1 x PCI-E(x16), 2 x Mini PCI-E
Power Specifications :
Power Input
Power Consumption
:
12V DC IN (Lockable Power Jack)
:
107W (typ.)(Max.backlight & high CPU load)
Accesso ri es :
Mounting Kit (for Panel Mount 5 mm)
Externa l Power Supply 150W /power cord
Default setting:RS232
Panel Spec :
15" TFT
Size/Type
Resolutions
Brightness
Contrast Ratio
Viewing Angles
Max Colors
:
1024 x 768
:
250 cd/m (typ.)
:
500 : 1(typ.)
:
-70~70(H);-60~60(V)
:
16.2M
:
2
Environment Considerations :
Op er at in g Temp er at ur e
Op er at in g Humidity
0 de g. C to 5 0 de g. C
:
:
30 % to 9 0% ( no n co nd en si ng )
OS BSP / Driver Support :
Su pp or t Wi nd ow s 7 / Wi nd ow s XP E mb ed de d /
Wi nd ow s XP P Em be dd ed / L in ux
Order Options :
Chassis
Mechanical
Touch
:
:
5 Wires Resistive(Optional)
(A customized housing is needed if you
have demands of SAW/IR/IT/SC touch)
Storage
RAM
OS
DVD
3.5" HDD/CF/Both
:
SO-DIMM DDR3 1066/800
:
:
Windows XPE (Optional)
Windows XPPE (Optional)
Windows 7 (Optional)
Linux (Optional)
:
Yes(Optional)
Rea sons
Rea sons
Rev.
Rev.
1.0
1.0
Fir st rele ase
New A dd
Rev ised Da te
Rev ised Da te
Nov -06- 08
Apr -28-11
Note: All Specifications are subject to change witho ut prior notice!
Revised Date:04/28/2011
