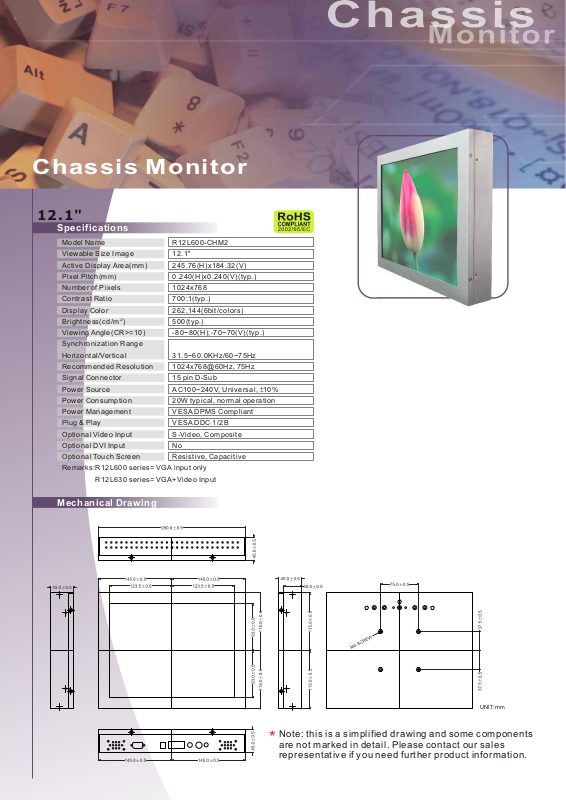

Impulse R12L600-CHM2 User Manual

Chassis Monitor

12.1 "

Specificati ons

Model Name

Viewable Size Image

Active Dis pla y Area(mm)

Pixel Pitc h(m m)

Number of Pi xel s

Contrast R ati o

Display Co lor

Brightne ss( cd/ m )

Viewing Angle(CR>=10)

Synchron iza tio n Ran ge

Horizont al/ Vert ica l

Recommen ded R eso lut ion

Signal Con nec tor

Power Sour ce

Power Cons ump tio n

Power Mana gem ent

Plug & Play

Optional Video Input

Optional D VI In put

Optional Touch Screen

Remarks: R12 L60 0 ser ies = VGA in put o nly

R12L630 serie s= VG A+Video Input

R12L600- CHM 2

12.1"

245.76(H )x1 84. 32( V)

0.240(H) x0. 240 (V) (ty p.)

1024x768

700:1(ty p.)

262,144( 6bi t/c olo rs)

500(typ. )

-80~80(H );- 70~ 70( V)( typ .)

31.5~60. 0KH z/6 0~7 5Hz

1024x768 @60 Hz, 7 5Hz

15 pin D-Sub

AC100~24 0V, Uni ver sal, 10%

20W typica l, no rma l ope rat ion

VESA DPMS Com pli ant

VESA DDC 1/2B

S-Video, Composite

Resistiv e, Ca pac iti ve

Mechanical Dr awing

UNIT:mm

Note: this is a sim plified drawi ng and some compo nents

are not marked in d etail. Please c ontact our sale s representat ive if you need fur ther product in formation.
