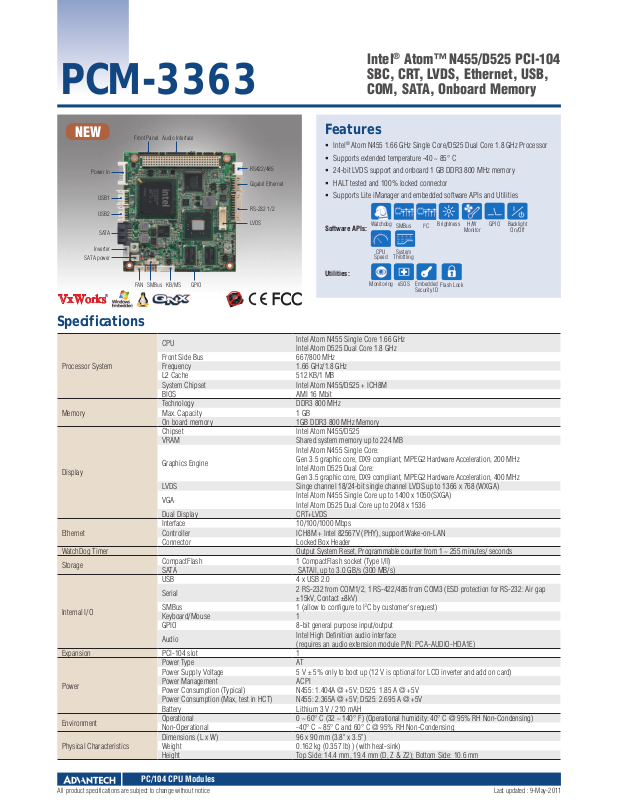

PCM-3363
Intel® Atom™ N455/D525 PCI-104
SBC, CRT, LVDS, Ethernet, USB,
COM, SATA, Onboard Memory
NEW
Power in
USB1
USB2
Inverter
SATA power
VxWorks
Audio InterfaceFront Panel
RS422/485
Gigabit Ethernet
RS-232 1/2
LVDS
SATA
FAN SMBus KB/MS GPIO
®
Features
Intel® Atom N455 1.66 GHz Single Core/D525 Dual Core 1.8 GHz Processor
Supports extended temperature -40 ~ 85° C
24-bit LVDS support and onboard 1 GB DDR3 800 MHz memory
HALT tested and 100% locked connector
Supports Lite iManager and embedded software APIs and Utilities
Software APIs:
Utilities:
Watchdog
SMBus
I2C
CPU
System
Speed
Throttling
Monitoring eSOS Embedded
Security ID
Brightness
Flash Lock
H/W
Monitor
GPIO
Specifications
CPU
Front Side Bus 667/800 MHz
Processor System
Memory
Display
Ethernet
WatchDog Timer Output System Reset, Programmable counter from 1 ~ 255 minutes/ seconds
Storage
Internal I/O
Expansion PCI-104 slot 1
Power
Environment
Physical Characteristics
Frequency 1.66 GHz/1.8 GHz
L2 Cache 512 KB/1 MB
System Chipset Intel Atom N455/D525 + ICH8M
BIOS AMI 16 Mbit
Technology DDR3 800 MHz
Max. Capacity 1 GB
On board memory 1GB DDR3 800 MHz Memory
Chipset Intel Atom N455/D525
VRAM Shared system memory up to 224 MB
Graphics Engine
LVDS Singe channel 18/24-bit single channel LVDS up to 1366 x 768 (WXGA)
VGA
Dual Display CRT+LVDS
Interface 10/100/1000 Mbps
Controller ICH8M + Intel 82567V (PHY), support Wake-on-LAN
Connector Locked Box Header
CompactFlash 1 CompactFlash socket (Type I/II)
SATA SATAII, up to 3.0 GB/s (300 MB/s)
USB 4 x USB 2.0
Serial
SMBus 1 (allow to configure to I
Keyboard/Mouse 1
GPIO 8-bit general purpose input/output
Audio
Power Type AT
Power Supply Voltage 5 V ± 5% only to boot up (12 V is optional for LCD inverter and add on card)
Power Management ACPI
Power Consumption (Typical) N455: 1.404A @ +5V; D525: 1.85 A @ +5V
Power Consumption (Max, test in HCT) N455: 2.365A @ +5V; D525: 2.695 A @ +5V
Battery Lithium 3 V / 210 mAH
Operational 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)
Non-Operational -40° C ~ 85° C and 60° C @ 95% RH Non-Condensing
Dimensions (L x W) 96 x 90 mm (3.8" x 3.5")
Weight 0.162 kg (0.357 lb) ) (with heat-sink)
Height Top Side: 14.4 mm, 19.4 mm (D, Z & Z2); Bottom Side: 10.6 mm
Intel Atom N455 Single Core 1.66 GHz
Intel Atom D525 Dual Core 1.8 GHz
Intel Atom N455 Single Core:
Gen 3.5 graphic core, DX9 compliant, MPEG2 Hardware Acceleration, 200 MHz
Intel Atom D525 Dual Core:
Gen 3.5 graphic core, DX9 compliant, MPEG2 Hardware Acceleration, 400 MHz
Intel Atom N455 Single Core up to 1400 x 1050(SXGA)
Intel Atom D525 Dual Core up to 2048 x 1536
2 RS-232 from COM1/2, 1 RS-422/485 from COM3 (ESD protection for RS-232: Air gap
±15kV, Contact ±8kV)
Intel High Definition audio interface
(requires an audio extension module P/N: PCA-AUDIO-HDA1E)
2
C by customer's request)
Backlight
On/Off
PC/104 CPU Modules
All product specifications are subject to change without notice Last updated : 9-May-2011
Board Diagram
PCM-3363
Optional
Audio extension
module
CRT connector
Transmitter
18/24-bit LVDS
connector
CF
1 SATAII
Port
4 USB
Ports
BIOS
Audio Pin
Header
PS/2
KB/MS
VGA
18-bitLVDS
PATA
SATA
USB 2.0
SPI
HD Audio
Intel Atom
N455/D525
X4DMI
Intel ICH8M
LPC
Super IO SCH3114
Single Channel
GLCI/PCIex1
SMbus/I2C
SMBus
PCI
PCA9555
1RS-422/485
2RS-232
Onboard 1GB DDR3
800 MHz Memory
Intel 82567V(PHY)
PCI-104 connector
SMBus or I2C
8-bit GPIO
Ordering Information
Part Number CPU
L2
Cache
Memory CRT LVDS GbE
PCM-3363N-1GS6A1E Atom N455 (1.66 GHz) 512 KB Onboard 1 GB DDR3 1 18/24-bit 1 4 2 1 Passive 0 ~ 60° C
PCM-3363D-1GS8A1E Atom D525 (1.8 GHz) 1 MB Onboard 1 GB DDR3 1 18/24-bit 1 4 2 1 Active 0 ~ 60° C
PCM-3363Z-1GS6A1E Atom N455 (1.66 GHz) 512 KB Onboard 1 GB DDR3 1 18/24-bit 1 4 2 1 Passive -20 ~ 80° C
PCM-3363Z2-1GS6A1E Atom N455 (1.66 GHz) 512 KB Onboard 1 GB DDR3 1 18/24-bit 1 4 2 1 Passive -40 ~ 85° C
Packing List
Part No. Description Quantity
1700000898 VGA cable D-SUB 15P(F)/12P-1.25 MM 15 cm 1
1700003491 AT power cable 1*8P-2.0/B4P-5.08*2 15 cm 1
1700060202 Cable 6P-6P-6P PS/2 KB & Mouse 20cm 1
1703040157 RS-422/485 W/D-SUB COM 4P 15 cm 1
1703060053
1700019000
1700008941 SATA data cable 7p 32 cm (w/ locked) 1
1703150102 SATA power cable B4P-5.08/SATA 15P 10 cm 1
1700018999 RS232 x2 ports 2.0 mm 22 cm (w/ locked) 1
1700019001 LAN cable RJ-45/2*5P-2.0 15 cm (w/ locked) 1
9660104000 PC/104 screw and copper post package 1
1960051405N001
1960051403N001
1960051404N001
PCM-3363 SBC
Startup Manual
Utility CD
PS2 Cable 6P (MINI-DIN)-6P (Wafer 2.0 mm)
6 cm
USB cable 2-port 2.0 mm pitch w/ bracket 26
cm (w/ locked)
Heatsink with FAN for PCM-3363D only
(79.66 x 77.97 x 17.22 mm)
Heatsink for PCM-3363N only
(79.66 x 77.97 x 12.22 mm)
Heatsink for PCM-3363Z series only
(79.66 x 77.97 x 17.22 mm)
1
1
1
1
1
Optional Accessories
Part No. Description
1960051701N001 Heat spreader (79.66 x 77.98 x 10.32 mm) for PCM-3363
1653130421 PCI-104 connector 120-pin (Long pin)
PCA-AUDIO-HDA1E Audio Extension module with bracket
1700018427
1700018259 SATA power cable for onboard connector (5V only)
Embedded OS/API
Embedded OS/API Part No. Description
WinCE CE 6.0 R3
Win XPE
QNX V6.5
Linux Ubuntu 10.04
VxWorks V6.8
Software API SUSI V3.0
USB
RS-232 RS-485
2.0
Thermal
Solution
Operating
Temp
Audio cable connecting PCM-3363 and
PCA-AUDIO-HDA1E
2070009030 XPE WES2009 Luna Pier V4.0 ENG
2070009031 XPE WES2009 Luna Pier V4.0 MUI24
Online Download
www.advantech.com/products
Value-Added Software Services
Software API: An interface that defines the ways by which an application program may request services from libraries and/or operating systems. Provides not only the underlying
drivers required but also a rich set of user-friendly, intelligent and integrated interfaces, which speeds development, enhances security and offers add-on value for Advantech platforms.
It plays the role of catalyst between developer and solution, and makes Advantech embedded platforms easier and simpler to adopt and operate with customer applications.
Software APIs
Control Monitor
General Purpose Input/Output is a flexible parallel interface
that allows a variety of custom connections. It allows users
to monitor the level of signal input or set the output status to
switch on/off a device. Our API also provides Programmable
GPIO
SMBus
I2C
GPIO, which allows developers to dynamically set the GPIO
input or output status.
SMBus is the System Management Bus defined by Intel®
Corporation in 1995. It is used in personal computers and
servers for low-speed system management communications.
The SMBus API allows a developer to interface a embedded
system environment and transfer serial messages using the
SMBus protocols, allowing multiple simultaneous device
control.
I2C is a bi-directional two wire bus that was developed by
Philips for use in their televisions in the 1980s.
The I2C API allows a developer to interface with an embedded
system environment and transfer serial messages using the I2C
protocols, allowing multiple simultaneous device control.
Watchdog
Hardware
Monitor
Hardware
Control
Display Power Saving
The Brightness Control API allows a developer to interface with
an embedded device to easily control brightness.
Brightness
Control
CPU Speed
A watchdog timer (WDT) is a device that performs a specific
operation after a certain period of time if something goes wrong
and the system does not recover on its own.
A watchdog timer can be programmed to perform a warm boot
(restarting the system) after a certain number of seconds.
The Hardware Monitor (HWM) API is a system health
supervision API that inspects certain condition indexes, such as
fan speed, temperature and voltage.
The Hardware Control API allows developers to set the PWM
(Pulse Width Modulation) value to adjust fan speed or other
devices; it can also be used to adjust the LCD brightness.
Make use of Intel SpeedStep technology to reduce power power
consumption. The system will automatically adjust the CPU
Speed depending on system loading.
Refers to a series of methods for reducing power consumption in
computers by lowering the clock frequency. These APIs allow the
user to lower the clock from 87.5% to 12.5%.
Backlight
The Backlight API allows a developer to control the backlight
(screen) on/off in an embedded device.
System
Throttling
Software Utilities
The BIOS Flash utility allows customers to update the flash
ROM BIOS version, or use it to back up current BIOS by
copying it from the flash chip to a file on customers’ disk. The
BIOS Flash utility also provides a command line version and
BIOS Flash
Embedded
Security ID
Monitoring
All product specifications are subject to change without notice Last updated : 9-May-2011
API for fast implementation into customized applications.
The embedded application is the most important property of
a system integrator. It contains valuable intellectual property,
design knowledge and innovation, but it is easily copied! The
Embedded Security ID utility provides reliable security functions
for customers to secure their application data within embedded
BIOS.
The Monitoring utility allows the customer to monitor system
health, including voltage, CPU and system temperature and fan
speed. These items are important to a device; if critical errors
happen and are not solved immediately, permanent damage may
be caused.
eSOS
Flash Lock
The eSOS is a small OS stored in BIOS ROM. It will boot up in
case of a main OS crash. It will diagnose the hardware status,
and then send an e-mail to a designated administrator. The
eSOS also provides remote connection: Telnet server and FTP
server, allowing the administrator to rescue the system.
Flash Lock is a mechanism that binds the board and CF card
(SQFlash) together. The user can “Lock” SQFlash via the Flash
Lock function and “Unlock” it via BIOS while booting. A locked
SQFlash cannot be read by any card reader or boot from other
platforms without a BIOS with the “Unlock” feature.
