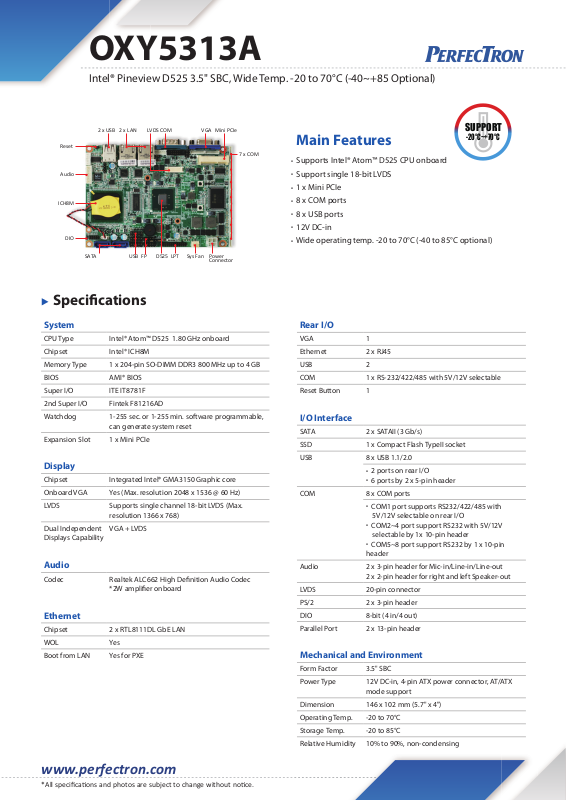

OXY5313A

Intel® Pineview D525 3.5" SBC, Wide Temp. -20 to 70°C (-40~+85 Optional)

COM Mini PCIe

D525SATA

FP Sys Fan Power

LPTUSB

VGALVDS

Connector

7 x COM

Reset

Audio

ICH8M

DIO

2 x USB

2 x LAN

Speci cations

System

CPU Type Intel® Atom™ D525 1.80 GHz onboard

Chipset Intel® ICH8M

Memory Type 1 x 204-pin SO-DIMM DDR3 800 MHz up to 4 GB

BIOS AMI® BIOS

Super I/O ITE IT8781F

2nd Super I/O Fintek F81216AD

Watchdog 1-255 sec. or 1-255 min. software programmable,

can generate system reset

Expansion Slot 1 x Mini PCIe

Display

Chipset Integrated Intel® GMA3150 Graphic core

Onboard VGA Yes (Max. resolution 2048 x 1536 @ 60 Hz)

LVDS Supports single channel 18-bit LVDS (Max.

resolution 1366 x 768)

Dual Independent Displays Capability

Audio

Codec Realtek ALC662 High De nition Audio Codec

Ethernet

Chipset 2 x RTL8111DL GbE LAN

WOL Yes

Boot from LAN Yes for PXE

VGA + LVDS

*2W ampli er onboard

SUPPORT

Main Features

•

Supports Intel® Atom™ D525 CPU onboard

•

Support single 18-bit LVDS

•

1 x Mini PCIe

•

8 x COM ports

•

8 x USB ports

•

12V DC-in

•

Wide operating temp. -20 to 70°C (-40 to 85°C optional)

-20°C~+70°C

Rear I/O

VGA 1

Ethernet 2 x RJ45

USB 2

COM 1 x RS-232/422/485 with 5V/12V selectable

Reset Button 1

I/O Interface

SATA 2 x SATAII (3 Gb/s)

SSD 1 x Compact Flash TypeII socket

USB 8 x USB 1.1/2.0

•

2 ports on rear I/O

•

6 ports by 2 x 5-pin header

COM 8 x COM ports

•

COM1 port supports RS232/422/485 with

5V/12V selectable on rear I/O

•

COM2~4 port support RS232 with 5V/12V

selectable by 1x 10-pin header

•

COM5~8 port support RS232 by 1 x 10-pin

header

Audio 2 x 3-pin header for Mic-in/Line-in/Line-out

2 x 2-pin header for right and left Speaker-out

LVDS 20-pin connector

PS/2 2 x 3-pin header

DIO 8-bit (4 in/4 out)

Parallel Port 2 x 13-pin header

Mechanical and Environment

Form Factor 3.5" SBC

Power Type 12V DC-in, 4-pin ATX power connector, AT/ATX

mode support

Dimension 146 x 102 mm (5.7" x 4")

Operating Temp. -20 to 70°C

Storage Temp. -20 to 85°C

Relative Humidity 10% to 90%, non-condensing

www.perfectron.com

*All speciﬁcaons and photos are subject to change without noce.

RJ45

Block Diagram

3.5'' SBC - OXY5313A

VGA

LVDS

CF Card

2 x SATA II

SPI

Flash ROM

8 x USB

DIO Port

HDA Audio

ALC662

VGA

LVDS 18-bit

IDE

300MB/s

SPI

USB 2.0

GPIO

HDA

Intel® Atom™

D525

DMI

ICH8M

PCIe x1

LPC

1 x DDR3 SO-DIMM

up to 4GB

RTL8111DL

Mini PCIe

F81216AD

Super I/O

TPM

Inneon TPM1.2

SLB9635

IT8781F

Super I/O

RJ45

4 x RS232

COM 5,6,7,8

1 x RS232/422/485

COM 1

3 x RS232

COM 2,3,4

KB/MS

H/W Monitor

12V DC-in

Packing List Ordering Information

•

OXY5313A 3.5” SBC

•

CD (Driver + user's manual)

•

CPU cooler

Optional Accessories

Cable Kit

Cable kit for OXY5313A

Modules

Model Number Description OXY5313A-ET 3.5” SBC Intel® Pineview D525 CPU with DDR3 SO-

DIMM, Dual Display by VGA/LVDS, Dual GbE LAN, Audio, 8 x COM, 8 x USB, and 12V DC-in (-20 to 70°C)

OXY5313A-UT 3.5” SBC Intel® Pineview D525 CPU with DDR3 SO-

DIMM, Dual Display by VGA/LVDS, Dual GbE LAN, Audio, 8 x COM, 8 x USB, and 12V DC-in (-40 to 85°C optional)

WDT
