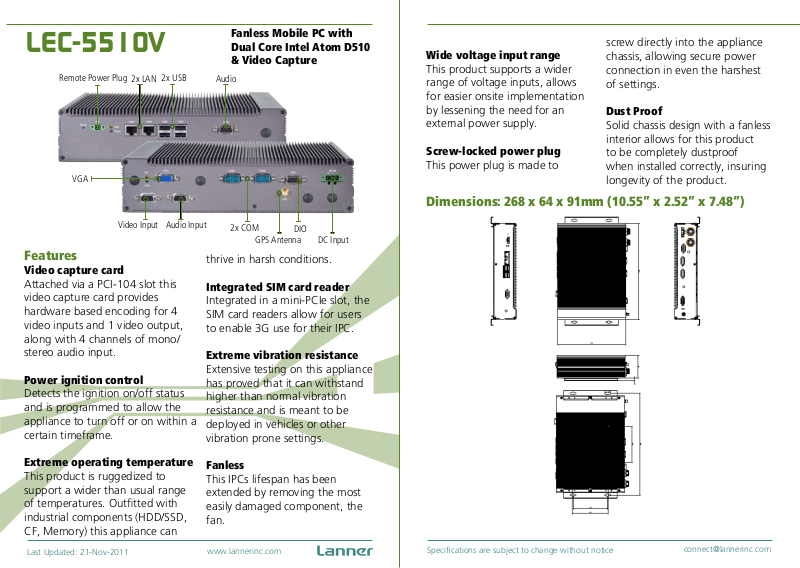

LEC-5510V

Remote Power Plug

VGA

2x LAN Audio

2x USB

Fanless Mobile PC with
Dual Core Intel Atom D510
& Video Capture

screw directly into the appliance

Wide voltage input range

This product supports a wider
range of voltage inputs, allows

chassis, allowing secure power
connection in even the harshest
of settings.

for easier onsite implementation
by lessening the need for an
external power supply.

Dust Proof

Solid chassis design with a fanless
interior allows for this product

Screw-locked power plug

This power plug is made to

to be completely dustproof
when installed correctly, insuring
longevity of the product.

Dimensions: 268 x 64 x 91mm (10.55” x 2.52” x 7.48”)

Video Input

Audio Input

Features

Video capture card

Attached via a PCI-104 slot this
video capture card provides
hardware based encoding for 4
video inputs and 1 video output,
along with 4 channels of mono/
stereo audio input.

Power ignition control

Detects the ignition on/off status
and is programmed to allow the
appliance to turn off or on within a
certain timeframe.

Extreme operating temperature

This product is ruggedized to
support a wider than usual range
of temperatures. Outtted with
industrial components (HDD/SSD,
CF, Memory) this appliance can

2x COM

GPS Antenna

DIO

DC Input

thrive in harsh conditions.

Integrated SIM card reader

Integrated in a mini-PCIe slot, the
SIM card readers allow for users
to enable 3G use for their IPC.

Extreme vibration resistance

Extensive testing on this appliance
has proved that it can withstand
higher than normal vibration
resistance and is meant to be
deployed in vehicles or other
vibration prone settings.

Fanless

This IPCs lifespan has been
extended by removing the most
easily damaged component, the
fan.

Last Updated: 21-Nov-2011

Specications

www.lannerinc.com

Ordering Information

Specications are subject to change without notice

[e-mail]

Dimensions (WxHxD) 268x64x190mm (10.55”x2.52”x7.48”)
Processor Intel Atom D510 1.66GHz
Chipset Intel ICH8M

System
Memory

Storage

Video
Capture

Ethernet Controller Intel 82574L x2
Graphic Controller Intel GMA3150
Audio Controller Realtek ALC888

IO

Power Input

AC Adapter Ordering Option
Hardware Monitor Fintek F81865 integrated watchdog timer 1~255 level
OS Support Linux , XPE/WES2009, XP PRO FES, WS7E, WS7P, WIN 7 PRO-E

Certications CE, FCC Class A, e13

Compliance

Operating
Temperature
Range

Technology

Max. Capacity Up to 3GB
IDE CF socket Type I/II x1

SATA 2.5” SSD/HDD drive bay x1

Capture Card Yuan SC290N4PCI104 video capture card

LAN GbE RJ45 x2
Display DB15 x1 for VGA

Video Grabber

Audio DB9 Female x1 for Mic-in and Line-out

Serial I/O

GPS Holux GR89 GPS receiver (NEMA-0183)
Digital I/O DB9 Female x1 for DI x4 and DO x4 (5V TTL)
USB 2.0 Type A x4; Internal x2
Power Input 3-pin terminal block (+, -, ignition)
Expansion Mini-PCIex2 (one with SIM card reader),

Others

With Industrial
Components

With Commercial
Components

1GB DDR2 onboard
DDR2 SODIMM x1

A-logics AH-840 H.264 Encoder Modular
DB9 Female x1 for 4x Video-In and 1x Video-Out
DB9 Female x1 for 4 Audio-In

DB9 Male x1 supports RS-232
DB9 Male x2 supports RS-232/422/485

External: Power-on switch, 3x SMA antenna hole, reset, LVDS/
CCFL/USB (Manufacturing BOM Option)
Internal: PS/2 keyboard and mouse, +5Vdc, +12Vdc output,
On-board 3-Axis digital accelerometer, 2x intrusion switch for
front panel & rear panel

+9~30VDC input range, ATX mode support ignition delay
on/off control

Climatic: EN-50155 Class T1,
Mechanical: EN-61373,
Electronical: ISO-7637-2

-20~55°C/-4~131°F

-5~45°C / 23~113°F

LEC-5510V Fanless mobile pc with with Intel Dual Core

Atom D510 CPU, onboard 1GB DDR2 Memory
and GPS; Video capture card, Dual Intel GbE,
VGA, COM x2, Audio, 5V TTL DIO, USB x2, CF x1
and 2.5” SATA HDD/SSD support

Accessories

080W1N2201001 SATA Cable w/ Power 10cm

SE9ESA8740100 Wall Mount Bracket 143 x 27mm, t = 2.0mm

080W1Q0001502 Internal Antenna for onboard GPS, 15cm

080W2Q0030001 External Antenna for onboard GPS, 300cm

04AW2003Z101 2-Pin Terminal Block for remote power button

04AW2003IE001 3-Pin Terminal Block for DC Input Connector

Optional Accessories

3G Module 0TAWMC8790Z01 Sierra MC8790

3G Module 0TAW0EM770Z01 HuaWei EM770W (**MOQ 200)

3G Module 0TAWE34600Z01 Novatel E346

Wi-Fi Module 0TAWQ802XKZ02 802.11 b/g/n Mini-PCIe card
