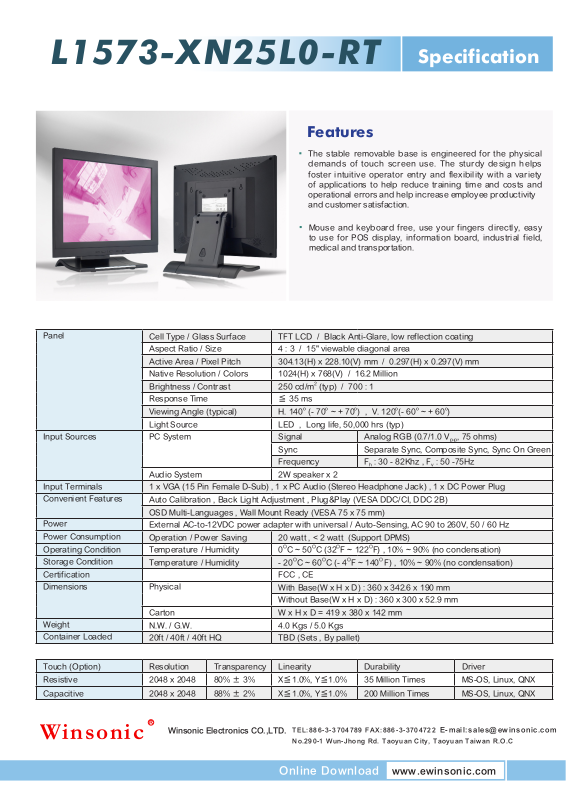

Impulse L1573-XN25L0-RT User Manual
L1573-XN25L0-RT
Features
The stable removable base is engineered for the physical
demands of touch screen use. The sturdy design helps
foster intuitive operator entry and flexibility with a variety
of applications to help reduce training time and costs and
operational errors and help increase employee productivity
and customer satisfaction.
Mouse and keyboard free, use your fingers directly, easy
to use for POS display, information board, industrial field,
medical and transportation.
Specification
Panel
Input Sources PC System
Input Terminals
Convenient Features
Power
Power Consumption
Operating Condition
Storage Condition
Certification
Dimensions Physical
Weight
Container Loaded
Cell Type / Glass Surface TFT LCD / Black Anti-Glare, low reflection coating
Aspect Ratio / Size 4 : 3 / 15" viewable diagonal area
Active Area / Pixel Pitch 304.13(H) x 228.10(V) mm / 0.297(H) x 0.297(V) mm
Native Resolution / Colors 1024(H) x 768(V) / 16.2 Million
Brightness / Contrast 250 cd/m2 (typ) / 700 : 1
Response Time ≦ 35 ms
Viewing Angle (typical) H. 140o (- 70o ~ + 70o) , V. 120o(- 60o ~ + 60o)
Light Source LED , Long life, 50,000 hrs (typ)
Audio System 2W speaker x 2
1 x VGA (15 Pin Female D-Sub) , 1 x PC Audio (Stereo Headphone Jack) , 1 x DC Power Plug
Auto Calibration , Back Light Adjustment , Plug&Play (VESA DDC/CI, DDC 2B)
OSD Multi-Languages , Wall Mount Ready (VESA 75 x 75 mm)
External AC-to-12VDC power adapter with universal / Auto-Sensing, AC 90 to 260V, 50 / 60 Hz
Operation / Power Saving 20 watt , < 2 watt (Support DPMS)
Temperature / Humidity 0OC ~ 50OC (32OF ~ 122OF) , 10% ~ 90% (no condensation)
Temperature / Humidity - 20OC ~ 60OC (- 4OF ~ 140O F) , 10% ~ 90% (no condensation)
Carton W x H x D = 419 x 380 x 142 mm
N.W. / G.W. 4.0 Kgs / 5.0 Kgs
20ft / 40ft / 40ft HQ TBD (Sets , By pallet)
Signal Analog RGB (0.7/1.0 V
Sync Separate Sync, Composite Sync, Sync On Green
Frequency Fh : 30 - 82Khz , Fv : 50 -75Hz
FCC , CE
With Base(W x H x D) : 360 x 342.6 x 190 mm
Without Base(W x H x D) : 360 x 300 x 52.9 mm
, 75 ohms)
p-p
Touch (Option) Resolution Transparency Linearity Durability Driver
Resistive 2048 x 2048 80% ± 3% X≦1.0%, Y≦1.0% 35 Million Times MS-OS, Linux, QNX
Capacitive 2048 x 2048 88% ± 2% X≦1.0%, Y≦1.0% 200 Million Times MS-OS, Linux, QNX
No.290-1 Wun-Jhong Rd. Taoyuan City, Taoyuan Taiwan R.O.C
E-mail:sales@ewinsonic.com
www.ewinsonic.com
Winsonic
R
Winsonic Electronics CO.,LTD.
TEL:886-3-3704789 FAX:886-3-3704722
