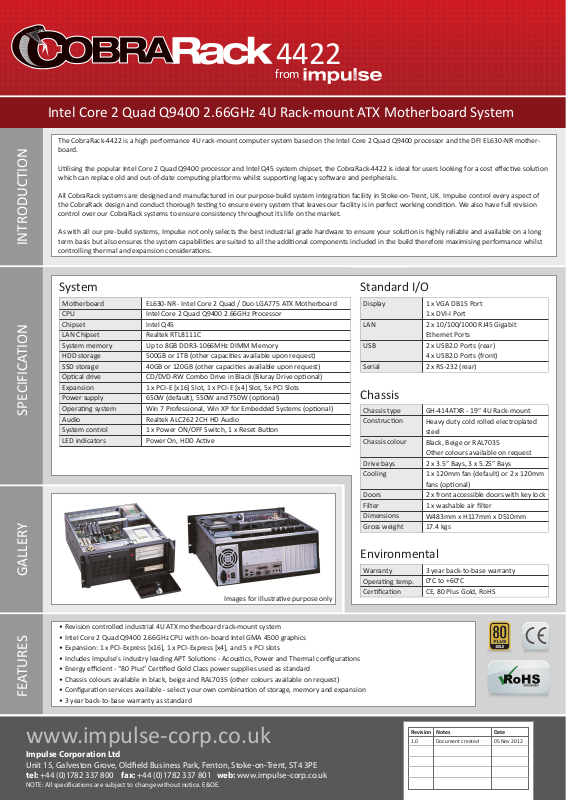

Impulse CobraRack-4422 User Manual

4422

from

Intel Core 2 Quad Q9400 2.66GHz 4U Rack-mount ATX Motherboard System

The CobraRack-4422 is a high performance 4U rack-mount computer system based on the Intel Core 2 Quad Q9400 processor and the DFI EL630-NR motherboard.

Ulising the popular Intel Core 2 Quad Q9400 processor and Intel Q45 system chipset, the CobraRack-4422 is ideal for users looking for a cost eﬀecve soluon which can replace old and out-of-date compung plaorms whilst supporng legacy soware and peripherals.

All CobraRack systems are designed and manufactured in our purpose-build system integraon facility in Stoke-on-Trent, UK. Impulse control every aspect of the CobraRack design and conduct thorough tesng to ensure every system that leaves our facility is in perfect working condion. We also have full revision control over our CobraRack systems to ensure consistency throughout its life on the market.

As with all our pre-build systems, Impulse not only selects the best industrial grade hardware to ensure your soluon is highly reliable and available on a long term basis but also ensures the system capabilies are suited to all the addional components included in the build therefore maximising performance whilst controlling thermal and expansion consideraons.

System Standard I/O

Motherboard CPU Chipset LAN Chipset System memory HDD storage SSD storage

Opcal drive Expansion

Power supply

SPECIFICATION INTRODUCTIONGALLERYFEATURES

Operang system

Audio System control LED indicators

EL630-NR - Intel Core 2 Quad / Duo LGA775 ATX Motherboard

Intel Core 2 Quad Q9400 2.66GHz Processor

Intel Q45 Realtek RTL8111C Up to 8GB DDR3-1066MHz DIMM Memory 500GB or 1TB (other capacies available upon request) 40GB or 120GB (other capacies available upon request) CD/DVD-RW Combo Drive in Black (Bluray Drive oponal) 1 x PCI-E [x16] Slot, 1 x PCI-E [x4] Slot, 5x PCI Slots 650W (default), 550W and 750W (oponal) Win 7 Professional, Win XP for Embedded Systems (oponal)

Realtek ALC262 2CH HD Audio

1 x Power ON/OFF Switch, 1 x Reset Buon Power On, HDD Acve

Display

LAN

USB

Serial

Chassis

Chassis type

Construcon

Chassis colour

Drive bays

Cooling

Doors Filter Dimensions Gross weight

1 x VGA DB15 Port 1 x DVI-I Port 2 x 10/100/1000 RJ45 Gigabit

Ethernet Ports

2 x USB2.0 Ports (rear) 4 x USB2.0 Ports (front) 2 x RS-232 (rear)

GH-414ATXR - 19" 4U Rack-mount Heavy duty cold rolled electroplated

steel

Black, Beige or RAL7035 Other colours available on request 2 x 3.5” Bays, 3 x 5.25” Bays 1 x 120mm fan (default) or 2 x 120mm fans (oponal) 2 x front accessible doors with key lock 1 x washable air ﬁlter W483mm x H117mm x D510mm

17.4 kgs

Images for illustrave purpose only

• Revision controlled industrial 4U ATX motherboard rack-mount system

• Intel Core 2 Quad Q9400 2.66GHz CPU with on-board Intel GMA 4500 graphics

• Expansion: 1 x PCI-Express [x16], 1 x PCI-Express [x4], and 5 x PCI slots

• Includes Impulse's industry leading APT Soluons - Acouscs, Power and Thermal conﬁguraons

• Energy eﬃcient - “80 Plus” Cerﬁed Gold Class power supplies used as standard

• Chassis colours available in black, beige and RAL7035 (other colours available on request)

• Conﬁguraon services available - select your own combinaon of storage, memory and expansion

• 3 year back-to-base warranty as standard

www.impulse-corp.co.uk

Impulse Corporation Ltd

Unit 15, Galveston Grove, Oldeld Business Park, Fenton, Stoke-on-Trent, ST4 3PE tel: +44 (0)1782 337 800 fax: +44 (0)1782 337 801 web: www.impulse-corp.co.uk

NOTE: All specications are subject to change without notice. E&OE.

Environmental

Warranty Operang temp. Cerﬁcaon

3 year back-to-base warranty 0°C to +60°C

CE, 80 Plus Gold, RoHS

Revision DateNotes

1.0 Document created 05 Nov 2012

4422

from

Intel Core 2 Quad Q9400 2.66GHz 4U Rack-mount ATX Motherboard System

Rear

MECHANICAL

Product code

CobraRack-4422(C)-01

CobraRack-4422(C)-02

CobraRack-4422(C)-03

CobraRack-4422(C)-04

ORDERING OPTIONS

Top

Front (doors open) Front (doors closed)

CPU

Core 2 Quad Q9400 2.66GHz

Chipset

Intel Q45

Memory

4GB DDR3

8GB DDR3

4GB DDR3

8GB DDR3

500GB HDD

1TB HDD

40GB SSD

120GB SSD

Storage

Power

650W PSU

Right

O/S

Windows 7

Display

1 VGA / DVI

USB2.0

2F / 4R

LAN

Oponal Extras

FDD-144-BK

3.5" Floppy Drive in Black

GHA-CO01

Thermal Management / System Alarm Kit

Packing List

• 2 Port USB Cable with Bracket

• 2 Port COM Cable with Bracket

ACCESSORIES

www.impulse-corp.co.uk

Impulse Corporation Ltd

Unit 15, Galveston Grove, Oldeld Business Park, Fenton, Stoke-on-Trent, ST4 3PE tel: +44 (0)1782 337 800 fax: +44 (0)1782 337 801 web: www.impulse-corp.co.uk

NOTE: All specications are subject to change without notice

BUREAU VERITAS Certication
