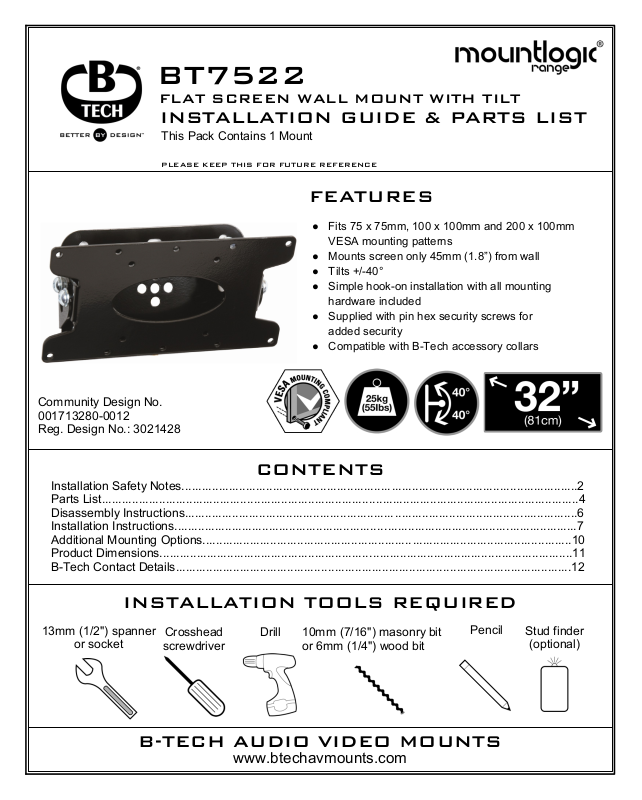

BT7522
FLAT SCREEN WALL MOUNT WITH TILT
INSTALLATION GUIDE & PARTS LIST
This Pack Contains 1 Mount
PLEASE KEEP THIS FOR FUTURE RE FERENCE
Community Design No.
001713280-0012
Reg. Design No.: 3021428
FEATURES
● Fits 75 x 75mm, 100 x 100mm and 200 x 100mm
VESA mounting patterns
● Mounts screen only 45mm (1.8”) from wall
● Tilts +/-40°
● Simple hook-on installation with all mounting
hardware included
● Supplied with pin hex security screws for
added security
● Compatible with B-Tech accessory collars
Installation Safety Notes.....................................................................................................................2
Parts List.............................................................................................................................................4
Disassembly Instructions....................................................................................................................6
Installation Instructions.......................................................................................................................7
Additional Mounting Options.............................................................................................................10
Product Dimensions..........................................................................................................................11
B-Tech Contact Details.....................................................................................................................12
INSTALLATION TOOLS REQUIRED
CONTENTS
13mm (1/2") spanner
or socket
Crosshead
screwdriver
Drill
10mm (7/16") masonry bit
or 6mm (1/4") wood bit
Pencil
Stud finder
(optional)
B-TECH AUDIO VIDEO MOUNTS
www.btechavmounts.com
INSTALLATION SAFETY INSTRUCTIONS
CAUTION:
This wall mount is intended for
use only with the maximum weights indicated. Use
with flat screens heavier than the maximum indicated may
result in instability causing possible injury.
Do not attempt to install this product until all instructions and warnings have been read and properly
understood. Please keep these instructions for future reference.
B-Tech International Limited, its distributors and dealers are not liable or responsible for damage or
injury caused by improper installation, improper use or failure to observe these safety instructions. In
such cases, all guarantees will expire.
General
B-Tech International Ltd recommends that a professional AV installer or other suitably qualified
person install this product. Great care must always be taken during installation as most AV equipment
is of a fragile nature, possibly heavy and easily damaged if dropped.
If you do not fully understand the instructions or are not sure how to install this product safely, then
please consult a professional for advice and/or to install this product for you. Failure to mount this
product correctly may cause serious injury or death both during installation and at any time thereafter.
Do not mount any AV equipment that exceeds the specific weight limit of the product you are
installing. This weight limit will be clearly stated on each product and its packaging and will vary from
product to product.
Flat screen must be fixed to the articulating arm before mounting arm onto wall mount.
Product location
Please pay careful attention to where this product is located. Some walls are not suitable for
installation.
If located in a public or frequently populated area ensure that the product is out of the immediate
reach of people. If any AV equipment is to be suspended over the likely path or location of people
then great care should be taken to secure all parts of the installation from falling.
If you install this product on drywall it must be securely fixed to a wooden stud, concrete block or other
permanent structure behind the drywall board. Installing on drywall boards alone will not support the
weight of most AV equipment.
When drilling holes in walls it is essential to avoid contact with electrical cables and water or gas pipes
contained within. Use of a good quality live wire detector and hidden object locator is therefore
recommended. Only drill into structures when you are sure it is safe to do so.
Fixing hardware
It is highly recommended that all wall fixing screws be used where supplied and that the purpose of all
other fixing hardware is fully understood. In some cases more AV equipment fixing hardware will be
supplied to accommodate different models of equipment and set up configurations.
The installer must be satisfied that any supplied fixing hardware is suitable for each specific
installation. If any fixing screws or included hardware are deemed not sufficient for a safe installation
then please consult a professional or your local hardware store.
Hazard limitation
When routing cables take advantage of any built in cable management features that the product might
provide and ensure that all cables are tidy and secure. Check to see that any moving aspect of the
product can do so unhindered by any cabling.
Some products have moving parts and the potential to cause injury through the crushing or trapping of
fingers or other body parts.
Particular attention to the nature of moving parts is required especially when assembling installing and
adjusting during set up.
Immediately after installations double-check that the work done is safe and secure. Double-check all
necessary fixings are present and are of ample tightness.
It is recommended that periodic inspections of the product and its fixing points are made as frequently
as possible to ensure that safety is maintained. If in doubt consult a professional AV installer or other
suitably qualified person.
2
CS
A
Společnost B-Tech International Ltd. doporučuje provést instalaci tohoto produktu prostřednictvím odborného
instalátora AV či jinak způsobilé osoby. Společnost B-Tech International Ltd, její distributoři a prodejci nenesou
odpovědnost za škody nebo zranění způsobená nevhodnou instalací. Tento výrobek je nutno umístit do vhodné
konstrukce a používat jen po uvedenou maximální výšku.
DE
B-Tech International Ltd. empfiehlt, dass dieses Produkt durch einen qualifizierten AV-Techniker oder eine
andere Person mit geeigneter Qualifikation installiert wird. B-Tech International Ltd, ihre Distributoren und
Händler können nicht für durch fehlerhafte Montage verursachte Beschädigung oder Verletzung haftbar bzw.
verantwortlich gemacht werden. Dieses Produkt muss auf eine geeignetem Untergrund montiert werden und darf
nur bis zum angegebenen Höchstgewicht verwendet werden.
ES
B-Tech International Ltd. recomienda que un instalador de audio y video profesional u otra persona debidamente
cualificada instalen este producto. B-Tech International Ltd, sus distribuidores y concesionarios no se hacen
cargo ni se responsabilizan de ningún daño o lesión provocados por una instalación inapropiada. Este producto
se debe montar en una estructura adecuada y se debe utilizar soportando solamente hasta el peso máximo
indicado.
FR
B-Tech International Ltd. recommande de confier l’installation de ce produit à un installateur AV professionnel ou
à une autre personne dûment qualifiée. B-Tech International Ltd, ses distributeurs et ses revendeurs ne
sauraient être tenus responsables de tout dégât ou de toute blessure résultant d’une installation incorrecte. Ce
produit doit être monté sur un support approprié et utilisé dans la limite du poids maximum indiqué.
IT
B-Tech International Ltd. consiglia di affidare l’installazione di questo prodotto a un installatore specializzato o ad
altra persona adeguatamente qualificata. B-Tech International Ltd, i suoi distributori e rivenditori non accettano
alcuna responsabilità nei riguardi di eventuali danni o infortuni causati da un’errata installazione. Questo prodotto
deve essere fissato a una struttura idonea e utilizzato unicamente sino al peso massimo indicato.
NL
B-Tech International Ltd. adviseert om dit product te laten installeren door een professionele AV-installateur of
andere hiervoor gekwalificeerde persoon. B-Tech International Ltd, haar distributeurs en dealers zijn niet
aansprakelijk of verantwoordelijk voor schade of letsel die is veroorzaakt door onoordeelkundige installatie. Dit
product moet worden gemonteerd aan een geschikte constructie, waarbij het aangegeven maximum gewicht niet
mag worden overschreden.
PL
Firma B-Tech International Ltd. zaleca, aby ten produkt był instalowany przez profesjonalnych instalatorów AV
lub inny odpowiednio przeszkolony personel. Firma B-Tech International Ltd, jej dystrybutorzy i dealerzy nie
ponoszą odpowiedzialności za uszkodzenia lub obrażenia ciała powstałe w wyniku nieprawidłowej instalacji.
Niniejszy produkt musi być zamontowany na odpowiedniej powierzchni, a podczas użytkowania nie wolno
przekraczać podanego maksymalnego obciążenia.
PT
B-Tech International Ltd. recomenda que a instalação deste produto seja efectuada por um instalador de AV
profissional ou outra pessoa devidamente habilitada. A B-Tech International Ltd. e os seus distribuidores e
concessionários não são responsáveis por danos ou lesões causados por uma instalação incorrecta. Este
produto tem de ser montado numa estrutura adequada e utilizado somente até ao peso máximo indicado.
RU
Компания B-Tech International Ltd. рекомендует, чтобы установка данного изделия производилась
инженером по установке аудио-видеотехники или другим специалистом с соответствующей
квалификацией. Компания B-Tech International Ltd., ее дистрибьюторы и дилеры не несут отве тственности
за повреждения или травмы, полученные в результате неправильной установки. Данное изделие должно
3
BT7522
PARTS LIST
3
1
4
2
4
3
5
IMPORTANT
This mount must be
disassembled prior to
installation.
5
Suitable for loads
up to
25kg (55lbs)
4
6
7
REF PART NAME QTY
1 WALL PLATE 1
2 INTERFACE PLATE 1
3 M8 x 12mm PIN HEX SECURITY SCREW 2
4 M8 METAL WASHER 2
5 M8 x 12mm PIN HEX SECURITY SCREW 2
6 2.5mm PIN HEX SECURITY KEY (FOR PART A) 1
7 5mm PIN HEX SECURITY KEY (FOR PART 3 & 5) 1
INTERFACE KIT
A M4 x 12mm PIN HEX SECURITY SCREW 4
B M8 TO M4 ADAPTOR (FOR PART A) 4
FIXING KIT
A1 M8 x 50mm COACH SCREW 4
A2 M8 METAL WASHER (FOR PART A1) 4
A3 No. 10 WALL PLUG (FOR PART A1) 4
FLAT SCREEN INTERFACE KIT
(FOR ATTACHING MOUNT TO
BACK OF FLAT SCREEN)
A
B
PLEASE KEEP THIS FOR FUTURE REFERENCE
WALL FIXING KIT
(FOR FIXING MOUNT TO WALL)
A3A2A1
5
DISASSEMBLY INSTRUCTIONS
i. Remove parts 3 and 4 from the sides of the mount.
1
3
7
4
ii. Loosen part 5 then lift off the interface plate.
1
7
iii. Position remaining screws (part 5) as shown.
5
5
3
4
2
1
2
2
5
5mm
(APPROX)
5
6
THIS MOUNT MUST BE DISASSEMBLED PRIOR TO INSTALLATION
INSTALLATION INSTRUCTIONS
1
i. Brick / concrete walls.
10mm (7/16")
Fix wall plate to the wall using one of the following methods.
1
masonry bit
ii. Wood / stud walls.
A3
A2
A1
1
6mm (1/4")
wood bit
A2
A1
7
SCREENS WITH M8 FIXINGS
Screw parts B into the
flat screen fixing holes.
B
2
3
Continue with
B
Attach interface plate to back of the screen.
6
FLAT
SCREEN
T
Hook screen onto wall plate.
2
OP
screen mounting
steps 2 and 3.
A
OM
T
OT
B
B
WALL
8
FLAT
SCREEN
2
1
5
4
4
Secure in position with parts 3 and 4.
1
WALL
4
3
5
WALL
7
FLAT
SCREEN
Adjust tilt and fix in position using parts 3 and 5.
FLAT
3
7
5
7
SCREEN
3
3
5
* ACTUAL TILT AVAILABLE
DEPENDENT ON SCREEN SIZE
4
+/- 40°
9
ADDITIONAL MOUNTING OPTIONS
BT7052
Pole Installations
BT7850
This product is compatible with
the System 2 range of
professional install products
from B-Tech
10
BT7522
BT7052
Desk Mounting
Desk Mounting
i. Horizontal Pole
SAMPLE INSTALLATIONSSAMPLE INSTALLATIONS
BT7822
BT7325
BT7322
BT7052
Ceiling Mounting
BT7850
BT7522
Floor Mounting
Floor Mounting
ii. Vertical Pole
BT7522
BT7260
BT4011
BT4000
BT7522
PRODUCT DIMENSIONS
214mm
8.4"
40°
40°
45mm
1.8"
78mm
3.1"
78mm
3.1"
114mm
4.5"
100mm
3.9"
8.5mm
0.3"
108mm
4.3"
12°
INTERFACE PLATE
75mm
3"
WALL PLATE
24mm
0.9"
20°
125mm
4.9"
170mm
6.7"
175mm
6.9"
214mm
8.4"
75mm
3"
100mm
3.9"
200mm
7.9"
13.5mm
0.5"
100mm
3.9"
114mm
4.5"
R 79.2mm
(3.1")
R 70.8mm
(2.8")
24mm
0.9"
THESE INSTRUCTIONS ARE INTEND ED AS A GUIDE ONLY AND B-TECH ACCEPTS NO
LIABILITY FOR THE ACCURACY OF THE I NFORMATION CONTAINED IN THIS DOCUMEN T.
11
www.btechavmounts.com
A
A
B-TECH AUDIO VIDEO MOUNTS
Bennett House, Long March, Daventry, Northants., NN11 4NR, UK
NORTH AMERIC
203 Eggert Road,
Buffalo, NY 14215, USA
Email: info@btechavmounts.com
B-Tech, Better By Design, System 2 and Mountlogic are registered trademarks of Bennett Technologies Limited.
Email: info@btechavmoun ts.co. uk
BELGIUM
Brixtonlaan 32, Zaventem 1930,
Brussels, Belgium
Email: info@btechproav.com
Email: info@btechavmounts.com.sg
©2011 Bennett Technologies Limited. All rights reserved.
B-Tech Audio Video Mounts is a division of Bennett Technologies Limited.
All other brands and product names are trademarks of their respective owners.
Photographs are for illustrative purposes only. E&OE.
IP-BT7522-V2.1-OR2BX-050111-03 MADE IN CHINA
HEAD OFFICE
EUROPE
Dyrotzer Weg 26A, 14612 Falkensee,
Email: info@btechdeutschland.c om
SINGAPORE
Ruby Industrial Complex,
Singapore 347740
GERMANY
Berlin, Germany
SIA PACIFIC
1503 Prosperity Millennia Plaza,
Quarry Bay, Hong Kong
Email: info@btechavmounts.com .hk
Loading...
