BT7514
FLAT SCREEN WALL MOUNT
WITH SINGLE ARM EXTENSION
INSTALLATION GUIDE & PARTS LIST
This Pack Contains 1 Mount
PLEASE KEEP THIS FOR FUTURE RE FERENCE
FEATURES
● Designed for medium flat screens up to 42" (107cm) / 25kg (55lbs)
● Fits screens with VESA mounting patterns:
75 x 75mm, 100 x 100mm, 200 x 100mm and 200 x 200mm
● Incorporates post installation screen levelling at wall plate
and screen mount
● Easy tilt adjustment +/-40° tilt
● Features two swivel points: 180° at wall and 240° at interface
● Alternative short-arm included
● Security locking screws and Allen key provided for a secure installation
Community Design No.
001713280-0007
COMPATIBLE
● Simple ‘hook-on’ installation with all mounting hardware included
CONTENTS
Installation Safety Notes.....................................................................................................................2
Parts List.............................................................................................................................................4
Optional Short Arm.............................................................................................................................6
Installation Instructions.......................................................................................................................7
Product Dimensions..........................................................................................................................11
B-Tech Contact Details.....................................................................................................................12
, TILT & SWIVEL
INSTALLATION TOOLS REQUIRED
13mm (1/2") spanner
or socket
B-TECH AUDIO VIDEO MOUNTS
Drill
10mm (7/16") masonry bit
or 6mm (1/4") wood bit
www.btechavmounts.com
Pencil
Stud finder
(optional)
INSTALLATION SAFETY INSTRUCTIONS
CAUTION:
This wall mount is intended for
use only with the maximum weights indicated. Use
with flat screens heavier than the maximum indicated may
result in instability causing possible injury.
Do not attempt to install this product until all instructions and warnings have been read and properly
understood. Please keep these instructions for future reference.
B-Tech International Limited, its distributors and dealers are not liable or responsible for damage or
injury caused by improper installation, improper use or failure to observe these safety instructions. In
such cases, all guaran tees will expire.
General
B-Tech International Ltd recommends that a professional AV installer or other suitably qualified
person install this product. Great care must always be taken during installation as most AV equipment
is of a fragile nature, possibly heavy and easily damaged if dropped.
If you do not fully understand the instructions or are not sure how to install this product safely, then
please consult a professional for advice and/or to install this product for you. Failure to mount this
product correctly may cause serious injury or death both during installation and at any time thereafter.
Do not mount any AV equipment that exceeds the specific weight limit of the product you are
installing. This weight limit will be clearly stated on each product and its packaging and will vary from
product to product.
Flat screen must be fixed to the articulating arm before mounting arm onto wall mount.
Product location
Please pay careful attention to where this product is located. Some walls are not suitable for
installation.
If located in a public or frequently populated area ensure that the product is out of the immediate
reach of people. If any AV equipment is to be suspended over the likely path or location of people
then great care should be taken to secure all parts of the installation from falling.
If you install this product on drywall it must be securely fixed to a wooden stud, concrete block or other
permanent structure behind the drywall board. Installing on drywall boards alone will not support the
weight of most AV equipment.
When drilling holes in walls it is essential to avoid contact with electrical cables and water or gas pipes
contained within. Use of a good quality live wire detector and hidden object locator is therefore
recommended. Only drill into structures when you are sure it is safe to do so.
Fixing hardware
It is highly recommended that all wall fixing screws be used where supplied and that the purpose of all
other fixing hardware is fully understood. In some cases more AV equipment fixing hardware will be
supplied to accommodate different models of equipment and set up configurations.
The installer must be satisfied that any supplied fixing hardware is suitable for each specific
installation. If any fixing screws or included hardware are deemed not sufficient for a safe installation
then please consult a professional or your local hardware store.
Hazard limitation
When routing cables take advantage of any built in cable management features that the product might
provide and ensure that all cables are tidy and secure. Check to see that any moving aspect of the
product can do so unhindered by any cabling.
Some products have moving parts and the potential to cause injury through the crushing or trapping of
fingers or other body parts.
Particular attention to the nature of moving parts is required especially when assembling installing and
adjusting during s et up.
Immediately after installations double-check that the work done is safe and secure. Double-check all
necessary fixings are present and are of ample tightness.
It is recommended that periodic inspections of the product and its fixing points are made as frequently
as possible to ensure that safety is maintained. If in doubt consult a professional AV installer or other
suitably qualified person.
2
CS
A
Společnost B-Tech International Ltd. doporučuje provést instalaci tohoto produktu prostřednictvím odborného
instalátora AV či jinak způsobilé osoby. Společnost B-Tech International Ltd, její distributoři a prodejci nenesou
odpovědnost za škody nebo zranění způsobená nevhodnou instalací. Tento výrobek je nutno umístit do vhodné
konstrukce a používat jen po uvedenou maximální výšku.
DE
B-Tech International Ltd. empfiehlt, dass dieses Produkt durch einen qualifizierten AV-Techniker oder eine
andere Person mit geeigneter Qualifikation installiert wird. B-Tech International Ltd, ihre Distributoren und
Händler können nicht für durch fehlerhafte Montage verursachte Beschädigung oder Verletzung haftbar bzw.
verantwortlich gemacht werden. Dieses Produkt muss auf eine geeignetem Untergrund montiert werden und darf
nur bis zum angegebenen Höchstgewicht verwendet werden.
ES
B-Tech International Ltd. recomienda que un instalador de audio y video profesional u otra persona debidamente
cualificada instalen este producto. B-Tech International Ltd, sus distribuidores y concesionarios no se hacen
cargo ni se responsabilizan de ningún daño o lesión provocados por una instalación inapropiada. Este producto
se debe montar en una estructura adecuada y se debe utilizar soportando solamente hasta el peso máximo
indicado.
FR
B-Tech International Ltd. recommande de confier l’installation de ce produit à un installateur AV professionnel ou
à une autre personne dûment qualifiée. B-Tech International Ltd, ses distributeurs et ses revendeurs ne
sauraient être tenus responsables de tout dégât ou de toute blessure résultant d’une installation incorrecte. Ce
produit doit être monté sur un support approprié et utilisé dans la limite du poids maximum indiqué.
IT
B-Tech International Ltd. consiglia di affidare l’installazione di questo prodotto a un installatore specializzato o ad
altra persona adeguatamente qualificata. B-Tech International Ltd, i suoi distributori e rivenditori non accettano
alcuna responsabilità nei riguardi di eventuali danni o infortuni causati da un’errata installazione. Questo prodotto
deve essere fissato a una struttura idonea e utilizzato unicamente sino al peso massimo indicato.
NL
B-Tech International Ltd. adviseert om dit product te laten installeren door een professionele AV-installateur of
andere hiervoor gekwalificeerde persoon. B-Tech International Ltd, haar distributeurs en dealers zijn niet
aansprakelijk of verantwoordelijk voor schade of letsel die is veroorzaakt door onoordeelkundige installatie. Dit
product moet worden gemonteerd aan een geschikte constructie, waarbij het aangegeven maximum gewicht niet
mag worden overschreden.
PL
Firma B-Tech International Ltd. zaleca, aby ten produkt był instalowany przez profesjonalnych instalatorów AV
lub inny odpowiednio przeszkolony personel. Firma B-Tech International Ltd, jej dystrybutorzy i dealerzy nie
ponoszą odpowiedzialności za uszkodzenia lub obrażenia ciała powstałe w wyniku nieprawidłowej instalacji.
Niniejszy produkt musi być zamontowany na odpowiedniej powierzchni, a podczas użytkowania nie wolno
przekraczać podanego maksymalnego obciążenia.
PT
B-Tech International Ltd. recomenda que a instalação deste produto seja efectuada por um instalador de AV
profissional ou outra pessoa devidamente habilitada. A B-Tech International Ltd. e os seus distribuidores e
concessionários não são responsáveis por danos ou lesões causados por uma instalação incorrecta. Este
produto tem de ser montado numa estrutura adequada e utilizado somente até ao peso máximo indicado.
RU
Компания B-Tech International Ltd. рекомендует, чтобы установка данного изделия производилась
инженером по установке аудио-видеотехники или другим специалистом с соответствующей
квалификацией. Компания B-Tech International Ltd., ее дистрибьюторы и дилеры не несут отве тственности
за повреждения или травмы, полученные в результате неправильной установки. Данное изделие должно
3
BT7514
PARTS LIST
14
WALL PLATE, ARM &
TILT PLATE ASSEMBLY
1
12
7
Suitable for loads
up to
25kg (55lbs)
9
8
9
14
3
4
15
2
12
10
11
11
10
13
15
6
13
5
6
4
16
17
WALL FIXING KIT
(FOR FIXING MOUNT TO WALL)
A1
A2
A3
FLAT SCREEN INTERFACE KIT
(FOR ATTACHING MOUNT TO
BACK OF FLAT SCREEN)
A
B
C
D
REF PART NAME QTY
1 WALL PLATE ASSEMBLY 1
2 LONG EXTENSION ARM 1
3 CONNECTOR PLATE 1
4 TILT PLATE 1
5 INTERFACE PLATE 1
6 ADAPTOR ARM 2
7 LEFT COVER 1
8 RIGHT COVER 1
9 ARM COVER 2
10 M8 X 12mm PIN HEX SECURITY SCREW 6
11 M8 METAL WASHER 6
12 M8 PLASTIC WASHER 6
13 M8 X 12mm PIN HEX SECURITY SCREW 2
14 M8 X 60mm PIN HEX SECURITY SCREW 2
15 M4 X 8mm PIN HEX SECURITY SCREW 4
16 CLIPLOGIC™ CABLE MA NAGEMENT CLIP 2
17 SHORT ARM 1
18 2.5mm PIN HEX SECURITY KEY (FOR PART 15 & A) 1
19 3mm PIN HEX SECURITY KEY (FOR PARTS B & C) 1
20 4mm PIN HEX SECURITY KEY (FOR PARTS D & E) 1
21 5mm PIN HEX SECURITY KEY (FOR PARTS 10, 13 & 14) 1
INTERFACE KIT
A M4 X 12mm PIN HEX SECURITY SCREW 4
B M5 X 16mm PIN HEX SECURITY SCREW 4
C M5 X 25mm PIN HEX SECURITY SCREW 4
D M6 X 16mm PIN HEX SECURITY SCREW 4
E M6 X 25mm PIN HEX SECURITY SCREW 4
F M6 x 12mm SPACER (FOR PARTS C & E) 4
G M8 TO M4 ADAPTOR 4
H M4 WASHER (FOR PART G) 4
FIXING KIT
A1 M8 x 50mm COACH SCREW 4
A2 M8 METAL WASHER 4
A3 NO.10 WA LL PLUG 4
E
F
H
G
PLEASE KEEP THIS FOR FUTURE REFERENCE
1918
2120
5
OPTIONAL SHORT ARM
Replace part 2 with part 17.
i.
14
12
1
12
2
12
ii.
21
14
12
1
14
21
14
12
4
12
12
17
12
6
4
INSTALLATION INSTRUCTIONS
1
i. Concrete / brick walls.
ii. Wood / stud walls.
Fix wall plate to the wall using one of the following methods.
10mm (7/16")
masonry bit
A3
1
A2
SHORT ARM
1
A1
A2
A1
ATTACH COVERS
6mm (1/4")
wood bit
8
7
7
SCREENS WITH M8 FIXINGS
Screw parts G into the
flat screen fixing holes.
G
Continue with
screen mounting
G
2
i.
ii. For 200 x 200mm, attach adaptor arms to interface
18,19 or 20
Attach the interface to the back of the screen.
18
OP
T
plate, then attach interface to the back of the
screen.
5
A,B,C,D or E
OP
T
steps 2 and 3.
A
5
M
O
T
T
O
B
6
G
F
FLAT
SCREEN
ATTACH ADAPTORS
18
15
6
5
M
O
T
T
O
B
FLAT
8
SCREEN
F
3
Hook flat screen on wall plate.
5mm (0.2")
(APPROX)
13
5
4
5
1
13
FLAT
SCREEN
4
WALL
Secure in position using parts 10 and 11.
WALL
11
11
10
10
21
21
FLAT
SCREEN
FLAT
SCREEN

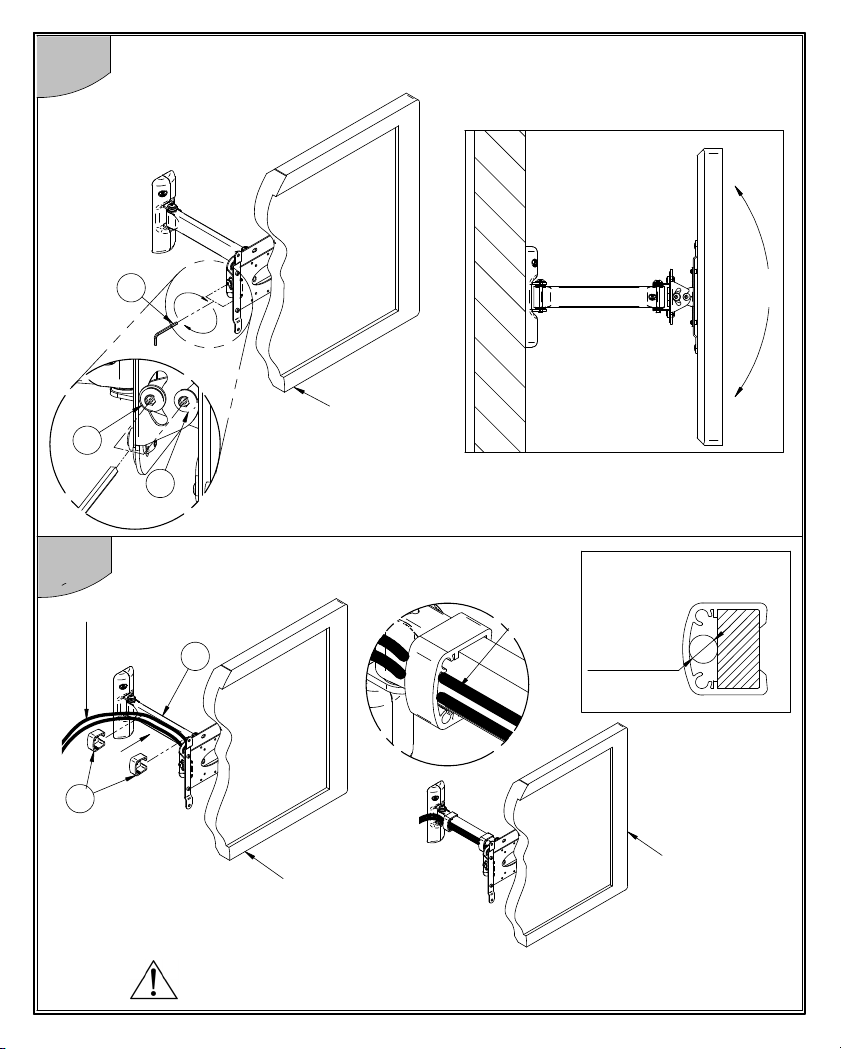

9
5
Adjust tilt and fix in position using parts 10 and 13.
6
16
21
FLAT
10
13
Optional - Cliplogic™ cable management clip
CABLE
2
SCREEN
FLAT
SCREEN
CABLE
+/- 40°
MAXIMUM CABLE
THICKNESS
MAX
O 15mm
FLAT
SCREEN
10
CAUTION: Ensure there is adequate cable slack for movement of the
screen, and that cables will not be pinched when the mount is closed.
BT7514
PRODUCT DIMENSIONS
i) WITH LONG ARM
197mm
7.8"
95mm
3.7"MIN
WALL PLATE
24mm
0.9"
197mm
7.8"
336mm
13.2"MAX
67mm
2.6"
R78mm
(3.1")
373mm
14.7"
R86mm
(3.4")
ii) WITH SHORT ARM
151mm
5.9"MAX
95mm
3.7"MIN
INTERFACE PLATE
200mm
7.9"
100mm
3.9"
75mm
3"
190mm
90mm
3.5"
7.5"
12mm
0.5"
56mm
2.2"
12°
THESE INSTRUCTIONS ARE INTEND ED AS A GUIDE ONLY AND B-TECH ACCEPTS NO
LIABILITY FOR THE ACCURACY OF THE I NFORMATION CONTAINED IN THIS DOCUMEN T.
O
8.5mm
0.3"
8.5mm
0.3"
200mm
7.9"
100mm
3.9"
75mm
3"
220mm
8.7"
220mm
11
8.7"
www.btechavmounts.com
A
A
B-TECH AUDIO VIDEO MOUNTS
Bennett House, Long March, Daventry, Northants., NN11 4NR, UK
NORTH AMERIC
203 Eggert Road,
Buffalo, NY 14215, USA
Email: info@btechavmounts.com
B-Tech, Better By Design, System 2 and Mountlogic are registered trademarks of Bennett Technologies Limited.
Email: info@btechavmoun ts.co. uk
BELGIUM
Brixtonlaan 32, Zaventem 1930,
Brussels, Belgium
Email: info@btechproav.com
Email: info@btechavmounts.com.sg
©2011 Bennett Technologies Limited. All rights reserved.
B-Tech Audio Video Mounts is a division of Bennett Technologies Limited.
All other brands and product names are trademarks of their respective owners.
Photographs are for illustrative purposes only. E&OE.
IP-BT7514-V2.1-OR2BX-050111-03 MADE IN CHINA
HEAD OFFICE
EUROPE
Dyrotzer Weg 26A, 14612 Falkensee,
Email: info@btechdeutschland.c om
SINGAPORE
Ruby Industrial Complex,
Singapore 347740
GERMANY
Berlin, Germany
SIA PACIFIC
1503 Prosperity Millennia Plaza,
Quarry Bay, Hong Kong
Email: info@btechavmounts.com .hk
Loading...
