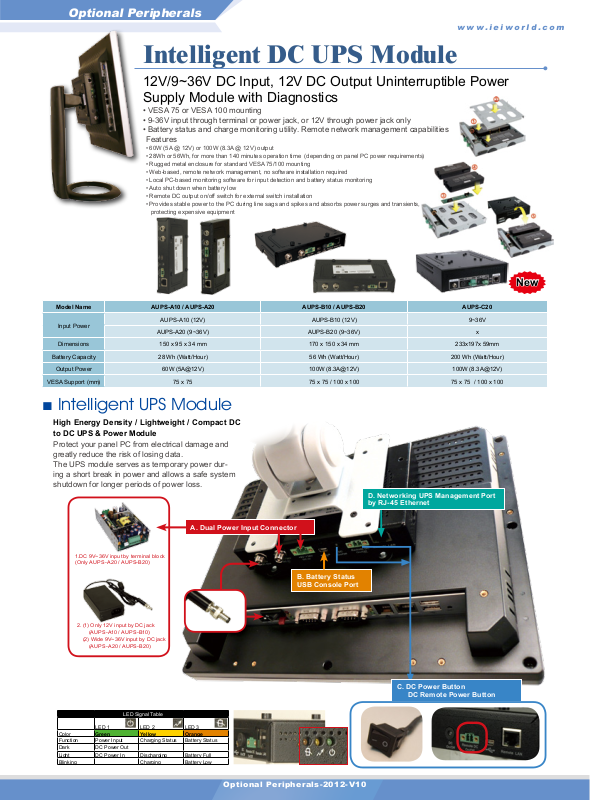

Optional Peripherals
Intelligent DC UPS Module
12V/9~36V DC Input, 12V DC Output Uninterruptible Power
Supply Module with Diagnostics
• VESA 75 or VESA 100 mounting
• 9-36V input through terminal or power jack, or 12V through power jack only
• Battery status and charge monitoring utility. Remote network management capabilities
Features
• 60W (5A @ 12V) or 100W (8.3A @ 12V) output
• 28Wh or 56Wh, for more than 140 minutes operation time (depending on panel PC power requirements)
• Rugged metal enclosure for standard VESA 75/100 mounting
• Web-based, remote network management, no software installation required
• Local PC-based monitoring software for input detection and battery status monitoring
• Auto shut down when battery low
• Remote DC output on/off switch for external switch installation
• Provides stable power to the PC during line sags and spikes and absorbs power surges and transients,
protecting expensive equipment
www.ieiworld.com
New
Model Name AUPS-A10 / AUPS-A20 AUPS-B10 / AUPS-B20 AUPS-C20
Input Power
Dimensions 150 x 95 x 34 mm 170 x 150 x 34 mm 233x197x 59mm
Battery Capacity 28 Wh (Watt/Hour) 56 Wh (Watt/Hour) 200 Wh (Watt/Hour)
Output Power 60W (5A@12V) 100W (8.3A@12V) 100W (8.3A@12V)
VESA Support (mm) 75 x 75 75 x 75 / 100 x 100 75 x 75 / 100 x 100
AUPS-A10 (12V) AUPS-B10 (12V) 9~36V
AUPS-A20 (9~36V) AUPS-B20 (9~36V) x
■ Intelligent UPS Module
High Energy Density / Lightweight / Compact DC
to DC UPS & Power Module
Protect your panel PC from electrical damage and
greatly reduce the risk of losing data.
The UPS module serves as temporary power dur-
ing a short break in power and allows a safe system
shutdown for longer periods of power loss.
D. Networ king UPS Management Port
by RJ-45 Ethernet
A. Dual Power Input Connector
1.DC 9V~36V i nput by term inal blo ck
(Only AUPS -A20 / AUPS- B20)
B. Battery Status
USB Console Port
2. (1) Only 12V input by DC j ack
(AUPS -A10 / AUPS-B10)
(2) Wide 9V~36 V input by DC ja ck
(AUPS-A20 / AUPS-B20)
LED Signal Table
Color Green Yellow Orange
Function Power Input Charging Status Battery Status
Dark DC Power Out
Light DC Power In Discharging Battery Full
Blinking Charging Battery Low
LED 1 LED 2 LED 3
Optional Peripherals-2012-V10
C. DC Power Button
DC Remote Power Button
Optional Peripherals
■ AUPS Network Administration Tool
● Network Remote
Management Anywhere
www.ieiworld.com
AUPS IP address
● Network Remote
Power On/OFF
Email Status ReportBattery Capacity Status
Management Software
UPS Status Monitoring
Remote control DC output ON/OFF via web interface.
● Intelligent Software Utility
The remote management software utility
and application program allows users to
easily get the status of the AUPS and to
control the AUPS power functions from
anywhere with internet connection.
■ AUPS Local USB Utility Tool
Monitor the Most Critical Battery Functions on the Local Machine
The battery monitoring utility provides AUPS status monitoring and conguration ability. Uninterruptible Power Systems is a signicant
product that serves as emergency power when you suffer from electric event.
Network Remote Management Software
Battery Monitoring Utility
Click ALARM to get each AUPS
status via internet
• STATUS
• Send E-mail
• Board conguration
Battery Monitoring Utility
Networking Remote Management
• Battery detection
• Battery capacity status
• Battery charge
• DC input indicator
• Battery indicator
• Temperature warning
• Low battery alarm
• Connection port status
AUPS STATUS
• STATUS shows DC / Battery power input
detection
Meanwhile, IEI also provides AUPS API
SDK and command list for customer
programming under DOS or Linux system.
LAN CONFIGURATION
• LAN shows system IP Address information
DC Input
Detection
Battery
Status
Detection
BATTERY STATUS
• BAT.A shows Battery status real time monitoring
DC Input
Charging
Charging
50%
100%
Capacity
Capacity
50%
100%
ABOUT
• About shows AUPS Utility information
only
Normal
Icon
AUPS API Content
Inti()
AUPS Close()
WriteCommand()
ReadCommand()
Error Code Definition()
AUPS API SDK/Content
Optional Peripherals-2012-V10
Batter y type
Battery usage remaining
time
Battery capacity bar
Real-time information
update
SETTING
• SETTING shows Connection Detection port
Auto-Scan Connection
port
System shutdown
condition according to
battery capacity setting
AUPS API SDK
Auto
Shutdown
Optional Peripherals
AUPS Module Specifications
Model Name AUPS-A10 AUPS-A20 AUPS-B10 AUPS-B20 AUPS-C20
VESA Type VESA 75 VESA 75 VESA 75 and 100 VESA 75 and 100
Input voltage Uinated/range DC +12V DC +9V~+36V DC +12V DC +9V~+36V
Input current rated
Input Data
Output Data
Protection
Monitoring
Physical
LED Indicator
Environment
Note1: Connecting DC input constantly is recommended. Battery will be drained after 14 hours.
Note2: System power consumption + AUPS charging power consumption = Total watts of power source
Standby power consumption 0.3A (0.2A if Network Management disabled)
Operation with charging current 500mA
Operation with charging power consumption 6W 10W
Charging time with system ON/OFF 8hrs / 2hrs (Battery empty)
Output voltage for normal operation DC +12V +/-5%
Output voltage for battery operation(approx). 6~8.4V DC6 V (exhaustive discharge protection) 12~16.8V DC12 V (exhaustive discharge protection)
Output current 0A~5A 0A~8.3A
Efficiency (nominal operation) / power loss
at Vin=12V, Iout=80% of full loading
Short-circuit protection Yes
Exhaustive discharge protection
EMC / Safety certification CE, FCC
Ethernet interface Web-based, specification 10/100Mbps with RJ-45 connection, Cat. 5 cable
USB interface
Dimensions (LxWxH) 152mm x 96mm x 28mm 174mm x 147mm x 35mm
Weight 1.2 kg 1.8 kg
Green DC power input
Yellow Battery charging
Orange Bettery discharging
Operating Tem. 0°C~40°C
Storage Tem. -20°C~50°C
1. Adapter is 12V-6A (Load is 60W)
2. Battery is 6V-12A (Load is 60W)
89% 93% 95% 94%
1. Battery low is 10% of battery capacity
2. Shuntdown 5% of battery capacity (Default)
3. The end of battery discharge voltage is 6V
PC-capable, specification 2.0 with full speed, i.e. 2 Mbit/s. Standard 4-core shielded cable, USB Series "mini B" connector to DC-
1. Adapter is 12V-9A (Load is 100W)
2. Battery is 12V-9A (Load is 100W)
UPS
www.ieiworld.com
VESA 75 and 100
DC +9V ~ +36V
0A~7.6A
90%
233mm x 197mm x 59mm
3.8 kg
Battery Module Specifications
Model Name AUPS-A10 AUPS-A20 AUPS-B10 AUPS-B20 AUPS-C20
Battery Model Name BAT-LI-2S2P3800 BAT-LI-4S2P3800 BAT-LI-4S2P3800(x4)
Battery type Li-Ion 2S2P 7.4V Li-Ion 4S2P 14.8V Li-Ion 4S2P 14.8V
Battery capacity 7.4V 3800 mAH 14.8V, 3800 mAH 14.8V, 3800 mAH(x4)
Maximum charge voltage 8.4V 16.8V 16.8V
The end of discharging voltage 5.6V 11.2V 11.2V
Recommended charging current (max.) 2A 2A 2A
System continuous discharging current (max.) 7.6A 7.6A 7.6A
The end of charge condition 250mA / 1Min 200mA / 1Min 200mA / 1Min
Discharge protection Under voltage protection / Over current protection
Battery
Charge protection Over voltage protection / Over current protection
Ambient temperature 0°C~40°C
Storage temperature -20°C~60°C
Self-discharge rate 340uA~440uA
Dimensions (LxWxH) 139mm x 47mm x 26mm 165mm x 76mm x 26mm 165mm x 76mm x 26mm
Weight 236g 450g 450g
Cycle life 300 charge / discharge cycles
Backup 60W / 10Min 100W / 10Min 100W / 10Min
Safety class CE, FCC CE, FCC
Note: Replacing battery module every 2 years is recommended.
Selection Table for UPS Modules and Main Buffering Time
AFOLUX PPC AUPS-A10 AUPS-A20 AUPS-B10 AUPS-B20
AFL-057-LX (15W~20W) 145min 145min 290min 290min
AFL-07A-N270 (20W~25W) 100min 100min 200min 200min
AFL-08AH-N270 (25W~30W) 70min 70min 140min 140min
AFL-10A-N270 (25~30W) 70min 70min 140min 140min
AFL-10A-9103 (40W~45W) 50min 50min 100min 100min
AFL-10A-LX (25W~30W) 70min 70min 140min 140min
AFL-12A-LX (25W~30W) 70min 70min 140min 140min
AFL-12B-CX2 (38W~42W) 50min 50min 100min 100min
AFL-12A-N270 (25W~30W) 70min 70min 140min 140min
AFL-12B-9103 (45W~48W) 45min 45min 90min 90min
AFL-15B-915-CM370 (58W~63W) - - 35min 35min
AFL-15C-9652-T7500 (65W~70W) - - 30min 30min
AFL-17B-915-CM370 (75W~80W) - - 25min 25min
AFL-17C-9652-T7500 (85W~90W) - - 20min 20min
AFL-19B-915-CM370 (75W~80W) - - 25min 25min
AFL-19C-9652-T7500 (85W~90W) - - 20min 20min
Note: The backup time could be varied on different models or operating temperature.
Under 50W solution
50W ~ 100W solution
Optional Peripherals-2012-V10
BAT-LI-4S2P3800BAT-LI-2S2P3800
Optional Peripherals
www.ieiworld.com
AUPS Mechanical Drawing (Unit: mm)
6.829.2
AUPS-A10/20
177.7
37.5
151.7
199.5
173.5
100
75
75
95.8
36.2 6.8
75
AUPS-B10/20
75
75
37.5
Connector for AFOLUX
AFL-LXPOS PPC series
AFL-CX2 PPC series
AFL-9103 PPC series
AFL-N270 PPC series
100
75
Panel PC:
AFL-LX PPC series
DC Power Cable (DC plug to DC plug) with lock
32000-115300-RS
Remote Switch Cable
32000-124600-RS
USB Connection Cable
32000-115500-RS
DC Power Cable (DC plug to DC plug) without lock
32000-120400-RS
DC Power Cable (DC plug to mini DIN)
32000-115400-RS
146.3
75
100
37.5
50
75
100
Connector for AFOLUX
Panel PC:
AFL-915 PPC series
AFL-965 PPC series
Ordering Information
Part No. Description
AUPS-C20
AUPS-A10-R11
AUPS-A20-R11
AUPS-B10-R11
AUPS-B20-R11
AUPS-C20-R10
BAT-LI-2S2P3800
(AUPS-A10/20)
BAT-LI-4S2P3800
(AUPS-B10/B20/C20)
VESA 75, DC 12V input, 12V output 60W UPS module with
3800mAH, 2S2P Li-ion battery
VESA 75, DC 9~36V input, 12V output 60W UPS module
with 3800mAH, 2S2P Li-ion battery
VESA 100, DC 12V input, 12V output 100W UPS module
with 3800mAH, 2S4P Li-ion battery
VESA 100, DC 9~36V input, 12V output 100W UPS module
with 3800mAH, 2S4P Li-ion battery
VESA 100, DC 9~36V input, 12V output 100W UPS module
with 3800mAH,W/O battery
Smart battery; TE9IC032K1002; Lithium ion battery (S2P);
7.4V; 3800mAh; RoHS
Smart battery; TE9IC042K1002; Lithium ion battery (4S2P);
14.8V; 3800mAh; RoHS
Packing List
DC power cable, 150mm,
Item
Part
Number
Q’ty
male 4-pin mini-DIN to DC
plug 5.0 x 2.1
(AUPS-B10/B20 only)
32000-115400-RS 32000-120400-RS 32000-115300-RS 32000-115500-RS 32000-124600-RS 44013-030041-RS 7B000-000087-RS
DC power cable,
150mm, DC plug
5.5 x 2.1 to DC plug
5.0 x 2.5 without lock
1
1 1 1 1 1 1
DC power cable,
150mm, DC plug 5.5 x
2.1 to DC plug
5.0 x 2.5 with lock
USB cable, 200mm,
USB type A male to
mini USB
Remote switch cable,
1200mm
Screw kit
Utility CD (including
utility software and
user's guide)
Optional Peripherals-2012-V10
