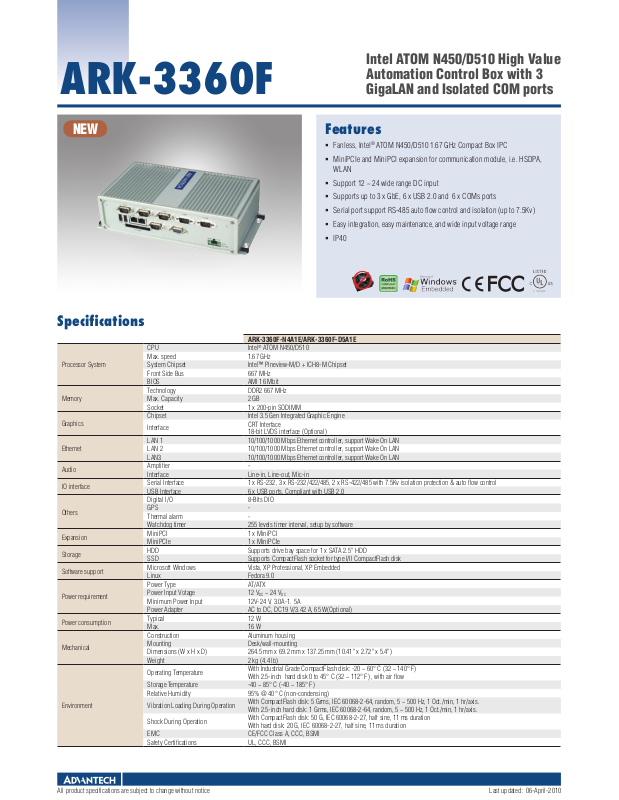

ARK-3360F

Intel ATOM N450/D510 High Value
Automation Control Box with 3
GigaLAN and Isolated COM ports

NEW

Specifications

Processor System

Memory

Graphics

Ethernet

Audio

IO interface

Others

Expansion

Storage

Software support

Power requirement

Power consumption

Mechanical

Environment

Features

Fanless, Intel® ATOM N450/D510 1.67 GHz Compact Box IPC



MiniPCIe and MiniPCI expansion for communication module, i.e. HSDPA,



WLAN

Support 12 ~ 24 wide range DC input



Supports up to 3 x GbE, 6 x USB 2.0 and 6 x COMs ports



Serial port support RS-485 auto flow control and isolation (up to 7.5Kv)



Easy integration, easy maintenance, and wide input voltage range



IP40



CPU Intel® ATOM N450/D510
Max. speed 1.67 GHz
System Chipset Intel™ Pineview-M/D + ICH8-M Chipset
Front Side Bus 667 MHz
BIOS AMI 16 Mbit
Technology DDR2 667 MHz
Max. Capacity 2 GB
Socket 1 x 200-pin SODIMM
Chipset Intel 3.5 Gen Integrated Graphic Engine

Interface

LAN 1 10/100/1000 Mbps Ethernet controller, support Wake On LAN
LAN 2 10/100/1000 Mbps Ethernet controller, support Wake On LAN
LAN3 10/100/1000 Mbps Ethernet controller, support Wake On LAN
Amplifier ­Interface Line-in, Line-out, Mic-in
Serial Interface 1 x RS-232, 3 x RS-232/422/485, 2 x RS-422/485 with 7.5Kv isolation protection & auto flow control
USB Interface 6 x USB ports, Compliant with USB 2.0
Digital I/O 8-Bits DIO
GPS ­Thermal alarm ­Watchdog timer 255 levels timer interval, setup by software
MiniPCI 1 x MiniPCI
MiniPCIe 1 x MiniPCIe
HDD Supports drive bay space for 1 x SATA 2.5" HDD
SSD Supports CompactFlash socket for type I/II CompactFlash disk
Microsoft Windows Vista, XP Professional, XP Embedded
Linux Fedora 9.0
Power Type AT/ATX
Power Input Votage 12 VDC ~ 24 V
Minimum Power Input 12V-24 V, 3.0A-1. 5A
Power Adapter AC to DC, DC19 V/3.42 A, 65 W(Optional)
Typical 12 W
Max. 16 W
Construction Aluminum housing
Mounting Desk/wall-mounting
Dimensions (W x H x D) 264.5 mm x 69.2 mm x 137.25 mm (10.41" x 2.72" x 5.4")
Weight 2 kg (4.4 lb)

Operating Temperature

Storage Temperature -40 ~ 85° C (-40 ~ 185° F)
Relative Humidity 95% @ 40° C (non-condensing)

Vibration Loading During Operation

Shock During Operation

EMC CE/FCC Class A, CCC, BSMI
Safety Certifications UL, CCC, BSMI

ARK-3360F-N4A1E/ARK-3360F-D5A1E

CRT Interface
18-bit LVDS interface (Optional)

DC

With Industrial Grade CompactFlash disk: -20 ~ 60° C (32 ~ 140° F)
With 2.5-inch hard disk 0 to 45° C (32 ~ 112° F) , with air flow

With CompactFlash disk: 5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 Oct./min, 1 hr/axis.
With 2.5-inch hard disk: 1 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 Oct./min, 1 hr/axis.
With CompactFlash disk: 50 G, IEC 60068-2-27, half sine, 11 ms duration
With hard disk: 20 G, IEC 60068-2-27, half sine, 11 ms duration

All product specifications are subject to change without notice Last updated : 06-April-2010

COM2 COM3 COM4 COM5 COM6

USB0

USB1

LAN1 LAN2

CF CARD

COM1 VGA Power Input

USB2
USB3

USB4
USB5 DIO HDD LED

PWR LED

MIC

LINE-IN

LINE-OUT

LAN3

ARK-3360F

119.51 [4.705]

125.76 [4.951]

252.50 [9.941]

5.00 [.197]

10.00 [.394]

14.00 [.551]

31.38 [1.235]

137.25 [5.404]

4.00

[.157]

4.00 [0.158]

5.00 [0.197]

4.00 [0.158]

8.00 [0.315]

10.00 [0.394]

14.00 [0.552]

8.00 [0.315]

4.00

[0.158]

5.00 [0.197]

69.20 [2.724]

69.00 [2.717]

68.63 [2.702]

137.25 [5.404]

Dimensions Unit: mm

ARK-3360F External I/O Mechanical Layout/Drawing

Rear

Front

Packing List

Part Number Description

- 1 x ARK-3360 Unit
1700009001 1 x 2-pin Phoenix DC power connector

- 1 x User Manual (Simplified Chinese)

- 1 x Utility CD

Ordering Information

Part Number Description

ARK-3360F-N4A1E

ARK-3360F-D5A1E

Intel Atom N450 1.67 GHz Compact Box IPC, w/ 3 x GbE,
6 x USB 2.0, 6 x COM, 1x MiniPCIe, 1 x MiniPCI, VGA,
DIO, Audio
Intel Atom D510 1.67 GHz Compact Box IPC, w/ 3 x GbE,
6 x USB 2.0, 6 x COM, 1x MiniPCIe, 1 x MiniPCI, VGA,
DIO, Audio

Optional Items

Part Number Description

1757000222

1700001947 Power cable 2-pin 180 cm, USA for ARK-338X
1700001948 Power cable 2-pin 180 cm, Europe for ARK-338X
1700001949 Power cable 2-pin 180 cm, UK for ARK-338X

AC-to-DC Adapter, DC19 V/3.42 A 65 W, with Phoenix
Power Plug, 0 ~ 40° C for Home and Office Use

Embedded OS

Part Number Description

2070009030 XPE WES2009 Luna Pier V4.0 ENG
2070009031 XPE WES2009 Luna Pier V4.0 MUI24

Online Download

www.advantech.com/products
