Industrial HMI Touch Panel Solutions

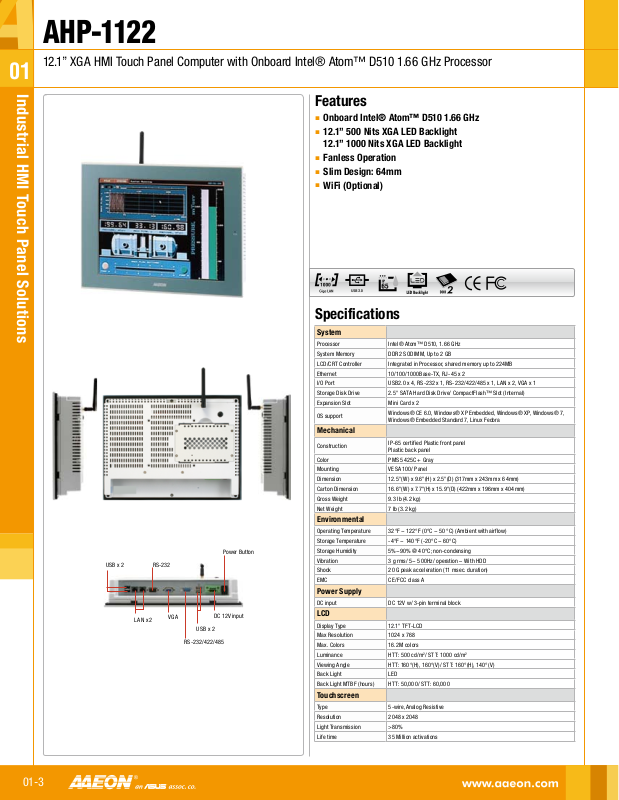

AHP-1122

12.1” XGA HMI Touch Panel Computer with Onboard Intel® Atom™ D510 1.66 GHz Processor

Features

■■

Onboard Intel® Atom™ D510 1.66 GHz

■■

12.1” 500 Nits XGA LED Backlight

12.1” 1000 Nits XGA LED Backlight

■■

Fanless Operation

■■

Slim Design: 64mm

■■

WiFi (Optional)

Specifications

System

Processor Intel® A tom™ D510, 1.66 GHz

System M emory DDR2 S ODIMM, Up to 2 G B

LCD/C RT Controller Integr ated in Proc essor, shared m emory up to 224 MB

Ethernet 10/100/ 1000Base-TX, RJ -45 x 2

I/O Po rt USB2.0 x 4, RS-232 x 1, RS -232/422/4 85 x 1, LAN x 2, VG A x 1

Stora ge Disk Drive 2.5" SATA Ha rd Disk Drive / Compact Flash™ Slot (I nternal)

USB x 2

LA N x 2

RS-23 2

VGA

DC 12V input

USB x 2

RS-23 2/422/4 85

Power Bu tton

Expan sion Slot Mini Car d x 2

OS suppo rt

Mechanical

Construction

Color PMS 54 25C + Gray

Mounting VES A 100/ Panel

Dimension 12.5"(W ) x 9.6"(H) x 2.5"( D) (317mm x 243mm x 64mm)

Cart on Dimension 16.6"(W ) x 7.7"(H ) x 15.9"(D) (422mm x 196mm x 404mm)

Gross We ight 9.3 lb (4.2 kg)

Net Weigh t 7 lb (3.2 kg)

Environmental

Operat ing Temperature 32°F ~ 122° F (0°C ~ 50 °C) (A mbient with a irflow)

Stora ge Temperature -4°F ~ 140° F (-20°C ~ 60°C)

Stora ge Humidity 5%~90 % @ 40°C; non -condensi ng

Vibration 3 g rms/ 5~ 5 00Hz/ oper ation – Wit h HDD

Shock 20 G peak ac celeratio n (11 msec. duratio n)

EMC CE/ FCC class A

Power Supply

DC input DC 12V w/ 3 -pin terminal b lock

LCD

Display Type 12.1" TFT-LCD

Max Resolution 1024 x 768

Max. C olors 16.2M col ors

Luminance HTT: 50 0 cd/m

Viewing A ngle HTT: 160° (H), 160°( V)/ ST T: 16 0°(H), 140 °(V)

Back Lig ht LED

Back Lig ht MTBF ( hours) HTT: 50, 000/ ST T: 60,0 00

Touchscreen

Type 5-wire, Analog Resis tive

Resolution 204 8 x 2048

Light Transmission >80%

Life time 35 Million a ctivatio ns

Windows® CE 6.0, Win dows® XP Em bedded, Windows® XP, Windows ® 7,
Windows® Embedded S tandard 7, Linux Fedo ra

IP-6 5 certified Pl astic fron t panel
Plast ic back panel

2

/ STT: 100 0 cd/m

2

01-3

Cutout Size:303mm x 229mm

AHP-1122

Dimension

Unit: mm

Ordering Information

Part Num ber Display Typ e

TF-AHP­1122 HT T-A1-10 10

TF-AHP­1122 ST T-A1-10 10

12.1" TFT­LCD

12.1" TFT­LCD

Max

Luminance

Resolution

1024 x 768 500 cd /m

1024 x 768 1000 cd/m

Packing List

Phoenix Power Connector•
Mounting Brackets and Screws•
CD-ROM for Manual (in PDF Format) and Drivers•
AHP-1122•

View

Backlig ht

Angle

MTBF (H ours)

160(H ),

2

50,000

160(V)

160(H ),

2

60,000

140(V)

CPU LAN USB RS -232

Intel® At om™
D510 - 1.66GHz

Intel® At om™
D510 - 1.66GHz

2 4 1 1

2 4 1 1

RS-

485/422/232

Storag e RAM Display Expansion Mounti ng Power Tem p. Touch

CF kit x 1
SATA-HD D kit x 1

CF kit x 1
SATA-HD D kit x 1

1G included V GA x 1 Mini C ard x 2

1G included V GA x 1 Mini C ard x 2

VESA 10 0 /
Panel

VESA 10 0 /
Panel

DC12V

DC12V

0°C~50 °C
(w/o air)

0°C~50 °C
(w/o air)

5-wire
resistive

5-wire
resistive

Optional Accessories

STAND-8150B0•

Desktop Stand with VESA 100mm Standard

1702031802•

Power Cord (US Type)

1702031803•

Power Cord (European Type)

1757908401•

12V 84W Power Adapter w/ 3-pin Terminal Block

9761215303•

Wireless b/g/n
