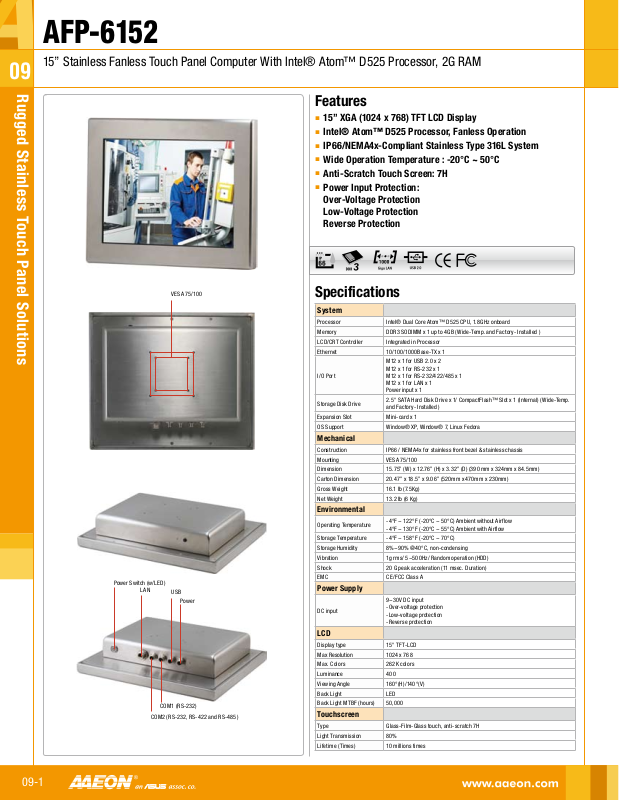

AFP-6152

15” Stainless Fanless Touch Panel Computer With Intel® Atom™ D525 Processor, 2G RAM

Features

■■

15” XGA (1024 x 768) TFT LCD Display

■■

Intel® Atom™ D525 Processor, Fanless Operation

■■

IP66/NEMA4x-Compliant Stainless Type 316L System

■■

Wide Operation Temperature : -20°C ~ 50°C

■■

Anti-Scratch Touch Screen: 7H

■■

Power Input Protection: Over-Voltage Protection Low-Voltage Protection Reverse Protection

Power Sw itch (w/L ED)

LAN

COM2 ( RS-232, RS- 422 and RS- 485)

VES A 75/100

USB

Power

COM1 ( RS-232)

Specifications

System

Processor Intel® D ual Core Ato m™ D525 CPU, 1.8G Hz onboard

Memory DDR3 S ODIMM x 1 up to 4 GB (Wide-Temp. and F actory- In stalled )

LCD/C RT Controller Integr ated in Proce ssor

Ethernet 10/100/ 1000Bas e-TX x 1

I/O Po rt

Stora ge Disk Drive

Expan sion Slot Mini-c ard x 1

OS Suppo rt Window ® XP, Window® 7, Linux Fed ora

Mechanical

Construction IP6 6 / NEMA4x f or stainless fr ont bezel & sta inless chass is

Mounting VES A 75/100

Dimension 15.75” (W ) x 12.76” (H ) x 3.32” (D) (390 mm x 324mm x 84 .5mm)

Cart on Dimension 20.47” x 18.5 ” x 9.06” (520 mm x 470mm x 230mm)

Gross We ight 16.1 lb (7.5Kg)

Net Weigh t 13.2 lb (6 Kg)

Environmental

Operat ing Temperature

Stora ge Temperature -4°F ~ 158° F (-20°C ~ 70°C)

Stora ge Humidity 8%~90 % @40°C, no n-condens ing

Vibration 1g rms/ 5~5 00Hz/ R andom opera tion (HDD )

Shock 20 G peak ac celeratio n (11 msec. Duratio n)

EMC CE/ FCC Class A

Power Supply

DC input

LCD

Display t ype 15" TFT-LC D

Max Resolution 1024 x 768

Max. C olors 262K co lors

Luminance 400

Viewing A ngle 160°(H )/140°(V )

Back Lig ht LED

Back Lig ht MTBF ( hours) 50,000

Touchscreen

Type Glass-Film-Gla ss touch, anti-scratch 7H

Light Transmission 80%

Lifetime (Times) 10 millions times

M12 x 1 for USB 2.0 x 2 M12 x 1 for RS-2 32 x 1 M12 x 1 for RS-2 32/422 /485 x 1 M12 x 1 for LA N x 1 Power inpu t x 1

2.5" SATA Ha rd Disk Drive x 1/ C ompactFl ash™ Slot x 1 (Int ernal) (W ide-Temp. and Fact ory- Inst alled )

-4°F ~ 122° F (-20°C ~ 50°C) A mbient witho ut Airflo w

-4°F ~ 130° F (-20°C ~ 55°C) Am bient with Ai rflow

9~30V D C input

-Over-vol tage protec tion

-Low-v oltage prot ection

-Rever se protect ion

09-1

AFP-6152

3 9 0 .0 0

3 2 4 .0 0

2 8 .0 0

8 4 .5 0

7 5 .0 0

1 0 0 .0 0

7 5 .0 0

1 0 0 .0 0

Dimension

Unit: mm

Ordering Information

Display

Part Num ber

AFP -6152H TT-A1-1010

15" TFTLCD

Type

Resolution

1024 x 768 400 cd/m

Max

Packing List

USB Cable with 2 USB Waterproof Connectors• COM Cables with Waterproof Connectors• Waterproof Connector for DC–in (Female)• CD-ROM for Manual (in PDF format) and Drivers• AFP-6152•

Luminance

View

Backlig ht

Angle

MTBF (H ours)

160(H ),

50,000

140V

CPU LAN USB R S-232

Intel® At om™ D525 - 1.8 GHz "

1 2 1 1

RS-

485/422/232

Storag e RAM Display Expansion Mounti ng Powe r Tem p. Touch

CF Kit x 1 SATA-HD D Kit x 1

2G VGA x 1 Mini Ca rd x 1 VES A75/10 0 DC 9 ~30V

-20°C~50°C (w/o air)

GFG Touh

Optional Accessories

1757910004•

AC Adapter (100W)

1757910802•

AC Adapter Power Cord (US Type)

1757910803•

AC Adapter Power Cord (European Type)

175791080E•

AC Adapter Power Cord (Japanese Type)

9761215304•

Water-proof Wireless Module (b/g/n)
