Impulse 8207 User Manual
SeaLINK ISO-16 User Manual
Part Number 8207
www.sealevel.com PO Box 830 Liberty, SC 29657 864.843.4343
Table of Contents
INTRODUCTION......................................................................................................................... 1
OTHER SEALEVEL USB DIGITAL I/O PRODUCTS......................................................................... 1
BEFORE YOU GET STARTED.................................................................................................2
WHAT’S INCLUDED...................................................................................................................... 2
OPTIONAL ITEMS.......................................................................................................................... 2
SOFTWARE INSTALLATION.................................................................................................. 3
WINDOWS 98/ME/2000/XP INSTALLATION.................................................................................3
PHYSICAL INSTALLATION.................................................................................................... 4
PROGRAMMING THE SEALINK ISO-16 .............................................................................. 5
PROGRAMMING FOR WINDOWS.................................................................................................... 5
DIGITAL I/O INTERFACE ..............................................................................................................5
SERIAL STRING ............................................................................................................................ 5
INPUT PORT.................................................................................................................................. 6
ELECTRICAL CHARACTERISTICS......................................................................................7
FEATURES.................................................................................................................................... 7
SPECIFICATIONS........................................................................................................................... 7
EXAMPLE CIRCUITS................................................................................................................8
APPENDIX A - TROUBLESHOOTING ................................................................................... 9
APPENDIX B - HOW TO GET ASSISTANCE ...................................................................... 10

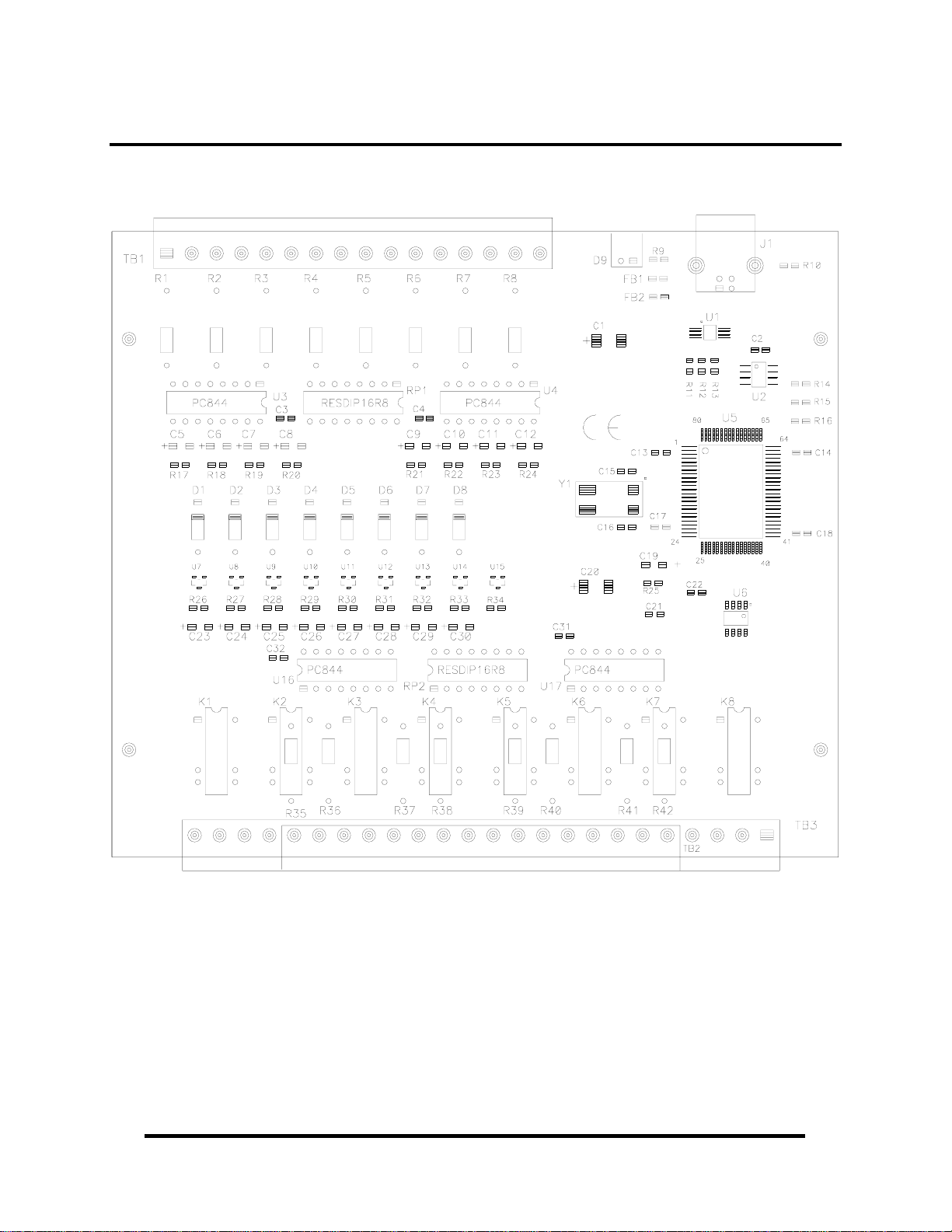

APPENDIX C – SILK SCREEN – 8207 PCB..........................................................................11
APPENDIX D - COMPLIANCE NOTICES............................................................................12
FEDERAL COMMUNICATIONS COMMISSION STATEMENT ........................................................... 12
WARRANTY............................................................................................................................... 13
© Sealevel Systems, Inc.
SL9016 Revision 7/2006
SEALINK ISO-16 User Manual
Introduction
The SeaLINK ISO-16 provides sixteen optically isolated inputs (rated for 5-30V) for
monitoring off board switch closures, relays or any other general purpose
monitoring needs. The adapter is USB 1.1 compliant.
The SEALINK ISO-16 is designed to be used under Windows 98/ME/2000/XP. The
SeaI/O API (Application Programmer Interface) included on CD with the SEALINK
ISO-16 provides a variety of useful high-level function calls implemented in a
Windows dynamic link library (DLL). This API gives access to the SeaLINK ISO16 I/O from Windows-based platforms such as Visual C++. In addition to the API,
SeaI/O includes an ActiveX control along with sample code and utilities to simplify
software development.
Other Sealevel USB Digital I/O Products
SeaLINK PLC-16 (P/N 8206) - 8 Form C Relays/8 Opto-isolated Inputs
SeaLINK DIO-16 (P/N 8209) - 8 Reed Relay Outputs/8 Opto-isolated Inputs
SeaLINK REL-16 (P/N 8208) - 16 Reed Relay Outputs
SeaLINK PIO-48 (P/N 8203) - 48 TTL Inputs/Outputs
SeaLINK PIO-96 (P/N 8205) - 96 TTL Inputs/Outputs
© Sealevel Systems, Inc.
- 1 -
SEALINK ISO-16 User Manual
Before You Get Started
What’s Included
The SEALINK ISO-16 is shipped with the following items. If any of these items is
missing or damaged please contact Sealevel for replacement.
SEALINK ISO-16 Adapter
USB A to B Cable, Part number CA179
Sealevel SeaI/O Software CD
Optional Items
Depending upon your application, you are likely to find one or more of the
following items useful for interfacing the SEALINK ISO-16 to real-world signals.
All items can be purchased from our website (http://www.sealevel.com
calling (864) 843-4343.
DIN Rail Clips (Part Number DR102)
− A pair of brackets, clips, and hardware necessary for DIN rail
mounting the SeaLINK ISO-16.
2U 19” Rack Tray (Part Number RK2U)
− Standard 2U rack tray for supporting SeaLINK and other devices.
Clamp for Rack Tray (Part Number RK-CLAMP)
− Metal clamp and necessary hardware to secure SeaLINK or other
devices to the RK2U rack tray.
) or by
High Speed USB 2.0 4-Port Hub (Part Number HUB4)
− AC powered 4-port USB hub, AC adapter, and USB cable.
High Speed USB 2.0 7-Port Hub (Part Number HUB7)
− AC powered 7-port USB hub, AC adapter, and USB cable.
© Sealevel Systems, Inc.
- 2 -
SEALINK ISO-16 User Manual
Software Installation
Windows 98/ME/2000/XP Installation
Important: Do not connect the SeaLINK ISO-16 adapter to the host USB device
until the software has been fully installed.
1. Start Windows.
2. Insert the Sealevel Systems CD in to your CD drive.
3. If ‘Auto-Start’ is enabled for this drive the software will automatically
launch. Otherwise, point your browser to the ‘Index.htm’ on the root
directory of the CD
4. Select ‘Install Software’.
5. Select the Part Number for your adapter from the listing.
6. Select ‘Windows 98/ME/2000/XP’. The setup file will automatically detect
the operating environment and install the proper components. Next
(depending on your browser) select the ‘Run this program from its current
location’ or ‘Open’ option. Follow the information presented on the screens
that follow.
7. A screen may appear with the declaration: “The publisher cannot be
determined due to the problems below: Authenticode signature not found.”
Please select the ‘Yes’ button and proceed with the installation. This
declaration simply means that the Operating System is not aware of the
driver being loaded. It will not cause any harm to your system.
8. During setup the user may specify installation directories and other preferred
configurations. This program also adds entries to the system registry that are
necessary for specifying the operating parameters for each driver. An
uninstall option is also included to remove all registry/INI file entries from
the system.
Windows NT Note: Windows NT is not USB aware and thus cannot support the
SeaLINK ISO-16.
© Sealevel Systems, Inc.
- 3 -
SEALINK ISO-16 User Manual
Loading...
