Impulse 8203 User Manual
SeaLINK PIO-48 User Manual
Part Number 8203
www.sealevel.com PO Box 830 Liberty, SC 29657 864.843.4343
Table of Contents
INTRODUCTION......................................................................................................................... 1
THER SEALEVEL SEALINK USB TO DIGITAL I/O PRODUCTS................................................... 1
O
BEFORE YOU GET STARTED.................................................................................................2
W
HAT’S INCLUDED...................................................................................................................... 2
OPTIONAL ITEMS.......................................................................................................................... 2
SOFTWARE INSTALLATION.................................................................................................. 4
INDOWS 98/ME/2000/XP INSTALLATION................................................................................. 4
W
PHYSICAL INSTALLATION.................................................................................................... 5
DIGITAL I/O INTERFACE........................................................................................................6

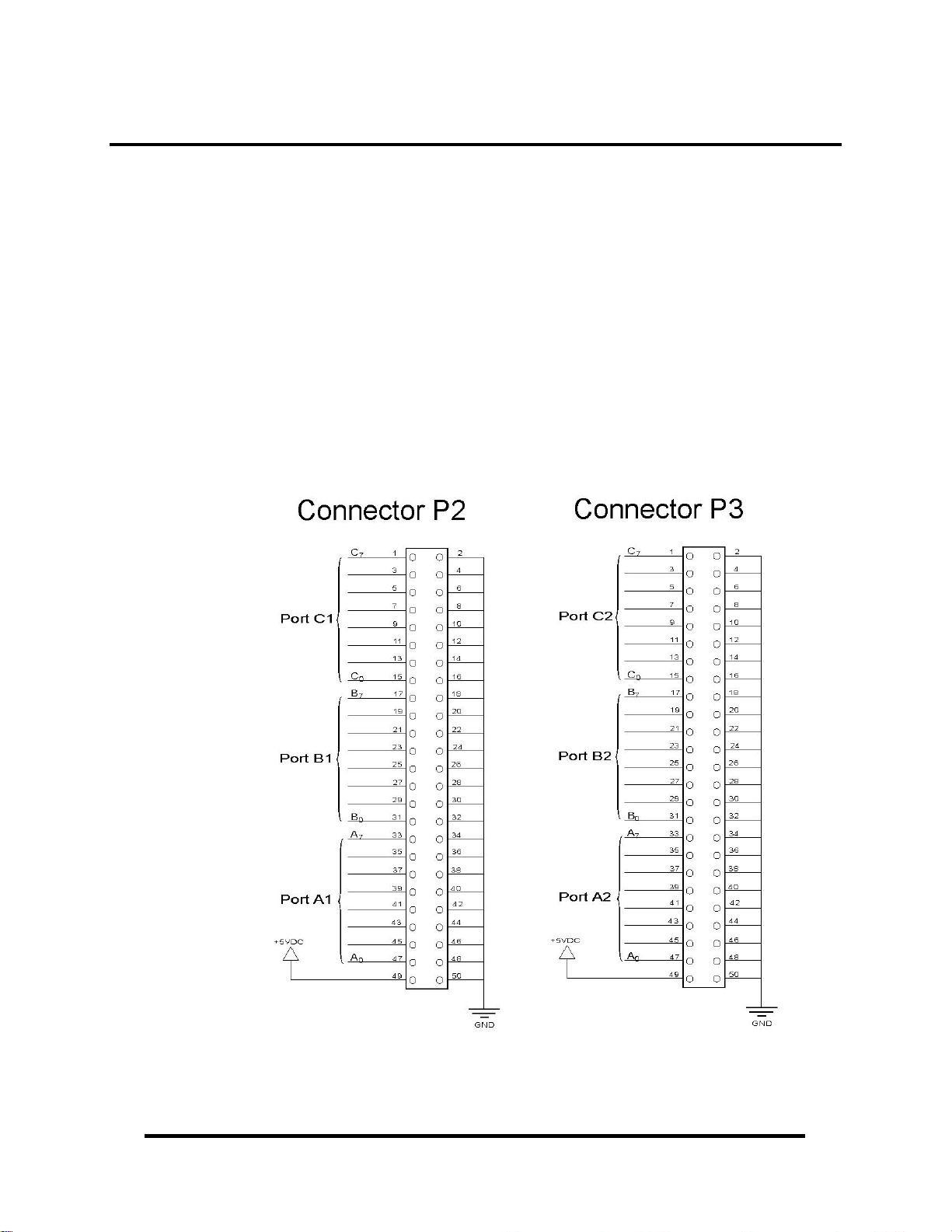

50-
PIN HEADER CONNECTORS ..................................................................................................... 6
PROGRAMMING THE SEALINK PIO-48.............................................................................. 7
PROGRAMMING FOR WINDOWS.................................................................................................... 7
SAMPLES AND UTILITIES..............................................................................................................7

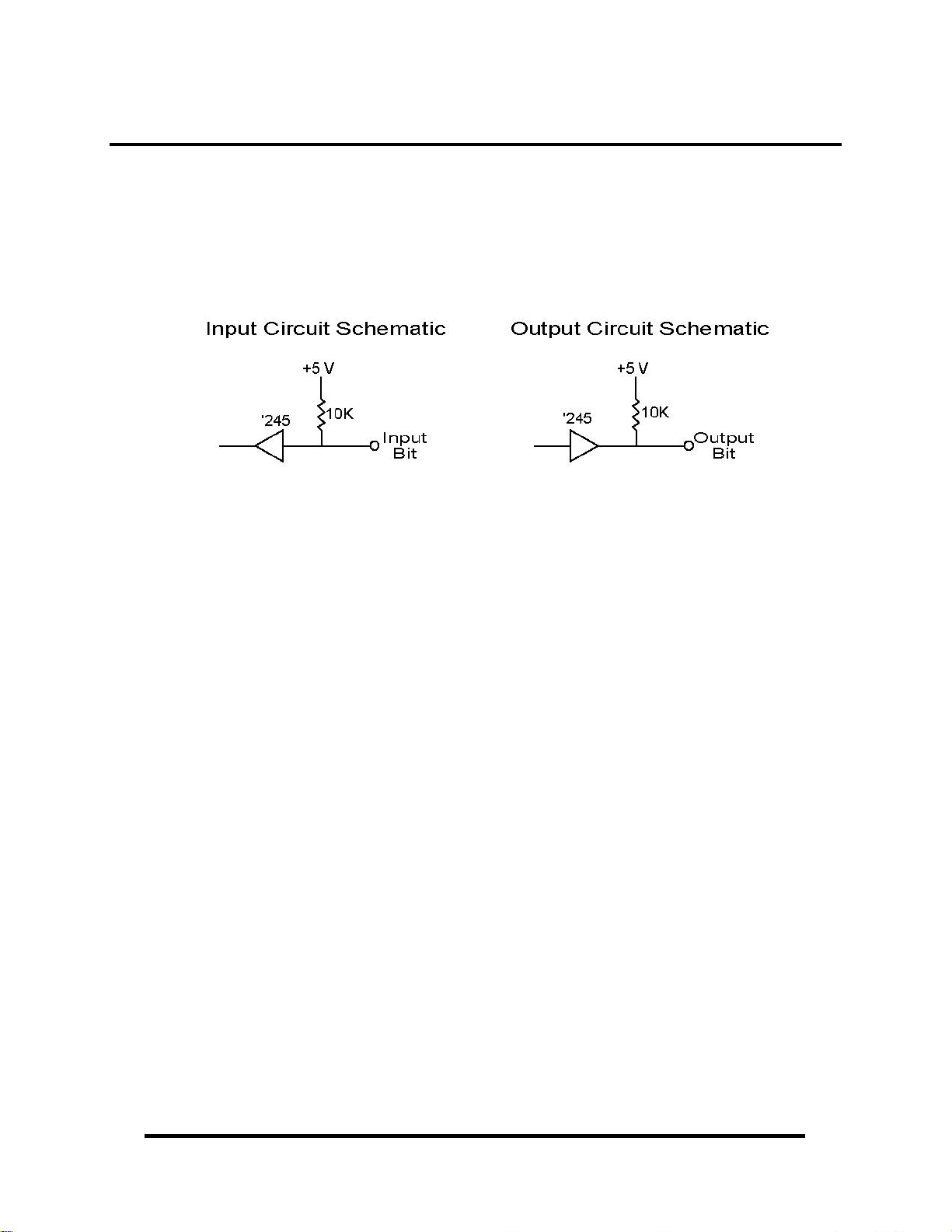

ELECTRICAL CHARACTERISTICS......................................................................................8
SPECIFICATIONS........................................................................................................................... 8

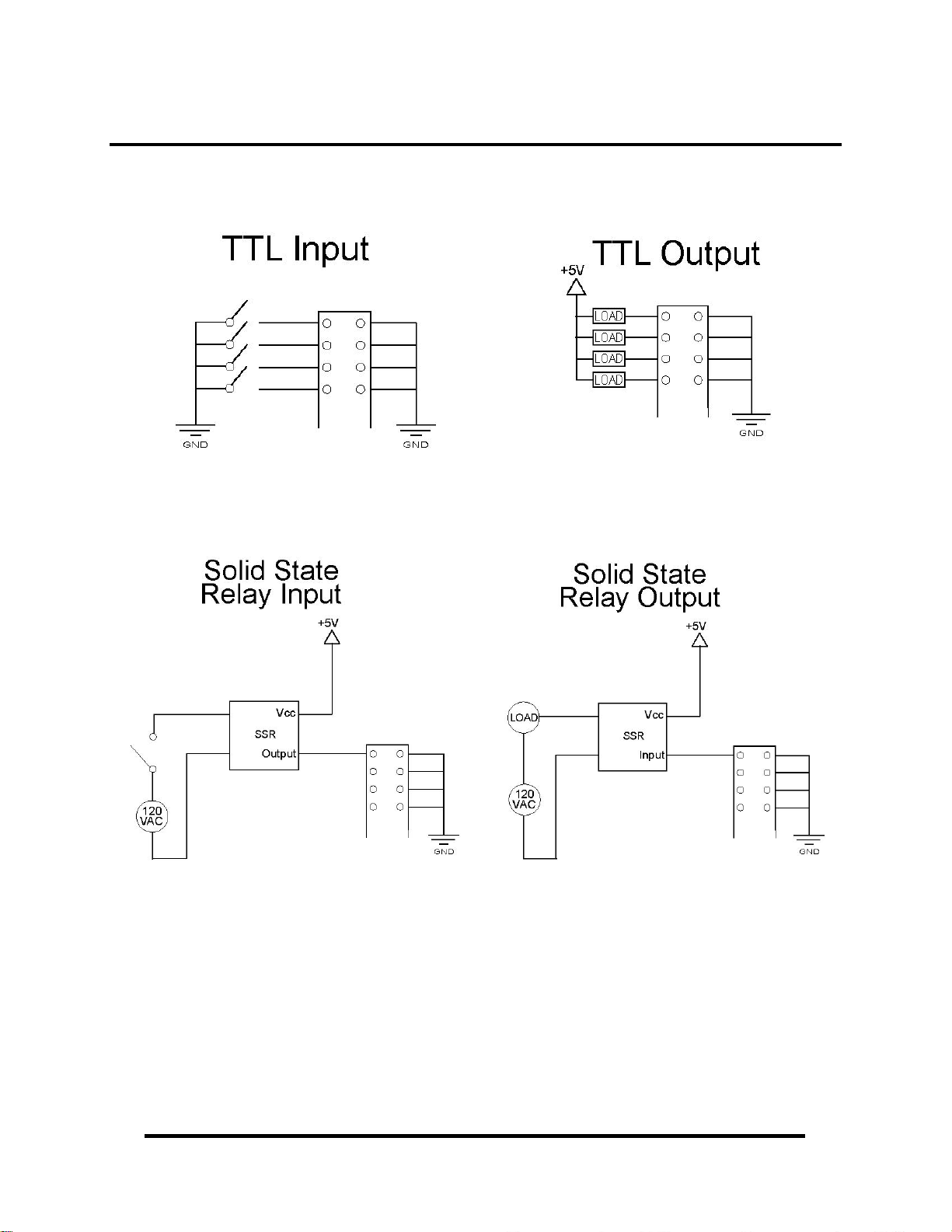

EXAMPLE CIRCUITS................................................................................................................9
APPENDIX A - TROUBLESHOOTING ................................................................................. 10
APPENDIX B - HOW TO GET ASSISTANCE ...................................................................... 11
APPENDIX C – SILK SCREEN – 8203 PCB..........................................................................12
APPENDIX D - COMPLIANCE NOTICES............................................................................13
FEDERAL COMMUNICATIONS COMMISSION STATEMENT ........................................................... 13
WARRANTY............................................................................................................................... 14
© Sealevel Systems, Inc.
SL9104 Revision 7/2006
SeaLINK PIO-48 User Manual
Introduction
The SeaLINK PIO-48, part number 8203, provides an easy method for interfacing
common digital I/O circuitry via any computer’s USB port. Typical applications
include control/monitoring of TTL devices (e.g. LEDs, small solenoids, small
relays) and interfacing to solid-state relay racks (SSRs) for high-power AC or DC
loads.
The SeaLINK PIO-48’s 48 digital I/O channels are accessed via two 50-pin header
connectors with industry-standard pin out. Each header provides 24 bits of digital
I/O divided into three eight-bit groups. Each eight-bit group may be individually
configured via software command as input or output to best match your particular
application requirements.
The SeaLINK PIO-48 is designed to be used under Windows 98/ME/2000/XP. The
SeaI/O API (Application Programmer Interface) included on CD with the SeaLINK
PIO-48 provides a variety of useful high-level function calls implemented in a
Windows dynamic link library (DLL). This API gives access to the SeaLINK PIO48’s I/O from Windows-based platforms such as Visual C++. In addition to the
API, SeaI/O includes an ActiveX control along with sample code and utilities to
simplify software development.
Other Sealevel SeaLINK USB to Digital I/O Products
SeaLINK PIO-96 (P/N 8205) - 96 TTL Inputs/Outputs
SeaLINK PLC-16 (P/N 8206) - 8 Form C Outputs/ 8 Opto-isolated Inputs
SeaLINK REL-16 (P/N 8207) - 16 Reed Relay Outputs
SeaLINK ISO-16 (P/N 8208) - 16 Opto-isolated Inputs
SeaLINK DIO-16 (P/N 8209) - 8 Reed Outputs/8 Opto-isolated Inputs
© Sealevel Systems, Inc.
- 1 -
SeaLINK PIO-48 User Manual
Before You Get Started
What’s Included
The SeaLINK PIO-48 is shipped with the following items. If any of these items is
missing or damaged please contact Sealevel for replacement.
SeaLINK PIO-48 Module
Sealevel SeaI/O Software CD
AC/DC 5V Power Supply (Item# TR101)
6’ USB A to B Cable (Item# CA179)
Optional Items
Depending upon your application, you are likely to find one or more of the
following items useful for interfacing the SeaLINK PIO-48 to real-world signals. All
items can be purchased from our website (http://www.sealevel.com
864-843-4343.
For TTL applications:
Terminal Block Kit - (Part Number KT107)
− Kit includes the TB07 screw terminal block and CA167 ribbon cable
for connecting one of the SeaLINK PIO-48’s 50-pin header
connectors to your I/O. 6” Snap track and DIN rail clips are included
for DIN rail mounting.
IDC 50 to IDC 50 Pin 40" Ribbon Cable (Part Number CA167)
− Interfaces each of the SeaLINK PIO-48’s 50-pin header connectors.
) or by calling
Simulation/debug module (Part Number TA01)
− Module allows monitoring status of output pins and controlling state
of input pins. An LED corresponding to each port bit illuminates to
indicate state. Eight position DIP-switches are used to generate input
status changes.
© Sealevel Systems, Inc.
- 2 -
SeaLINK PIO-48 User Manual
For high-current, high-voltage applications:
IDC 50 to IDC 50 Pin Ribbon Cable (Part Number CA167)
− 40” cable connects the SeaLINK PIO-48 to solid-state relay racks
equipped with 50-pin header interface.
IDC 50 to IDC 50 Pin Ribbon Cable (Part Number CA135)
− 40” cable connects the SeaLINK PIO-48 to solid-state relay racks
equipped with 50-pin edge connector.
Solid-State Relay Racks:
• Quad six position relay rack (Part Number PB24HQ)
− Relay rack can accept up to six QSSRs for a total of 24 channels.
Features a 50-pin header connector for easy interface via 50conductor ribbon cables.
• Quad four position relay rack (Part Number PB16HQ)
− Relay rack can accept up to four QSSRs for a total of 16 channels.
Features a 50-pin header connector for easy interface via 50conductor ribbon cables.
Quad Solid-State Relay Modules:
• AC Input (Part Number IA5Q) - Provides 4 channels of discrete I/O
interface to monitor AC inputs up to 140V @ 10mA.
• DC Input (Part Number IB5Q) - Provides 4 channels of discrete I/O
interface to monitor DC inputs from 3.3V to 32V.
• AC Output (Part Number OA5Q) - Provides 4 channels of discrete I/O
interface to control AC outputs up to 140V @ 3A.
• DC Output (Part Number OB5Q) - Provides 4 channels of discrete I/O
interface to control DC outputs up to 60V @ 3A.
Simulation/debug module (Part Number TA01)
− Module simulates the operation and load characteristics of a standard
24-channel relay rack. An LED corresponding to each port bit
illuminates to indicate state. Eight position DIP-switches are used to
generate input status changes.
© Sealevel Systems, Inc.
- 3 -
SeaLINK PIO-48 User Manual
