Impulse 8012e User Manual

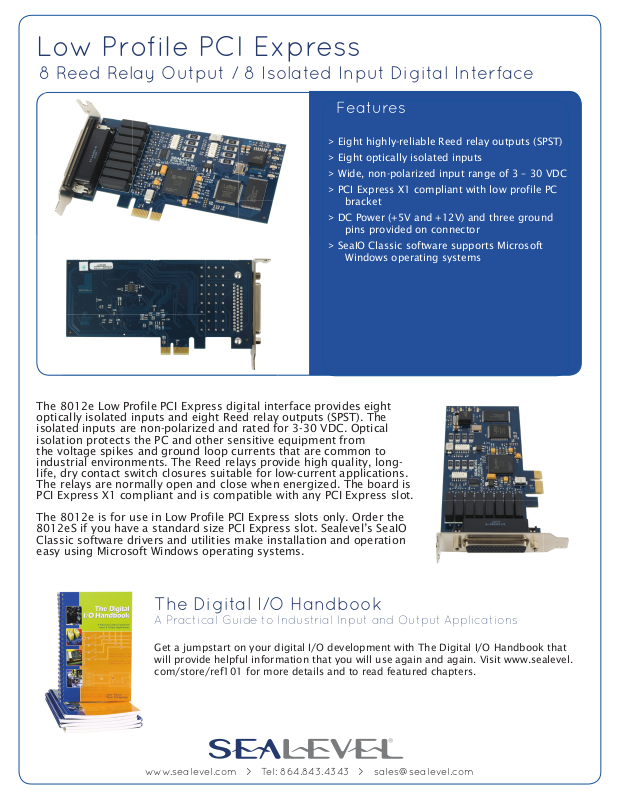

Low Profile PCI Express

8 Reed Relay Output / 8 Isolated Input Digital Interface

Features

Eight highly-reliable Reed relay outputs (SPST) >

Eight optically isolated inputs >

Wide, non-polarized input range of 3 – 30 VDC >

PCI Express X1 compliant with low profile PC >

bracket

DC Power (+5V and +12V) and three ground >

pins provided on connector

SeaIO Classic software supports Microsoft >

Windows operating systems

The 8012e Low Profile PCI Express digital interface provides eight
optically isolated inputs and eight Reed relay outputs (SPST). The
isolated inputs are non-polarized and rated for 3-30 VDC. Optical
isolation protects the PC and other sensitive equipment from
the voltage spikes and ground loop currents that are common to
industrial environments. The Reed relays provide high quality, long­life, dry contact switch closures suitable for low-current applications.
The relays are normally open and close when energized. The board is
PCI Express X1 compliant and is compatible with any PCI Express slot.

The 8012e is for use in Low Profile PCI Express slots only. Order the
8012eS if you have a standard size PCI Express slot. Sealevel’s SeaIO
Classic software drivers and utilities make installation and operation
easy using Microsoft Windows operating systems.

The Digital I/O Handbook

A Practical Guide to Industrial Input and Output Applications

Get a jumpstart on your digital I/O development with The Digital I/O Handbook that
will provide helpful information that you will use again and again. Visit www.sealevel.
com/store/ref101 for more details and to read featured chapters.

www.sealevel.com > Tel: [phone] > [e-mail]

Low Profile PCI Express

8 Reed Relay Output / 8 Isolated Input Digital Interface

Specifications

Host Interface PCI Express
# of Ports 8/8
Digital I/O Isolated Inputs, Reed Relay Outputs
RoHS Yes
PC Bracket Low Profile
Integration No
Number of Inputs/Outputs 8 Inputs, 8 Outputs
Input Range 3-30 VDC/VAC, Non-Polarized
Input Current 2-20mA
Input Isolation 300 VAC RMS
Input Resistance 1500 ohms
Output Power 10W Contact Max
Contact Voltage 60 V Switching Max DC / Peak AC Resistive
Contact Current 500 mA Switching Max DC / Peak AC Resistive
Board Connector DB-44F
Operating Temperature 0 - +70C
Extended Temperature Call for Options
Storage Temperature -85 - +100C
Humidity Range 10-90% R.H., Non-Condensing

PCI Express Digital I/O Boards

Sealevel PCI Express digital I/O boards are designed for computers with X1 PCI Express slots and are compat­ible with any PCI Express slot. Digital I/O boards are currently available with optically isolated inputs and Reed
relay outputs. Optically isolated inputs protect the PC from voltage spikes common to industrial environments
while Reed relay outputs provide reliable, long-life switch closures suitable for low current applications. Learn
more about Sealevel’s PCI Express serial boards and other asynchronous serial products at Sealevel.com.

Item# 8012e

Low Profile PCIe 9 Reed

Relay Output / 8 Isolated

Input Digital Interface

(3-30V)

Item# 8012eS

PCIe 8 Reed Relay Output

/ 8 Isolated Input Digital

Interface

(3-30V)

Item# 8004e

PCIe 16 Reed relay Output

/ 16 Isolated Input Digital

Interface

(3-13V)

Item# 8004He

PCIe 16 Reed relay Output

/ 16 Isolated Input Digital

Interface
(10-30V)
