Impulse 8009 User Manual

PIO-96.PCI User Manual
Part Number 8009
www.sealevel.com PO Box 830 Liberty, SC 29657 864.843.4343

Table of Contents

INTRODUCTION......................................................................................................................... 1
OTHER SEALEVEL PCI DIGITAL I/O PRODUCTS........................................................................... 1
BEFORE YOU GET STARTED.................................................................................................2
WHATS INCLUDED......................................................................................................................2
OPTIONAL ITEMS.......................................................................................................................... 2
SOFTWARE INSTALLATION.................................................................................................. 4
PHYSICAL INSTALLATION.................................................................................................... 6
DIGITAL I/O INTERFACE........................................................................................................7
50-PIN HEADER CONNECTORS ..................................................................................................... 7
PROGRAMMING THE PIO-96.PCI ......................................................................................... 8
PROGRAMMING FOR WINDOWS.................................................................................................... 8
PROGRAMMING FOR LINUX.......................................................................................................... 8
DIRECT HARDWARE CONTROL .................................................................................................... 8
READING THE INPUTS................................................................................................................... 8
READING THE OUTPUTS ............................................................................................................... 8
PRESETTING AN OUTPUT PORT .................................................................................................... 9
WRITING THE OUTPUTS ............................................................................................................... 9
REGISTER DESCRIPTION...............................................................................................................9
I/O CONTROL WORD.................................................................................................................. 10
ELECTRICAL CHARACTERISTICS.................................................................................... 11
SPECIFICATIONS......................................................................................................................... 11
EXAMPLE CIRCUITS.............................................................................................................. 12
APPENDIX A - TROUBLESHOOTING ................................................................................. 13
APPENDIX B - HOW TO GET ASSISTANCE ...................................................................... 14
APPENDIX C – SILK SCREEN – 8009 PCB.......................................................................... 15
APPENDIX D - COMPLIANCE NOTICES............................................................................ 16
FEDERAL COMMUNICATIONS COMMISSION STATEMENT ........................................................... 16
WARRANTY............................................................................................................................... 17
© Sealevel Systems, Inc. SL9035 Revision 7/2006
PIO-96.PCI User Manual

Introduction

The PIO-96.PCI part number 8009 digital I/O interface provides 96 channels of buffered drive digital I/O emulating 8255 mode zero. The PIO-96.PCI can be utilized for a variety of control and automation applications including control and monitoring of TTL devices (e.g. LEDs, small solenoids, small relays) and interfacing to solid-state relay racks (SSRs) for high-power AC or DC loads.
The PIO-96.PCI’s 96 digital I/O channels are accessed via four 50-pin header connectors with industry-standard pin out. Each header provides 24 bits of digital I/O divided into three eight-bit groups. Each eight-bit group may be individually configured via software command as input or output to best match your particular application requirements.
The PIO-96.PCI is designed to be used with a variety of Operating Systems including Windows 98/NT/ME/2000/XP, Linux and DOS. The SeaI/O API (Application Programmer Interface) included on CD with the PIO-96.PCI provides a variety of useful high-level function calls implemented as a Windows dynamic link library (DLL) and as a Linux kernel module and library. In addition to the API, SeaI/O includes sample code and utilities to simplify software development.
Other Sealevel PCI Digital I/O Products
PIO-24.PCI (P/N 8008) - 24 TTL Inputs/Outputs PIO-32.PCI (P/N 8010) - 32 TTL Inputs/Outputs PIO-48.PCI (P/N 8005) - 48 TTL Inputs/Outputs DIO-16.PCI (P/N 8002) - 8 Reed Relay Outputs/8 Opto-isolated Inputs REL-16.PCI (P/N 8003) - 16 Reed Relay Outputs DIO-32.PCI (P/N 8004) - 16 Reed Relay Outputs/16 Opto-isolated Inputs ISO-16.PCI (P/N 8006) - 16 Opto-isolated Inputs REL-32.PCI (P/N 8007) - 32 Reed Relay Outputs PLC-16.PCI (P/N 8011) - 8 Form C Relay Outputs/ 8 Opto-isolated
Inputs
© Sealevel Systems, Inc.
- 1 -
PIO-96.PCI User Manual

Before You Get Started

What’s Included
The PIO-96.PCI is shipped with the following items. If any of these items is missing or damaged please contact Sealevel for replacement.
PIO-96.PCI Adapter Sealevel SeaI/O Software CD
Optional Items
Depending upon your application, you are likely to find one or more of the following items useful for interfacing the PIO-96.PCI to real-world signals. All items can be purchased from our website (http://www.sealevel.com (864) 843-4343.
For TTL applications:
Terminal Block Kit - (Part Number KT107)
Kit includes the TB07 screw terminal block and CA167 ribbon cable
for connecting one of the PIO-96.PCI’s 50-pin header connectors to your I/O. 6” Snap track and DIN rail clips are included for DIN rail mounting.
) or by calling
IDC 50 to IDC 50 Pin 40" Ribbon Cable (Part Number CA167)
Interfaces each of the PIO-96.PCI’s 50-pin header connectors to your
I/O.
Simulation/debug module (Part Number TA01)
Module allows monitoring status of output pins and controlling state
of input pins. An LED corresponding to each port bit illuminates to indicate state. Eight position DIP-switches are used to generate input status changes.
© Sealevel Systems, Inc.
- 2 -
PIO-96.PCI User Manual
For high-current, high-voltage applications:
IDC 50 to IDC 50 Pin Ribbon Cable (Part Number CA167)
40” cable connects the PIO-96.PCI to solid-state relay racks equipped
with 50-pin header interface.
IDC 50 to IDC 50 Pin Ribbon Cable (Part Number CA135)
40” cable connects the PIO-96.PCI to solid-state relay racks equipped
with 50-pin edge connector.
Solid-State Relay Racks:
Quad six position relay rack (Part Number PB24HQ)
Relay rack can accept up to six QSSRs for a total of 24 channels.
Features a 50-pin header connector for easy interface via 50­conductor ribbon cables.
Quad four position relay rack (Part Number PB16HQ)
Relay rack can accept up to four QSSRs for a total of 16 channels.
Features a 50-pin header connector for easy interface via 50­conductor ribbon cables.
Quad Solid-State Relay Modules:
AC Input (Part Number IA5Q) - Provides 4 channels of discrete I/O
interface to monitor AC inputs up to 140V @ 10mA.
DC Input (Part Number IB5Q) - Provides 4 channels of discrete I/O
interface to monitor DC inputs from 3.3V to 32V.
AC Output (Part Number OA5Q) - Provides 4 channels of discrete I/O
interface to control AC outputs up to 140V @ 3A.
DC Output (Part Number OB5Q) - Provides 4 channels of discrete I/O
interface to control DC outputs up to 60V @ 3A.
Simulation/debug module (Part Number TA01)
Module simulates the operation and load characteristics of a standard
24-channel relay rack. An LED corresponding to each port bit illuminates to indicate state. Eight position DIP-switches are used to generate input status changes.
© Sealevel Systems, Inc.
- 3 -
PIO-96.PCI User Manual

Software Installation

Windows 98/ME/2000/XP Installation
1. Start Windows.
2. Insert the Sealevel Systems CD in to your CD drive.
3. If ‘Auto-Start’ is enabled for this drive the software will automatically
launch. Otherwise, point your browser to the ‘Index.htm’ on the root directory of the CD
4. Select ‘Install Software’.
5. Select the Part Number for your adapter from the listing.
6. Select ‘Windows 98/ME/2000/XP’. The setup file will automatically detect
the operating environment and install the proper components. Next (depending on your browser) select the ‘Run this program from its current location’ or ‘Open’ option. Follow the information presented on the screens that follow.
7. A screen may appear with the declaration: “The publisher cannot be
determined due to the problems below: Authenticode signature not found.” Please select the ‘Yes’ button and proceed with the installation. This declaration simply means that the Operating System is not aware of the driver being loaded. It will not cause any harm to your system.
8. During setup the user may specify installation directories and other
preferred configurations. This program also adds entries to the system registry that are necessary for specifying the operating parameters for each driver. An uninstall option is also included to remove all registry/INI file entries from the system.
Windows NT Card Installation: After accomplishing the above steps, bring up the Control Panel and double-click on the SeaIO Devices icon. To install a new card, click "Add Port". Repeat this procedure for as many SeaIO cards as you wish to install.
© Sealevel Systems, Inc.
- 4 -
PIO-96.PCI User Manual
Linux Installation
Note: You MUST have "root" privileges to install the software and drivers.
Note: Your cdrom may not be /dev/hdc it could be /dev/hda, /dev/hdb, /dev/hdd, or
if you have a SCSI drive /dev/sda, /dev/sdb, /dev/sdc, etc. You may mount the CDROM to any location, the /cdrom is just a common example.
Note: The syntax is case sensitive.
1. Login as "root".
2. Mount the CDROM by typing:
mount -t iso4860 /dev/hdc /cdrom
3. Next change to the directory where you mounted the CDROM:
Ex. cd /cdrom/software/SeaIO/Other/linux
4. Copy seaio .tar.gz to your home directory by typing:
cp seaio .tar.gz ~
5. Change to your home directory by typing:
cd
6. Unmount the drive and then Unzip and Untar the drivers and software by
typing: umount /cdrom
tar -xvzf seaio .tar.gz
7. Change to the SeaIO directory by typing:
cd SeaIO
8. Now compile and prepare the drivers for use:
make install
9. With the system off and unplugged, install your SeaIO PCI card.
10. Plug system back in and boot Linux.
Login as "root".
11. Load the driver by typing:
SeaIO -load
The driver has enabled the card and is ready to use, and you now have the option to run a test utility on it. Skip to section "Using the test software" if you wish to do so at this time.
To set up Linux to automatically load the driver; refer to a Linux manual concerning your specific distribution for help.
© Sealevel Systems, Inc.
- 5 -
PIO-96.PCI User Manual

Physical Installation

The adapter can be installed in any 5V PCI expansion slot.
Do not install the Adapter in the machine until the software has been fully installed.
1. Turn off PC power. Disconnect the power cord.
2. Remove the PC case cover.
3. Locate an available 5V PCI slot and remove the blank metal slot cover.
4. Gently insert the PCI adapter into the slot. Make sure that the adapter is
seated properly.
5. After the adapter has been installed, the cables should be routed thru the
opening in the bracket. This bracket also features a strain relief function that should be used to prevent un-expected cable removal.
6. Replace the screw you removed for the blank and use it to secure the adapter
into the slot. (This is required to ensure FCC Part 15 compliance.)
7. Replace the cover.
8. Connect the power cord
The PIO-96.PCI is now ready for use.
© Sealevel Systems, Inc.
- 6 -
PIO-96.PCI User Manual

Digital I/O Interface

The PIO-96.PCI’s 96 digital I/O channels are accessed via four industry-standard 50-pin header connectors. Each header provides 24 bits of digital I/O divided into three eight-bit ports. Each port may be individually configured via software command as input or output.
50-pin Header Connectors
You will need to install the bracket assembly and cables to the PIO-96.PCI prior to installing it in the PC. The PIO-96.PCI’s bracket features a unique cable clamp that provides a solid strain relief to prevent inadvertent cable removal.
Each of the four 50-pin connectors has the following pin out which is compatible with a wide variety of solid state relay racks:
© Sealevel Systems, Inc.
- 7 -
PIO-96.PCI User Manual

Programming the PIO-96.PCI

Sealevel’s SeaI/O software is provided to assist in the development of reliable applications for the Sealevel Systems family of digital I/O adapters. Included on the SeaI/O CD are driver functions for use in accessing the I/O as well as helpful samples and utilities.
Programming for Windows
The SeaI/O API (Application Programmer Interface) provides a variety of useful high-level function calls implemented in a Windows dynamic link library (DLL). The API is defined in the help file (Start/Programs/SeaIO/SeaIO Help) under “Application Programmers Interface”. This help file also includes detailed information dealing with installation / removal of the software and information about latency, logic states, and device configuration.
For C language programmers we recommend using the API to access the PIO-
96.PCI. If you are programming in Visual Basic, using the ActiveX control included with SeaI/O is advised.
Samples and Utilities
A variety of sample programs and utilities (both executable and source code) are included with SeaI/O. Further documentation on these samples can be found by selecting “Start/Programs/SeaIO/Sample Application Description”. Information about where the files are physically stored on your disk is also included in this same file.
Programming for Linux
SeaI/O for Linux consists of two major parts: a kernel module and a library. The kernel module is a simple IO pass-through device, allowing the library to handle the more sophisticated functions provided to SeaI/O users. It is provided in a ‘tarball’ format and can easily be compiled and included in the kernel build.
Direct Hardware Control
In systems where the users program has direct access to the hardware (DOS) the tables that follow give the mapping and functions that the PIO-96.PCI provides.
Reading the Inputs
The inputs are active true. If an input is driven high (2V to 5.25 V) it will read as a logical one, if driven low (0V to 0.8V) it will read as a logical zero. If an input is not driven it will read as a one due to the 10K ohm pull up resistors on each port.
Reading the Outputs
The value that is currently being used to drive the outputs will be returned.
© Sealevel Systems, Inc.
- 8 -
PIO-96.PCI User Manual
Presetting an Output Port
Each port has an output register associated with it. This register may be written and retains its value whether the port is configured as an input or an output. To preset the value of an output port the program should write to the port when it is configured as an input then configure it as an output.
Writing the Outputs
The outputs are active true. Writing a one (1) corresponds to 5V while writing a zero (0) corresponds to 0V, at the output.
Register Description
Address Mode D7 D6 D5 D4 D3 D2 D1 D0
Base+0 Base+1 Base+2 Base+3 Base+4 Base+5 Base+8
Base+9 Base+A Base+B Base+C
Base+10 Base+11 Base+12 Base+13 Base+14 Base+18
Base+19 Base+1A Base+1B Base+1C
Port A1 RD/WR PA1D7 PA1D6PA1D5 PA1D4 PA1D3 PA1D2 PA1D1 PA1D0 Port B1 RD/WR PB1D7 PB1D6 PB1D5 PB1D4 PB1D3 PB1D2 PB1D1 PB1D0 Port C1 RD/WR PC1D7 PC1D6 PC1D5 PC1D4 PC1D3 PC1D2 PC1D1 PC1D0
CW Port 1 WR CW1D7 0 0 CW1D4CW1D3 CW1D2 CW1D1CW1D0
Interrupt Port 1 RD/WR 0 0 0 0 0 IRQEN1 IRQC11IRQC10
IntStat Port 1 - 4 RD 0 0 0 0 IRQST4 IRQST3 IRQST2IRQST1
Port A2 RD/WR PA2D7 PA2D6PA2D5 PA2D4 PA2D3 PA2D2 PA2D1 PA2D0 Port B2 RD/WR PB2D7 PB2D6 PB2D5 PB2D4 PB2D3 PB2D2 PB2D1 PB2D0 Port C2 RD/WR PC2D7 PC2D6 PC2D5 PC2D4 PC2D3 PC2D2 PC2D1 PC2D0
CW Port 2 WR CW2D7 0 0 CW2D4CW2D3 CW2D2 CW2D1CW2D0
Interrupt Port 2 RD/WR 0 0 0 0 0 IRQEN2 IRQC21IRQC20
Port A3 RD/WR PA3D7 PA3D6PA3D5 PA3D4 PA3D3 PA3D2 PA3D1 PA3D0 Port B3 RD/WR PB3D7 PB3D6 PB3D5 PB3D4 PB3D3 PB3D2 PB3D1 PB3D0 Port C3 RD/WR PC3D7 PC3D6 PC3D5 PC3D4 PC3D3 PC3D2 PC3D1 PC3D0
CW Port 3 WR CW3D7 0 0 CW3D4CW3D3 CW3D2 CW3D1CW3D0
Interrupt Port 3 RD/WR 0 0 0 0 0 IRQEN3 IRQC31IRQC30
Port A4 RD/WR PA4D7 PA4D6PA4D5 PA4D4 PA4D3 PA4D2 PA4D1 PA4D0 Port B4 RD/WR PB4D7 PB4D6 PB4D5 PB4D4 PB4D3 PB4D2 PB4D1 PB4D0 Port C4 RD/WR PC4D7 PC4D6 PC4D5 PC4D4 PC4D3 PC4D2 PC4D1 PC4D0
CW Port 4 WR CW4D7 0 0 CW4D4CW4D3 CW4D2 CW4D1CW4D0
Interrupt Port 4 RD/WR 0 0 0 0 0 IRQEN4 IRQC41IRQC40
IntStat = Interrupt Status
© Sealevel Systems, Inc.
- 9 -
PIO-96.PCI User Manual
I/O Control Word
Each port may be configured as either Input or Output. This is accomplished by writing the correct Control Word (CW) to the proper register.
Control Word (X = 0) Hex Value Port Setup
7 6 5 4 3 2 1 0
A B C 1 X X 0 0 X 0 0 80 Out Out Out 1 X X 0 0 X 0 1 81 Out Out In 1 X X 0 0 X 1 0 82 Out In Out 1 X X 0 0 X 1 1 83 Out In In 1 X X 0 1 X 0 0 88 Out Out In 1 X X 0 1 X 0 1 89 Out Out In 1 X X 0 1 X 1 0 8A Out In In 1 X X 0 1 X 1 1 8B Out In In 1 X X 1 0 X 0 0 90 In Out Out 1 X X 1 0 X 0 1 91 In Out In 1 X X 1 0 X 1 0 92 In In Out 1 X X 1 0 X 1 1 93 In In In 1 X X 1 1 X 0 0 98 In Out In 1 X X 1 1 X 0 1 99 In Out In 1 X X 1 1 X 1 0 9A In In In 1 X X 1 1 X 1 1 9B In In In
Interrupt Control
When enabled interrupts are generated on port bit D0 of each A port. n = port number
IRQENn interrupt enable 1 = enabled 0 = disabled ( 0 on power up ) IRQCn0 IRQCn1
Interrupt mode select table
IRQCn1 IRQCn0 INT Type
0 0 Low level 0 1 High level 1 0 Falling edge 1 1 Rising edge
Interrupt Read
Reading the INTSTAT port (Base+5) clears any interrupt pending.
IRQST1 (D0) Interrupt status 1 = interrupt pending, 0 = none IRQST2 (D1) Interrupt status 1 = interrupt pending, 0 = none IRQST3 (D2) Interrupt status 1 = interrupt pending, 0 = none IRQST4 (D3) Interrupt status 1 = interrupt pending, 0 = none
Interrupt mode select, see table below Interrupt mode select, see table below
© Sealevel Systems, Inc.
- 10 -
PIO-96.PCI User Manual
Electrical Characteristics

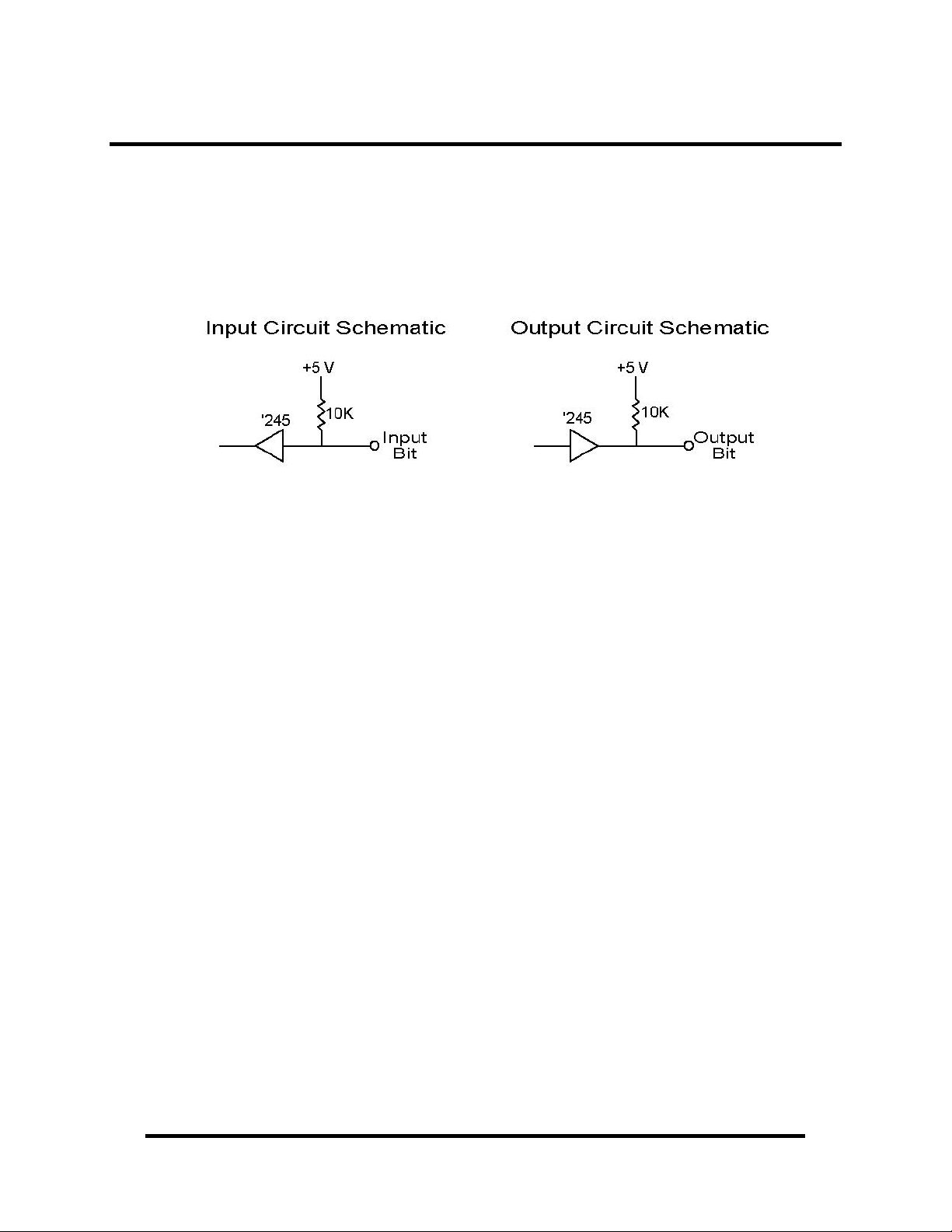

The PIO-96.PCI uses 74LS245 octal bi-directional transceivers to provide TTL input/output capabilities. Each bit is pulled to +5V through a 10K ohm pull-up resistor to insure each bit is at a known state when not driven.
Specifications
Inputs
Logic High: Min 2VDC Logic Low: Max 0.8VDC
Outputs
Logic High: Min 2VDC @ 15 mA Logic Low: Max 0.5VDC @ 24 mA
Temperature Range
Operating: 0°C – 70°C Storage: -50°C – 105°C
Power Requirements
+5VDC @ 1A
© Sealevel Systems, Inc.
- 11 -
PIO-96.PCI User Manual
Example Circuits
© Sealevel Systems, Inc.
- 12 -
PIO-96.PCI User Manual
Appendix A - Troubleshooting
Following these simple steps can eliminate most common problems.
1. Install software first. After installing the software then proceed to adding the
hardware. This places the required installation files in the correct locations.
2. Read this manual thoroughly before attempting to install the adapter in your system.
3. Use Device Manager under Windows to verify proper installation.
4. Use the SeaIO Control Panel applet or the Device Manager’s property page for card identification and configuration.
5. If these steps do not solve your problem, please call Sealevel Systems’ Technical Support, (864) 843-4343. Our technical support is free and available from 8:00AM-5PM Eastern Time Monday through Friday. For email support contact mailto:support@sealevel.com
.
© Sealevel Systems, Inc.
- 13 -
PIO-96.PCI User Manual

Appendix B - How To Get Assistance

Begin by reading through the Trouble Shooting Guide in Appendix A. If assistance is still needed please see below.
When calling for technical assistance, please have your user manual and current adapter settings. If possible, please have the adapter installed in a computer ready to run diagnostics.
Sealevel Systems provides an FAQ section on its web site. Please refer to this to answer many common questions. This section can be found at
http://www.sealevel.com/faq.asp
Sealevel Systems maintains a Home page on the Internet. Our home page address is
http://www.sealevel.com
available via our FTP site that can be accessed from our home page. Technical support is available Monday to Friday from 8:00 a.m. to 5:00 p.m. eastern
time. Technical support can be reached at (864) 843-4343.
RETURN AUTHORIZATION MUST BE OBTAINED FROM SEALEVEL SYSTEMS BEFORE RETURNED MERCHANDISE WILL BE ACCEPTED. AUTHORIZATION CAN BE OBTAINED BY CALLING SEALEVEL SYSTEMS AND REQUESTING A RETURN MERCHANDISE AUTHORIZATION (RMA) NUMBER.
. The latest software updates, and newest manuals are
© Sealevel Systems, Inc.
- 14 -
PIO-96.PCI User Manual

Appendix C – Silk Screen – 8009 PCB

4.20"
6.80"
© Sealevel Systems, Inc.
- 15 -
PIO-96.PCI User Manual

Appendix D - Compliance Notices

Federal Communications Commission Statement
FCC - This equipment has been tested and found to comply with the limits for Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in such case the user will be required to correct the interference at the users expense.
EMC Directive Statement
Products bearing the CE Label fulfill the requirements of the EMC directive (89/336/EEC) and of the low-voltage directive (73/23/EEC) issued by the European Commission.
To obey these directives, the following European standards must be met:
EN55022 Class A - “Limits and methods of measurement of radio interference characteristics of information technology equipment”
EN55024 – “Information technology equipment Immunity characteristics Limits and methods of measurement”.
EN60950 (IEC950) - “Safety of information technology equipment, including electrical business equipment”
Warning
This is a Class A Product. In a domestic environment, this product may cause
radio interference in which case the user may be required to take adequate
measures to prevent or correct the interference.
Always use cabling provided with this product if possible. If no cable is provided or if an alternate cable is required, use high quality shielded cabling to maintain compliance with FCC/EMC directives.
© Sealevel Systems, Inc.
- 16 -
PIO-96.PCI User Manual
Warranty
Sealevel's commitment to providing the best I/O solutions is reflected in the Lifetime Warranty that is standard on all Sealevel manufactured products. We are able to offer this warranty due to our control of manufacturing quality and the historically high reliability of our products in the field. Sealevel products are designed and manufactured at its Liberty, South Carolina facility, allowing direct control over
product development, production, burn-in and testing. Sealevel Systems, Inc. (hereafter "Sealevel") warrants that the Product shall conform
to and perform in accordance with published technical specifications and shall be free of defects in materials and workmanship for life. In the event of failure, Sealevel will repair or replace the product at Sealevel's sole discretion. Failures resulting from misapplication or misuse of the Product, failure to adhere to any specifications or instructions, or failure resulting from neglect or abuse are not covered under this warranty.
Warranty service is obtained by delivering the Product to Sealevel and providing proof of purchase. Return authorization must be obtained from Sealevel Systems
before returned merchandise will be accepted. Authorization is obtained by calling Sealevel Systems and requesting a Return Merchandise Authorization (RMA) number. The Customer agrees to insure the Product or assume the risk of
loss or damage in transit, to prepay shipping charges to Sealevel, and to use the original shipping container or equivalent. Warranty is valid only for original purchaser and is not transferable.
Trademarks
Sealevel Systems assumes no liability for any damages, lost profits, lost savings or any other incidental or consequential damage resulting from the use, misuse of, or inability to use this product. Sealevel Systems will not be liable for any claim made by any other related party.
This warranty applies to Sealevel manufactured Product. Product purchased through Sealevel but manufactured by a third party will retain the original manufacturer's warranty.
Sealevel Systems, Incorporated 2779 Greenville Highway P.O. Box 830 Liberty, SC 24857 USA (864) 843-4343 FAX: (864) 843-3067 www.sealevel.com email: support@sealevel.com
Technical Support is available Monday - Friday from 8 a.m. to 5 p.m. Eastern time
Sealevel Systems, Incorporated acknowledges that all trademarks referenced in this manual are the service mark, trademark, or registered trademark of the respective company.
© Sealevel Systems, Inc.
- 17 -
PIO-96.PCI User Manual
Loading...
