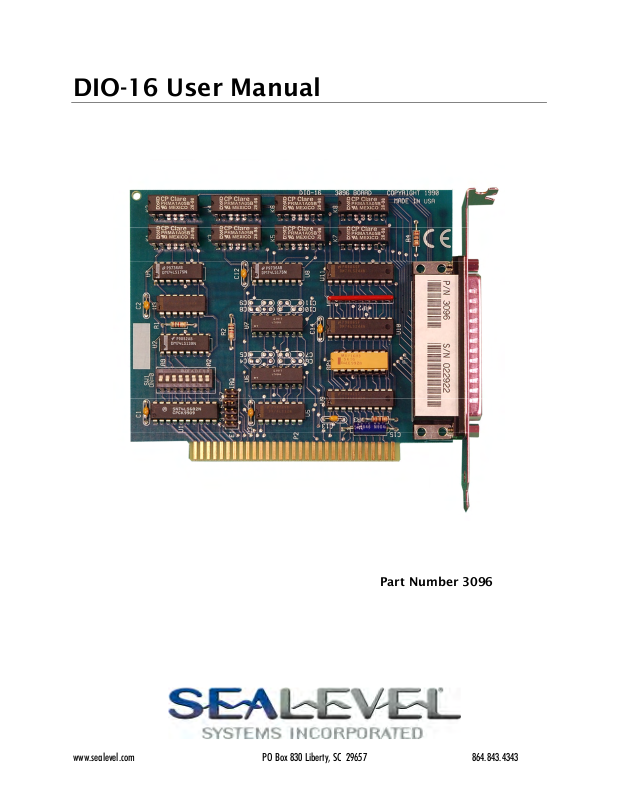

Impulse 3096 User Manual

DIO-16 User Manual

Part Number 3096

www.sealevel.com PO Box 830 Liberty, SC 29657 864.843.4343

INTRODUCTION......................................................................................................................... 1

OTHER SEALEVEL ISA DIGITAL I/O PRODUCTS .......................................................................... 1

BEFORE YOU GET STARTED................................................................................................. 2

WHAT’S INCLUDED ...................................................................................................................... 2

OPTIONAL ITEMS.......................................................................................................................... 2

CARD SETUP ............................................................................................................................... 3

ADDRESS SELECTION ..................................................................................................................... 3

IRQ HEADER E2............................................................................................................................ 4

SOFTWARE INSTALLATION.................................................................................................. 5

PHYSICAL INSTALLATION .................................................................................................... 7

PROGRAMMING THE DIO-16................................................................................................. 8

PROGRAMMING FOR WINDOWS .................................................................................................... 8

PROGRAMMING FOR LINUX.......................................................................................................... 8

APPLICATION PROGRAMMERS INTERFACE (API) ......................................................................... 8

DIGITAL I/O INTERFACE .............................................................................................................. 8

INPUT PORT.................................................................................................................................. 9

SENSOR INPUT PORT PIN ASSIGNMENTS (P1)............................................................................. 10

OUTPUT PORTS (REED RELAYS) ................................................................................................ 10

OUTPUT PORT PIN ASSIGNMENTS .............................................................................................. 10

POWER AND GROUND PIN ASSIGNMENTS .................................................................................. 10

DIRECT HARDWARE CONTROL .................................................................................................. 11

READING THE INPUTS................................................................................................................. 11

READING THE OUTPUTS ............................................................................................................. 12

RITING THE OUTPUTS ............................................................................................................. 12

W R

EGISTER DESCRIPTION ............................................................................................................. 12

NTERRUPT CONTROL................................................................................................................. 12

ELECTRICAL CHARACTERISTICS .................................................................................... 13

FEATURES .................................................................................................................................. 13

PECIFICATIONS ......................................................................................................................... 13

EXAMPLE CIRCUITS.............................................................................................................. 14

APPENDIX A - TROUBLESHOOTING ................................................................................. 15

APPENDIX B - HOW TO GET ASSISTANCE ...................................................................... 16

APPENDIX C – SILK SCREEN – 3096 PCB .......................................................................... 17

APPENDIX D - COMPLIANCE NOTICES............................................................................ 18

FEDERAL COMMUNICATIONS COMMISSION STATEMENT ........................................................... 18

WARRANTY............................................................................................................................... 19

DIO-16 User Manual

Introduction

The DIO-16 provides 8 optically isolated inputs and 8 reed relay outputs. The inputs (rated for 3-13V) protect the PC and other sensitive equipment from spikes and ground loop current that can be generated in industrial environments, while the outputs provide high quality, long life, low current (10 Watt maximum), dry contact switch closures. Reed relays are well suited for low current applications. The relays are normally open, and will close when energized. The board is PCI bus specification 2.1 compliant.

The DIO-16 is designed to be used with a variety of Operating Systems including Windows 98/NT/ME/2000/XP, Linux and DOS. The SeaI/O API (Application Programmer Interface) included on CD with the DIO-16 provides a variety of useful high-level function calls implemented as a Windows dynamic link library (DLL) and as a Linux kernel module and library. In addition to the API, SeaI/O includes sample code and utilities to simplify software development.

Other Sealevel ISA Digital I/O Products

ISO-16 (P/N 3094) - 16 Optically Isolated Inputs

REL-16 (P/N 3095) - 16 Reed Relay Outputs

DIO-32B (P/N 3093) - 16 Reed Relay Outputs / 16 Opto-Isolated

Inputs

REL-32 (P/N 3098) - 32 Switched Relay Outputs

PIO-48 (P/N 4030) - 48 TTL Inputs/Outputs

DIO-16 User Manual

Before You Get Started

What’s Included

The DIO-16 is shipped with the following items. If any of these items is missing or damaged please contact Sealevel for replacement.

 DIO-16 Adapter  Sealevel SeaI/O Software CD

Optional Items

Depending upon your application, you are likely to find one or more of the following items useful for interfacing the DIO-16 to real-world signals. All items can be purchased from our website (http://www.sealevel.com 843-4343.

 DB-37 Male to DB-37 Female 6’ Cable - (Part Number CA112)

− This cable extends the DB-37 connector on the REL-16.PCI to six

feet and is pinned one-to-one.

 DB-37 Male/Female Terminal Block (Part Number TB02-KT)

− Break out serial and digital connectors to 37 screw terminals for easy

field connection. The TB02 terminal block is designed with both DB37 male and female connectors, therefore; it can be used with any

DB-37 board regardless of the board's port gender.

) or by calling (864)

 Cable and Terminal Block Kit (Part Number KT101)

− For convenient and easier ordering, the KT101 includes the TB02-KT

terminal block and CA112 cable in a single kit.

DIO-16 User Manual

Card Setup

The DIO-16 contains several jumper straps for each port that must be set for proper operation.

Address Selection

The DIO-16 occupies 4 consecutive I/O locations. The DIP-switch (SW1) is used to set the base address for these locations. Be careful when selecting the base address as some selections conflict with existing PC ports. The following table shows several examples that usually do not cause a conflict.

The following illustration shows the correlation between the DIP-switch setting and the address bits used to determine the base address. In the example below, address 300 is selected as the base address. Address 300 in binary is XX 11 0000 00XX where X = a non-selectable address bit and address bit A9 is always a 1.

Address Binary Switch Settings

1 2 3 4 5 6 7 8 100-104 01 0000 00xx Off On On On On On On On 104-108 01 0000 01xx Off On On On On On On Off 200-204 10 0000 00xx On Off On On On On On On 280-283 10 1000 00xx Off On Off On On On On On 284-287 10 1000 01xx Off On Off On Off On On Off 2EC-2EF 10 1110 11xx Off On Off Off Off On Off Off 300-303 11 0000 00xx Off Off On On On On On On 320-323 11 0010 00xx Off Off On On Off On On On 388-38B 11 1000 10xx Off Off Off On On On Off On 3A0-3A3 11 1010 00xx Off Off Off On Off On On On 3A4-3A7 11 1010 01xx Off Off Off On Off On On Off

Address Selection Table

A9 A2

OFF

1 2 3 4 5 6 7

DIP-Switch Illustration

Note: Setting the switch ‘On’ or ‘Closed’ corresponds to a ‘0’ in the address, while leaving it ‘Off’ or ‘Open’ corresponds to a ‘1’.

DIO-16 User Manual

IRQ Header E2

Interrupts can be generated by Port A, bit 0 going low if enabled at jumper location (E2). Interrupt request signals 2/9 through 7 (IRQ 2/9 - 7) can be selected by placing the jumper in the appropriate position. Other inputs can be ‘wire OR ed.’ to also generate interrupts if desired. Please consult the factory for more information.

IRQ Header E2

DIO-16 User Manual

Software Installation

Windows 98/ME/NT/2000/XP Installation

Do not install the Adapter in the machine until the software has been fully installed.

1. Start Windows.

2. Insert the Sealevel Systems CD in to your CD drive.

3. If ‘Auto-Start’ is enabled for this drive the software will automatically launch. Otherwise, point your browser to the ‘Index.htm’ on the root directory of the CD

4. Select ‘Install Software’.

5. Select the Part Number for your adapter from the listing.

6. Select ‘Windows 98/ME/NT/2000/XP’. The setup file will automatically detect the operating environment and install the proper components. Next (depending on your browser) select the ‘Run this program from its current location’ or ‘Open’ option. Follow the information presented on the screens that follow.

7. A screen may appear with the declaration: “The publisher cannot be determined due to the problems below: Authenticode signature not found.” Please select the ‘Yes’ button and proceed with the installation. This declaration simply means that the Operating System is not aware of the driver being loaded. It will not cause any harm to your system.

8. During setup the user may specify installation directories and other preferred configurations. This program also adds entries to the system registry that are necessary for specifying the operating parameters for each driver. An uninstall option is also included to remove all registry/INI file entries from the system.

Windows NT Card Installation: After accomplishing the above steps, bring up the Control Panel and double-click on the SeaIO Devices icon. To install a new card, click "Add Port". Repeat this procedure for as many SeaIO cards as you wish to install.

DIO-16 User Manual

Linux Installation

Note: You MUST have "root" privileges to install the software and drivers.

Note Your cdrom may not be /dev/hdc it could be /dev/hda, /dev/hdb, /dev/hdd, or if

you have a SCSI drive /dev/sda, /dev/sdb, /dev/sdc, etc. You may mount the CDROM to any location, the /cdrom is just a common example.

Note: The syntax is case sensitive.

1. Login as "root".

2. Mount the CDROM by typing:

mount -t iso4860 /dev/hdc /cdrom

3. Next change to the directory where you mounted the CDROM:

Ex. cd /cdrom/software/SeaIO/Other/linux

4. Copy seaio .tar.gz to your home directory by typing:

cp seaio .tar.gz ~

5. Change to your home directory by typing:

6. Unmount the drive and then Unzip and Untar the drivers and software by typing:

umount /cdrom

tar -xvzf seaio .tar.gz

7. Change to the SeaIO directory by typing:

cd SeaIO

8. Now compile and prepare the drivers for use:

make install

9. With the system off and unplugged, install your SeaIO PCI card.

10. Plug system back in and boot Linux.

11. Load the driver by typing:

SeaIO -load

The driver has enabled the card and is ready to use, and you now have the option to run a test utility on it. Skip to section "Using the test software" if you wish to do so at this time.

To set up Linux to automatically load the driver; refer to a Linux manual concerning your specific distribution for help.

DIO-16 User Manual

Physical Installation

The adapter can be installed in any 5V PCI expansion slot.

Do not install the Adapter in the machine until the software has been fully installed.

1. Turn off PC power. Disconnect the power cord.

2. Remove the PC case cover.

3. Locate an available 5V PCI slot and remove the blank metal slot cover.

4. Gently insert the PCI adapter into the slot. Make sure that the adapter is seated properly.

5. After the adapter has been installed, the cables should be routed thru the opening in the bracket. This bracket also features a strain relief function that should be used to prevent un-expected cable removal.

6. Replace the screw you removed for the blank and use it to secure the adapter into the slot. (This is required to ensure FCC Part 15 compliance.)

7. Replace the cover.

8. Connect the power cord

The DIO-16 is now ready for use.

DIO-16 User Manual

Programming the DIO-16

Sealevel’s SeaI/O software is provided to assist in the development of reliable applications for the Sealevel Systems family of digital I/O adapters. Included on the SeaI/O CD are driver functions for use in accessing the I/O as well as helpful samples and utilities.

Programming for Windows

The SeaI/O API (Application Programmer Interface) provides a variety of useful high-level function calls implemented in a Windows dynamic link library (DLL). The API is defined in the help file (Start/Programs/SeaIO/SeaIO Help) under “Application Programmers Interface”. This help file also includes detailed information dealing with installation / removal of the software and information about latency, logic states, and device configuration.

For C language programmers we recommend using the API to access the DIO-16. If you are programming in Visual Basic, using the ActiveX control included with SeaI/O is advised.

Samples and Utilities

A variety of sample programs and utilities (both executable and source code) are included with SeaI/O. Further documentation on these samples can be found by selecting “Start/Programs/SeaIO/Sample Application Description”. Information about where the files are physically stored on your disk is also included in this same file.

Programming for Linux

SeaI/O for Linux consists of two major parts: a kernel module and a library. The kernel module is a simple IO pass-through device, allowing the library to handle the more sophisticated functions provided to SeaI/O users. It is provided in a ‘tarball’ format and can easily be compiled and included in the kernel build.

Application Programmers Interface (API)

Most modern operating systems do not allow direct hardware access. The SeaIO driver and API have been included to provide control over the hardware in Windows and Linux environments. The purpose of this section of the manual is to help the customer with the mapping of the API to the actual inputs and relays for the 3093 specifically. Complete documentation of the API can be found in its accompanying help file.

Digital I/O Interface

The DIO-16 provides two parallel input/output (I/O) ports. The ports are organized as ports A, B, C, and D. Port A is an input port interfaced to optically isolated inputs, while port C is the reed relay output port. Ports B and C are unused.

Base Address Hex Decimal Mode

Port A Address 300 768 Optically Isolated Input Port Port B Address 301 769 Unused Port C Address 302 770 Reed Relay Output Port Port D Address 303 771 Unused

DIO-16 User Manual

Input Port

Port A is an eight bit input port connected to optically isolated input sensors. Each sensor can be used to interface a voltage input and then sense whether the voltage is on or off. Each sensor is isolated (with respect to a common ground) from every other sensor, and also isolated with respect to the host PC ground. This means that signals such as low-level AC line voltage, motor servo voltage, and control relay signals can be ‘sensed’, or read by the PC, without the risk of damage due to ground loops or ground faults.

Each sensor input pair has a current limiting resistor that is used to limit the input current to the opto-isolator. The opto-isolator has two ‘back-to-back’ diodes internally. This allows AC or DC signals to be sensed, regardless of polarity. When the applied voltage is high enough to cause the led in the opto-isolator to turn-on, the output of the opto-isolator goes low (0 volts) and the signal is read as a low logic level (binary 0) by the PC. When the input signal is too low to turn on the optoisolator, the output goes high and the port bit is read by the PC as a high logic level (binary 1).

The input impedance of each isolated input is approximately 560 ohms (factory default). The opto-isolator requires approximately 3mA to turn on. The maximum input current is 50mA. There are two things to consider when selecting the input resistor. The first is turn on voltage for the circuit to sense, and second is the maximum input voltage. Maximum input voltage must not provide too much power to the input resistor, and must also not overdrive the opto-isolator input current specification. The following formulas apply:

Turn on Voltage = diode drop + (turn on current) x (resistance)

[Ex: 1.1 + (.003) x R]

Input Current = ((input voltage)-1.1V) / (resistor value)

Maximum voltage = 1.1 + square root of (.25(resistor value))

The following table shows common input resistors and the ranges associated with each.

Input Resistor Turn-On Input Range Max Input Max Current

220Ω 560Ω

1KΩ

2.2KΩ

3.3KΩ

4.7KΩ

1.8V 1.8 – 7.0V 8.5V 27mA

2.8V 2.8 – 10.6V 12.9V 20mA

4.1V 4.1 – 13.8V 16.9V 15mA

7.7V 7.7 – 20.0V 24.5V 10mA

10.0V 10.0 – 24.0V 30.0V 9mA

15.2V 15.2 – 28.0V 35.0V 7mA

Note: The turn-off voltage for all resistors is less than 1V.

Increasing the input resistor accordingly can increase the maximum input voltage. Because socketed DIP resistors are utilized, they can easily be replaced with a different value. Sealevel, if necessary can do this.

Important: The input circuits are not intended for monitoring 120-volt AC circuits. In addition to being too high a voltage for the circuits, it is dangerous to have that high a voltage on the card.

DIO-16 User Manual

Sensor Input Port Pin Assignments (P1)

Port A Bit P1

0 2,20 1 3,21 2 4,22 3 5,23 4 6,24 5 7,25 6 8,26 7 9,27

Output Ports (Reed Relays)

Reed relays provide very high quality, long life, low current (10 Watt maximum), dry contact switch closures. Reed relays are not suited for high current applications, and can be destroyed by inductive load switching, where a spark occurs across the contacts internally. The relays are normally open, and close when energized.

Output Port Pin Assignments

Port C Bit Relay P2 Pin

0 K1 10,28 1 K2 11,29 2 K3 12,30 3 K4 13,31 4 K5 14,32 5 K6 15,33 6 K7 16,34 7 K8 17,35

Power and Ground Pin Assignments

Ground 18,36,37

+ 5 Volts 19

+ 12 Volts 1

DIO-16 User Manual

Relative Addressing vs. Absolute Addressing

The SeaIO API makes a distinction between “absolute” and “relative” addressing modes. In absolute addressing mode, the Port argument to the API function acts as a simple byte offset from the base I/O address of the device. For instance, Port #0 refers to the I/O address base + 0; Port #1 refers to the I/O address base + 1. Relative addressing mode, on the other hand, refers to input and output ports in a logical fashion. With a Port argument of 0 and an API function meant to output data, the first (0

) output port on the device will be utilized. Likewise, with a Port argument of 0 and an API function designed to input data, the first (0 the device will be utilized.

In all addressing modes, port numbers are zero-indexed; that is, the first port is port #0, the second port is #1, the third #2, and so on.

Direct Hardware Control

In systems where the user’s program has direct access to the hardware (i.e. DOS) the table below gives the mapping and functions that the DIO-16 provides. R = Read R/W = Read or Write

Function Available Port Address Hex Port Type

RD A Base+0 Input Port (Opto Input)

B Base+1 Not Assigned

R/W C Base+2 Output Port (Reed Relays)

D Base+3 Not Assigned

RD = Read, RD/WR = Read or Write

) input port of

Reading the Inputs

The inputs are active Low. If no voltage is applied across one of the differential inputs it returns a one on that bit. If an AC or DC voltage is applied it returns a zero on that bit.

DIO-16 User Manual

Reading the Outputs

The relay ports return the ones complement of the value that is currently being used to drive the relays.

Writing the Outputs

The output ports are the only ports that can be written. The relays on a standard DIO-16 are normally open. To close a relay a one must be written to the appropriate bit.

All ports are set to input after reset or power up.

Address Mode D7 D6 D5 D4 D3 D2 D1 D0

Base+0 Base+1 Base+2 Base+3 Base+4 Base+5 Base+6 Base+7

RD/WR PCD7 PCD6 PCD5 PCD4 PCD3 PCD2 PCD1 PCD0

RD/WR IRQEN IRQST {0} {0} {0} {0} IRC1 IRC0

Interrupt Control

When enabled, interrupts are generated on Port A bit D0.

RD PAD7 PAD6 PAD5 PAD4 PAD3 PAD2 PAD1 PAD0 RD {0} {0} {0} {0} {0} {0} {0} {0}

RD {0} {0} {0} {0} {0} {0} {0} {0} RD {0} {0} {0} {0} {0} {0} {0} {0}

IRQEN IRC0 IRC1

Interrupt enable 1 = enabled 0 = disabled ( 0 on power up )

Interrupt Mode Select Table

Interrupt source is Base+0 bit D0. When selecting the Interrupt Type, always disable interrupts prior to changing or setting states. This will help prevent inadvertent or unexpected interrupts from occurring.

IRC1 IRC0 Interrupt Type

0 0 Low Level 0 1 High Level 1 0 Falling Edge 1 1 Rising Edge

Warning: When using the High and Low Level interrupts, an interrupt occurs when input D0 changes to either a High or Low state. This will cause the computer to remain in an interrupt state until the input state changes.

Interrupt Read

Reading the Interrupt Status port (Base+5) clears any interrupt pending.

Interrupt mode select, see table below Interrupt mode select, see table below

IRQST (D0) Interrupt Status 1 = interrupt pending, 0 = none

DIO-16 User Manual

Electrical Characteristics

Features

 Selectable I/O port addressing from 100H – 3FFH  1 set SPST relays with each set having 8 relays  1 eight bit optically isolated input port  Highly reliable 10 VA DIP reed relays  Multiple adapters can reside in same computer  All address, data and control signals are TTL compatible

Specifications

Input Ports

 Turn On Current: 3mA  Isolator Diode Drop: 1.1 VDC  Resistor Power Max: .25 W  Maximum Input Range: 3 – 13 VDC/VAC

Output Relays

 Contact Max Power Rating: 10 W  Contact Voltage Maximum: 100 VDC/VAC  Contact Current Maximum: .5A AC/DC RMS  Contact Resistance, Initial: .15 Ω  Rated Life:

• Low Load: 200 Million Closures

• Maximum Load: 100 Million Closures

 Contact Speed:

• Operate: .5 mS

• Release: .5 mS

• Bounce: .5 mS

 Maximum Operating Speed: 600 Hz

Temperature Range

 Operating: 0°C – 70°C  Storage: -50°C – 105°C

Power Requirements

 +5VDC @ 270mA  +12VDC (Optional)

Physical Dimensions

 PCB Length: 4.9” (12.4 cm)  PCB Height: 4.2” (10.7 cm, including Gold fingers)

Manufacturing

All Sealevel Systems Printed Circuit boards are built to UL 94V0 rating and are 100% electrically tested. These printed circuit boards are solder mask over bare copper or solder mask over tin nickel.

DIO-16 User Manual

Example Circuits

Input Circuit

Output Circuit

DIO-16 User Manual

Appendix A - Troubleshooting

Following these simple steps can eliminate most common problems.

1. Install software first. After installing the software then proceed to adding the hardware. This places the required installation files in the correct locations.

2. Read this manual thoroughly before attempting to install the adapter in your system.

3. Use Device Manager under Windows to verify proper installation.

4. Use the SeaIO Control Panel applet or the Device Manager’s property page for card identification and configuration.

5. The following are known I/O conflicts:

• The 278 and 378 settings may conflict with your printer I/O adapter.

• 3B0 cannot be used if a Monochrome adapter is installed.

• 3F8-3FF is typically reserved for COM1:

• 2F8-2FF is typically reserved for COM2:

• 3E8-3EF is typically reserved for COM3:

• 2E8-2EF is typically reserved for COM4:

6. If these steps do not solve your problem, please call Sealevel Systems’ Technical Support, (864) 843-4343. Our technical support is free and available from 8:00 AM-5:00 PM Eastern Time Monday through Friday. For email support contact support@sealevel.com

DIO-16 User Manual

Appendix B - How To Get Assistance

Begin by reading through the Trouble Shooting Guide in Appendix A. If assistance is still needed please see below.

When calling for technical assistance, please have your user manual and current adapter settings. If possible, please have the adapter installed in a computer ready to run diagnostics.

Sealevel Systems provides an FAQ section on its web site. Please refer to this to answer many common questions. This section can be found at

http://www.sealevel.com/faq.asp

Sealevel Systems maintains a Home page on the Internet. Our home page address is

http://www.sealevel.com

available via our FTP site that can be accessed from our home page.

Technical support is available Monday to Friday from 8:00 a.m. to 5:00 p.m. eastern time. Technical support can be reached at (864) 843-4343.

RETURN AUTHORIZATION MUST BE OBTAINED FROM SEALEVEL SYSTEMS BEFORE RETURNED MERCHANDISE WILL BE ACCEPTED. AUTHORIZATION CAN BE OBTAINED BY CALLING SEALEVEL SYSTEMS AND REQUESTING A RETURN MERCHANDISE AUTHORIZATION (RMA) NUMBER.

. The latest software updates, and newest manuals are

DIO-16 User Manual

Appendix C – Silk Screen – 3096 PCB

4.2"

4.9"

3.9"

DIO-16 User Manual

Appendix D - Compliance Notices

Federal Communications Commission Statement

FCC - This equipment has been tested and found to comply with the limits for Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in such case the user will be required to correct the interference at the users expense.

EMC Directive Statement

Products bearing the CE Label fulfill the requirements of the EMC directive (89/336/EEC) and of the low-voltage directive (73/23/EEC) issued by the European Commission.

To obey these directives, the following European standards must be met:

EN55022 Class A - “Limits and methods of measurement of radio interference characteristics of information technology equipment”

EN55024 – “Information technology equipment Immunity characteristics Limits and methods of measurement”.

EN60950 (IEC950) - “Safety of information technology equipment, including electrical business equipment”

Warning

This is a Class A Product. In a domestic environment, this product may cause

radio interference in which case the user may be required to take adequate

measures to prevent or correct the interference.

Always use cabling provided with this product if possible. If no cable is provided or if an alternate cable is required, use high quality shielded cabling to maintain compliance with FCC/EMC directives.

DIO-16 User Manual

Warranty

Sealevel's commitment to providing the best I/O solutions is reflected in the Lifetime Warranty that is standard on all Sealevel manufactured products. We are able to offer this warranty due to our control of manufacturing quality and the historically high reliability of our products in the field. Sealevel products are designed and manufactured at its Liberty, South Carolina facility, allowing direct control over

product development, production, burn-in and testing.

Sealevel Systems, Inc. (hereafter "Sealevel") warrants that the Product shall conform to and perform in accordance with published technical specifications and shall be free of defects in materials and workmanship for life. In the event of failure, Sealevel will repair or replace the product at Sealevel's sole discretion. Failures resulting from misapplication or misuse of the Product, failure to adhere to any specifications or instructions, or failure resulting from neglect or abuse are not covered under this warranty.

Warranty service is obtained by delivering the Product to Sealevel and providing proof of purchase. Return authorization must be obtained from Sealevel Systems

before returned merchandise will be accepted. Authorization is obtained by calling Sealevel Systems and requesting a Return Merchandise Authorization (RMA) number. The Customer agrees to insure the Product or assume the risk of

loss or damage in transit, to prepay shipping charges to Sealevel, and to use the original shipping container or equivalent. Warranty is valid only for original purchaser and is not transferable.

Trademarks

Sealevel Systems assumes no liability for any damages, lost profits, lost savings or any other incidental or consequential damage resulting from the use, misuse of, or inability to use this product. Sealevel Systems will not be liable for any claim made by any other related party.

This warranty applies to Sealevel manufactured Product. Product purchased through Sealevel but manufactured by a third party will retain the original manufacturer's warranty.

Sealevel Systems, Incorporated 2779 Greenville Highway P.O. Box 830 Liberty, SC 24857 USA (864) 843-4343 FAX: (864) 843-3067 www.sealevel.com email: support@sealevel.com

Technical Support is available Monday - Friday from 8 a.m. to 5 p.m. Eastern time

Sealevel Systems, Incorporated acknowledges that all trademarks referenced in this manual are the service mark, trademark, or registered trademark of the respective company.

DIO-16 User Manual

Impulse 3096 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Table of Contents

Before You Get Started

Card Setup

Software Installation

Physical Installation

Programming the DIO-16

Electrical Characteristics

Example Circuits

Appendix B - How To Get Assistance

Appendix C – Silk Screen – 3096 PCB

Warranty
