Impulse 2105R User Manual
SeaLINK+232-DB9 User Manual
Item Number 2105R
www.sealevel.com PO Box 830 – Liberty, SC 29657 864.843.4343
Table of Contents
©
INTRODUCTION......................................................................................................................... 1
BEFORE YOU GET STARTED ................................................................................................. 2
WHAT’S INCLUDED ...................................................................................................................... 2
PTIONAL ITEMS.......................................................................................................................... 2
O
INSTALLATION & CONFIGURATION .................................................................................. 3
S
OFTWARE INSTALLATION ........................................................................................................... 3
HARDWARE INSTALLATION.......................................................................................................... 7

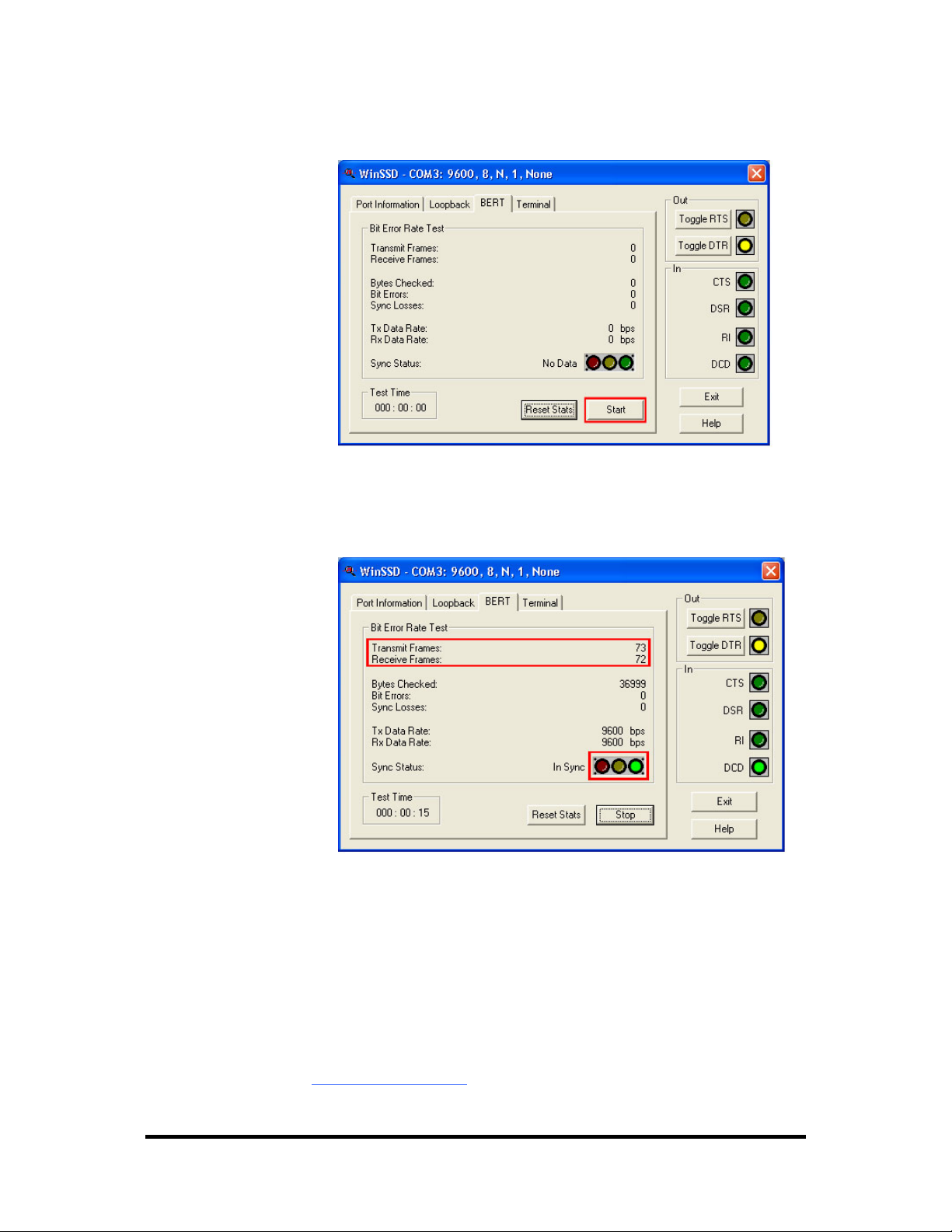

VERIFYING INSTALLATION ......................................................................................................... 10
NINSTALL & UPGRADE INSTRUCTIONS .................................................................................... 11
U
HARDWARE DESCRIPTION.................................................................................................. 15
ELECTRICAL SPECIFICATIONS ......................................................................................... 16

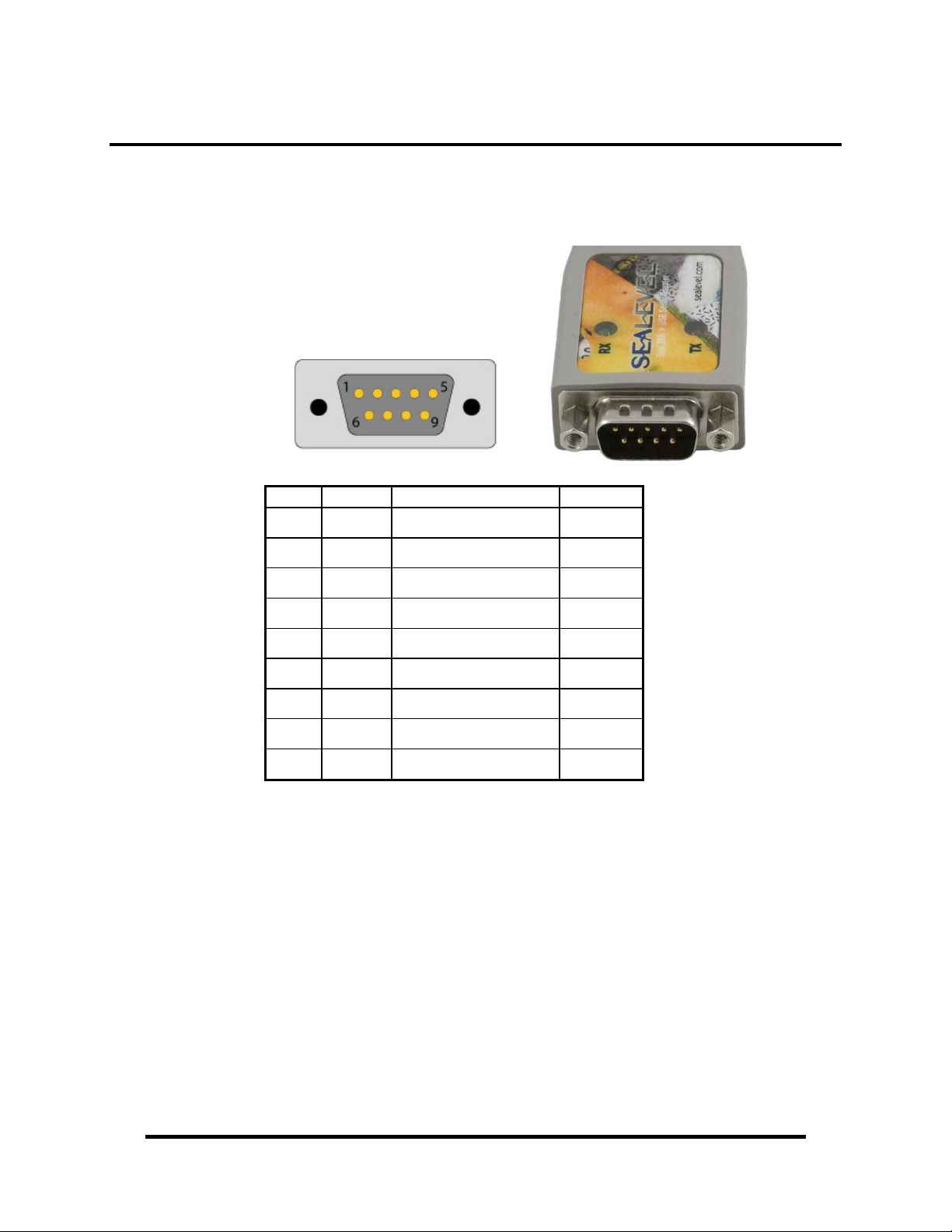

C
ONNECTOR PIN OUT ................................................................................................................ 16
TECHNICAL SPECIFICATIONS ........................................................................................... 17
DIMENSIONS .............................................................................................................................. 17
ENVIRONMENTAL SPECIFICATIONS ............................................................................................ 17
POWER REQUIREMENTS ............................................................................................................. 17
MANUFACTURING ...................................................................................................................... 17
APPENDIX A – TROUBLESHOOTING ................................................................................. 18
APPENDIX B – HOW TO GET ASSISTANCE ...................................................................... 21
APPENDIX C – ELECTRICAL INTERFACE ....................................................................... 22
APPENDIX D – ASYNCHRONOUS COMMUNICATIONS ................................................ 23
APPENDIX E – COMPLIANCE NOTICES ........................................................................... 24
FEDERAL COMMUNICATIONS COMMISSION STATEMENT ........................................................... 24
DIRECTIVE STATEMENT .................................................................................................... 24
EMC
WARRANTY............................................................................................................................... 25
Sealevel Systems, Inc.
SL9208 Revision 8/2009
SeaLINK+232-DB9 User Manual
©
Introduction
The SeaLINK® single-port USB to RS-232 serial adapter utilizes Sealevel’s
expertise in military-grade designs by incorporating a ruggedized, overmolded
enclosure into the 2105R. This improves the reliability and durability in industrial
and mobile applications such as GPS navigation systems, barcode readers, signature
input devices, serial printers, scales, and similar applications.
The 2105R features programmable baud rate and data formats with 128-byte
transmit and 384-byte receive buffers. The USB serial adapter is compatible with all
standard PC baud rates and supports high-speed communication to 921.6K bps. The
2105R is powered by the USB port and status LEDs molded into the enclosure
indicate serial data activity and connection to the host.
Sealevel SeaCOM USB software drivers and utilities make installation and
operation easy using Windows 98SE, ME, 2000, XP and Vista operating systems.
After installing the software, simply plug the 2105R into an available USB port and
the serial port is recognized as a standard COM port by the host system enabling
compatibility with legacy software.
The attached cable is 44 inches long and fully shielded to protect the 2105R from RF
and EMI interference that is common in mobile and industrial environments.
Standard operating temperature range is 0 - +70°C, and extended temperature range
(-40 - +85°C) is optional.
Features
Compliant with RoHS and WEEE directives
High-speed UART with 128-byte Tx FIFO and 384-byte Rx FIFO
Data rates to 921.6K bps
All modem control signals implemented
Powered by USB connection
DB9M connector
Sealevel Systems, Inc.
- 1 -
SeaLINK+232-DB9 User Manual
©
Before You Get Started
What’s Included
The 2105R is shipped with the following items. If any of these items are missing or
damaged, please contact Sealevel for replacement.
2105R – USB to RS-232 1-Port Serial Interface Adapter
Sealevel Software CD – SeaCOM software and user manual
Optional Items
Depending upon your application, you are likely to find one or more of the
following items useful with the 2105R. All items can be purchased from our website
(www.sealevel.com
Cables
DB9F to DB25M (RS-232) Extension Cable
(Item# CA177)
) by calling our sales team at (864) 843-4343.
The CA177 is a standard AT-style RS-232 modem cable
with a DB9F connector on one end and a DB25M
connector on the other. This cable is 72 inches in length.
DB9F to DB9M Extension Cable
(Item# CA127)
The CA127 allows users to extend a DB9 cable up to six
feet. The connectors are pinned one-to-one so the cable
is compatible with any device or cable that has DB9
connectors.
Adapters and Converters
DB9F to RJ45 Modular Adapter
(Item# RJ9S8)
The RJ9S8 is a DB9 female to RJ45 adapter. It can be
configured without tools and is an excellent choice for
using available infrastructure wiring.
Sealevel Systems, Inc.
- 2 -
SeaLINK+232-DB9 User Manual
©
Installation & Configuration
Software Installation
Windows 98/ME/ 2000/XP/Vista™ Operating Systems
Do not connect the device to a USB port until the
software has been successfully installed.
1. Start Windows.
2. Insert the Sealevel Software CD in to your CD drive.
3. If ‘Auto-Start’ is enabled, the installation window will automatically appear.
Otherwise, navigate to the root directory of your CD drive and double-click
the ‘autorun.exe’ application to launch the installation window.
4. Select ‘Install’ to locate the software and manual for your device.
5. Type in the part number for your device (Item# 2105R) or select it from the
list in the drop box.
6. Click the ‘Install Drivers’ button to launch the Installation Wizard.
7. When the ‘SeaCOM - InstallShield Wizard’ window appears, click the
‘Next’ button to initiate the software installation.
Sealevel Systems, Inc.
- 3 -
SeaLINK+232-DB9 User Manual
©
Software Installation, continued
8. When the ‘License Agreement’ window appears, accept the terms and click
‘Next’ to continue. You can click the ‘Print’ button to print out a copy of the
agreement for your records. If you do not accept the terms of the agreement,
the installation will stop.
9. When the ‘Ready to Install the Program’ window appears, click the ‘Install’
button to install the software onto the hard drive of your computer. The files
will be automatically installed into the ‘C:\Program Files’ folder on your
computer.
Sealevel Systems, Inc.
- 4 -
SeaLINK+232-DB9 User Manual
©
Software Installation, continued
10. A dialog box will appear, as shown, with important information. Click the
‘OK’ button to continue.
11. During installation, you may receive a warning dialog stating, “The
publisher cannot be determined due to the problems below: Authenticode
signature not found.” Click the ‘Yes’ button to proceed with the installation.
This declaration means that SeaCOM has not been certified by Microsoft’s
testing labs.
Note: All SeaCOM software and drivers have been fully tested by Sealevel.
Clicking ‘Yes’ will not harm your system.
12. If SeaCOM has been previously installed on your computer, you do not need
to install it again. If you are upgrading SeaCOM, you should remove the
previous version before installing the latest version. Refer to the ‘Uninstall
& Upgrade Instructions’ section of this manual; otherwise, click ‘OK’ to
continue.
Sealevel Systems, Inc.
- 5 -
SeaLINK+232-DB9 User Manual
©
Software Installation, continued
13. The setup file will automatically detect the operating environment and
install the proper components. When the ‘InstallShield Wizard Complete’
window appears, click ‘Finish’ to close the window and complete the
software installation.
14. Click the ‘X’ in the top-right corner of the ‘Product Finder’ screen to close
the CD installation window.
15. Proceed with the hardware installation of your SeaLINK USB serial adapter.
Linux Installation
Refer to the subdirectory D:\Software\SeaCOM\Other\Linux\ (replace “D:”
with your actual CD drive letter) found on the Sealevel Software CD. This
folder contains valuable information on installing your serial adapter in the
various Linux releases. Also included is a series of files explaining proper
Linux syntax and typical Linux serial implementations.
rd
Party Software Support
3
Third party software support for many HMI/MMI and other process control
software is included on the product installation CD. For the most up to date
information on third party software support, please visit
www.sealevel.com/thirdpartysoftware.asp
.
Sealevel Systems, Inc.
- 6 -
SeaLINK+232-DB9 User Manual
©
Hardware Installation
Do not connect the device to a USB port until the
software has been successfully installed.
The 2105R requires no user hardware configuration. Once you have installed the
software simply plug the 2105R into an available USB port. The drivers that were
installed during the software installation process will automatically be used to
configure the adapter.
NOTE: Once the device has been connected, the Found New Hardware wizard will
appear twice – first for the USB hub, and then for the serial port that you are
installing.
The following instructions are applicable to the Windows XP operating system and
may vary depending on your version of Windows.
1. After the software installation is complete, plug the 2105R into an available
USB port on the computer or USB hub.
2. A ‘Found New Hardware’ alert will appear above the system tray.
3. The ‘Found New Hardware Wizard’ will appear.
4. Choose ‘No, not this time’ and click ‘Next’ to proceed.
Sealevel Systems, Inc.
- 7 -
SeaLINK+232-DB9 User Manual
