Page 1

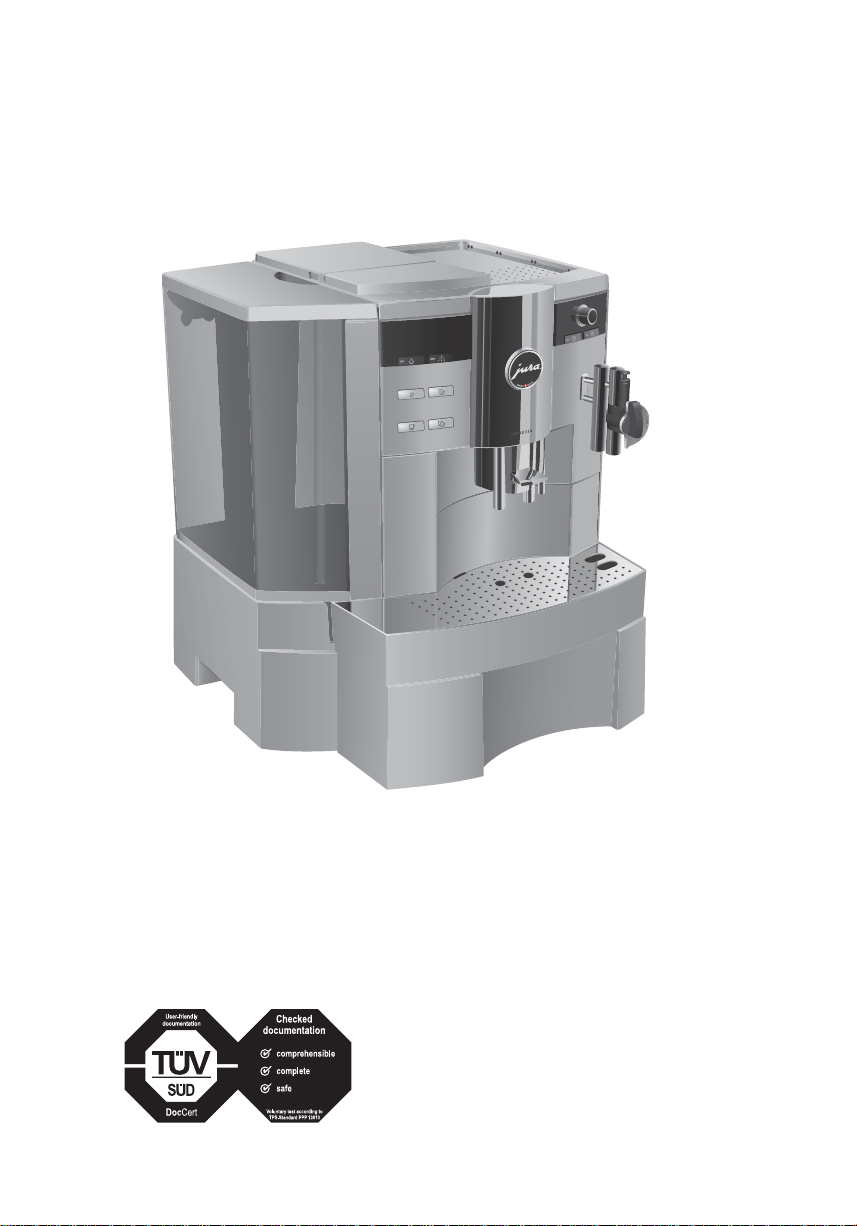

The IMPRESSA XS95/XS90 One Touch Manual
The ‘IMPRESSA Manual’ has been awarded the seal of approval by the independent German T echnical Inspection Agency, TÜV SÜD, due to its easy-to-understand style, its thoroughness and coverage of safety aspects.
Page 2
Important Safeguards
IMPORTANT SAFEGUARDS
These safeguards apply for machines with UL safety test (see rating plate and chapter 10, ‘Technical data’).
Follow the basic safety precautions
When using electrical appliances, basic safety precautions should always be followed, to reduce the risk of fire, electric shock, and/or injury to persons, including the following:
Z Read all instructions. Z Do not touch hot surfaces. Use handles or knobs. Z To protect against fire , electric shock and injury to persons, do
not immerse cord, plugs, or body of machine in water or other liquid.
Z Close supervision is necessary when any appliance is used by
or near children.
Z Unplug from outlet when not in use and before cleaning.
Allow to cool before putting or taking off parts, and before cleaning the appliance.
Z Do not operate any appliance with a damaged cord or plug or
after the appliance malfunctions, or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or adjustment.
Z The use of an accessory attachment not recommended by the
appliance manufacturer may result in fire, electric shock, or
injury to persons.
Z Do not use outdoors. Z Do not let the cord hang over the edge of a table or counter,
or touch hot surfaces.
Z Do not place on or near a hot gas or electric burner, or in a
heated oven.
Z Always attach plug to appliance first, then plug cord into the
wall outlet. To disconnect, turn any control to ‘OFF’ then
remove plug from wall outlet.
Z Do not use appliance for other than intented use. Z Use extreme caution when dispensing hot steam. Z For household use only.
SAVE THESE INSTRUCTIONS
2
Page 3
Important Safeguards
Special cord set instructions
a. A short power supply cord is provided to reduce the risk
resulting from becoming entangled in or tripping over a long
cord. Your IMPRESSA has a 3-pin grounded plug. b. Longer extension cords are available and may be used if care
is exercised in their use. c. If an extension cord is used,
1. the marked electrical rating of the extension cord should be at least as great as the electrical rating of the appliance, and
2. if the appliance is of the grounded type, the extension courd should be a grounding type 3-wire cord, and
3. the longer cord shall be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over.
Z As a safety feature, this plug will fit in a polarized outlet only
one way.
Z If the plug does not fit fully in the outlet, reverse the plug. If it
still does not fit, contact a qualified electrician.
Z Do not modify the plug in any way or attempt to defeat this
safety feature.
Warning
Caution
To reduc e the risk of fire or electric shock, do not remove any service covers. No user serviceable parts inside. Repair should be done by authorized personnel only.
This appliance is for household use. Any servicing other than clean­ing and user maintenance should be performed by an authorized service representative:
Z Do not immerse base in water or try to disassemble. Z To reduce the risk of fire or electric shock, do not remove the
base. No user serviceable parts inside. Repair should be done by authorized service personnel only.
Z Check voltage to be sure that the voltage indicated on the
name plate agreees with your voltage.
Z Never use warm or hot water to fill the water container! Use
cold water only.
3
Page 4
Important Safeguards
Z Keep your hands and the cord away from hot parts of the
appliance during operation.
Z Never clean with scouring powders or hard implements.
NEVER DO (or you will void your warranty protection):
Z Never fill instant coffee, chocolat e mix et c. int o the grinder or
ground coffee funnel (grinder by-pass). It will damage the functioning of the brewing chamber.
Z Never fill sugar coated coffee beans into the bean hopper. In
case of doubt, call your dealer.
Z Never fill anything other than coffee beans into the bean con-
tainer (no chocolate, no rice, no nuts, no spices, nothing other than roasted coffee beans).
Z Never do anything with the machine which is not described in
the User‘s Manual. In case of doubt, call your dealer.
4
Page 5
Important Safeguards
5
Page 6
Table of contents
Your IMPRESSA Xs95/Xs90 One Touch
IMPORTANT SAFEGUARDS 2 Control elements Proper use For your safety The IMPRESSA X
Symbol description ......................................................................................................................................12
1 IMPRESSA XS95/XS90 One Touch 13
Connector System© ....................................................................................................................................14
JURA on the Internet ....................................................................................................................................14
Knowledge Builder .......................................................................................................................................14
2 Preparing and using for the first time 15
Setting up ......................................................................................................................................................15
Filling the water tank ...................................................................................................................................15
Bean container filling ...................................................................................................................................15
First-time use ................................................................................................................................................16
Using and activating filter ..........................................................................................................................17
Determining and adjusting the degree of water hardness ..................................................................18
Adjusting grinder ........................................................................................................................................20
Switching on ................................................................................................................................................20
Switching off (standby) ...............................................................................................................................21
3 Familiarising yourself with the control options 22
Preparation at the touch of a button .......................................................................................................22
One-off settings before and during preparation ...................................................................................23
Entering a permanent setting for the amount of water for a cup size..............................................24
Permanent settings in programming mode ..........................................................................................25
Viewing information and maintenance status ......................................................................................27
4 Preparation at the touch of a button 28
Espresso ........................................................................................................................................................28
Coffee ............................................................................................................................................................28
Coffee à la Carte ..........................................................................................................................................29
Cappuccino...................................................................................................................................................29
Latte macchiato ............................................................................................................................................31
Pre-ground coffee .......................................................................................................................................32
Hot milk and milk foam .............................................................................................................................33
Hot water .....................................................................................................................................................35
8
10
10
S95/XS90 One Touch Manual 12
6
Page 7
Table of contents
5 Permanent settings in programming mode 36
Products ........................................................................................................................................................36
Energy-saving mode ..................................................................................................................................38
Time and weekday ......................................................................................................................................39
Programmable switch-on and switch-off time ......................................................................................40
Automatic switch-off ...................................................................................................................................41
Rinses ............................................................................................................................................................42
Unit amount of water / time format ........................................................................................................43
Language ......................................................................................................................................................44
6 Maintenance 45
Maintenance tips .........................................................................................................................................45
Rinsing the machine ...................................................................................................................................45
Changing the filter ......................................................................................................................................46
Cleaning the machine ................................................................................................................................48
Descaling the machine ...............................................................................................................................50
Rinsing the cappuccino frother ................................................................................................................52
Cleaning the cappuccino frother ..............................................................................................................53
Disassembling and rinsing the Professional Cappuccino Frother ......................................................55
Disassembling and rinsing the Easy Cappuccino Frother....................................................................55
Cleaning the bean container .....................................................................................................................56
Descaling the water tank ...........................................................................................................................56
7 Display messages 57 8 Troubleshooting 9 Transport and environmentally neutral disposal
59
61
Transport / Emptying the system ..............................................................................................................61
Disposal ..........................................................................................................................................................61
10 Technical data 62 Index
63
JURA contact details / Legal information
68
7
Page 8
Control elements
Control elements
1
2
8
9
10
11
3
4
5
6 7
Figure: IMPRESSA XS95 One Touch
1 Bean container cover 2 Bean container with aroma preservation
cover 3 Water tank with handle 4 Power switch and power cable
(back of machine) 5 Coffee grounds container 6 Cup platform 7 Drip tray
8 Fineness of grind switch 9 Cup tray 10 Cover of filler funnel for pre-ground coffee 11 Filler funnel for pre-ground coffee 12 Connector System
©
for removable frothers 13 Professional Cappuccino Frother 14 Height-adjustable coffee spout 15 Hot water spout
12 13
14
15
8
Page 9
Control elements
1
2
3
Front left 1 Display 2 Rotary Switch cover 3 f Rotary switch
Q On/off button c Maintenance button i 1 Espresso button 4 2 Espressi button o 1 Coffee button d 2 Coffees button e Coffee à la Carte button
v Pre-ground coffee button
4
5
Front right 4 ö Selector switch 5 Professional Cappuccino Frother 6 Easy Cappuccino Frother a Hot water portion symbol
m Hot water symbol p Cappuccino button z Milk portion symbol n Milk symbol
q Latte Macchiato button
The Connector System
56
©
permits the use of different frothers. These are available from stockists.
9
Page 10
Important information
Proper use
The machine should only be used to prepare coffee and to heat milk and water . Use for any other purpose will be deemed improper . JURA Elektroapparate AG cannot accept any responsibility for the conse­quences of improper use.
Before using the machine always carefully read and comply with all these instructions. Keep this manual close to the IMPRESSA and, if appropriate, pass it on to the next user.
For your safety
Please read and note carefully the following important safety infor­mation. By doing this, you can avoid the life-threatening danger of electric shock:
Z Never use a machine which has been damaged or with a
defective power cable.
Z For information on what to do in case of damage, for example
if there is a smell of burning, unplug the machine immedi ately from the mains supply and contact the JURA service centre.
Z If the power cable for this machine is damaged, it must be
repaired either directly by JURA or by a JURA approved service centre.
Z Make sure that the IMPRESSA and the power cable are not
located close to hot surfaces.
Z Be careful to ensure that the power cable does not get caught
and does not rub against sharp edges.
Z Never open and repair the machine yourself. Do not modify
the machine in any way that is not described in the IMPRESS A Manual. The machine contains live parts. If opened, there is a danger of serious injury. Repairs may only be carried out by JURA approved service centres, using original spare parts and accessories.
10
There is a risk of scalds or burns on the spouts or in the nozzle:
Z Place the machine out of the reach of children. Z Do not touch any hot parts. Use the handles provided. Z Be careful to ensure that the appropriate nozzle is installed
and clean. The nozzle or parts of the nozzle might come off if the parts are not assembled correctly or a blockage occurs.
Page 11
Important information
A defective machine is not safe and could cause injury or fire. To avoid damage and any associated risk of injury or fire:
Z Never allow the power cable to loo sely hang down. The pow er
cable can be tripped over or damaged.
Z Protect your IMPRESSA from environmental influences such
as rain, frost and direct sunlight.
Z Do not put the IMPRESSA, cable or connections in water. Z Do not put the IMPRESSA or any individual parts in the dish-
washer.
Z Turn your IMPRESSA off at the power switch before starting
any cleaning operation. Always wipe your IMPRESSA with a
damp cloth rather than a wet one, and protect it from pro-
longed water splash.
Z Only connect the machine to a power supply in accordance
with the information on the rating plate. The rating plate is
located on the underside of your IMPRESSA. Further technical
data is given in Chapter 10 ‘Technical Data’.
Z Use only original JURA care products. Use of accessories that
are not explicitly recommended by JURA could damage the
IMPRESSA.
Z Do not use any coffee beans treated with additives or caramel-
ised coffee beans.
Z Always fill the water tank with cold, fresh mains water. Z If you will be absent for an extended period, turn the machine
off and unplug.
Risk to children and persons with limited capabilities in operating machines:
Z The machine is not designed to be operated by children and
persons with limited capabilities.
Z The machine may only be used by persons who are able to
operate the machine safely.
Safe handling of the CLARIS filter cartridges:
Z Filter cartridges should be kept out of the reach of children. Z Store filter cartridges dry in the sealed package. Z Protect filter cartridges from heat and direct sunlight. Z Do NOT use damaged filter cartridges. Z Do NOT open filter cartridges.
11
Page 12
The IMPRESSA XS95/XS90 One Touch Manual
The IMPRESSA XS95/XS90 One Touch Manual
You are holding the manual for your IMPRESSA XS95/XS90 One Touch in your hand. It will help you to familiarize yourself with your IMPRESSA safely and quickly and teach you the full r ange of facilities it offers.
Chapter 2, ‘Preparing and using your IMPRESSA for the first time’, explains step-by-step how to set up and prepare the IMPRESSA.
Chapter 3, ‘Familiarising yourself with the control options’ is impor­tant for you to read as you are familiarising yourself with your IMPRESSA. It invites you to actively explore all the different coffee experiences that it offers.
All the other chapters are intended to help you when you have a spe­cific query.
Symbol description
Warnings
Always take note of any inf ormation marked with the CAUTION or W ARNING symbol. The signal word WARNING points out potential risk of serious injury, and the signal
CAUTION CAUTION
Symbols used
E
@
T
word CAUTION potential risk of slight injury. The CAUTION symbol is used to draw attention to circumstances whic h c ould cause
the machine to become damaged.
Information and tips to make things easier for you as you use your IMPRESSA. References to the online JURA website, where you can find interesting further infor-
mation: www.jura.com. Prompt to take action. This symbol means that you are being prompted to perform
some action.
If you use the IMPRESSA X become a master at preparing exciting coffee specialities, you will be a Barista!
@ You can download the short operating instructions for your
machine from the JURA website (www.jura.com).
S95/XS90 One Touch Manual, you will
12
Page 13
1 IMPRESSA XS95/XS90 One Touch
1 IMPRESSA XS95/XS90 One Touch
Coffee that fulfils your wildest dreams
Anyone thinking of coffee today no longer only conjures up visions of espresso and café crème, but also of contemporary coffee speci­alities such as latte macchiato or cappuccino. This development also calls for a solution for small shops, offices and catering establish­ments. All demands are more than met by the IMPRESSA X
S95/XS90
One Touch which prepares twelve different products – including the trend beverage latte macchiato – at the touc h of a butt on. The c us­tomary JURA portabilit y is not, however, affected by this versatility, and with its compact design and low weight of 13.8 kg the machine can be placed just where it is needed.
Z Design: A great deal of attention was paid to the machine
design during its development to ensure that it looks just as
good as the freshly prepared coffee specialities accentuated
by the cup lighting. Control elements such as the selector
switch with the pictograms and background lighting, the
Rotary Switch and the graphic display not only make an out-
standing visual impression, but effectively lead the way
through the simple navigation.
Z Ecological intelligence: The IMPRESSA XS95/XS90 One Touch
helps you protect the environment and save your money.
With the energy-saving mode (Energy Save Mode, E.S.M.
©
the machine requires up to 60% less energy and, if required,
automatically switches to standby mode after a certain time.
If it is not used for prolonged periods, for example during hol-
idays, the machine can be simply disconnected from the
mains by means of the integrated mains switch.
)
Z Time management: The enjoyment of coffee specialities has
become a regular part of our everyday life. The IMPRESSA
X
S95/XS90 One Touch does full justic e to this fact, and with its
integrated time management system ensures that no (coffee)
highlight is forgotten. The machine automatically switches on
and off at the programmed time, ensuring that your coff ee is
ready when you want it – naturally only on the weekda y s y ou
have chosen.
13
Page 14
1 IMPRESSA XS95/XS90 One Touch
Z All-round coffee solution: Together with an optionally avail-
able cup warmer, a matching milk cooler or a vending inter­face, the machine can be extended module-by-module to cre­ate an all-round coffee solution and can also be optimised for self-service applications. Machine operation is then also easy for inexperienced users, as the use of the control elements is intuitive and the programming buttons are discreetly con­cealed behind a hinged panel. If necessary, these can even be blocked.
Connector System©
JURA on the Internet
Knowledge Builder
The Connector System
©
permits the use of different cappuccino
frothers:
Z Professional Cappuccino Frother
U Cappuccino / latte macchiato U Hot milk
Z Easy Cappuccino Frother
U Cappuccino / latte macchiato
Visit us on the Internet.
@ At www.jura.com you will find interesting and up-to-date
information on your IMPRESSA and on every aspect of cof­fee.
You can familiarize yourself with your IMPRESSA X
S95/XS90 One
Touch in a fun way on the PC.
@ The Knowledge Builder awaits you at www.jura.com. The
interactive assistant, LEO, will support you and explain the benefits of and how to use your IMPRESSA.
14
Page 15
2 Preparing and using for the first time
This chapter provides you with the information y ou need to use your IMPRESSA without any problems. You will prepare your IMPRESSA step-by-step for your first coffee experience.
2 Preparing and using your IMPRESSA for the first time
Setting up
Filling the water tank
CAUTION
Bean container filling
CAUTION
Keep the packaging for your IMPRES SA. It should be used to protect the machine during transportation.
When setting up your IMPRESSA, please note the following:
Z Set the IMPRESSA down on a horizontal surface that is not
sensitive to water.
Z Choose a spot for your IMPRESSA which is protected against
overheating. Ensure that the ventilation slots are not covered.
To enjoy perfect coffee we recommend changing the water every day.
Milk, mineral water or other liquids can damage the water tank or the machine.
T Only fill the water tank with fresh, cold water.
T Remove the water tank and rinse it with cold water. T Fill the water tank with fresh, cold water and reinsert.
The bean container has an aroma preservation cover . This will ensure that your coffee beans retain their aroma for longer.
Coffee beans which have been treated with additives (e.g. sugar), pre-ground or freeze-dried coffee will damage the grinder.
T Only use untreated coffee beans to refill the bean container.
T Open the cover of the bean container and remove the aroma
preservation cover.
T Remove any dirt or foreign objects inside the bean con-
tainer.
T Fill the bean container with coffee beans, then close the
aroma preservation cover and the bean container cover.
15
Page 16
2 Preparing and using your IMPRESSA for the first time
First-time use
If the machine is operated with a defective power cable, there is a
WARNING
danger of electric shock.
T Never use a machine which has a defective power cable.
Precondition: The water tank and bean container are full.
T Insert the mains plug into a power socket.
3 T Switch on the IMPRESSA using the pow er switch on the back
of the machine. The on/off button Q lights up (standby).
Q T Press the on/off button to switch the IMPRESSA on.
The pre-set language appears on the display.
T Open the cover of the Rotary Switch.
g T Turn the Rotary Switch until the desired language is dis-
played. For Example:
k T Press the Rotary Switch to confirm the language.
CONFIRMED √ appears briefly on the display to confirm
the setting.
TIME --:--
g T Turn the Rotary Switch to set the hour.
TIME 12:00 (Example)
k T Press the Rotary Switch to confirm the hour setting.
TIME 12:00
g T Turn the Rotary Switch to set the minutes.
TIME 12:45 (Example)
k T Press the Rotary Switch to confirm the minute setting.
CONFIRMED √ appears briefly on the display.
WEEKDAY MONDAY
g T Turn the Rotary Switch to set the weekday.
WEEKDAY WEDNESDAY (Example)
k T Press the Rotary Switch to confirm the setting.
CONFIRMED √ appears briefly on the display. FILL SYSTEM / PRESS RINSE, the maintenance
button c lights up.
LANGUAGE ENGLISH
16
Page 17
2 Preparing and using your IMPRESSA for the first time
T Place a receptacle under the hot water spout and another
under the frother.
c T Press the maintenance button.
SYSTEM FILLS, the system fills up with water and the
maintenance button flashes. A small amount of water flows from the frother and the hot water spout. This operation stops automatically . appears on the display.
WELCOME TO JURA
HEATING UP
PRESS RINSE, the maintenance button c lights up.
T Place a receptacle under the coffee spout.
c T Press the maintenance button.
The machine rinses itself, stopping automatically.
COFFEE READY appears on the display. Your IMPRESSA
is ready to use.
E After first-time use do not disconnect the IMPRESSA from the
power supply for 24 hours to ensure that it is in the optimum
operating condition.
E When a coffee speciality has been prepared for the first time,
it is possible that
the grinder has not yet been completely filled with coffee
beans. In this case prepare a different coffee speciality.
E If you have not been able to use the machine for the first time
correctly and fully, contact customer support in your country
(see Chapter ‘JURA contact details / Legal information’).
FILL BEANS is shown on the display as
Using and activating filter
Your IMPRES SA no longer has to be descaled if you are using CLARIS filter cartridges.
@ You can also try out the ‘Using and activating filter’ operation
online. Visit the Knowledge Builder at www.jura.com.
E Perform the ‘Insert and activate filter’ operation without inter-
ruptions. This will ensure that your IMPRESSA always pro-
duces its best.
Precondition:
k T Keep the Rotary Switch pressed until
COFFEE READY is displayed.
T Open the cover of the Rotary Switch.
MAINTENANCE
appears on the display.
17
Page 18
2 Preparing and using your IMPRESSA for the first time
g T Turn the Rotary Switch until FILTER NO is displayed. k T Press the Rotary Switch to enter the programme item.
FILTER NO
g T Turn the Rotary Switch until FILTER YES is displayed. k T Press the Rotary Switch to confirm the setting.
CONFIRMED w appears briefly on the display to confirm
the setting.
INSERT FILTER / PRESS RINSE, the maintenance
button c lights up.
T Remove a CLARIS filter cartridge and the filter cartridge
extension from the Welcome Pack. T Fit the extension on top of the filter cartridge. T Remove the water tank and empty it. T Lift the cartridge holder and insert the filter car tridge into
the water tank, applying slight pressure. T Close the cartridge holder. It will click into place audibly. T Fill the water tank with fresh, cold water and reinsert.
T Place a receptacle (at least 500 ml) under the frother.
Determining and adjusting the degree of water hardness
18
E If you are using the Professional Cappuccino Frother, set the
selection lever of the frother to the steam position n.
c T Press the maintenance button.
FILTER RINSING, water flows out of the frother.
E You can interrupt rinsing of the filter at any time by pressing
any button.
E The water may be slightly discoloured. This is not harmful to
health and does not affect the taste.
Filter rinsing stops automatically after approx. 500 ml.
COFFEE READY appears on the display . The filter is now
activated.
The harder the water is, the more frequently the IMPRESSA needs to be descaled. It is therefore important to adjust the water hardness.
Page 19
2 Preparing and using your IMPRESSA for the first time
The water hardness can be adjusted on a continuous scale between 1° dH and 30° dH. This can also be deactivated, which means that the IMPRESSA will not let you know when it has to be descaled.
E However, if you are using the CLARIS filter cartridge and have
activated it, you will not be able to adjust the water hard­ness.
You can find out what the w at er hardness is by using the Aquadur® test strip supplied as standard.
T Hold the test strip briefly (for one second) under flowing
water. Shake off the water. T Wait for about one minute. T You will then be able to read the degree of water hardness
from the discolouration of the Aquadur® test strip and the
description on the packaging.
You can now adjust the water hardness.
Example: To change the water hardness from proceed as follows: Precondition:
k T Keep the Rotary Switch pressed until
g T Turn the rotary switch until
k T Press the Rotary Switch to enter the programme item.
COFFEE READY is displayed.
T Open the cover of the Rotary Switch.
appears.
displayed.
16°d H to 25°dH,
MAINTENANCE
HARDNESS 16°dH is
16°dH
g T Turn the Rotary Switch until 25°dH is displayed. k T Press the Rotary Switch to confirm the setting.
CONFIRMED w appears briefly on the display.
HARDNESS 25°dH
g T Turn the Rotary Switch until EXIT is displayed. k T Press the Rotary Switch to exit programming mode.
COFFEE READY is shown on the display.
19
Page 20
2 Preparing and using your IMPRESSA for the first time
Adjusting grinder
CAUTION
You can adjust the grinder continuously to suit the roast of your coffee.
If you adjust the fineness of grind when the grinder is not operating, the grinding wheel could be damaged.
T Only adjust the fineness of grind when the grinder is run-
ning.
The fineness of grind setting is correct if the coffee flows regularly from the coffee spout. A fine, thick crema is also formed. Our recommendations:
Z Select a fine setting for a light roast.
U If the fineness of grind setting is too fine, the coffee only
drips from the coffee spout.
Z Select a coarse setting for a darker roast.
U If the fineness of grind is too coarse, the coffee flows too
quickly from the coffee spout.
Example: T o change the fineness of grind during coffee preparation, proceed as follows:
T Open the cover of the bean container. T Place a cup under the coffee spout.
o T Press the 1 Coffee button.
The grinder starts and
T Turn the fineness of grind switch to the desired position
while the grinder is running. The coffee will be prepared and the fineness of grind is adjusted.
1 COFFEE is displayed.
Switching on
20
When the IMPRESSA is switched on, a prompt for the rinse operation automatically appears which is initiated by pressing the mainte­nance button.
Page 21
2 Preparing and using your IMPRESSA for the first time
This setting can be changed in programming mode so that the machine automatically activates the switch-on rinse (see Chapter 5 ‘Permanent settings in programming mode – Rinses’).
Precondition: Your IMPRESSA is switched on at the power switch and the on/off button Q is illuminated (standby). Q T Press the on/off button to switch the IMPRESSA on.
WELCOME TO JURA appears briefly on the display.
HEATING UP
PRESS RINSE, the maintenance button c lights up.
T Place a receptacle under the coffee spout.
c T Press the maintenance button.
The machine rinses itself, stopping automatically.
COFFEE READY appears on the display. Your IMPRESSA
is ready to use.
Switching off (standby)
When you switch your IMPRESS A off, the spouts with which a coffee speciality or milk have been prepared are rinsed.
T Place a receptacle under the coffee spout and the frother.
Q T Press the on/off button.
MACHINE RINSING appears on the display, and the
coffee spout is rinsed.
SPOUT RIGHT / PRESS RINSE
c T Press the maintenance button.
MACHINE RINSING, the right coffee spout is rinsed.
E When you prepare a milk product, but have not performed
cappuccino cleaning, CLEAN CAPPUCCINO appears and the maintenance button c lights up. For ten seconds you can start the ‘Clean cappuccino frother’ procedure by pressing the maintenance button c.
The IMPRESSA is switched off (standby mode), and the
on/off button Q lights up.
E When your IMPRESSA is switched off, a hissing noise may be
audible. This is normal and does not have any effect on the machine.
21
Page 22
3 Familiarising yourself with the control options
3 Familiarising yourself with the control options
With the IMPRESSA, you can prepare an excellent coffee or milk spe­ciality at the touch of a button. You also ha ve the option of adjusting the coffee strength and temperature, as w ell as the amount of water to your personal taste.
This chapter will allow you to become familiar with all c ontrol options with the aid of examples. T o familiarise yourself with your IMPRESSA, we recommend that you make a point of actively trying the facilities described in this chapter. You will find this is well worthwhile.
Learn how to perform the following:
Z Preparation at the touch of a button Z One-off settings before and while your drink is being pre-
pared
Z Adjusting the default amount of water to suit the cup size Z Permanent settings in programming mode
E You can stop the machine at any time while a coffee or milk
speciality or hot water is being prepared. T o do this, press any
button.
Preparation at the touch of a button
22
@ If you prefer to familiarise yourself with your IMPRESSA in a
fun way on the computer, the interactive Knowledge Builder
tutorial programme can be found on the Internet at
www.jura.com.
Prepare your favourite coffee speciality at the touch of a button. All coffee specialities are prepared following this model.
Example: This is how to prepare one coffee. Precondition:
o T Press the 1 Coffee button.
COFFEE READY is displayed.
T Place a cup under the coffee spout.
1 COFFEE and the pre-set coffee strength is displayed.
The pre-set amount of water flows into the cup. Preparation stops automatically.
COFFEE READY is then displayed.
E To prepare 2 coffees, place two cups under the coffee spout
and press the 2 Coffees button d.
ENJOY appears on the display.
Page 23
3 Familiarising yourself with the control options
One-off settings before and during preparation
Changing the coffee strength before preparation
It is possible to make various settings before and during prepar ation. These one-off settings are always follow the same model and are not stored.
The coffee strength of Coffee à la Carte can be changed before preparation. The following coffee strength options can be selected:
Z ö (xmild) Z öö (mild) Z ööö (normal) Z öööö (strong) Z ццццц (xstrong)
Example: Proceed as follows to to prepare a strong cup of Coffee à la Carte. Precondition:
e T Press the Coffee à la Carte button.
COFFEE READY is displayed.
T Place a cup under the coffee spout. T Open the cover of the Rotary Switch.
A LA CARTE and the pre-set coffee strength is dis-
played.
g T Turn the Rotary Switch until
played.
k T Press the Rotary Switch while
displayed.
A LA CARTE öööö is dis-
A LA CARTE öööö is
A LA CARTE öööö, the pre-set amount of water flows
into the cup. Preparation stops automatically. appears on the display. played.
COFFEE READY is then dis-
ENJOY
Changing the amount of water during preparation
The pre-set amount of water of all coffee products can be changed during the brewing operation by turning the Rotary Switch.
Example: Proceed as follows to prepare a Precondition:
COFFEE READY is displayed.
T Place a cup under the coffee spout.
110 ML cup of coffee.
23
Page 24
3 Familiarising yourself with the control options
o T Press the 1 Coffee button.
g T Turn the Rotary Switch during the brewing operation until
T Open the cover of the Rotary Switch.
1 COFFEE and the pre-set coffee strength is displayed.
The brewing operation starts and the coffee flows into the cup.
1 COFFEE / 110 ML is displayed.
The set amount of water flows into the cup. Preparation stops automatically.
COFFEE READY is then displayed.
ENJOY appears on the display.
Entering a permanent setting for the amount of water for a cup size
It is easy to make permanent settings for the amount of water for all coffee specialities, cappuccino, latte macchiato, a portion of hot water and portion of milk according to the cup size . As in the follow­ing example, adjust the amount of water once. Every time you pre­pare a drink in the future, this amount of water will be dispensed.
Making the permanent settings for the amount of water for the respective cup size always follows this model.
Example: T o make permanent settings for the amount of water for an espresso, proceed as follows: Precondition:
i T Press and hold the 1 Espresso button.
COFFEE READY is displayed.
T Place an espresso cup under the coffee spout.
1 ESPRESSO and the coffee strength is displayed.
i T Hold the Espresso button down until
appears.
i T Release the 1 Espresso button.
Coffee preparation will start and the espresso will flow into the cup.
T Press any button as soon as enough espresso has flowed
into the cup. Preparation stops automatically. briefly on the display. The set amount of water for an espresso will be permanently stored. displayed.
ENOUGH COFFEE?
CONFIRMED w appears
COFFEE READY is
24
E You can alter these settings at any time by repeating the
above procedure.
Page 25
3 Familiarising yourself with the control options
Permanent settings in programming mode
Programme item Subitem Explanation
MAINTENANCE
CLEAN CAPPUCCINO, RINSE MACHINE, RINSE CAPPUCCINO, CLEAN MACHINE,
DECALCIFY
You can easily adjust y our IMPRESS A to y our personal coffee blends and specialities. You can navigate through the easy-to-understand programme steps and make permanent settings simply by turning and pressing the Rotary Switch.
You can make the following permanent settings with the Rotary Switch:
T Select the desired maintenance programme. If no action is taken, programming mode is exited in the item automatically after approx. five seconds.
MACHINE,
CHANGE FILTER
PRODUCTS
FILTER FILTER YES
FILTER NO
HARDNESS
(is only displayed when the filter is not activated)
ECONOMY MODE
HARDNESS
INACTIVE, 1°dH – 30°dH
SAVE NO,
T Select your settings for the coffee and milk specialities and hot water.
T Indicate whether you operate your IMPRESSA with or without a CLARIS filter cartridge.
T Adjust the water hardness.
T Select an energy-saving mode.
SAVE LEVEL 1,
SAVE LEVEL 2
TIME
UNIT ON/OFF
OFF AFTER
RINSES
--:--, WEEKDAY T Set the time and weekday.
T Set the switch-on and switch-off time individually for each weekday.
OFF AFTER -- H,
0.5 H – 15 H INIT RINSE,
CAPP RINSE
T Set the number of hours after which the IMPRESSA should switch off automatically.
T Set whether the switch-on rinse should be started manually or automatically.
T Set whether the prompt for cappuccino rinsing should be started immediately or 10 minutes afterpreparation of a milk speciality.
MAINTENANCE programme
25
Page 26
3 Familiarising yourself with the control options
Programme item Subitem Explanation
INFORMATION
SETTINGS
LANGUAGE
EXIT
ML/OZ,
24HRS/AM PM
Settings in programming mode always follow the same model.
T Keep track of all prepared coffee and milk
specialities and view the maintenance status.
T Select the unit of the amount of water and
the time format.
T Select the desired language. T Exit programming mode.
Example: To change the strength of one espresso from (normal) to Precondition:
k T Keep the Rotary Switch pressed until
g T Turn the Rotary Switch until k T Press the Rotary Switch to enter the programme item.
öööö (strong).
COFFEE READY is displayed.
T Open the cover of the Rotary Switch.
MAINTENANCE
appears.
PRODUCTS is displayed.
ööö
SELECT PRODUCT
E Next select the product button for which you would like to
make settings. No product is prepared during this procedure.
i T Press the 1 Espresso button.
WATER 45 ML
g T Turn the Rotary Switch until AROMA ööö is displayed. k T Press the Rotary Switch to enter the programme item.
NORMAL ööö
g T Turn the Rotary Switch until STRONG öööö is dis-
played.
k T Press the Rotary Switch to confirm the setting.
CONFIRMED w appears briefly on the display.
AROMA öööö
g T Turn the Rotary Switch until EXIT is displayed. k T Press the Rotary Switch to exit the programme item.
SELECT PRODUCT
g T Turn the Rotary Switch until EXIT is displayed.
26
Page 27
3 Familiarising yourself with the control options
k T Press the Rotary Switch to exit the programme item.
PRODUCTS
g T Turn the Rotary Switch until EXIT is displayed. k T Press the Rotary Switch to exit programming mode.
COFFEE READY
Viewing information and maintenance status
Under the programme item INFORMATION you can query the following information:
Z Number of the prepared coffee and milk specialities and hot
water
Z Maintenance status and number of maintenance programmes
performed (cleaning, descaling, filter change)
Z Number of performed cappuccino cleaning operations
Precondition:
k T Press the Rotary Switch until g T Turn the Rotary Switch until
k T Press the Rotary Switch to enter the programme item.
COFFEE READY is displayed.
T Open the cover of the Rotary Switch.
MAINTENANCE appears.
INFORMATION is dis-
played.
TOTAL, the sum of all prepared coffee and milk specialities
is displayed.
g T Turn the Rotary Switch for further information.
E The respective maintenance status can also be displayed in
addition to the number of performed maintenance pro­grammes. The bar shows the current maintenance status. When the bar is filled completely, y our IMPRESS A will request the respective maintenance programme.
k T Press the Rotary Switch to exit the programme item.
INFORMATION
g T Turn the Rotary Switch until EXIT is displayed. k T Press the Rotary Switch to exit programming mode.
COFFEE READY
27
Page 28
4 Preparation at the touch of a button
4 Preparation at the touch of a button
In this chapter you will find out how to prepare coffee and milk spe­cialities and hot water without making further settings.
E You can stop the machine at any time while a coffee or milk
product or hot water is being prepared. To do this, press any button.
E During preparation, you can change the pre-set amount of
water by turning the Rotary Switch.
@ You can also try out the preparation of coffee specialities
online. Visit the Knowledge Builder at www.jura.com.
Espresso
Coffee
The classic coffee drink from Italy. There is a definite crema on the surface of the espresso.
Example: This is how to prepare one espresso. Precondition:
i T Press the 1 Espresso button.
COFFEE READY is displayed.
T Place an espresso cup under the coffee spout.
1 ESPRESSO and the pre-set coffee strength are dis-
played. The pre-set amount of water flows into the cup. Preparation stops automatically.
COFFEE READY is then displayed.
E To prepare two espressi place two cups under the coffee
spout and press the 2 Espressi button 4.
Example: This is how to prepare one coffee. Precondition:
o T Press the 1 Coffee button.
COFFEE READY is displayed.
T Place a coffee cup under the coffee spout.
ENJOY appears on the display.
1 COFFEE and the pre-set coffee strength are displayed.
The pre-set amount of water flows into the cup. Preparation stops automatically.
COFFEE READY is then displayed.
ENJOY appears on the display.
28
Page 29
4 Preparation at the touch of a button
E To prepare 2 coffees, place two cups under the coffee spout
and press the 2 Coffees button d.
Coffee à la Carte
Cappuccino
Cappuccino with the Professional Cappuccino Frother
The coffee strength of Coffee à la Carte can be changed before preparation.
Example: Proceed as follows to prepare a strong ( Coffee à la Carte. Precondition:
e T Press the Coffee à la Carte button.
COFFEE READY is displayed.
T Place a cup under the coffee spout. T Open the cover of the Rotary Switch.
öööö) cup of
A LA CARTE ö
g T Turn the Rotary Switch until A LA CARTE öööö is
displayed.
k T Press the Rotary Switch while
displayed.
A LA CARTE öööö is
A LA CARTE öööö, the pre-set amount of water flows
into the cup. Preparation stops automatically. appears on the display. played.
Your IMPRES SA prepares a cappucc ino at the touch of a butt on. It is not necessary to move the cup.
Precondition:
COFFEE READY is displayed.
T Take the protective cover off the Professional Cappuccino
Frother. T Attach the milk pipe to the frother. T Connect the other end to an original JURA milk container or
immerse it directly into the milk.
COFFEE READY is then dis-
ENJOY
29
Page 30
4 Preparation at the touch of a button
Cappuccino with the Easy Cappuccino Frother
T Place a cup under the frother. T Turn the selection lever of the frother to the milk foam
position p.
p T Press the Cappuccino button.
CAPPUCCINO and the coffee strength are displayed.
The milk foam is then prepared. The operation stops auto­matically when the pre-set amount of milk is reached. Coffee preparation then begins. The pre-set amount of water flows into the cup. Preparation stops automatically. display.
COFFEE READY is then displayed.
To ensure that the frother works perfectly, you should rinse and clean it regularly. The description for this can be found in C hapt er 6 ‘Maintenance – Cappuccino frother’.
Precondition:
COFFEE READY is displayed.
T Take the protective cover off the Easy Cappuccino Frother. T Attach the milk pipe to the frother. T Connect the other end to an original JURA milk container or
immerse it directly into the milk.
ENJOY appears on the
30
T Place a cup under the frother.
p T Press the Cappuccino button.
CAPPUCCINO and the coffee strength are displayed.
The milk foam is then prepared. The operation stops auto­matically when the pre-set amount of milk is reached. Coffee preparation then begins. The pre-set amount of water flows into the cup. Preparation stops automatically. display.
COFFEE READY is then displayed.
To ensure that the frother works perfectly, you should rinse and clean it regularly. The description for this can be found in C hapt er 6 ‘Maintenance – Cappuccino frother’.
ENJOY appears on the
Page 31
4 Preparation at the touch of a button
Latte macchiato
Latte macchiato with the Professional Cappuccino Frother
Your IMPRESSA prepares a latte macchiato at the touch of the button. It is not necessary to move the glass.
Precondition:
q T Press the Latte Macchiato button.
COFFEE READY is displayed.
T Take the protective cover off the Professional Cappuccino
Frother. T Attach the milk pipe to the frother. T Connect the other end to an original JURA milk container or
immerse it directly into the milk.
T Place a glass under the frother. T Turn the selection lever of the frother to the milk foam
position p.
LATTE MAC. and the coffee strength are displayed.
The milk foam is then prepared. The operation stops auto-
matically when pre-set amount of milk is reached.
E A brief pause follows during which the hot milk separates from
the milk foam. This enables the formation of the typical layers of a latte macchiato. The duration of this pause can be defined in programming mode.
Coffee preparation then begins. The pre-set amount of
water flows into the glass. Preparation stops automatically.
ENJOY appears on the display. COFFEE READY is then
displayed.
To ensure that the frother works perfectly, you should rinse and clean it regularly. The description for this can be found in C hapt er 6 ‘Maintenance – Cappuccino frother’.
31
Page 32
4 Preparation at the touch of a button
Latte macchiato with the Easy Cappuccino Frother
Precondition: COFFEE READY is displayed.
T Take the protective cover off the Easy Cappuccino Frother. T Attach the milk pipe to the frother. T Connect the other end to an original JURA milk container or
immerse it directly into the milk.
T Place a glass under the frother.
q T Press the Latte Macchiato button.
LATTE MAC. and the coffee strength are displayed.
The milk foam is then prepared. The operation stops auto­matically when pre-set amount of milk is reached.
E A brief interval follows during which the hot milk separates
from the milk foam. This enables the formation of the typical layers of a latte macchiato. The duration of this interval can be defined in programming mode.
Coffee preparation then begins. The pre-set amount of water flows into the glass. Preparation stops automatically.
ENJOY appears on the display. COFFEE READY is then
displayed.
Pre-ground coffee
32
To ensure that the frother works perfectly, you should rinse and clean it regularly. The description for this can be found in C hapt er 6 ‘Maintenance – Cappuccino frother’.
You can choose a second coffee blend, for example decaffeinated coffee, with the filler funnel for pre-ground coffee.
E Never add more than two level measuring spoons of pre-
ground coffee.
E Use pre-ground coffee which is not ground too finely. Very
fine coffee can block up the system so that the coffee only comes out in drips.
E If you did not fill the machine with a sufficient amount of pre-
ground coffee, and the IMPRESSA stops operation.
NOT ENOUGH PRE-GROUND is displayed
Page 33
4 Preparation at the touch of a button
All coffee specialities with pre-ground coffee are prepared following this model.
Example: This is how to prepare a cup of coffee using pre-ground coffee.
T Place a cup under the coffee spout. T Open the cover of the filler funnel for pre-ground coffee. T Open the cover of the Rotary Switch.
v T Press the Pre-ground coffee button.
FILL PRE-GROUND / COFFEE READY
T Place one level measuring spoon of pre-ground coffee into
the filler funnel. T Close the cover of the filler funnel for pre-ground coffee.
o T Press the 1 Coffee button.
1 COFFEE, the pre-set amount of water flows into the cup.
Preparation stops automatically.
display.
COFFEE READY is then displayed.
ENJOY appears on the
Hot milk and milk foam
Foaming and heating milk with the Professional Cappuccino Frother
There are two options for preparing hot milk or milk foam:
Z Milk portion z
U The preset quantity of milk is then prepared.
Z Milk n
U Milk is prepared until preparation is interrupted by pressing
any button.
Precondition:
COFFEE READY is displayed.
T Take the protective cover off the frother. T Attach the milk pipe to the frother. T Connect the other end to an original JURA milk container or
immerse it directly into the milk.
33
Page 34
4 Preparation at the touch of a button
T Place a cup under the frother. T Turn the selection lever of the frother to the milk foam
position p.
E If you want to heat the milk, set the selection lever of the
frother to the milk position t.
ö T With the selector switch select the milk portion symbol z. ä T Press the selector switch.
MILK, the milk foam is being prepared. Preparation stops
automatically when the pre-set amount of milk is reached.
COFFEE READY is shown on the display.
To ensure that the frother works perfectly, you should rinse and clean it regularly. The description for this can be found in C hapt er 6 ‘Maintenance – Cappuccino frother’.
Foaming milk with the Easy Cappuccino Frother
34
Precondition:
ö T With the selector switch select the milk portion symbol z. ä T Press the selector switch.
COFFEE READY is displayed.
T Take the protective cover off the frother. T Attach the milk pipe to the frother. T Connect the other end to an original JURA milk container or
immerse it directly into the milk.
T Place a cup under the frother.
MILK, the milk foam is being prepared. Preparation stops
automatically when the pre-set amount of milk is reached.
COFFEE READY is shown on the display.
To ensure that the frother works perfectly, you should rinse and clean it regularly. The description for this can be found in C hapt er 6 ‘Maintenance – Cappuccino frother’.
Page 35
4 Preparation at the touch of a button
Hot water
CAUTION
Hot water can be prepared in two ways:
Z Hot water portion a
U The pre-set amount of water flows into the cup.
Z Hot water m
U Water flows out of the hot water spout until preparation is
interrupted by pressing any button.
The following temperatures can be selected for preparing hot water:
Z Low Z Normal Z X high
There is a danger of scalding from hot water splashes.
T Avoid direct contact with the skin.
Example: This is how to prepare a portion of hot water. Precondition:
ö T Use the selector switch to select the hot water portion
ä T Press the selector switch.
COFFEE READY is displayed.
T Place a cup under the hot water spout.
symbol a.
TEMPERATURE and the pre-set temperature are dis-
played.
E By pressing the selector switch several times (within approx.
2 seconds) you can set the temperature to your individual preference. This setting is not saved.
HOT WATER, the pre-set amount of water flows into the
cup. Preparation stops automatically.
appears on the display.
COFFEE READY
35
Page 36
5 Permanent settings in programming mode
5 Permanent settings in programming mode
Products
Product Amount Coffee strength Temp.
1 Espresso, 1 Coffee
25 ML – 240 ML ö (xmild),
With the PRODUCTS programme item you can enter individual settings for all coffee and milk specialities as well as hot water.
The following permanent settings can be made:
NORMAL,
öö (mild),
HIGH
ööö (normal), öööö (strong), ццццц (xstrong)
2 Espressi, 2 Coffees
Coffee à la Carte
Cappuccino, Latte macchiato
25 ML – 240 ML
(per cup)
–
NORMAL,
HIGH
25 ML – 240 ML – NORMAL,
HIGH
Amount of milk: Pause: 0 SEC – 60 SEC Amount of water: 25 ML – 240 ML
3 SEC – 120 SEC
ö (xmild), öö (mild), ööö (normal),
NORMAL,
HIGH
öööö (strong), ццццц (xstrong)
Milk portion 3 SEC – 120 SEC –– Milk – – – Hot water
portion Hot water – – LOW, NORMAL,
25 ML – 450 ML – LOW, NORMAL,
X HIGH
X HIGH
36
E The products which are selected with the selector switch can
be individually set to inactive. This means that the respective symbols are not visible and preparation is not possible.
Permanent settings in programming mode always follow the same model.
Page 37
5 Permanent settings in programming mode
Example: Proceed as follows to change the amount of milk of latte
macchiato from to
40 SEC and the amount of water from 45 ML to 40 ML.
Precondition:
T Open the cover of the Rotary Switch.
k T Keep the Rotary Switch pressed until
appears.
g T Turn the Rotary Switch until k T Press the Rotary Switch to enter the programme item.
16 SEC to 20 SEC, the pause from 30 SEC
COFFEE READY is displayed.
MAINTENANCE
PRODUCTS is displayed.
SELECT PRODUCT
E Next select the product button for which you would like to
make settings. No product is prepared during this procedure.
q T Press the Latte Macchiato button.
COFFEE 45 ML
k T Press the Rotary Switch to enter the programme item.
COFFEE 45 ML
g T Turn the Rotary Switch until COFFEE 40 ML is dis-
played.
k T Press the Rotary Switch to confirm the setting.
CONFIRMED w appears briefly on the display.
COFFEE 40 ML
g T Turn the Rotary Switch until MILK 16 SEC is displayed. k T Press the Rotary Switch to enter the programme item.
MILK 16 SEC
g T Turn the Rotary Switch until MILK 20 SEC is displayed. k T Press the Rotary Switch to confirm the setting.
CONFIRMED w appears briefly on the display.
MILK 20 SEC
g T Turn the Rotary Switch until PAUSE 30 SEC is dis-
played.
k T Press the Rotary Switch to enter the programme item.
PAUSE 30 SEC
g T Turn the Rotary Switch until PAUSE 40 SEC is dis-
played.
k T Press the Rotary Switch to confirm the setting.
CONFIRMED w appears briefly on the display.
PAUSE 40 SEC
37
Page 38
5 Permanent settings in programming mode
g T Turn the Rotary Switch until EXIT is displayed. k T Press the Rotary Switch to exit the programme item.
g T Turn the Rotary Switch until EXIT is displayed. k T Press the Rotary Switch to exit the programme item.
g T Turn the Rotary Switch until EXIT is displayed. k T Press the Rotary Switch to exit programming mode.
SELECT PRODUCT
PRODUCTS
COFFEE READY
Resetting the products to works settings
Energy-saving mode
38
You can reset the values of all products as well as cappuccino and latte macchiato individually to the works setting.
Example: Proceed as follows to reset the values of 1 Espresso to the works setting. Precondition: The IMPRESSA is switched off (standby).
T Open the cover of the Rotary Switch. T Press the Rotary Switch and the 1 Espresso button for two
seconds at the same time until appears. The values of 1 Espresso are then reset to the works setting. The IMPRESSA is switched off (standby).
With the energy-saving mode (Energy Save Mode, E.S.M. machine requires up to 60% less energy. Y ou can set v arious energy­saving modes on your IMPRESSA:
Z SAVE NO
U Your IMPRESSA is continuously ready for use. U All coffee and milk product s, as well as hot water, can be
prepared without having to wait.
Z SAVE LEVEL 1
U Your IMPRESSA is only continuously ready for use for coffee
products and hot water.
U The machine has to heat up before milk preparation.
Z SAVE LEVEL 2
U Approx. 5 minutes after the last preparation the IMPRESSA
switches to the energy-saving temperature and is not ready for use.
U Before coffee, hot water or milk can be prepared, the machine
has to heat up.
1 ESPRESSO OK
©
) the
Page 39
5 Permanent settings in programming mode
Example: Proceed as follows to change the energy-saving mode
from
SAVE NO to SAVE LEVEL 1.
Precondition:
k T Keep the Rotary Switch pressed until MAINTENANCE
g T Turn the Rotary Switch until
k T Press the Rotary Switch to enter the programme item.
COFFEE READY is displayed.
T Open the cover of the Rotary Switch.
appears.
ECONOMY MODE - is
displayed.
SAVE NO
g T Turn the Rotary Switch until SAVE LEVEL 1 is dis-
played.
k T Press the Rotary Switch to confirm the setting.
CONFIRMED w appears briefly on the display.
ECONOMY MODE 1
g T Turn the Rotary Switch until EXIT is displayed. k T Press the Rotary Switch to exit programming mode.
COFFEE READY
Time and weekday
You already set the time and weekday when you used the machine for the first time.
Example: To change the time from as follows. Precondition:
k T Keep the Rotary Switch pressed until
g T Turn the Rotary Switch until k T Press the Rotary Switch to enter the programme item.
COFFEE READY is displayed.
T Open the cover of the Rotary Switch.
appears.
08:45 to 09:50, proceed
MAINTENANCE
TIME 08:45 is displayed.
TIME 08:45
g T Turn the Rotary Switch until TIME 09:45 is displayed. k T Press the Rotary Switch to confirm the hour setting. g T Turn the Rotary Switch until k T Press the Rotary Switch to confirm the minute setting.
TIME 09:50 is displayed.
CONFIRMED w appears briefly on the display.
WEEKDAY MONDAY (Example)
39
Page 40
5 Permanent settings in programming mode
k T Press the Rotary Switch to confirm the weekday setting.
g T Turn the Rotary Switch until EXIT is displayed. k T Press the Rotary Switch to exit programming mode.
CONFIRMED √ appears briefly on the display.
TIME 09:50
COFFEE READY
Programmable switch-on and switch-off time
The programmable switch-on and switch-off time can only be set when the time has been set.
The following settings can be made in the item:
Z UNIT ON
U Set the required switch-on time.
Z MACH. OFF
U Set the required switch-off time.
Z ON/OFF
U Set the weekdays on which IMPRESSA should switch on and
off automatically.
E The programmable switch-on only works when the machine
is switched on at the power switch (standby).
Example: Proceed as follows to set the programmable switch-on time to
07:30 and stipulate that your IMPRESSA does not switch
on automatically on Sundays. Precondition:
k T Keep the Rotary Switch pressed until
g T Turn the Rotary Switch until k T Press the Rotary Switch to enter the programme item.
COFFEE READY is displayed.
T Open the cover of the Rotary Switch.
a ppears.
UNIT ON/OFF menu
MAINTENANCE
UNIT ON/OFF is displayed.
UNIT ON --:--
k T Press the Rotary Switch to enter the programme item.
UNIT ON --:--
g T Turn the Rotary Switch until UNIT ON 07:00 is dis-
played.
k T Press the Rotary Switch to confirm the hour setting.
40
Page 41
5 Permanent settings in programming mode
g T Turn the Rotary Switch until UNIT ON 07:30 is dis-
played.
k T Press the Rotary Switch to confirm the minute setting.
CONFIRMED w appears briefly on the display.
UNIT ON 07:30
g T Turn the Rotary Switch until ON/OFF / MON YES is dis-
played.
k T Press the Rotary Switch to enter the programme item.
ON/OFF / MON YES
g T Turn the Rotary Switch until ON/OFF / SUN YES is dis-
played.
k T Press the Rotary Switch to enter the programme item.
ON/OFF / SUN YES
g T Turn the Rotary Switch until ON/OFF / SUN NO is dis-
played.
k T Press the Rotary Switch to confirm the setting.
CONFIRMED w appears briefly on the display.
ON/OFF / SUN NO
g T Turn the Rotary Switch until EXIT is displayed. k T Press the Rotary Switch to exit the programme item.
ON/OFF / MON YES
g T Turn the Rotary Switch until EXIT is displayed. k T Press the Rotary Switch to exit the programme item.
UNIT ON/OFF
g T Turn the Rotary Switch until EXIT is displayed. k T Press the Rotary Switch to exit programming mode.
COFFEE READY
Automatic switch-off
By instructing your IMPRESSA to automatically switch itself off, y ou can cut down your energy consumption. If this function is activated, your IMPRESSA switches off automatically after the last action on the machine.
E The programmable switch-off time can be adjusted between
0.5 and 15 hours or deactivated.
Example: Proceed as follows to change the automatic switch-off time from Precondition:
1 H to 2 H.
COFFEE READY is displayed.
41
Page 42
5 Permanent settings in programming mode
k T Keep the Rotary Switch pressed until
g T Turn the Rotar y Switch until
k T Press the Rotary Switch to enter the programme item.
g T Turn the Rotary Switch until OFF AFTER 2 H is dis-
k T Press the Rotary Switch to confirm the setting.
g T Turn the Rotary Switch until EXIT is displayed. k T Press the Rotary Switch to exit programming mode.
T Open the cover of the Rotary Switch.
MAINTENANCE
appears.
OFF AFTER 1 H is dis-
played.
OFF AFTER 1 H
played.
CONFIRMED w appears briefly on the display.
OFF AFTER 2 H
COFFEE READY
Rinses
You can set whether the switc h-on rinse should be started manually or automatically.
You can set whether cappuccino rinsing should be prompt ed imme­diately or 10 minutes after a milk product has been prepared.
Example: Proceed as follows to programme that Cappucc ino rinsing should be prompted immediately after a milk product has been prepared. Precondition:
k T Keep the Rotary Switch pressed until
g T Turn the Rotary Switch until k T Press the Rotary Switch to enter the programme item.
COFFEE READY is displayed.
T Open the cover of the Rotary Switch.
MAINTENANCE
appears.
RINSES is displayed.
INIT RINSE MANUAL
g T Turn the R otary Switch until CAPP RINSE AFTER 10’
is displayed.
k T Press the Rotary Switch to enter the programme item.
CAPP RINSE AFTER 10’
g T Turn the Rotary Switch until CAPP RINSE NOW is
displayed.
42
Page 43
5 Permanent settings in programming mode
k T Press the Rotary Switch to confirm the setting.
CONFIRMED w appears briefly on the display.
CAPP RINSE NOW
g T Turn the Rotary Switch until EXIT is displayed. k T Press the Rotary Switch to exit the programme item.
RINSES
g T Turn the Rotary Switch until EXIT is displayed. k T Press the Rotary Switch to exit programming mode.
COFFEE READY
Unit amount of water / time format
You can change the unit of the amount of w ater from ‘ml’ to ‘ oz’ and the time format to ‘24 HRS’ or ‘AM/PM’ .
Example: To change the unit for the amount of water from
ML to
OZ, proceed as follows.
Precondition:
k T Keep the Rotary Switch pressed until
g T Turn the Rotary Switch until
k T Press the Rotary Switch to enter the programme item.
COFFEE READY is displayed.
T Open the cover of the Rotary Switch.
MAINTENANCE
appears.
SETTINGS 24HRS / ML
is displayed.
SETTINGS 24HRS
g T Turn the Rotary Switch until SETTINGS ML is displayed. k T Press the Rotary Switch to enter the programme item.
SETTINGS ML
g T Turn the Rotary Switch until SETTINGS OZ is displayed. k T Press the Rotary Switch to confirm the setting.
CONFIRMED w appears briefly on the display.
SETTINGS OZ
g T Turn the Rotary Switch until EXIT is displayed. k T Press the Rotary Switch to exit the programme item.
SETTINGS 24HRS / OZ
g T Turn the Rotary Switch until EXIT is displayed. k T Press the Rotary Switch to exit programming mode.
COFFEE READY
43
Page 44
5 Permanent settings in programming mode
Language
You set the language when you used the machine for the first time.
Example: T o change the language from (example), proceed as follows. Precondition:
k T Keep the Rotary Switch pressed until
g T Turn the Rotar y Switch until
k T Press the Rotary Switch to enter the programme item.
COFFEE READY is displayed.
appears.
displayed.
ENGLISH to DEUTSCH
MAINTENANCE
LANGUAGE ENGLISH is
LANGUAGE ENGLISH
g T Turn the Rotary Switch until SPRACHE DEUTSCH
(example) is displayed.
k T Press the Rotary Switch to confirm the setting.
GESPEICHERT w (example) appears briefly on the dis-
play.
SPRACHE DEUTSCH (example)
g T Turn the Rotary Switch until k T Press the Rotary Switch to exit programming mode.
EXIT is displayed.
BITTE WÄHLEN (example)
44
Page 45
6 Maintenance
6 Maintenance
Your IMPRESSA has the following integrated maintenance pro­grammes:
Z Clean cappuccino frother Z Rinse machine Z Rinse cappuccino frother Z Clean machine Z Decalcify machine Z Change filter
E Clean or descale the machine or change the filter whenever
the appropriate prompt is displayed.
Maintenance tips
Rinsing the machine
To ensure that you get many years of reliable service out of your IMPRESSA and to guarantee the optimum coffee quality, the machine requires daily maintenance.
You should proceed as follows:
Z Empty the coffee grounds container and the drip tray. Rinse
them with warm water.
Z Rinse the water tank with clean water. Z Dismantle and rinse the frother (see Chapter 6 ‘Mainte-
nance – Rinsing the cappuccino frother’).
Z Wipe the surface of the machine with a damp cloth.
When the IMPRESSA is switched on, a prompt to perform a rinse operation appears after heating, or this is automatically started.
It can be set in programming mode whether the switch-on rinse needs to be activated manually or whether the machine automati­cally activates the switch-on rinse (see Chapter 5 ‘Permanent set­tings in programming mode – Rinses’).
When the IMPRESSA is switched off, a rinse operation is automati­cally initiated.
You can initiate the rinse operation manually at any time.
45
Page 46
6 Maintenance
Precondition: COFFEE READY is displayed.
T Place a receptacle under the coffee spout. T Open the cover of the Rotary Switch.
k T Keep the Rotary Switch pressed until
appears.
k T Press the Rotary Switch to enter the programme item.
MAINTENANCE
CLEAN CAPPUCCINO
f T Turn the Rotary Switch until RINSE MACHINE is dis-
played.
k T Press the Rotary Switch to initiate the rinse operation.
MACHINE RINSING
Rinsing stops automatically and your IMPRESSA is then once more ready for use.
Changing the filter
Change following a prompt
E After 50 litres of water have flowed through, the filter will
cease to work. Your IMPRESSA will automatically prompt you to replace the filter.
E After two months, the filter will cease to work. Monitor the
elapsed time by adjusting the date plate on the cartridge holder.
E If the CLARIS filter cartridge is not activated, you will not be
prompted to change the filter.
@ You can also try out ‘Changing the filter’ online. Visit the
Knowledge Builder at www.jura.com.
To change the CLARIS filter cartridge when prompted to do so by your IMPRESSA, proceed as follows:
Precondition: played, and the maintenance button c lights up. c T Press the maintenance button.
COFFEE READY / CHANGE FILTER is dis-
DURATION 2 MIN. / START YES
E If you want to change the filter at a later point in time, turn the
Rotary Switch until nance programme by pressing the Rotary Switch. The prompt ‘Change filter’ remains on the display.
START NO is displayed. Exit the mainte-
46
Page 47
6 Maintenance
c T Press the maintenance button.
CHANGE FILTER / PRESS RINSE
T Remove the water tank and empty it. T Lift the cartridge holder. T Take out the old CLARIS filter cartridge and the extension. T Fit the extension on top of a new filter cartridge. T Insert the filter cartridge into the water tank, exerting slight
pressure. T Close the cartridge holder. It will click into place audibly. T Fill the water tank with fresh, cold water and reinsert.
T Place a receptacle (at least 500 ml) under the frother.
E If you are using the Professional Cappuccino Frother, set the
selection lever of the frother to the steam position n.
c T Press the maintenance button.
FILTER RINSING, water flows out of the frother.
E You can interrupt f ilter r insing at any tim e. To do this, press
any button.
E The water may be slightly discoloured. This is not harmful to
health and does not affect the taste.
Manual filter change
Filter rinsing stops automatically after approx. 500 ml. The
IMPRESSA heats up and is once again ready to use.
You can initiate the ‘Changing the filter’ operation manually.
Precondition: The filter is activated and shown on the display.
T Open the cover of the Rotary Switch.
k T Keep the Rotary Switch pressed until
appears.
k T Press the Rotary Switch to enter the programme item.
COFFEE READY is
MAINTENANCE
CLEAN CAPPUCCINO
g T Turn the Rotary Switch until CHANGE FILTER is dis-
played.
47
Page 48
6 Maintenance
k T Press the Rotary Switch.
DURATION 2 MIN. / START YES
T Continue with the second prompt to take action (indicated
by a T), as is described under ‘Replacement following a
prompt’.
Cleaning the machine
CAUTION
Cleaning following a prompt
After 220 coffee preparations or 80 switch-on rinses, the IMPRESSA will prompt you to clean it.
If the wrong cleaning agent is used, the machine could be damaged and/or traces of detergent could be left behind in the water.
T Use only original JURA care products.
E The cleaning programme only lasts about 20 minutes. E Do not interrupt the cleaning programme. The quality of
cleaning will be impaired if you do so.
E JURA cleaning tablets are available from stockists.
@ You can also try out the ‘Cleaning the machine’ operation
online. Visit the Knowledge Builder at www.jura.com.
Precondition: played, and the maintenance button c lights up. c T Press the maintenance button.
COFFEE READY / CLEAN MACHINE is dis-
DURATION 20 MIN. / START YES
E If you want to clean the machine at a later point in time, turn
the Rotary Switch until maintenance programme by pressing the Rotary Switch. The prompt ‘Clean machine’ remains on the display.
START NO is displayed. Exit the
48
c T Press the maintenance button.
EMPTY TRAY
T Empty the drip tray and coffee grounds container and put
them back into the machine.
PRESS RINSE, the maintenance button c lights up.
Page 49
6 Maintenance
T Place a receptacle under the coffee spout and the frother.
c T Press the maintenance button.
CLEANS, the cleaning operation starts.
The process is interrupted.
ADD TABLET / PRESS
RINSE, the maintenance button c lights up.
T Open the cover of the filler funnel for pre-ground coffee.
T Insert a JURA cleaning tablet into the filler funnel. T Close the cover of the filler funnel.
c T Press the maintenance button.
CLEANS, water flows out of the coffee spout and the
frother several times.
E You can follow the current status of cleaning on the progress
bar.
Manual cleaning
The process is interrupted, T Empty the drip tray and coffee grounds container and put
them back into the machine.
The cleaning operation is now complete. The IMPRESSA is
ready for use again.
You can initiate the ‘Cleaning the machine’ operation manually.
Precondition:
k T Keep the Rotary Switch pressed until
k T Press the Rotary Switch to enter the programme item.
COFFEE READY is displayed.
T Open the cover of the Rotary Switch.
appears.
EMPTY TRAY.
MAINTENANCE
CLEAN CAPPUCCINO
g T Turn the rotary switch until CLEAN MACHINE is dis-
played.
k T Press the Rotary Switch.
DURATION 20 MIN. / START YES
T Continue with the second prompt to take action (indicated
by a T), as is described under ’Cleaning following a prompt’.
49
Page 50
6 Maintenance
Descaling the machine
CAUTION
CAUTION
CAUTION
CAUTION
The IMPRESSA builds up deposits of limescale over time and auto­matically prompts you to descale it when necessary. The degree of calcification depends on the degree of hardness of your water.
If the descaling agent comes into contact with the skin or eyes, this can cause irritation.
T Avoid contact with the skin or eyes. T Rinse the descaling agent off with clean water. Should you get
any descaling agent in your eye, see a doctor.
If the wrong descaling agent is used, the machine could be dam­aged and/or traces of detergent could be left behind in the water.
T Use only original JURA care products.
If the descaling operation is interrupted, there may be damage to the machine.
T Allow the descaling program to run to the end.
If the descaling agent comes into contact with sensitive surfaces, damage cannot be ruled out.
T Clean up any splashes immediately.
E The descaling programme lasts approx. 45 minutes. E JURA descaling tablets are available from stockists. E If you use a CLARIS filter cartridge and this is activated, you
will not be prompted to change the filter.
E Remove the CLARIS filter cartridge, if installed, before de-scal-
ing the machine.
Descaling following a prompt
50
@ You can also try out the ‘Descaling the machine’ operation
online. Visit the Knowledge Builder at www.jura.com.
Precondition: displayed and the maintenance button c lights up. c T Press the maintenance button.
COFFEE READY / DECALCIFY MACHINE is
DURATION 45 MIN. / START YES
Page 51
6 Maintenance
E If you want to descale the machine at a later point in time, turn
the Rotary Switch until
START NO is displayed. Exit the
maintenance programme by pressing the Rotary Switch. The prompt ‘Decalcify machine’ remains on the display.
c T Press the maintenance button.
EMPTY TRAY
T Empty the drip tray and coffee grounds container and put
them back into the machine.
SOLVENT IN TANK
T Remove the water tank and empty it. T Completely dissolve the contents of one blister (3 JURA des-
caling tablets) in a container that holds 600 ml of water. This
may take several minutes. T Pour the solution into the empty water tank and insert it in
the machine.
SOLVENT IN TANK / PRESS RINSE, the mainte-
nance button c lights up. T Remove the frother from the Connector System©. T Place a receptacle under the hot water spout and another
under the Connector System
©
.
c T Press the maintenance button.
DECALCS, water flows out of the Connector System
the hot water spout. The maintenance button c flashes
during the descaling operation.
©
and
E You can follow the current status of descaling on the progress
bar.
The process is interrupted,
EMPTY TRAY.
T Empty the receptacles below the hot water spout and the
Connector System
©
.
T Empty the drip tray and coffee grounds container and put
them back into the machine.
RINSE WATER TANK / FILL WATER TANK
T Remove the water tank and rinse it thoroughly. T Fill the water tank with fresh, cold water and reinsert.
PRESS RINSE, the maintenance button c lights up.
T Refit the frother.
51
Page 52
6 Maintenance
T Place a receptacle under the coffee and hot water spout and
another under the frother.
c T Press the maintenance button.
DECALCS, water flows out of the frother and the hot wat er
spout. The process is interrupted,
HEATING UP.
MACHINE RINSING, water flows out of the coffee
spout. The operation stops automatically,
T Empty the drip tray and coffee grounds container and put
them back into the machine. The desc aling operatio n is now comple te. Your IMPRESSA heats up and is once again ready to use.
E If the descaling operation stops unexpectedly, rinse the wa ter
tank thoroughly.
EMPTY TRAY.
Manual descaling
Rinsing the cappuccino frother
52
You can initiate the ‘Descaling the machine’ operation manually. Precondition:
filter is not activated.
k T Keep the Rotary Switch pressed until
k T Press the Rotary Switch to enter the programme item.
COFFEE READY is shown on the display and the
T Open the cover of the Rotary Switch.
MAINTENANCE
appears.
CLEAN CAPPUCCINO
g T Turn the Rotary Switch until DECALCIFY MACHINE
is displayed.
k T Press the Rotary Switch.
DURATION 45 MIN. / START YES
T Continue with the second prompt to take action (indicated
by a T), as is described under ‘Descaling following a prompt’.
E This chapter applies to the Professional and Easy Cappucc ino
Frothers.
Each time milk has been prepared the IMPRESSA displays a prompt for Cappuccino rinsing.
It can be set in programming mode whether the rinsing prompt is displayed immediately or 10 minutes after preparation (refer to Chapter 5 ‘Permanent settings in programming mode – Rinses’).
Page 53
6 Maintenance
Rinsing following a prompt
Starting rinsing manually
Precondition: COFFEE READY / RINSE CAPPUCCINO is
displayed and the maintenance button c lights up.
T Place a receptacle under the frother.
E If you are using the Professional Cappuccino Frother, turn
the selection lever to the steam position n.
c T Press the maintenance button.
CAPPU. RINSING, the frother is rinsed.
The procedure stops automatically.
appears on the display.
You can initiate the ‘Rinsing the cappuccino frother’ operation manually.
Precondition:
E If you are using the Professional Cappuccino Frother, turn
k T Keep the Rotary Switch pressed until
k T Press the Rotary Switch to enter the programme item.
COFFEE READY is displayed.
T Place a receptacle under the frother.
the selection lever to the steam position n.
T Open the cover of the Rotary Switch.
appears.
COFFEE READY
MAINTENANCE
CLEAN CAPPUCCINO
g T Turn the Rotary Switch until RINSE CAPPUCCINO is
displayed.
k T Press the Rotary Switch to start the rinse operation.
CAPPU. RINSING, the frother is rinsed.
The procedure stops automatically.
appears on the display.
COFFEE READY
Cleaning the cappuccino frother
CAUTION
E This chapter applies to the Professional and Easy Cappucc ino
Frothers.
To ensure that the respective frother works perfectly, you should clean it daily when you have been preparing milk.
If the wrong cleaning agent is used, the machine could be damaged and/or traces of detergent could be left behind in the water.
T Use only original JURA care products.
53
Page 54
6 Maintenance
E The JURA Cappuccino Cleaner is available from stockists.
@ You can also try out the ‘Cleaning the cappuccino frother’
operation online. Visit the Knowledge Builder at www.jura.com.
Cleaning the cappuccino frother – manually
Precondition:
k T Keep the Rotary Switch pressed until
k T Press the Rotary Switch to enter the programme item.
COFFEE READY is displayed.
T Open the cover of the Rotary Switch.
MAINTENANCE
appears.
CLEAN CAPPUCCINO
k T Press the Rotary Switch.
CLEANER FOR CAPPU., the maintenance button c
lights up.
T Pour 250 ml of fresh water into a container and add one
capful (max. 15 ml) of Cappuccino Cleaner.
T Immerse the milk pipe in the receptacle with the cleaning
solution.
E If you are using the Professional Cappuccino Frother, turn
the selection lever to the milk foam p or milk t position.
T Place another receptacle under the frother.
c T Press the maintenance button.
CAPPUCCINO / CLEANS, the frother and pipe are
cleaned.
WATER FOR CAPPUCCINO, the maintenance button c
lights up.
T Rinse the re cept ac le th or oug hly, fi ll it wi th ap prox . 250 ml
of fresh water and immerse the milk pipe in the water.
T Empty the other receptacle and place it under the frother
once more.
c T Press the maintenance button.
CAPPUCCINO / CLEANS, the frother and pipe are rinsed
with fresh water.
COFFEE READY appears on the display. Your IMPRESSA
is once more ready to use.
54
Page 55
6 Maintenance
Cleaning the cappuccino frother after a prompt
Disassembling and rinsing the Professional Cappuccino Frother
If milk has been prepared, but the cappuccino frother has not been cleaned, the
CLEAN CAPPUCCINO prompt is displayed when
the machine is switched off. The maintenance programme can be started by pressing the maintenance button c.
Precondition:
CLEANER FOR CAPPU. is displayed and the
maintenance button c lights up.
T Continue with the fifth prompt to take action (indicated
by a T), as is described under ‘Cleaning the cappuccino
frother – manually’.
T Carefully remove the frother from the Connector System
by twisting slightly. T Dismantle the frother completely. T Rinse all the frother parts thoroughly under running water. T Reassemble the frother.
E Ensure that the individual parts are correctly and firmly
attached to one another to ensure optimum function of the frother.
©
Disassembling and rinsing the Easy Cappuccino Frother
T Firmly attach the frother to the Connector System
T Carefully remove the frother from the Connector System
©
.
©
by twisting slightly. T Dismantle the frother completely. T Rinse all the frother parts thoroughly under running water. T Reassemble the frother.
E Ensure that the individual parts are correctly and firmly
attached to one another to ensure optimum function of the frother.
T Firmly attach the frother to the Connector System
©
.
55
Page 56
6 Maintenance
Cleaning the bean container
WARNING
Descaling the water tank
Coffee beans may be covered with a slight oil film which remains on the walls of the bean container . These residues may negatively affect the coffee results. For this reason clean the bean container from time to time.
Danger of injury to the fingers when the grinder is running.
T Switch the machine off with the on/off button Q before per-
forming any work on the grinder.
T Switch the machine off at the power switch 3.
T Open the cover of the bean container and remove the aroma
preservation cover. T Remove the beans with a vacuum cleaner. T Loosen the screw in the bean container and lift up the finger
protection. T Remove the remaining beans with a vacuum cleaner. T Clean the bean container with a soft, dry cloth. T Put the finger protection down again and screw it back
tightly in place. T Fill the bean container with coffee beans, then close the
aroma preservation cover and the bean container cover.
Limescale deposits may form in the water tank. To ensure correct function of your IMPRESSA, you should descale the water tank from time to time.
56
T Remove the water tank. T If you use a CLARIS filter cartridge, remove this. T Descale the tank with a mild conventional descaling agent
in accordance with the manufacturer’s instructions. T Rinse the water tank with clean water afterwards. T If you use a CLARIS filter cartridge, insert this again. T Fill the water tank with fresh, cold water and reinsert.
Page 57
7 Display messages
Message Cause/Result Action
FILL WATER TANK
EMPTY GROUNDS
EMPTY TRAY
TRAY MISSING
FILL BEANS
PRESS RINSE
COFFEE READY /
RINSE CAPPUCCINO
COFFEE READY /
CLEAN MACHINE
The water tank is empty. You cannot prepare any coffee products, hot water or milk products.
The coffee grounds container is full. You cannot prepare any coffee products, but you can prepare hot water or milk.
The drip tray is full. You cannot prepare any coffee products, hot water or milk products.
The drip tray is not inserted correctly or is not inserted at all. You cannot prepare any coffee products, hot water or milk products.
The bean container is empty. You cannot prepare any coffee products, but you can prepare hot water or milk.
The IMPRESSA is prompting you to start a rinse operation or continue a started mainte­nance programme.
The IMPRESSA is prompting you to start cappuccino rinsing.
After 220 preparations or 80 switch-on rinses, the IMPRESSA will prompt you to clean it.
T Fill the water tank (see Chapter 2, ‘Preparing and using for the first time – Filling the water tank’).
T Empty the coffee grounds container and the drip tray.
T Empty the drip tray.
T Insert the drip tray.
T Clean the metal contacts on the back of the drip tray.
T Fill the bean container (see Chapter 2, ‘Preparing and using for the first time – Filling the bean container’).
T Press the maintenance button to start rinsing or to continue the maintenance programme.
T Press the maintenance button to start cappuccino rinsing.
T Clean the machine (see Chapter 6, ‘Maintenance – Cleaning the machine’).
7 Display messages
57
Page 58
7 Display messages
Message Cause/Result Action
COFFEE READY /
CLEAN NOW
COFFEE READY /
DECALCIFY MACHINE
COFFEE READY /
DECALCIFY NOW
COFFEE READY /
CHANGE FILTER
COFFEE READY /
CHANGE NOW
NOT ENOUGH PRE-GROUND
Message, if in spite of prompt no cleaning has been carried out yet.
The IMPRESSA is prompting you to descale it.
Message, if in spite of prompt no decalcification has been carried out yet.
After 50 litres of water have flowed through, or after two months, the filter will cease to work.
Message, if in spite of prompt no filter change has been carried out yet.
There is too little pre-ground coffee in the filler funnel. The IMPRESSA stops the operation.
T Clean the machine (see Chapter 6, ‘Maintenance – Cleaning the machine’).
T Descale the machine (see Chapter 6, ‘Maintenance – Descaling the machine’).
T Descale the machine (see Chapter 6, ‘Maintenance – Descaling the machine’).
T Replace the CLARIS filter cartridge (see Chapter 6 ‘Maintenance – Changing the filter’).
T Replace the CLARIS filter cartridge (see Chapter 6 ‘Maintenance – Changing the filter’).
T The next time you make coffee use more pre-ground coffee (refer to Chapter 4, ‘Preparation at the touch of a button – Pre-ground coffee’).
58
Page 59
8 Troubleshooting
Problem Cause/Result Action
Grinder is making a very loud noise.
The frother does not produce enough milk foam or milk sprays from the cappuccino frother.
Coffee only comes out in drips when it is being prepared.
Water hardness cannot be adjusted.
COFFEE READY / FILL BEANS is
displayed although the bean container has been filled.
COFFEE READY / FILL BEANS is not
displayed although the bean container is empty.
EMPTY TRAY
is always displayed.
FILL WATER TANK is
displayed although the water tank is full.
There are foreign objects in the grinder.
The cappuccino frother is dirty or incorrectly attached.
Coffee or pre-ground coffee has been ground too finely and is blocking the system.
The CLARIS filter cartridge is activated.
The grinder is not yet completely filled with beans.
The bean monitor is dirty.
The metal contacts of the drip tray are dirty or wet.
The water tank float is trapped.
T Contact customer support in your country (see Chapter ‘JURA contact details / Legal information’).
T Rinse and clean the cappuccino frother (see Chapter 6, ‘Maintenance – Cappuccino frother‘).
T Assemble the cappuccino frother correctly and firmly attach the frother to the Connector System Chapter 6 ‘Maintenance – Disassem­bling and rinsing the frother’).
T Put the grinder on a coarser setting or use coarser pre-ground coffee (refer to Chapter 2, ‘Preparing and using for the first time – Adjusting grinder’).
T Deactivate the CLARIS filter cartridge in programming mode.
T Prepare a coffee speciality.
T Clean the bean container (see Chapter 6, ‘Maintenance – Cleaning the bean container’).
T Clean and dry the metal contacts on the back of the drip tray.
T Descale the water tank (see Chapter 6, ‘Maintenance – Descaling the water tank’).
8 Troubleshooting
©
(refer to
59
Page 60
8 Troubleshooting
Problem Cause/Result Action
ERROR 2 is displayed. If the machine was
exposed to the cold for a long period of time, it is disabled from heating up due to safety reasons.
Other
ERROR messages
are displayed.
–
E If you have not been able to solve the problem, contact
customer support in your country (see Chapter ‘JURA contact details / Legal information’).
T Warm up the machine at room
temperature.
T Turn the IMPRESSA off at the power switch. Contact customer support in your country (see Chapter ‘JURA contact details / Legal information’).
60
Page 61
9 Transport and environmentally neutral disposal
9 Transport and environmentally neutral disposal
Transport / Emptying the system
Disposal
Keep the packaging for your IMPRES SA. It should be used to protect the machine during transportation.
In order to protect the IMPRESSA from frost during transportation, the system must be emptied.
Precondition: The IMPRESSA is switched off (standby).
T Remove the water tank. T Place a receptacle under the hot water spout and another
under the frother.
c T Press the maintenance button until
EMPTYING appears.
A small amount of water flows from the frother and the hot water spout. The operation stops automatically. The IMPRESSA will switch itself off.
3 T Turn your IMPRESSA off at the power switch.
E The next time you use the machine the system must be
refilled (see Chapter 2, ‘Preparing and using for the first time – First-time use’).
Please dispose of old machines in an environmentally neutral way.
SYSTEM
H
Old machines contain valuable materials capable of being recycled which should be salvaged for recycling. Please therefore dispose of old machines via your regional collection system.
61
Page 62
10 Technical data
10 Technical data
Voltage
Power 1450 W
Safety test
SAVE NO 40 Wh
Energy
SAVE LEVEL 1 20 Wh
Energy
SAVE LEVEL 2 15 Wh
Energy Pump pressure Static max. 15 bar Holding capacity of water tank 5.7 l Holding capacity of bean
container Holding capacity of coffee
grounds container Cable length Approx. 1.1 m Weight 13.8 kg Dimensions (W x H x D) 41 x 47 x 39 cm
A S F D G
F 1250 W S D F G
280 g (optional 750 g)
Approx. 40 servings
220–240 V AC, 50 Hz 120 V AC, 60 Hz 220–240 V AC, 50 Hz 220 V AC, 50 Hz
62
Page 63
Index
Index A
Aroma preservation cover 8 Automatic switch-off 41
B
Bean container
Aroma preservation cover 8 Cleaning 56 Cover 8 Filling 15
C
Cappuccino 29
With the Easy Cappuccino Frother 30 With the Professional Cappuccino Frother 29
Cappuccino frother
Cleaning 53 Easy Cappuccino Frother 14 Professional Cappuccino Frother 14 Rinsing 52
CLARIS filter cartridge
Changing 46 Using and activating 17
Cleaning
Bean container 56 Cappuccino frother 53
Machine 48 Coffee 28 Coffee à la carte 29 Coffee grounds container 8 Coffee spout, height-adjustable 8 Connector System© 8, 14 Control options 22 Cover
Bean container 8
Filler funnel for pre-ground coffee 8
D
Default settings in programming mode 36 Descaling
Machine 50
Water tank 56 Display messages 57 Drip tray 8
E
Easy Cappuccino Frother
Disassembling and rinsing 55 Emptying the system 61 Energy-saving mode 38 Entering a default setting for the amount of
water for a cup size 24
Errors
Troubleshooting 59 Espresso 28
F
Filler funnel for pre-ground coffee 8 Filling
Bean container 15
Water tank 15 Filter
Changing 46
Using and activating 17 Fineness of grind
Adjusting grinder 20
Fineness of grind switch 8 Fineness of grind switch 8 First-time use 16 Frother
Easy Cappuccino Frother 14
Professional Cappuccino Frother 14
H
Hardness of water 18 Hot milk 33 Hot water 35
Hot water portion 35 Hot water spout 8
I
Internet 14
K
Knowledge Builder 14
L
Language 44 Latte macchiato 31
With the Easy Cappuccino Frother 32
With the Professional Cappuccino Frother
31
M
Machine
Cleaning 48
63
Page 64
Index
Descaling 50 Rinsing 45 Setting up 15 Switching off (stand-by) 21 Switching on 20
Maintenance 45
Maintenance tips 45
Milk
Foaming and heating with the Profes­sional Cappuccino Frother 33 Foaming with the Easy Cappuccino Frother 34 Hot 33 Milk portion 33
Milk foam 33
O
One-off settings before and during prepara-
tion 23
P
Power switch 8 Pre-ground coffee 32
Filler funnel 8 Pre-ground coffee 32
Preparation
At the touch of a button 28 Cappuccino 29 Coffee 28 Coffee à la carte 29 Espresso 28 Hot water 35 Latte macchiato 31 Milk 33 Pre-ground coffee 32
Problems
Troubleshooting 59
Professional Cappuccino Frother 8, 14
Disassembling and rinsing 55
Programmable switch-on and switch-off time
40
Programming mode 36
Automatic switch-off 41 Energy-saving mode 38 Language 44 Products 36 Rinses 42 Switch-on and switch-off time 40
Time and weekday 39 Unit amount of water / Time format 43
Prompt to take action
Symbols used 12
R
Rinses 42 Rinsing
Cappuccino frother 52 Machine 45
Rotary switch 9
S
Safety 10 Selector switch 9 Settings
Default settings in programming mode 36 Entering a default setting for the amount of water for a cup size 24 One-off settings before and during prepa-
ration 23 Setting up 15 Standby
Switching off 21 Switching off (stand-by) 21 Switching on 20
T
Technical data 62 Time and weekday 39 Troubleshooting 59
U
Use
Proper 10 Use, First time 16
V
Viewing information and maintenance status
27
Viewing maintenance status 27
W
Water hardness 18
Determining and adjusting 18 Water tank 8
Descaling 56
Filling 15 Works settings 38
64
Page 65
656667
Page 66
Page 67
Page 68
Art. 67415/XS95/en/201003
JURA contact details / Legal information
Your JURA dealer:
Directives
Technical changes
Feedback
Copyright
The machine complies with the following directives:
Z 2006/95/EC – Low Voltage Directive Z 2004/108/EC – Electromagnetic Compatibility
We reserve the right to make technical changes. The illustrations used in the IMPRESSA XS95/XS90 One Touch Manual show the IMPRESSA XS95 One Touch model. Your IMPRESSA could incorpo­rate minor changes.
Your opinion is important to us! Use the contact link at www.jura.com.
The Instructions for Use contain information which is protected by copyright. It is not permitted to photocopy or translate these Instructions for Use into another language without the express written consent of JURA Elektroapparate AG.
68
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
