Impex PL 200 User Manual

NOTE:

Please read all instructions

carefully before using this

product

Table of Contents

Safety Notice

Hardware Pack

Assembly Instruction

Parts List

Warranty

Ordering Parts

MARCY

Magnetic Upright Bike

PL-200

Model

PL 200

Retain This

Manual for

Reference

04-14-03

OWNER'S
MANUAL

IMPEX FITNESS PRODUCTS

14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746

Tel: [phone] Fax: [phone]

www.impex-fitness.com

[e-mail]

TABLE OF CONTENTS

BEFORE YOU BEGIN...................................................................................…. 1

IMPORTANT SAFETY NOTICES..................................................................…. 2

HARDWARE PACK……….....…....................................................................…. 3

ASSEMBLY INSTRUCTIONS........................................................................…. 4

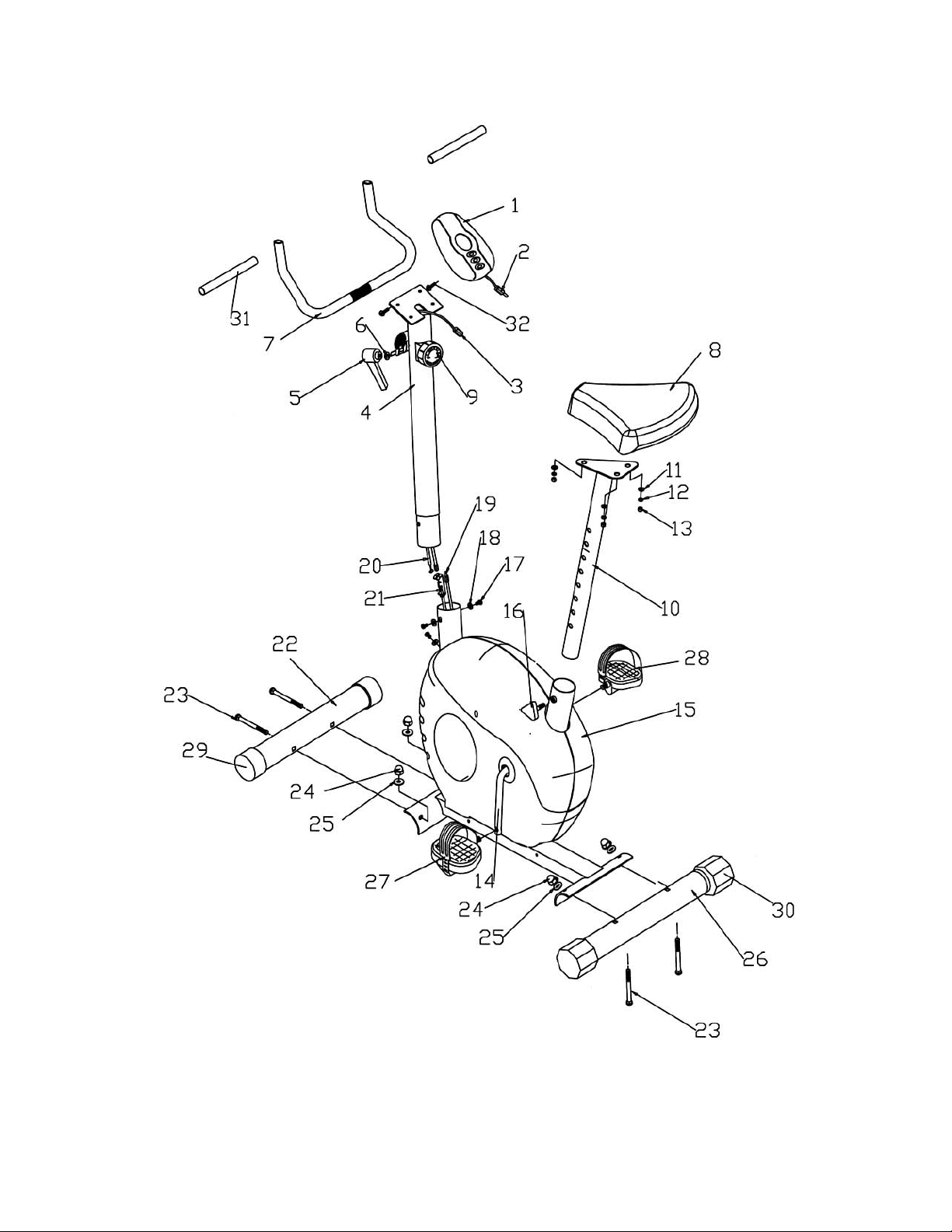

EXPLODED DIAGRAM………………………………………………………………. 10

PARTS LIST...................................................................................................…. 11

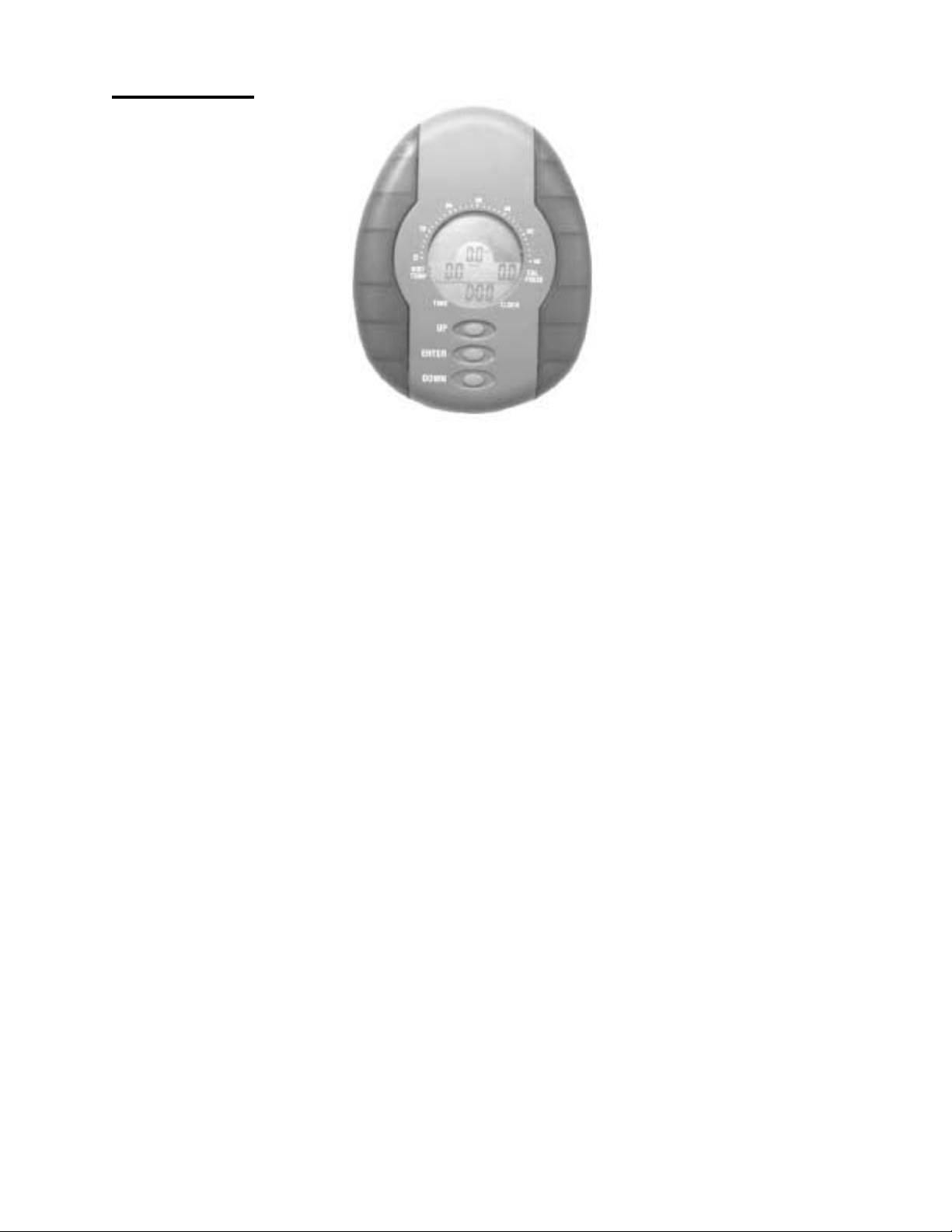

COMPUTER................................................................................................…… 12

WARRANTY.................................................................................................…. 14

ORDERING PARTS.......................................................................................… 14

BEFORE YOU BEGIN

Thank you for selecting the MARCY Magnetic Upright Bike PL-200 by
IMPEX FITNESS PRODUCTS. For your safety and benefit, read this
manual carefully before using the machine. As a manufacturer, we are
committed to provide you complete customer satisfaction. If you have any
questions, or find there are missing or damaged parts, we guarantee you
complete satisfaction through direct assistance from our factory. To avoid
unnecessary delays, please call our TOLL-FREE customer service number.
Our Customer Service Agents will provide immediate assistance to you.

Toll-Free Customer Service Number

1-800-999-8899

Mon. - Fri. 9 a.m. - 5 p.m. PST

www.impex-fitness.com

[e-mail]

1

IMPORTANT SAFETY NOTICE

PRECAUTIONS

This exercise machine is built for optimum safety. However, certain precautions apply
whenever you operate a piece of exercise equipment. Be sure to read the entire manual
before you assemble or operate your machine. In particular, note the following safety
precautions:

1. Keep children and pets away from the machine at all times. DO NOT leave

children unattended in the same room with the machine.

2. Only one person at a time should use the machine.

3. If the user experiences dizziness, nausea, chest pain, or any other abnormal
symptoms, STOP the workout at once. CONSULT A PHYSICIAN IMMEDIATELY.

4. Position the machine on a clear, leveled surface. DO NOT use the machine near water
or outdoors.

5. Keep hands away from all moving parts.

6. Always wear appropriate workout clothing when exercising. DO NOT wear robes or
other clothing that could become caught in the machine. Running or aerobic shoes are
also required when using the machine.

7. Use the machine only for its intended use as described in this manual. DO NOT use
attachments not recommended by the manufacturer.

8. Do not place any sharp object around the machine.

9. Disabled person should not use the machine without a qualified person or physician in
attendance.

10. Before using the machine to exercise, always do stretching exercises to properly warm
up.

11. Never operate the machine if the machine is not functioning properly.

12. The Maximum Weight Capacity is 300 lbs.

13. Read all warnings posted on the exercise bike.

14. Inspect the exercise bike for worn or loose component prior to use. Tighten/replace
any loose or wore components prior to use.

15. Care should be taken in mounting or dismounting the exercise bike.

16. This exercise bike is for consumer and home use only.

WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR
PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE
OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL
INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC. ASSUMES
NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY DAMAGE
SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT.

SAVE THESE INSTRUCTIONS.

2

HARDWARE PACK

Part# Description Identifier

#5 L-shape Handlebar Adjustment Knob (1)

#6 Ø 5/8” Washer (1)

#16 Seat Post Lock Knob (1)

#17 M8 x 5/8” Allen Bolt (3)

#18 Ø 5/8” Bent Washer (3)

#23 M10 x 2 3/8” Carriage Bolt (4)

#24 M10 Acorn Nut (4)

#25 ∅1” Bent W asher (4)

Tool:
Allen Wrench (1)

3

ASSEMBLY INSTRUCTION

Tools Required Assembling the Machine: Adjustable Wrench and Allen Wrench
NOTE: It is strongly recommended this machine be assembled by two or more
people to avoid possible injury.

STEP 1 (See Diagram1)

A.) Attach the Rear Stabilizer (#26) to the Main Frame (#15). Secure it with two M10 x 2

3/8” Carriage Bolts (#23), ∅1” Bent Washers (#25), and M10 Acorn Nuts (#24).

B.) Attach the Front Stabilizer (#22) to the Main Frame (#15). Secure it with two M10 x 2

3/8” Carriage Bolts (#23), ∅1” Bent Washers (#25), and M10 Acorn Nuts (#24).

C.) Plug the Roller Caps (#29) onto both ends of Front Stabilizer (#22). Plug the Rear

Stabilizer End Caps (#30) onto both ends of Rear Stabilizer (#26). Set the bike firmly
on a flat surface. If the surface is uneven, rotate the Rear Stabilizer End Caps (#30)
to level the bike.

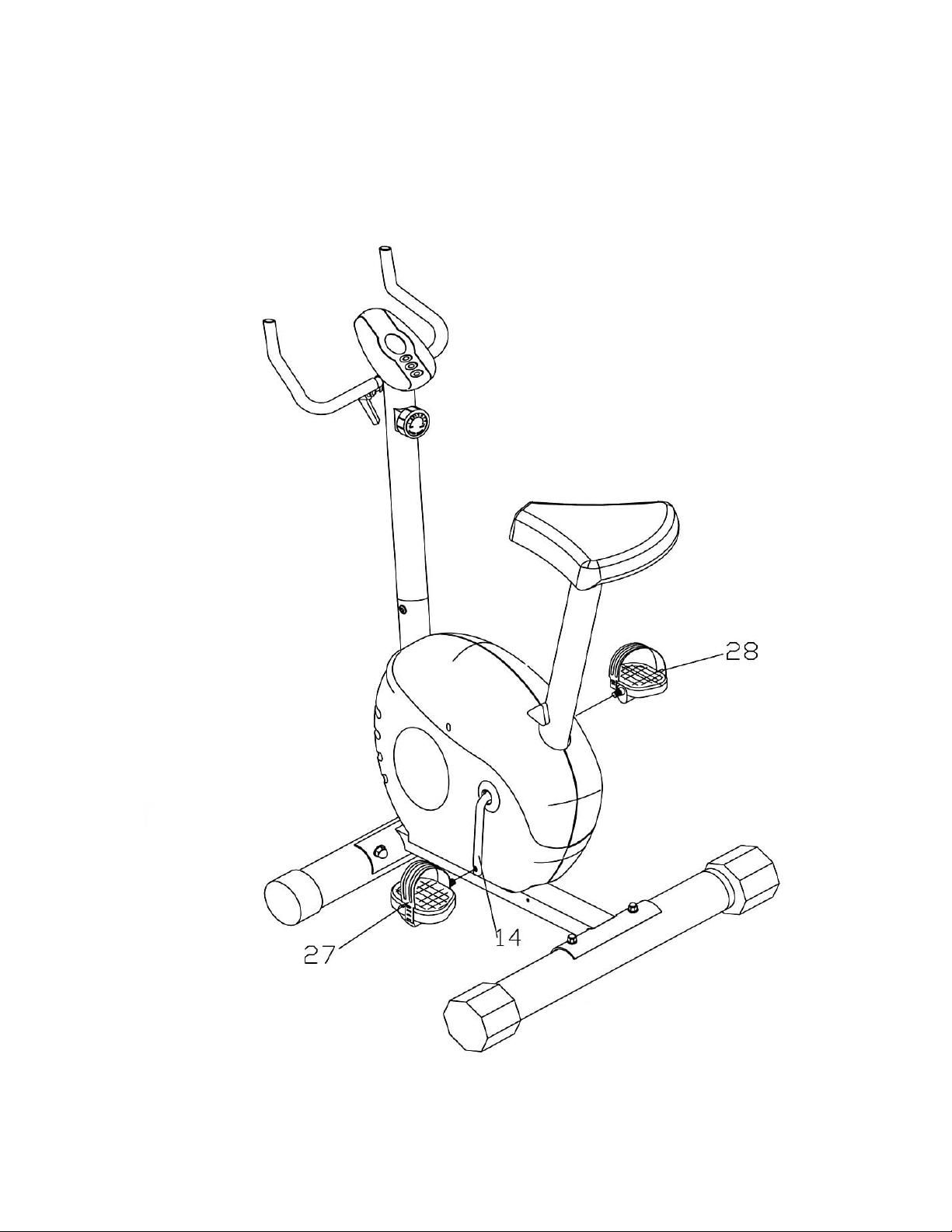

Diagram 1

4
