Impex PL 10510 User Manual

NOTE:

Please read all instructions

carefully before using this

product

Safety Notice

Hardware Identifier

Assembly Instruction

Parts List

Warranty

Ordering Parts

MARCY BODY CYCLE

PL-10510

Model

PL 10510

Retain This

Manual for

Reference

06-12-02

OWNER'S

MANUAL

IMPEX FITNESS PRODUCTS

14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746

Tel: [phone] Fax: [phone]

www.impex-fitness.com

[e-mail]

TABLE OF CONTENTS

BEFORE YOU BEGIN...................................................................................…. 1

IMPORTANT SAFETY NOTICES..................................................................…. 2

HARDWARE IDENTIFIER.....…....................................................................…. 3

ASSEMBLY INSTRUCTIONS........................................................................…. 4

EXPLODED DIAGRAM………………………………………………………………. 8

PARTS LIST...................................................................................................…. 9

COMPUTER................................................................................................…… 10

WARRANTY.................................................................................................…. 11

ORDERING PARTS.......................................................................................… 11

BEFORE YOU BEGIN

Thank you for selecting the MARCY Body Cycle Fan Bike PL-10510 by
IMPEX FITNESS PRODUCTS. For your safety and benefit, read this
manual carefully before using the machine. As a manufacturer, we are
committed to provide you complete customer satisfaction. If you have any
questions, or find there are missing or damaged parts, we guarantee you
complete satisfaction through direct assistance from our factory. To avoid
unnecessary delays, please call our TOLL-FREE customer service number.
Our Customer Service Agents will provide immediate assistance to you.

Toll-Free Customer Service Number

1-800-999-8899

Mon. - Fri. 9 a.m. - 5 p.m. PST

www.impex-fitness.com

[e-mail]

1

IMPORTANT SAFETY NOTICE

PRECAUTIONS

This exercise machine is built for optimum safety. However, certain precautions apply
whenever you operate a piece of exercise equipment. Be sure to read the entire manual
before you assemble or operate your machine. In particular, note the following safety
precautions:

1. Keep children and pets away from the machine at all times. DO NOT leave

children unattended in the same room with the machine.

2. Only one person at a time should use the machine.

3. If the user experiences dizziness, nausea, chest pain, or any other abnormal
symptoms, STOP the workout at once. CONSULT A PHYSICIAN IMMEDIATELY.

4. Position the machine on a clear, leveled surface. DO NOT use the machine near water
or outdoors.

5. Keep hands away from all moving parts.

6. Always wear appropriate workout clothing when exercising. DO NOT wear robes or
other clothing that could become caught in the machine. Running or aerobic shoes are
also required when using the machine.

7. Use the machine only for its intended use as described in this manual. DO NOT use
attachments not recommended by the manufacturer.

8. Do not place any sharp object around the machine.

9. Disabled person should not use the machine without a qualified person or physician in
attendance.

10. Before using the machine to exercise, always do stretching exercises to properly warm
up.

11. Never operate the machine if the machine is not functioning properly.

12. The Maximum Weight Capacity is 300 lbs.

13. Read all warnings posted on the exercise bike.

14. Inspect the exercise bike for worn or loose component prior to use. Tighten/replace
any loose or wore components prior to use.

15. Care should be taken in mounting or dismounting the exercise bike.

16. This exercise bike is only for consumer use only.

WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR
PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE
OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL
INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC. ASSUMES
NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY DAMAGE
SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT.

SAVE THESE INSTRUCTIONS.

2

3

ASSEMBLY INSTRUCTION

Tools Required Assembling the Machine: Two Adjustable Wrenches and Allen
Wrenches
NOTE: It is strongly recommended this machine be assembled by two or more
people to avoid possible injury.

STEP 1 (See Diagram1)

A.) Attach the Front Stabilizer (#13) to the Main Frame (#1). Secure it with two M8 x 2 ½”

Carriage Bolts (#15), ∅ 5/8” Bent Washers (#14), and M8 Acorn Nuts (#16).

B.) Insert the Rear Stabilizer (#10) into the rear bottom of Main Frame (#1). Secure it with

three M8 x 5/8” Allen Bolts (#12) and ∅ 5/8” W ashers (#11).

Diagram 1

4

STEP 2 (See Diagram 2)

A.) Insert the Axle (# 4) into the Pivot on the Main Frame (#1). Attach the Left and Right

Handlebars (#2) & (#31) onto the Axle from both sides. Secure the Axle with two ∅
7/8” Washers (#7) and M8 Nylon Nuts (#8). Close both ends with two plastic Axle End
Caps (#9).

B.) Insert the Lower Handlebar (#3) into the Left Handlebar (#2). Secure it with two M6 x

5/8” Allen Bolts (#6) and ∅½” Washers (#5). Repeat same procedure to install the
other side.

DIAGRAM 2

5

STEP 3 (See Diagram 3)

A.) Insert a Bushing (#28) into the hole on the Connecting Rod (#25). Attach the Rod to

the Crank and align the hole. Attach a Spacer (#29) to the Bushing. Then thread the
Left Pedal (#26) through the Rod into the Crank. Secure the Pedal with a ∅1/2”
Nylon Nut (#27).

B.) Repeat the above procedure to install the other side.

DIAGRAM 3

6

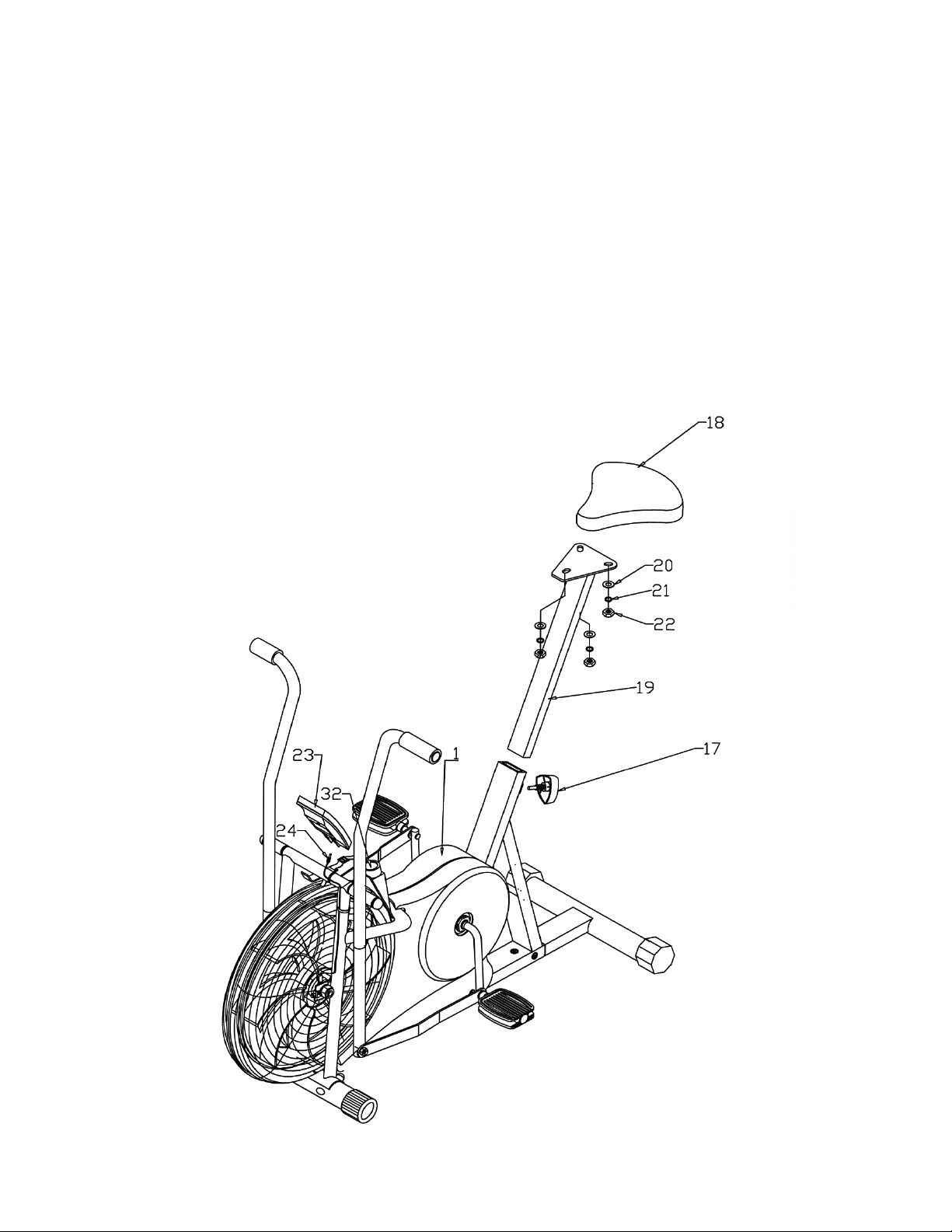

STEP 4 (See Diagram 4)

A.) Attach the Seat (#18) to the Seat Post (#19). Secure it with three Flat Washers (#20),
Spring Washers (#21) and M8 Nylon Nuts (#22).
B.) Insert the Seat Post (#19) into the opening on the Main Frame (#1). Select the Seat height

and secure it with a Lock Knob (#17).

C.) Attach the Computer (#23) onto the computer holder on the Main Frame. Plug the

Computer Sensor Wire (#24) into the back of the Computer.

D.) Use the Resistant Adjustment Knob (#32) to adjust the resistance of the Fan Bike.
E.) After completing the assembly of the bike, inspect the bike both visually and functionally.

Make sure there is no loose part and all the nuts and bolts are tightened. Then try the bike
at slow pace to make sure everything is working properly. Do not use the bike and call our
customer service specialist if anything is abnormal.

F.) Carefully review all warnings affixed to the bike and in the manual before using the bike.

DIAGRAM 4

7

8

PARTS LIST

KEY NO. DESCRIPTION QUANTITY

1 Main Frame 1
2 Left Handlebar 1
3 Lower Handlebar 2
4 Axle 1
5 ∅ ½” Washer 4
6 M6 x 5/8” Allen Bolt 4
7 ∅ 7/8” Washer 2
8 M8 Nylon Nut 2
9 Axle End Cap 2
10 Rear Stabilizer 1
11 ∅ 5/8” Washer 3
12 M8 x 5/8” Allen Bolt 3
13 Front Stabilizer 1
14 ∅ 5/8” Bent Washer 2
15 M8 x 2 ½” Carriage Bolt 2
16 M8 Acorn Nut 2
17 Lock Knob 1
18 Seat 1
19 Seat Post 1
20 Flat Washer 3
21 ∅ ½” Spring Washer 3
22 M8 Nylon Nut 3
23 Computer 1
24 Computer Sensor Wire 1
25 Connecting Rod 2
26 Left Pedal 1
27 ∅ ½” Nylon Nut 2
28 Bushing 2
29 Spacer 2
30 Right Pedal 1
31 Right Handler 1
32 Resistant Adjustment Knob 1
33 Resistant Belt 1

# 15 M8 x 2 ½” Carriage Bolt # 12 M8 x 5/8” Allen Bolt #6 M6 x 5/8” Allen Bolt

#7 ∅∅∅∅ 7/8” Washer #11 ∅∅∅∅ 5/8” Washer #20 Flat Washer #14 ∅∅∅∅ 5/8” Bent Washer

#5 ∅∅∅∅ ½” Washer #8 M8 Nylon Nut #27 ∅∅∅∅ ½” Nylon Nut #16 Acorn Nut

#17 Lock Knob

9

COMPUTER

Press “MODE” on Computer to select each function.

Functions:

• Scan: Automatically scan through each mode in sequence every 6

seconds.

• Speed: Shows the current speed up to 99.9 ML/H.

• Distance: Accumulates pedaled distance up to 99.99 ML from zero.

• Time: Accumulates total time up to 99:59.

• Calories: Accumulates calories consumption during exercise; max

value is 9999 cal.

1. The computer will automatically shut off after 4 minutes when not in
use.

2. To start the computer press “Mode” or start pedaling.

3. The Computer uses (2) AA batteries.

4. To reset the computer, press and hold down “MODE”.

Note:
This data is a rough guide for comparison of different exercise sessions
and cannot be used in medical treatment.

Maintenance and Storage

1. Inspect and tighten all parts each time you use the bike. Replace any
worn parts immediately.

2. The bike can be cleaned using a damp cloth and mild non-abrasive
detergent. Do not use solvents.

3. Lubricate the chain every six months with WD-40 or light oil.

4. Store the bike INDOOR. Excess moisture and water would cause
rust on the frame.

5. The bike shall be placed at least 24 inches away from the wall or/and
any other object such as furniture to provide safe access to and
passage around the bike.

6. To avoid possible injury, the help of two or more people are needed
when moving the bike around.

10

IMPEX INC.

LIMITED WARRANTY

IMPEX Inc. ("IMPEX") warrants this pr oduct to be f ree fr om def ects in workm ans hip and m aterial,
under normal use and service c onditions , f or a per iod of two years on the Fr ame from the date of
purchase. This warranty extends only to the original purchaser. IMPEX's obligation under this
Warranty is limited to replacing or repairing, at IMPEX's option.

All returns must be pre-authorized by IMPEX. Pre-authorization may be obtained by calling
IMPEX Customer Service Department at 1-800-999-8899. All freights on products returned to
IMPEX must be prepaid by the customer. This warranty does not extend to any product or
damage to a product caused by or attributable to freight damage, abuse, misuse, improper or
abnormal usage or repairs not provided by an IMPEX authorized service center or for produc ts
used for commercial or rental purposes. No other warranty beyond that specifically set forth
above is authorized by IMPEX.

IMPEX is not responsible or liable for indirect, special or cons equential damages aris ing out of or
in connection with the use or performance of the pr oduct or other damages with respect to any
economic loss, loss of property, loss of revenues or profits, loss of enjoyments or use, cos ts of
removal, installation or other consequential damages or whatsoever natures. Some states do not
allow the exclusion or limitation of inc idental or consequential damages. Accordingly, the above
limitation may not apply to you.

The warranty extended hereunder is in lieu of any and all other warranties and any implied
warranties of merchantability or fitness for a particular purpose is lim ited in its sc ope and duration
to the terms set forth herein. Some states do not allow limitations on how long an implied
warranty lasts. Accordingly, the above limitation may not apply to you.

This warranty gives you specific legal right. You may also have other rights which vary from state
to state.

ORDERING REPLACEMENT PARTS
Replacement parts can be order ed by calling our Custom er Ser vice Department toll-free at 1-800-

999-8899 during our regular business hours: Monday through Friday, 9 am until 5 pm Pacific

standard time.

Register on-line www.impex-fitness.com

IMPEX INC.

14777 Don Julian

City of Industry, CA 91746

[e-mail]

When ordering replacement parts, always give the following information.

1. Model

2. Description of Parts

3. Part Number

4. Date of Purchase

11
