Impex PHC-700 User Manual

NOTE:

Please read all instructions

carefully before using this

product

Table of Contents

Safety Notice

Hardware Pack

Assembly Instruction

Parts List

Warranty

Ordering Parts

POWERHOUSE BENCH

PHC-700

Model

PHC 700

Retain This

Manual for

Reference

07-19-03

OWNER'S
MANUAL

IMPEX FITNESS PRODUCTS

14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746

Tel: [phone] Fax: [phone]

www.impex-fitness.com

[e-mail]

TABLE OF CONTENTS

BEFORE YOU BEGIN...................................................................................... 1

IMPORTANT SAFETY NOTICE....................................................................... 2

HARDWARE PACK…….......…....................................................................... 3

ASSEMBLY INSTRUCTIONS........................................................................... 4

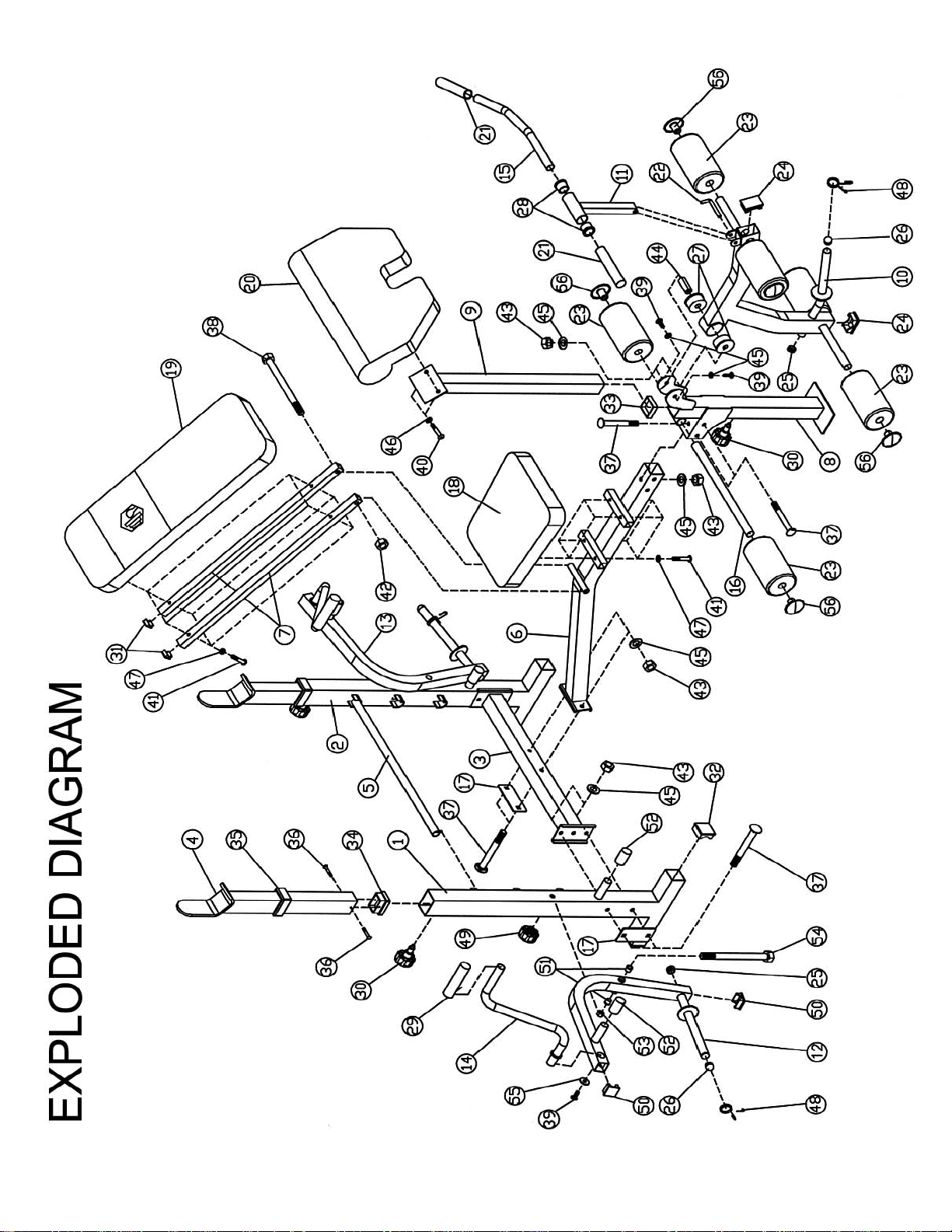

EXPLODED DIAGRAM.........................................................................………. 9

PARTS LIST…………………………………………………………………………. 10

WARRANTY.................................................................................................… 11

ORDERING PARTS......................................................................................... 11

BEFORE YOU BEGIN

Thank you for selecting the Powerhouse Bench PHC 700 by IMPEX FITNESS
PRODUCTS. For your safety and benefit, read this manual carefully before
using the machine. As a manufacturer, we are committed to provide you
complete customer satisfaction. If you have any questions, or find there are
missing or damaged parts, we guarantee you complete satisfaction through
direct assistance from our factory. To avoid unnecessary delays, please call
our TOLL-FREE customer service number. Our Customer Service Agents
will provide immediate assistance to you.

Toll-Free Customer Service Number

1-800-999-8899

Mon. - Fri. 9 a.m. - 5 p.m. PST

www.impex-fitness.com

[e-mail]

1

IMPORTANT SAFETY NOTICE

PRECAUTIONS

This exercise machine is built for optimum safety. However, certain precautions apply
whenever you operate a piece of exercise equipment. Be sure to read the entire manual
before you assemble or operate your machine. In particular, note the following safety
precautions:

1. Keep children and pets away from the machine at all times. DO NOT

leave children unattended in the same room with the machine.

2. Only one person at a time should use the machine.

3. If the user experiences dizziness, nausea, chest pain, or any other abnormal
symptoms, STOP the workout at once. CONSULT A PHYSICIAN
IMMEDIATELY.

4. Position the machine on a clear, leveled surface. DO NOT use the machine
near water or outdoors.

5. Keep hands away from all moving parts.

6. Always wear appropriate workout clothing when exercising. DO NOT wear
robes or other clothing that could become caught in the machine. Running
or aerobic shoes are also required when using the machine.

7. Use the machine only for its intended use as described in this manual. DO
NOT use attachments not recommended by the manufacturer.

8. Do not place any sharp object around the machine.

9. Disabled person should not use the machine without a qualified person or
physician in attendance.

10. Before using the machine to exercise, always do stretching exercises to
properly warm up.

11. Never operate the machine if the machine is not functioning properly.

12. A spotter is recommended during exercise.

WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR
PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE
OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL
INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC.
ASSUMES NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY DAMAGE
SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT.

SAVE THESE INSTRUCTIONS.

2

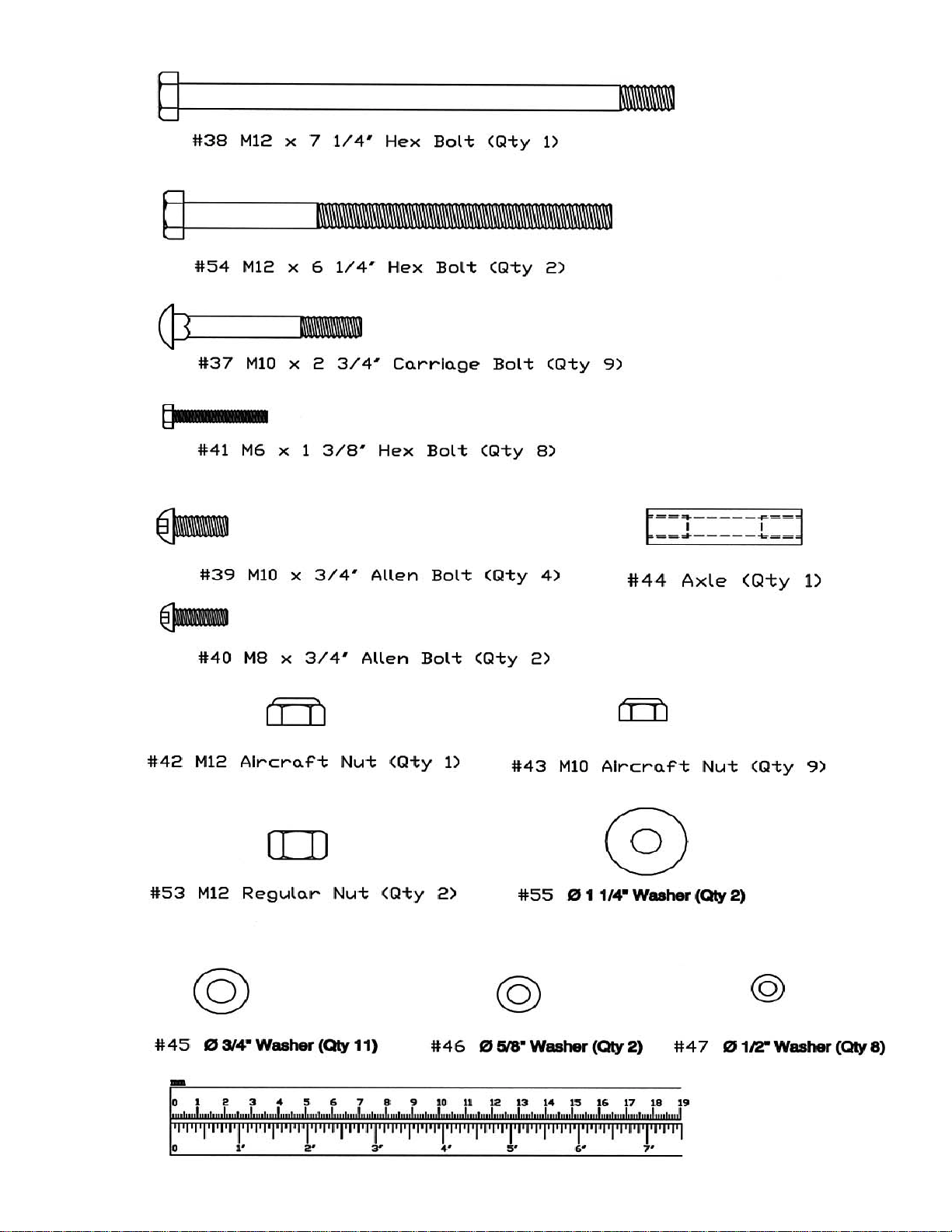

HARDWARE PACK

3

ASSEMBLY INSTRUCTION

Tools Required Assembling the Machine: Two Adjustable Wrenches and Allen
Wrenches.
NOTE: It is strongly recommended two or more people assembling this machine to
avoid possible injury.

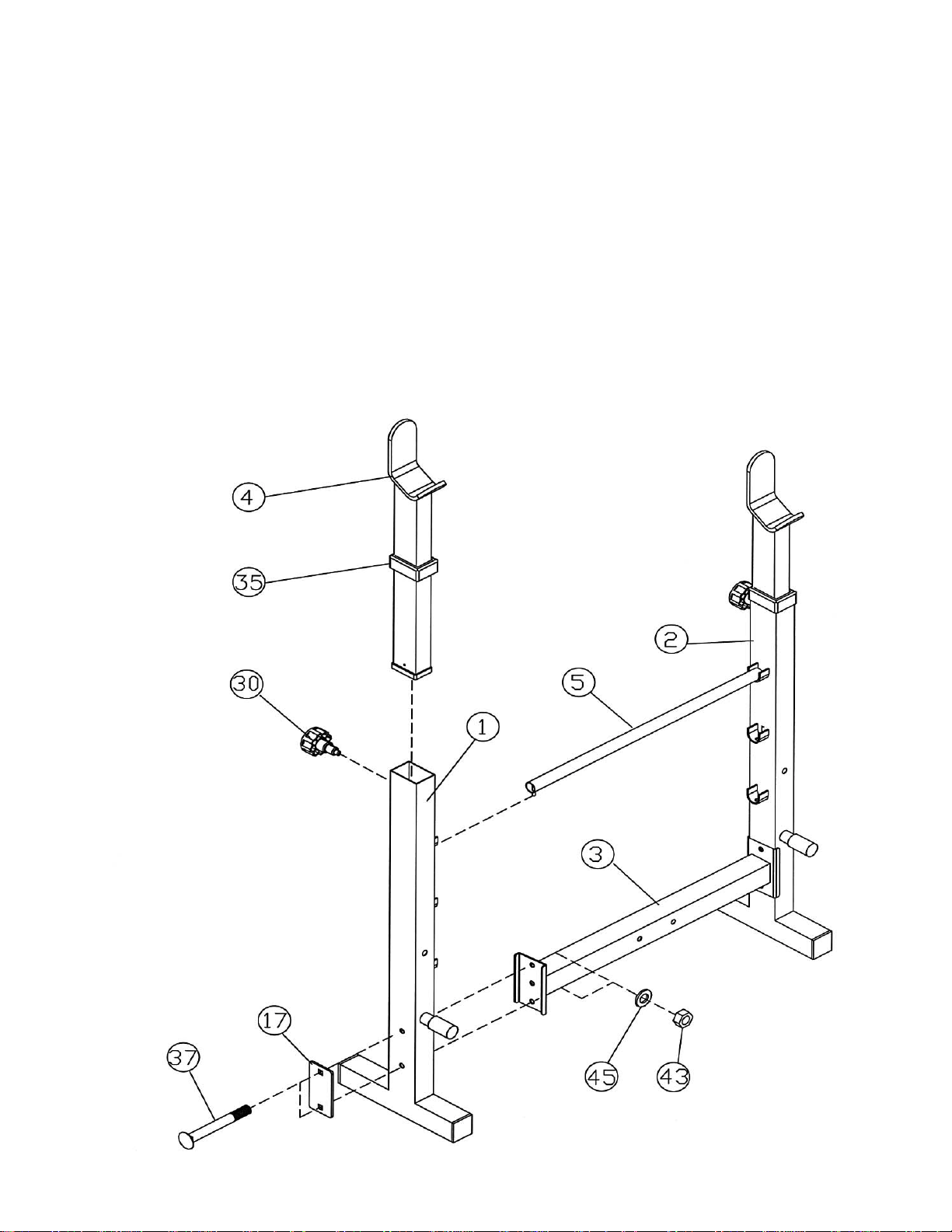

STEP 1 (See Diagram 1)

A.) Connect the Right and Left Upright Beams (#1 & 2) by a Cross Brace (#3) in the mid-

span. Align the holes and secure each end with one Bracket (#17), two M10 x 2 ¾”
Carriage Bolts (#37), two ∅ ¾” Washers (#45), and two M10 Aircraft Nuts (#43).

B.) Place Backrest Adjustment Bar (#5) between the two Upright Beams on the selected

bar holder to obtain desired incline of Backrest Board.

C.) Insert two Crutches (#4) into the top openings on the Upright Beams. Secure them with

two M18 Lock Knobs (#30) through selected holes to obtain desired height of the
Supports.

DIAGRAM 1

4

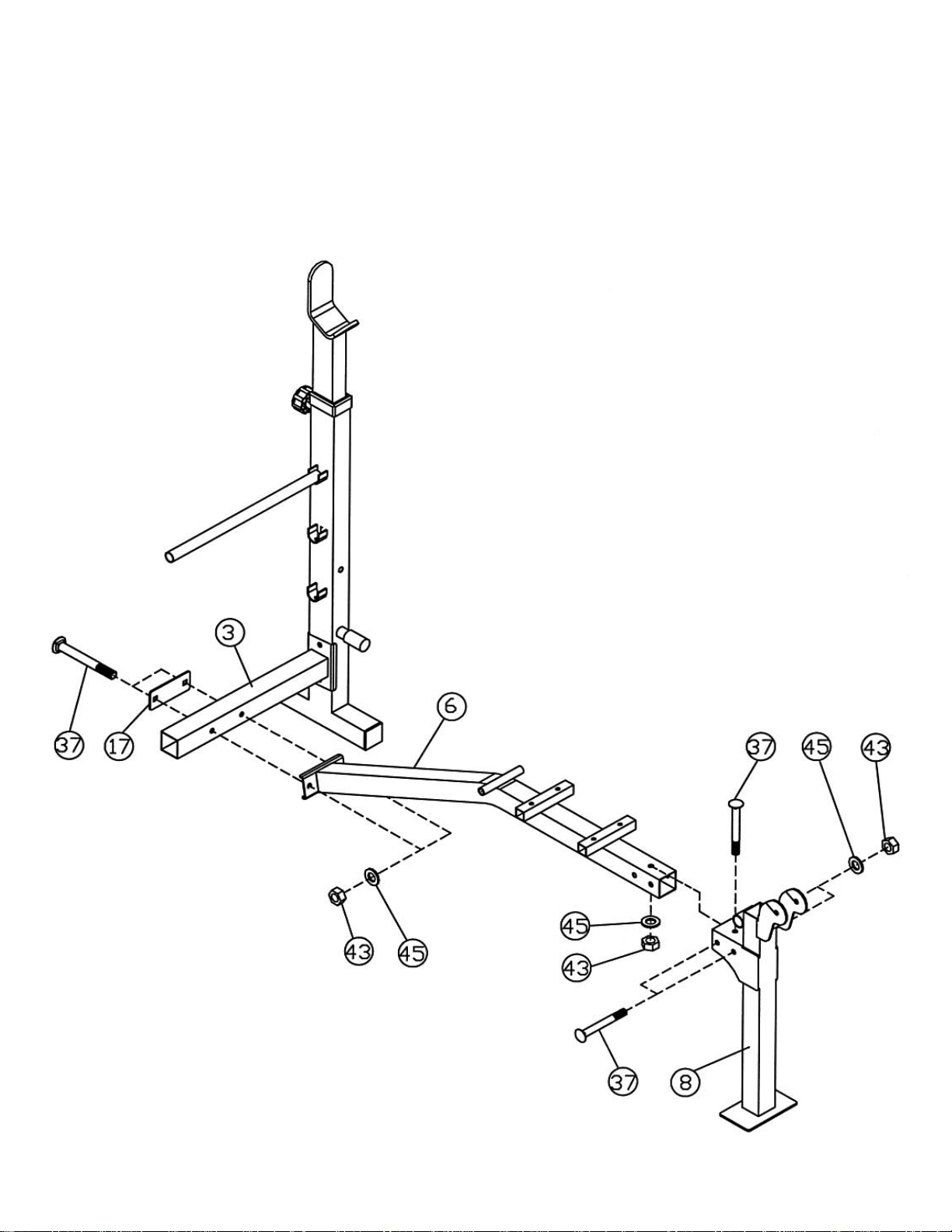

STEP 2 (See Diagram 2)

A.) Attach the Main Seat Support (#6) to the Cross Brace (#3). Secure it with a Bracket

(#17), two M10 x 2 ¾” Carriage Bolts (#37), two ∅ ¾” Washers (#45), and two M10
Aircraft Nuts (#43).

B.) Attach the Front Support (#8) to the Main Seat Support (#6). Secure it with three M10 x

2 ¾” Carriage Bolts (#37), ∅ ¾” Washers (#45), and M10 Aircraft Nuts (#43).

DIAGRAM 2

5

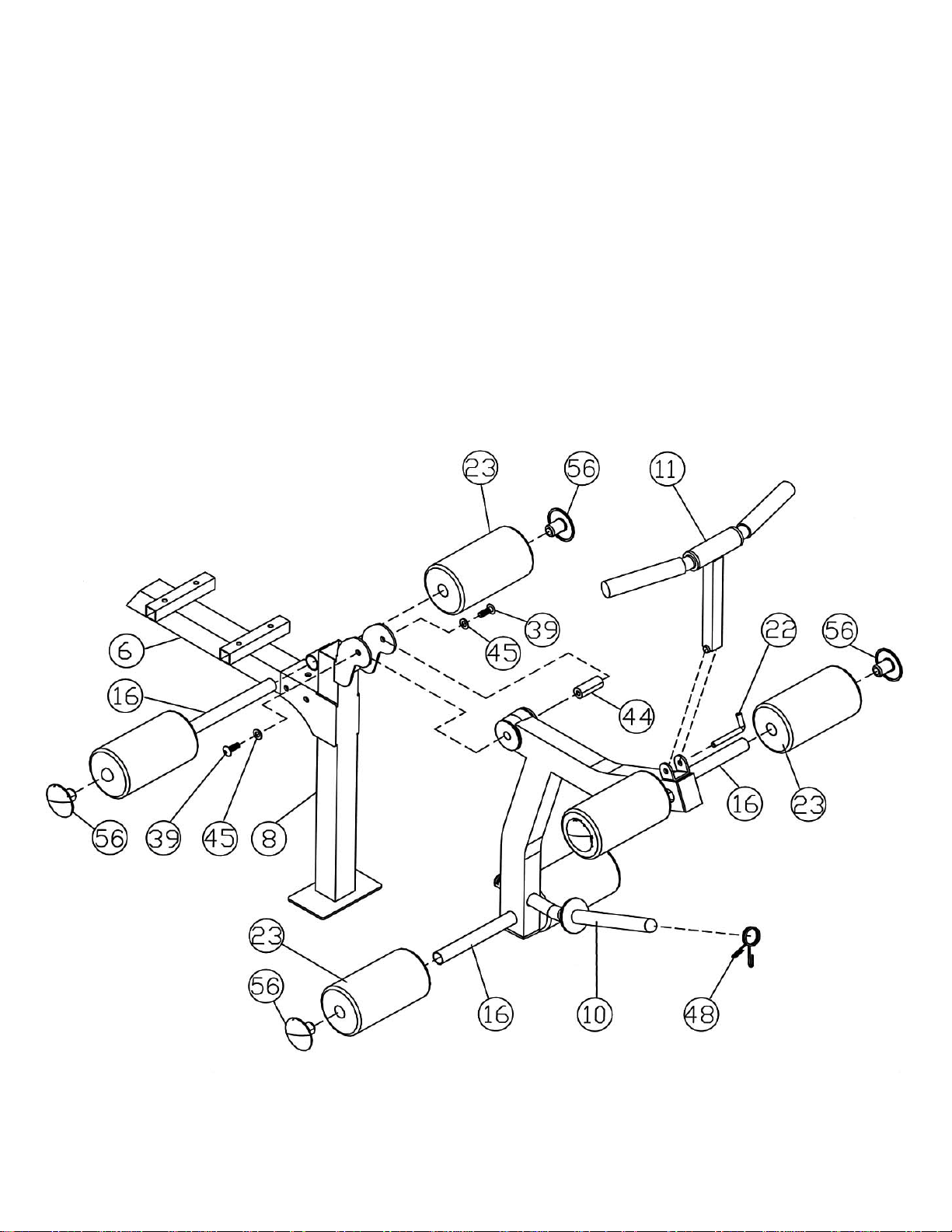

STEP 3 (See Diagram 3)

A.) Attach the Leg Developer (#10) to the open bracket on the Front Support (#8).

Secure it with an Axle (#44), two ∅ ¾” Washers (#45), and two M10 x ¾” Allen Bolts
(#39).

B.) Insert one Foam Tube (#16) halfway through the hole on the Front Support (#8).

Insert two Foam Tubes halfway through the holes on the Leg Developer. Push six
Foam Rolls (#23) onto the Foam Tubes. Plug six Foam Roll End Caps (#56) into the
ends.

C.) Attach the Curl Handle (#11) to the open bracket on the Leg Developer. Lock it with

a L-shape Pin (#22) for Arm Curl exercises. Remove the Pin when using the Leg
Developer.

D.) Attach a Spring Clip (#48) to the weight post on the Leg Developer.

DIAGRAM 3

6

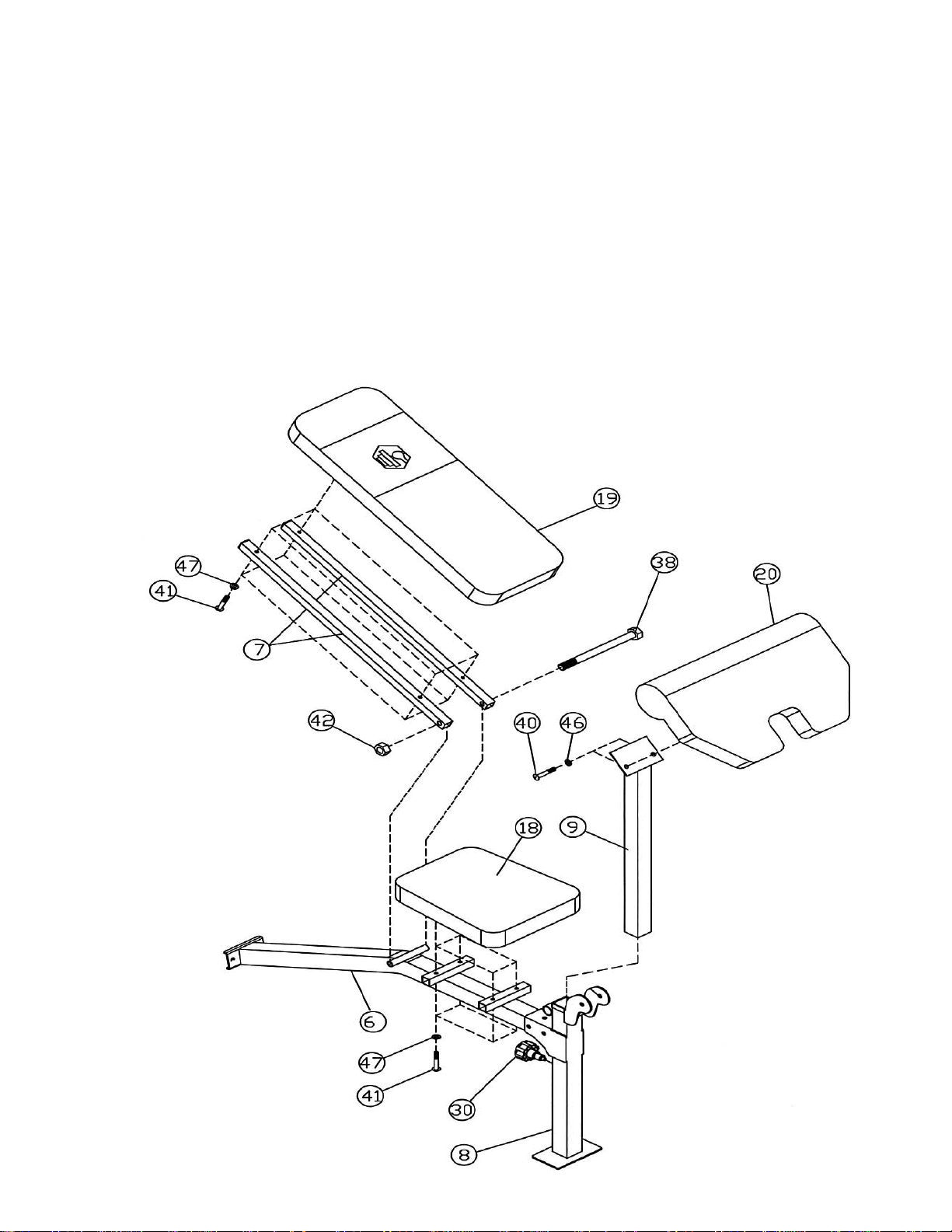

STEP 4 (See Diagram 4)

A.) Attach the hole-side of the Backrest Supports (#7) to both ends of the pivot on the

Main Seat Support (#6). Secure it with one M12 x 7 ¼” Hex Bolt (#38) and M12
Aircraft Nut (#42). Place the other end of Backrest Supports rest against the Backrest
Adjustment Bar.

B.) Place the Backrest Board (#19) onto the Backrest Supports (#7). Secure it with four

M6 x 1 3/8” Hex Bolts (#41) and ∅ ½” Washers (#47).

C.) Place the Seat (#18) onto the Main Seat Support (#6). Secure it with four M6 x 1

3/8” Hex Bolts (#41) and ∅ ½” Washers (#47).

D.) Attach the Arm Curl Pad (#20) to the Arm Curl Stand (#9). Secure it with two M8 x

¾” Allen Bolts (#40) and ∅ 5/8” Washers (#46).

E.) Insert the Arm Curl Stand (#9) into the top opening on the Front Support (#8).

Secure it with a Lock Knob (#30).

DIAGRAM 4

7

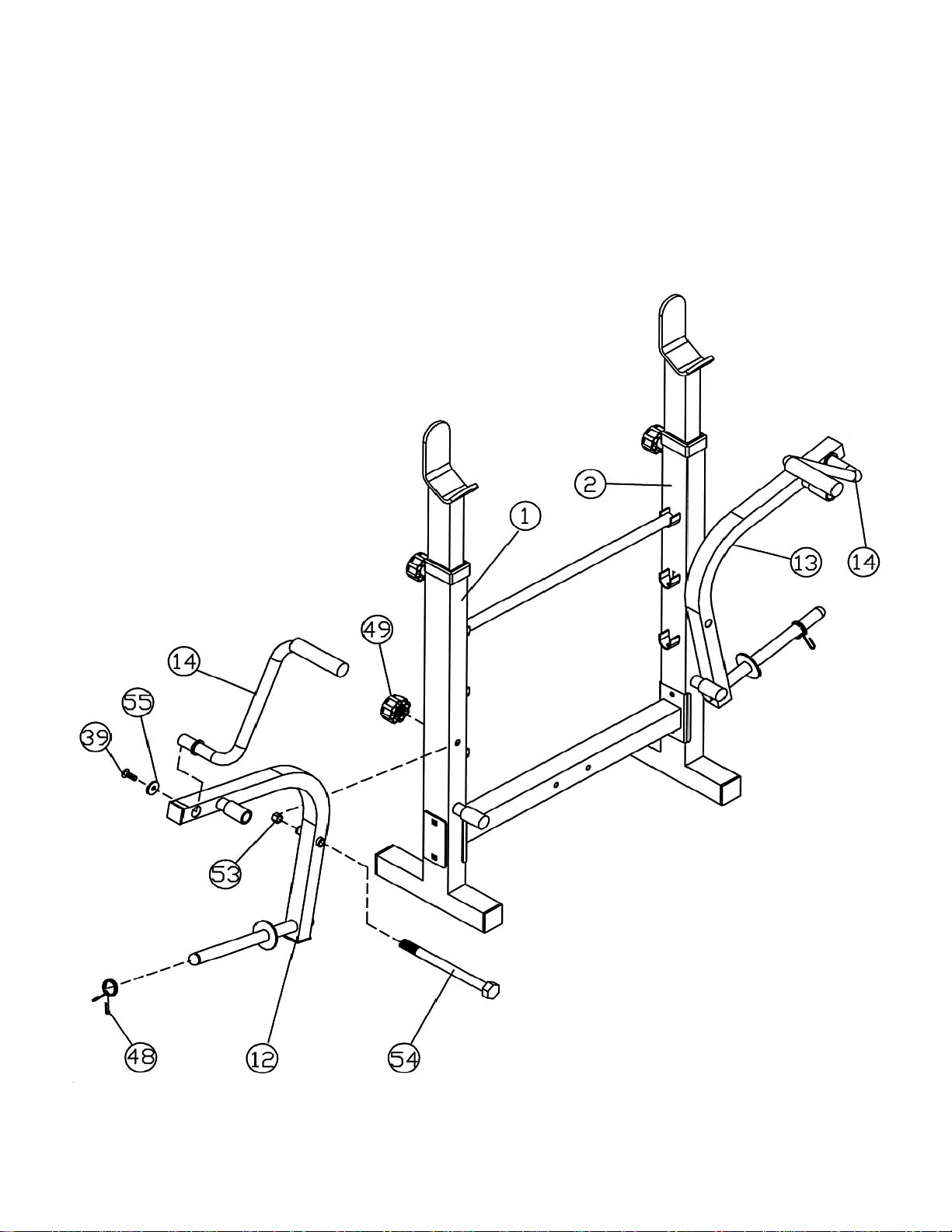

STEP 5 (See Diagram 5)

A.) Insert a M12 x 6 ¼” Hex Bolt (#54) through the Right Butterfly (#12). Secure the Bolt

with a M12 Regular Nut (#53). Insert the Bolt through the hole on the Right Upright
Beam (#1) and secure it with a M12 Lock Knob (#49).

B.) Attach the Butterfly Handle (#14) to the Right Butterfly (#12). Secure it with one M10 x

¾” Allen Bolt (#39) and ∅1 ¼” Washer (#55).
C.) Attach Spring Clip (#48) to weight post on the Butterfly.
D.) Repeat the Procedures A, B & C above to install the other side.

DIAGRAM 5

8

9

PARTS LIST

KEY NO. DESCRIPTION Q’ty

1 Right Upright Beam 1
2 Left Upright Beam 1
3 Cross Brace 1
4 Crutch 2
5 Backrest Adjustment Bar 1
6 Main Seat Support 1
7 Backrest Support 2
8 Front Support 1
9 Arm Curl Stand 1
10 Leg Developer 1
11 Curl Handle 1
12 Right Butterfly 1
13 Left Butterfly 1
14 Butterfly Handle 2
15 Curl Handle Tube 1
16 Foam Tube 3
17 Bracket 3
18 Seat 1
19 Backrest Board 1
20 Arm Curl Pad 1
21 Curl Handle Grip 2
22 L-shape Pin 1
23 Foam Roll 6
24 1 5/8” x 2 3/8” End Cap 2
25 ∅ 1” End Cap 3
26 ∅ 1” Cone-shape End Cap 3
27 Axle Bushing 2
28 Spacer 2
29 Butterfly Handle Grip 2
30 M18 Lock Knob 3
31 1” Square End Cap 2
32 2” Square End Cap 4
33 Sleeve 1
34 Inner Cap 2
35 Upright Sleeve 2
36 Philips Screw 4
37 M10 x 2 ¾” Carriage Bolt 9
38 M12 x 7 ¼” Hex Bolt 1
39 M10 x ¾” Allen Bolt 4
40 M8 x ¾” Allen Bolt 2
41 M6 x 1 3/8” Hex Bolt 8
42 M12 Aircraft Nut 1
43 M10 Aircraft Nut 9
44 Axle 1
45 ∅ ¾” Washer 11
46 ∅ 5/8” Washer 2
47 ∅ ½” Washer 8
48 Spring Clip 3
49 M12 Lock Knob 2
50 1 ½” End Cap 4
51 ∅ 5/8” Bushing 4
52 Rubber Bumper 4
53 M12 Regular Nut 2
54 M12 x 6 ¼” Hex Bolt 2
55 ∅ 1 ¼” Washer 2
56 Foam Roll End Cap 6

10

IMPEX INC.

LIMITED WARRANTY

IMPEX Inc. ("IMPEX") warrants this product to be free from defects in workmanship and material, under
normal use and service conditions, for a period of two years on the Fram e from the date of purc hase. This
warranty extends only to the original purchaser. IMPEX's obligation under this Warranty is limited to replacing
or repairing, at IMPEX's option.

All returns must be pre- authorized by IMPEX. Pre-authorization may be obtained by calling IMPEX Custom er
Service Department at 1-800-999-8899. All f reights on products returned to IMPEX must be prepaid by the
customer. This warranty does not extend to any product or damage to a product caused by or attributable to
freight damage, abuse, misuse, im proper or abnorm al usage or repairs not provided by an IMPEX authorized
service center or for products used for commercial or rental purposes. No other warranty beyond that
specifically set forth above is authorized by IMPEX.

IMPEX is not responsible or liable for indirect, special or consequential damages arising out of or in
connection with the use or perform ance of the product or other dam ages with respect to any economic los s,
loss of property, loss of revenues or profits, loss of enjoyments or use, c osts of removal, ins tallation or other
consequential damages or whatsoever natures. Some states do not allow the exclusion or limitation of
incidental or consequential damages. Accordingly, the above limitation may not apply to you.

The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of
merchantability or fitness for a par ticular purpose is limited in its scope and duration to the term s set forth
herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above
limitation may not apply to you.

This warranty gives you specific legal right. You may also have other rights which var y from state to s tate.

Register on-line at www.impex-fitness.com

IMPEX INC.

14777 Don Julian

City of Industry, CA 91746

ORDERING REPLACEMENT PARTS

Replacement parts can be ordered by calling our Custom er Service Department toll-free at 1-800-999-8899
during our regular business hours: Monday through Friday, 9 am until 5 pm Pacific standard time.

[e-mail]

When ordering replacement parts, always give the following information.

1. Model

2. Description of Parts

3. Part Number

4. Date of Purchase

11
