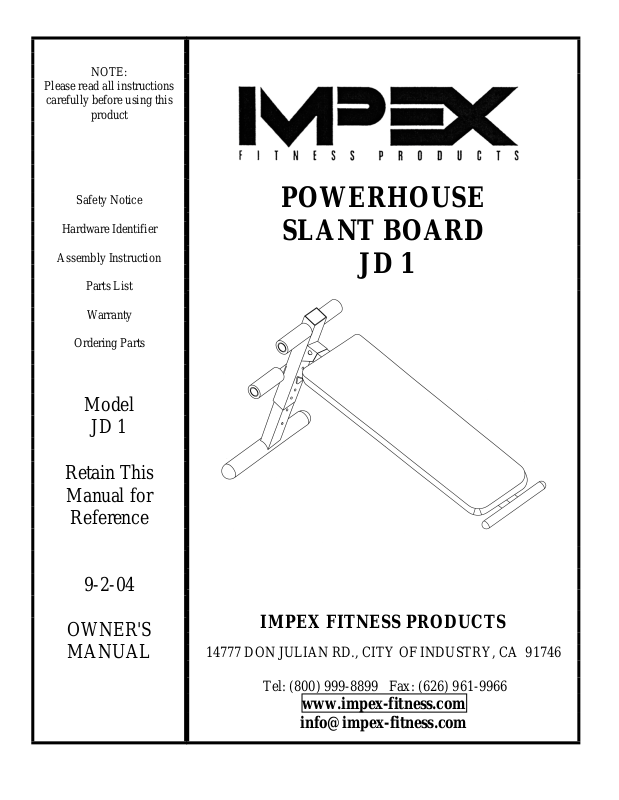

Impex JD 1 User Manual

NOTE:

Please read all instructions

carefully before using this

product

Safety Notice

Hardware Identifier

Assembly Instruction

Parts List

Warranty

Ordering Parts

POWERHOUSE

SLANT BOARD

JD 1

Model

JD 1

Retain This

Manual for

Reference

9-2-04

OWNER'S

MANUAL

IMPEX FITNESS PRODUCTS

14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746

Tel: [phone] Fax: [phone]

www.impex-fitness.com

[e-mail]

TABLE OF CONTENTS

BEFORE YOU BEGIN...................................................................................... 1

IMPORTANT SAFETY NOTICES..................................................................... 2

HARDWARE PACK……….....…....................................................................... 3

ASSEMBLY INSTRUCTIONS........................................................................... 4

EXPLODED DIAGRAM……………………………………………………………… 4

PARTS LIST...................................................................................................... 5

WARRANTY.................................................................................................…. 6

ORDERING PARTS.......................................................................................… 6

BEFORE YOU BEGIN

Thank you for selecting the Powerhouse JD-1 Slant Board by IMPEX
FITNESS PRODUCTS. For your safety and benefit, read this
manual carefully before using the machine. As a manufacturer, we
are committed to provide you complete customer satisfaction. If you
have any questions, or find there are missing or damaged parts, we
guarantee you complete satisfaction through direct assistance from
our factory. To avoid unnecessary delays, please call our TOLL-
FREE customer service number. Our Customer Service Agents will
provide immediate assistance to you.

Toll-Free Customer Service Number

1-800-999-8899

Mon. - Fri. 9 a.m. - 5 p.m. PST

www.impex-fitness.com

[e-mail]

1111

IMPORTANT SAFETY NOTICE

PRECAUTIONS

This exercise machine is built for optimum safety. However, certain precautions
apply whenever you operate a piece of exercise equipment. Be sure to read the
entire manual before you assemble or operate your machine. In particular, note
the following safety precautions:

1. Keep children and pets away from the machine at all times. DO NOT

leave children unattended in the same room with the machine.

2. Only one person at a time should use the machine.

3. If the user experiences dizziness, nausea, chest pain, or any other abnormal
symptoms, STOP the workout at once. CONSULT A PHYSICIAN
IMMEDIATELY.

4. Position the machine on a clear, leveled surface. DO NOT use the machine
near water or outdoors.

5. Keep hands away from all moving parts.

6. Always wear appropriate workout clothing when exercising. DO NOT wear
robes or other clothing that could become caught in the machine. Running
or aerobic shoes are also required when using the machine.

7. Use the machine only for its intended use as described in this manual. DO
NOT use attachments not recommended by the manufacturer.

8. Do not place any sharp object around the machine.

9. Disabled person should not use the machine without a qualified person or
physician in attendance.

10. Before using the machine to exercise, always do stretching exercises to
properly warm up.

11. Never operate the machine if the machine is not functioning properly.

WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT
YOUR PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS
OVER THE AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH
PROBLEMS. READ ALL INSTRUCTIONS BEFORE USING ANY FITNESS
EQUIPMENT. IMPEX INC. ASSUMES NO RESPONSIBILITY FOR PERSONAL
INJURY OR PROPERTY DAMAGE SUSTAINED BY OR THROUGH THE USE
OF THIS PRODUCT.

SAVE THESE INSTRUCTIONS.

2

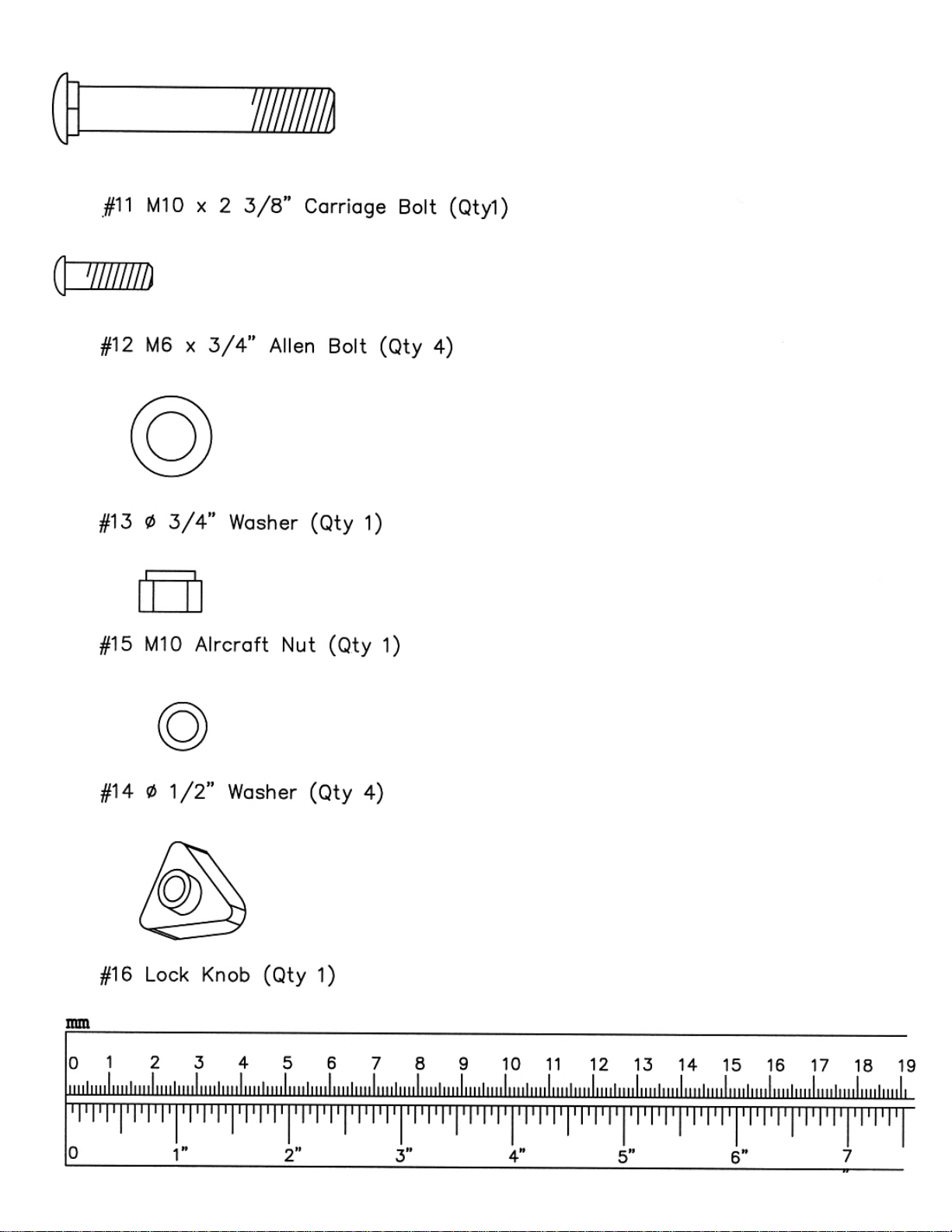

HARDWARE PACK

3

ASSEMBLY INSTRUCTION

Tools Required Assembling the Machine: Two Adjustable Wrenches and Allen
Wrenches
NOTE: It is strongly recommended two or more people assembling this machine to
avoid possible injury.

STEP 1 (See Exploded Diagram)

A.) Attach the Main Frame (#1) to the bracket on the Front Incline Support (#2). Secure it with

one M10 x 2 3/8” Carriage Bolt (#11), Ø ¾” Washer (#13), and M10 Aircraft Nut (#15).

B.) Slide the Front Incline Support (#2) onto the Front Stabilizer (#3). Use a Lock Knob (#16)

and the Lower Foam Tube (#5) to secure the Front Incline Support at desired incline
position.

C.) Insert the Foam Tube (#4) halfway through the hole on the Front Incline Support. Push

four Foam Rolls (#10) onto the Foam Tube and the Lower Foam Tube on the Front Incline
Support from both ends.

D.) Place the Upholstery Board (#17) onto the Main Frame (#1). Secure it with four M6 x ¾”

Allen Bolts (#12) and ∅ ½” Washers (#14).

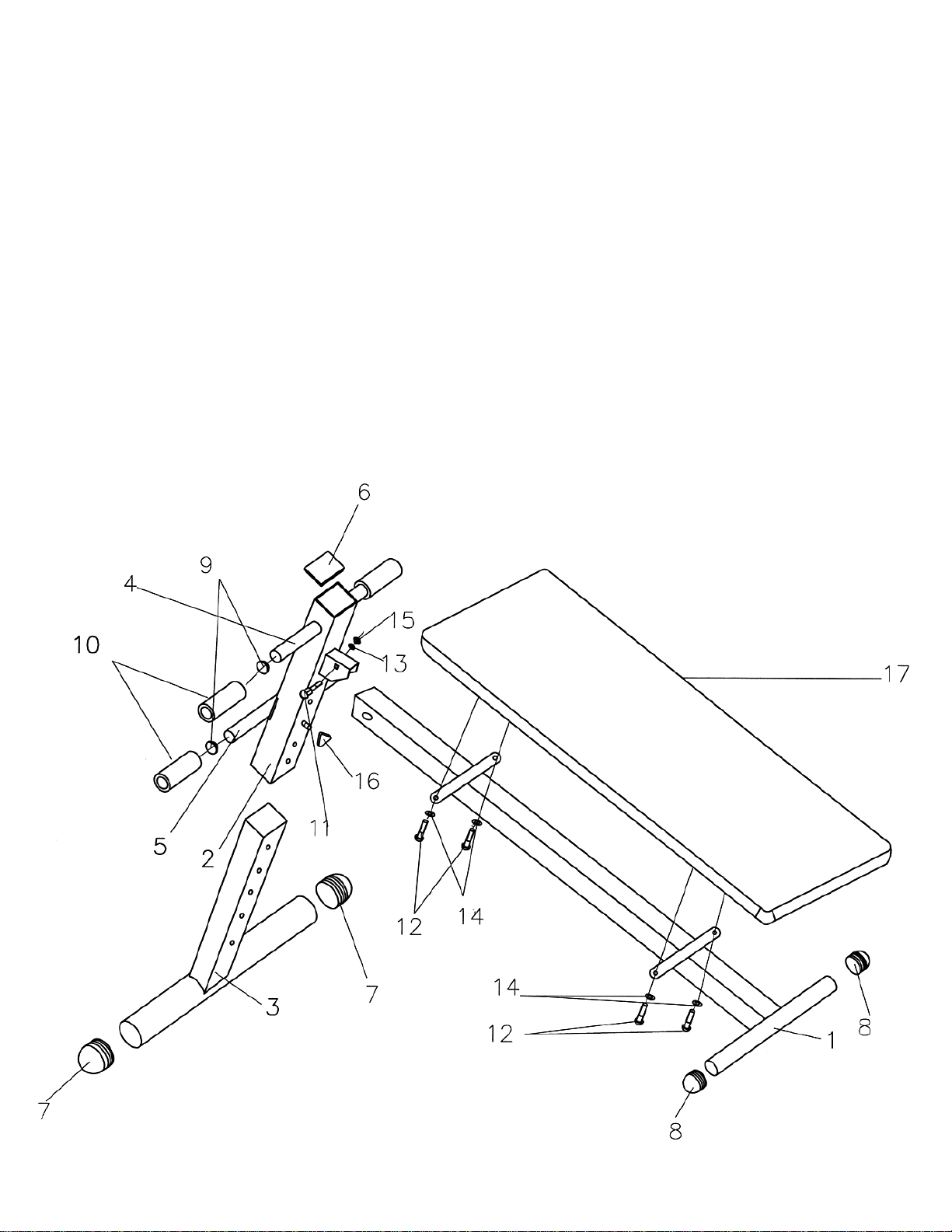

EXPLODED DIAGRAM

4

Parts list

KEY NO. DESCRIPTION Q’ty

1 Main Frame 1
2 Front Incline Support 1
3 Front Stabilizer 1
4 Foam Tube 1
5 Lower Foam Tube 1
6 2” Square End Cap 1
7 ∅ 2” End Cap 2
8 ∅ 1 ½” End Cap 2
9 Ø 1” End Cap 4
10 Foam Roll 4
11 M10 x 2 3/8” Carriage Bolt 1
12 M6 x ¾” Allen Bolt 4
13 Ø ¾” Washer 1
14 Ø ½” Washer 4
15 M10 Aircraft Nut 1
16 Lock Knob 1
17 Upholstery Board 1

5

IMPEX INC.

LIMITED WARRANTY

IMPEX Inc. ("IMPEX") warrants this pr oduct to be f ree fr om def ects in workm ans hip and m aterial,
under normal use and service c onditions , f or a per iod of two years on the Fr ame from the date of
purchase. This warranty extends only to the original purchaser. IMPEX's obligation under this
Warranty is limited to replacing or repairing, at IMPEX's option.

All returns must be pre-authorized by IMPEX. Pre-authorization may be obtained by calling
IMPEX Customer Service Department at 1-800-999-8899. All freights on products returned to
IMPEX must be prepaid by the customer. This warranty does not extend to any product or
damage to a product caused by or attributable to freight damage, abuse, misuse, improper or
abnormal usage or repairs not provided by an IMPEX authorized service center or for produc ts
used for commercial or rental purposes. No other warranty beyond that specifically set forth
above is authorized by IMPEX.

IMPEX is not responsible or liable for indirect, special or cons equential damages aris ing out of or
in connection with the use or performance of the pr oduct or other damages with respect to any
economic loss, loss of property, loss of revenues or profits, loss of enjoyments or use, cos ts of
removal, installation or other consequential damages or whatsoever natures. Some states do not
allow the exclusion or limitation of inc idental or consequential damages. Accordingly, the above
limitation may not apply to you.

The warranty extended hereunder is in lieu of any and all other warranties and any implied
warranties of merchantability or fitness for a particular purpose is lim ited in its sc ope and duration
to the terms set forth herein. Some states do not allow limitations on how long an implied
warranty lasts. Accordingly, the above limitation may not apply to you.

This warranty gives you specific legal right. You may also have other rights which vary from state
to state.

IMPEX INC.

14777 Don Julian

City of Industry, CA 91746

ORDERING REPLACEMENT PARTS
Replacement parts can be order ed by calling our Custom er Ser vice Department toll-free at 1-800-

999-8899 during our regular business hours: Monday through Friday, 9 am until 5 pm Pacific

standard time.

www.impex-fitness.com
[e-mail]

When ordering replacement parts, always give the following information.

1. Model

2. Description of Parts

3. Part Number

4. Date of Purchase

6
