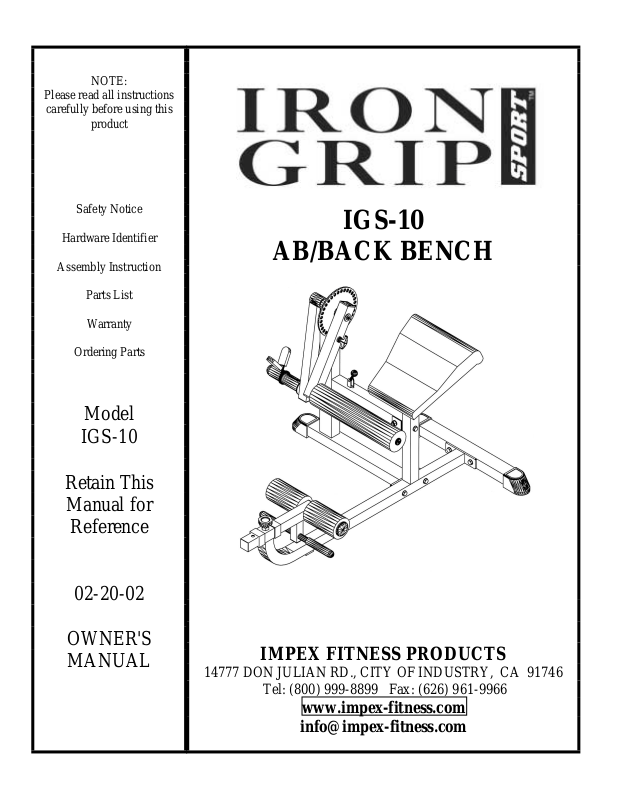

Impex IGS-10 User Manual

NOTE:

Please read all instructions

carefully before using this

product

Safety Notice

Hardware Identifier

Assembly Instruction

Parts List

Warranty

Ordering Parts

IGS-10

AB/BACK BENCH

Model

IGS-10

Retain This

Manual for

Reference

02-20-02

OWNER'S

MANUAL

IMPEX FITNESS PRODUCTS

14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746

Tel: [phone] Fax: [phone]

www.impex-fitness.com

[e-mail]

TABLE OF CONTENTS

BEFORE YOU BEGIN...................................................................................... 1

IMPORTANT SAFETY NOTICES..................................................................... 2

HARDWARE IDENTIFIER.....…....................................................................... 3

ASSEMBLY INSTRUCTIONS........................................................................... 4

EXPLODED DIAGRAM……………………………………………………………... 7
PARTS LIST……………………………………………………………………….. 8

WARRANTY.................................................................................................… 9

ORDERING PARTS......................................................................................... 9

BEFORE YOU BEGIN

Thank you for selecting the IRON GRIP SPORT IGS-10 Ab/Back Bench
by IMPEX FITNESS PRODUCTS. For your safety and benefit, read this
manual carefully before using the machine. As a manufacturer, we are
committed to provide you complete customer satisfaction. If you have
any questions, or find there are missing or damaged parts, we guarantee
you complete satisfaction through direct assistance from our factory. To
avoid unnecessary delays, please call our TOLL-FREE customer
service number. Our Customer Service Agents will provide immediate
assistance to you.

Toll-Free Customer Service Number

1-800-999-8899

Mon. - Fri. 9 a.m. - 5 p.m. PST

www.impex-fitness.com

[e-mail]

1

IMPORTANT SAFETY NOTICE

PRECAUTIONS

This exercise machine is built for optimum safety. However, certain precautions
apply whenever you operate a piece of exercise equipment. Be sure to read the
entire manual before you assemble or operate your machine. In particular, note the
following safety precautions:

1. Keep children and pets away from the machine at all times. DO NOT

leave children unattended in the same room with the machine.

2. Only one person at a time should use the machine.

3. If the user experiences dizziness, nausea, chest pain, or any other abnormal
symptoms, STOP the workout at once. CONSULT A PHYSICIAN
IMMEDIATELY.

4. Position the machine on a clear, leveled surface. DO NOT use the machine
near water or outdoors.

5. Keep hands away from all moving parts.

6. Always wear appropriate workout clothing when exercising. DO NOT wear
robes or other clothing that could become caught in the machine. Running
or aerobic shoes are also required when using the machine.

7. Use the machine only for its intended use as described in this manual. DO
NOT use attachments not recommended by the manufacturer.

8. Do not place any sharp object around the machine.

9. Disabled person should not use the machine without a qualified person or
physician in attendance.

10. Before using the machine to exercise, always do stretching exercises to
properly warm up.

11. Never operate the machine if the machine is not functioning properly.

WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR
PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE
AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ
ALL INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC.
ASSUMES NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY
DAMAGE SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT.

SAVE THESE INSTRUCTIONS.

2

3

ASSEMBLY INSTRUCTION

Tools Required Assembling the Machine: Adjustable Wrench, Allen Wrench
and Hammer
NOTE: It is strongly recommended this machine to be assembled by two or
more people to avoid possible injury.

STEP 1 (See Diagram 1)

A.) Attach the Rear Stabilizer (#45) to the Base Frame (#1). Secure it with two M10 x

3 ½” Carriage Bolts (#48), ∅ ¾” Washers (#10) and M10 Aircraft Nuts (#11).

B.) Attach a U-shaped Bracket (#36) to the Base Frame (#1). Secure it with a M10 x

2 ¾” Allen Bolt (#44), two ∅3/4” W ashers (#10) and a M10 Aircraft Nut (#11).

C.) Attach the Main Frame (#12) to the Base Frame (#1). Secure the bottom beam

with two M10 x 2 ¾” Carriage Bolts (#35), ∅3/4” Washers (#10), and M10 Aircraft
Nuts (#11). Secure the upper beam to the U-shaped Bracket (#36) with a M10 x
2 ¾” Allen Bolts (#44), two ∅ ¾” Washers (#10), and one M10 Aircraft Nut (#11).

D.) Insert the Seat Adjustment Frame (#41) into the opening on the Base Frame

(#1). Insert a Lock Knob (#3) to secure the seat position.

E.) Insert the Foot Adjustment Frame (#5) into the opening on the front of the Base

Frame. Insert a Lock Knob (#3) to secure the position.

DIAGRAM 1

4

STEP 2 (See Diagram 2)

A.) Slide a ∅1 ½” Plastic Washer (#23) onto the axle on the Adjustment Plate (#25).

Insert the axle through the barrel on the Main Frame. Slide another ∅1 ½” Plastic
Washer (#23) onto the axle.

B.) Slide the Weight Holder Bar (#13) onto the axle. Align the holes and insert a Roll

Pin (#22) through the hole. Use a hammer to drive in the Roll Pin.

C.) Attach the Swing Arm (#34) to the axle. Secure it with a M10 x ¾” Allen Bolt (#32)

and ∅ 1 3/8” Washer (#31). Attach the T-shaped Pull Pin (#33) onto the Swing
Arm to lock the plate in position.

D.) Slide the Olympic Sleeve (#14) onto the Weight Holder (#13). Clip the Spring Clip

(#17) onto the Olympic Sleeve. Plug the Olympic Sleeve End Cap (#15) into the
end.

DIAGRAM 2

5

STEP 3 (See Diagram 3)

A.) Attach the Seat Pad (#40) to the Seat Adjustment Frame (#41). Secure it with f o ur

M8 x 1 3/8” Allen Bolts (#43) and ∅ 5/8” Washers (#42).

B.) Slide a ∅2” Washer (#49) onto the rod on the Swing Arm (#34). Push the Large

Foam Roll (#37) onto the rod. Secure it with a ∅2” End Cap (#38) and M10 x ¾”
Allen Bolt (#32).

C.) Insert two Foam Roll Tubes (#6) halfway through the holes on the Foot Adjustment

Frame (#5). Push two Foam Rolls (#8) onto the top tube. Plug two ∅1” Foam Roll
End Caps (#9) to the ends.

D.) Slide two Handle Grips onto the bottom tube.

DIAGRAM 3

6
7

PARTS LIST

KEY NO. DESCRIPTION Q’ty

1 Base Frame 1
2 2” Square Sleeve 3
3 Lock Knob 2
4 1 ¾” Square End Cap 3
5 Foot Adjustment Frame 1
6 Foam Roll Tube 2
7 Handle Grip 2
8 Foam Roll 2
9 ∅ 1” Foam Roll End Cap 2
10 ∅ ¾” Washer 8
11 M10 Aircraft Nut 6
12 Main Frame 1
13 Weight Holder Bar 1
14 Olympic Sleeve 1
15 Olympic Sleeve End Cap 1
16 Spring Clip Sleeve 2
17 Spring Clip 1
18 M10 x ½” Allen Bolt 1
19 Bumper 1
20 Stopper 1
21 Spring 1
22 Roll Pin 1
23 ∅1 ½” Plastic Washer 2
24 Bearing 2
25 Adjustment Plate 1
26 Lever 1
27 ∅1/2” Washer 2
28 M6 x 1 1/8” Philips Screw 1
29 M6 Aircraft Nut 1
30 2” Square End Cap 2
31 ∅ 1 3/8” Washer 1
32 M10 x ¾” Allen Bolt 2
33 T-shaped Pull Pin 1
34 Swing Arm 1
35 M10 x 2 ¾” Carriage Bolt 2
36 U-shaped Bracket 1
37 Large Foam Roll 1
38 ∅2” End Cap 1
39 1 ½” Square End Cap 1
40 Seat Pad 1
41 Seat Adjustment Frame 1
42 ∅ 5/8” Washer 4
43 M8 x 1 3/8” Allen Bolt 4
44 M10 x 2 ¾” Allen Bolt 2
45 Rear Stabilizer 1
46 Stabilizer End Cap 3
47 Stabilizer End Cap Screw 3
48 M10 x 3 ½” Carriage Bolt 2
49 ∅2” Washer 1

8

IRON GRIP SPORT

By IMPEX FITNESS PRODUCTS

LIMITED LIFE TIME WARRANTY

IMPEX FITNESS PRODUCTS ( "IMPEX") warrants this produc t to be free from defec ts in workmanship
and material, under normal us e and service conditions, for a period of LIFE T IME on the Frame and
Weld, 3 YEARS on parts, and 6 MONTHS on upholstery from the date of purchase This warranty
extends only to the original purchaser. IMPEX's obligation under this W arr anty is limited to replac ing
or repairing, at IMPEX's option.

All returns must be pre-authorized by IMPEX. Pre-authorization may be obtained by calling IMPEX
Customer Service Department at 1-800-999-8899. All f reights on products returned to IMPEX m ust be
prepaid by the customer. This warranty does not extend to any product or damage to a product caused
by or attributable to freight damage, abuse, misuse, improper or abnormal usage or repairs not
provided by an IMPEX authorized service center or for pr oducts used for heavy commerc ial or rental
purposes. No other warranty beyond that specifically set forth above is authorized by IMPEX.

IMPEX is not responsible or liable for indirect, special or c onsequential damages arising out of or in
connection with the use or perform ance of the pr oduct or other dam ages with r espect to any econom ic
loss, loss of property, loss of revenues or profits, loss of enjoyments or use, costs of removal,
installation or other consequential damages or whatsoever natures. Some states do not allow the
exclusion or limitation of incidental or consequential dam ages. Accordingly, the above limitation may
not apply to you.

The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties
of merchantability or fitness f or a partic ular purpos e is lim ited in its s cope and duration to the ter m s set
forth herein. Some st ates do not allow lim itations on how long an im plied warranty lasts. Ac cordingly,
the above limitation may not apply to you.

This warranty gives you specific legal right. You may also have other rights which vary from state to

Register on-line at www.imp ex-fitness. com

state.

IMPEX INC.

14777 Don Julian

City of Industry, CA 91746

ORDERING REPLACEMENT PARTS
Replacement parts can be ordered by calling our Custom er Service Departm ent toll-f ree at 1-800-999-

8899 during our regular business hours: Monday through Friday, 9 am until 5 pm Pacific standard

time.

[e-mail]

When ordering replacement parts, always give the following information.

1. Model

2. Description of Parts

3. Part Number

4. Date of Purchase

9
