Impex GD-800 Owner's Manual

NOTE:

Please read all instructions

carefully before using this

product

Table of Contents

Safety Notice

Hardware Pack

Assembly Instruction

Parts List

Warranty

Ordering Parts

Caribbean Lounge Chair

GD-800

®

Model

GD-800

Retain This

Manual for

Reference

11-21-06

OWNER'S
MANUAL

IMPEX® INC.

14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746

Tel: [phone] Fax: [phone]

www.impex-fitness.com

[e-mail]

TABLE OF CONTENTS

BEFORE YOU BEGIN...................................................................................... 1

IMPORTANT SAFETY NOTICES..................................................................... 2

HARDWARE IDENTIFIER……......…............................................................... 3

ASSEMBLY INSTRUCTIONS........................................................................... 5

OPERATION…………………………………………………………………………. 19

EXPLODED DIAGRAM.........................................................................………. 20

PARTS LIST...................................................................................................... 21

WARRANTY.................................................................................................…. 22

ORDERING PARTS.......................................................................................… 22

BEFORE YOU BEGIN

Thank you for selecting the Caribbean Lounge Chair GD-800 by IMPEX®. For
your safety and benefit, read this manual carefully before using the machine.
As a manufacturer, we are committed to provide you complete customer
satisfaction. If you have any questions, or find there are missing or damaged
parts, we guarantee you complete satisfaction through direct assistance from
our factory. DO NOT RETURN THE UNIT TO THE STORE! To avoid
unnecessary delays, please call our TOLL-FREE customer service number.
Our Customer Service Agents will provide immediate assistance to you.

Toll-Free Customer Service Number

1-800-999-8899

Mon. – Fri. 9 a.m. – 5 p.m. PST

www.impex-fitness.com

[e-mail]

1

IMPORTANT SAFETY NOTICE

Please read the entire manual before assembling or operating the equipment. In particular,
note the following safety precautions to reduce the likelihood of injury.

1. Children must be supervised at all times and never left unattended with the unit.

2. Make sure the surfaces are free of objects that may cause tipping over.

3. Place the equipment on level ground, not less than 6 ft (1.8 m) from any structure or
obstruction such as fence, garage, house, overhanging branches, laundry lines, or
electrical wires.

4. Lock the Caribbean Lounge Chair with the Cables when not in use.

5. Make sure bystanders are at least 5 feet away from the equipment while it is in motion. No
one should be allowed to walk close to, in front of, behind, or between moving items.

6. Keeps hands away from the pivot area.

7. Do not stand on the Caribbean Lounge Chair. This could cause the bed to tip over and
result in injury.

8. The Caribbean Lounge Chair is not designed to use by children or handicap persons.

9. Maximum user’s weight capacity 300 lbs.

10. Only one person should be using the Caribbean Lounge Chair at a time.

Care and Maintenance

1. Periodically inspect all parts. Check all nuts and bolts twice monthly during the usage
season for tightness and tighten as required. It is particularly important that this procedure
be followed at the beginning of each season.

2. Replace any worn and damaged part immediately. Check all coverings for bolts and sharp
edges twice monthly during usage season to be certain they are in place. Replace when
necessary. It is especially important to do this at the beginning of each new season.

3. Use mild household spray cleaners and/or a damp rag to wipe clean. Do not use harsh
cleaning chemicals.

4. Sand rusted areas on tubular members and repaint using a nonlead-based paint meeting
the requirements of Title 16 CFR Part 1303.

5. Disposal Instructions – The equipment can be safely disassembled and disposed without
unreasonable hazards. Call your local recycle agency regarding details of recycling.

6. Inspect before and periodically during use for frayed ropes and torn seam. Call the
customer service department if any defects were found.

7. Inspect before and periodically during use for excessive rust, integrity of the welds, and
twist in hanging hardware. Call the customer service department if any defects were
found.

SAVE THESE INSTRUCTIONS.

2

WARNING LABEL PLACEMENT

3

HARDWARE IDENTIFIER

Part# Description Identifier

#12 Ø ¾” Washer (Qty 6)
#13 Ø 5/8” Curved Washer (Qty 8)

#14 Ø 5/8” Lock Washer (Qty 8)

#15 M8 x ¾” Allen Bolt (Qty 12)

#16 M10 x ¾” Allen Bolt (Qty 12)

#17 Ø ¾” Lock Washer (Qty 12)
#18 Ø ¾” Curved Washer (Qty 6)

#20 Ø 1 1/8” Cover Cap (Qty 14)

#21 M12 x 4 ½” Allen Bolt (Qty 4)

#22 Ø1” Washer (Qty 8)
#23 M12 Aircraft Nut (Qty 4)
#27 Ø 5/8” Washer (Qty 4)
#31 M8 Aircraft Nut (Qty 4)

#42 M6 x ½” Allen Bolt (Qty 6)

#43 Ø ½” Lock Washer (Qty 6)

Tools:

4# Allen Wrench (Qty 1)
6# Allen Wrench (Qty 1)

8# Allen Wrench (Qty 1)

4

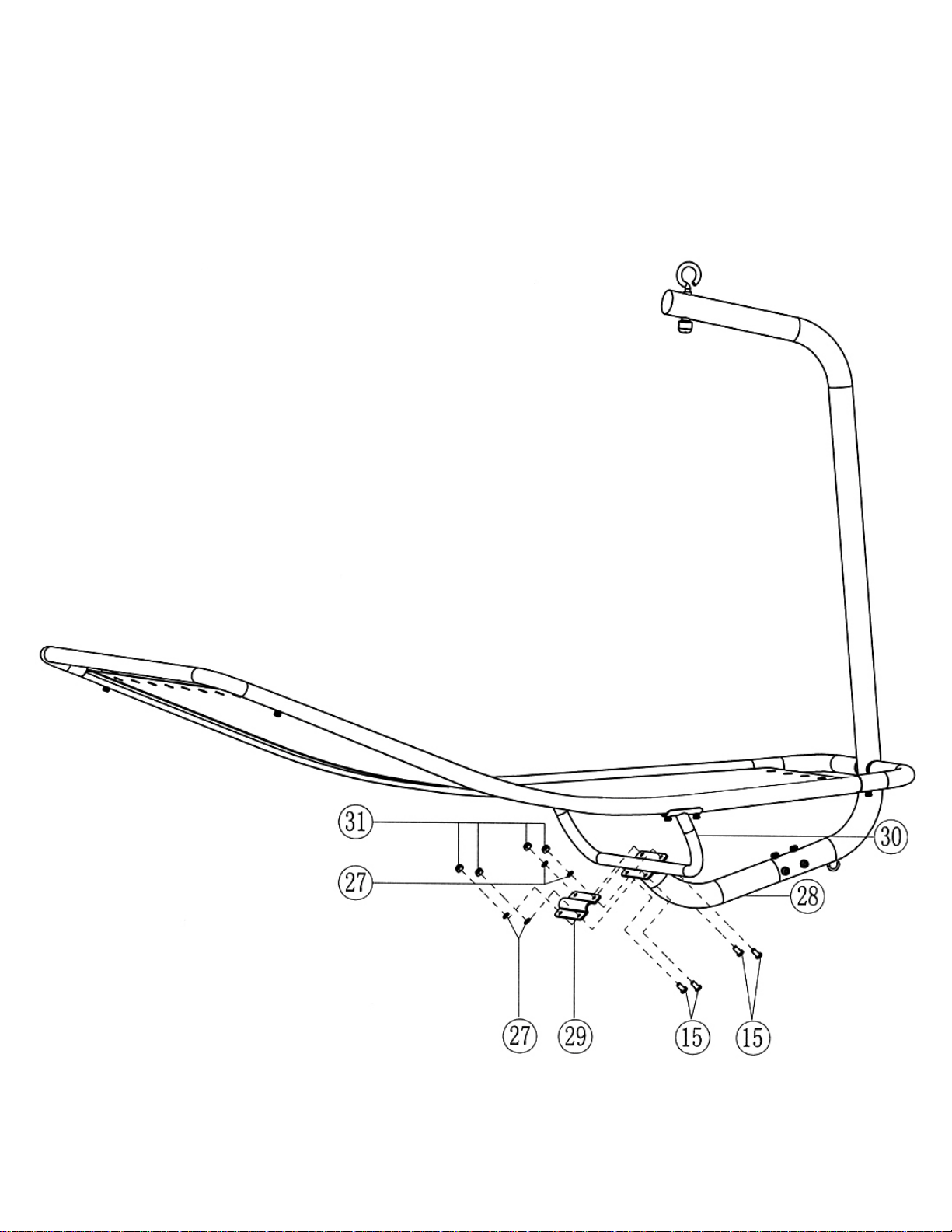

ASSEMBLY INSTRUCTION

Tools Required Assembling the Machine: Two Adjustable Wrenches and Allen Wrench
NOTE: It is strongly recommended two or more people assembling this machine to avoid
possible injury.

STEP 1-1 (See Diagram 1-1)

A.) Attach the Left & Right Main Post Support (#25 & #26) to the Main Post (#24) from each side.
B.) Align the holes and securely tighten them together with four M12 x 4 ½” Allen Bolts (#21), eight Ø 1”

Washers (#22), and four M12 Aircraft Nuts (#23).

C.) Cover all Bolts and Nuts with eight Ø 1 1/8” Cover Caps (#20). See Note on next page.

DIAGRAM 1-1

5

Note:

When installed the Ø 1” Washer, make sure the lip of the washer faces outside, away from the
frame. The groove inside the Plastic Cover should clip onto the lip of the Washer.

6
