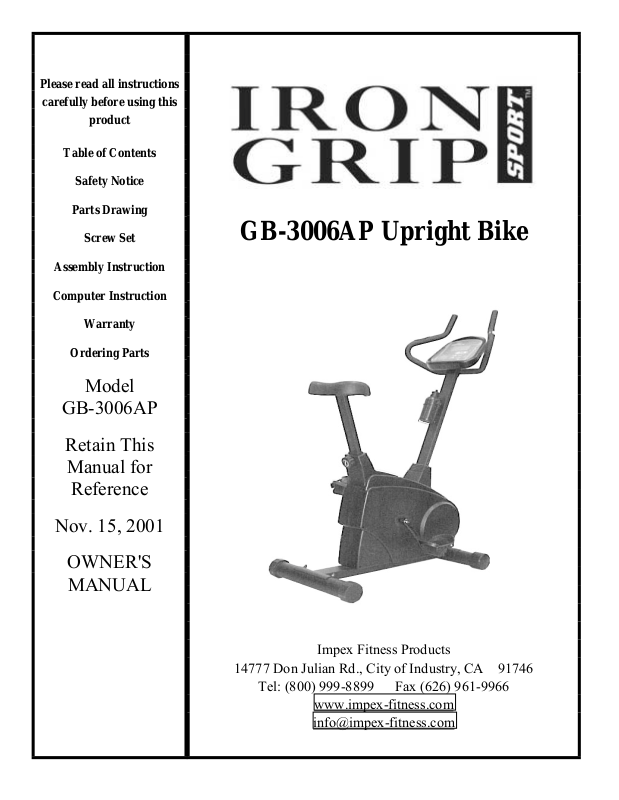

Impex GB-3006AP User Manual

Please read all instructions

carefully before using this

product

Table of Contents

Safety Notice

Parts Drawing

Screw Set

Assembly Instruction

Computer Instruction

Warranty

Ordering Parts

GB-3006AP Upright Bike

Model

GB-3006AP

Retain This

Manual for

Reference

Nov. 15, 2001

OWNER'S

MANUAL

IMPEX INC.

Impex Fitness Products

14777 Don Julian Rd., City of Industry, CA 91746

Tel: [phone] Fax [phone]

www.impex-fitness.com

[e-mail]

TABLE OF CONTENTS

BEFORE YOU BEGIN.......................................................................................................1

IMPORTANT SAFETY NOTICE........................................................................................2

PARTS DRAWING………..............................................................................................…3

SCREW SET………………….........................................................................................…4

ASSEMBLY INSTRUCTION….………………....................................................................5

COMPUTER…………...................................................................................................….10

FITNESS TIPS..................................................................................................................13

WARRANTY......................................................................................................................17

ORDERING PARTS.....................................................................................................…..17

BEFORE YOU BEGIN

Thank you for selecting the IRON GRIP SPORT GB-3006AP UPRIGHT BIKE
by IMPEX FITNESS PRODUCTS. For your safety and benefit, read this
manual carefully before using the machine. As a manufacturer, we are
committed to provide you complete customer satisfaction. If you have any
questions, or find there are missing or damaged parts, we guarantee you
complete satisfaction through direct assistance from our factory. To avoid
unnecessary delays, please call our TOLL-FREE customer service number.
Our Customer Service Agents will provide immediate assistance to you.

Toll-Free Customer Service Number

1-800-999-8899

Mon. - Fri. 9 a.m. - 5 p.m. PST

www.impex-fitness.com

[e-mail]

1

IMPORTANT SAFETY NOTICE

PRECAUTIONS

This exercise machine is built for optimum safety. However, certain precautions
apply whenever you operate a piece of exercise equipment. Be sure to read the
entire manual before you assemble or operate your machine. In particular, note the
following safety precautions:

1. Keep children and pets away from the machine at all times. DO NOT leave children
unattended in the same room with the machine.

2. Only one person at a time should use the machine.

3. If the user experiences dizziness, nausea, chest pain, or any other abnormal
symptoms, STOP the workout at once. CONSULT A PHYSICIAN IMMEDIATELY.

4. Position the machine on a clear, leveled surface. DO NOT use the machine near
water or outdoors.

5. Keep hands away from all moving parts.

6. Always wear appropriate workout clothing when exercising. DO NOT wear robes or
other clothing that could become caught in the machine. Running or aerobic shoes are
also required when using the machine.

7. Use the machine only for its intended use as described in this manual. DO NOT
use attachments not recommended by the manufacturer.

8. Do not place any sharp object around the machine.

9. Disabled person should not use the machine without a qualified person or physician in
attendance.

10. Before using the machine to exercise, always do stretching exercises to properly warm
up.

11. Never operate the machine if the machine is not functioning properly.

12. Maximum Weight – 250 LBS

WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR
PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE
OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL
INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC. ASSUMES
NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY DAMAGE SUSTAINED
BY OR THROUGH THE USE OF THIS PRODUCT.

SAVE THESE INSTRUCTIONS.

2

PARTS DRAWING:

NO. DESCRIPTION Q'TY NO. DESCRIPTION Q'TY

1 MAIN FRAME 1 PC 8 COMPUTER 1 PC

2 FRONT STABILIZER 1 PC 9 HANDLE BAR 1 PC

3 REAR STABILIZER 1 PC 10 BOTTLE FRAME 1 PC

4 COMPUTER POST 1 PC 11 BOTTLE 1 PC

5 SEAT POST 1 PC 12 PEDAL (L) 1 PC

6 SEAT 1 PC 13 PEDAL (R) 1 PC

7 COMPUTER WIRE 1 PC 14 SENSOR WIRE 1 PC

TOOLS:

BATTERY x 4 PCS
ALLEN KEY x 1 PC
SCREWDRIVER x 1 PC

3

FOLLOWING ARE THE NUTS AND BOLTS NEEDED TO
ASSEMBLE THE MACHINE. BEFORE START ASSEMBLING,
PLEASE CHECK THE Q'TY TO MAKE SURE ALL INCLUDED.

SCREW SET:

4

ASSEMBLY:

STEP 1:

Attach the FRONT STABILIZER (#2) to the
MAIN FRAME (#1). Securely tighten with two
CARRIAGE BOLTS, WASHERS AND NUTS
(B).

Attach the REAR STABILIZER (#3) to the
MAIN FRAME (#1). Securely tighten with two
CARRIAGE BOLTS, WASHERS AND NUTS
(B).

STEP 2:

Insert the COMPUTER WIRE (#4) & SENSOR
WIRE (#14) through the COMPUTER POST
(#7).

Note: The white socket of the wire must remain
on the top (RIGHT) of the POST.

STEP 3:

Connect the COMPUTER WIRE (#7) &
SENSOR WIRE (#14) with the wires from
the MAIN FRAME (#1).

5
