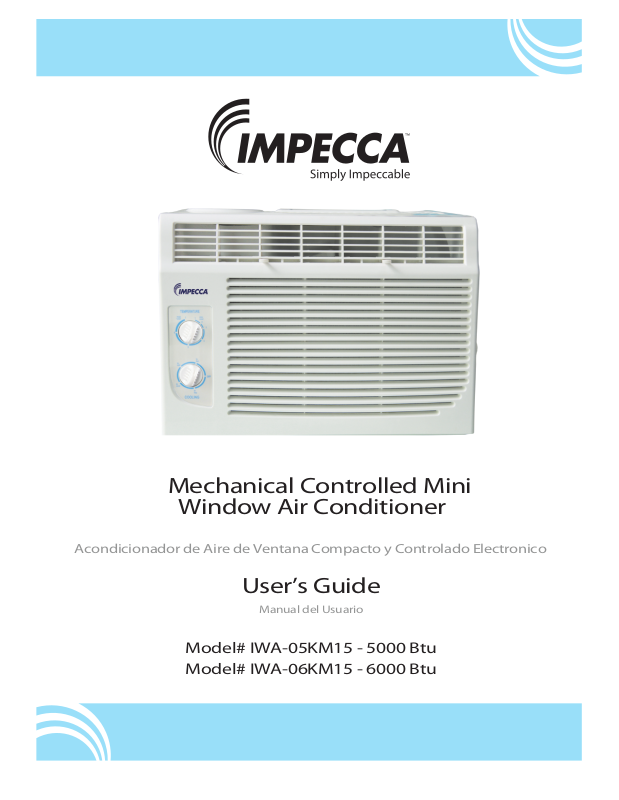

Impecca IWA05KM15 User Guide

Mechanical Controlled Mini

Window Air Conditioner

Acondicionador de Aire de Ventana Compacto y Controlado Electronico

User’s Guide

Manual del Usuario

Model# IWA-05KM15 - 5000 Btu
Model# IWA-06KM15 - 6000 Btu

1

TABLE OF CONTENTS

Introduction ........................................................................................................................................... 2

What’s In the Box ................................................................................................................................... 3

Warnings ............................................................................................................................................... 4

Cautions ................................................................................................................................................. 5

Important Safety Instructions ................................................................................................................. 6

Installation Instructions .......................................................................................................................... 7

Operation of Power Cord Current Device .............................................................................................. 11

Air Conditioner Features and Operation Instructions ............................................................................ 11

Care and Cleaning ................................................................................................................................. 16

Additional Things You Should Know ...................................................................................................... 17

Troubleshooting Tips ............................................................................................................................ 19

ESTE MANUAL ES TAMBIÉN DISPONIBLE EN ESPAÑOL Y SE PUEDE DESCARGAR EN:

WWW.IMPECCA.COM

THIS MANUAL IS ALSO AVAILABLE IN SPANISH AND CAN BE DOWNLOADED AT:

WWW.IMPECCA.COM

- 2 -

INTRODUCTION

 Whisper Quiet Operation

 2 cooling speeds / 2 fan speeds

This symbol indicates the possibility of serious injury or death.

This symbol indicates the possibility of injury and/or damage to property.

Never do this.

Always do this.

Congratulations on your purchase of the IMPECCA™ Mechanical Controlled Compact Window Air Conditioner. Before
using this product, it is recommended that you familiarize yourself with the features, functions, and operating
procedures described in this manual. Inside you will find many helpful hints on how to use and maintain your air
conditioner properly. Just a little preventive care on your part can save you a great deal of time and money over the
lifespan of your air conditioner. You will find many answers to common problems in the chart of troubleshooting tips. If
you review our chart of Troubleshooting Tips first, you may not need to call for service at all.

Features at a Glance

 Eco-Friendly Refrigerant

PRECAUTIONS

To prevent injury and/or property damage, please familiarize yourself with the following instructions and safety
precaution. Failure to comply with the instructions and cautions mentioned in this manual may cause harm or
damage. The seriousness is classified by the following indications:

IMPORTANT:

 Always contact an authorized service technician for repair or maintenance of this unit.
 This air conditioner is not intended for use by young children or infirm persons without supervision.
 Young children should be advised not to operate the air conditioner.
 If the power cord is to be replaced, replacement work should only be performed by certified or

authorized technicians.

 All electrical work must be performed in accordance with the national wiring standards and should

only be performed by authorized personnel.

Due to slight modifications in production, the instructions, features, and/or descriptions found in this manual might be
slightly different from your product.

- 3 -

WHAT’S IN THE BOX

2

1

1. AC Unit

2. User’s Guide

3. Window Installation Kit (Not shown)

Mechanical Controlled Mini

Window Air Conditioner

Acondicionador de Aire de Ventana Compacto y Controlado Electronico

User’s Guide

Manual del Usuario

Model # IWA-05KM - 5000 Btu
Model # IWA-06KM - 6000 Btu

1

- 4 -

WARNINGS

Plug in power plug

properly.

Do not start or stop the unit by

inserting or pulling out the
power plug.

Do not use a damaged or

unspecified power cord.

Failure to do so may cause
electric shock or fire due to
excess heat generation.

Doing so may cause electric
shock or fire due to surges.

If the power cord is damaged, it
must be replaced by the
manufacturer or an authorized
service center or a similarly
qualified person in order to
avoid a hazard.

Do not modify power cord

length or share the outlet
with other appliances.

Never attempt to handle the

power cord or operate the unit
with wet hands or in a damp
environment.

Failure to do so may cause
electric shock or fire due to
excess heat generation.

Serious or deadly injury may
occur due to shock. Equipment
may be damaged due to short­circuiting.

Always ensure effective
grounding of the power
plug.

Do not allow water to run into

internal electric parts.

Always install circuit breaker

and a dedicated power circuit.

Incorrect grounding may
cause electric shock.

Doing so may cause failure of
the unit and/or electric shock.

Incorrect installation may cause
fire and/or electric shock.

Unplug the unit if you

notice strange sounds,
smells, or smoke coming
from it.

Do not use the socket if it is

loose or damaged.

Do not open the unit during

operation.

Doing so may cause fire
and/or electric shock.

Doing so may cause fire and/or
electric shock.

Doing so may cause electric
shock.

Keep firearms and or

explosives away from the
unit.

Do not use the power cord

close to heating appliances.

Do not use the power cord

near flammable gas or
combustible liquids such as
benzene, thinner, gasoline, etc.

Fire and/or explosion may
occur due to excessive heat.

Fire may occur due to
excessive heat.

Fire and/or explosion may
occur due to exposure to
excessive heat.

Ventilate room before operating air

conditioner if there is a gas leakage from
another appliance.

Do not disassemble or modify unit.

Failure to ventilate room may cause explosion
or fire.

Doing so may cause failure and/or electric shock.

Never store air conditioner
upside-down or on its side.

Will cause problems with
compressor and may lead to
permanent damage.

- 5 -

CAUTIONS

When the air filter is to be

removed, do not touch the
metal parts of the unit.

Do not clean the air conditioner

with water.

Ventilate the room well when

used together with a stove, etc.

Injury may occur.

Water may enter the unit and
degrade the insulation. Electric
shock may occur.

Failure to do so may result in an
oxygen shortage.

When the unit is to be

cleaned, switch off the
unit, unplug the unit or
turn off the circuit breaker.

Do not place obstacles around

air-inlets or inside of air-outlet.

Failure to do so may cause
electric shock or fire due to
excess heat generation.

Doing so may cause failure of
appliance and/or fire due to
overheating.

Stop operation of this unit

during storms or
hurricanes.

When removing the plug from
an electrical outlet, power
down the unit first and do not
pull by the cord.

Always turn off the main power

switch when not using the unit
for extended periods of time.

Failure to do so may result
in damage as water may
seep in or electrical
overload may occur.

Failure to turn off unit first may
result in shock.

Doing so will help preserve the
lifespan of this unit.

Ensure that the installation

bracket is not damaged
due to prolonged exposure
to outdoor elements.

Always insert the filters

securely. Clean filter routinely.

Do not use strong detergents,

waxes, or thinners to clean.
Use a soft cloth instead.

If the bracket is damaged,
the unit may not be
supported properly and
could fall.

Operation without filters may
cause failure. Dirty or clogged
filters will reduce efficiency and
performance.

Appearance may be altered due
to color change or deterioration
of the surface.

Do not place heavy objects

on power cord. Always
ensure that the cord is not
compressed.

Do not drink or allow pets to
drink water drained from the
air conditioner.

Always use caution when

unpacking and installing.

Fire and/or electric shock
may occur.

Water that is discharged from
the air conditioner contains
harmful contaminants that
could cause illness or fatality.

Sharp edges could cause injury.

If water enters the unit, turn off unit, switch off the circuit breaker, and unplug.

Contact a qualified service technician. Do not operate again until the unit has been services or

inspected.

Do not direct airflow directly
at room occupants, pets or
plants.

Continued exposure to direct
airflow can cause damage to
health due to very cold air.

- 6 -

IMPORTANT SAFETY INSTRUCTIONS

The power supply cord with this air conditioner contains a current detection device designed to reduce the risk of fire.
Please refer to the “Operation of Current Device” section for more details. In the event that the power supply cord is
damaged, it cannot be repaired. It must be replaced with a new cord.

Power supply cord with 3-prong grounding plug and current detection device

Never cut, remove, or bypass the grounding prong.

Electrical Information

Be sure the electrical service is adequate for the model you have chosen. This information can be found on the serial
plate, which is located on the side of the cabinet and behind the grille.

Be sure the air conditioner is properly grounded. To minimize shock and fire hazards, proper grounding is important.
The power cord is equipped with a three-prong grounding plug for protection against shock hazards.
Do not remove any of the prongs from the power cord.

Your air conditioner must be used in a properly grounded wall receptacle. If the wall receptacle you intend to
use is not adequately grounded or protected by a time delay fuse or circuit breaker, have a qualified electrician install
the proper receptacle.

Ensure the receptacle will be accessible before installing the unit.

Do not run air conditioner without side protective cover in place. This could result in mechanical damage within
the air conditioner.

Do not use an extension cord or an adapter plug.

- 7 -

INSTALLATION INSTRUCTIONS

OFFSET

EXTERIOR
WALL

INNER
WINDOW
SILL

INTERIOR
WALL

WINDOW LAYOUT

Lower sash must open sufficiently to allow a clear
vertical opening of 13 inches (330mm). Side louvers
and the rear of the AC must have clear air space to
allow enough airflow through the condenser, for
heat removal. The rear of the unit must be
outdoors, not inside a building or garage.

Mounting Hardware

TOOLS NEEDED:

Phillips Screw Driver, Drill (if pilot holes are needed)

Caution: When handling unit, be careful to avoid
cuts from sharp metal edges and aluminum fins on
front and rear coils.

Top Rail Hardware

Top Rail

3/8” Screws

Packaging

Top Rail

Figure A

TOOLS NEEDED: Phillips Screw Driver

1: Remove the air conditioner from the carton and
place on a flat surface.

2: Remove top rail from the rear of the packaging
material as shown in Figure A.

13” min
(330 mm)

Your air conditioner is designed to install in standard double hung windows with opening widths of 23 to 36 inches
(584mm to 914mm) (See Figure 1).

Note: Save original carton and these installation
instructions for future reference. The carton is the
best way to store the unit during winter (or when
the unit will not be used for an extended period of
time). It may also be necessary if unit needs to be

sent in to a service center for repair/replacement.

- 8 -

HOW TO INSTALL

3: Align the hole in the top rail with those in the top
of the unit as shown in Figure B.

4: Secure the top rail to the unit with the 3/8”

screws as shown in Figure C.

Note: For safety reasons, all four (4) screws MUST
be securely fastened.

Slide the free end of the panel into the
cabinet as shown in Figure 3A, 3B, and 3C.
Slide the panel down. Be sure to leave
enough space to slip the top and bottom
of the frame into the rails on the cabinet.

Note: Top rail and Sliding Panels at each side are offset to provide the proper pitch to the rear of the unit
(5/16”). This is necessary for proper condensed water utilization and drainage. If you are not using the Side

Panels for any reason, this pitch to the rear must be maintained.

1. Place unit on the floor, a bench, or a table. There is a Left and Right Window Filler Panel – be sure to use the

proper panel for each side. When installed, the flange for securing the panel in place to the windowsill will be facing
into the room.

Hold the accordion panel in one hand and
gently pull back the center to free the open
end. See Figure 2

FIG.3C

- 9 -

FIGURE 4

Once the panel has been installed on the side of the cabinet,
make sure it sits securely inside the frame channel by making
slight adjustments. Slide the top and bottom ends of the
frame into the top and bottom rails of the cabinet. Figure 4

Note: If storm window blocks AC, see Figure 13

4. Place the frame lock between the frame extensions and

the windowsill (as shown in Fig. 7).

Drive ¾” (19mm) or ½”(13mm) locking screws through the

frame lock and into the sill ( See Fig. 8).

Note: To prevent windowsill from splitting, drill 1/8” (3mm)

pilot holes before driving screws.

2. Keep a firm grip on the air conditioner, and carefully place the unit into the window opening so that the bottom of

the air conditioner frame is against the windowsill (See Fig. 5). Carefully close the window behind the top rail of the
unit.

3. Extend the side panels out against the window frame (See Fig. 6).

- 10 -

5. Drive ½” (13mm) locking screws through frame holes into window sash (See Fig. 9 and Fig. 10).

7.

and lower sashes (See Fig. 12) .
Sash

Storm window
frame or other
obstruction

1 ½” Min
(38mm)

Board thickness
as required, for
proper pitch to
rear, along
entire sill.
Fasten with
nails or screws.

Removing AC from Window


 Remove sash seal from between windows

and unscrew safety lock.

 Remove screws installed through frame

and frame lock.

 Close (slide) side panels into frame.
 Keeping a firm grip on air conditioner,

raise sash and carefully “rock” air

conditioner backward to drain any
condensated water in the base of the unit.
Be careful not to spill any remaining water
while lifting unit from the window.

Fig. 9 Fig.10

6. To secure lower sash in place, attach right angle sash lock with 3/4” (19mm) or ½” (13mm) screw as

Shown. (See Fig.11).

Fig. 11

Cut foam seal to size and insert in the space between the upper

If A/C is blocked by storm window

Add wood as shown in Fig. 13, or remove storm window before air conditioner is installed.
If storm window frame must remain in place, be sure the drain holes or slots are not caulked or painted
shut. Accumulated rainwater or condensation must be allowed to drain out.

Turn A/C off and disconnect power cord.

- 11 -

OPERATION OF POWER CORD CIRCUIT BREAKER

Cooling Operation
Outdoor Temp:

Indoor Temp:

The power supply cord contains a current device/circuit breaker that senses damage to the power cord. To test your
power supply cord do the following:

1. Plug in the Air Conditioner.

2. The power supply cord will have two buttons on the plug head. Press the TEST button, you will notice a click
as the RESET button pops out.

3. Press the RESET button, again you will notice a click as the button engages.

4. The power supply cord is now supplying electricity to the unit. (On some models this it also

indicated by a light on the plug head.)

NOTES:

 Do not use the current device to turn the unit on or off.
 Always make sure the RESET button is pushed in for correct operation.
 The power supply must be replaced if it fails reset when either the TEST button is pushed, or if it cannot be

reset. A new one can be obtained by contacting technical support.

 If power supply cord is damaged, it cannot be repaired. It MUST be replaced by one obtained from the

product manufacturer.

AIR CONDITIONER FEATURES AND OPERATION INSTRUCTIONS

WARNING: To reduce the risk of fire, electric shock, or injury to persons, read the important safety instructions before
operating this appliance.

NOTE: If the air conditioner is turned off, wait 3 minutes before restarting. This allows pressure inside the compressor
to equalize. Failure to follow these instructions may result in damage to your unit.

To begin operating the air conditioner, follow these steps:

1. Set the thermostat to the highest number (coldest setting).

2. Set the selector control to the HI COOL setting.

3. Adjust the louver for comfortable airflow.

4. Once the room has cooled, adjust the thermostat to the setting you find most comfortable.

5. Make sure that the air flow inside and outside are not obstructed by anything.

NOTE: This air conditioner is designed to be operated under the following conditions:

64°F - 110°F (18°C- 43°C)
62°F - 89°F (17°C - 32°C)

Performance may be reduced if unit is operated above or below these operating temperature ranges.

- 12 -

The controls featured in this manual may be slightly different from yours.

Cool Mode

The desired cool setting is selected by rotating the COOLING knob to the right to
the appropriate location.

“HI COOL” provides maximum cooling effect and airflow

Fan Mode

Rotate the COOLING knob to the left to select your choice of fan speeds for air
circulation (Lo fan or Hi fan)

Note: When in fan mode, the compressor will not run.

Thermostat

The thermostat is used to set the desired room temperature when the unit is
being operated in HI COOL or LO COOL mode.

To set the desired room temperature, rotate the thermostat switch to the desired
setting. After the set temperature is achieved, the air conditioner will
automatically start and stop the compressor in order to maintain the desired set
temperature.

Rotate the thermostat clockwise for higher cool settings. Higher cool settings will
provide a lower room temperature. Rotate the thermostat selector counter­clockwise for lower cool settings. Lower cool settings will provide a higher room
temperature.

The louvers will allow you to direct the airflow Left or Right as
needed.

Move the levers from side to side until the desired airflow
direction is obtained.

Lever

Air Direction

“LOW COOL” provides minimum cooling effect and

airflow

Please wait for at least 3 minutes when turning the unit off before turning the unit on again and when changing from
cool to fan and back to cool again. This prevents compressor from overheating and/or tripping the circuit breaker.

Air Directional Louvers

- 13 -

CARE AND CLEANING

Clean your air conditioner occasionally to keep it looking new. Be sure to unplug the unit before
cleaning to prevent shock or fire hazards.

Air Filter Cleaning

The air filter should be checked at least once a month to see if
cleaning is necessary. Trapped particles in the filter can build
up and cause an accumulation of frost on the cooling coils.

 Remove the filter by sliding it out from the right hand

side to the Vent Closed position (where applicable).

 Wash the filter using liquid dishwashing detergent and

warm water.

 Rinse filter thoroughly.
 Gently shake excess water from the filter. Be sure the

filter is thoroughly dry before replacing.

Note: Instead of washing, you may vacuum the filter clean.
Note: Never use hot water over 40° C (104° F) to clean the air

filter. Never attempt to operate the unit without the air filter.

Cabinet Cleaning

 Be sure to unplug the air conditioner to prevent shock or

fire hazard. The cabinet and front may be dusted with an
oil-free cloth or washed with a cloth dampened in a
solution of warm water and mild liquid dishwashing
detergent. Rinse thoroughly and wipe dry.

 Never use harsh cleaners, wax or polish on the cabinet

front.

 Be sure to wring excess water from the cloth before wiping

around the controls. Excess water in or around the controls
may cause damage to the air conditioner.

 Plug in air conditioner.

Winter Storage

If you plan to store the air conditioner during the winter,
remove it carefully from the window according to the
installation instructions. Cover it with plastic or return it
to the original carton.

CAUTION

- 14 -

ADDITIONAL THINGS YOU SHOULD KNOW

High Pitched Chatter

High efficiency compressors may have a high
pitched chatter during the cooling cycle.

Sound of Rushing Air

At the front of the unit, you may
hear the sound of rushing air
being moved by the fan.

Vibration

Unit may vibrate and make
noise because of poor wall or
window construction or
incorrect installation.

Pinging or Switching

Droplets of water hitting
condenser during normal
operation may cause pinging or
switching sounds.

Gurgle/Hiss

Gurgling or hissing noise
may be heard due to
refrigerant passing
through evaporator
during normal
operation.

Normal Operating Sounds

- 15 -

TROUBLESHOOTING TIPS

PROBLEM

SOLUTION

Air conditioner does not start.

1. Wall plug may be disconnected. Push plug firmly into outlet.

2. House fuse blown or circuit breaker tripped. Replace fuse
with time delay type of fuse or reset circuit breaker.

3. Plug Current Device tripped. Press the RESET button.

4. Control is OFF. Turn Control ON and set to desired setting.

Air from unit does not feel cold enough.

1. Room temperature below 17°C (62° F). Cooling may not

occur until room temperature rises above 17° C (62° F).

2. Temperature sensing element touching cold coil, located

behind air filter. Straighten tube away from coil.

3. Reset to a higher COOL position.

4. Compressor shut-off by changing modes. Wait

approximately 3 minutes and listen for compressor to
restart when in the COOL mode.

Air conditioner cooling, but room is too
warm-ice forming on cooling coil behind
decorative front panel.

1. Outdoor temperature below 18°C (64°F). To defrost the coil,

set to FAN ONLY mode.

2. Air filter may be dirty. Clean filter. Refer to Care and

Cleaning section.

3. Thermostat set too cold for night-time cooling. To defrost

the coil set to Fan Only mode and then set temperature to a
higher setting.

Air conditioner cooling, but room is too
warm- NO ice forming on cooling coil
behind decorative front panel.

1. Dirty air filter-air restricted. Clean air filter. Refer to Care

and Cleaning section.

2. Temperature is set too high. Set temperature to a lower
setting.

3. Air directional louvers positioned improperly. Position

louvers for better air distribution.

4. Front of unit is bloked by drapes, blinds, furniture, etc. –

restricts air distribution. Clear blockage from the front of
the unit.

Air conditioner turns on and off rapidly.

1. Dirty air filter-air restricted. Clean air filter. Refer to Care

and Cleaning section.

2. Outside temperature extremely hot. Set FAN speed to a

higher setting to bring air past cooling coils more frequently.

Before calling for service, review this list. It may save you time and expense. This list includes
common occurrences that are not the result of defective workmanship or materials in this
appliance.

- 16 -

Noise when unit is cooling.

1. Air movement sound. This is normal. If noise is too loud, set

to a lower FAN setting.

2. Window vibration - poor installation. Refer to installation

instructions or check with installer.

Water dripping INSIDE when unit is
cooling.

1. Improper installation. Tilt air conditioner slightly to the

outside to allow water drainage. Refer to installation
instruction or check with installer.

Water dripping OUTSIDE when unit is
cooling.

1. Unit removing large quantity of moisture from humid room.

This is normal during excessively humid days.

Technical support
For questions not answered in this manual, or for warranty service, please contact Impecca Technical Support:

By phone: [phone] (9:00 AM to 6:00 PM Eastern Time)
By e-mail: [e-mail]
Online: www.impecca.com

© Copyright 2015 Impecca.
