Impecca IPAC08DR User Guide
Portable Air Conditioner - User Manual
Models:
IPAC06-DR (Black, 6000 BTU)
IPAC08-DR (White, 8000 BTU)
www.impecca.com
v. 0.7
ENGLISH ESPAÑOL FRANÇAIS
WARNING:
To avoid permanent damage to unit:
Ensure it is in the upright position for a MINIMUM of 6 hours and a RECOMMENDED time
of 24 hours before powering on the first time.
ADVERTENCIA:
Para evitar daños permanentes a la unidad:
Asegúrese de que está en la posición vertical durante
un mínimo de 6 horas y un tiempo recomendado de 24 horas antes de encender la primera vez.
Spanish and French versions of this manual are available for download
from www.impecca.com
NOTE: All drawings in this manual are for illustrative purposes only. The actual shape and functions of your
unit and remote controller may vary slightly.
Read the following notices and information carefully to ensure proper operation of your air conditioner unit.
This manual is solely provided for informational purposes and in no way constitutes a legally binding document between the manufacturer, distributor, and end consumer.
Lea las siguientes indicaciones cuidadosamente para asegurar el correcto funcionamiento de su unidad de aire acondicionado.
Este manual se proporciona únicamente con fines informativos y de ninguna manera constituye un documento jurídicamente vinculante entre el fabricante, distribuidor y consumidor final.
ii
TABLE OF CONTENTS
Introduction .............................................................................................................................. 6
Operating Conditions .............................................................................................................. 6
Getting To Know Your Air Conditioner .................................................................................. 7
What’s In the Box ...................................................................................................................... 8
Installation Accessory Kit Items ............................................................................................. 8
Installation Instructions .......................................................................................................... 9
Water Drainage .......................................................................................................................10
Window Slider Kit Installation .............................................................................................10
Operating Instructions ..........................................................................................................12
Control Panel and Remote Controller Displays ...............................................................14
Functions in Detail ................................................................................................................. 15
Additional Unit Features ....................................................................................................... 17
ENGLISHESPAÑOLFRANÇAIS
Handling the Remote Controller ......................................................................................... 17
Basic Unit Error Codes ...........................................................................................................18
Electrical Information ............................................................................................................18
Care & Maintenance ............................................................................................................... 19
Troubleshooting Tips ............................................................................................................ 20
Costumer Support ..................................................................................................................21
One-Year Limited Appliance Warranty (US) ....................................................................... 22
iii
ENGLISH ESPAÑOL FRANÇAIS
READ THESE NOTICES CAREFULLY—THEY ARE IMPORTANT!
WARNING
Plug in power plug completely.
• Otherwise, it may cause electric shock or
fire due to potential short circuit.
Do not modify power cord length.
• It may cause electric shock or fire. • It may cause electric shock. • This could be harmful to their health.
Always ensure eective grounding/earth-
ing.
• Incorrect or missing grounding may lead to
electric shock.
Unplug the unit if it emits strange sounds,
smells or smoke.
• Unit may need repair. • It may cause fire and electric shock. • It may cause electric shock.
Do not start or stop the unit by inserting or
pulling out the power plug.
• It may cause electric shock or fire.
Do not operate with wet hands or in a
damp environment.
Do not allow water into or onto the front of
cabinet, control panel or power cord.
• It may cause failure of unit or electric shock. • Sharing a circuit can lead to fire.
Do not plug unit into an electrical socket
that is loose or damaged.
Do not damage power cord or replace
with a non-original power cord.
• It may cause electric shock or fire.
• If the power cord is damaged, it must
be replaced by the manufacturer or an
authorized service center or a similarly
qualified person to avoid hazard.
Do not direct airflow directly at room
occupants.
Always use dedicated power outlet and
circuit breaker.
Do not operate the unit while the chas-
sis is open or removed.
Ensure the power cord is kept away from
any heating sources.
• It may cause fire and electric shock. • It may cause failure and electric shock. • It may cause an explosion or fire.
Do not disassemble or modify unit.
Do not use the power cord near
flammable gas or combustibles, such as
gasoline, benzene, paint thinner, etc.
Ventilate room before operating
air conditioner if there was a gas leakage.
• It may cause explosion, fire, and burns.
CAUTION
When the air filter is removed for cleaning,
avoid touching the internal metal parts of
the unit.
• It may cause an personal injury and/or
damage to the unit.
When the unit needs to be cleaned, power
it o and unplug it.
• Do not clean unit when power is on as it
may cause fire and electric shock and/or
personal injury.
Do not clean the air conditioner with water.
• Water may enter the unit and degrade the
insulation. It may cause an electric shock.
Do not put a pet or house plant where it
will be exposed to direct air flow.
• This could injure or be harmful
to your pet or plants.
Ventilate the room well when used
together with a stove, etc.
• An oxygen shortage may occur when
using a stove in a room with closed
windows.
Do not use for specialized purposes.
• Do not use this air conditioner to
preserve precision devices, food, pets,
plants, and art objects.
• It may cause deterioration, etc.
4
CAUTION
Stop operation and remove window filler
panels from window during severe storm or
hurricane.
• Operation during a severe storm may allow
a significant amount of water to enter the
indoors.
Do not place obstacles around air-intake
vents or inside cool air outlet.
• It may cause failure of appliance. • There is danger of fire or electric shock.
Hold the plug by the head of the power
plug when unplugging unit.
• Pulling from the wire can cause wire to fray
leading to electric shock or fire.
Do not place heavy objects on the
power cord and ensure that the cord
is not pinched or stressed.
Unplug the power cord when not using
the unit for extended periods of time.
• Will prevent damage to the unit.
Always insert the filters securely.
Clean filter at least once per month.
• Operation with dirty filters (or without
filters) will eect performance and may
cause damage to the unit.
Do not use strong detergent such as
wax or paint thinner to clean the unit.
Use a damp, so cloth.
• Appearance may deteriorate due to change
of product color or scratching of its surface.
CAUTION
ELECTRICAL INFORMATION
• Be sure your electrical wiring is adequate for the model you have chosen. This information can be found on
the rating label, a silver-colored sticker generally located on the upper-right side of the cabinet.
• Be sure the air conditioner is properly grounded. To minimize shock and fire hazards, proper grounding is
important. The power cord is equipped with a three-prong
grounding plug for protection against shock hazards.
• Your air conditioner must be connected to a properly
grounded wall receptacle. If the wall receptacle you intend to
use is not adequately grounded or protected by a time delay
NOTE: The power supply cord with this air conditioner
contains a current detection device designed to reduce the risk
of fire. In the event that the power supply cord is damaged, it
cannot be repaired -- it must be replaced with a cord from the
Product Manufacturer.
fuse or circuit breaker, have a qualified electrician install the
proper receptacle.
• Ensure the receptacle is accessible aer the unit installation. The power supply
cord contains a current device that senses damage to the power cord and excess
current draw from the unit. To test your current device do the following:
1. Plug in the Air Conditioner.
2. Press the TEST button. You will hear a click as the RESET button pops out within
the rubber housing and the LED will turn o.
3. Press the RESET button. You will hear a click as the button engages and the LED
will illuminate.
Side button
version
4. The power supply cord is now supplying electricity to the unit.
Note: Your model may have the TEST and RESET buttons on the side or the front
of the plug head.
NOTES:
• Do not use the TEST and RESET buttons to turn the unit on or o.
• If the current device fails the test or the power cord becomes damaged, the entire power cord must be replaced with an equivalent power cord and current device by a licensed electrician.
ENGLISHESPAÑOLFRANÇAIS
5
ENGLISH ESPAÑOL FRANÇAIS
INTRODUCTION
Thank you for purchasing this quality Impecca portable air conditioner unit. To ensure the longest life and highest energy eiciency of your unit, please carefully follow these operating instructions. Keep these instructions in
a safe place and consult them as needed. Please note that constant enhancement and improvements to our air
conditioning units may mean that your model will slightly dier in appearance from the model pictured in this
manual, but the actual operation and installation of the unit remains unchanged. This manual is solely provided
for informational purposes and does not constitute a binding, legal contract.
SAFETY NOTICE
This appliance should not be used by children or mentally/physically disabled persons without strict, direct supervision by a responsible adult. Never play with or around the appliance.
SAFETY INFORMATION
• Before operation, ensure your electrical installation (outlets and circuits) complies with the power specifications found on the unit.
• Before cleaning or maintaining the air conditioner, please turn o air conditioner and unplug the unit.
• Make sure the power cord isn’t kinked, bent, or under the weight of sharp or heavy objects.
• Do not pull or yank the power cord to unplug the unit or move the air conditioner.
• Do not insert or unplug the power plug with wet hands.
• Only use a grounded power outlet. Make sure the grounding is functional.
• If the power cord is damaged, it must be replaced by the manufacturer or a qualified technician in order to
avoid fire and electrical hazards.
• Should abnormal operation occur (such as a burning smell), please disconnect power cord immediately
and contact your local dealer.
• If nobody is present to monitor the operation of the unit, please turn it o and disconnect the power cord.
• Do not splash or pour water on air conditioner to avoid causing a short circuit or damage to the unit.
• Do not put or hang dripping objects above the air conditioner.
• If using a drainage hose, ensure the ambient temperature remains well above freezing (32°F or 0°C) to avoid
cracking or damaging the unit.
• Keep heat sources away from the air conditioner.
• Ensure the unit is far away from fire, inflammable, or explosive objects.
• Never allow children or persons with reduced physical, sensory, or mental capabilities to operate or play
around the air conditioner without direct adult supervision.
• Never allow children to perform cleaning or other user-maintenance operations without direct adult supervision.
• Never attempt to repair or disassemble the air conditioner by yourself.
• Never insert objects into the air conditioner.
OPERATING CONDITIONS
• The air conditioner should only be operated within the temperature range of 62°F to 95°F (16°C to 35°C).
• The appliance is for indoor use only.
• The appliance must be positioned so that the plug is accessible.

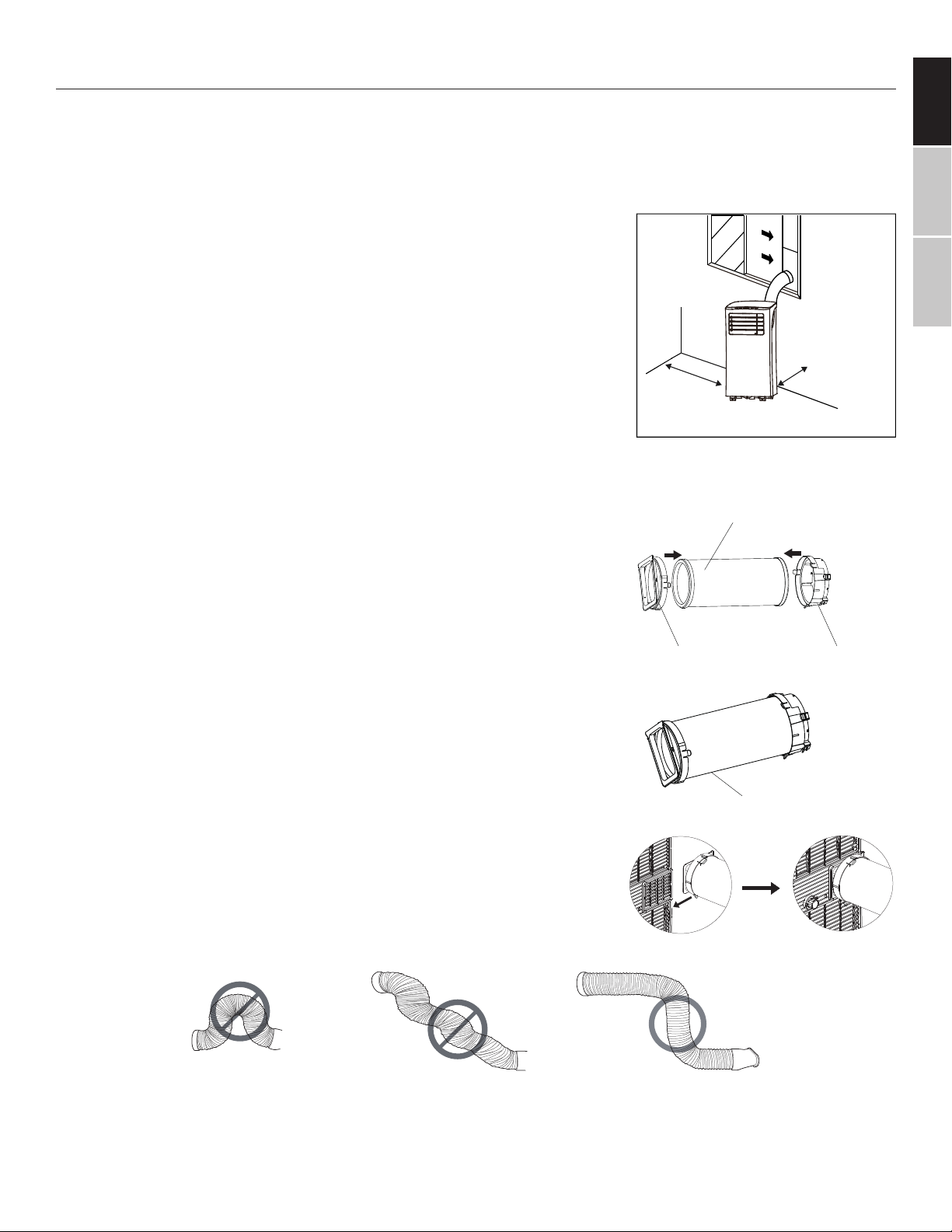

• A perimeter of 12′′(30cm) around the air conditioner should be free of all objects.
• Do not operate the air conditioner in a humid environment.
• Please keep air inlet and air outlet clean and free of obstacles.
• During operation, close doors and windows to improve cooling eect.
• Please put the air conditioner on smooth and flat ground for operation to avoid noise and vibration.
6
• This air conditioner is equipped with casters that roll on smooth, flat surfaces.
F
G
H
I
J
K
• Do not tilt or turn over the air conditioner. If there’s problem, please disconnect the power supply immediately and contact your local dealer or technical support.
• Avoid exposing the unit to direct sunlight.
GETTING TO KNOW YOUR AIR CONDITIONER
FRONT VIEW REAR VIEW
B
C
D
ENGLISHESPAÑOLFRANÇAIS
E
1. Control Panel
2. Infrared Remote Receiver
3. Vertical Louver Control Lever
4. Casters
5. Carrying Handle (both sides)
6. Upper Air Filter (behind intake grille)
7. Water Drain Outlet
8. Air Outlet (exhaust hose connection)
9. Lower Air Intake
10. Bottom Tray Water Drain Outlet
7
ENGLISH ESPAÑOL FRANÇAIS
Diagram (not to scale)
Foam Seals (2 adhesive, 1 non-adhesive)
1) Connector 2) Exhaust hose 3) Adapter
4) Security peg 5) Window filler panel kit
Remote Controller and batteries
Drain hose (23.6”)
Security Bracket and 2 Screws
Description
Quantity
1 set
1 set
1 set
1 piece
3 pieces
ON/OFF
TEMP
SHORT
CUT
ON
TIMER
TIMER
OFF
FAN
MODE
SLEEP
PMTS
LED
1 2 3 4
5
WHAT’S IN THE BOX
Please verify your box for the following items. Note that some models may not include all items.
C
D
1. Air Conditioning Unit
2. Remote controller (may dier from photo)
3. User’s Guide
4. Installation kit (see details below)
B
INSTALLATION ACCESSORY KIT ITEMS
Illustrations may vary slightly from actual appearance of product.
Avoid damaging your new appliance! If required accessories are missing, please contact customer support.
8
Loading...
