Impco ITK-4 User Manual
ITK-4 Test Kit
User’s Manual
IMPORTANT:
Any maintenance, service or repair should be performed by trained and experienced service
technicians. Proper tools and equipment should be used to prevent injury to the servicing technician,
property or system components. Service repairs should always be performed in a safe environment
and the technician should always wear protective clothing to prevent injury.
April, 2008 IMPCO Technologies Inc. PPI-105-REV.B
3030 South Susan St. Page 1 of 29
Santa Ana, CA 92704
www.impcotechnologies.com
Chapter I
ITK-4 Test Kit Contents
ITK-4 Kit and its components
The ITK-4 Test Kit (figure #1) was designed to replace both the ITK-2 and ITK-3 test kits and can be
used on both Spectrum Series II and Series III systems. The ITK-4 Test Kit incorporates a new dongle
(ECOM Cable P/N E2046002) to connect your Diagnostic Scan Tool (DST) to a Series II or Series III
equipped vehicle. The ECOM Cable is equipped with a Spectrum III DLC connector for direct series III
connection. To connect the ECOM Cable to a series II vehicle DLC you will need to use the adapter
cable (E1557400) included in the kit (refer to chapter II for complete instructions). The ECOM Cable is
Controller Area Network (CAN) enabled for high-speed connection to CAN enabled systems.
PPI-105 REV B IMPCO Technologies Inc. April, 2008
Page 2 of 29 3030 South Susan St.
Santa Ana, CA 92704
www.impcotechnologies.com
The ITK-4 Test Kit contains all items listed in table #1. If your kit is missing any component, or has any
damaged items, please call your OEM technical support group for instructions.
ITEM DESCRIPTION QTY USED
1 Case, Metal, 14.25 x 9 x 4.25 1 C9-50724-001
2 Gauge, Test Gasoline Fuel System 1 TG-31119-001

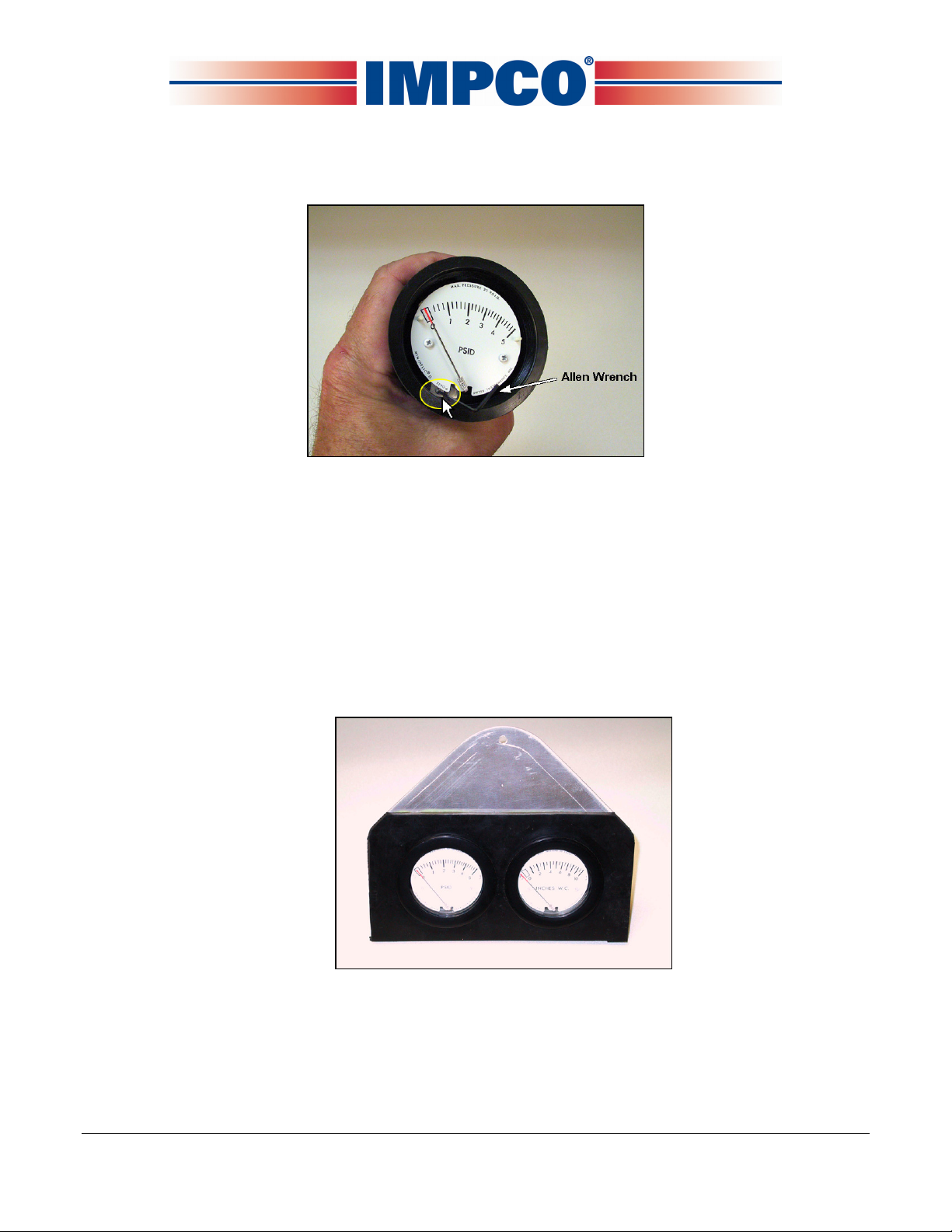

3 Test Kit Gauge 0-5 PSID (2-5205) 1 TG-005

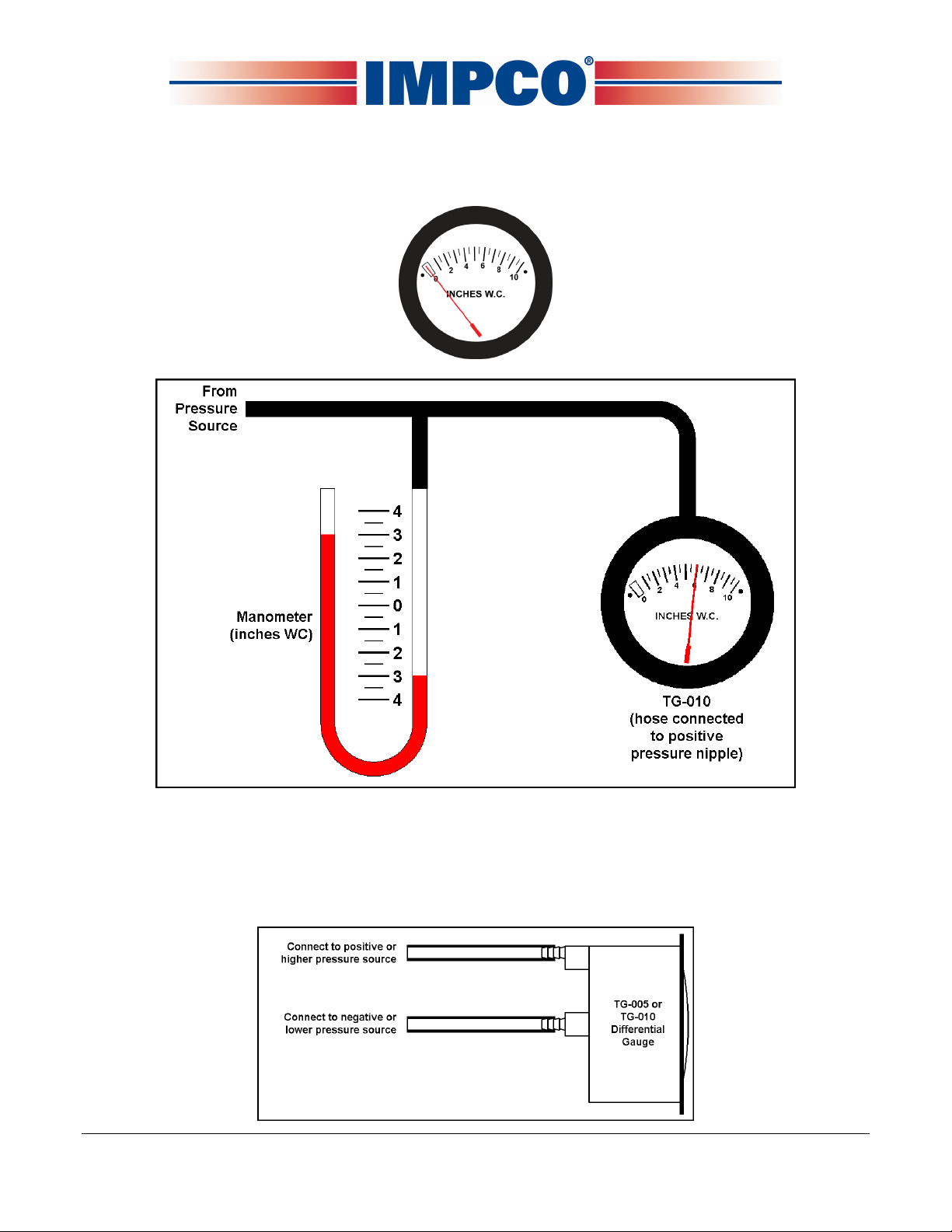

4 Test Kit Gauge 0-10” WC (2-5010) 1 TG-010
5 ASM, CAN Dongle (ECOM Cable) 1 E2046002
6
7

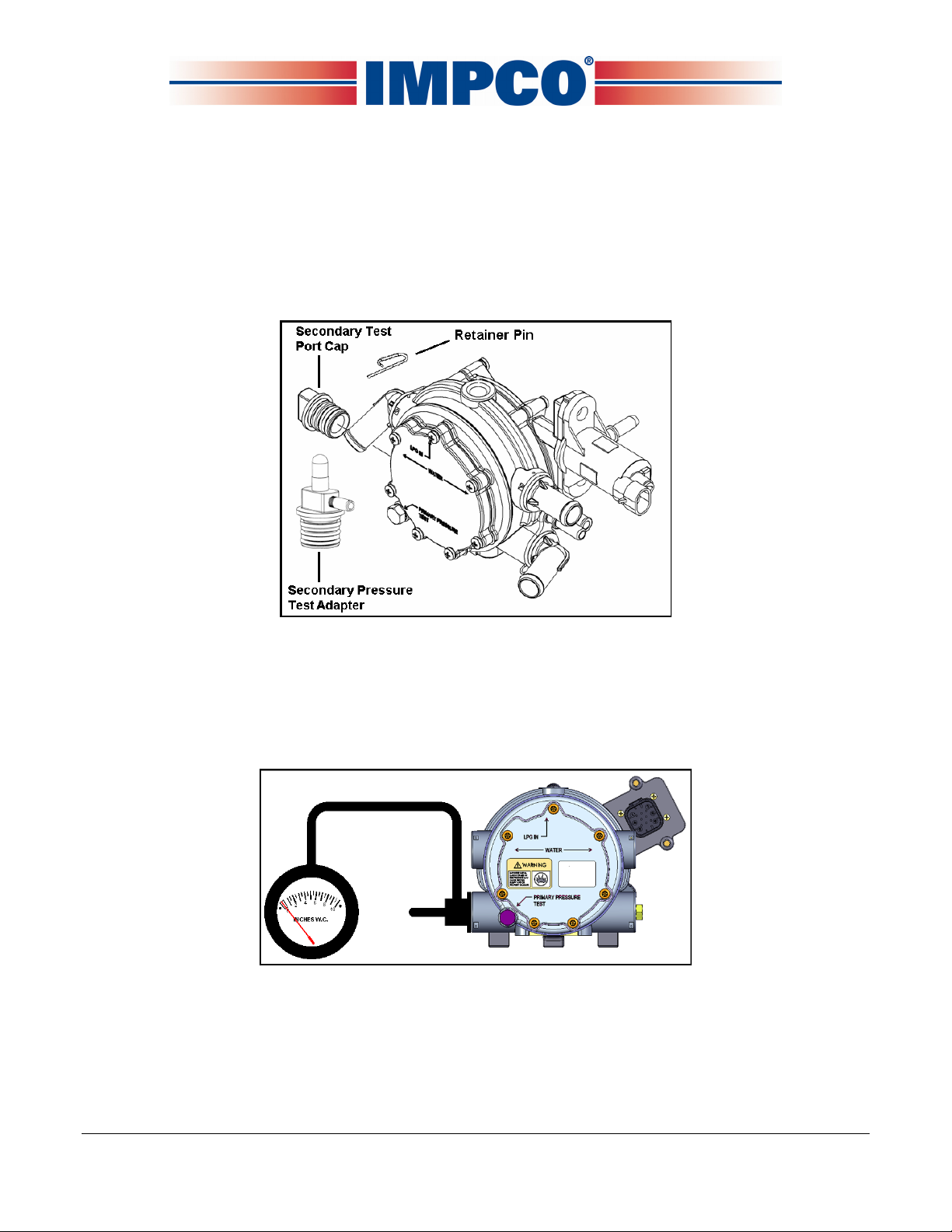

Fitting Assembly, Test Cap (System II LPR
Secondary Pressure Test Adapter)
Assembly, Fitting Test Cap ¾” (System III
EPR Secondary Pressure Test Adapter)
1 AF4-31105
1 AF4-50254-002

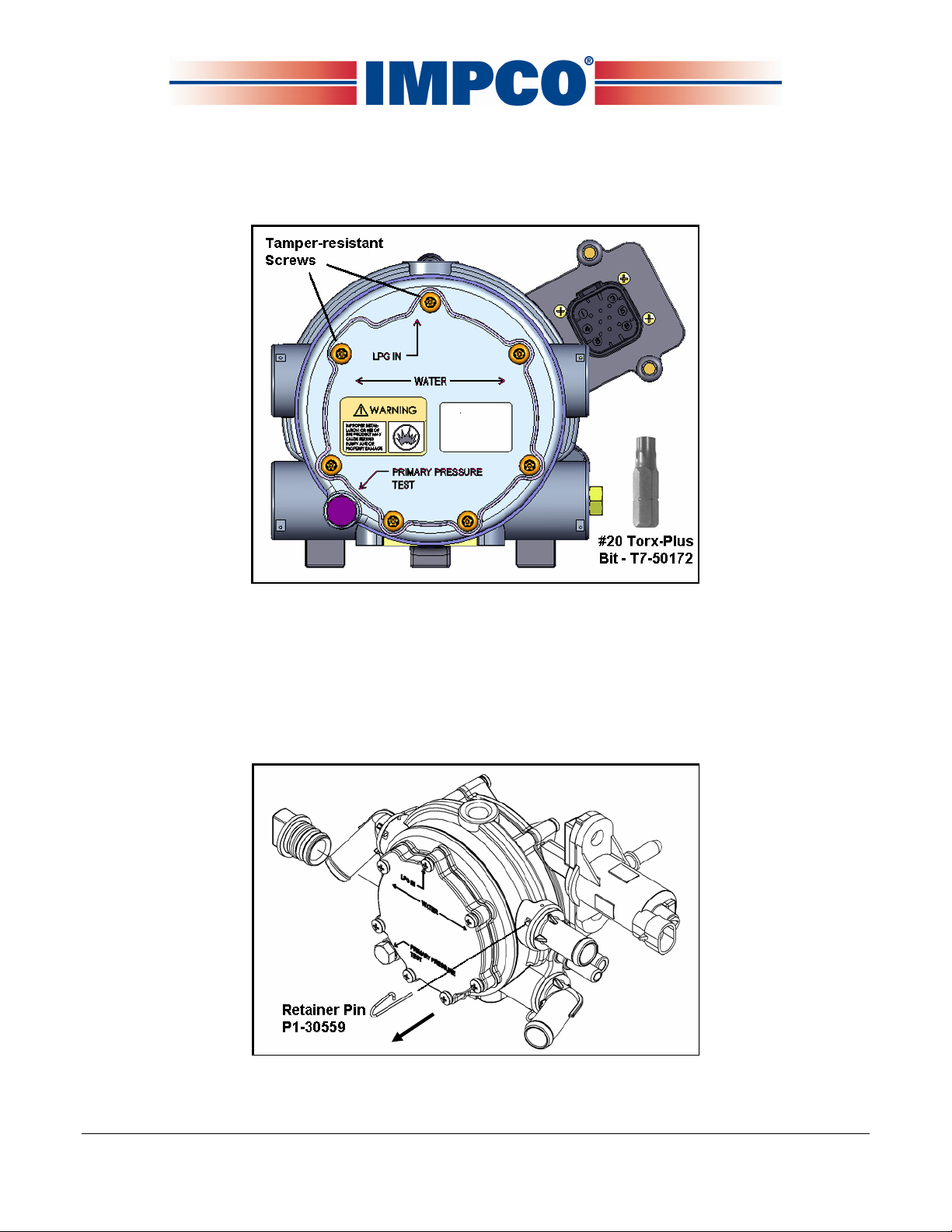

8 Tool, 20 IPR Torx-Plus Bit 1 T7-50172
9 Pin, Retainer 10 P1-30559
10 Fitting, 1/8” NPT / 3/16” HS Nip Brass 2 F4-4
11
Harness Adaptor, Spectrum II DLC to
Spectrum III Diagnostics Cable
1 E1557400
12 Fitting, 1/8” NPT ¼” HS El Nylon 2 F4-8
13 Hose, 3/16” ID Vacuum, Bulk 4 ft H1-11
14 Fitting, ¼ UNF, ¼ HS Vac Nip 1 F4-2
15 Brass Fitting 1 B3-26
16 Test Plug 1 P3-51214-001
NA User’s Manual, ITK-4 Test Kit 1 PPI-105
Table #1
IMPCO PART
NUMBER
April, 2008 IMPCO Technologies Inc. PPI-105-REV.B
3030 South Susan St. Page 3 of 29
Santa Ana, CA 92704
www.impcotechnologies.com
Chapter II
ECOM Cable and DST Software Installation
A. Software Minimum Hardware Requirements:
Supported operating systems are:
Windows Vista
Windows XP
Windows 2000
Minimum processor speed:
Pentium II: 450 MHz
Pentium III: 1.0 GHz (Vista)
Minimum RAM requirement:
Windows Vista: 512 MB
Windows XP: 256 MB
Windows 2000: 128 MB
PC/laptop must have at least one available USB port (ECOM cable supports USB port only).
B. DST Software Installation:
NOTE: Before installing the DST software, close all other programs to ensure the installation
process will not be interrupted.
The ECOM software will be provided to you by your OEM supplier, internet download, CD, etc..
Regardless of the source, you must navigate to the DST_Series II or DST_Series III folder. Follow
the directions starting on the next page.
PPI-105 REV B IMPCO Technologies Inc. April, 2008
Page 4 of 29 3030 South Susan St.
Santa Ana, CA 92704
www.impcotechnologies.com
• Open the DST_Series II or DST_Series III folder
• Open the Latest_GCP_Display folder
April, 2008 IMPCO Technologies Inc. PPI-105-REV.B
3030 South Susan St. Page 5 of 29
Santa Ana, CA 92704
www.impcotechnologies.com
• Double click on “setup.exe” (application file) to start the windows installer. If a previous version
of the GCP software is installed, the uninstaller may remove the previous version and exit. You
will be required to start the installer again to install the new version.
• Click “Next” to continue
PPI-105 REV B IMPCO Technologies Inc. April, 2008
Page 6 of 29 3030 South Susan St.
Santa Ana, CA 92704
www.impcotechnologies.com
• Click “Next” to continue
• Click “Next” to continue
April, 2008 IMPCO Technologies Inc. PPI-105-REV.B
3030 South Susan St. Page 7 of 29
Santa Ana, CA 92704
www.impcotechnologies.com
• Click the “Finish” box to complete the installation.
• Click “Yes” to restart your computer
PPI-105 REV B IMPCO Technologies Inc. April, 2008
Page 8 of 29 3030 South Susan St.
Santa Ana, CA 92704
www.impcotechnologies.com

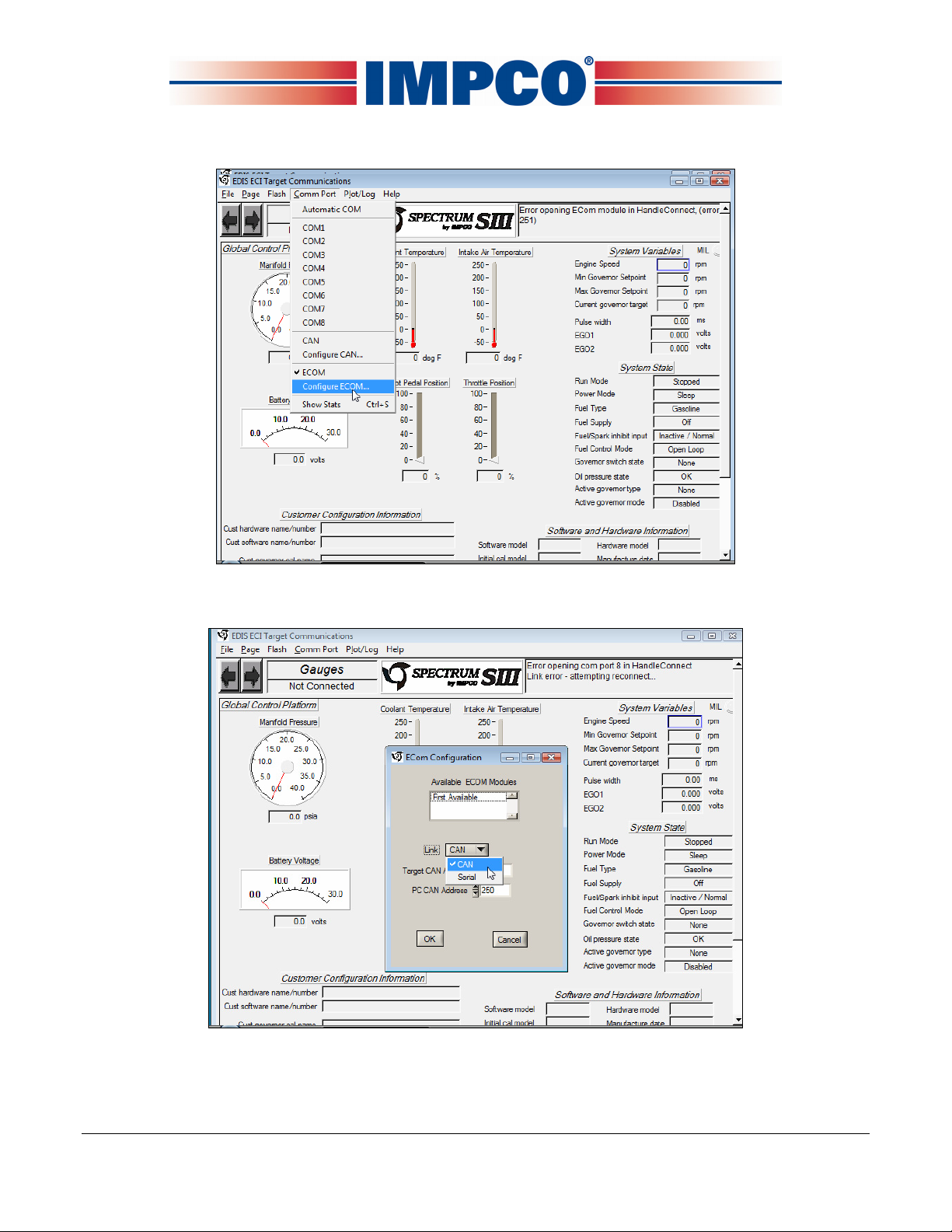

• Once installed, the software can be accessed from Start Menu→Programs→
Impco GCP Display→Impco GCP Display
April, 2008 IMPCO Technologies Inc. PPI-105-REV.B
3030 South Susan St. Page 9 of 29
Santa Ana, CA 92704
www.impcotechnologies.com
