An Impact Soundworks Sample Library
Produced by Dimitris Plagiannis
User Manual, v1.0
DJANGO : GYPSY JAZZ GUITAR
TABLE OF CONTENTS
INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
.4
FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
DOWNLOAD CONTENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
REQUIREMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
LIBRARY OVERVIEW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
DJANGO : GYPSY JAZZ GUITAR / LEAD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
KEYBOARD LAYOUT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
LEAD GUITAR GUI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
ARTICULATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
RELEASE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
NECK POSITION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
PICKING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
STRING PRIORITY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
PREFERENCES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 10
EFFECTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
LEVEL MIXER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
FILTER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
PARAMETRIC EQUALIZER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
TRANSIENT DESIGNER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
COMPRESSOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
LIMITER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
DI EFFECTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
AMP & CAB SIM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
TIPS AND TRICKS / LEAD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
DJANGO : GYPSY JAZZ GUITAR / RHYTHM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
KEYBOARD LAYOUT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
RHYTHM GUITAR GUI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
CHORD SELECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
PREFERENCES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
SEQUENCER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
TIPS AND TRICKS / RHYTHM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
CREDITS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
COPYRIGHT & LICENSE AGREEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Page 2
DJANGO : GYPSY JAZZ GUITAR
INTRODUCTION
The Selmer-Maccaferri acoustic guitar, best known as the favored instrument of legendary
jazz guitar virtuoso Django Reinhardt, is a particular guitar design. Named after its inventor
(Mario Maccaferri) and manufacturing company (Selmer), it is a rare item. Only about a
thousand were produced from 1932 to 1952. But since the recent revival of Gypsy Jazz, an
increasing number of luthiers have been working on the original designs and now they have
become a popular build. Visually, they are characterized by a large body with a movable
bridge and mandolin-like tailpiece. Sonically, they are known for their loud volume. Before
the advent of amplification, this attribute allowed them to be heard over other instruments in
a band. They are the definitive sound of Gypsy Jazz (also known as Hot Club, Jazz
Manouche, or Gypsy Swing.)
There are two main Selmer builds, the earlier “D-hole” (or "grande bouche") and the postMaccaferri “oval-hole” (or "petite bouche"). The guitar that we sampled is a beautiful D-hole,
built by luthier Adonis Goulielmos and the vintage Stimer-type pickup we used is a
single-coil Kleio 51 model, made by Gabojo. The instrument was played by its owner, the
distinguished guitarist and instructor Vasilis Kotsias.
For our Django: Gypsy Jazz Guitar library, we created three virtual instruments: two lead
(acoustic/miked and electric/DI) and one rhythm. The lead instruments are designed to
deliver solo parts in the characteristic expression and speed of Gypsy Jazz style - but not
only; the degree of sampling depth makes them suitable for use in other contexts as well,
e.g. modern jazz, swing, or even pop, and can provide an alternative sound for lead steel or
nylon acoustic guitar parts that are played with a pick. The rhythm library is straightforward
Gypsy Jazz style and delivers the well-known upbeat swing rhythm, aka “la pompe”, in any
key and a wide range of chords.
These virtual instruments were developed by the same team behind Impact Soundworks’
Plectra Series Bouzouki and Oud libraries and were designed with the same goals and
sampling philosophy. We aimed to create a virtual instrument that sounds real. To this end,
we developed sampling and scripting techniques that not only implement intelligent
response to MIDI input (e.g. smart positioning, 6-voice polyphony, hammer-on, pull-off,
bends, slides, release noises and so on) but also incorporate the playing inconsistencies
which provide the dynamics, flow and expressiveness of real acoustic performances and
often get disregarded as “bad” takes in other sampling projects. We hope you will enjoy the
result!
Thank you for purchasing DJANGO: GYPSY JAZZ GUITAR.
Page 3
DJANGO : GYPSY JAZZ GUITAR
INSTALLATION
1. Install the Pulse application if you don’t already have it. Pulse is a cross-platform desktop
app that lets you download and install your libraries with blazing speed!
https://pulsedownloader.com/
2. Once Pulse is installed, open it and enter your Django: Gypsy Jazz Guitar download code.
Follow the instructions to download and install the library.
3. Finally, load any of the included NKIs in Kontakt. No activation is needed, as this is not a
Kontakt Player instrument.
Optional: Please see our Kontakt workflow tutorial for information on adding instrument files to
the faster Quickload window or the Kontakt Database.
Page 4
DJANGO : GYPSY JAZZ GUITAR
FEATURES
● 20,800 x 24bit samples,
● 9GB in total uncompressed, 4.5GB with Kontakt’s lossless NCW format
● Microphone and pickup DI versions of the Lead Instrument
● Each string chromatically sampled; 24 frets for 1st string, 17 frets for the others
● 4 x Velocity zones for regular strokes (piano, mezzo-forte, forte, fortissimo)
● 4 x RR for each velocity zone
● 2 x Velocity zones for Vibrato articulation (mezzo-forte, forte)
● 4 x RR for each Vibrato articulation velocity zone
● 2 x RR for Hammer-On, Pull-Off, Glissando, Bend and Harmonic articulations, all
chromatically sampled
● 4 x RR for Octave articulations
● 2 x RR for Release samples
● Natural vibrato
● Adjustable pre-stroke sample offset (up to 40 msec) for ultimate realism
● Realistic playing noises layered at adjustable levels
● Automatic or manual control of string, articulation and stroke direction
● Intelligent mono/poly voicing; 6 voices max, one per string
● Real-time fingerboard display of the note position/articulation for precise control
● Sound processing GUI, including EQ, Filter, Transient Designer, Compressor, Limiter
and Amp simulation
● Rhythm guitar instrument featuring “la pompe” (“pump”) swing groove in all keys.
● Wide range of chords, including major (6, 6/9, maj7, 3rd on bass), minor (m6, m7,
m7♭5), dominant (7,9,7♭5), diminished and augmented chord families.
DOWNLOAD CONTENTS
● DJANGO : GYPSY JAZZ GUITAR library
● DJANGO : GYPSY JAZZ GUITAR user manual
● Demo tracks (.mp3 and .mid)
REQUIREMENTS
● Windows or MacOS system
● Native Instruments Kontakt v5.5.1 or higher (full version)
Page 5
DJANGO : GYPSY JAZZ GUITAR
LIBRARY OVERVIEW
The DJANGO : GYPSY JAZZ GUITAR library consists of 3 instruments. These are :
● DJANGO : GYPSY JAZZ GUITAR - Lead (lead guitar sampled with microphones)
● DJANGO : GYPSY JAZZ GUITAR - Lead DI (sampled through a pickup and DI)
● DJANGO : GYPSY JAZZ GUITAR - Rhythm (rhythm guitar sampled w/ microphones)
The two lead versions are almost identical in their operation. The main difference is the
sample set used : One was captured acoustically, with microphones, while the other
‘electrically’, using a pickup that went into a direct box (DI).
The Rhythm instrument is quite different. Keyswitches
[1]
are used to set the root note, chord
and RR
[2]
samples. A second set of keyswitches trigger separate chord strums of various
articulations or organized into groove patterns.
Let’s take a close look at each instrument.
DJANGO : GYPSY JAZZ GUITAR / LEAD
Single notes on a guitar can be played in multiple string/fret combinations, but the sound
timbre is different for each of those. Implementing this function is crucial for realistic
performances and we wanted the user to be able to make that timbre choice, so we sampled
all possible string and fret positions of the guitar. Furthermore, all common articulations
(playing techniques) were sampled. Through the Graphical User Interface (GUI), MIDI
Continuous Control data (MIDI CC) or Keyswitches, users can select the string/fret
combination of choice and switch between articulations. They can also automate their
performances by recording these choices. This is what deep sampling is about. If you are
new to it, don’t worry; by default the instrument is programmed to analyze your MIDI input
and automatically make valid choices for you. Of course, these choices can be manually
overridden at a later time.
[1] Keyswitch : note on the keyboard that functions as a switch, unlike regular ‘musical’ notes.
[2] RR : Short for Round-Robin. RR are alternative samples that eliminate the unnatural effect of repeating the
same sample.
Page 6
DJANGO : GYPSY JAZZ GUITAR
KEYBOARD LAYOUT
Keyswitches, instrument keys (triggering musical notes) and noise trigger keys (triggering
noise effects) are mapped to the keyboard in the way displayed on the Kontakt interface
keyboard. Hovering the mouse cursor over a key shows a description of the key in Kontakt’s
info pane.
Keyswitch area Instrument keys Noises
LEAD GUITAR GUI
Page 7
DJANGO : GYPSY JAZZ GUITAR
The main instrument GUI is accessible by clicking on the leftmost tab at the bottom. It is
exactly the same for both the Lead Lead DI instruments and is titled ‘Lead Guitar’. The Lead
Guitar interface has three control areas. The top one consists of the following four knobs.
ARTICULATION
This knob sets the articulation preference. We use the term preference because some
articulations require more conditions to be true in order to be activated. Here is a list of the
available articulations with description and the conditions for activation.
● Picked : Regular single-note pick strokes. Requires no other condition. (Default setting)
● Hammer-on/Pull-off : The technique of sharply bringing down or releasing a
fretting-hand finger down on the fingerboard behind a fret, causing a note to
sound. Requires the note to be legato
[3]
, one or two semitones above or below.
● Glissando : The technique of sliding a fretting-hand finger between two notes. Requires
upward
[4]
legato note, one or two semitones above.
● Bend : The technique of pushing a string across the fingerboard with a fretting-hand
finger so that the string gets tighter and the pitch goes up. Requires no other conditions.
● Harmonic : The technique of touching (instead of pushing down on the fret) the string at
a certain point in order to amplify vibration of certain overtones. Requires the note to be
higher than E3.
● Octave : A technique that allows a strum to mute all but two strings, which produces two
notes at octave interval. Requires note to be in the range of E3 to A5.
Articulation switching can be automated either by assigning a MIDI CC number to it, or by
pressing one of the articulation keyswitches before playing a note. The articulation
keyswitches are :
● C#1 : Hammer-on/Pull-Off
● D#1 : Glissando
● F#1 : Bend
● G#1 : Harmonic
● A#1 : Octave
Releasing all articulation keyswitches activates the default Picked articulation.
[3] Legato note is a note that is pressed before the previous note has been released.
[4] Upward legato note is a legato note that is higher up the keyboard than the previous note.
Page 8
DJANGO : GYPSY JAZZ GUITAR
RELEASE
This knob switches the release articulation. There are three settings.
● Normal : This is the regular sound that is produced from lifting the fretting-hand finger off
a string. (Default setting)
● Downslide : With this release setting, instead of lifting off, the fretting-hand finger slides
down the fretboard toward the headstock, still pressing the string, producing a quick
pitch drop.
● Upslide : This is the opposite of downslide. The finger slides upward, toward the guitar
body, producing the pitch to quickly rise.
Release automation is handled either by assigning a MIDI CC number to the release knob,
or by pressing one the two keyswitches (C2 : Downslide, D2 : Upslide). Releasing these
keyswitches resets release to its default Normal value.
NECK POSITION
As most notes can be played on multiple string/fret combinations, each producing a slightly
different sound timbre, the neck position knob allows the user to set priority of an area over
the alternatives. This offers coarse control. For finer control, the user may use the String
Priority switches or keyswitches. Neck position knob has the following settings :
● Auto : This setting picks the closest fret to the previous note. (Default setting)
● Low : Low neck position focuses fretting to the first five frets, near the headstock.
● Middle : Middle neck position focuses fretting to the middle of the neck betweem the fifth
and tenth frets.
● High : High neck position focuses fretting above the 10th fret.
Neck position automation can be achieved by assigning a MIDI CC number to the neck
position knob. Because this is a coarse control and to preserve the amount of notes
available for keyswitches, we decided not to assign any keyswitches to this control.
PICKING
Picking knob sets the stroking direction of the pick. The two directions produce different
sound and a good choice adds a significant amount of realism to a performance. There are
three settings.
● Alternating : This setting forces alternation between downstrokes and upstrokes.
(Default setting)
● Downstroke : This setting forces the use of downstrokes
● Upstroke : This setting forces the use of upstrokes.
Page 9
DJANGO : GYPSY JAZZ GUITAR
Picking automation is handled either by assigning a MIDI CC number to the release knob, or
by pressing one the two keyswitches (C#2 : Downstroke, D#2 : Upstroke). Releasing these
keyswitches resets picking to its default Alternating value.
STRING PRIORITY
String priority switches prioritize a string over the rest of them, for
the cases where there are multiple alternative string/fret
combinations for a note. They can be automated via assigned MIDI
CC numbers or the following keyswitches.
● C1 : String 6
● D1 : String 5
● E1 : String 4
● F1 : String 3
● G1 : String 2
● A1 : String 1

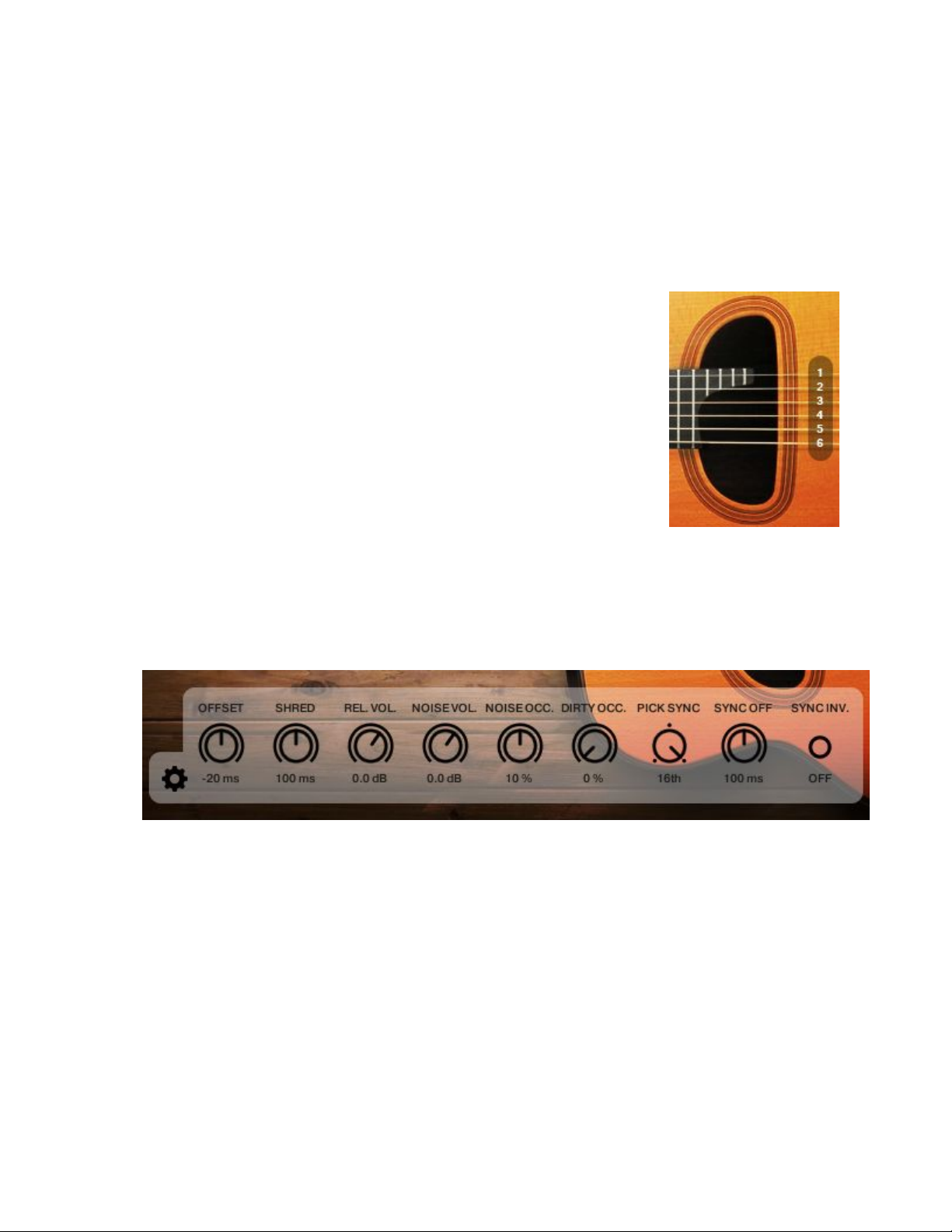

PREFERENCES
Clicking on the gear icon at the bottom left corner of the GUI opens the Preferences panel.
This panel contains the controls that tune the sampling engine and do not require frequent
adjustments. There controls are persistent, meaning you don’t have to set them up every
time you load the instrument. Let’s go through them one by one.
OFFSET : Refers to sample offset. Unlike keyboards, guitar notes contain a significant
pre-stroke audio content, including the pick coming down on the string and scraping it before
releasing it. We have kept this content because it is crucial to a realistic sounding virtual
guitar. A large offset gives bigger realism but adds lag. With this control you can adjust the
effect to your liking. You can set it where you are comfortable performing and change it later
during mixdown, adjusting for the added latency. (Value range : -40 ms to 0 ms; Default
value : -20 ms)
Page 10
DJANGO : GYPSY JAZZ GUITAR
SHRED : This control sets the time length between two notes, below which they are
considered to be played fast - aka, in shredding mode. When this happens, because the
stroke has to deal with an already vibrating string, the note’s attack is slightly modified.
Setting the knob to 0ms disables the effect. (Value range : 0 ms to 200 ms; Default value :
100 ms)
RELEASE VOLUME : Sets the level of the normal release samples. This doesn’t affect
downslide or upslide release levels. (Value range : -inf dB to 12dB; Default value : 0dB)
NOISE VOLUME : Sets the level of the random release noises. This refers to noises
additional to the regular note release, e.g. finger taps, fret slides, etc. (Value range : -inf dB
to 12 dB; Default value : 0 dB)
NOISE OCCURRENCE : Sets the random release noise occurrence probability. (Value
range : 0 % to 20 %; Default value : 10 %)
DIRTY OCCURRENCE: Notes on a guitar don’t always come out clean, sometimes the pick
hits the string wrong, other times the fretting hand, compared to the picking hand, pushes
too late or releases too early the string. This is something that happens regularly in a guitar
performance but is usually overlooked in virtual guitars. We call these notes ‘dirty’ and we
welcome them, because they are necessary to produce realistic performances. We have
sampled them and this control adjusts the probability of dirty notes occurring randomly
during shredding
[5]
. (Value range : 0 % to 50 %; Default value : 0 %).
Note that if you wish to control dirty notes intentionally you may do so using the dirty note
keyswitch (B1).
PICKING SYNC : Alternating pick stroke direction can be synced to the tempo of the host
application. This makes it easy to set downstrokes to downbeats like a real guitar
performance. There are 3 settings: Off, 8-note and 16-note sync. 8-note will sync
downstrokes to odd 8th notes and upstrokes to even, while 16-note does the same in 16th
note resolution. Note that picking keyswitches (C#2 and D#2) override this sync setting,
meaning that you can use keyswitches to force exceptions and release them to go back to
following the sync rule. (Values : OFF/8th/16th; Default value : OFF)
SYNC OFFSET : This control helps include unquantized notes into the picking sync. Adjust
this knob to increase or reduce the note detection time range before and after the exact beat
timing. (Value range : 0 ms to 200 ms; Default value : -20 ms)
Note that this control appears only when Picking Sync is set to 8 or 16-note.
[5] Shredding takes place when a notes are played quicker than the current setting of the Shred control.
Page 11
DJANGO : GYPSY JAZZ GUITAR
SYNC INVERSION : Depending on the latency and song tempo, sometimes the sync rule
results may end up inverted. On those occasions, you may switch on Sync inversion and get
correct results. (Default value : OFF)
Note that this control appears only when Picking Sync is set to 8 or 16-note.
EFFECTS
The Effects graphical interface will help you shape the sound through an essential set of
sound processing tools. It is made of six lunchbox-style rack modules, each of which can be
bypassed. The signal is passed through in the following order :
LEVEL MIXER
There are two separate Volume knobs for mixing the close and room microphone levels.
Close mic track is mono while Room track is stereo.
Page 12
DJANGO : GYPSY JAZZ GUITAR
FILTER
The microphone mix goes into a vintage-type Ladder Notch filter. The Notch cuts two narrow
bands of frequencies at either side of the cutoff and also includes the following additional
controls :
● Frequency : Controls the central cutoff frequency.
● Gain : Controls the amplitude increase after the filter. This control can be used to
compensate for amplitude reduction due to the filter, or to increase the soft saturation of
the effect.
PARAMETRIC EQUALIZER
Next in the signal path comes a 4-band Parametric EQ that offers the choice of Bell or Shelf
style control for the Low and High frequency bands. This EQ is modelled on high quality
analogue circuitry. Its controls are :
● Low Gain : Adjusts the amount of boost or cut at the LF Frequency .
● Low Freq : Adjusts the center frequency of the low frequency band at which the boost or
cut will occur.
● Low Shelf : Toggles the shape of the low frequency band. If turned off the band
becomes a shelf. If turned off it becomes a bell.
● Low Mid Gain : Adjusts the amount of boost or cut at the LMF Frequency.
● Low Mid Freq : Adjusts the center frequency of the low-mid frequency band at which the
boost or cut will occur.
● Low Mid Band : Controls the Bandwidth of the low-mid frequency band.
● High Mid Gain : Adjusts the amount of boost or cut at the HMF Frequency.
● High Mid Freq : Adjusts the center frequency of the high-mid frequency band at which
the boost or cut will occur.
● High Mid Band : Controls the Bandwidth of the high-mid frequency band.
● High Gain : Adjusts the amount of boost or cut at the HF Frequency.
● High Freq : Adjusts the center frequency of the high frequency band at which the boost
or cut will occur.
● High Shelf : Toggles the shape of the high frequency band. If turned off the band
becomes a shelf. If turned off it becomes a bell.
TRANSIENT DESIGNER
Next module is the Transient Designer. This simple but very useful tool is designed to
control the attack and sustain of the instrument. Its controls are :
Page 13
DJANGO : GYPSY JAZZ GUITAR
● Attack : Controls the scaling of the attack portion of the input signal’s volume envelope.
Increasing this parameter will add more punch and decreasing it will reduce sharp
attacks.
● Sustain : Controls the scaling of the sustain portion of the input signal’s volume
envelope. Increasing this parameter will add more body to the sound and decreasing it
will reduce the sound’s tail.
● Gain : Controls the input gain to the effect.
COMPRESSOR
The compressor that comes next helps transform the individual samples into a performance
by gluing the notes together. Its controls are :
● Threshold : Sets a level threshold above which the Compressor starts working. Only
levels that rise above this threshold will be reduced by the compression; signals that stay
below it will be left unprocessed.
● Ratio : Controls the amount of compression, expressed as a ratio of “input level change”
against “output level change”. A Ratio of 1 :1 means that no compression will be
happening. For example, a Setting of 4 represents the ratio 4 :1, which means for every
4 decibel increase of amplitude above the threshold, the output will increase by only 1
decibel.
● Attack : Adjusts the time the Compressor will take to reach the full Ratio value after an
input signal exceeds the Threshold level.
● Release : Adjusts the time the compressor will take to fall back to non-compression after
the input signal falls below the threshold.
● Makeup : Controls the output gain of the compressed signal. Used to compensate for
the gain reduction of the effect.
● Parallel Mix : Sets the dry/wet mix of the compressor to 50/50 %. This parallel
compression style routing increases the quieter signals rather than reducing the louder
ones.
LIMITER
Last in the signal path is the Limiter, which acts as a “safety net” to keep short signal peaks
from overloading the system, which would result in audio clipping. Controls :
● Input : Sets the gain of the input signal. The Limiter is different from the Compressor in
that it has a fixed threshold; to achieve a sensible peak reduction, use this control to
adjust the input gain until you see the Attenuation meter responding only to occasional
level peaks.
● Release : Just like the Compressor’s control of the same name, this knob adjusts the
time it takes the Limiter to return to an unprocessed signal after the input level falls
below the threshold.
Page 14
DJANGO : GYPSY JAZZ GUITAR
● Output : Adjusts the module’s output level.
Of course, there is the option to switch off all the built-in effect modules and route the dry
signal into your own effect chain.
DI EFFECTS
The Lead DI instrument is operated in the same way as the acoustic one we just described.
There is only one difference between the two: The DI instrument has a Amplifier/Speaker
cabinet simulation module as first effect in the signal path, instead of the microphone level
mixer and filter found in the acoustic version.
The rest of the effects are exactly the same.
Page 15
DJANGO : GYPSY JAZZ GUITAR
AMP & CAB SIM
The effect simulates the tone of guitar amplifiers. If switched off, the DI signal goes through
to the output and becomes available for external reamping. The controls are :
● Bass : Adjusts the low frequency response of the amplifier.
● Mid : Adjusts the midrange frequency response of the amplifier.
● Treble : Adjusts the high frequency response of the amplifier.
● Presence : Boosts the frequency response in the upper midrange.
● Reverb : Adjusts the volume of a vintage-type spring reverb effect.
● Master : Adjusts the amplifier’s master volume.
● Room : Adjusts the level of the stereo ambient room mics.
● Cabinet : Switches between five speaker cabinet styles.
TIPS AND TRICKS / LEAD
● All GUI controls are automatable via MIDI CC. Right click on a control, select "Learn
MIDI CC# Automation" and move the controller you want to assign to it. Refer to Kontakt
manual for more info.
● View or edit MIDI CC in Kontakt’s “Auto” tab (this requires an open Kontakt Browser).
Drag and drop a MIDI CC# on any control in the GUI to assign the CC# to that control.
● Sustain pedal holds the last note played on each string.
● Modwheel during held notes switches between sustained and vibrato notes.
● To reset a GUI control to its default value, CTRL+click on it.
● The Filter effect can add a ‘nasal’ character to the sound, bringing it closer to the other
popular Selmer-Maccaferri guitar build, the O-hole.
● Even if you turn off the amp sim in order to use the dry DI signal for external processing,
you can still use the other effect modules as stompboxes.
● For maximum realism, use the minimum Sample Offset value (-40ms). This makes it
laggy to play but you can bypass this problem like this : Record your performance with
the Offset set to a higher value, e.g. -20ms or -10ms. During mixing, switch to -40ms
while pushing your MIDI data earlier by the same amount of time, e.g. from -10ms to
-40ms means pushing MIDI back (earlier) by 30ms.
● To see a detailed description of the articulation and pick stroke direction of the note
played last, watch the Kontakt status bar (below the Info pane). Note that this bar
disappears in Kontakt’s Minimized view.
● The Kontakt keyboard and info pane can be switched on/off from the toolbar at the top of
Kontakt’s window.
● Keyswitches need to be pressed before the musical note is pressed. Similarly, release
keyswitches need to be pressed before the musical note is released.
Page 16
DJANGO : GYPSY JAZZ GUITAR
DJANGO : GYPSY JAZZ GUITAR / RHYTHM
The Rhythm instrument plays single chord strums or programmable rhythmic chord strum
patterns that are synced to the song tempo. Operation is simple and the instrument is easy
to play and automate. Let’s take a closer look, starting with the keyboard layout.
KEYBOARD LAYOUT
Keyswitches, instrument keys and noise trigger keys are mapped to the keyboard in the way
displayed on the Kontakt interface keyboard. Hovering the mouse cursor over a key shows a
description of the key in Kontakt’s info pane. We’ll get back to the key functions later on.
Now, let’s move on to the GUI and introduce its controls.
RR Root Note Chord Single Strums Strum Patterns
STRUM, RR AND PATTERN KEYS
Chords are played either as single strums or as rhythmic strum patterns. Single strums are
triggered by the blue strum keys. Starting from the lowest key and moving up the keyboard,
these are:
● Long downbeat (C4)
● Short (swing) upstroke (C#4)
● Short downbeat (D4)
● Long (swing) upstroke (D#4)
● Hard upbeat (E4)
● Soft upbeat (F4)
● Chord choke (F#4, brown colored on the Kontakt keyboard)
● Sustained (G4)
For two of the chords (6/9 and m6) there are two additional strums:
● End stab (G#4, mint colored on the Kontakt keyboard)
● End slow strum (A4, mint colored on the Kontakt keyboard)
Page 17
DJANGO : GYPSY JAZZ GUITAR
Strums are named after their rhythmic function in a measure. Some are intended to be
played on downbeats (e.g. every odd 8th note), others on upbeats (e.g. every even 8th
note), and some on swing beats (e.g. on even 16th notes). There can be many combinations
that create different grooves, feel free to experiment and create your own. The additional
‘End’ strums are intended to be played on special occasions such as breaks or endings. 6/9
chord end strums cover major keys, while m6 end strums are intended for minor keys.
RR keyswitches force the use of specific RR samples. For most strums there are 8 RR
available. Some strums have fewer (4 or 2 RR), in which case they fold and repeat (e.g. for
Long upstrokes, which has only 4 RR, using RR 5 is the same as using RR 1). RR
keyswitches need to be held down to force playback of the corresponding RR sample.
Pattern keys trigger the corresponding pattern. We’ll talk more about patterns in the Pattern
GUI chapter that follows.
RHYTHM GUITAR GUI
Page 18
DJANGO : GYPSY JAZZ GUITAR
CHORD SELECTION
Chords are selected through two knobs which set the root note and chord quality/extension.
The combination of the two is the selected chord. It is displayed next to the knobs.
To switch to another chord, you may move the knobs with the mouse or press the
corresponding keyswitches. Automation is available either by assigning a MIDI CC number
to the knobs or by recording keyswitch MIDI.
PREFERENCES
Clicking on the gear icon at the bottom left corner of the GUI opens the Preferences panel.
There are three controls:
2-TRACK : Refers to double-tracking. This button switches between single guitar (panned at
center) and double guitar (panned left-right) modes. While in double-tracking mode, the two
guitars play exactly the same strums but using a different RR sample order, so that they
never sound exactly the same. (Default value : OFF)
2-TRACK PAN : This knob controls how hard is the panning for the two guitars while in
double-tracking mode. At 100% the two guitars are panned all the way left and right. At 0 %
they are both panned at center. (Value Range : 0 % to 100%; Default value : 75 %)
NOISE VOLUME : This knob adjusts the level of the fret noises that play when changing
root note. (Value Range : -inf dB to 12 dB; Default value : 0 dB)
ALTERNATIVE KEYSWITCH : Refers to an alternative keyswitching method for selecting
chords. This button switches between the default Root+Chord keyswitch triggering method
and a voicing-based method. When enabled, the root note and chord keyswitch octaves are
replaced by a two-octave zone where chords will be automatically detected as you play
them. The chords need to be in root position (root as lowest note) with the only exception
being the major chord inversion (3rd on bass). 9th notes can either be played on 9th step or
2nd.
Page 19
DJANGO : GYPSY JAZZ GUITAR
SEQUENCER
Clicking on the matrix icon at the bottom right corner of the GUI opens the Sequencer panel.
This is a simple step sequencer which can store up to eight 16-step patterns. It allows you to
perform an entire rhythmic pattern that is synced to the song tempo with a single note press.
To create a pattern, first select the pattern number that you wish to store it in. Then enable a
strum by clicking on one of the step buttons, or disable it by clicking on it again.
To play a pattern press one of the pattern keys (C5-G5). C5 plays pattern 1, C#5 plays
pattern 2 and so on. Release the pattern key and playback stops.
Velocity can be controlled by dragging the bars at the bottom of each step.
Swing amount can be adjusted as well with the Swing knob.
Finally, the Latch button allows patterns to keep playing without having to keep a pattern key
pressed down. While in latch mode, pattern keys start and stop playback.
TIPS AND TRICKS / RHYTHM
● The m6 ‘End’ stabs and slow strums are actually m6/9 chords, but since we don’t have
that chord in our palette, we placed them in the m6 group to which they are closest.
● You can create more chord extensions, with an artificial yet quite convincing way, by
adding single notes from Django Lead. For example, to create a #9 chord, play a 7 chord
from Django Rhythm and at the same time play the corresponding #9 note in Django
Lead. Start by play the #9 note on the 1st string at a low velocity and adjust to taste. You
can do the same for ♭9, 13 and other chords.
● Using the same Effects settings helps the Lead and Rhythm instruments sound similar.
Page 20
DJANGO : GYPSY JAZZ GUITAR
● In double-tracking mode, the panning of the two guitars is always mirrored. If you wish to
create more complex pan scheme, you have to set the 2-track pan to 100% and route
the left and right tracks separately.
● The fret noises triggered by root note changes also choke sustained chords and can be
part of the groove by placing the root changes in timely moments (e.g. a 16th note
before the new chord), following the same swing setting.
● Unlike Root and Chord keyswitches that set the active root note and chord upon
keypress, RR keyswitches need to be held in order to force the use of their
corresponding RR sample.
● When triggering a pattern you may notice a little lag on the first chord. This is normal. It
happens because patterns are synced to the host app tempo all the time (even if
playback is currently paused/stopped) and the first chord is waiting to ‘catch’ the next
downbeat.
CREDITS
DJANGO : GYPSY JAZZ GUITAR
©2016 Impact Soundworks
Produced by Dimitris Plagiannis and Impact Soundworks
Designed, recorded, edited and scripted by Dimitris Plagiannis
Additional editing by Erika Plagiannis and Christos Rigas
Additional graphic design by Constructive Stumblings
Guitar played by Vasilis Kotsias and Vasilis Antonopoulos
D-hole Selmer-Maccaferri type guitar built by Adonis Goulielmos
(www.goulielmos-guitars.gr)
Kleio 51 pickup built by Gabojo (www.gabojo.com)
Additional thanks to George Katsigiannis for the recording studio and gear and Nils Liberg
for the SublimeKSP plugin.
For more information, visit our website :
www.impactsoundworks.com
or email us at :
support@impactsoundworks.com
Page 21
DJANGO : GYPSY JAZZ GUITAR
COPYRIGHT & LICENSE AGREEMENT
Overview
All sound recordings, performances, scripting and/or code contained in this product is the
intellectual property of Impact Soundworks unless otherwise noted, and remain the property
of Impact Soundworks after the product is purchased. When purchasing an Impact
Soundworks product, you are purchasing a non-exclusive license to use, edit, perform, or
otherwise utilize these recordings, performances, scripting and/or code for commercial and
non-commercial purposes as defined below.
Authorized Users
Depending on the type of customer and usage scenario, authorized users of this license will
vary. ALL purchases fall into category A or B.
A. Individual Purchase
This license is extended to customers who are purchasing as the primary user of
the product, OR are purchasing on the behalf of another primary user (i.e. as a
gift).
The licensee (primary user) MAY install the product on as many computer
systems as he or she has access to. However, ONLY the licensee may use the
product. No other users are authorized.
B. Corporate, Academic, Institutional Purchase
This license is extended to customers who are purchasing for a multi-user
setting, such as a shared studio, networked workstation, computer lab, etc. In this
case, the licensee is the institution and not any one user.
In contrast with individual purchases, an institutional license applies to ONE
computer / workstation. All users of that workstation who belong to the
purchasing institution (licensee) shall be considered authorized users.
However, at no point may multiple authorized users access one license
simultaneously. Multiple licenses must be purchased if the product is to be used
by multiple users simultaneously.
Page 22
DJANGO : GYPSY JAZZ GUITAR
Scope of License
The licensee is entitled to the use and unlimited editing of the product within the scope of
music production, performance, recording, and composition. This includes both
non-commercial and commercial usage of all types, including, but not limited to, film scores,
television scores, music libraries, video game soundtracks, digital and physical music
releases, albums, compilations, etc. Exceptions to this scope are listed below.
The licensee MAY NOT use the product in the production of any other sample library or
virtual instrument products.
The licensee MAY NOT sell individual sounds from a product in any context.
For clarity: The licensee MAY use sounds from the product to create individual sound effects
(SFX) for use in film, TV, advertising, and video games. However, the licensee cannot sell
these sounds individually via marketplace, stock music/stock audio site, etc.
Ownership, Resale, and Transfer
Redistributing, reselling, electronically transmitting, uploading, sharing, or renting the
product in any way, shape, or form is prohibited by law. The licensee may create a physical
backup copy of any digitally purchased and downloaded product. This backup copy is
subject to the same limitations as the original copy of the product, and may not be
transferred to any other individual for any reason.
Copyright © 2016 Impact Soundworks, LLC. All Rights Reserved.
Page 23
Loading...
