IMO Jaguar VXSM User Manual

GENERAL PURPOSE AC DRIVES
SINGLE PHASE 0.4 - 2.2KW
THREE PHASE 0.4 - 7.5KW

Guarantee

Year

Index

2

Features

6 Product Range

7 Applications

8 Specifications

11 Basic Electrical Connections

12 Terminal Functions

14 The Keypad

16 Main Functions

17 Extension, Control and Motor Functions

18 High Performance and Second Motor Functions

19 Protective Functions

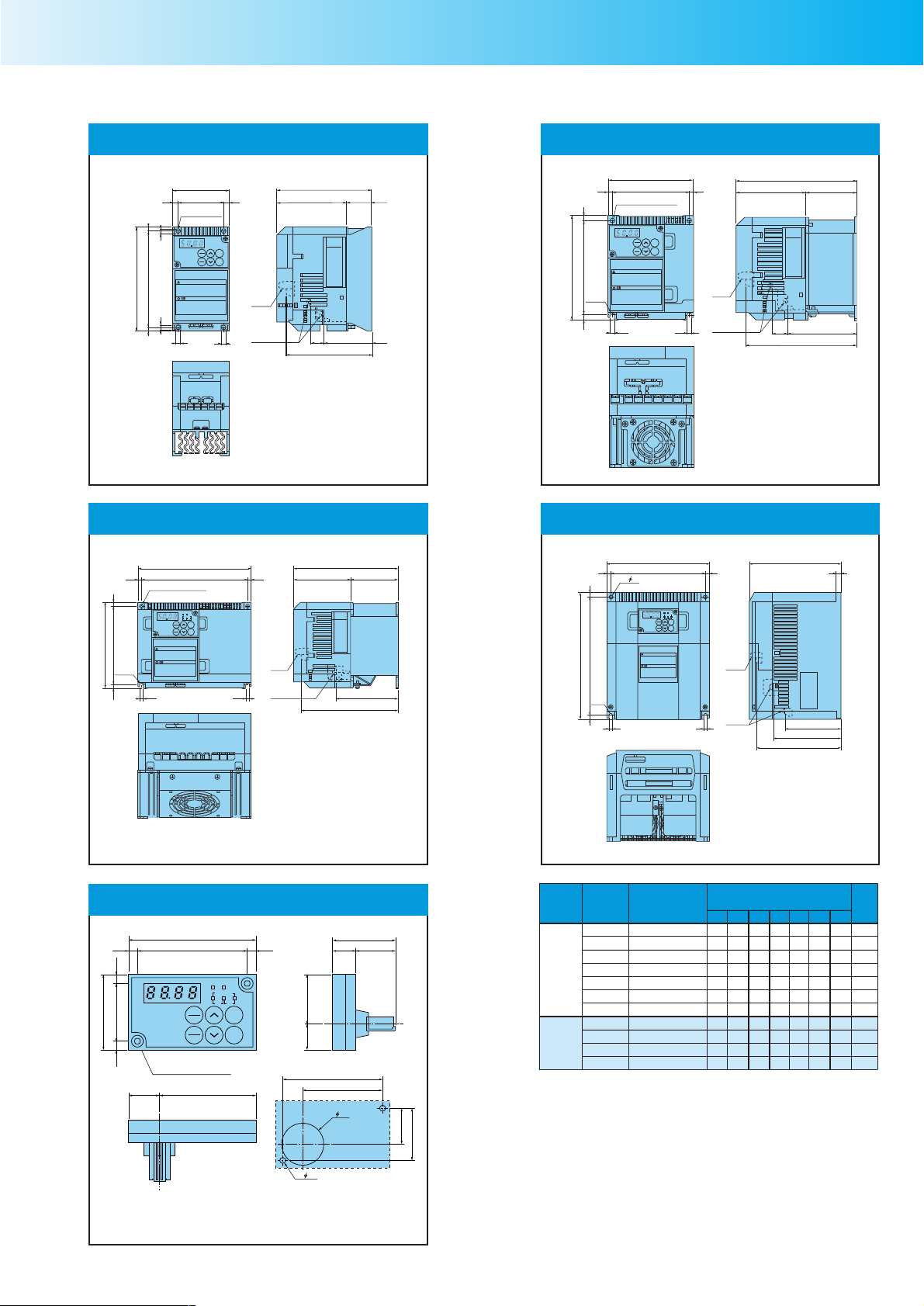

20 Dimensions

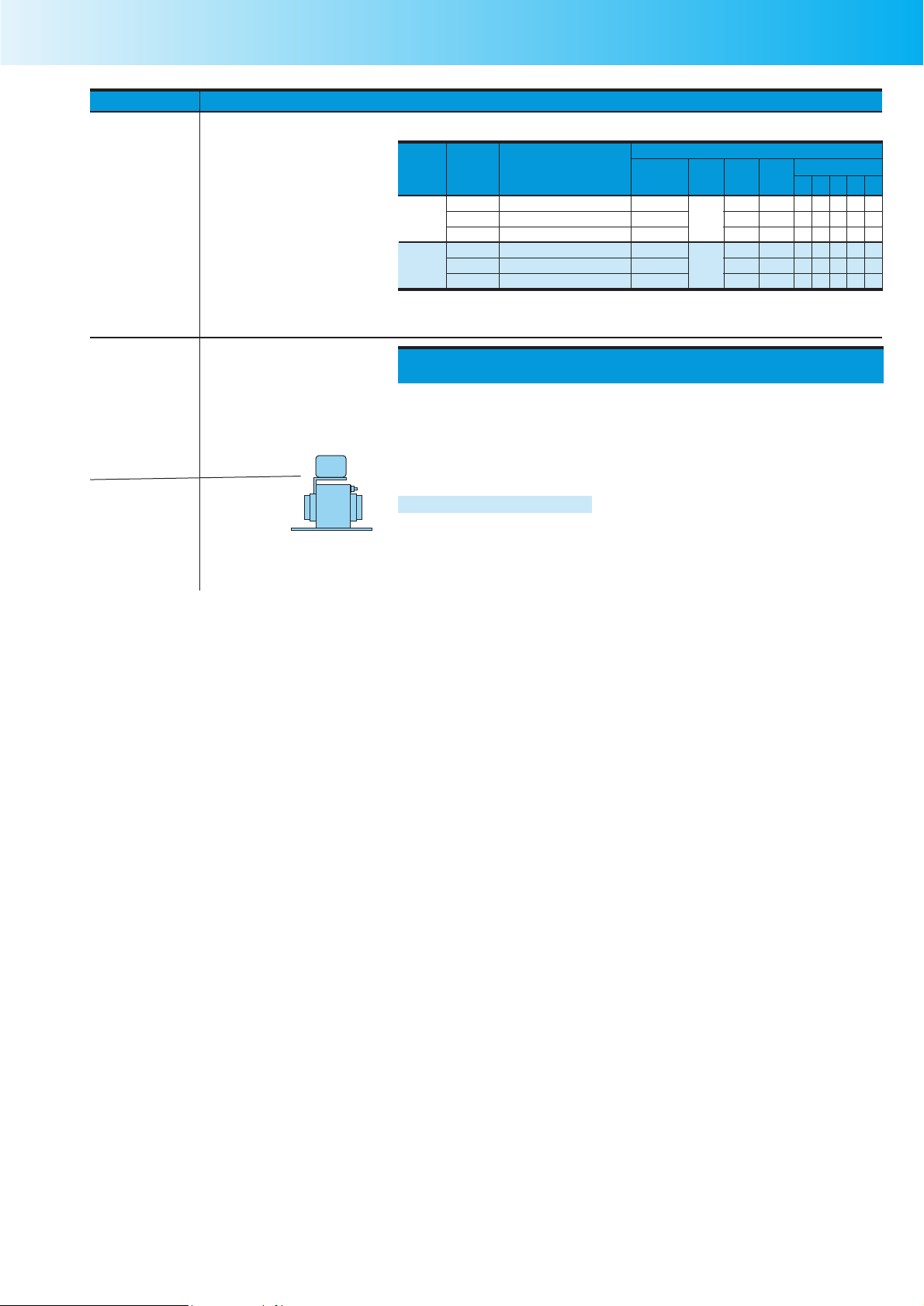

21 Reactors, Filters, and other Accessories

22 Wiring Equipment

24 User Notes

25 Warranty, Safety and Help Lines.

Caution

This publication

is only to be
used as a guide.
Please seek the full
instruction manual
before installation.
If in doubt please
call IMO on
020 8452 6444 or
visit our website on
www.imopc.com

(Please refer to inside back
cover for further details)

Guarantee

Year

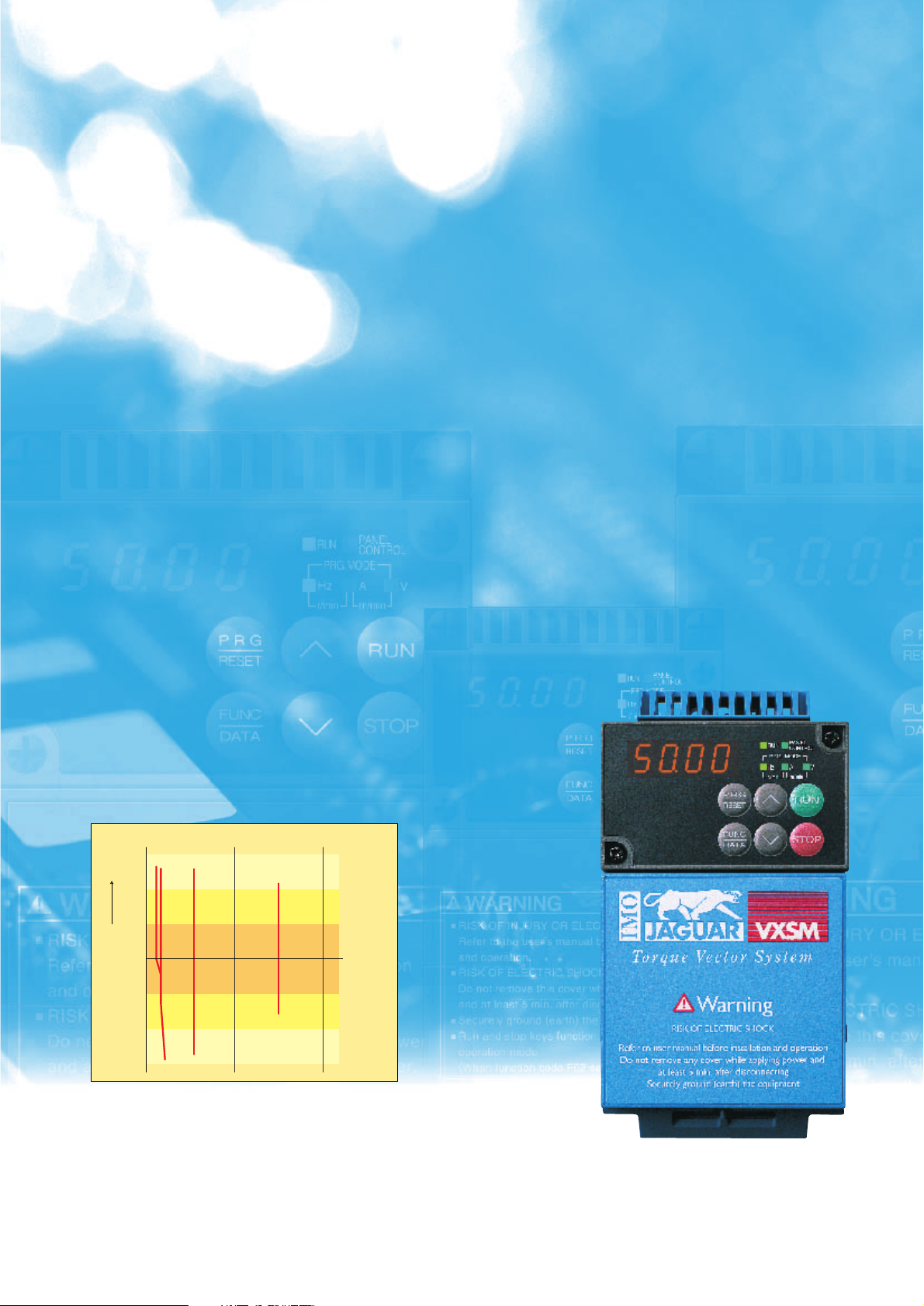

• Even with a compact body size, this series has a high
starting torque of 200% at 0.5Hz and motor wow in the
low speed range is suppressed to approximately half
that of conventional inverters.

• Equipped with intelligent functions such as automatic
energy-saving, PID control, auto-tuning, and RS485
communication, and enhanced maintenance/protection
functions such as inrush-current suppression and
lifetime early warning.

Dynamic torque-vector control

Dynamic torque-vector control system performs high-speed
calculation to determine the required motor power for the load
status. This exclusive technology ensures optimal control of
voltage and current vectors for maximum output torque.

High starting torque of 200% at 0.5Hz

Ideal for heavy industrial loads such as lifts, hoists and mixers.
Also available for a second motor by changeover operation.

Powerful, compact inverters supported

by cutting-edge technology.

Dynamic torque-vector control ensures

optimum motor control.

0

1000 2000

100

-100

200

-200

300

-300

Torque[%]

Motor
speed
[r/min]

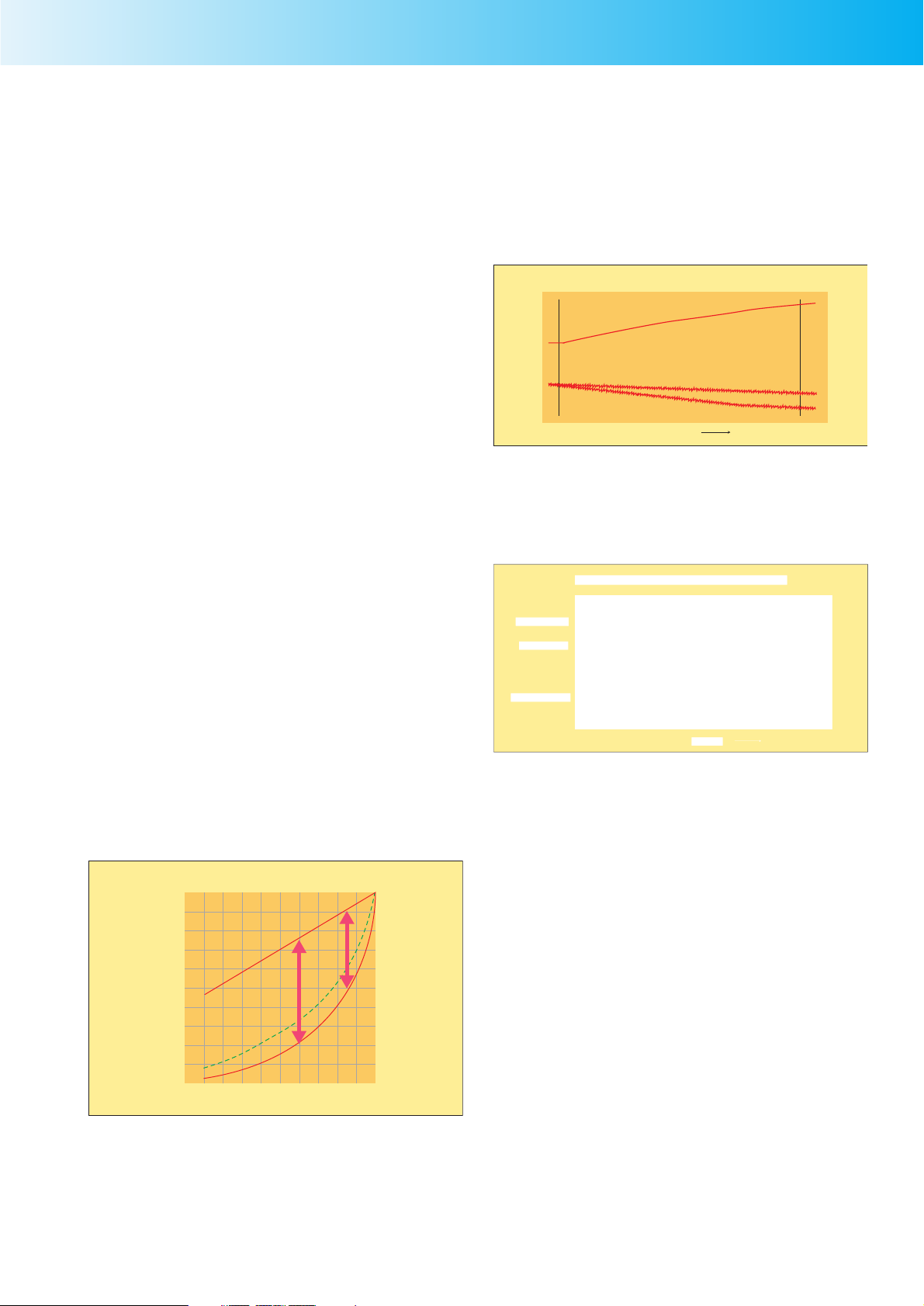

Torque characteristics

2

JAGUAR VXSM

Trip-free operation

The much improved current limiting function
(Automatic deceleration, stall prevention) provides
continuous stable operation even for an impact load.

The above graph shows an example of torque characteristics when combining
the Jaguar VXSM (in torque vector mode) with a standard three-phase, 4 pole,
motor. Continuous operation torque is for limits of allowable load torque when
using the motor within the allowable temperature range and is not for motor
output torque.
The motor output torque is shown by the short-time operation torque.

Reduced motor wow at low speed

VXSM’s unique On-Delay compensation method reduces
motor wow at low speed to approximately half of that of
conventional inverters.

Compact

Miniaturization of minimum level in the class

Compared to the previous VXS series, the volume is reduced
to approximately 50%. (single-phase 200V, 0.4kW)

Uniform height dimension

Consideration for peripheral
devices

Built-in inrush-current suppression circuit
as standard

The capacity of peripheral devices such as magnetic
contractors can be minimized.

Low noise

Reduces interference with devices such as sensors
and load cells.

Equipped with terminals for connecting DC
REACTOR for harmonics suppression and
power factor improvement

Quiet motor when driving with higher carrier
frequency settings

Selectable control meter outputs
(analog/pulse changeover)

24V power source for transistor output

Advanced functions as standard

Automatic energy-saving function as standard

by forcing the motor losses to minimum, further
energy-saving is achieved.

New on-line tuning system

On-line tuning to continuously check for variation of
motor characteristics during running for high-precision
speed control.

This tuning function also available for a second motor,
which allows high-precision driving of the second motor
by changeover operation between two motors

Rotating motor pick-up control

Restarts motor without any shocks, by detecting motor
speed where motor is coasting after momentary power
failure occurs.

PID control function

Equipped with a PID control function which can control
the flow rate of fans and pumps.

Various frequency setting methods

• Keypad operation or analog input
(4 to 20mAdc, 0 to +5Vdc, 0 to ±10Vdc,
normal/inverse)

• Multistep speeds, 16-step setting (0 to 15 steps)
and UP/DOWN control etc.

Equipped with RS485 interface as standard

On-line tuning characteristics

70°C

30°C

With on-line tuning

Motor speed [r/min]

080

Without on-line tuning

Time [min]

Temperature [°C]

Energy saving effect

100

90

When using damper

80

70

60

50

40

30

Required power P [%]

20

10

0

Energy saved

Inverter control

10 20 30 40 50 60 70 80 90 100

(Automatic energy-saving mode)

Flow rate Q [%]

Energy saved

Inverter control

(V/f control)

When using inverter

Wide variation

Range up to 7.5kW

Extensively arranged three-phase 400V series,
facilitating the unification of applying inverters
to machines and equipment.

Single-phase 200V series (2.2kW or smaller)

Protective functions,
Maintenance

Indication of main circuit capacitor life and
accumulated operation time

Automatic control of cooling fans

Overheat early warning of heat sink

Protective function of input/output phase loss

Easy operation and wiring

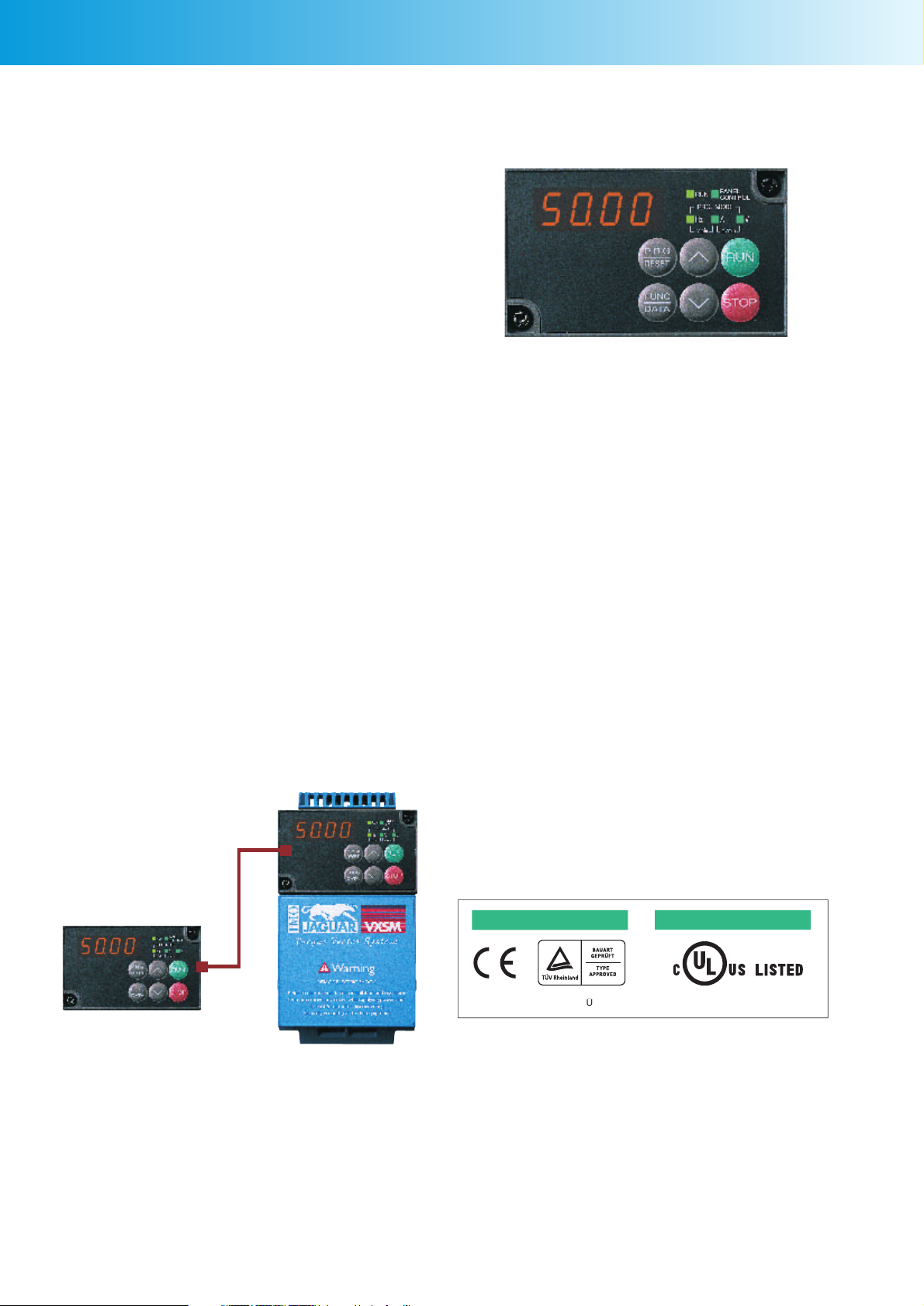

Simple remote control

Remote control is available by removing

keypad panel and using an

optional extension cable

Multiple Function display

Indicates output frequency, output current,
output voltage, motor speed, trip history, etc.

Simple wiring

Only requires removing covers of the main circuit
and control circuit terminal blocks adopting screw
terminal, without detaching the keypad panel.

Multiple drive programming by optional copy unit

The copy unit can download parameter sets into
several VXSM / CubCM units quickly and easily.

Global products

Conforms to major world safety standards:
UL, cUL, TÜV, CE

Complies with EMC Directive (Emissions) when
connected via optional EMC filter (see pages
21/22) and a shielded motor cable is used.

Connection to fieldbus: Profibus-DP, Interbus-S,
DeviceNet, Modbus Plus, CAN Open (Option)

JAGUAR VXSM

n

T

Ü

V

l

5

EU regio

EU Directive (CE marking)

approva

North America/Canada

UL, cUL

Nominal applied

motors [kW]

0.4

0.75

1.5

2.2

4.0

5.5

7.5

Single-phase 200V series

(IP20 model)

VXSM40-1

VXSM75-1

VXSM150-1

VXSM220-1

Three-phase 400V series

(IP20 model)

VXSM40-3

VXSM75-3

VXSM150-3

VXSM220-3

VXSM400-3

VXSM550-3

VXSM750-3

Wide range of inverters: three-phase 400V and single-phase 200V.
Water-proof (IP54) models are also available soon.

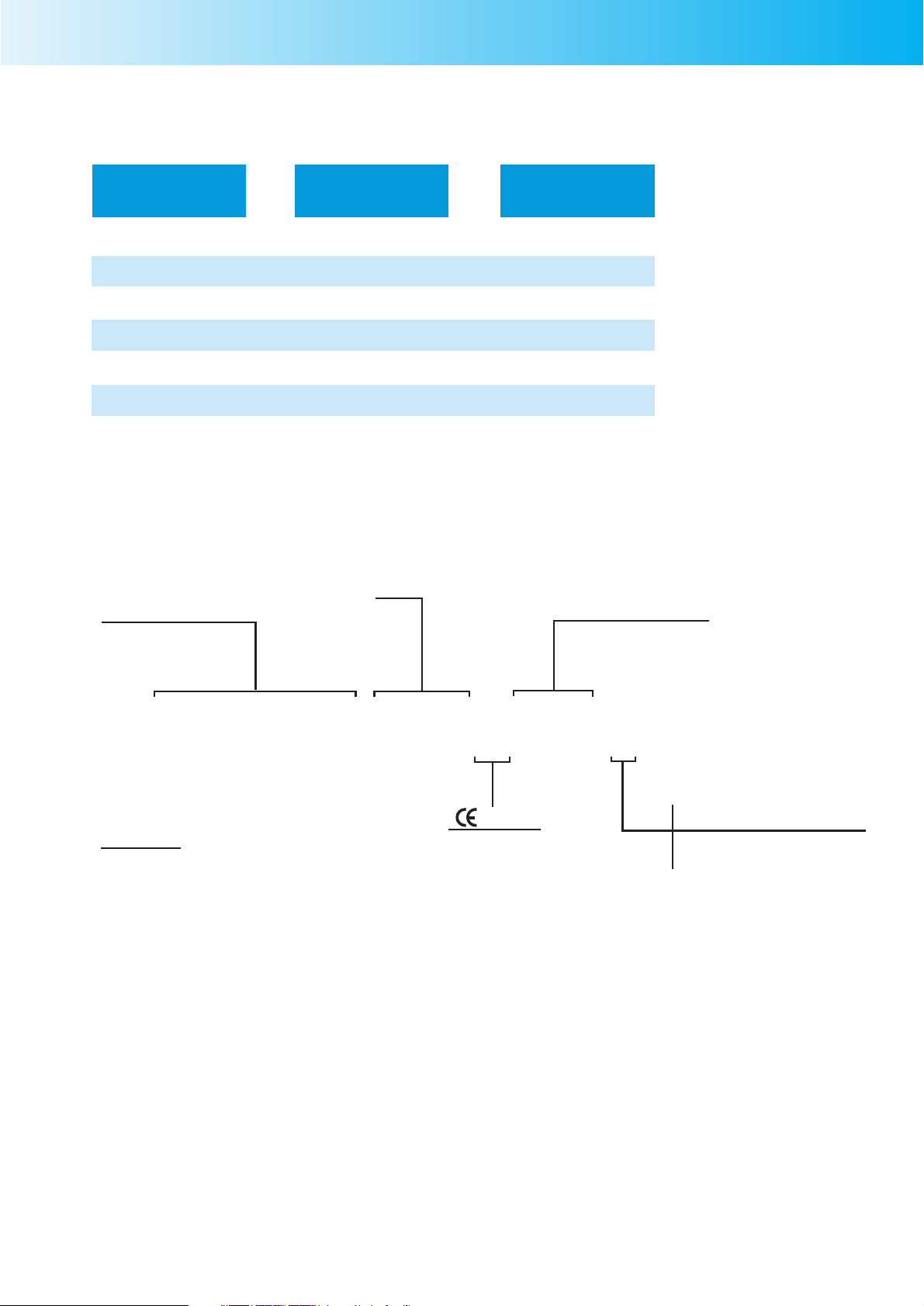

How to read the model number.

JAGUAR VXSM

6

Family

Standard Ratings
Examples

40=

75=
400=
750=

Type

Standard Rating*

JAGUAR VXSM400-3

Marked

0.4kW

0.75kW

4.0kW

7.5kW

Code

Input power source

-3 Three-phase 400V Series

-1 Single-phase 200V Series

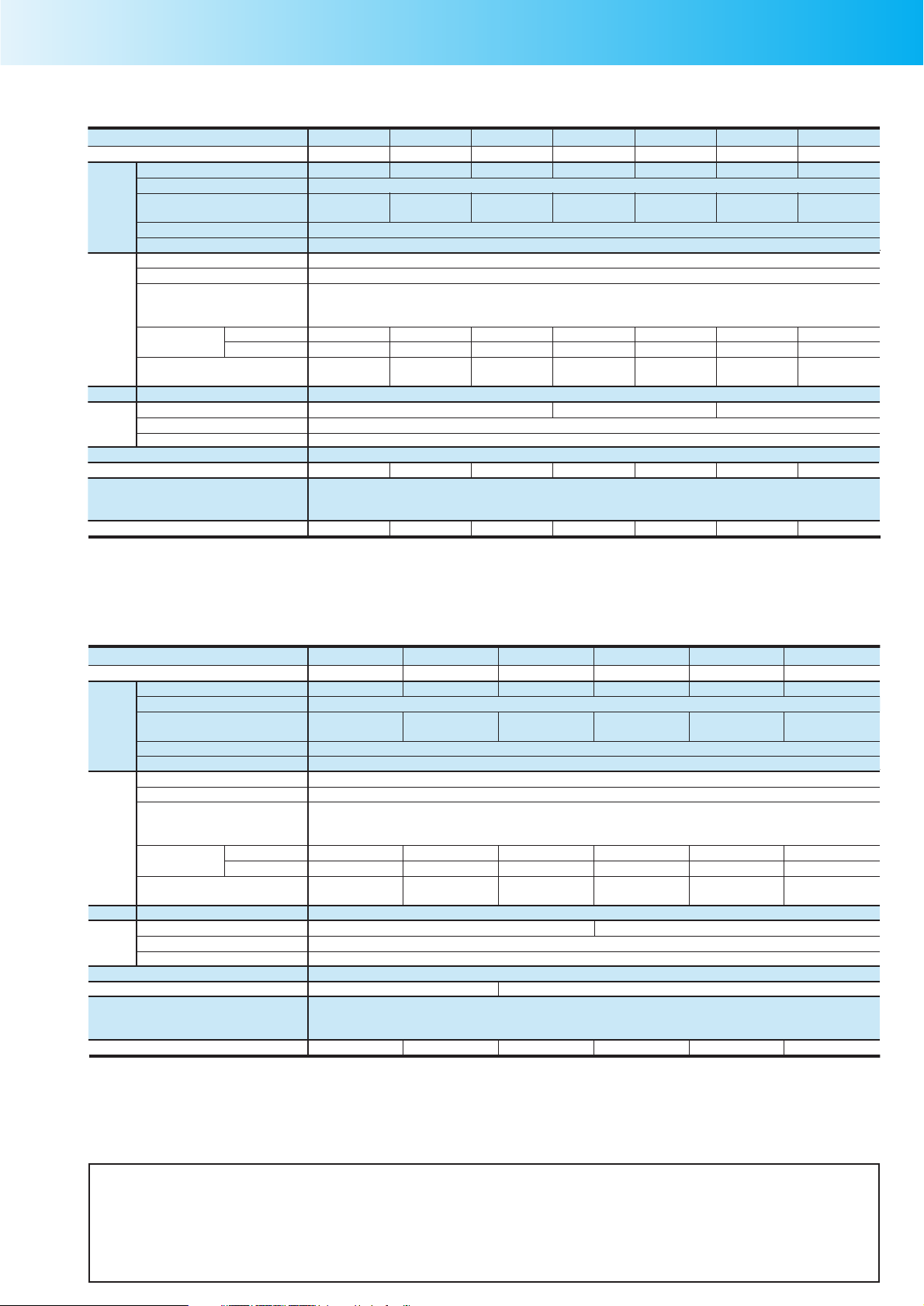

Application

Type VXSM-3 Series
Nominal applied motor kW

Rated capacity *1) kVA

Output
ratings

Rated voltage *2) V
Rated current *3) A

Overload capability
Rated frequency Hz
Phases, Voltage, Frequency

Input
ratings

Voltage / frequency variations
Momentary voltage dip capability *5)

(with DCR)Rated current *6)

A

(without DCR)
Required power
supply capacity *7) kVA
Starting torqueControl
Braking torque (Standatd) *8)

Braking

Braking torque (Using options)
DC injection braking

Enclosure (IEC 60529)
Cooling method

Standards

-UL/cUL -Low Voltage Directive -EMC Directive -TÜV

-IEC 61800-2 (Ratings, specifications for low voltage adjustable frequency a.c. power drive systems)

-IEC 61800-3 (EMC product standard including specific test methods)

Mass kg

0.4 0.75 1.5 2.2 4.0 5.5 7.5

40 75 150 220 400 550 750

1.1 1.9 2.8 4.1 6.8 9.9 13

150% of rated current for 1min. 200% of rated current for 0.5s
50, 60Hz
3-phase 380 to 480V 50/60Hz
Voltage: +10 to –15% (Voltage unbalance *4): 2% or less) Frequency: +5 to –5%
When the input voltage is 300V or more, the inverter can be operated continuously.
When the input voltage drops below 300V from rated voltage, the inverter can be operated for 15ms.
The smooth recovery mode is selectable (by Auto-restart function).

0.82 1.5 2.9 4.2 7.1 10.0 13.5

1.8 3.5 6.2 9.2 14.9 21.5 27.9

0.6 1.1 2.1 3.0 5.0 7.0 9.4

70 40 20

200% (with Dynamic torque-vector control selected)

1.1 1.2 1.3 1.4 1.9 4.5 4.5

Starting frequency: 0.0 to 60.0Hz Braking time: 0.0 to 30.0s Braking level: 0 to 100% of rated current

150

Natural cooling Fan cooling

IP 20

3-phase 380, 400, 415V/50Hz, 380, 400, 440, 460V/60Hz

1.5 2.5 3.7 5.5 9.0 13 18
(1.4) (2.1) (3.7) (5.3) (8.7) (12) (16)

Type VXSM-1 Series
Nominal applied motor kW

Rated capacity *1) kVA

Output
ratings

Rated voltage *2) V
Rated current *3) A

Overload capability
Rated frequency Hz
Phases, Voltage, Frequency

Input
ratings

Voltage / frequency variations
Momentary voltage dip capability *5)

(with DCR)Rated current *6)
A

(without DCR)
Required power
supply capacity *7) kVA
Starting torqueControl
Braking torque (Standard) *8)

Braking

Braking torque (Using options)
DC injection braking

Enclosure (IEC 60529)
Cooling method

Standards

-UL/cUL -Low Voltage Directive -EMC Directive -TÜV

-IEC 61800-2 (Ratings, specifications for low voltage adjustable frequency a.c. power drive systems)

-IEC 61800-3 (EMC product standard including specific test methods)

Mass kg

0.4 0.75 1.5 2.2

40 75 150 220

1.1 1.9 3.0 4.1

150% of rated current for 1min. 200% of rated current for 0.5s
50, 60Hz
1-phase 200 to 240V 50/60Hz
Voltage: +10 to –10% Frequency: +5 to –5%
When the input voltage is 165V or more, the inverter can be operated continuously.
When the input voltage drops below 165V from rated voltage, the inverter can be operated for 15ms.
The smooth recovery mode is selectable (by Auto-restart function).

3.5 6.5 11.8 17.7

6.4 11.4 19.8 28.5

0.7 1.3 2.4 3.6

70 40

200% (with Dynamic torque-vector control selected)

0.7 1.2 1.8 1.9

Starting frequency: 0.0 to 60.0Hz Braking time: 0.0 to 30.0s Braking level: 0 to 100% of rated current

150

Natural cooling Fan cooling

IP 20

3-phase 200V/50Hz 200, 220, 230V/60Hz

3.0 5.0 8.0 11
(2.5) (4.0) (7.0) (10)

NOTES:
*1) Inverter output capacity (kVA) at 440V in 400V series, 220V in 200V series. *2) Output voltage cannot exceed the power supply voltage. *3) Current derating may be
required in case of low impedance loads such as high frequency motor. Use the inverter at the current ( ) or below where carrier frequency setting is higher than 4kHz
(F26: 4 to 15) or the amb. temp. is 40°C or higher. *4) Refer to the IEC 61800-3 (5.2.3). *5) Tested at standard load condition (85% load). *6) This value is under
original calculation method. (Refer to the Technical Information.) *7) When optional power-factor correcting DC REACTOR (DCR) is used. *8) With a nominal applied
motor, this value is average torque when the motor decelerates and stops from 60 Hz. (It may change according to motor loss.)

Standard Specifications

Three-phase 400V series

Single-phase 200V series

Conformity to Low Voltage Directive

The VXSM Series conforms to the Low Voltage Directive
with EN50178

Conformity to EMC Directive

• Emission requirement

• Footprint filters in compliance with EN61800-3 are
provided for all models (optional)

• Immunity requirement
The VXSM Series inverters meet EN61800-3 as standard.

8

JAGUAR VXSM

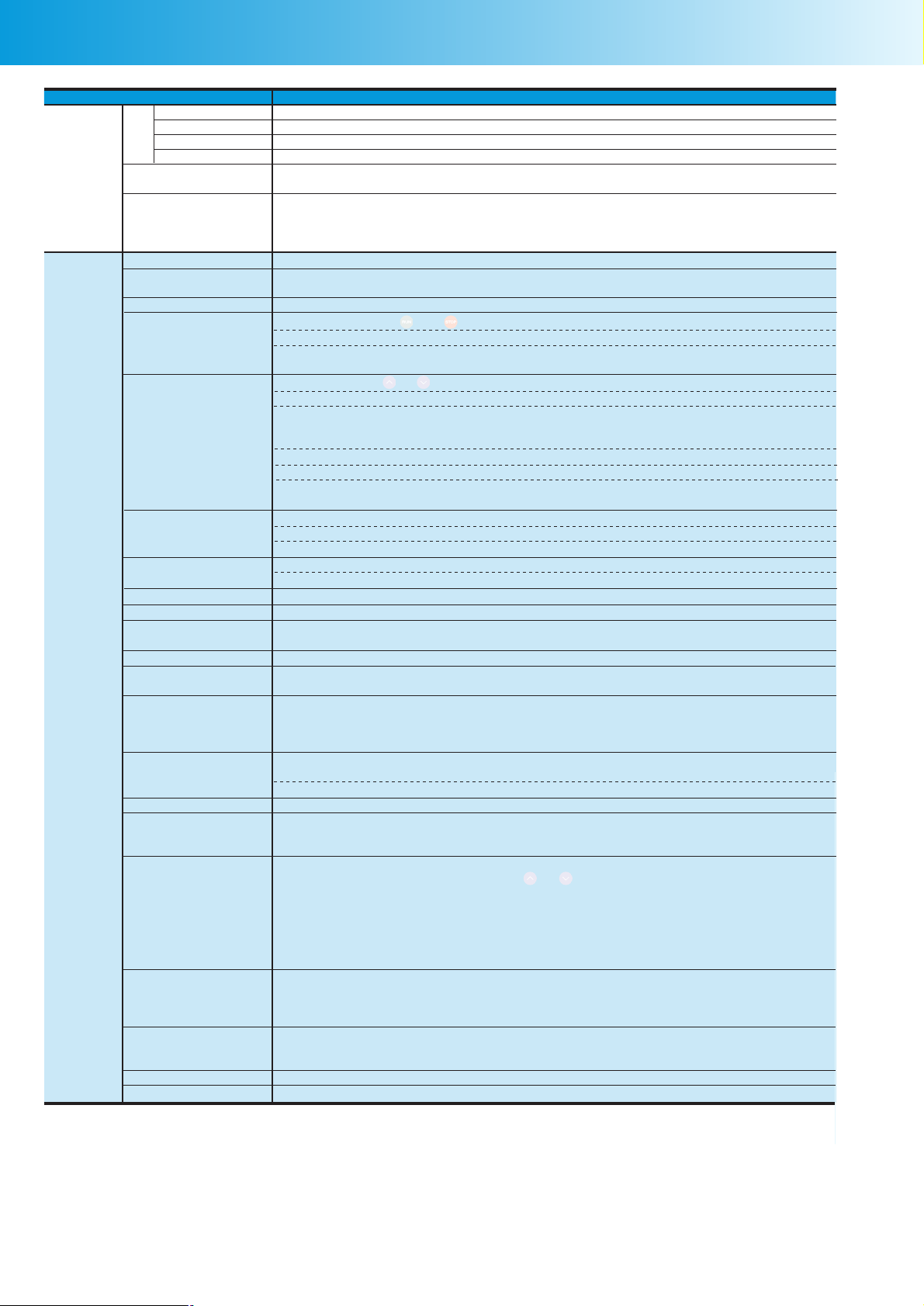

Acceleration / Deceleration
time

Frequency limiter
Bias frequency
Gain for frequency setting

Operation method

Frequency setting
(Frequency command)

Voltage / freq. (V/f)
characteristic

Running status signal

Item
Maximum frequency

Base frequency
Starting frequency
Carrier frequency *2)

Accuracy (Stability)

Setting resolution

Control method

Torque boost

Explanation

Setting

Output
frequency

Control

Automatic deceleration

Second motor's setting

Energy saving operation
Fan stop operation

Jump frequency control
Rotating motor pick up
(Flying start)

Auto-restart after
momentary power failure

Slip compensation

Droop operation
Torque limiter

PID control

50 to 400Hz *1)
25 to 400Hz

0.1 to 60.0Hz, Holding time: 0.0 to 10.0s

0.75 to 15kHz

•

Analog setting : ±0.2% of Maximum frequency (at 25±10°C)

•

Digital setting : ±0.01% of Maximum frequency (at –10 to +50°C)

•

Analog setting : 1/3000 of Maximum frequency ex.) 0.02Hz at 60Hz, 0.04Hz at 120Hz, 0.15Hz at 400Hz

•

Digital setting : 0.01Hz at Maximum frequency of up to 99.99Hz (0.1Hz at Maximum frequency of 100.0Hz and above)

• LINK setting : • 1/20000 of Maximum frequency ex.) 0.003Hz at 60Hz, 0.006Hz at 120Hz, 0.02Hz at 400Hz

• 0.01Hz (Fixed)

• V/f control (Sinusoidal PWM control) • Dynamic torque-vector control (Sinusoidal PWM control)
Adjustable at base and maximum frequency, with AVR control : 160 to 480V (400V series), 80 to 240V (200V series)

Selectable by load characteristics: Constant torque load (Auto/manual), Variable torque load (Manual)

• KEYPAD operation : key, key

• Digital input signal operation : FWD or REV command, Coast-to-stop command, etc.

• LINK operation : RS485 (Standard)
Profibus-DP, Interbus-S, DeviceNet, Modbus Plus, CAN Open (Option)

• KEYPAD operation: or key

• External potentiometer (*) : 1 to 5kΩ

• Analog input : 0 to +10V DC (0 to +5V DC), 4 to 20mA DC

(Reversible) 0 to ±10V DC (0 to ±5V DC) ....Reversible operation by polarized signal can be selected.

(Inverse) +10 to 0V DC, 20 to 4mA DC......Inverse mode operation can be selected.

• UP/DOWN control : Output frequency increases when UP signal is ON, and decreases when DOWN signal is ON.

• Multistep frequency : Up to 16 different frequencies can be selected by digital input signal.

• LINK operation : RS485 (Standard)
Profibus-DP, Interbus-S, DeviceNet, Modbus Plus, CAN Open (Option)

Transistor output (2 points) : RUN, FAR, FDT, OL, LU, TL, etc.
Relay output (1 point) : Alarm output (for any fault)
Analog (or pulse) output (1 point) : Output frequency, Output current, Output torque, etc.

0.01 to 3600s : • Independently adjustable acceleration and deceleration • 2 different times are selectable.
Mode select : Linear, S-curve (weak), S-curve (strong), Non-linear
High and Low limiters can be preset.
Bias frequency can be preset.
Gain for frequency setting can be preset. (0.0 to 200.0%) ex.) Analog input 0 to +5V DC with 200% gain results in

maximum frequency at 5V DC.
Jump frequency (3 points) and its common jump hysteresis width (0 to 30Hz) can be preset.
A rotating motor (including inverse rotating mode) can be smoothly picked up without stopping the motor (speed search

method).
Automatic restart is available without stopping motor after a momentary power failure (speed search method). When

"Smooth recovery" mode is selected, the motor speed drop is held minimum. (The inverter searches the motor speed,
and smoothly returns to setting frequency. Even if the motor circuit is temporarily opened, the inverter operates without
a hitch.)

The inverter output frequency is controlled according to the load torque to keep motor speed constant. When the value is
set at "0.00" and "Torque-vector" is set at "active", the compensation value automatically selects a standard motor.

Slip compensation can be preset for the second motor.
The motor speed droops in proportion to output torque (–9.9 to 0.0Hz).

•

When the motor torque reaches a preset limiting level, this function automatically adjusts the output frequency to prevent the inverter
from tripping due to an overcurrent.

•

Torque limiter 1 and 2 can be individually set, and are selectable with a digital input signal.

This function can control flowrate, pressure, etc. (with an analog feedback signal.)

• Reference

•

KEYPAD operation (

or key) : 0.0 to 100.0%

signal •

Voltage input (Terminal 12 ) : 0 to +10V DC

•

Current input (Terminal C1 ) : 4 to 20mA DC

•

Multistep frequency setting :

Setting freq. / Max. freq. X 100 (%)

•

RS485 :

Setting freq. / Max. freq. X 100 (%)

• Feedback signal

•

Terminal 12 (0 to +10V DC or +10 to 0V DC)

•

Terminal C1 (4 to 20mA DC or 20 to 4mA DC)

Torque limiter 1 (Braking) is set at "F41: 0" (Same as Torque limiter 2 (Braking) ).

•

In deceleration: The deceleration time is automatically extended up to 3 times the setting time for tripless operation even if braking

resistor not used.

•

In constant speed operation: Based on regenerative energy, the frequency is increased and tripless operation is active.

This function is used for two motors switching operation.

•

The second motor’s V/f characteristics (base and maximum frequency) can be preset.

•

The second motor’s circuit parameter can be preset. Torque-vector control can be applied to both motors.
This function minimizes inverter and motor losses at light load.
This function is used for silent operation or extending the fan's lifetime.

NOTES: (*)

Option

*1)

For application at 120Hz or above, please contact IMO Precision Controls LTD.

*2)

Inverter may automatically reduce carrier frequency, in accordance with ambient temperature or output current for protecting inverter.

9

JAGUAR VXSM

10

Indication
(LED monitor)

Protection

Condition
(Installation
and
operation)

Storage condition

Operation mode (Running)

Stopping
Trip mode

Running or trip mode
Charge lamp
Overload
Overvoltage

Incoming surge
Undervoltage

Input phase loss
Overheating
Short-circuit
Ground fault

Motor overload

DB resistor overheating

Stall prevention

Output phase loss
Motor protection by
PTC thermistor

Auto reset
Installation location
Altitude

Ambient temperature
Ambient humidity
Vibration

Item

Explanation

•

Output frequency (Hz)

•

Setting frequency (Hz)

•

Output current (A)

•

Output voltage (V)

•

Motor synchronous speed (r/min)
Selected setting value or output value

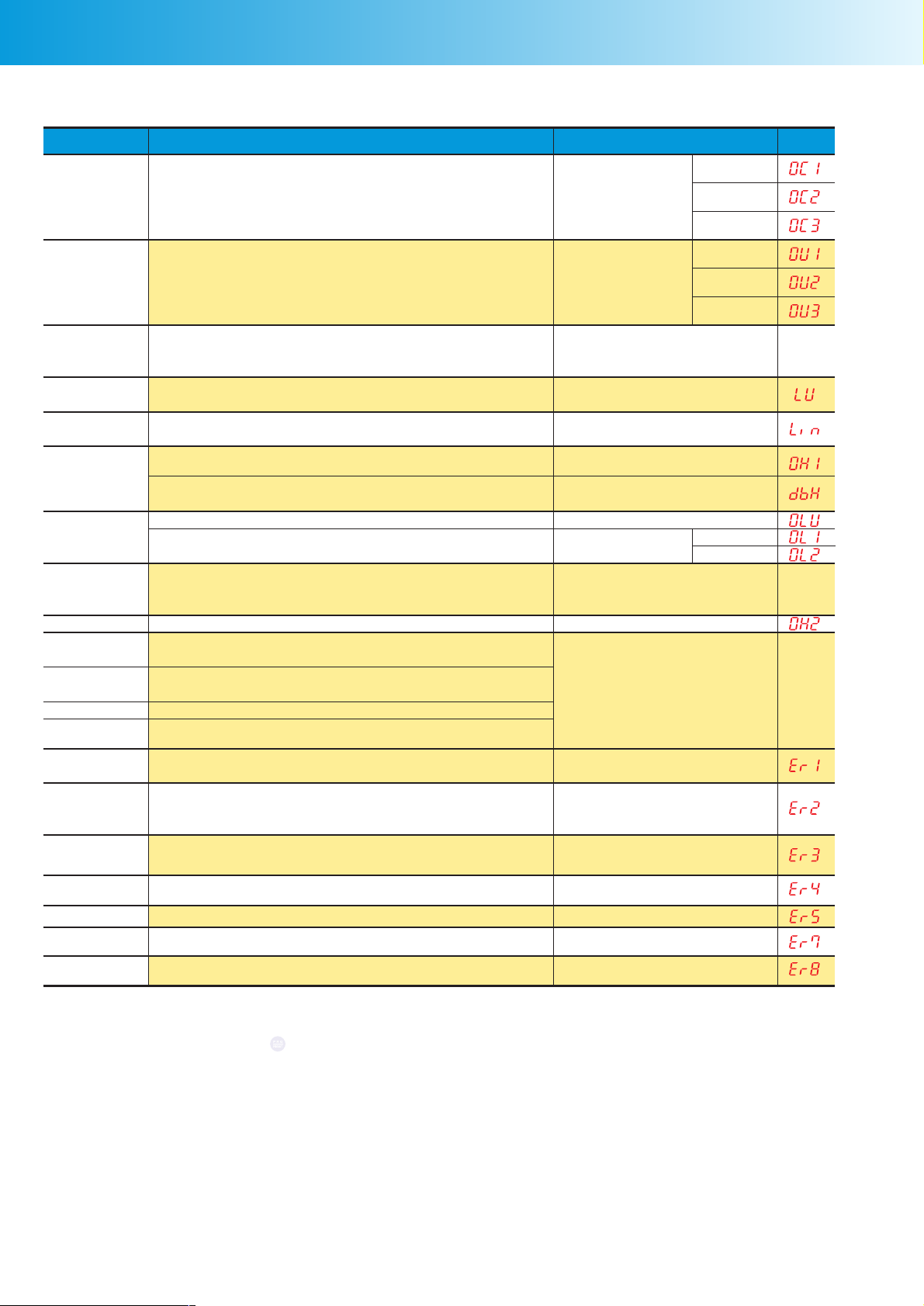

Displays the cause of trip by codes as follows. • dBH (Overheating at DB circuit)

•

OC1 (Overcurrent during acceleration)

•

OC2 (Overcurrent during deceleration)

•

OC3 (Overcurrent during running at constant speed) • OLU (Inverter unit overload)

•

Lin (Input phase loss)

•

OU1 (Overvoltage during acceleration)

•

OU2 (Overvoltage during deceleration)

•

OU3 (Overvoltage during running at constant speed) • Er4 (Option error)

•

LU (Undervoltage)

•

OH1 (Overheating at heat sink)

•

OH2 (External thermal relay tripped)

•

Trip history: Cause of trip by code (Even when main power supply is off, trip history data of the last 4 trips are retained.)
When the DC link circuit voltage is higher than 50V, the charge lamp is ON.
Protects the inverter by electronic thermal and detection of inverter temperature.
Detects DC link circuit overvoltage,and stops the inverter. (400V series: 800V DC, 200V series: 400V DC)
Protects the inverter against surge voltage between the main circuit power line and the ground.
Detects DC link circuit undervoltage,and stops the inverter. (400V series: 400V DC, 200V series: 200V DC)
Phase loss protection for power line input.
Protects the inverter by detection of inverter temperature.
Short-circuit protection for inverter output circuit

•

Ground fault protection for inverter output circuit (Detecting at start)

•

The inverter trips, and then protects the motor.

•

Electronic thermal overload relay can be selected for standard motor or inverter motor

•

Thermal time constant (0.5 to 10.0 minutes) can be preset for a special motor.

•

The second motor's electronic thermal overload relay can be preset for 2-motor changeover operation.

•

Prevents DB resistor overheating by internal electronic thermal overload relay.
(The inverter stops electricity discharge operation to protect the DB resistor.)

•

Controls the output frequency to prevent (overcurrent) trip when the output current exceeds the limit value during

acceleration.

•

Lowers the output frequency to hold almost constant torque when the output current exceeds the limit value during

operation at constant speed.

•

Controls the output frequency to prevent (overvoltage) trip when the DC link circuit voltage exceeds the limit value

during deceleration.
When the inverter executes tuning, detects each phase impedance unbalance.
When the motor temperature exceeds allowable value, the inverter trips automatically.

When the inverter is tripped, it resets automatically and restarts.
Free from corrosive gases, flammable gases, oil mist, dusts, and direct sunlight. Indoor use only.
1000m or less. Applicable to 3000m with power derating (–10%/1000m)
–10 to +50 °C.
5 to 95%RH (non-condensing)
3mm at from 2 to less than 9Hz, 9.8m/s

2

at from 20 to less than 55Hz, 1m/s2 at from 55 to less than 200Hz

2m/s

•

Temperature : –25 to +65 °C

2

at from 9 to less than 20Hz

•

Humidity : 5 to 95%RH (non-condensing)

•

Line speed (m/min)

•

PID reference value

•

PID reference value (remote)

•

PID feedback value

•

OL1 (Motor 1 overload)

•

OL2 (Motor 2 overload)

•

Er1 (Memory error)

•

Er2 (KEYPAD panel communication error)

•

Er3 (CPU error)

•

Er5 (Option error)

•

Er7 (Output phase loss error, impedance unbalance)

•

Er8 (RS485 error)

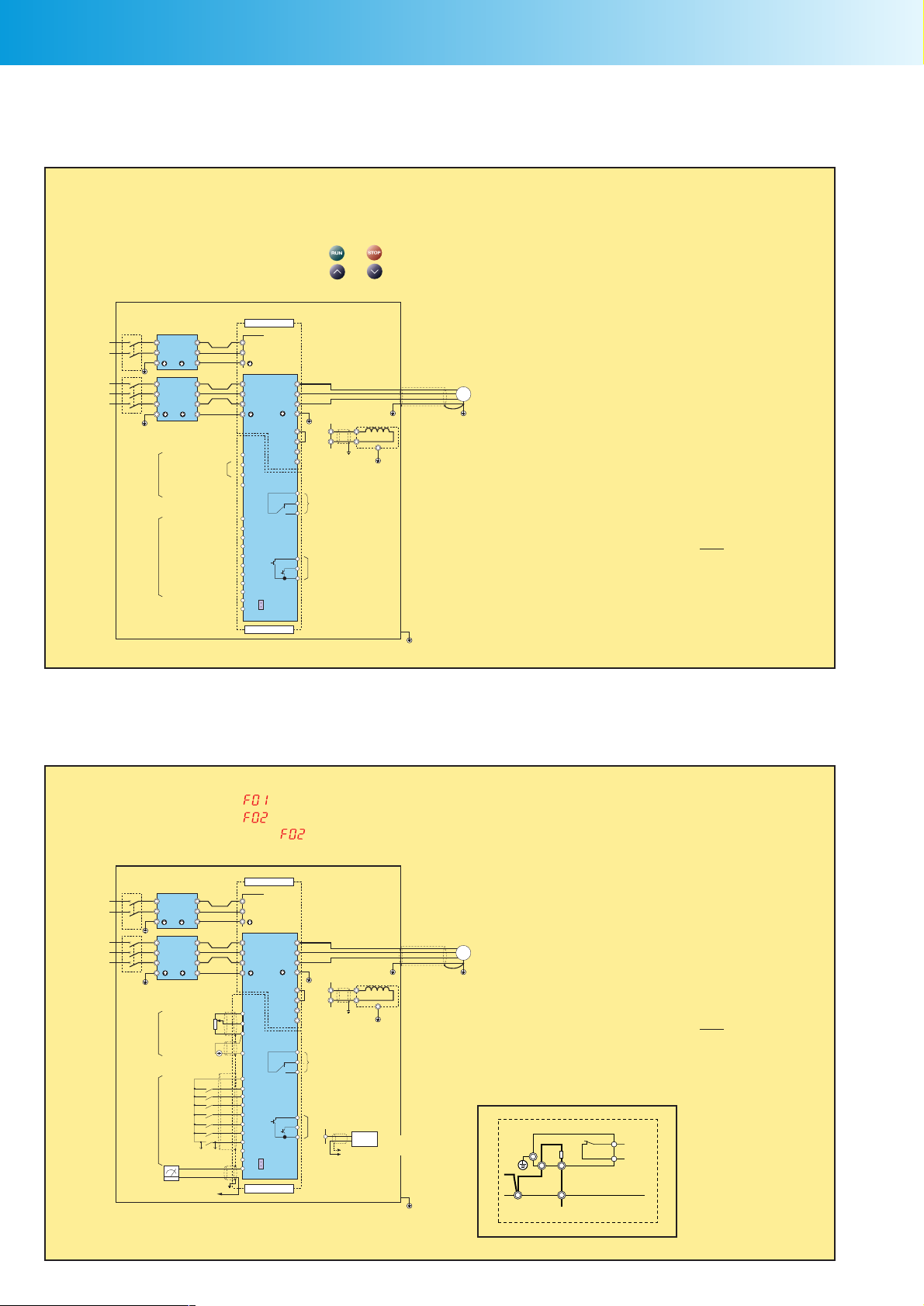

Basic Wiring Diagram

External signal input Operation

The following diagram is for reference only. For detailed wiring diagrams, refer to the relevant instruction manual

NOTES:
*1) When connecting an optional DC Reactor, remove the

jumper short bar that connects the terminals [P1]
and [P+].

*2) Keep the control circuit wires at least 100mm away from

the main circuit wires and put them in separate ducts to
prevent noise and resultant malfunctions. When control
wiring crosses the main wiring, ensure that they cross
each other at right angles.

*3) For the wiring of the control circuit , use shielded or

twisted wires with the shortest possible length.
(When using shielded wires, connect one end of the
shields to the inverter ground terminal and leave the other
end free.)

*4) If there is a magnetic contactor or a solenoid close to the

inverter, connect a surge suppresser to the coil in parallel
connection. Keep the wiring length to a minimum.

*5) Ensure motor cable is shielded, and both ends are

securely earthed using short wire links with minimum
c.s.a the same as the motor / supply cable, or use
appropriate brass terminating gland.

Operation using the factory settings
Connect the inverter to the power supply and motor. Then, turn on the power to enable variable
speed operation.
[Operation method]

1. Run/Stop . . . . . . . . . Press or key on the keypad panel.

2. setting frequency . . . Press or key on the keypad panel.

NOTES:
*1) When connecting an optional DC REACTOR, remove the

jumper short bar that connects the terminals [P1] and
[P+].

*2) If there is a magnetic contactor or a solenoid close to the

inverter, connect a surge suppresser to the coil in parallel
connection. Keep the wiring length to a minimum.

*3) For the wiring of the control circuit, use shielded or

twisted wires with the shortest possible length. When
using shielded wires, connect the shields to the inverter
ground terminal.

*4) Ensure motor cable is shielded, and both ends are

securely earthed using short wire links with minimum
c.s.a the same as the motor / supply cable, or use
appropriate brass terminating gland.

Run/Stop operation and frequency setting through external signals
When “1” is set at , you can set a frequency by using an input signal for 0 to 10V DV.
When “2” is set at , you can set frequency by using an input signal for 4 to 20mA DC.
In both cases set “1” at .

External braking resistor (DB)

2
1

PDB

DB

P (+)

(P24)
(THR)

★

Keypad panel Operation

The following diagram is for reference only. For detailed wiring diagrams, refer to the relevant instruction manual

11

Power supply

1-phase
200 to 240V
50/60Hz

3-phase
400 to 480V
50/60Hz

MCCB

*

or
ELCB

: Option

*

Analog
input

Digital
input

EMC compliance
filter

*

L1

L1

L2

L2

G

G

L1

L1

L2

L2

L3

L3

G

G

Potentiometer
power supply

Voltage input

Current input

Pulse/analog output

Main circuit

L1/L
L2/N

G

L1/R
L2/S
L3/T

G

13
12
11
C1

P24
FWD
REV
X1
X2
X3

X4
X5
CM
CM
FM

Control circuit

U
V
W
G

P1

P (+)P1P (+)

DB

N (-)

30C
30B

30

30A

Y2E
Y1E

CMC

Analog/pulse
changeover
switch

ENCLOSURE★

)

*1

★Where DC REACTOR(DCR)
is used

Alarm output (for any fault)

Transistor output

E

Armoured or
screened cable

Grounding

Motor

*

M
3~

MCCB

*

or

Power supply

1-phase
200 to 240V
50/60Hz

3-phase
400 to 480V
50/60Hz

ELCB

: Option

*

Analog
input

Digital
input

EMC compliance

*

filter

L1
L2

G

L1
L2
L3

G

Potentiometer
power supply
(0 to +10V DC)

Current input
(4 to 20mA DC)

Analog meter

To terminal No. 11

L1
L2

G

L1
L2
L3

G

(P24)(THR)

★Analog monitor

ENCLOSURE★

Main circuit

L1/L
L2/N

G

L1/R

U

L2/S

V

L3/T

W

G

G

P1

P (+)P1P (+)

)

3

13

2

12

1

11

C1

P24
FWD

REV
X1
X2
X3
X4
X5
CM
CM
FM

Control circuit

DB

N (-)

30C
30B

30

30A

Y2E

Y1E

CMC

Analog/pulse
changeover
switch

*1

★Where DC REACTOR(DCR)
is used

Alarm output
(for any fault)

Transistor output

Pulse

FM

counter

To 11 terminal

E

Digital

*

frequency
counter

Armoured or
screened cable

Grounding

Motor

*

M
3~

Terminal Functions

Terminal Functions

12

Symbol

L1/R, L2/S,

Main

L3/T

circuit

L1/L, L2/N

U, V, W

P1, P(+)

P(+), N(-)

P(+), DB

G

13

Analog
input

12

C1

11 Common Common for analog signal Isolated from terminal CME and CM.

FWD

Digital
input

REV

X1

X2

X3

X4

X5

(Hz2/Hz1)

(M2/M1)

(DCBRK)

(TL2/TL1)

(DOWN)

(WE-KP)

(Hz/PID)

CM Common Common for digital signal

Terminal name

Power input

Power input

Inverter output

For DC REACTOR

For DC link circuit

For EXTERNAL
BRAKING RESISTOR

Grounding

Potentiometer
power supply

Voltage input

(PID control)

Current input

(PID control)

(PTC-thermistor input)

Forward operation
command

Reverse operation
command

Digital input 1

Digital input 2

Digital input 3

Digital input 4

Digital input 5

(SS1)

Multistep freq.

(SS2)

selection
(SS4)
(SS8)

ACC / DEC time selection

(RT1)

3-wire operation

(HLD)

stop command

Coast-to-stop

(BX)

command

Alarm reset

(RST)

Trip command

(THR)

(External fault)

Freq. set 2 /

Freq. set 1

Motor 2 / Motor 1

DC brake command

Torque limiter 2 /

Torque limiter 1

(UP) UP command (UP): ON ..... The output frequency increases.

DOWN command

Write enable for KEYPAD

PID control cancel

Inverse mode changeover

(IVS)

Link enable (RS485, Bus)

(LE)

Connect a 3-phase power supply.

Connect a 1-phase power supply.

Connect a 3-phase induction motor.

Connect the DC REACTOR for power-factor correcting or harmonic current reducing.

Used for DC bus connection system.

Connect the EXTERNAL BRAKING RESISTOR (Option)

Ground terminal for inverter chassis (housing).

+10V DC power supply for frequency setting POT (POT: 1 to 5kΩ)

•

0 to +10V DC/0 to 100% (0 to +5V DC/0 to 100% )

•

Reversible operation can be selected by function setting.

0 to ±10V DC /0 to ±100% (0 to ±5V DC/0 to ±100%)

Used for PID control reference signal or feedback signal.

•

4 to 20mA DC/0 to 100%

Used for PID control reference signal or feedback signal.

The PTC-thermistor (for motor protection) can be connected to terminal C1 - 11.

FWD: ON ..... The motor runs in the forward direction.

FWD: OFF ..... The motor decelerates and stops.

REV: ON ..... The motor runs in the reverse direction.

REV: OFF ..... The motor decelerates and stops.

These terminals can be preset as follows.

(SS1) : 2 (0, 1) different frequencies are selectable.
(SS1,SS2) : 4 (0 to 3) different frequencies are selectable.
(SS1,SS2,SS4) : 8 (0 to 7) different frequencies are selectable.
(SS1,SS2,SS4,SS8) : 16 (0 to 15) different frequencies are selectable.

(RT1) : 2 (0, 1) different ACC / DEC times are selectable.

Used for 3-wire operation.

(HLD): ON ..... The inverter self-holds FWD or REV signal.

(HLD): OFF ..... The inverter releases self-holding.

(BX): ON ..... Motor will coast-to-stop. (No alarm signal will be output.)

(RST): ON ..... Faults are reset. (This signal should be held for more than 0.1s.)

(THR): OFF ..... "OH2 trip" occurs and motor will coast-to-stop.

(Hz2/Hz1): ON ..... Freq. set 2 is effective.

(M2/M1): ON ..... The motor circuit parameter and V/f characteristics are changed

to the second motor's ones.

(DCBRK): ON ..... The DC injection brake is effective. (In the inverter deceleration mode)

(TL2/TL1): ON ..... Torque limiter 2 is effective.

(DOWN): ON ..... The output frequency decreases.

•

The output frequency change rate is determined by ACC / DEC time.

•

Restarting frequency can be selected from 0Hz or setting value at the time of stop.

(WE-KP): ON ..... The data is changed by KEYPAD.

(Hz/PID): ON ..... The PID control is canceled, and frequency setting by KEYPAD

( or )is effective.

(IVS): ON ..... Inverse mode is effective in analog signal input.

(LE): ON ..... The link opereation is effective. Used to switch operation between ordinary

operation and link operation to communication.

Function

DC REACTOR: Option

•

Allowable maximum output current : 10mA

•

Input impedance: 22k

•

Allowable maximum input voltage: ±15V DC

•

If input voltage is 10 to 15V DC, the inverter estimates

it to10V DC.

•

Input impedance: 250Ω

When FWD and REV are simultaneously ON, the motor
decelerates and stops.

•

The digital inputs can directly connent to source type

output (PNP transistor output) circuit.

•

ON state maximum input voltage: 2V

(maximum sink current : 6mA)

•

OFF state maximum terminal voltage: 22 to 27V

(allowable maximum leakage current: 0.5mA)

•

The digital inputs can directly connent to source type

output (PNP transistor output) circuit.

Frequency 0 is set by F01 (or C30).
(All signals of SS1 to SS8 are OFF)

Time 0 is set by F07/F08.

•

The motor restarts from 0Hz by turning off BX with the

operation command (FWD or REV) ON.

•

Assigned to terminal X4 at factory setting.

•

During normal operating, this signal is ignored.

•

Assigned to X5 at factory setting.

This alarm signal is held internally.

If this signal is changed while the inverter is running,
the signal is effective only after the inverter stops.

If this signal is changed while the inverter is running,
the signal is effective only after the inverter stops.

If the operation command(FWD/REV) is input while DC braking
is effective, the operation command (FWD/REV) has priority.

When UP and DOWN commands are simultaneously
ON, DOWN signal is effective.

If this signal is changed while the inverter is running, the signal
is effective only after the inverter stops.

RS485: Standard, Bus: Option

Isolated from CME and 11.

Remarks

Func. code

F01, C30

F01, H21

F01

F01, H21

H26, H27

F02

E01 to E05

C05 to C19

F07, F08
E10, E11

H11

F01 / C30

P01 to P10 /
A10 to A19

F20 to F22

F40, F41

/

E16, E17

F01, C30

H20 to H25

F01, C30

H30

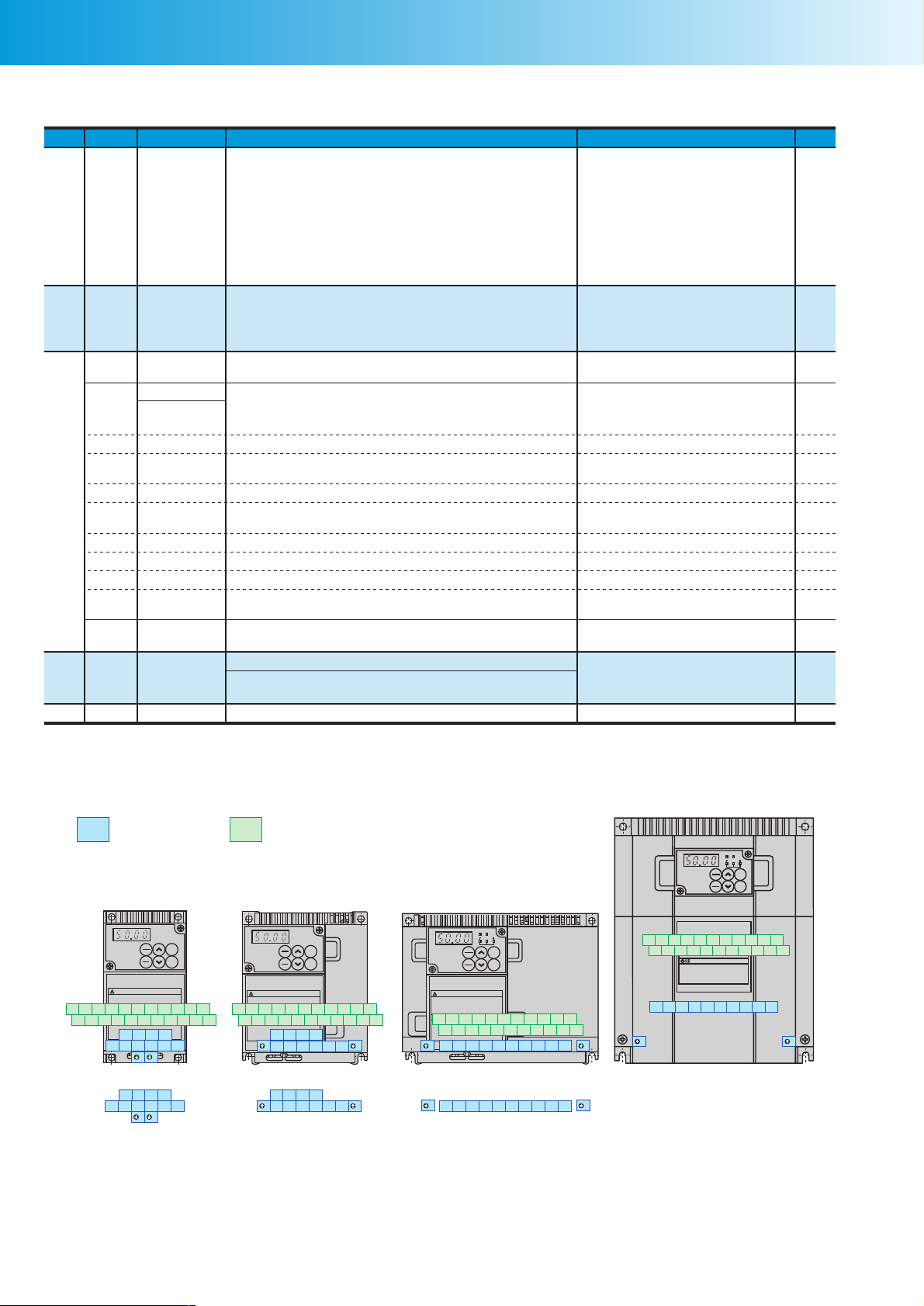

Terminal Arrangement

JAGUAR VXSM

Pulse
output

Transistor
output

Relay
output

LINK

Symbol Terminal name Function

Func. code

Remarks

FM

Y1E

Y2E

(RUN)

(FAR)

(FDT)

(LU)

(B/D)

(TL)

(IPF)

(OL)

Pulse rate monitor

Transistor output 1

Transistor output 2

P24 DC voltage supply

Inverter running

Frequency equivalence
signal

Frequency level detection

Undervoltage
detection signal

Torque polarity

Torque limiting

Auto-restarting

Overload early warning

•

Pulse rate mode : Pulse rate is proportional to selected function’s value* (50% duty pulse)

•

Average voltage mode : Average voltage is proportional to selected function’s value*
(2670p/s pulse width control)
* Kinds of function to be output is same as those of analog output (FM).

Output the selected signals from the following items.

Power supply for transistor output load. (+24V DC, 50mA max.)

Outputs ON signal when the output frequency is higher than starting frequency.

Outputs ON signal when the difference between output frequency and setting frequency is
smaller than FAR hysteresis width.

Outputs ON signal by comparison of output frequency and preset value (level and hysteresis).

Outputs ON signal when the inverter stops by undervoltage while the operation command is ON.

Outputs ON signal in braking or stopping mode, and OFF signal in driving mode.

Outputs ON signal when the inverter is in torque-limiting mode.

Outputs ON signal during auto restart operation (Instantaneous power failure) mode. (including "restart time")

•

Outputs ON signal when the electronic thermal value is higher than preset alarm level.

•

Outputs ON signal when the output current value is higher than preset alarm level.

Allowable maximum output current : 2mA

Link P24 to CMC and connect loads such as relays
between Y1E, Y2E and CM.

•

ON state maximum output voltage : 2V

(Allowable maximum source current : 50mA)

• OFF state maximum leakage current : 0.1mA
(Allowable maximum voltage : 27V)

CMC

Common (transistor
output)

Common for transistor output signal. Isolated from terminals CM and 11.

30A, 30B
30C

Alarm relay output Outputs a contact signal when a protective function is activated.

Changeable exciting mode active or non-exciting mode active by function "F36".

• Contact rating :
250V AC, 0.3A, cosø=0.3
48V DC, 0.5A, non-inductive (for LVD)
42V DC, 0.5A, non-inductive (for UL/cUL)

Connect the RS485 link signal. RS485 I/O terminal

(11)

(Common)

E30

F36

F29
F33 to F35

E20, E21

E31, E32

E33 to E35

FM

(11)

Analog monitor

(Common)

Output voltage (0 to 10V DC) is proportional to selected function’s value as follows.
The proportional coefficient and bias value can be preset.

• Output frequency 1 (Before slip compensation) (0 to max. frequency)

• Output frequency 2 (After slip compensation) (0 to max. frequency)

• Output current (0 to 200%)

• Output voltage (0 to 200%)

• Output torque (0 to 200%)

• Load factor (0 to 200%)

• Input power (0 to 200%)

• PID feedback value (0 to 100%)

• DC link circuit voltage (0 to 1000V)

Allowable maximum output current: 2mA Analog

output

F29
F30, F31

Terminal Function

13

Main circuit
terminals

30A 30B Y1E C1 FM X1 X2 X3 X4 X5 CM

30C Y2E

WARNING

CMC

11 12 13 CM

DB

P1 P(+) N(-)

L1/R

L2/S L3/T

DB

P1 P(+) N(-)

L1/L

L2/N

G G

VXSM40-1 VXSM40 to 220-3

P R G

RUN

RESET

FUNC

STOP

DATA

FWD

REV CM P24

U V W

G G

(-3) (-3) (-3)

U V W

(-1) (-1) (-1)

30A 30B Y1E C1 FM X1 X2 X3 X4 X5 CM

30C Y2E

Control circuit
terminals

P R G

RUN

RESET

FUNC

STOP

DATA

WARNING

CMC

11 12 13 CM

DB

P1 P(+) N(-)

G G

L1/R

L2/S L3/T

U V W

DB

P1 P(+) N(-)

G G

L1/R

L2/N

U V W

VXSM75-1

FWD

REV CM P24

P R G

RUN

RESET

FUNC

STOP

DATA

WARNING

30A 30B Y1E C1 FM X1 X2 X3 X4 X5 CM

30C Y2E

CMC

G G

G G

11 12 13 CM

L1/R

L2/S L3/TDBP1 P(+) N(-) U V W

L1/R

L2/NDBP1 P(+) N(-) U V W

FWD

REV CM P24

VXSM400-3

VXS150 and 220-1

P R G
RESET

FUNC
DATA

RUN
STOP

FWD

REV CM P24

WARNING

30A 30B Y1E C1 FM X1 X2 X3 X4 X5 CM

30C Y2E

CMC

11 12 13 CM

L1/R

L2/S L3/TDBP1 P(+) N(-) U V W

G G

VXSM550 and 750-3

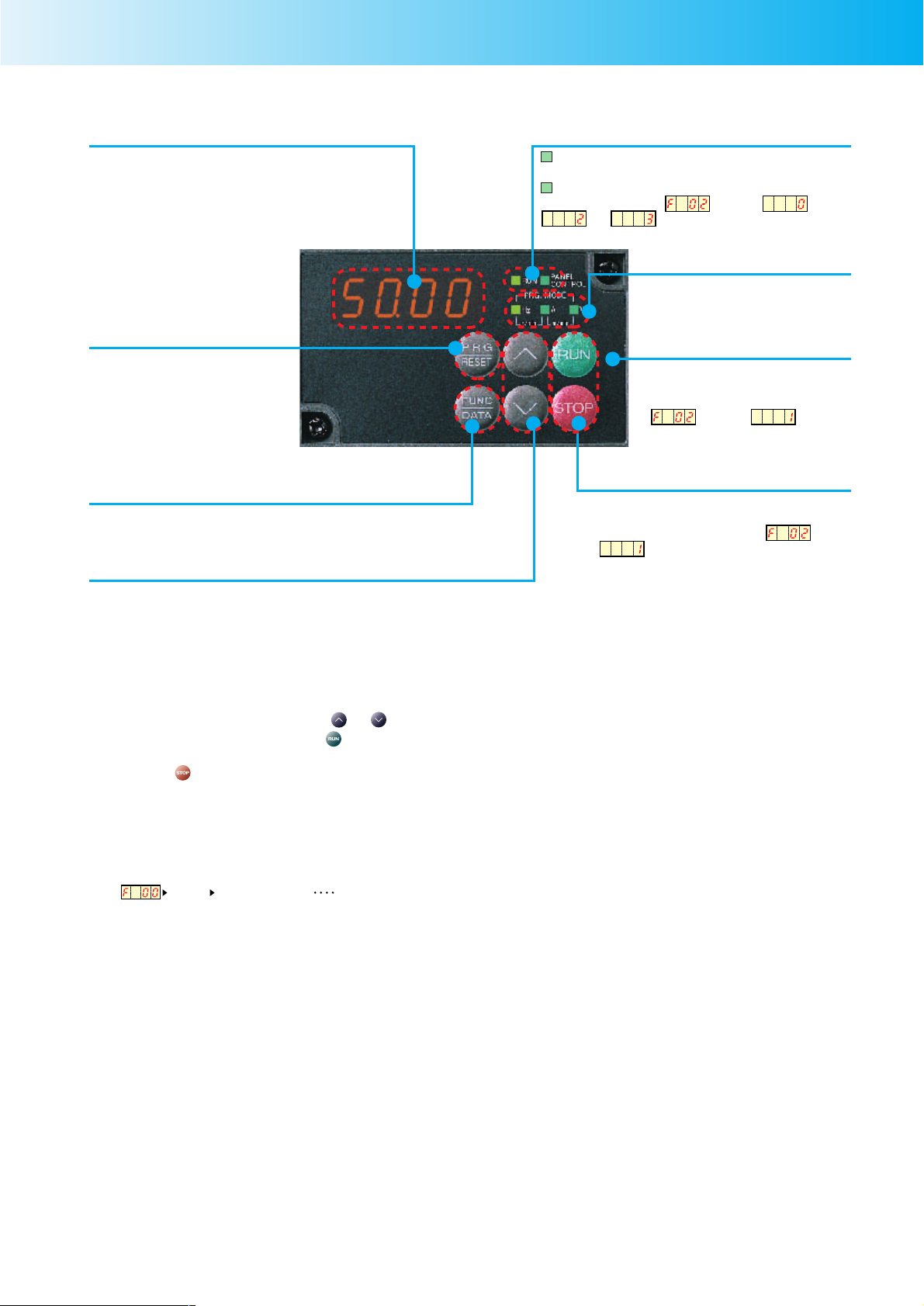

LED monitor

In Operation mode:

Displays the setting frequency, output current,
voltage, motor speed, or line speed.

In Trip mode:

Displays code indicating the cause of trip.

Program/Reset key

Switches between operation
mode and program mode.

When tripped:

Releases the trip-stop state and
changes to operation mode.

Function/Data select key

Changes the displayed values of LED monitor, selects and
stores the function codes and data codes.

Operation mode indication

RUN :
This LED goes on during operating.
PANEL CONTROL :
When Function code is set at ,
, or (Keypad operation), this LED
goes on.

Unit indication

Displays the unit of the value
shown on the LED monitor.

Run key

Starts the inverter.

In Stop mode:

Invalid when the function code
is set at
(external operation).

Stop key

Stops the inverter.

In Operation mode:

Invalid when the function code is set
at (external operation).

Up/Down keys

In Operation mode:

Increases or decreases the frequency or motor speed.

In Program mode:

Increases or decreases function code number and data set value.

Keypad Panel 1

1. Turn on the power supply, press or key to set the output
frequency. When you press the key the motor will run at the set
frequency and with function code/date at factory shipment. When you
press the key, the motor will decelerate and stops.

2. Procedure for selecting and changing function codes and data codes.
The keypad operation how to select a function code and change its
data code is explained below.

➀. Press the key to select the program mode
➁. Pressing key alternates the displayed data between the function

and its data.
()

➂. With data display, press the or key to change the data code.
➃. Press the key to update the data for the selected function code.

*In step ➁ above, if the or key is pressed when the function
code is displayed, only the function code changes sequentially
(see below).
()

Keypad panel operation

JAGUAR VXSM

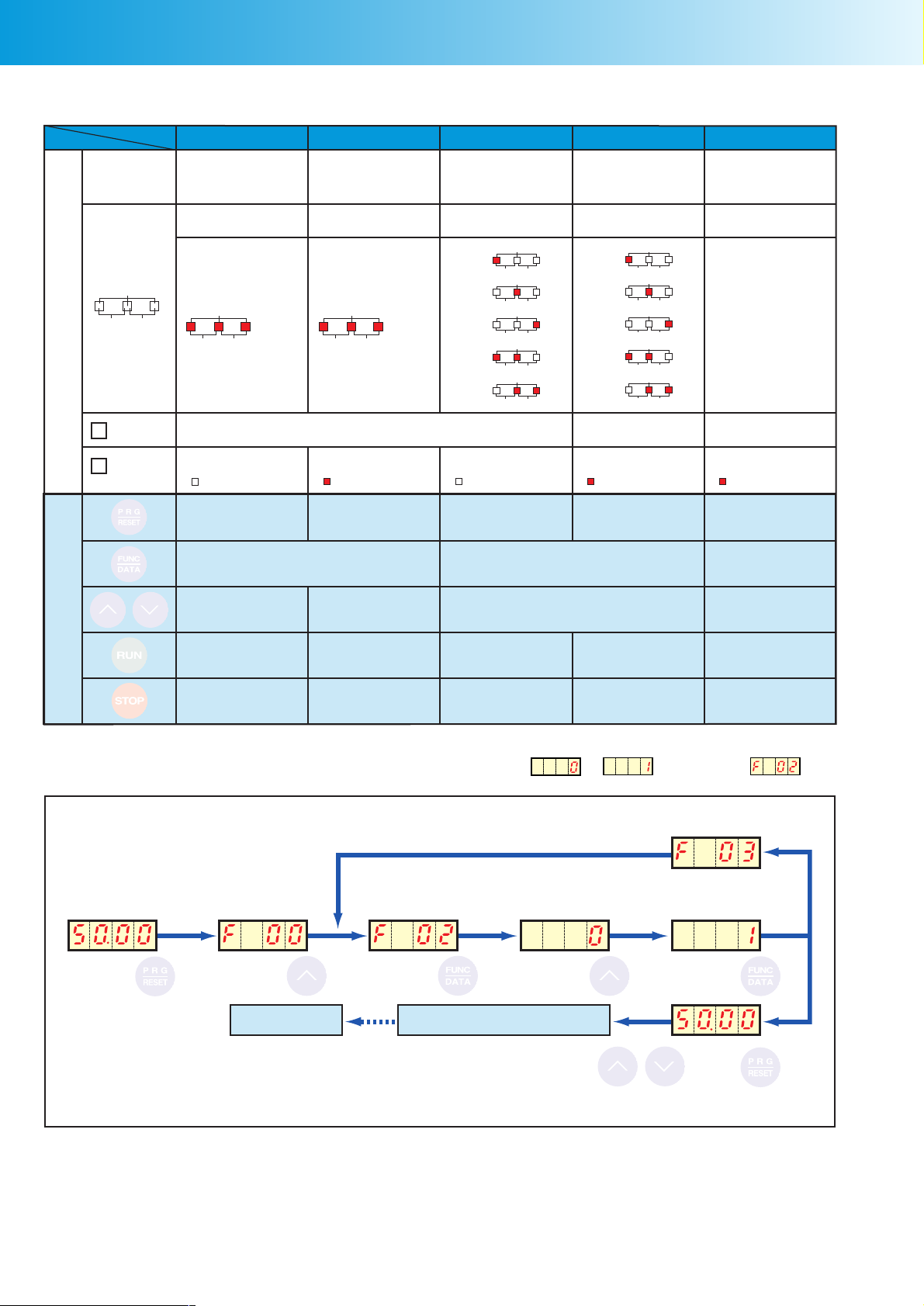

The keypad panel modes are classified in the following 5 modes

* Procedure for selecting function codes and data codes (Ex. Changing data code from to of function code )

15

Monitor, keys

Monitor

Keys

PRG MODE

Hz

A

m/min

r/min

PANEL
CONTROL

Run

Mode

V

Program mode

(operation stopped)

Display the function code
or data code. (Blinking)

Indicates the PRG mode
during stopping.

PRG MODE

A

m/min

V

Hz

r/min

Indicates whether keypad panel operation or external signal operation.
(On during keypad panel operation)

Indicates the operation
has stopped.
( RUN not lit)

Switches to the stop
mode.

Changes the display between function code and
data code, stores data code, and then updates
function codes

Increases/decreases
function code number and
data code.

Invalid

Program mode

(during stopped)

Display the function code
or data code. (Lighting)

Indicates the PRG mode
during operation.

PRG MODE

LightingLighting

A

m/min

V

Hz

r/min

Indicates during
operation.
( RUN lighting)

Changes to operation
mode.

Increases/decreases the
data code number and
stores data temporary.

Invalid

Stop mode

Display the set frequency,
output current, output
voltage, motor speed, line
speed. (Blinking)

Unit indication of the
above value.

PRG MODE

Freq..

Hz

A

V

m/min

r/min
PRG MODE

Current

Hz

A

V

m/min

r/min
PRG MODE

Voltage

Motor
speed

Line
speed

Indicates the operation
has stopped.
( RUN not lit)

Switches to "Program
mode (operation stopped)".

Shifts the value on the LED monitor and the unit of the unit
indication LED.

Increases/decreases the setting of frequency, motor speed,
line speed.

Switches to operation
mode

Hz

A

m/min

r/min
PRG MODE

Hz

A

m/min

r/min
PRG MODE

Hz

A

m/min

r/min

V

V

V

Operation mode

Display the set frequency,
output current, output
voltage, motor speed, line
speed. (Lighting)

Unit indicates of the
above value.

PRG MODE

Freq..

Current

Voltage

Motor
speed

Line
speed

Indicates during
operation.
( RUN lighting)

Switches to "Program
mode during operation".

Hz

m/min

r/min

PRG MODE

Hz

m/min

r/min

PRG MODE

Hz

m/min

r/min

PRG MODE

Hz

m/min

r/min

PRG MODE

Hz

m/min

r/min

V

A

A

V

A

V

V

A

V

A

Invalid Invalid

Trip mode

Display the trip content or
alarm history. (Blinking or
lighting)

None

Not lit

None
(Lighting)

Indicates "stopping in trip
mode".
( RUN lighting)

Releases the trip and
switches to "stop mode" or
"operation mode"

Invalid

Displays the alarm history

Invalid

Switches to "stop mode"
or "Program mode
(operation stopped)".

Invalid

Switches to the stop
mode.

Invalid

To select other function codes, repeat the same way.

X2

Change of

unit indication

Change of setting frequency

(digital setting)

Basic
Functions

Function
Code Name

Data protection

Frequency command 1

Operation method

Maximum frequency 1
Base frequency 1
Rated voltage 1

( at Base frequency 1 )
Maximum voltage 1

( at Maximum frequency 1 )
Acceleration time 1
Deceleration time 1
Torque boost 1

Electronic thermal (Select)
overload relay
for motor 1

(Level)
(Thermal time constant)
Electronic thermal

overload relay
(for braking resistor)

Restart mode after
momentary power failure

Frequency (High)
limiter (Low)
Gain (for frequency setting signal)
Bias frequency
DC brake (Starting freq.)
(Braking level)
(Braking time)
Starting frequency (Freq.)
(Holding time)
Stop frequency
Motor sound (Carrier freq.)
(Sound tone)

FM (Voltage adjust)
(Function)

FM (Pulse rate)
(Voltage adjust)

(Function)

30Ry operation mode

Torque limiter 1 (Driving)
(Braking)
Torque-vector control 1

Setting range

0 : Data change enable
1 : Data protection

0 : KEYPAD operation ( or key)
1 : Voltage input (terminal 12) (0 to +10V DC, 0 to +5V DC)
2 : Current input (terminal C1) (4 to 20mA DC)
3 : Voltage and current input (terminals 12 and C1)
4 : Reversible operation with polarity (terminal 12)(0 to ±10V DC)
5 : Inverse mode operation (terminal 12) (+10 to 0V DC)
6 : Inverse mode operation (terminal C1) (20 to 4mA DC)
7 : UP/DOWN control 1 (initial freq. = 0Hz)
8 : UP/DOWN control 2 (initial freq. = last value)

0 : KEYPAD operation (forward/reverse : by signal input)
1 : FWD or REV command signal operation
2 : KEYPAD operation (FWD)
3 : KEYPAD operation (REV)

50 to 400Hz
25 to 400Hz
0(Free), 160 to 480V (400V class)

0(Free), 80 to 240V (200V class)
160 to 480V (400V class)

80 to 240V (200V class)

0.01 to 3600s

0.01 to 3600s
0 : Automatic (for constant torque load)

1 : Manual (for variable torque load)
2 : Manual (for proportional torque load)
3 to 31 : Manual (for constant torque load)

0 : Inactive
1 : Active (for 4-pole standard motor)
2 : Active (for 4-pole inverter motor)

Approx. 20 to 135% of rated current

0.5 to 10.0 min
0 : Inactive

1 : Active (for external braking resistor
2 : Active (for external braking resistor : Single phase only)

0 : Inactive (Trip and alarm when power failure occurs.)
1 : Inactive (Trip, and alarm when power recovers.)
2 : Inactive (Deceleration stop, and alarm.)
3 : Active (Momentarily stops and restarts at output frequency of before power failure)
4 : Active (Momentarily stops and restarts at starting frequency)

0 to 400Hz
0 to 400Hz

0.0 to 200.0%
–400 to +400Hz

0.0 to 60.0Hz
0 to 100%

0.0 (DC brake inactive), 0.1 to 30.0s

0.1 to 60.0Hz

0.0 to 10.0s

0.1 to 6.0Hz

0.75 to 15kHz

0 to 200%
0 : Output frequency 1 (Before slip compensation)

1 : Output frequency 2 (After slip compensation)
2 : Output current
3 : Output voltage
4 : Output torque
5 : Load factor
6 : Input power
7 : PID feedback value
8 : DC link circuit voltage

300 to 6000 p/s (at full scale)
0% : (Pluse rate output: 50% duty)

1 to 200% : (Voltage adjust: 2670p/s, duty adjust)
0 : Output frequency 1 (Before slip compensation)

1 : Output frequency 2 (After slip compensation)
2 : Output current
3 : Output voltage
4 : Output torque
5 : Load factor
6 : Input power
7 : PID feedback value
8 : DC link circuit voltage

0 : The relay (30) excites on trip mode.
1 : The relay (30) excites on normal mode.

20 to 200, 999% (999: No limit) *2)
20 to 200, 999% (999: No limit) *2)
0 : Inactive

1 : Active

Min.

Factory setting

unit

-

-

-

1Hz
1Hz

1V

1V

0.01s

0.01s

1

-

0.01A *1)

0.1min

-0

-

1Hz 70
1Hz 0

0.1%
1Hz

0.1Hz 0.0

1% 0

0.1s 0.0

0.1Hz 0.5

0.1s 0.0

0.1Hz

1kHz

-

-0

1%

-0

1p/s 1440

1% 0

-

-

1% 180
1% 150

-

0

0

2

50
50

400
230

400
230

6.00

6.00

0

1

5.0

0

100.0
0

0.2
15

0

100

0

0

0

JAGUAR VXSM

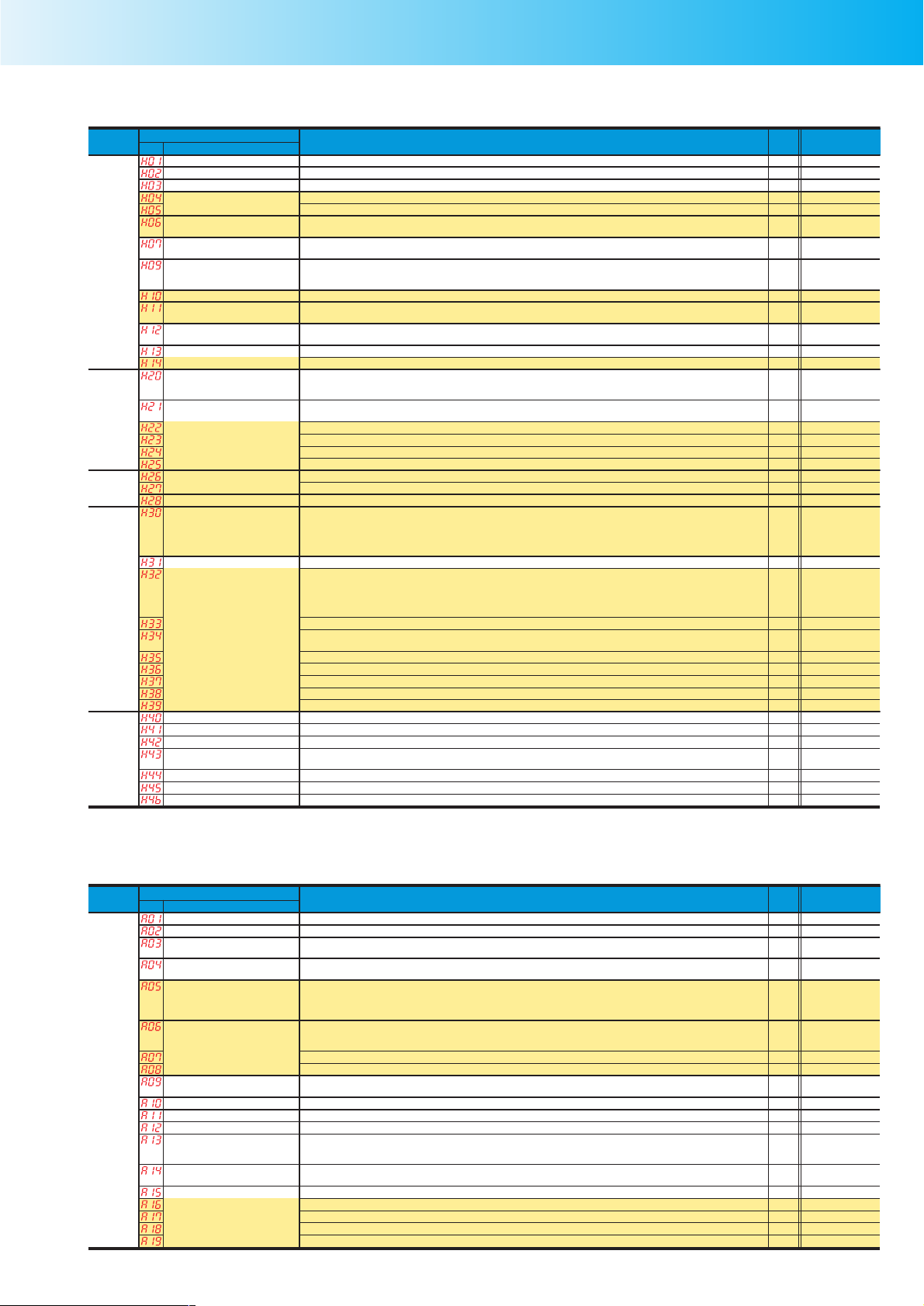

Extension Terminal Functions

The functions in the yellow boxes can be set while the inverter is running. Other functions must be set while the inverter is stopped.

Control Functions of Frequency

The functions in the yellow boxes can be set while the inverter is running. Other functions must be set while the inverter is stopped.

Motor Parameters

The functions in the yellow boxes can be set while the inverter is running. Other functions must be set while the inverter is stopped.

17

X1-X5
Terminal

ACC 2
DEC 2

Y1, Y2
Terminal

LED
Monitor

Function

Code Name

X1 terminal function
X2 terminal function
X3 terminal function
X4 terminal function
X5 terminal function

Acceleration time 2
Deceleration time 2
Torque limiter 2 (Driving)
(Braking)
Y1 terminal function
Y2 terminal function

Frequency equivalence delay
FAR function signal (Hysteresis)
FDT function signal (Level)
(Hysteresis)
OL function signal (Mode select)

(Level)
(Timer)
Display coefficient A 0.00 to 200.0 0.01 0.01
Display coefficient B 0.00 to 200.0 0.01 0.00
LED Display filter 0.0 to 5.0s 0.1s 0.5

Selects from the following items.
0 : [SS1]

1 : [SS2]

Multistep freq. selection (16 steps)

2 : [SS4]
3 : [SS8]
4 : ACC / DEC time selection (1 step) [RT1]
5 : 3-wire operation stop command [HLD]
6 : Coast-to-stop command [BX]
7 : Alarm reset [RST]
8 : Trip command (External fault) [THR]
9 : Freq. set. 2 / Freq. set. 1 [Hz2/Hz1]

0.01 to 3600s 0.01s

20 to 200%, 999% (999: No limit) *2)
0 (Automatic deceleration control), 20 to 200%, 999% (999: No limit) *2)
Selects from the following items.
0 : Inverter running [RUN]

1 : Frequency equivalence signal [FAR]
2 : Frequency level detection [FDT]
3 : Undervoltage detection signal [LU]
4 : Torque polarity detection (Braking/Driving) [B/D]

0.01 to 10.0s

0.0 to 10.0 Hz
0 to 400 Hz

0.0 to 30.0 Hz
0 : Thermal calculation

1 : Output current
Approx. 20 to 200% of rated current

0.0 to 60.0s

Setting range

10 : Motor 2 / Motor 1 [M2/M1]
11 : DC brake command [DCBRK]
12 : Torque limiter 2 / Torque limiter 1 [TL2/TL1]
13 : UP command [UP]
14 : DOWN command [DOWN]
15 : Write enable for KEYPAD [WE-KP]
16 : PID control cancel [Hz/PID]
17 : Inverse mode changeover
(terminals 12 and C1 ) [IVS]
18 : Link enable (Bus,RS485) [LE]

5 : Torque limiting [TL]
6 : Auto-restarting [IPF]
7 : Overload early warning [OL]
8 : Lifetime alarm (main circuit capacitor) [LIFE]
9 : 2nd Freq. equivalence detection [FAR2]

Min.
unit

-

-1

-

-6

-7

0.01s
1% 180
1% 150

-0

-7

0.1Hz
1Hz 50

0.1Hz 1.0

-0

0.01A *1

0.1s

Jump Hz
Control

Multi-Hz
Control

Timer
Operation

Function

Code Name

Jump (Jump freq. 1)
frequency (Jump freq. 2)
(Jump freq. 3)
(Hysteresis)
Multistep (Freq. 1)
frequency (Freq. 2)
setting (Freq. 3)
(Freq. 4)
(Freq. 5)
(Freq. 6)
(Freq. 7)
(Freq. 8)
(Freq. 9)
(Freq.10)
(Freq.11)
(Freq.12)
(Freq.13)
(Freq.14)
(Freq.15)
Timer operation

(Stage 1)
Frequency command 2

Offset (Terminal 12)
(Terminal C1)
Analog setting signal filter

Setting range

0 to 400Hz

0 to 30Hz

0.00 to 400.0Hz

0 : Inactire
1 : Active

• Operation time: 0.00 to 3600s
0 : KEYPAD operation ( or key)

to
8 : UP/DOWN control 2 (initial freq. = last value)

–5.0 to +5.0%
–5.0 to +5.0%

0.00 to +5.00s

Seme as F01

Min.
unit

1Hz
1Hz
1Hz
1Hz

0.01Hz

0.01Hz

0.01Hz

0.01Hz

0.01Hz

0.01Hz

0.01Hz

0.01Hz

0.01Hz

0.01Hz

0.01Hz

0.01Hz

0.01Hz

0.01Hz

0.01Hz

-

0.01s 0.00

-

0.1%

0.1%

0.01s

Factory setting

0

2

10.0

10.0

0.10.01s

2.5

10.0

Factory setting

0
0
0
3

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0

2

0.0

0.0

0.05

Motor 1

Function

Code Name

Number of motor 1 poles
Motor 1 (Capacity)

(Rated current)
(Tuning)

(On-line Tuning)

(No-load current)
(%R1 setting)
(%X setting)
(Slip compensation control 1)
(Slip compensation response time)

2 to 14

3.7kW or smaller : 0.01 to 5.50 kW

5.5kW or larger : 0.01 to 11.00 kW

0.00 to 99.9 A
0 : Inactive

1 : Active (One time tuning of %R1 and %X ( on motor stopping mode ))
2 : Active (One time tuning of %R1, %X and Io ( on motor running mode ))

0 : Inactive
1 : Active (Real time tuning of %R2)

0.00 to 99.9 A

0.00 to 50.00 %

0.00 to 50.00 %

0.00 to +15.00Hz

0.01 to 10.00s 0.01s 0.50

Setting range

Min.

Factory setting

unit

2

0.01kW *1)

0.01A *1)

-0

-0

0.01A

0.01% *1)

0.01% *1)

0.01Hz 0.00

4

*1)

High Performance Functions

The functions in the yellow boxes can be set while the inverter is running. Other functions must be set while the inverter is stopped.

Alternative Motor Parameters

The functions in the yellow boxes can be set while the inverter is running. Other functions must be set while the inverter is stopped.

JAGUAR VXSM

18

High
Performance
Functions

PID
Control

Y1, Y2
Terminal

Serial Link

Diagnostic

Function
Code Name

Accumulated operation time Monitoring only 1h 0
Trip history Monitoring only -­Data initializing (Data reset)
Auto-reset (Times)
(Reset interval)
Fan stop operation

ACC/DEC (Mode select)
pattern

Start mode
(Rotating motor pick up)

Energy-saving operation
DEC mode

Instantaneous overcurrent
limiting

Auto-restart (Restart time)
(Freq. fall rate)
PID control (Mode select)

(Feedback signal)

(P-gain)
(I-gain)
(D-gain)
(Feedback filter)
PTC thermistor (Mode select)
(Level)
Droop operation
Serial link (Function select)

RS 485 (Address)
(Mode select on no

response error)

(Timer)
(Baud rate)

(Data length)
(Parity check)
(Stop bits)
(No response error detection time)
(Response interval )

Cooling fan accumulated
operation time

Inverter ROM version

0 : Manual set value
0 (Inactive), 1 to 10 times
2 to 20s
0 : Inactive

1 : Active (Fan stops at low temperature mode) for 1.5kW or larger model only
0 : Linear

1 : S-curve (weak)
0 : Inactive

1 : Active (Only when Auto-restart after momentary power failure mode )
2 : Active (All start modes)

0 : Inactive
0 : Normal (according to "H07" mode)

1 : Coast-to-stop
0 : Inactive

1 : Active

0.1 to 5.0s

0.00 to 100.00Hz/s
0 : Inactive

1 : Active (PID output 0 to 100% / Frefuency 0 to max.)
2 : Active (Inverse operation mode : PID output 0 to 100% / Frefuency max. to 0)

0 : Terminal 12 (0 to +10V)
1 : Terminal C1 (4 to 20mA)

0.01 to 10.00

0.0 : Inactive

0.00 : Inactive

0.0 to 60.0s
0 : Inactive

0.00 to 5.00V
–9.9 to 0.0Hz
(Code) (Monitor) (Frequency command) (Operation command)

0 : X - - X : Valid
1 : X X - - : Invalid
2 : X - X
3 : X X X

1 to 31
0 : Trip and alarm (Er8)

1 : Operation for H33 timer, and alarm (Er8)
2 : Operation for H33 timer,and retry to communicate.
* If the retry fails, then the inverter trips("Er 8").
3 : Continuous operation

0 to 60.0s
0 : 19200 bit/s

1 : 9600
0 : 8 bit
0 : No checking
0 : 1 bit
0 (No detection), 1 to 60s

0.00 to 1.00s

Monitoring only

Monitoring only -

1 : Return to factory set value

2 : S-curve (strong)
3 : Non-linear (For variable torque load )

1 : Active (Only when torque boost "F09" is set at manual setting mode.)

2 : Terminal 12 (+10 to 0V)
3 : Terminal C1 (20 to 4mA)

0.1 to 3600s

0.01 to 10.0s

1 : Active

2 : 4800
3 : 2400

1 : 7 bit
1 : Even parity
1 : 2 bit

Setting range

4 : 1200

2 : Odd parity

Min.
unit

­1

1s

-

-

-

-

-

-

0.1s

0.01Hz/s

-

-

0.01

0.1s

0.01s

0.1s

-

0.01V

0.1Hz

-

1

-

0.1s

-

-

-

-

1s

0.01s

10h

-

Factory setting

0
0
5

0

0

1

0

0

1

0.1

10.00

0

1

0.10

0.0

0.00

0.5
0

1.60

0.0

0

1

0

2.0

1
0
0
0
0

0.01

-Maximum temperature of heat sink Monitoring only °C

-Maximum effective current Monitoring only A

-Main circuit capacitor lifetime Monitoring only 0.1%

-

-

-Keypad panel ROM version Monitoring only

-Option ROM version Monitoring only -

Motor 2

Function
Code Name

Maximum frequency 2 1Hz 5050 to 400Hz
Base frequency 2 1Hz 5025 to 400Hz
Rated voltage 2

(at Base frequency 2)
Maximum voltage 2

(at Maximum frequency 2)
Torque boost 2 0 : Automatic (for constant torque load)

Electronic thermal (Select)
overload relay for motor 2

(Level)

Torque vector control 2 0 : Inactive

Number of motor 2 poles 2 to 14 24
Motor 2 (Capacity) 0.01 to 11.00 kw
(Rated current) 0.00 to 99.9 A 0.01A *1)
(Tuning) 0 : Inactive

(On-line Tuning) 0 : Inactive

(No-load current) 0.00 to 99.9 A 0.01A *1)
(%R1 setting) 0.00 to 50.00 % 0.01% *1)
(%X setting) 0.00 to 50.00 % 0.01% *1)
Slip compensation control 2 0.00 to +15.00 Hz
(Slip compensation resnonse time) 0.01 to 10.00 s

0 (Free), 160 to 480V (400V class)
0 (Free), 80 to 240V (200V class)

160 to 480V (400V class)
80 to 240V (200V class)

1 : Manual (for variable torque load)
2 : Manual (for proportional torque load)
3 : Manual (for constant torque load)

0 : Inactive
1 : Active (for 4-pole standard motor)
2 : Active (for 4-pole inverter motor)

Approx. 20 to 135% of rated current 0.01A *1)

0.5 to 10.0 min (Thermal time constant)

1 : Active

1 : Active (One time tuning of %R1 and %X ( on motor stopping mode ))
2 : Active (One time tuning of %R1, %X and Io ( on motor running mode ))

1 : Active (Real time tuning of %R1 and %X)

Setting range

Min.
unit

1V

1V

-

-

0.1min

-0

0.01kW

-0

-0

0.01Hz

0.01s

Factory setting

400
230

400
230

0

1

5.0

*1)

0.00

0.5

JAGUAR VXSM

Protective Functions

The functions in the yellow boxes can be set while the inverter is running. Other functions must be set while the inverter is stopped.

19

Function

Overcurrent protection
(Short-circuit)
(Ground fault)

Overvoltage protection

Incoming surge
protection

Undervoltage
protection

Input phase loss
protection
Overheat protection • Stops the inverter when it detects excess heat sink temperature in case of

Electronic thermal
overload relay
(Motor protection)

(Momentary
overcurrent limitation)

External alarm input
Alarm output

(for any fault)
Alarm reset command

Alarm history memory
Storage of data on

cause of trip
Memory error

KEYPAD panel
communication error

CPU error • If the inverter detects a CPU error caused by noise or some other factor, the

Option
communication error

Option error

Output phase loss
error

RS485 communication
error

• Stops running to protect inverter from an overcurrent resulting from overload.

• Stops running to protect inverter from an overcurrent due to a short-circuit in the
output circuit.

• Stops running to protect inverter from an overcurrent due to a ground fault in the
output circuit.

• The inverter stops when it detects an overvoltage in the DC link circuit.

• Protects the inverter against surge voltage between the main circuit power line
and ground.

• Protects the inverter against surge voltage in the main circuit power line.

• Stops the inverter when the DC link circuit voltage drops below undervoltage level.

• The inverter is protected from being damaged when open-phase fault occurs.

cooling fan failure or overload.

• When the external braking resistor overheats, the inverter stops discharging and
running.

• This function stops the inverter by detecting an inverter overload.

• This function stops the inverter by detecting an overload in a standard motor or
inverter motor.

• When an output current exceeds the limit during acceleration, this function lowers
output frequency to prevent the occurrence of an OC1 trip.

• The inverter stops on receiving external alarm signals.

• The inverter outputs a relay contact signal when the inverter issued an alarm and
stopped.

• An alarm-stop state of the inverter can be cleared with the RESET key or by a
digital input signal (RST).

• Stores up to four instances of previous alarm data.

• The inverter can store and display details of the latest alarm history data.

• The inverter checks memory data after power-on and when the data is written. If
a memory error is detected, the inverter stops.

• If an error is detected in communication between the inverter and KEYPAD when
the Keypad panel is being used, the inverter stops.

inverter stops.

• If a checksum error or disconnection is detected during communication, the
inverter issues an alarm.

• If a linkage error or other option error is detected, the inverter issues an alarm.

If an unbalance of output circuits is detected during tuning, this function issues
an alarm (and stops the inverter).

• If an RS485 communication error is detected, the inverter issues an alarm.

Description

LED monitor

During
acceleration
During
deceleration
While running at

400V series : 800V DC or more

•
200V series : 400V DC or more

•

Protection is not assured if
excess AC line voltage is applied
inadvertently.

• The inverter may be tripped by some other
protective function.

• 400V series : 400V DC or less

• 200V series : 200V DC or less

• The stall prevention function can be disabled. Stall prevention

• Use THR terminal function (digital input).

• Output terminals: 30A, 30B, and 30C

• Use the RST terminal function for signal input.

• Even if main power input is turned off, alarm
history and trip-cause data are retained.

When operated by external signals, the inverter

•
continues running. The alarm output (for any
fault) is not output. Only Er2 is displayed.

constant speed
During
acceleration
During
deceleration
While running at
constant speed

Motor 1 overload
Motor 2 overload

NOTES :

1)Retaining alarm signal when auxiliary controll power supply is not used :
If the inverter power supply is cut off while an internal alarm signal is being output, the alarm signal cannot be retained.

2)To issue the RESET command, press the key on the KEYPAD panel or connect terminals RST and CM once and disconnect them afterwards.

3)Fault history data is stored for the past four trips.

Fig.1

VXSM40-1

Fig.3

VXSM400-3
VXSM150 and 220-1

70

34.32

60.5–0.3

48.25–0.5

Mounting hole positions

26

2- 3.5

21.8212.5

5317

60.5

2-¿3.2
Counter bore ¿6.6, depth 4

4.75 4.75

42

27

22.25–0.5

32.5–0.3

15

32.54.75 4.75

RUN

P R G
RESET

STOP

FUNC

DATA

Fig.5

VXSM Keypad

Fig.2

VXSM40 to 220-3
VXSM75-1

Fig.4

VXSM550 and 750-3

Dimensions(mm)

Power
supply

voltage

3-phase

400V

1-phase

200V

0.4

0.75

1.5

2.2

4.0

5.5

7.5

0.4

0.75

1.5

2.2

Nominal

applied

motor(kW)

VXSM40-3

VXSM75-3
VXSM150-3
VXSM220-3
VXSM400-3
VXSM550-3
VXSM750-3

VXSM40-1

VXSM75-1
VXSM150-1
VXSM220-1

Type

130
130
130
130
130
220
220
130
130
130
130

H
106
106
106
106
170
180
180

70
106
170
170

W

126
150
170
170
158
158
158
118
126
158
158

D

86

86
106
106

86

-

­86
86
86
86

D1

40
64
64
64
72

-

­32
40
72
72

D2

50.5

62.5

86.5

86.5

94.5
117
117

60.2

62.5

94.5

94.5

D3

103
115
159
159
147
146
146
107
115
147
147

D4

2
2
2
2
3
4
4
1
2
3
3

Fig.

External Dimensions

JAGUAR VXSM

20

6118

130 (H)

2-R2.6

6

70 (W)

6.5

57

4-5x6

(ELONGATED HOLE)

55

66

P R G
RESET

FUNC
DATA

120

130 (H)

WARNING

55

15866

2-5ξ6

(ELONGATED HOLE)

P R G

RUN

RESET
FUNC

STOP

DATA

WARNING

5.2 5.2

RUN
STOP

6.5

M2.5

M3.5

D

86 (D1)

16.5

D4

M2.5

M4

106 (W)

2-5

ξ6

(ELONGATED HOLE)

P R G
RESET

FUNC
DATA

WARNING

5.2

96

RUN

STOP

5

M2.5

M4

5.2

130 (H)

5

66

118

2-R2.6

D2

D3

D

D1 D2

19 D3

D4

D170 (W)

D286 (D1)

D3

D4

72057

220 (H)

2-R3

180 (W)

16488

2-

6

P R G

RUN

RESET
FUNC

STOP

DATA

WARNING

M2.5

M5

66

158 (D)

116.7 (D3)

146.1 (D4)

8

96.7

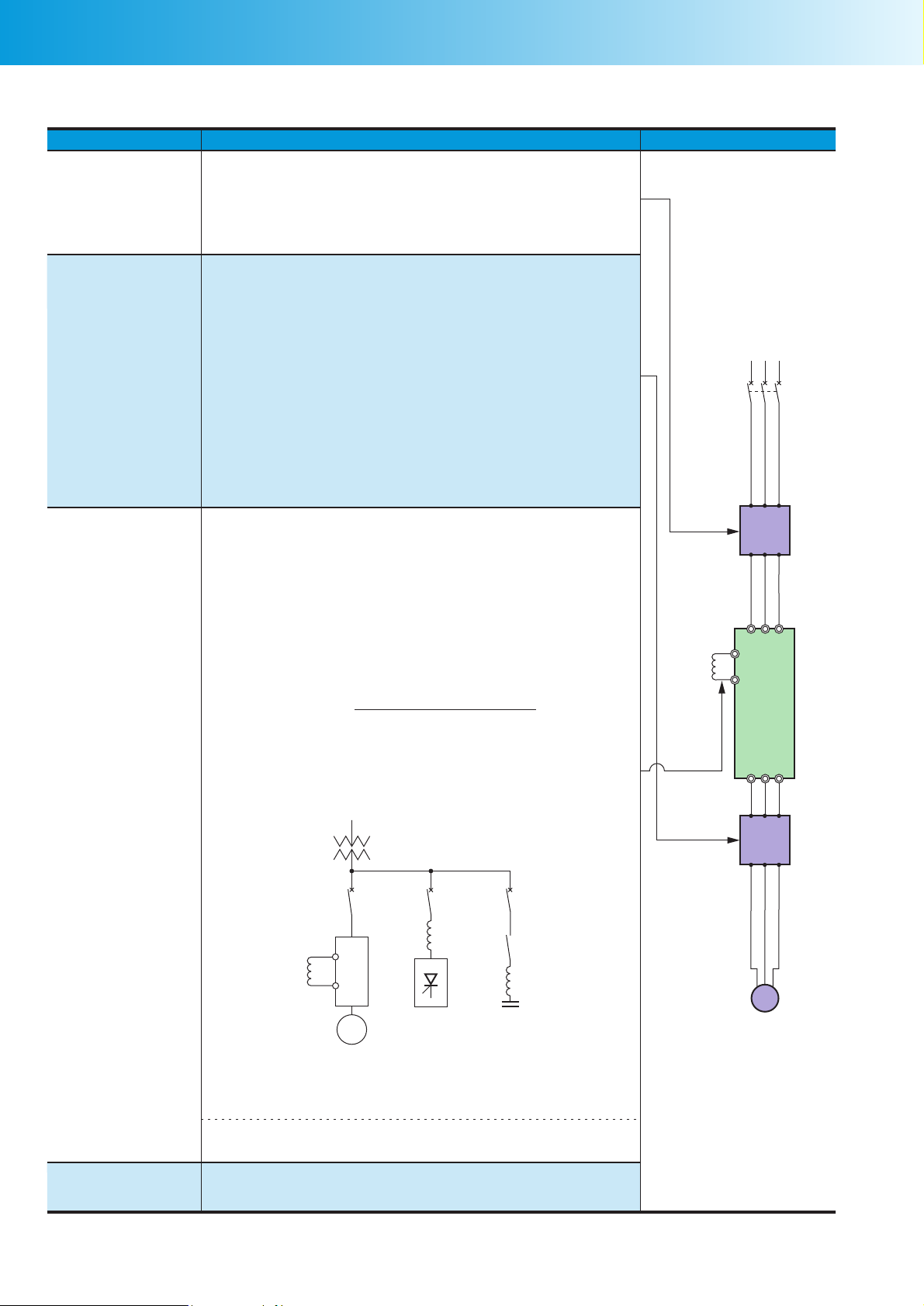

Options

Name (Type)

EMC compliance filter

Output circuit filter

Please contact IMO for

more details of this unit,

or alternative AC Reactor

DC REACTOR(DCR)

Copy unit

Function

This is a special filter which complies with the European EMC (Emission) Directive.
This filter may be used together with a ferrite core, if required.

Note: Other prerequisites must be fulfilled to ensure compliance with

EMC Directives.

Refer to operation manual for details.

Connected to the output circuit of inverters under low-noise operation with carrier
frequency from 8 to 15kHz, this filter has the following functions:
q Suppressing fluctuation of motor terminal voltage.
Protects the motor insulation from being damaged by surge voltage. (400V

series)
w Suppressing leakage current from output side wiring.
Reduces the leakage current caused when several motors are operated in

parallel or connected with long wiring.

* Total wiring length should be less than 400m.

e Suppressing radial noise or inductive noise from output side wiring.
Effective noise suppression device for long wiring applications such as plant.

[Use the DCR to normalize the power supply in the following cases.]
q The power transformer capacity is 500kVA or over and exceeds the inverter

rated capacity by 10 times.
w The inverter and a thyristor converter are connected with the same transformer.
* Check if the thyristor converter uses a commutation reactor. If not, AC reactor

must be connected to the power supply side.
e Overvoltage trip occurs due to open/close of the phase-advancing capacitor for

the power supply lines.
r The voltage unbalance exceeds 2%.

Voltage unbalance (%) =

Max. voltage [V] – Min. Voltage [V]

ξ

67

Three-phase average voltage [V]

(IEC 61800-3 (5.2.3))

[For improving input power-factor, reducing harmonics]

• Used to reduce input harmonic current (correcting power-factor)

For batch data transfer (read, store, write) between an inverter unit and the
copy unit

Mounting position

Motor

DC

reactor

Inverter

M

Power transformer capacity

Thyristor
converter

Power-factor
correcting
capacitor

Commutation
reactor

Series
connected
reactor

M

Power supply

L1 L2 L3

L1' L2' L3'

L2/SL1/R L3/T

UVW

Inverter

L1 L2 L3

L1' L2' L3'

Motor

P1

P

(+)

MCCB
or
ELCB

Reactor, Filter, and Other Accessories

21

JAGUAR VXSM

[Unit: mm]

Power

supply

voltage

Nominal

applied

motor

[kW]

JAGUAR

Inverter type

0.4 to 2.2

4.0

5.5 and 7.5

0.4

0.75

1.5 and 2.2

VXSM40-3 to VXSM220-3
VXSM400-3
VXSM550, VXSM750
VXSM40-1
VXSM75-1
VXSM150-1, VXSM220-1

Single
phase
230V

Three­phase
400V

RFM220-3
RFM400-3
RFM750-3
RFM40-1
RFM75-1
RFM220-1

Dimensions [mm]

10
15
30

7
18
29

Rated

current

[A]

1
1

0.9
7
7

14

Leakage

current

[mA]nom.

EMC Filter

250

Rated

voltage

[V] max.

480

Type

WW1H H1 D

DC REACTOR

External dimensions

Reactor

type

Mass

[kg]

Applicable inverter Dimensions (mm)

3 phase 400V series

1 phase 230V series

ABCDEF HG

VXSM40-1
VXSM75-1
VXSM150-1
VXSM220-1

VXSM40-3
VXSM75-3
VXSM150-3
VXSM220-3
VXSM400-3
VXSM550-3
VXSM750-3

VXSMLC004
VXSMLC007
VXSMLC015
VXSMLC022
VXSMLC040
VXSMLC055
VXSMLC075

66
66
66
86
86
86

111

56
56
56
71
71
71
95

72
72
72
80
80
80
80

90
90

90
100
100
100
100

60
65
65
65
70
70
75

35
40
45
45
50
50
60

94
94

94
110
110
110
130

1.0

1.4

1.6

2.0

2.6

2.6

4.2

5.2 × 8

5.2 × 8

5.2 × 8
6 × 9
6 × 9
6 × 9

7 × 11

EMC Compliance
Filter

110
174
182

71
110
174

80
145
145

55

80
145

191
191
278
189
191
191

165
165
252
178
165
165

40
40
50
38
38
40

Please Contact IMO Precision Control Ltd

Name (Type)

Dimension

JAGUAR VXSM

23

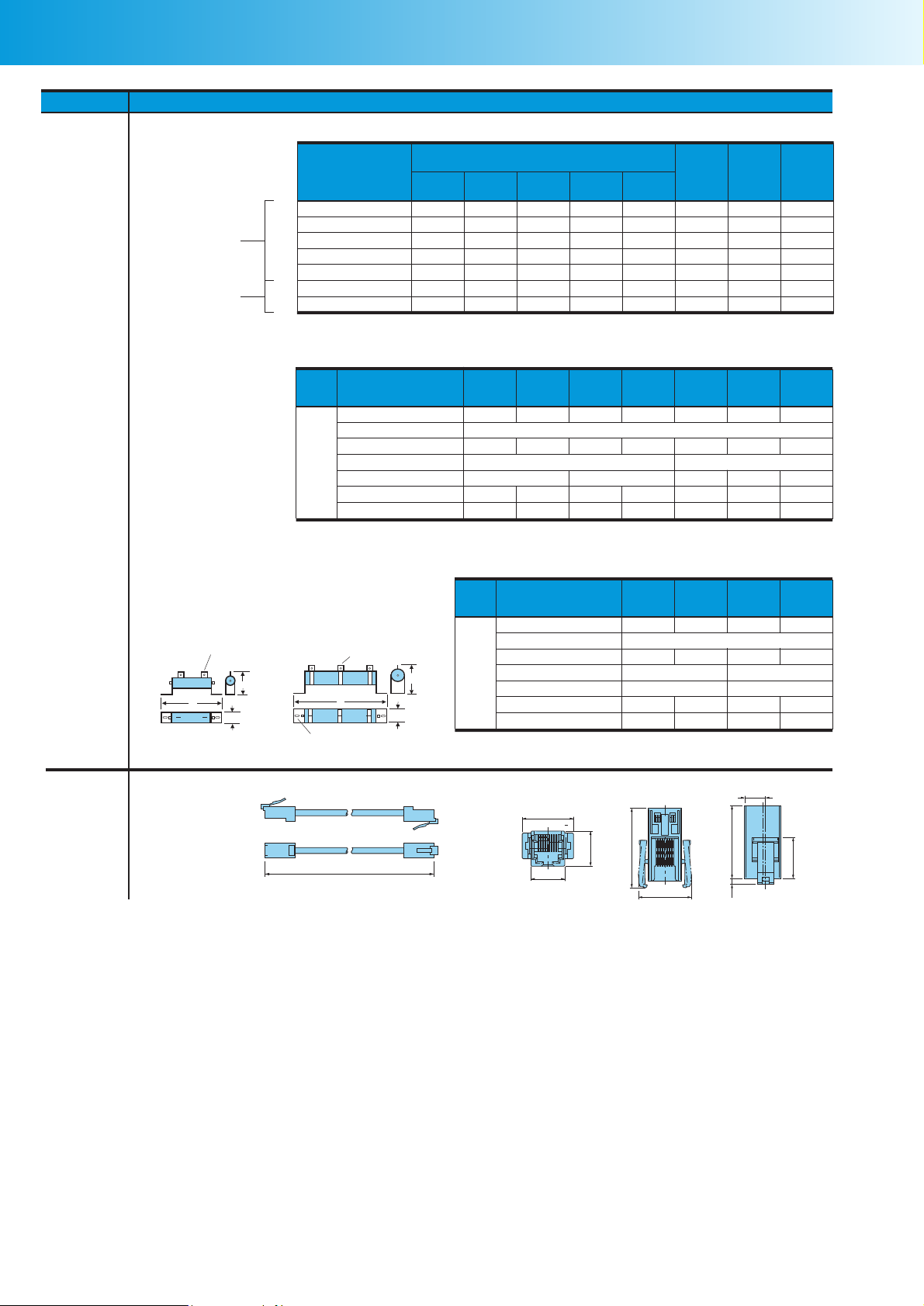

Name (Type)

Dynamic
Braking
Resistors

See Fig. 1

See Fig. 2

RESISTOR

IMO Part No.

DBR105R90W
DBR210R150W
DBR50R220W
DBR150R220W
DBR160R380W
DBR57R450W
DBR133R750W

Power
supply

coltage

Applicable

Inverter

Applied Motor kW
Braking Module
Avg. braking torque (%)
Total resistor capacity (kW)

415V

Total ohmic value
Max duty cycle (%)
Continuous max braking time

Functions and dimensions

DIMENSIONS (mm)

L

142
217
310
310
358
356
409

H

62
62
62
62
90
94

125

VXSM40-3 VXSM75-3 VXSM150-3

0.4

150

W

28
28
28
28
42
42
51

0.75

150

200

22

45 s

18

45 s

0.2

Slots

12 X 5
12 X 5
12 X 5
12 X 5
14 X 6
14 X 6
17 X 6

1.5

150

10

45 s

Holes

6
6
6
6
6
5
5

VXSM220-3

2.2

Not necessary

150

160

7

30 s

[Unit: mm]

R

(ohms)

105
210

50
150
160

57
133

VXSM400-3 VXSM550-3

4

150

P

(Watts)

90
150
220
220
380
450
750

5.5

150

0.4

130

5

20 s

80

5

20 s

Tolerance

+/- %R

5
5
5
5

5
10
10

VXSM750-3

7.5

150

60

5

10 s

Extension
cable with
adapter for
Keypad panel
(VXSM
Podcable)

Fig. 1

Resistor Type 1

DBR105R90W
DBR210R150W
DBR50R220W
DBR150R220W
DBR160R380W

L

2 off connection
holes

H

W

8
1

Fig. 2

Resistor Type 2

DBR57R450W
DBR133R750W

L

2 off fixing slots

Cable

L=2000 ± 20mm

3 off connection
holes

W

Power
supply

coltage

H

230V

Applicable

Inverter

Applied Motor kW

VXSM40-1 VXSM75-1 VXSM150-1

0.4
Braking Module
Avg. braking torque (%)

150
Total resistor capacity (kW)
Total ohmic value
Max duty cycle (%)
Continuous max braking time

21.34

15.08

14.34

60 s

33.77

15

0.2

100

Adapter

23MAX.

0.75

1.5
Not necessary
150

150

12

60 s

30 s

31.272.5

7

8.8

VXSM220-1

2.2

150

0.4
40

7

30 s

17.5

NOTES

24

25

NOTES

IMO Jaguar Drives
5 Year Warranty

IMO JAGUAR drives are covered by a unique 5
year warranty against failure arising as a result of
inferior material or workmanship.

In the event of a unit failing within 5 years of
despatch from IMO, we will repair or replace the
drive free of charge.

Whenever possible, in the interest of providing
the fastest service to our customers, we will
replace the failed drive with a new or service
exchange unit at IMO’s discretion. This may not
be possible, however, if the failed unit is in poor
condition owing to abuse or neglect. In such
circumstances, the customer may elect to have
the unit repaired within the warranty if viable, but
physical refurbishment will be chargeable.

IMO will, upon request, provide a service
exchange unit in advance of receipt of the failed
unit if an order number is provided along with
details of the failed unit. Replacements will be
dispatched at IMO’s cost and credit will be issued
upon receipt of the failed unit in good physical
condition. Full credit will not be given if in IMO’s
judgment the unit has been physically or
electrically abused. A no-fault-found charge will be
levied upon units returned and found not to be
faulty.

The terms of warranty do not provide for on-site
service although a service engineer will be
provided upon receipt of an order. IMO may elect
to waive any charge should the findings on site
indicate that any problem found lies within the
scope of the warranty.

IMO Precision Controls Limited
Technical Helpline
Tel [phone]
8am to 6pm UK time Monday to Friday

IMO Precision Controls Limited
is a registered ISO 9002 company.

Safety Precautions

Safety at Work

It is the responsibility of the owner, installer and
user to ensure that the installation of the
equipment and the way in which it is operated and
maintained complies with the requirements of the
Health & Safety at Work Act in the United
Kingdom and other applicable legislation,
regulations and codes of practice in the UK or
elsewhere.
Only qualified personnel should install this
equipment, after first reading and understanding
the information in this publication. The
installation instructions should be adhered to. Any
question or doubt should be referred to IMO
Precision Controls Ltd.

Operational Safety

Users and operators of the equipment must take
all necessary precautions to prevent damage to
equipment and especially to prevent the risk of
injury to personnel working on or near the motor
and the driven equipment.

The stop and start inputs should not be relied upon
alone to ensure the safety of personnel. If a safety
hazard could arise from the unexpected starting of
the motor, an interlock mechanism should be
provided to prevent the motor from running except
when it is safe for it to do so.

Documentation

Every effort has been made by IMO Precision
Controls Ltd to ensure that this document
accurately and completely represents the Jaguar
VXSM range of inverters at the time of going to
press. Information with respect to installation is
necessarily generalised, and the supplier accepts
no liability for contingencies over which he has no
control in respect of the selection, installation
and/or operation of equipment.

In line with IMO’s policy of continuous
improvement, the contents of this document are
subject to change without prior notice.

This documentation is only intended as a guide to
the VXSM product. For more comprehensive
information see the VXSM Instruction Manual
available to download from our website­www.imopc.com or by contacting IMO directly.

Full product range catalogue is also available,
detailing IMO’s state-of-the-art Industrial
Automation and Control products.

Copyright. All rights reserved. No part of this publication may br reproduced or transmitted in any form or by any means, electronic or
mechanical including photocopying, recording, or by any information storage or retrieval system without the prior written permission of
IMO Precision Controls Ltd. © IMO Precision Controls Ltd 2001
Part number VXSMCAT. ref SWK 13201 Issue May 2001.

Guarantee

Year

JAGUAR VXSM

26

JAGUAR VXSM

CAUTION

IMOVXSMV.7/6/01

IMO Precision Controls Limited

1000 North Circular Road
Staples Corner, London NW2 7JP

Telephone: [phone]
Fax: [phone]

Web: www.imopc.com
Email: [e-mail]

Driving a 3 phase standard motor

When driving a standard motor with an inverter, damage
may occur in the insulation of the motor. Use the output
circuit filter (OFL) if necessary after confirmation with
the motor manufacturer. The use of a quality Motor does
not require the output circuit filter because of its
reinforced insulation.

Torque characteristics and temperature rise

When the inverter is used to operate a standard motor, the
temperature rises a little higher than during operation by a
commercial power supply. The cooling effect decreases in
the low-speed range, reducing the allowable output torque.
(If a constant torque is required in the low-speed range,
use inverter rated motor or a motor equipped with a
separately excited ventilating fan.)

Vibration

Use of an inverter does not increase vibration of a standard
motor, but when the motor is mounted to a machine,
resonance may be caused by the natural frequencies
including the natural frequency of the machine system.

• IMO recommend that you use rubber coupling or anti­vibration rubber.

• We also recommend that you use the inverter jump
frequency control function to avoid resonance point in the
motor operation.
Note that operation of a 2-pole motor at 60Hz or over may
cause abnormal vibration.

Noise

When an inverter drives a standard motor, the motor noise
level increases compared with driven by a commercial
power supply. To reduce noise, set the inverter carrier
frequency at a high level

1

. High-speed operation at 60Hz or

over can result in more noise.

Installation location

Use the inverter in an ambient temperature range between

-10 to 50˚C.

• When driving an inverter of 22kW or smaller at a place in
a temperature of 40˚C or over, remove the ventilation
covers. Install an inverter on non-flammable material. The
inverter and braking resistor surfaces become hot under
certain operating conditions.

Geared motors

When the power transmission mechanism uses an oil­lubricated gearbox or speed changer/reducer, continuous
motor operation at low speed may cause poor lubrication.

Synchronous motors

It is necessary to use software suitable for the motor type.
Contact IMO for details.

Single-phase motors

Single-phase motors are not suitable for inverter-driven
variable speed operation. Use three-phase motors.

• Even if a single-phase power supply is available, use a
three-phase motor, because the inverter provides three­phase output.

Measures against surge current

If OU trip occurs while the inverter is stopped or operated
under a light load, it is assumed that the surge current is
generated by open/close of the phase-advancing capacitor
in the power system.

• Connect a DC reactor to the inverter.

Megger test

When checking insulation resistance of the inverter, use a
500V megger and follow the instructions described in the
instruction manual.

Control circuit wiring length

When conducting a remote control, limit the wiring length
between the inverter and operator box to 20m or less and
use twisted shielded cable.

Wiring length between inverter and motor

If long wiring is used between the inverter and the motor,
the inverter will overheat or trip because of overcurrent
(under the influence of high-frequency current flowing into
the floating capacity) in the wires connected to the phases.
Ensure that the wiring is shorter than 50m for models

3.7kW or smaller, shorter than 100m for 5.5kW or larger. If
these lengths must be exceeded, lower the carrier
frequency or mount an output circuit filter (OFL). When
wiring is longer than 50m, and Dynamic torque-vector
control or vector with PG is selected, execute off-line
auto-tuning.

Wiring size

Select a cable with a sufficient capacity by referring to the
current value or recommended wire size.

Earthing

Securely ground the inverter using the earth terminal.

Driving standard motor

Select an inverter from the capacity range of nominal
applied motors shown in the inverter standard
specifications table. When large starting torque is required
or acceleration or deceleration is required in a short time,
select an inverter with a capacity one class greater than the
standard.

Driving special motor

Select an inverter that meets the following condition:
Inverter rated current > Motor rated current.

Installing an MCCB

Install a MCCB or earth-leakage circuit breaker in the
primary circuit of the inverter to protect wires.

Magnetic contactor in the secondary circuit

If a magnetic contactor is mounted in the secondary circuit
for switching to the motor operation by commercial power
supply or for any other purposes, ensure that the inverter
and the motor are stopped before you turn on or off the
contactor. For switching operation from/to commercial
power supply, use of newly developed “Line/inver ter
changeover operation” function using terminals such as
SW88, SW52-2, SW52-1, SW50, is recommended.

Magnetic contactor in the primary circuit

Do not open or close the magnetic contactor in the primary
circuit more than once an hour. If frequent starts or stops
are required during motor operation, send FWD or REV
signals to the control terminal.

Protecting the motor

When you drive a motor with an inverter, the motor can be
protected with an electronic thermal relay function of the
inverter. In addition to the operation level, set the motor
type (standard motor, inverter motor). For high-speed
motors or water-cooled motors, set a small value as the
thermal time constant and protect the motor in
combination with the “cooling system OFF” signal. When
driving several motors with an inverter, connect a thermal
relay to each motor and turn off the inverter’s electronic
thermal relay function. If you connect the motor thermal
relay to the motor with a long cable, high-frequency
current may flow into the wiring floating capacity. This may
cause the relay to trip at a current lower than the set value
for the thermal relay. If this happens, lower the car rier
frequency or use the output circuit filter (OFL).

Power-factor correcting capacitor

Do not mount the power-factor correcting capacitor in the
inverter primary circuit. (Use the DC reactor to improve
the inverter power factor.) Do not use the power-factor
correcting capacitor in the inverter secondary circuit.
Overcurrent trip will occur, disabling motor operation.

Reducing noise

Use of filter and shielded wires are typical measures
against noise that meets EMC Directives. For details, refer
to the operation procedure manual.

Explosion-proof motors

When driving an explosion-proof motor with an inverter,
use a combination of a motor and an inverter that has been
approved in advance. Such approved products are available
in our special product series. Contact IMO for details.

Submersible motors and pumps

These motors have a larger rated current than standard
motors. Select the inverter capacity so that these motors
can run within the inverter rated current. These motors
differ from standard motors in thermal characteristics. Set
a small value according to the thermal time constant of
motor for setting electronic thermal relay function.

Brake motors

For motors with parallel-connection brakes, obtain the
brake power from the primary circuit (commercial power
supply). If you connect the brake power to the inverter
power output circuit by mistake, problems may occur. Do
not use inverters for driving motors equipped with series­connection brakes.

Applicable to standard motors

Combination with peripheral device

Wiring

Inverter Capacity

When transporting or storing inverters, select the
procedures and places that meet the environmental
conditions given in the inverter specifications. Ensure that
the above environmental conditions are met also when
transporting an inverter mounted to a machine.

Full instruction manual available from the IMO website:
www.imopc.com or call the telephone number below for
assistance.

1

Caution – this may cause EMC problems – check with

IMO first.

If in doubt contact IMO.

Transportation, storage

Applicable to special motors

Out-of-hours telephone contacts:

Technical Support
07831 207 220 and 07831 207 221

Contact IMO for details of our full range of Automation, Control and Panel products
