i-MO 200-D Series, 540 Series, 200-S Series Installation Manual

Hardware Installation Guide

i-MO 200-D Series Bonding Router

Hardware Installation Guide

for the i-MO 200-D Series Appliance

EMS i-MO 200-D Series Hardware Installation Guide

Version 2.0

ELECTRONIC MEDIA SERVICES LIMITED

PASSFIELD BUSINESS CENTRE, LYNCHBOROUGH ROAD, LIPHOOK, HAMPSHIRE, GU30 7SB, UK

Tel: [phone] | Fax: [phone] | E-mail: [e-mail]

Page 2 of 20

Content

Content .............................................................................................................................................................. 2

i-MO Appliance Identification Guide .................................................................................................................. 4

General Safety Guidelines for EMS Hardware Equipment ................................................................................ 5

Installation Safety Guidelines and Warnings ..................................................................................................... 5

Operating Temperature Warning ................................................................................................................... 5

Product Disposal Warning ............................................................................................................................. 6

General Electrical Safety Warnings for EMS Hardware Equipment .................................................................. 6

Radio Frequency Interference ....................................................................................................................... 6

Electromagnetic Compatibility ....................................................................................................................... 6

AC Power Electrical Safety Guidelines .......................................................................................................... 6

Hardware Installation Guide .............................................................................................................................. 7

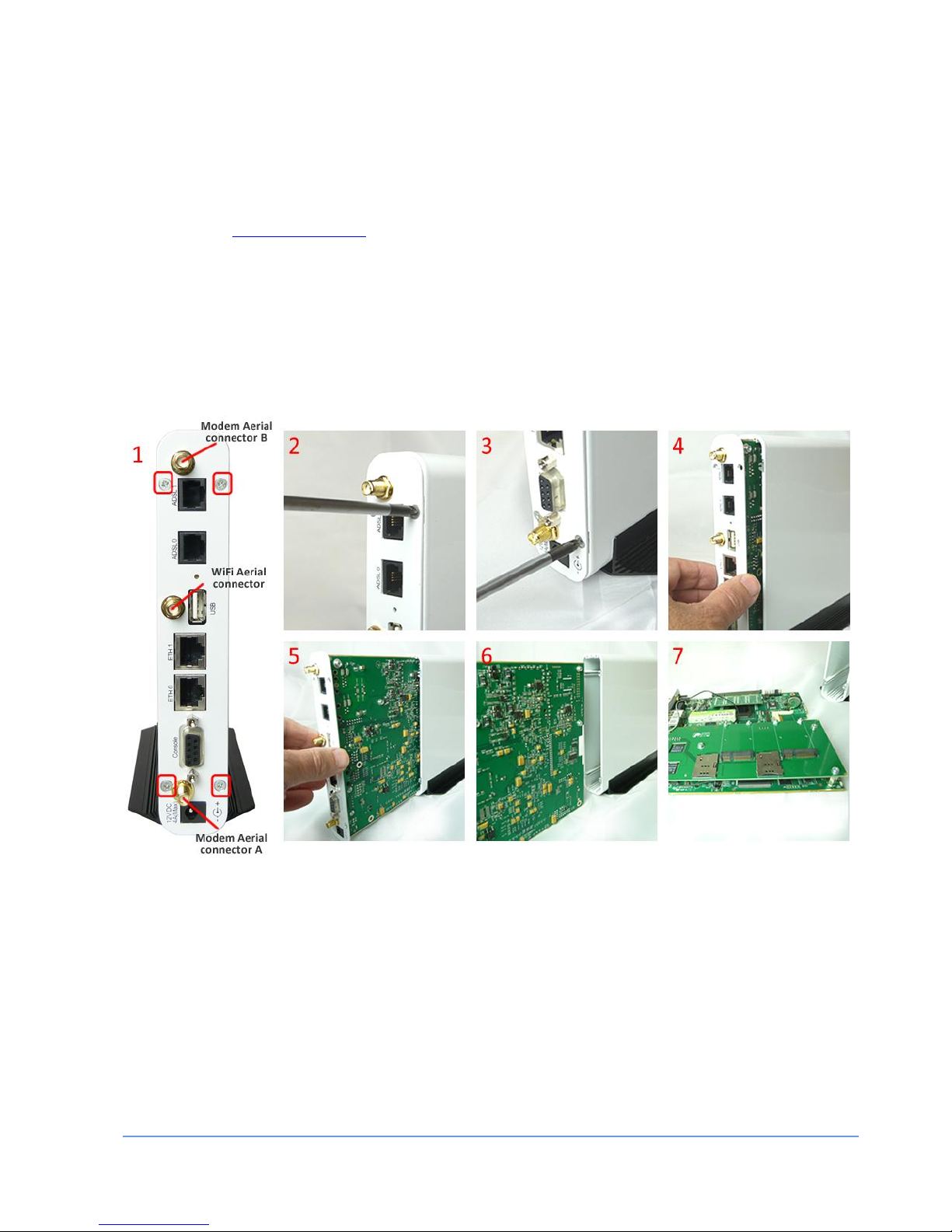

1) How to open the appliance (optional) ........................................................................................................ 7

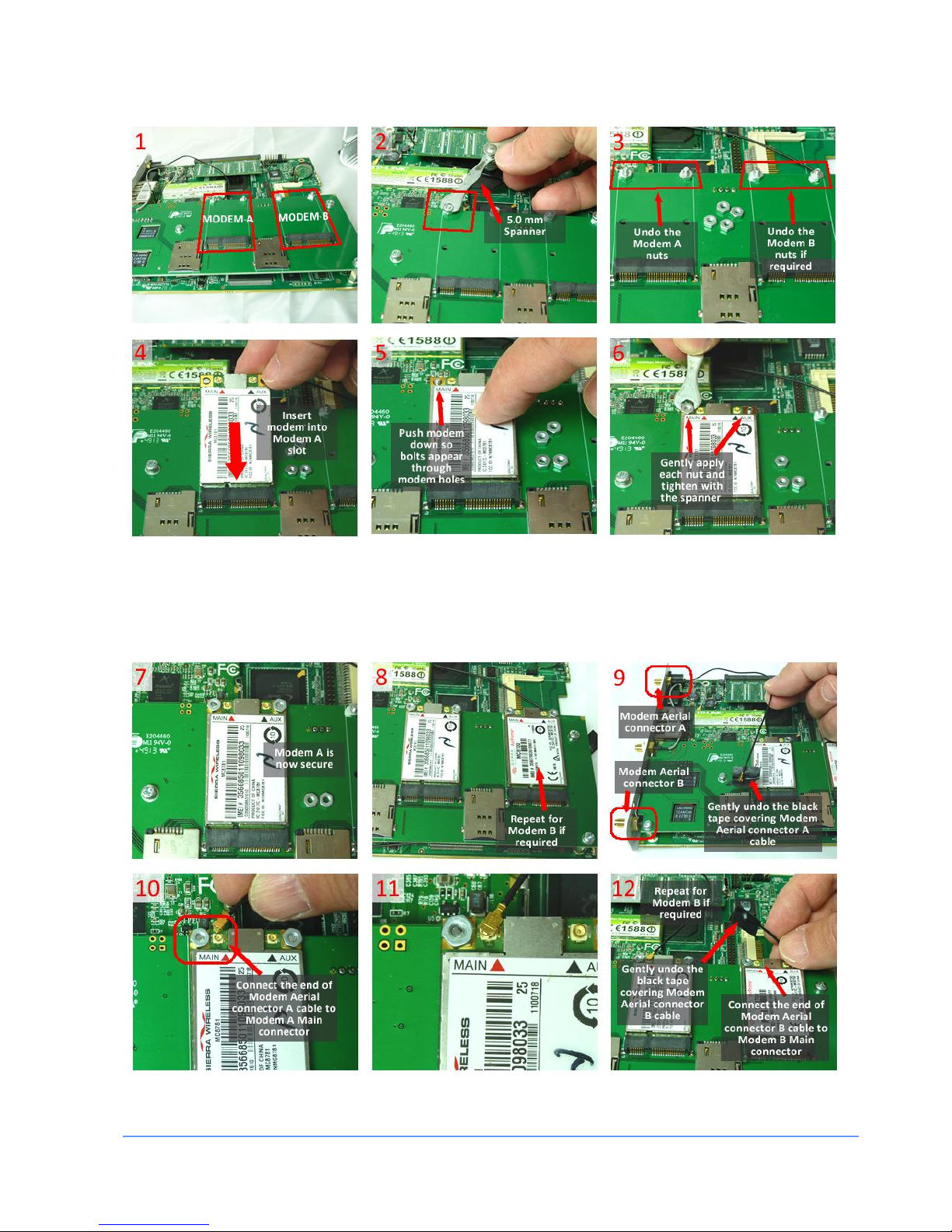

2) How to install Modems (optional if not already fitted) ................................................................................ 7

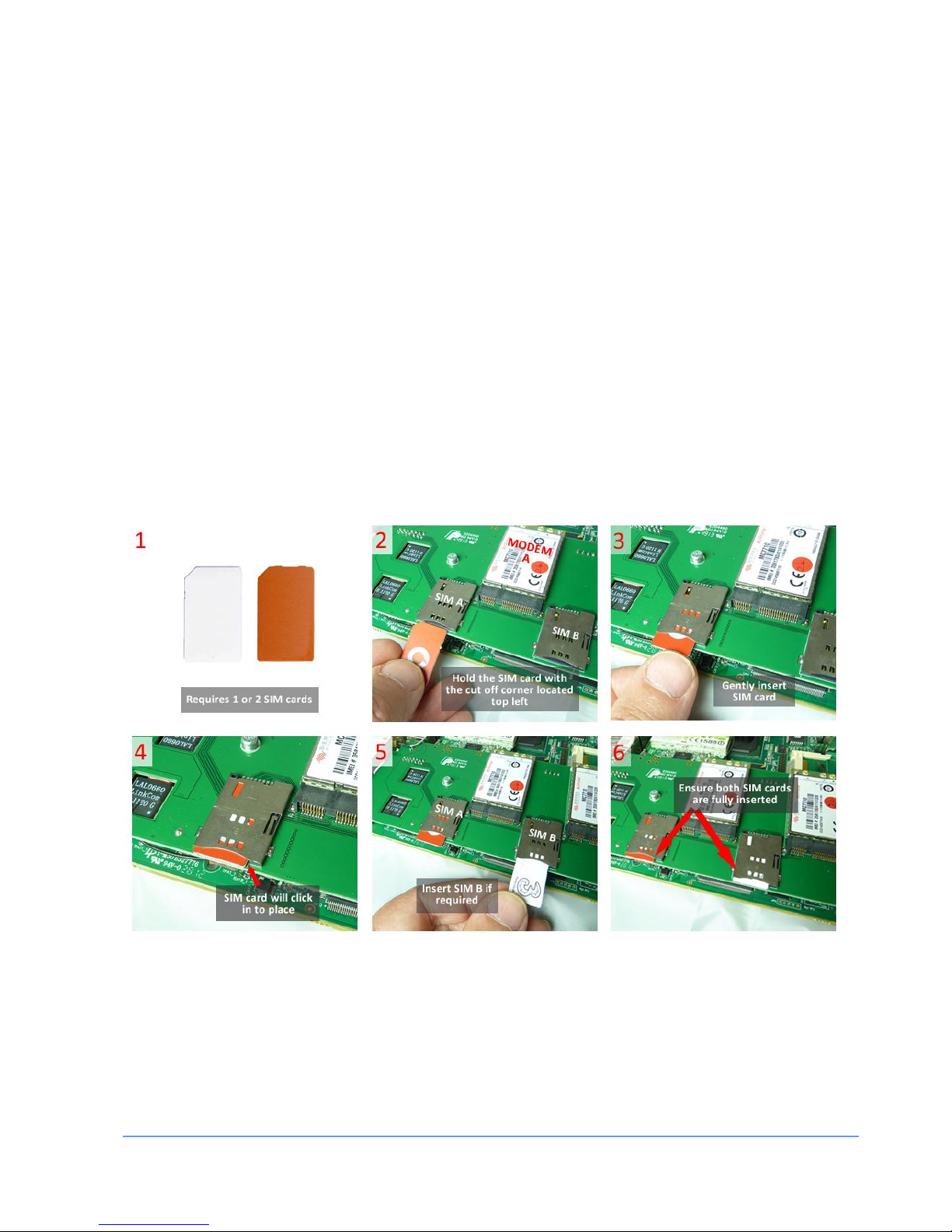

3) How to install SIM cards (optional if not already fitted) ............................................................................. 9

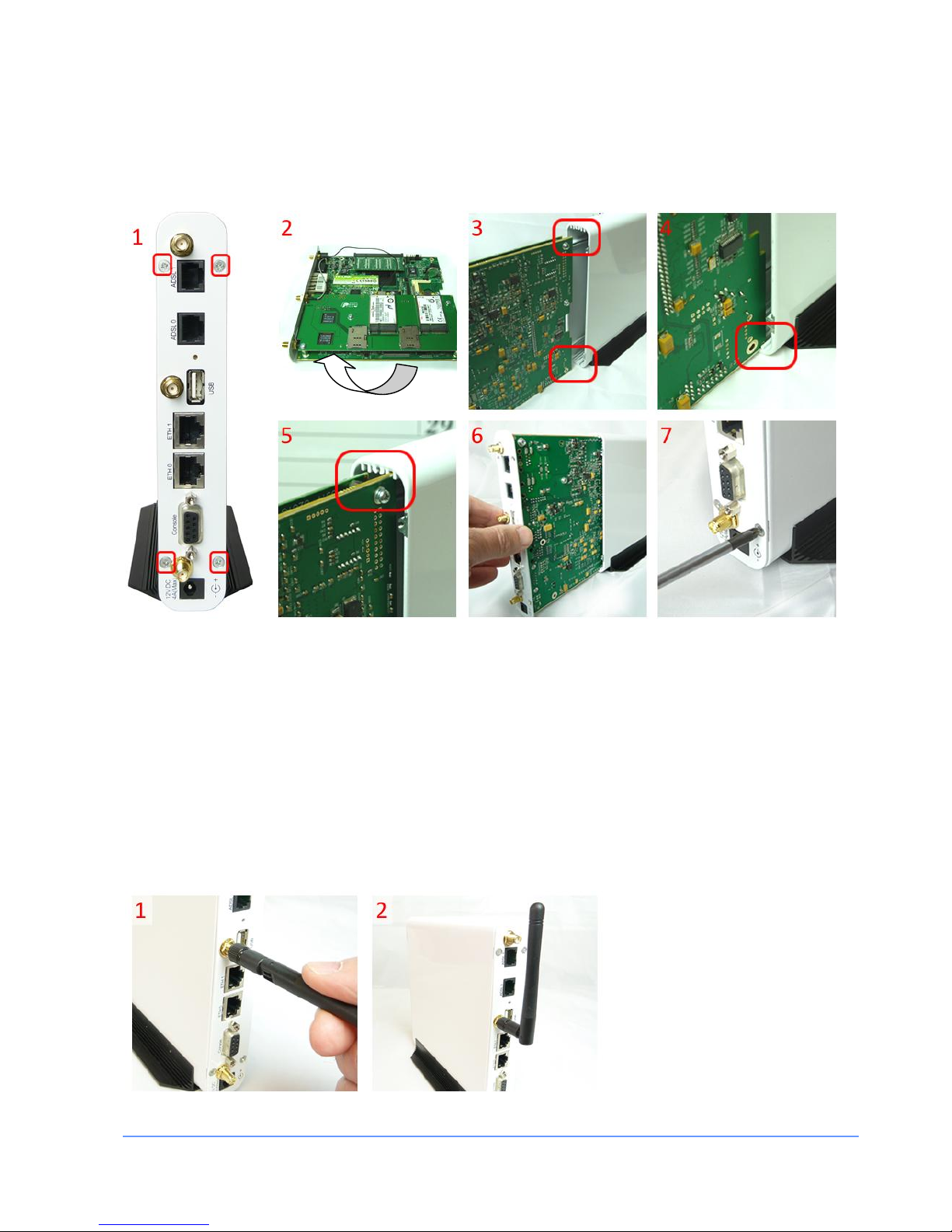

4) How to close the appliance (optional) ..................................................................................................... 10

5) How to attach the WiFi antenna ............................................................................................................. 10

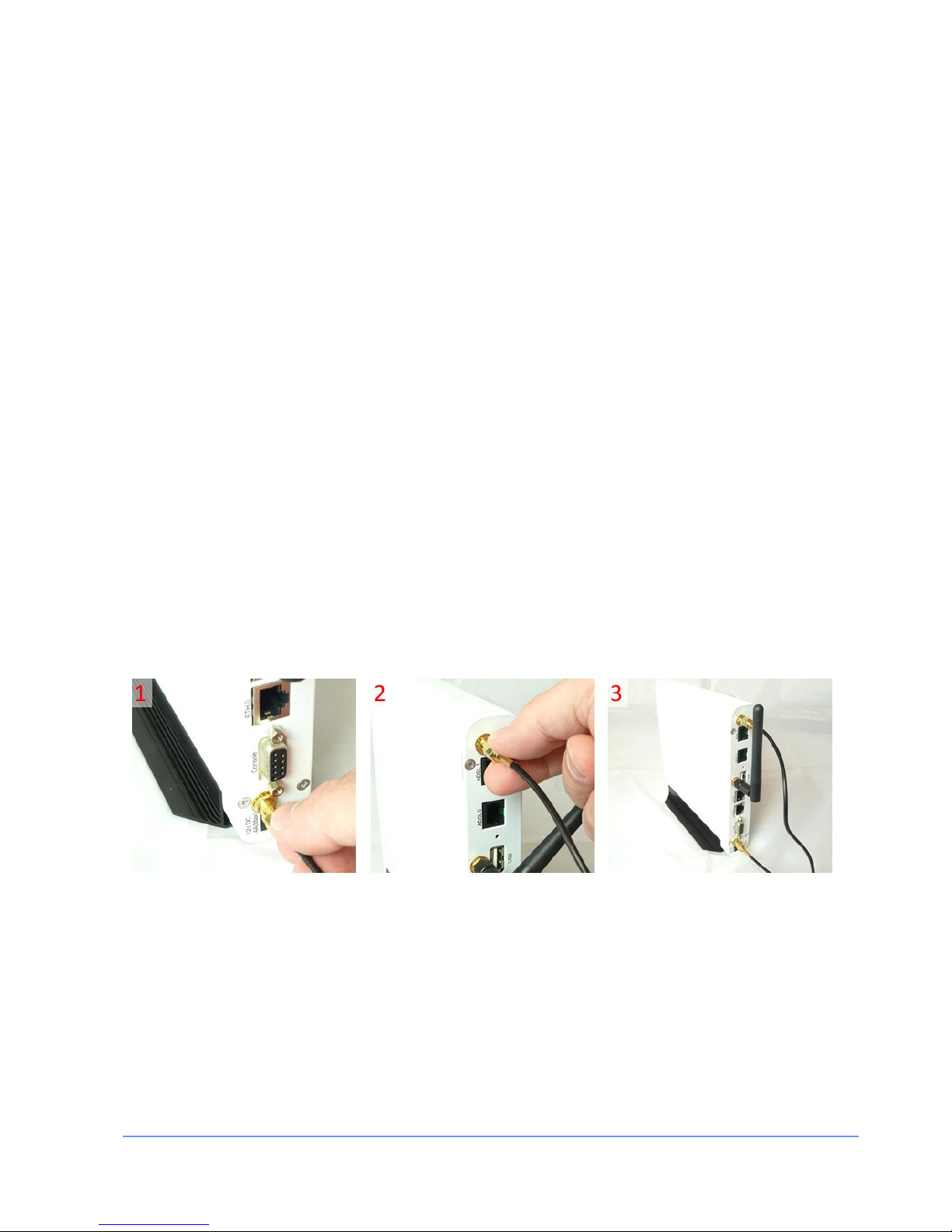

6) How to attach the default 3G/4G 'Type C Stub' antennas ....................................................................... 11

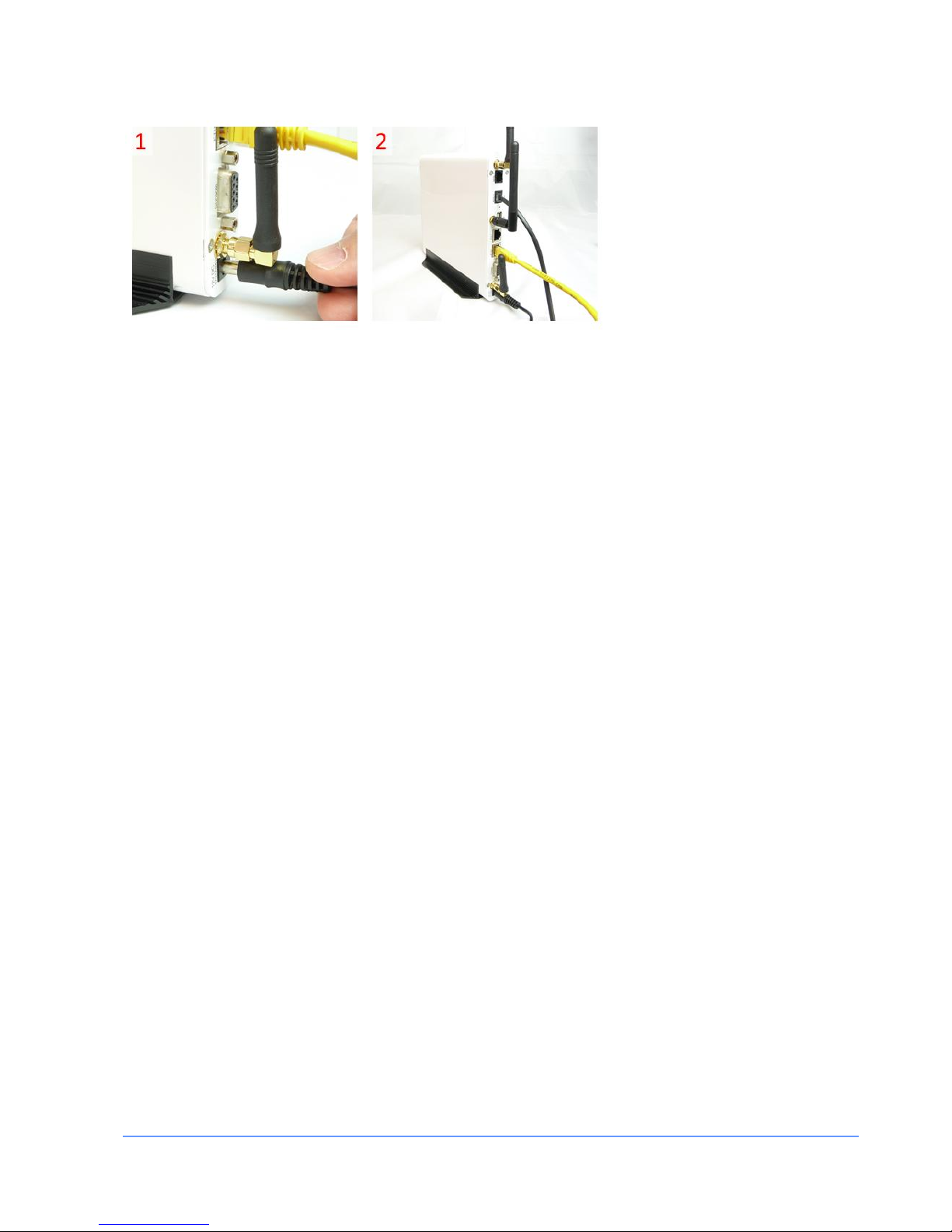

7) How to attach network and ADSL cables (optional) ................................................................................ 11

8) How to attach the power cable ................................................................................................................ 11

9) How to switch the power on .................................................................................................................... 12

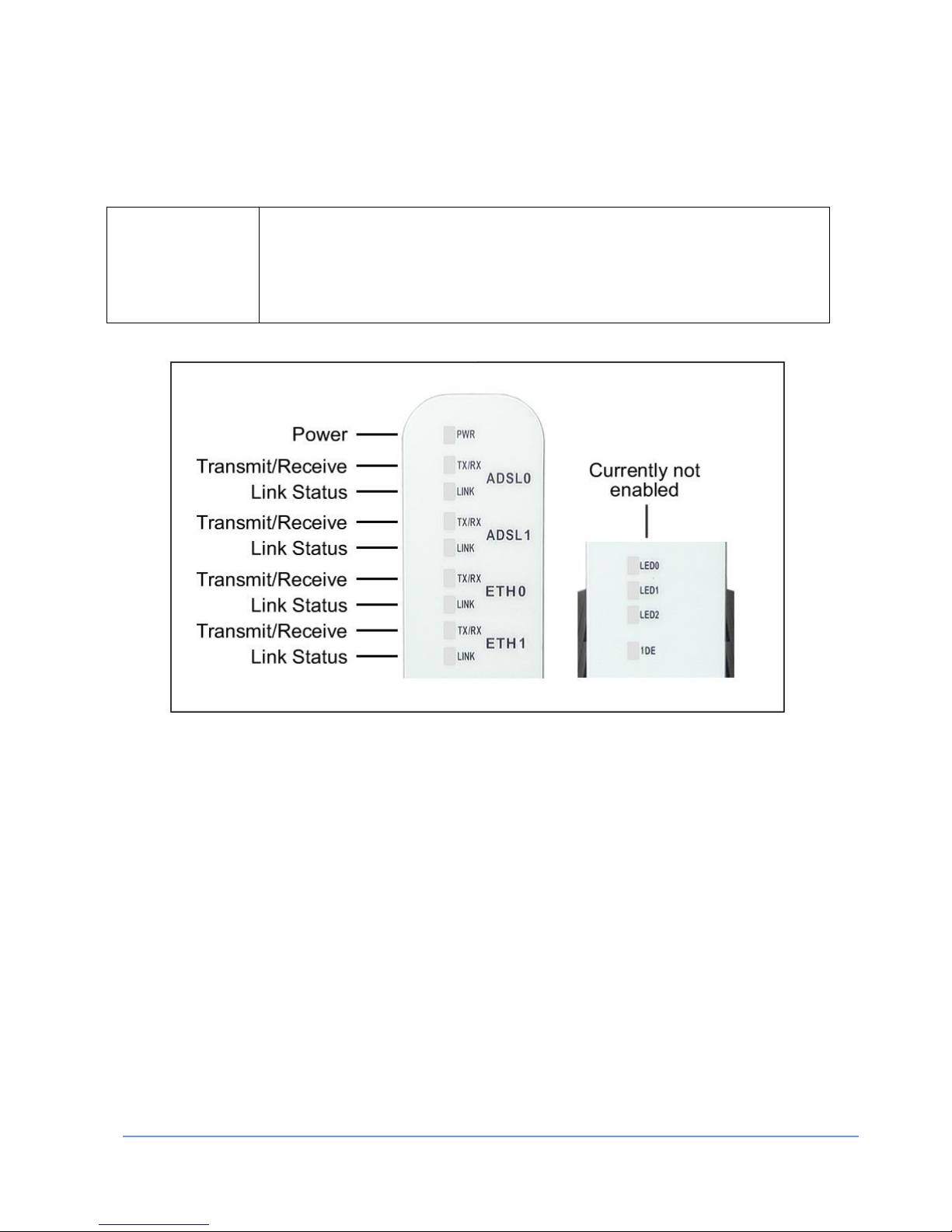

10) Status display ........................................................................................................................................ 13

Appendix A - WiFi Radio Component .............................................................................................................. 14

Warnings ...................................................................................................................................................... 14

Regulatory Notices ...................................................................................................................................... 14

FCC ID: N7N-MHS802 ................................................................................................................................ 14

Certification Information (SAR) .................................................................................................................... 15

Technical Data ............................................................................................................................................. 15

Safety Regulation and Operating Environment ........................................................................................... 15

Appendix B - 3G / 4G Radio Component ........................................................................................................ 16

External Installation (where optional external aerials have been supplied) ................................................ 16

Safety ................................................................................................................................................... 16

Choosing a Mounting Location ............................................................................................................ 17

Mounting the Antennas ........................................................................................................................ 17

Connecting the External Antennas to the i-MO ................................................................................... 17

Appendix C - Disposal and Recycling Information .......................................................................................... 18

WEEE EU Directive ..................................................................................................................................... 18

EMS i-MO 200-D Series Hardware Installation Guide

Version 2.0

ELECTRONIC MEDIA SERVICES LIMITED

PASSFIELD BUSINESS CENTRE, LYNCHBOROUGH ROAD, LIPHOOK, HAMPSHIRE, GU30 7SB, UK

Tel: [phone] | Fax: [phone] | E-mail: [e-mail]

Page 3 of 20

Reduction of Hazardous Substances .......................................................................................................... 18

Appendix D - Warranty Information ................................................................................................................. 19

EMS's Limited Warranty Statement (1-Year Warranty) ............................................................................... 19

One-Year Limited Warranty ................................................................................................................. 19

Obtaining Technical Assistance ...................................................................................................................... 20

EMS i-MO 200-D Series Hardware Installation Guide

Version 2.0

ELECTRONIC MEDIA SERVICES LIMITED

PASSFIELD BUSINESS CENTRE, LYNCHBOROUGH ROAD, LIPHOOK, HAMPSHIRE, GU30 7SB, UK

Tel: [phone] | Fax: [phone] | E-mail: [e-mail]

Page 4 of 20

i-MO Appliance Identification Guide

The following diagram shows the basic and optional i-MO 200-D Series hardware components.

EMS i-MO 200-D Series Hardware Installation Guide

Version 2.0

ELECTRONIC MEDIA SERVICES LIMITED

PASSFIELD BUSINESS CENTRE, LYNCHBOROUGH ROAD, LIPHOOK, HAMPSHIRE, GU30 7SB, UK

Tel: [phone] | Fax: [phone] | E-mail: [e-mail]

Page 5 of 20

General Safety Guidelines for EMS Hardware Equipment

The following guidelines help ensure your safety and protect the hardware equipment from damage. The list
of guidelines might not address all potentially hazardous situations in your working environment, so be alert
and exercise good judgment at all times.

 Perform only the procedures explicitly described in this documentation. Make sure that only

authorized service personnel perform other system services.

 Keep the area around the chassis clear and free from dust before, during, and after installation.
 Keep tools away from areas where people could trip over them while walking.
 Wear safety glasses if you are working under any conditions that could be hazardous to your eyes.
 Do not perform any actions that create a potential hazard to people or make the equipment unsafe.
 Never install or manipulate wiring during electrical storms.
 Never install electrical jacks in wet locations unless the jacks are specifically designed for wet

environments.

 Operate the hardware equipment only when the chassis is properly grounded.
 Do not open or remove chassis covers or sheet metal parts unless instructions are provided in this

documentation. Such an action could cause severe electrical shock.

 Do not push or force any objects through any opening in the chassis frame. Such an action could

result in electrical shock or fire.

 Avoid spilling liquid onto the chassis or onto any hardware component. Such an action could cause

electrical shock or damage the hardware equipment.

 Do not use the device where inflammables or explosives are stored, for example, in a fuel station, oil

depot, or chemical plant. Otherwise, explosions or fires may occur.

 Use only the accessories supplied or authorized by the device manufacturer. Otherwise, the

performance of the device may get affected, the warranty for the device or the laws and regulations
related to telecommunications terminals may become null and void, or an injury may occur.

 Do not use the power adapter if its cable is damaged. Otherwise, electric shocks or fires may occur.
 Do not use the antennas if the connectors, cables, or antennas are damaged. Otherwise, radio

frequency interference or electric shock may occur.

Installation Safety Guidelines and Warnings

Read the installation instructions before you connect the hardware equipment to a power source.

Operating Temperature Warning

To prevent the hardware equipment from overheating, do not operate it in an area that exceeds the
maximum recommended ambient temperature of 40°C. To prevent airflow restriction, allow at least 2 inches
of clearance around the device.

Do not expose to direct sunlight.

EMS i-MO 200-D Series Hardware Installation Guide

Version 2.0

ELECTRONIC MEDIA SERVICES LIMITED

PASSFIELD BUSINESS CENTRE, LYNCHBOROUGH ROAD, LIPHOOK, HAMPSHIRE, GU30 7SB, UK

Tel: [phone] | Fax: [phone] | E-mail: [e-mail]

Page 6 of 20

Do not place containers of liquids on the device or allow the device to come in contact with liquids.
Do not place near or on a source of heat.

Product Disposal Warning

Disposal of this product must be handled according to all national laws and regulations.
See Appendix C for details.

General Electrical Safety Warnings for EMS Hardware Equipment

Radio Frequency Interference

You can reduce or eliminate the emission of radio frequency interference (RFI) from your site wiring by using
twisted-pair network cabling with a good distribution of grounding conductors. If you must exceed the
recommended distances, use a high-quality twisted-pair cable with one ground conductor for each data
signal when applicable.

Electromagnetic Compatibility

If your site is susceptible to problems with electromagnetic compatibility (EMC), particularly from lightning or
radio transmitters, you might want to seek expert advice. Strong sources of electromagnetic interference
(EMI) can destroy the signal drivers and receivers in the router and conduct power surges over the lines into
the equipment, resulting in an electrical hazard. It is particularly important to provide a properly grounded
and shielded environment and to use electrical surge-suppression devices.

AC Power Electrical Safety Guidelines

The i-MO 200-D Series appliance requires an AC supply of 100-240Volts, 50/60Hz and can draw a current of
up to 2 Amps.

i-MO routers are shipped with a three-wire electrical cord with a grounding-type plug that fits only a
grounding-type power outlet. Do not circumvent this safety feature. Equipment grounding should comply with
local and national electrical codes. The power cord serves as the main disconnecting device. The socket
outlet must be near the router and be easily accessible.
