ILLUSTRATED PARTS LIST
ENDURO–175 8 VALVE
IMI CORNELIUS INC.
www.cornelius.com
Manual Part No. 620917901IPL
Revision Date: November 18, 2005
Revision: D
1
Rev B
Enduro 175 8 Valve Illustrated Parts List
©IMI Cornelius Co., 2004–2005
50
62
46
67
63
68
26
19
52
57
5
67
87
96
1
67
32
2
88
79
49
81
64
66
48
44
4
25
92
21
91
74
24
69
90
56
39
74
30
6
80
94
94
51
72
61
76
54
88
86
34
13
82
100
70
77
8
84
15
23
72
58
88
34
16
75
53
76
95
60
74
71
7
14
55
83
FIGURE 1. ELECTRICAL BOX ASSEMBLY EXPLODED VIEW
93
40
73
72
17
22
10
73
12
88
59
47
620917901IPL
2
CABINET SECTION PARTS LIST
Index
No.
1 21491 Gate Slide
2 22081R Gate Restrictor
3 Not Used
4 **29303R Plate, Motor Mounting
5 15346 Agitator Assy
6 620021201 Cover, Rear Wrapper
7 629080213 Lower Panel Assy (For Drip Tray)
8 620020101 Sink Extension Assy, Drip Tray
9 Not Used
10 620035401 Wrapper
11 Not Used
12 Contact Sales Panel Cold Plate/Faucet Assy
13 27107 Retainer Lever, Ice Dispenser
14 10145 Pin Sink Ext.
15 31007 Switch Boot
16 50335 Insulation, Cold Plate Drain
17 50767 Heyco Snap Bushing
18 Not Used
19 15087 Retainer, Agitator
20 Not Used
21 30794 Motor Heater, 115 Volt
22 30895 Dispense Switch
23 53011 Elbow Cold Plate Drain
24 31622 Bulb-Daylight 18”
25 **620307901 Agitator Motor, 120 Volt
26 32954 Solenoid Assembly, 115 Volt
27 Not Used
28 Not Used
29 Not Used
30 620302001 Electrical Box Assy, 120 Volt (B & BC Models)
31 Not Used
32 620022201 Bracket, Motor Mounting
33 Not Used
34 71010 Washer, No. 8
Part No. Name
629080215 Lower Panel Assy (Z Model)
32826 Motor Heater, 220-240 Volt
**620307902 Agitator Motor, 220-240 Volt
33409 Solenoid Assembly, 220-240 Volt
620303301 Electrical Box Assy, 120 Volt (Ice Only)
620302301 Electrical Box Assy, 220-240 Volt (B & BC Models)
620303302 Electrical Box Assy, 220-240 Volt (Ice Only)
3
620917901IPL
CABINET SECTION PARTS LIST (CONT’D)
35 Not Used
36 Not Used
37 Not Used
38 Not Used
39 620019701 Hinge, Gusset
40 Not Used
41 Not Used
42 Not Used
43 Not Used
44 **51859 Seal, Agitator Motor Shaft
45 Not Used
46 51891 Gasket, Gate
47 ***51908 Plug (120V Models Only)
48 **52876 Gasket, Motor Shaft
49 620500901 Ice Chute
50 53168 Ice Chute Cover
51 53241 Access Cover (Cold Plate Models Only)
52 53227 Agitator Disk
53 Contact Sales Merchandiser, Black
Contact Sales Merchandiser, Gray
620024118 Merchandiser, S.S.
620024117 Merchandiser, S.S. (For Lid and Straw Holder)
620024116 Merchandiser, S.S. (For Medallion)
620024115 Merchandiser, S.S. (For Low Ice Light)
54 620502801 Lens, Merchandiser
55 620502701 Foamed Sink Assy, Black
620502702 Foamed Sink Assy, Gray
56 620513503 Lid, Dispenser, Black
620513504 Lid, Dispenser, Gray
57 620513502 Hopper Assy
58 620021901 Baffle
59 52967 Plug, Plastic
60 52972 Tab Retaining
61 53236 Cover (Cold Plate Models Only)
62 70016 Hex Nut, No. 10-32 S.S.
63 70017 Hex Nut, No. 10-32 Nylon Insert Locknut
64 **70018 Hex Nut, 1/4-20 Keps
65 Not Used
66 **70048 Washer, .255 I.D.
67 70056 Washer, No. 10, .219 I.D.
620917901IPL
4
CABINET SECTION PARTS LIST (CONT’D)
68 70067 Washer, .218 I.D.
69 70076 Hex Nut, No. 8-32
70 70104 Nutsert No. 8-32
71 Contact Sales Graphics
72 70171 Machine Screw, Phil Truss Hd, No. 8-32 By 3/8-In. Long
73 70178 Machine Screw, Phil Truss Hd, No. 8-32 By 1/2-In. Long
74 70204 Sheet Metal Screw, Phil Truss Hd, No. 8 By 1/2-In. Long
75 620513505 Spacer, Cabinet
76 51334 Adhesive Tape
77 15500 Dispense Lever, Short (Cup Activated)
15488 Dispense Lever, Long (Cup Activated)
15501 Push Lever (Ice Dispense)
78 Not Used
79 70260 Machine Screw, Phil Rd Hd, 1/4-20 By 1-In. Long
80 70320 Pop Rivet, 1/8
81 70341 Spring, Hopper Gate Slide
82 620701601 Thread Forming Screw, Phil Pan Hd, No. 10-16 By 1/2-In. Long
83 70478R Clip, Push On
84 70555 Machine Screw, Phil Truss Hd, No. 8-32 By 3 1/4-In. Long
85 70750 Hose Clamp, Worn
86 71006 Machine Screw, Phil Truss Hd, No. 8-32 By 2 1/4-In. Long
87 53299 Clip, Black
88 70959 Hex Nutsert, No. 8-32
89 70970 Leg, Black
90 70992 Receptacle, 1/4 Turn
91 **70993 Retainer, 1/4 Turn
92 **70994 Stud Wing Hd, 1/4 Turn
93 70847 Spacer, Dispense Switch
94 70456 3/16 Pop Rivet
95 620700301 Cup Rest
96 71089 Shoulder Screw, No. 8-32
*97 51288 Adapter, 1” Barb x 3/4 M.P.T. (For Drip Tray Drain)
*98 50952 Adapter, 3/4 soc x 3/4 F.P.T. (For Drip Tray Drain)
*99 620702201 Cold Plate Cleaning Brush
100 620035402 Bracket, E-Box Spacer
NOTES: *NOT SHOWN
**PARTS INCLUDED IN AGITATOR MOTOR KIT.
***FOR 220-240V MODELS, 51908 PLUG REPLACED BY 620303001
PUSH-BUTTON SWITCH ACTUATOR AND 620303002 SWITCH BLOCK.
5
620917901IPL
5
4
NC
NC
11
L2
COMNO
COM
NO
L1
17
7
13
1
16
18
10
FRONT

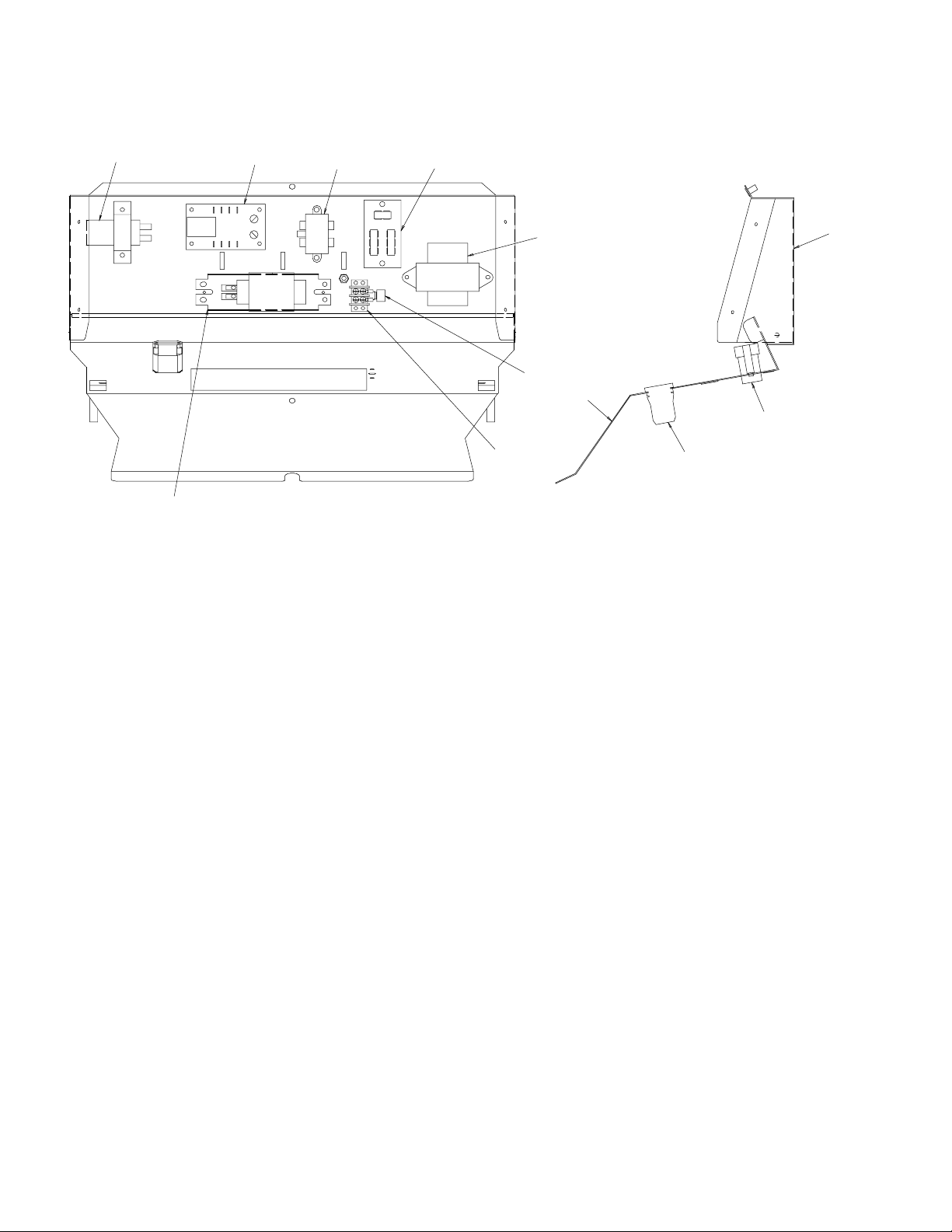

FIGURE 2. ELECTRICAL BOX ASSEMBLY EXPLODED VIEW
ELECTRICAL BOX ASSEMBLY
Item
No. Part No. Name
1 620019001 Electrical Box
2 620019101 Reflector Panel
3 Not Used
4 30514 Clamp, Capacitor, 120 Volt
620308102 Clamp, Capacitor, 220-240 Volt
5 30774 Capacitor, 120 Volt
620308101 Capacitor, 220-240 Volt
6 Not Used
7 31107 Terminal Board
8 Not Used
9 31620 Starter
10 31621 Ballast, 120 Volt
33662 Ballast, 220-240 Volt
11 620314803 Timer, Repeat Cycle, 120 Volt
620314802 Timer, Repeat Cycle, 220-240 Volt
12 620302201 Socket, Starter
13 32682 Transformer, 120 Volt
32829R Transformer, 220-240 Volt
14 620302101 Lamp-holder
15 Not Used
16 620304601 Varistor, 220-240 Volt
17 620307301 Filter, 220-240 Volt
18 32244 Terminal Strip, 220-240 Volt
2
9
12
14
RIGHT SIDE
620917901IPL
6
SOLENOID ASSEMBLY
14
9
4
11
5
3
15
12
10
8
7
1
13
2
6
5
FIGURE 3. SOLENOID ASSEMBLY
Item
No. Part No. Name
1 28173 Arm, Gate Lift
2 50754 Bearing, Gate Arm
3 32957 Solenoid, 120 Volt
33397 Solenoid, 220-240 Volt
4 28172 Plate, Solenoid Mounting
5 50752 Isolator
6 70015 Hex Nut, No. 10-32
7 51689 Locktite
8 70162 Screw, No. 8-32 By 1/4-In. Long
9 50705 Tie Cable
10 70165 Screw, No. 8-32 By 5/8-In. Long
11 71007 Spring, Solenoid Arm
12 51348 Spacer
13 70067 Washer, .218 I.D. By .875 O.D.
14 70057 Lockwasher, No. 10
15 70052 Flatwasher, No. 8
7
620917901IPL
DRAIN
TO COLD PLATE
1
DRAIN ELBOW
3
4
1
TO COLD PLATE
DRAIN ELBOW
1
1
2
1
3
FIGURE 4. COLD PLATE DRAIN FOR Z STYLE UNITS
Item
No. Part No. Name
1 70750 Hose Clamp
2 53170 Drain Tube
3 51280 Elbow
4 53293 Coupler
620917901IPL
8
COMPONENTS FOR FLAVOR UNITS
2
12
13
8
9
10
19
11
7
1
5
6
3
4
FIGURE 5. COMPONENTS FOR FLAVOR UNITS
Item No. Part No. Name
1 2487 Flow control assembly
2 620709068 Fitting elbow ¼ barb
3 620046335 Retainer valve
4 319941000 Screw tr 08–32 hxws
5 620718932 Fitting 90 swivel 1/8 barb
6 620715821 Inner nozzle
7 620052029 Nozzle bracket 1xx
8 620314823 PC Board
* 9 620313657 Jumper PCB to keypad 4 fl
620313658 Jumper PCB to keypad 2 fl
* 10 620316443 Harness solenoid 4 fl
620316442 Harness solenoid 2 fl
* 11 770000119 Tubing syrup 1/8 id
12 50299 Tubing bev 265 id x 465 od
13 77040700 Fitg splicer ¼ x 3/8
14 620313239 Membrane switch 4 button
15 620516527 Housing – keypad/nozzle
16 1945 Outer nozzle
17 620519209 Merch flavor blast, ED175 blk
620519211 Merch flavor blast, ED175 gry
18 620920065 Graphic flavor blast, ed150
19 620709313 Ice lever, push bar – flav
Note: * Not Shown
16
15
18
17
14
9
620917901IPL
4
5
2
3
7
6
3
2A
1
7
FIGURE 6. WATER MANIFOLD ASSEMBLY
Item
No. Part No. Name
1 620407726 Manifold Flex
2
2A
3 70204 Screw Sm #8 X 1/2
4 620519005 Plug 3/8 w/O–ring
5 620709066 Fitg Straight 3/8 X 1/4 Brb
6 620046316 Retainer Clip
7 620706632 Screw TRPH #8–18 X 2 Waxed
* 620711913 Insulation Block, RH
* 620711914 Insulation Block, LH
* 620715408 Hook and Loop Fastener
620709065
100057
Fitg Elbow 1/2 X 3/8 Brb
O–ring
* Not Shown
620917901IPL
10
