• Read and follow ALL SAFETY INSTRUCTIONS in this manual and any warning/caution labels on the unit (decals, labels or
laminated cards).
• Read and understand ALL applicable OSHA (Occupational Safety and Health Administration) safety regulations before
operating this unit.
Recognition
Recognize Safety Alerts
This is the safety alert symbol. When you see it in this manual or on the unit,
be alert to the potential of personal injury or damage to the unit.
DIFFERENT TYPESOF ALERTS
Indicates an immediate hazardous situation which if not avoided WILL result in serious injury, death or equipment
damage.
Indicates a potentially hazardous situation which, if not avoided, COULD result in serious injury, death, or equipment
damage.
Indicates a potentially hazardous situation which, if not avoided, MAY result in minor or moderate injury or equipment
damage.
SAFETY TIPS
• Carefully read and follow all safety messages in this manual and safety signs on the unit.
• Keep safety signs in good condition and replace missing or damaged items.
• Learn how to operate the unit and how to use the controls properly.
• Do not let anyone operate the unit without proper training. This appliance is not intended for use by very young children or
infirm persons without supervision. Young children should be supervised to ensure that they do not play with the appliance.
• Keep your unit in proper working condition and do not allow unauthorized modifications to the unit.
QUALIFIED SERVICE PERSONNEL
Only trained and certified electrical, plumbing and refrigeration technicians should service this unit. ALL WIRING AND
PLUMBING MUST CONFORM TO NATIONAL AND LOCAL CODES. FAILURE TO COMPLY COULD RESULT IN
SERIOUS INJURY, DEATH OR EQUIPMENT DAMAGE.
The ice drink dispenser shall be installed by qualified personnel following instruction given in the Installation manual
part number 92059OINS. Fill the hopper with ice. Dispense several large cups of ice (approximately 20 to 30 seconds
total dispensing time) to allow ice to fill the cold plate cabinet. Add ice to the hopper as necessary to refill, then replace
the lid. Allow 10 to 15 minutes for the cold plate to cool down. Repeat this procedure whenever the dispenser has run
out of ice. Start up the beverage system and adjust faucets to the proper brix. Contact your local syrup distributor for
complete information on the beverage system.
The ice drink dispenser is designed to operate in ambient temperatures ranging from 40 to 105o F. Do not allow the
unit to be stored or operated in conditions below 32
Dispenser cannot be used with crushed or flaked ice. Use of bagged ice which has frozen into large chunks can
void warranty. The dispenser agitator is not designed to be an ice crusher. Use of large chunks of ice which “jam
up” inside the hopper will cause failure if the agitator motor and damage to the hopper. If bagged ice is used, it must
be carefully and completely broken into small, cube-sized pieces and left to “temper” or warm up for a minimum of
20 minutes in room temperature before loading into the dispenser hopper
o
F. This could cause damage to the unit.
In normal operation, pushing the ice dispenser mechanism will cause ice to flow from the ice chute. Ice flow will
continue until the dispenser mechanism is released. Dispensing of any faucet will provide beverage of the appropriate
flavor.
Use caution to avoid spilling ice when filling dispenser. Clean up immediately any spilled ice from filling or operating
the unit. To prevent contamination of ice, the lid must be installed on the unit at all times. Failure to clean up spills
could result in serious injury or death
If the dispenser fails to dispense ice or beverage, refer to the troubleshooting section in the Installation Manual part
number 92059OINS.
NOTE: The dispenser is not designed for a wash-down environment and MUST NOT be placed in an area where
a water jet could be used.
NOTE: This appliance is not intended for use by personnel (including children) with reduced physical, sensory or
mental capabilities or lack of experience and knowledge, unless given supervision or instruction concerning use of
the appliance by a person responsible for safety.
These instructions are used on all Cornelius ice drink dispensers.
Some models may have additional cleaning requirements.
Those models will have addition procedures listed later in the manual.
Disconnect power to the unit before cleaning or servicing following all lock out / tag out procedures established by
the user. Verify all of the power is off to the unit before performing any work.
Failure to comply could result in serious injury, death or damage to the equipment.
Do not use metal scrapers, sharp objects or abrasives on the ice storage hopper, top cover, agitator disc or exterior
surfaces as damage to the unit may result. Do not use solvents or other cleaning agents as they may attack the
material resulting in damage to the unit.
Soap solution – Use a mixture of mild detergent and warm (100° F ) potable water.
Sanitizing Solution – Dissolve 2 packets (4 oz) of Stera Sheen Green Label into 2 gallons of warm (80 – 100° F)
potable water to ensure 200 ppm of chlorine.
Daily Cleaning:
1. Remove cup rest from drip tray and clean with warm soapy water, rinse with clean water and allow to air
dry.
2. Wipe down the exterior of the unit with warm soapy water, rinse with clean water and allow to air dry.
3. Remove valve nozzles and diffusers and wash in warm soapy water, rinse in clean water and allow to air
dry.
4. Clean the interior of the ice chute using the brush provided with the unit with warm soapy water, rinse with
clean water and allow to air dry.
5. Spray the ice chute inside and out with sanitizer and allow to air dry.
6. Pour warm soapy water down the drains to keep them clean and flowing smoothly.
7. Spray the nozzles and diffusers inside and outside with approved sanitizing solution, reinstall them on the
valves and allow to air dry.
8. Reinstall the cup rest into the drip tray.
9. Pour all remaining sanitizer solution down the drains to help keep the drain clear.
Daily Maintenance:
1. Check the temperature, smell and taste of the product.
2. Check the water pressure coming to the unit using the pressure gauges on the back room package.
3. Check carbonation of the drink
4. Check level of CO2 supply to the system.
5. Check the date on all of the BIB’s (bags in boxes).
Weekly Cleaning: (In addition to daily procedures)
Remove the ice chute cover and clean it along with the back half with warm soapy using the brush provided with
the unit. Rinse with clean water and reinstall on the unit. Spray the ice chute assembly with approved sanitizer
allowing it to air dry.
When pouring liquid into the hopper, do not exceed the rate of 1/2 gallon per minute. Pouring more liquid into the
hopper could result in an overflow situation may result in injury or damage to the equipment.
1. Remove agitator assembly.
2. Using a nylon bristle brush or sponge, clean the interior of the hopper, top cover and agitator assembly with
soap solution. Thoroughly rinse the hopper, cover and agitator surfaces with clean potable water.

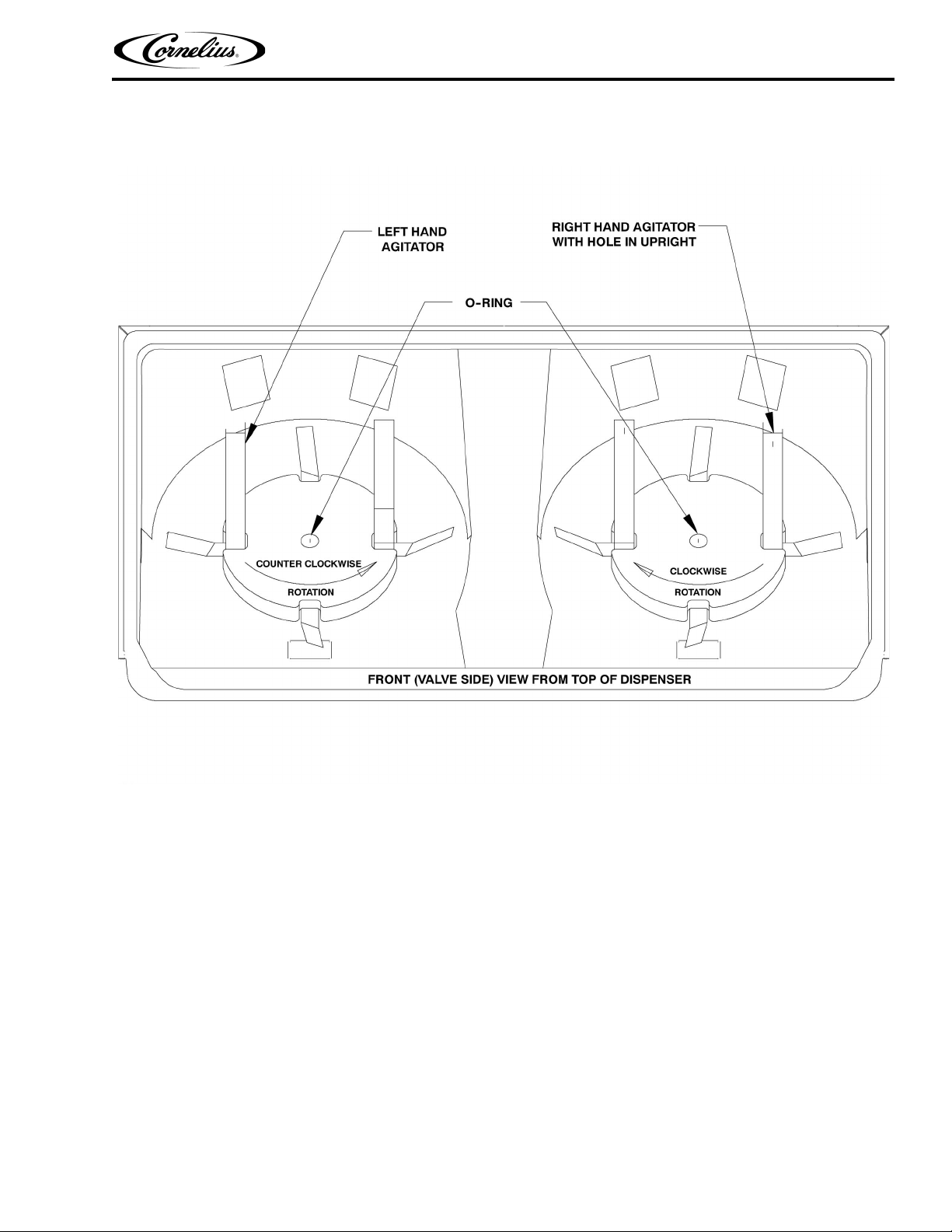

3. Reassemble agitator assembly. Take special care to ensure that the thumbscrew is tight.
4. Using a mechanical spray bottle filled with sanitizing solution, spray the entire interior and agitator assembly. Allow to air dry.
5. Remove merchandiser and ice chute cover from unit.
6. With a nylon bristle brush or sponge, clean the inside of the ice chute, gasket, and cover with soap solution
and rinse thoroughly to remove all traces of detergent.
7. Reassemble ice chute assembly.
8. Using a mechanical spray bottle filled with sanitizing solution, spray the inside of the ice chute. Allow to air
dry.
9. Reinstall merchandiser.
Cold Plate (Yearly Maintenance)
1. Remove splash panel.
2. Remove or move the plastic cold plate cover to expose the cold plate.
3. Locate and remove any debris from the drain trough. Check that the drain holes are not clogged.
4. Pour small amount of soap solution through cold plate openings in hopper.
5. Using a cloth, wash down the surfaces of the cold plate and plastic cover with soap solution.
6. Install and properly position the access covers on the cold plate.
7. Install the splash panel in the reverse order it was removed.
8. Rinse cold plate surface by pouring potable water through hopper openings.
Refer to addendum supplied with the unit that is applicable to the manufacturer of the valves installed on the
unit.
Product Tubing (Monthly Cleaning)
IMPORTANT: Only trained and qualified persons should perform these cleaning and sanitizing
procedures.
Sanitize Pre-Mix And Post–Mix Tank System
1. Remove all the quick disconnects from all the tanks. Fill a suitable pail or bucket with soap solution.
2. Submerge all disconnects (gas and liquid) in the soap solution and then clean them using a nylon bristle
brush. (Do not use a wire brush). Rinse with clean water.
3. Prepare sanitizing solution and using a mechanical spray bottle, spray the disconnects.
Allow to air dry.
4. Using a clean, empty tank, prepare five (5) gallons of the sanitizing solution. Rinse the tank disconnects
with approximately 9 oz. of the
5. Prepare cleaning tank by filling clean five (5) gallon tank with a mixture of mild detergent and potable water
o
F).
(120
6. Connect a gas disconnect to the tank and then apply one of the product tubes to the cleaning tank. Operate the appropriate valve until liquid dispensed is free of any syrup.
7. Disconnect cleaning tank and hook up sanitizing tank to syrup line and CO
8. Energize beverage faucet until chlorine sanitizing solution is dispensed through the faucet. Flush at least
two (2) cups of liquid to ensure that the sanitizing solution has filled the entire length of the syrup tubing.
9. Allow sanitizer to remain in lines for fifteen (15) minutes.
10. Repeat the step above, applying a different product tube each time until all tubes are filled with the sanitizing solution.
11. Remove the nozzle and syrup diffuser and clean them in a mild soap solution.
Rinse with clean water and reassemble the nozzle and syrup diffuser on the valve.
12. Rinse the parts in clean water, reassemble the valve and reconnect it to the dispenser.
13. Discard the tank of sanitizing solution and reconnect the product syrup tanks. Operate the valves until all
sanitizer has been flushed from the system and only product syrup is flowing.
sanitizing solution. Close the tank.
system.
2
Sanitize syrup lines, B–I–B Systems
1. Remove all the quick disconnects from all the B–I–B containers.
2. Fill a suitable pail or bucket with soap solution.
3. Submerge all disconnects (gas and liquid) in the soap solution and then clean them using a nylon bristle
brush. (Do not use a wire brush). Rinse with clean water.
4. Using a plastic pail, prepare approximately five (5) gallons of sanitizing solution.
5. Rinse the B–I–B disconnects in the sanitizing solution.
6. Sanitizing fittings must be attached to each B–I–B disconnect. If these fittings are not available, the fittings
from empty B–I–B bags can be cut from the bags and used. These fittings open the disconnect so the sanitizing solution can be drawn through the disconnect.
7. Place all the B–I–B disconnects into the pail of sanitizing solution. Operate all the valves until the sanitizing
solution is flowing from the valve. Allow sanitizer to remain in lines for fifteen (15) minutes.
8. Remove the nozzle and syrup diffuser from each valve and clean them in a soap solution. Rinse with clean
water and reassemble the nozzle and syrup diffuser to the valve.
9. Remove the sanitizing fittings from the B–I–B disconnects and connect the disconnects to the appropriate
B–I–B container. Operate the valves until all sanitizer has been flushed from the system and syrup is flowing freely.
NOTE:When indicator on the 1800-psi gage is in the shaded (“change CO2 cylinder”) portion of the dial, CO2 cylinder is almost empty and should be changed.
1. Fully close (clockwise) the CO
2. Slowly loosen the CO
regulator assembly coupling nut allowing CO2 pressure to escape, then remove the
2
regulator assembly from the empty CO
3. Unfasten safety chain and remove the empty CO2 cylinder.
To avoid personnel injury and/or property damage, always secure the CO2 cylinder with a safety chain to prevent it
from falling over. Should the valve become accidently damaged or broken off, a CO
personnel injury or death could occur.
4. Position the full CO2 cylinder and secure with a safety chain.
5. Make sure gasket is in place inside the CO
assembly on the CO
cylinder.
2
6. Open (counterclockwise) the CO
the valve fully to back-seat the valve (back-seating the valve prevents gas leakage around the valve shaft).
7. Check CO
connections for leaks. Tighten any loose connections.
2
cylinder valve.
2
cylinder
2
cylinder valve slightly to allow the lines to slowly fill with gas, then open
2
.
regulator can cause serious
2
regulator assembly coupling nut, then install the regulator
IMPORTANT: Only qualified personnel should service internal components or electrical wiring.
If repairs are to be made to a product system, remove quick disconnects from the applicable product tank, then
relieve the system pressure before proceeding. If repairs are to be made to the CO2system, stop dispensing, shut
off the CO2 supply, then relieve the system pressure before proceeding. If repairs are to be made to the refrigeration
system, make sure electrical power is disconnected from the unit.
Should your unit fail to operate properly, check that there is power to the unit and that the hopper contains ice. If the
nit does not dispense, check the following chart under the appropriate symptoms to aid in locating the defect.
u
Tr ou bl e
BLOWN FUSE OR CIRCUIT BREAKER.
GATE DOES NOT OPEN. AGITATOR DOES
NOT TURN.
GATE DOES NOT OPEN OR IS SLUGGISH.
AGITATOR TURNS.
ICE DISPENSES CONTINUOUSLY.
SLUSHY ICE. WATER IN HOPPER.
BEVERAGES DO NOT DISPENSE.
BEVERAGES TOO SWEET.
BEVERAGES NOT SWEET ENOUGH.
BEVERAGES NOT COLD (UNITS WITH BUILT-IN
COLD PLATE).
AGITATORS TURN IN OPPOSITE DIRECTIONS
ICE DOES NOT DISPENSE FROM ONE GATEA. Agitators reversed
ASSEMBLY
A. Short circuit in wiring.
B. Defective gate solenoid.
C. Defective agitator motor.
A. No power.
B. Bent depressor plate (does not actuate switch).
C. Defective dispensing switch
A. Defective gate solenoid.
B. Excessive pressure against gate slide.
C. Defective rectifier.
A. Stuck or bent depressor plate (does not
release switch).
B. Defective dispensing switch.
C. Improper switch installation.
A. Blocked drain
. Unit not level.
B
C. Poor ice quality due to water quality or ice maker
problems.
D. Improper use of flaked ice.
A. No 24 volt power to faucets.
B. No CO2 pressure.
A. Carbonator not working
. No CO2 pressure in carbonator.
B
C. Faucet brix requires adjusting
A. Empty syrup tank.
B. Faucet brix requires adjusting
A. Unit standing with no ice in hopper -- no ice incold
plate cabinet.
A. This is normal and is necessar
agitation.
B. Defective gate solenoid or rectifier
C. Motors wired incorrectly
A. No 24 volt power to PC board.
B. No CO2 pressure.
C. Empty syrup tank.
D. Kinked tubing.
E. Clogged inner nozzle.
F. Defective PC board.
G. Defective harness from keypad.
H. Defective Flow control.
I. Defective solenoid harness.
J. Defective keypad
FLAVOR DISPENSES FOR MORE THAN 1 SEC
A. Dip switch settings on control board incorect.
B
. PC board defective.
C. Defective flow control.
FLAVOR DISPENSES MORE THAN .5 OZ
A. Dip switch settings on control board incorrect.
B. Flow control incorrectly set.
C. PC board defective.
D. Defective flow control.
Contact your local syrup or beverage equipment distributor for additional information and troubleshooting of
beverage system.
