COR35VMSD
EXPLODED VIEW
IMI CORNELIUS INC.
www.cornelius.com
1-800-238-3600
ILLUSTRATED PARTS LIST
VISUAL MERCHANDISER
Item No. Part No. Name
3 FIGURE 3 Condensing unit 1/3 HP
115V/60Hz
4 FIGURE 4 Sliding door system
5A 1035044 Sliding door track Vert
5B 1035045 Sliding door track Horiz
8 1035032 Header sign
9 1034919 Pilaster 48”
5A
5B
FIGURE 1
Item No. Part No. Name
10 1035036 Right flat shelf
1035037 Left flat shelf
11 1033450 Shelf clips
12 1035038 Front grill
13 1035039 Water pan
14 1033235 Leveling legs
COR35VMSD 1 of 5 Manual Part No.: 630460250IPL
© IMI Cornelius Inc., 2005-2006 Revision Date: March 14, 2006
Revision: B
IMI CORNELIUS INC.
www.cornelius.com
Telephone 1-800-238-3600
COR35VMSD
REFRIGERATION SYSTEM
FIGURE 2
Item No. Part No. Name
1 1034923 Evaporator
2 1034924 Accumulator
3 1035392 Heat exchanger
4 1034925 Thermostat
Manual Part No.: 630460250IPL 2 of 5 COR35VMSD
Revision Date: March 14, 2006 © IMI Cornelius Inc., 2005-2006
Revision: B
Item No. Part No. Name
5 1037654 Thermostat bracket
7 1035042 Fan motor bracket
8 1034855 Fan motor and blade
9 1033247 Fan guard
COR35VMSD
CONDENSING UNIT ASSEMBLY AND ITS COMPONENTS
IMI CORNELIUS INC.
www.cornelius.com
1-800-238-3600
FIGURE 3
Item No. Part No. Name
1 1034904 Compressor 1/3 HP
115V/60H
2 1034906 Overload protector
MRT26ADK-5590
3 1034908 Relay 213516051
4 1034909 Electrical box
Item No. Part No. Name
5 1034910 Start capacitor 378-454
µF
6 1035025 Condenser
7 1035026 Condenser shroud
8 1034933 Condenser fan motor
and blade
9 1033253 Drier
10 1033255 Power cord
COR35VMSD 3 of 5 Manual Part No.: 630460250IPL
© IMI Cornelius Inc., 2005-2006 Revision Date: March 14, 2006
Revision: B
IMI CORNELIUS INC.
www.cornelius.com
Telephone 1-800-238-3600
COR35VMSD
SLIDING DOORS ASSEMBLY AND ITS COMPONENTS
B
A
FIGURE 4
Item No. Part No. Name
A
B
1042082
1035027
Complete sliding door Left
Complete sliding door Right
1 1035046 Sliding doors rail *
2 1035047 Sliding door seal
3 1035048 Sliding door gasket
4 1035028 Glass pane
Manual Part No.: 630460250IPL 4 of 5 COR35VMSD
Revision Date: March 14, 2006 © IMI Cornelius Inc., 2005-2006
Revision: B
Item No. Part No. Name
5 1035029 Sliding door roller
6 1035030 Sliding door spring
7 1035031 Sliding door bumper
8 1035049 Rubber gasket
*Each cabinet uses two sliding door rails 37-1/4”
long.
IMI CORNELIUS INC.
www.cornelius.com
1-800-238-3600
COR35VMSD

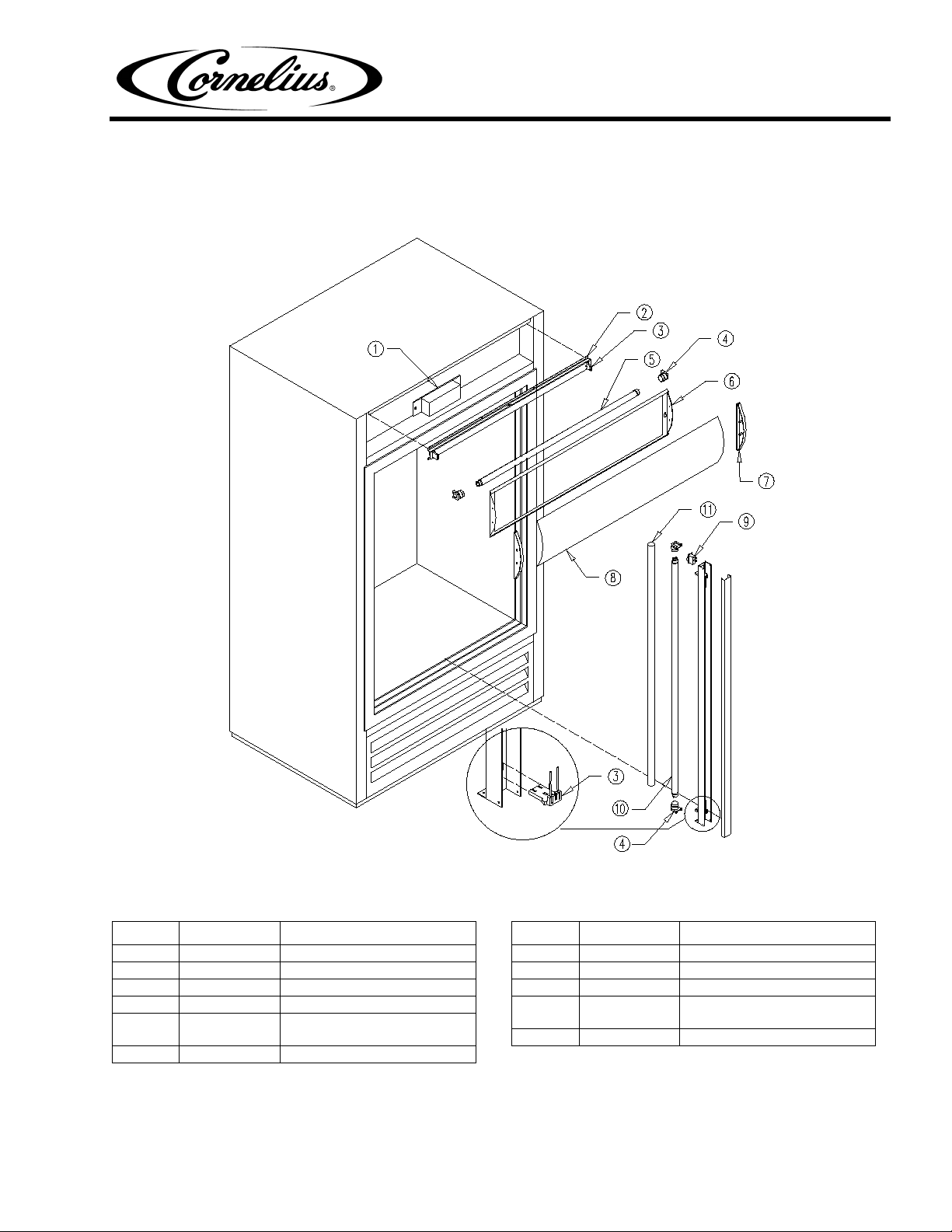

INTERIOR AND SIGN LIGHTING SYSTEM ASSEMBLY AND ITS COMPONENTS
FIGURE 5
Item No. Part No. Name
1 1034893 Ballast QT2x32 T8/120
2 1035033 Lamp
3 1033256 Lampholder
4 1033257 Lampholder cap
5 1037655 Fluorescent tube T8
FO25/865/XP/ECO
Item No. Part No. Name
7 1034896 Plastic sign ends
8 1035035 Acrylic sign
9 1034886 Light switch
10 1035400 Fluorescent tube T8
FO32/865/XP/ECO
11 1034918 Light shield
6 1035034 Sign frame
COR35VMSD 5 of 5 Manual Part No.: 630460250IPL
© IMI Cornelius Inc., 2005-2006 Revision Date: March 14, 2006
Revision: B
