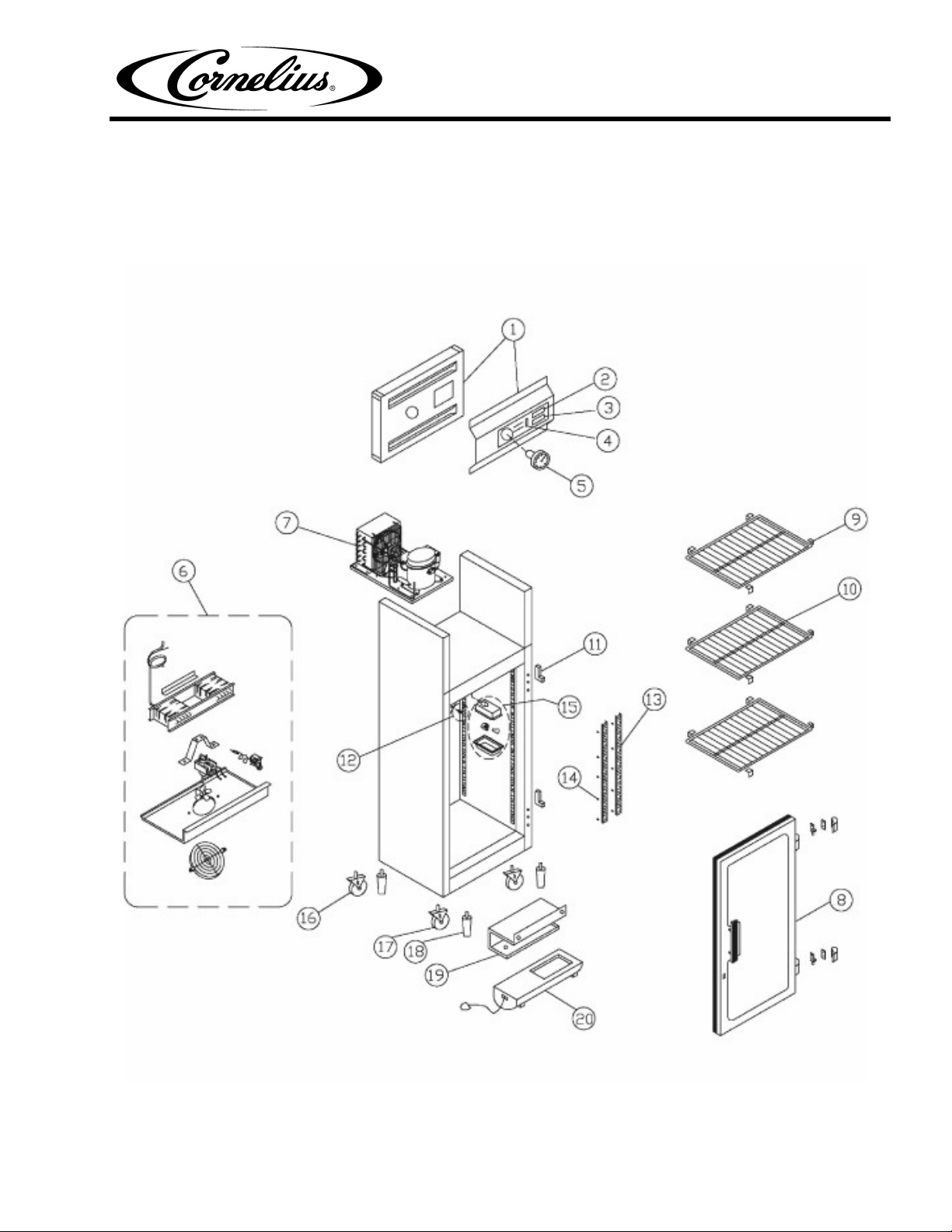

COR22RRTM
EXPLODED VIEW
IMI CORNELIUS INC.
www.cornelius.com
1-800-238-3600
ILLUSTRATED PARTS LIST
REACH-IN REFRIGERATOR
FIGURE 1
COR22RRTM 1 of 6 Manual Part No.: 630460255IPL
© IMI Cornelius Inc., 2007 January 17, 2007
Revision: A
IMI CORNELIUS INC.
www.cornelius.com
Telephone 1-800-238-3600
COR22RRTM
EXPLODED VIEW
Item No. Part No. Name
1 1043504 Motor cover assembly
2 1035303 Green power switch
3 1035301 Red door ajar switch
4 1035300 Condenser eliminator
switch
5 1035304 Thermometer
6 See FIGURE 2 Refrigeration system
7 See FIGURE 3 Complete condensing
unit 115V/60Hz
8 See FIGURE 4 Swing door system
9 1035221 Shelf clip
Item No. Part No. Name
10 1035298 Flat shelf
11 1035277 Door hinge
12 1035302 Door switch
13 1035288 Pilaster 48”
15 1035210 Pilaster buttons
15 See FIGURE 5 Interior lighting system
16 1035219 Casters with out brakes
17 1035220 Casters with brakes
18 1041348 Adjustable legs (optional)
19 1043502 Evaporator pan bracket
20 1035287 Evaporator pan
Manual Part No.: 630460255IPL 2 of 6 COR22RRTM
January 17, 2007 © IMI Cornelius Inc., 2007
Revision: A

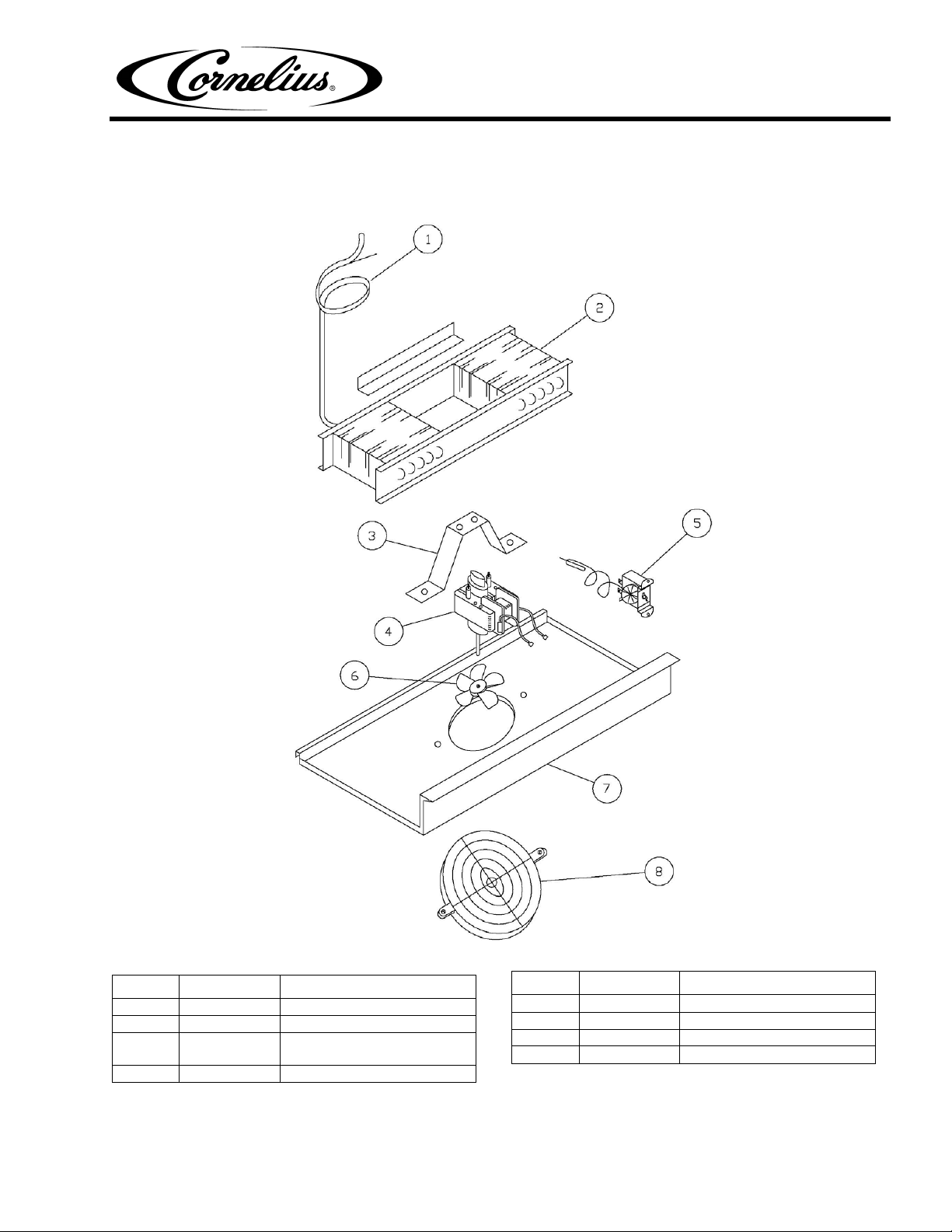

COR22RRTM
REFRIGERATION SYSTEM
IMI CORNELIUS INC.
www.cornelius.com
1-800-238-3600
FIGURE 2
Item No. Part No. Name
1 1043501 Heat exchanger
2 1035231 Evaporator
3 1043500 Evaporator fan motor
bracket
Item No. Part No. Name
5 1035249 Thermostat
6 1035266 Evaporator fan blade
7 1043499 Baffle
8 1035275 Fan guard
4 1035283 Evaporator fan motor
COR22RRTM 3 of 6 Manual Part No.: 630460255IPL
© IMI Cornelius Inc., 2007 January 17, 2007
Revision: A
IMI CORNELIUS INC.
www.cornelius.com
Telephone 1-800-238-3600

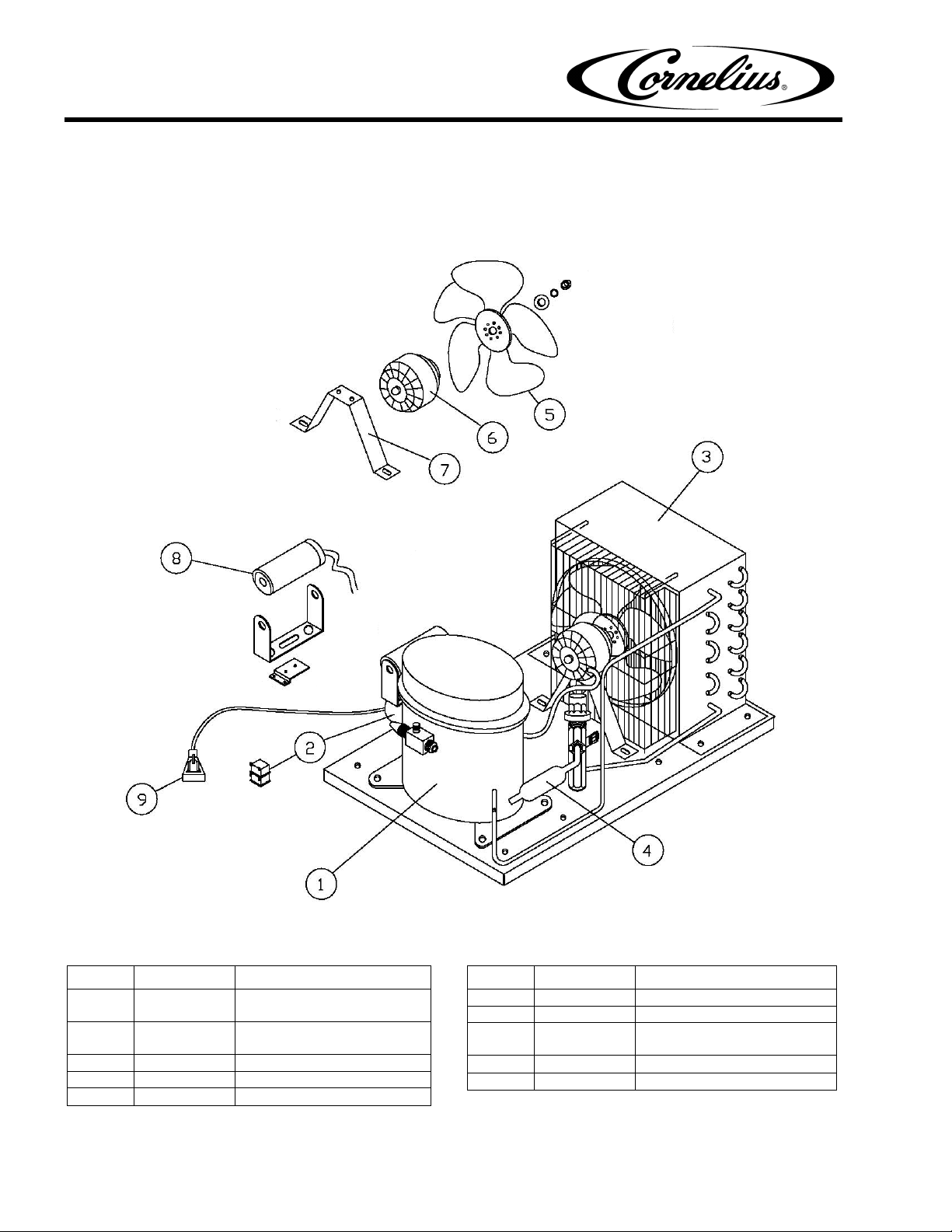

COR22RRTM
CONDENSING UNIT ASSEMBLY AND ITS COMPONENTS
FIGURE 3
Item No. Part No. Name
1043498 Complete condensing
unit 1/3HP 115V/60Hz
1 1035235 Compressor 1/3 HP 115V/
60Hz
2 1035290 Relays
3 1043497 Condenser
Item No. Part No. Name
5 1043032 Condenser fan blade
6 1035281 Condenser fan motor
7 1043031 Condenser fan motor
bracket
8 1035212 Capacitor
9 1042192 Power cord
4 1043301 Drier
Manual Part No.: 630460255IPL 4 of 6 COR22RRTM
January 17, 2007 © IMI Cornelius Inc., 2007
Revision: A

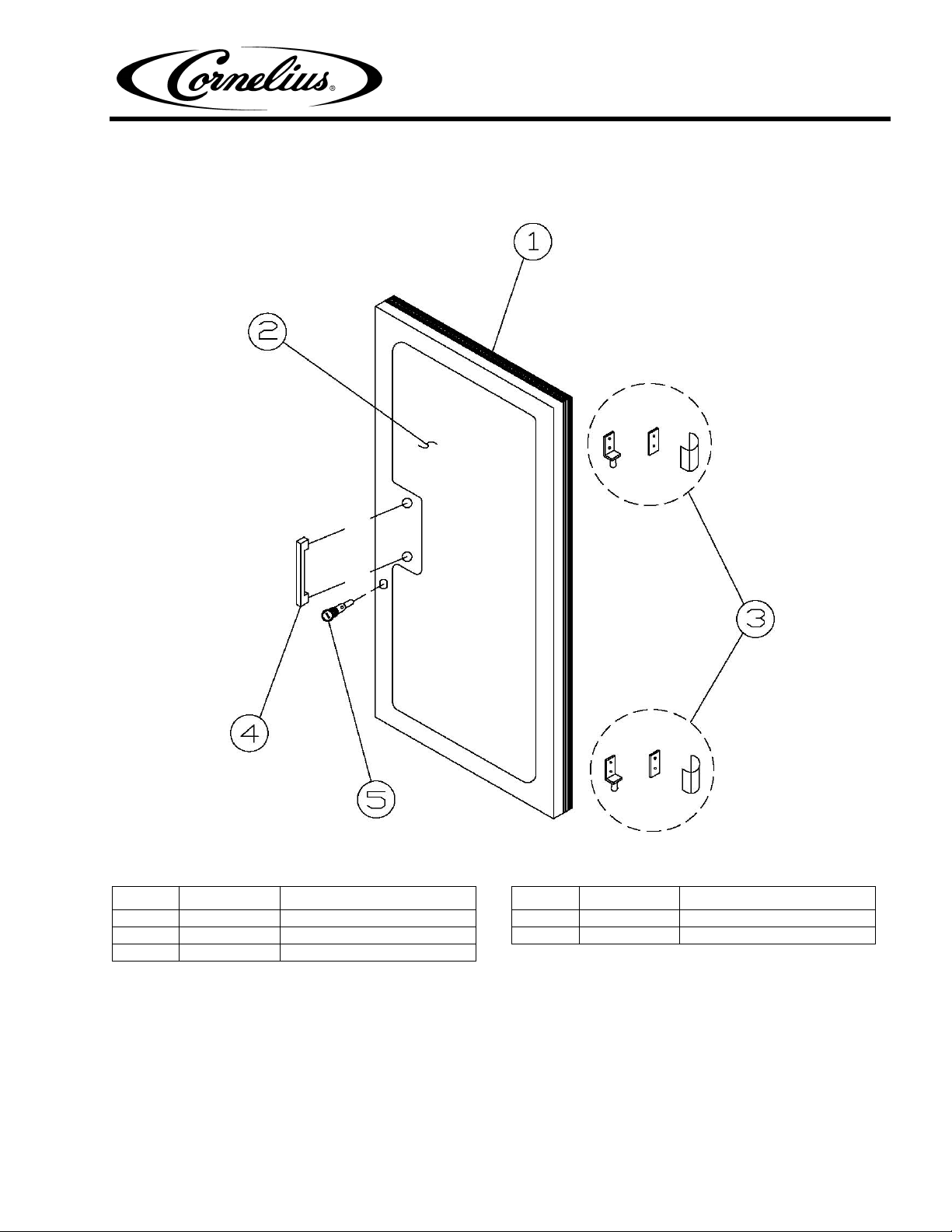

COR22RRTM
SWING DOOR ASSEMBLY AND ITS COMPONENTS
IMI CORNELIUS INC.
www.cornelius.com
1-800-238-3600
FIGURE 4
Item No. Part No. Name
1 1035270 Magnetic gasket
2 1043496 Complete door
Item No. Part No. Name
4 1042189 Door handle
5 1041350 Cylinder locks
3 1035277 Door hinge assembly
COR22RRTM 5 of 6 Manual Part No.: 630460255IPL
© IMI Cornelius Inc., 2007 January 17, 2007
Revision: A
IMI CORNELIUS INC.
www.cornelius.com
Telephone 1-800-238-3600

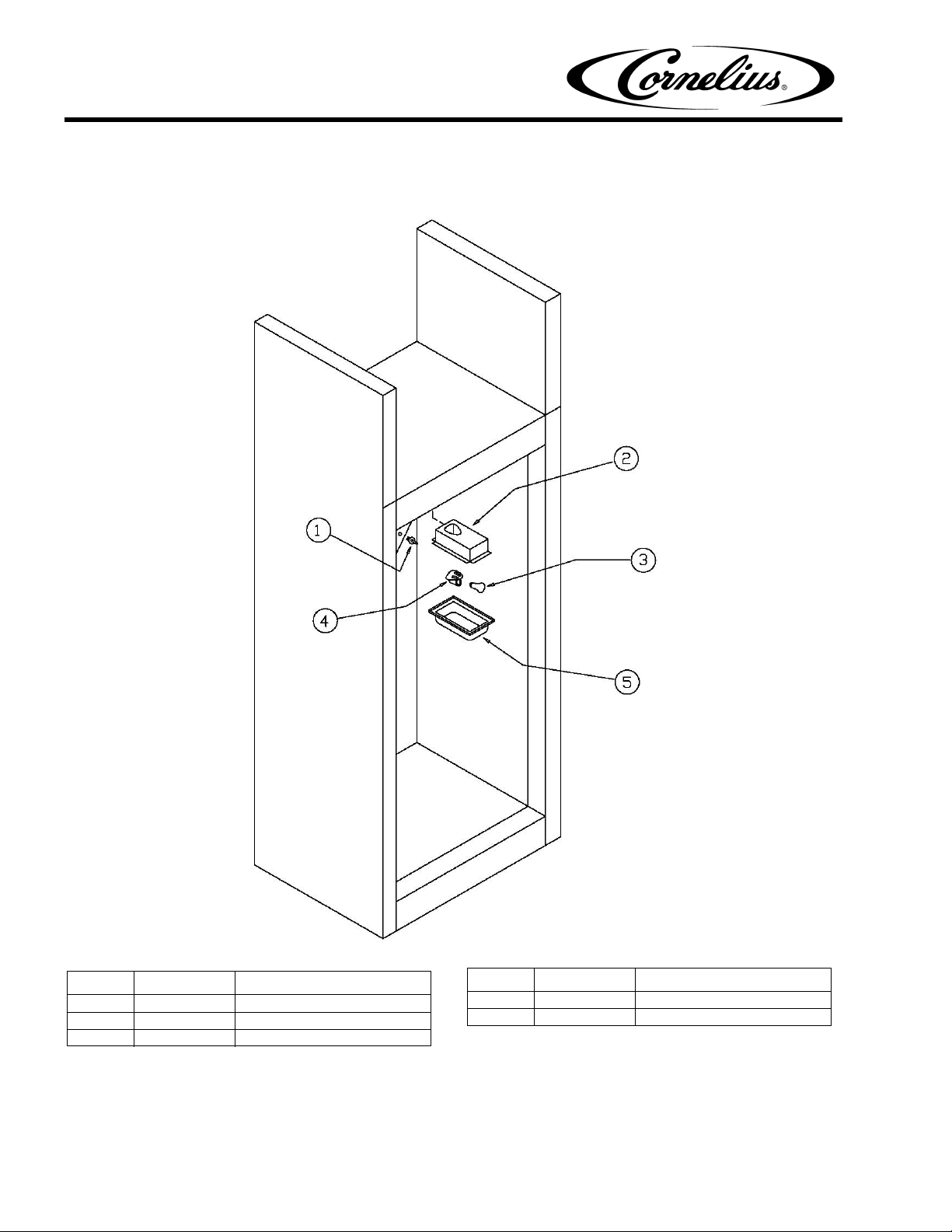

COR22RRTM
INTERIOR LIGHTING SYSTEM AND ITS COMPONENTS
FIGURE 5
Item No. Part No. Name
1 1035302 Interior light switch
2 1043495 Bulb bracket
Item No. Part No. Name
4 1042187 Bulb socket
5 1042186 Bulb guard
3 1035209 Bulb 40 Watts
Manual Part No.: 630460255IPL 6 of 6 COR22RRTM
January 17, 2007 © IMI Cornelius Inc., 2007
Revision: A
