COR17VM
EXPLODED VIEW
IMI CORNELIUS INC.
www.cornelius.com
1-800-238-3600
ILLUSTRATED PARTS LIST
VISUAL MERCHANDISER
FIGURE 1
Item No. Part No. Name
3 FIGURE 3 Condensing unit 1/4 HP
115V/60Hz
4 1034888 Swing door system
7 1033239 Pilaster 36”
8 1034892 Header sign
COR17VM 1 of 5 Manual Part No.: 630460246IPL
© IMI Cornelius Inc., 2005 May 25, 2005
Item No. Part No. Name
9 1034900 Flat shelf
10 1033450 Shelf clips
11 1034901 Front grill
12 1033235 Leveling legs
Revision: B
IMI CORNELIUS INC.
www.cornelius.com
Telephone 1-800-238-3600
COR17VM
REFRIGERATION SYSTEM
FIGURE 2
Item No. Part No. Name
1 1034884 Evaporator
2 1033243 Accumulator
3 1035391 Heat exchanger
4 1036811 Thermostat
5 1037649 Thermostat bracket
Manual Part No.: 630460246IPL 2 of 5 COR17VM
May 25, 2005 © IMI Cornelius Inc., 2005
Revision: B
Item No. Part No. Name
7 1034885 Evaporator pan
8 1035042 Fan motor bracket
9 1034855 Fan motor and blade
10 1034886 Light switch
11 1033247 Fan guard
COR17VM
CONDENSING UNIT ASSEMBLY AND ITS COMPONENTS
IMI CORNELIUS INC.
www.cornelius.com
1-800-238-3600
FIGURE 3
Item No. Part No. Name
1 1033248 Compressor 1/5 HP
115V/60H
2 1033250 Overload protector
4TM762PFBZZ-53
3 1033251 Relay 213516507
4 1033233 Electrical box
5 1033234 Start capacitor 243-292
µF
COR17VM 3 of 5 Manual Part No.: 630460246IPL
© IMI Cornelius Inc., 2005 May 25, 2005
Item No. Part No. Name
6 1034882 Condenser
7 1034883 Condenser shroud
8 1034855 Condenser fan motor
and blade
9 1033253 Drier
10 1033254 Compressor evaporation
tray
11 1033255 Power cord
Revision: B
IMI CORNELIUS INC.
www.cornelius.com
Telephone 1-800-238-3600
COR17VM

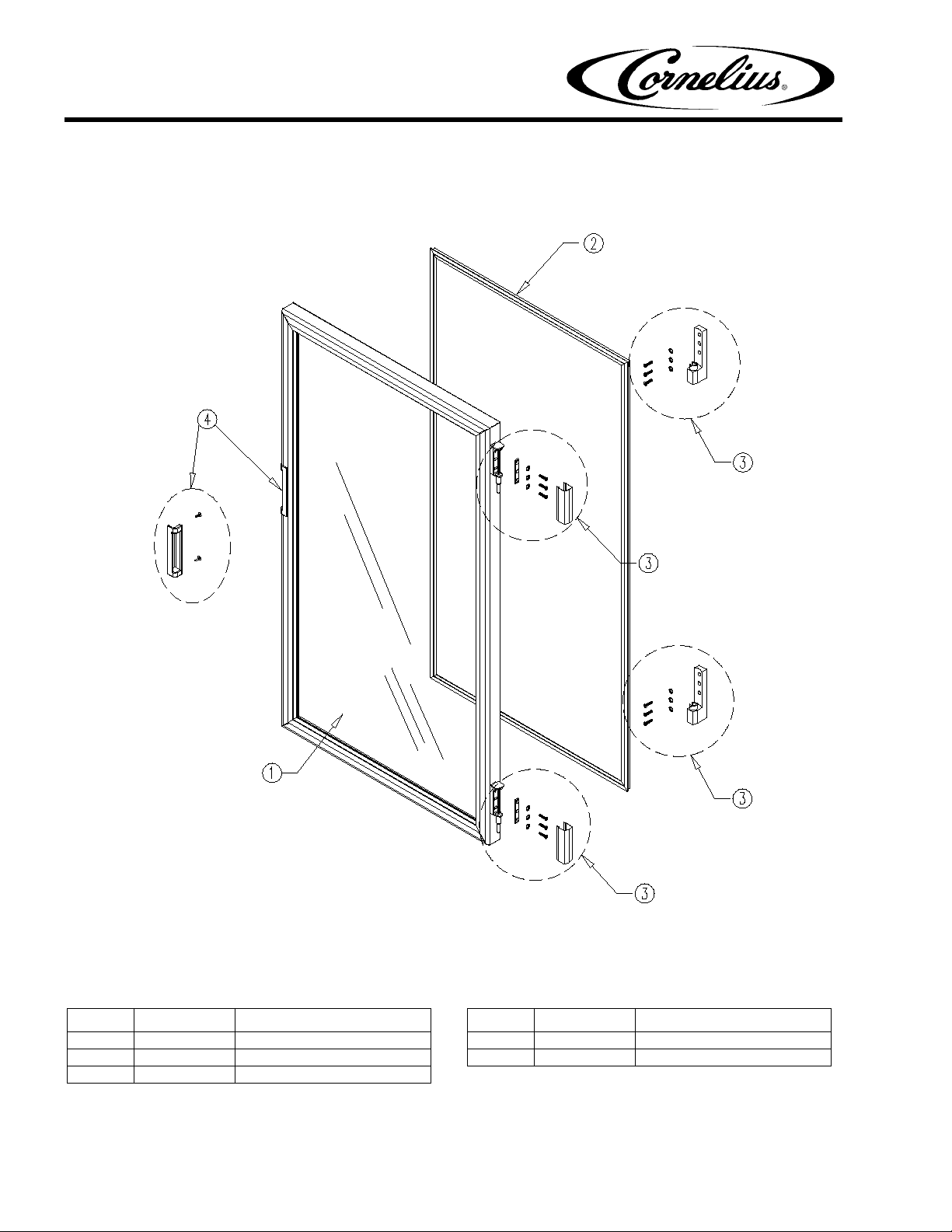

SWING DOOR ASSEMBLY AND ITS COMPONENTS
FIGURE 4
Item No. Part No. Name
1034888 Complete door
1 1034889 Glass pane
Item No. Part No. Name
3 1034891 Hinge assembly
4 1033237 Complete door handle
2 1034890 Magnetic gasket
Manual Part No.: 630460246IPL 4 of 5 COR17VM
May 25, 2005 © IMI Cornelius Inc., 2005
Revision: B
IMI CORNELIUS INC.
www.cornelius.com
1-800-238-3600
COR17VM
INTERIOR AND SIGN LIGHTING SYSTEM ASSEMBLY AND ITS COMPONENTS
FIGURE 5
Item No. Part No. Name
1 1034893 Ballast Quicktronic
QT2x32 T8/120
2 1034894 Lamp
3 1033256 Lampholder
4 1033257 Lampholder cap
Item No. Part No. Name
6 1034895 Sign frame
7 1034896 Plastic sign ends
8 1034897 Acrylic sign
9 1034898 Interior lamp
10 1034899 Light shield
5 1035399 Fluorescent tube T8
FO17/865/XP/ECO
COR17VM 5 of 5 Manual Part No.: 630460246IPL
© IMI Cornelius Inc., 2005 May 25, 2005
Revision: B
